PRECISION SPECIALTY TOOLING SE1M Straight Edge with Bevel 1000 x 40 x 8mm Made in Germany To DIN 866 B Standard
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M708

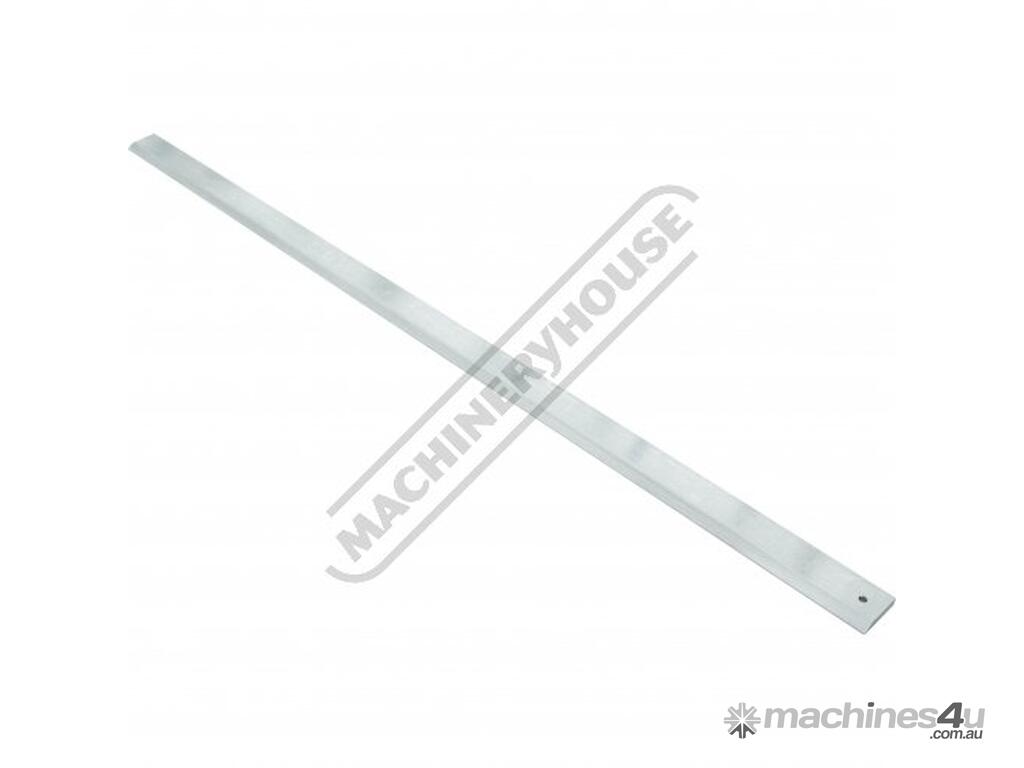

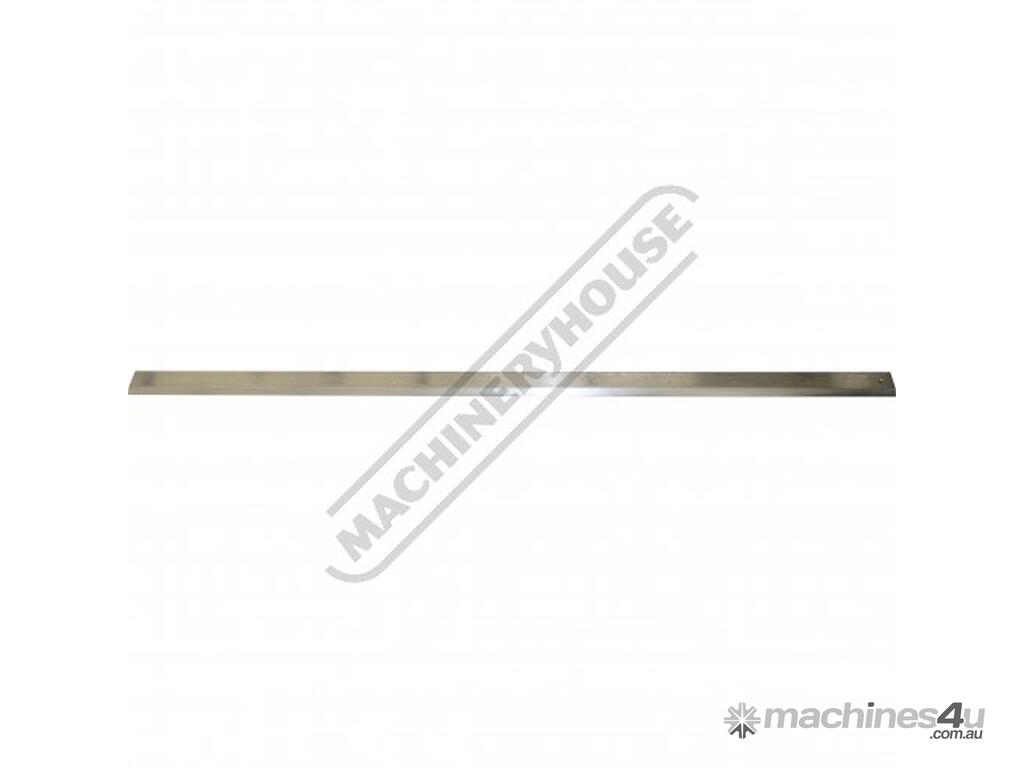

These are steel workshop quality straight edges with a bevelled edge, 40mm wide and 8mm thick, ground on all surfaces. Their main uses are for checking the straightness of lengths of timber, machine tables, plane soles etc.
Features:

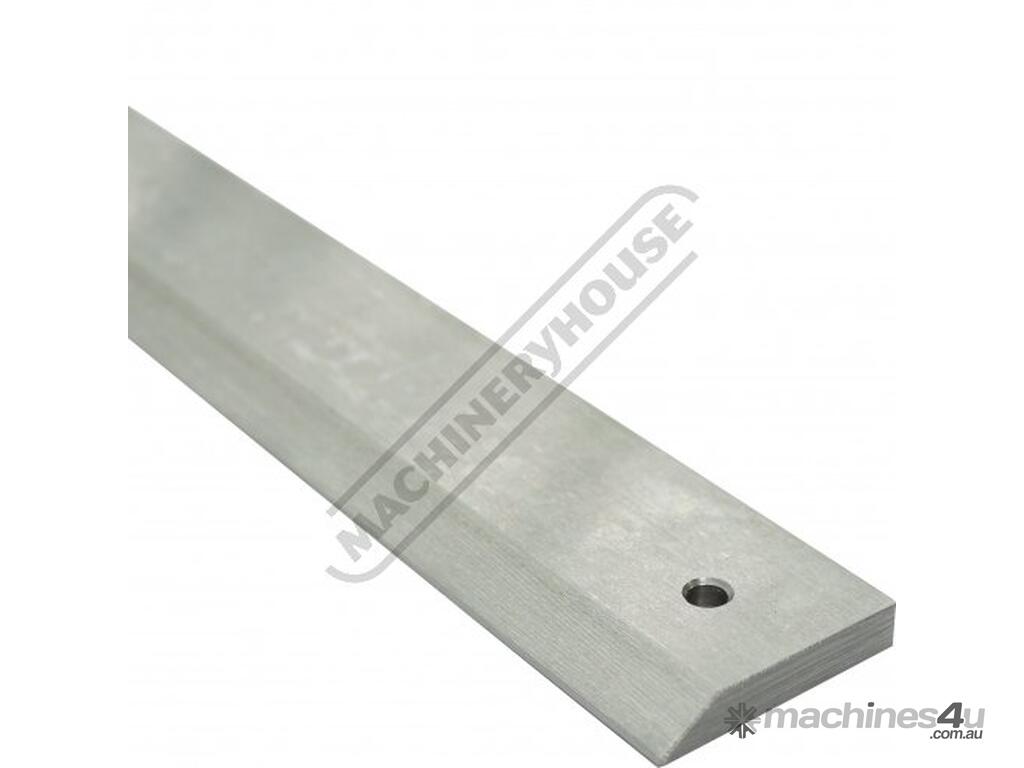

Straight edge & 35º bevelled edge
Precision ground finish on both sides and edges
Carbon tool steel
Workshop grade manufactured to DIN 866 B.
Specifications:
ORDER CODE: M708
Length (mm): 1000
Width (mm): 40
Thickness (mm): 8
Bevelled Edge (deg): 35º
Grade: Workshop
Standard: DIN 866 B.
Tolerance (mm): 0.10
