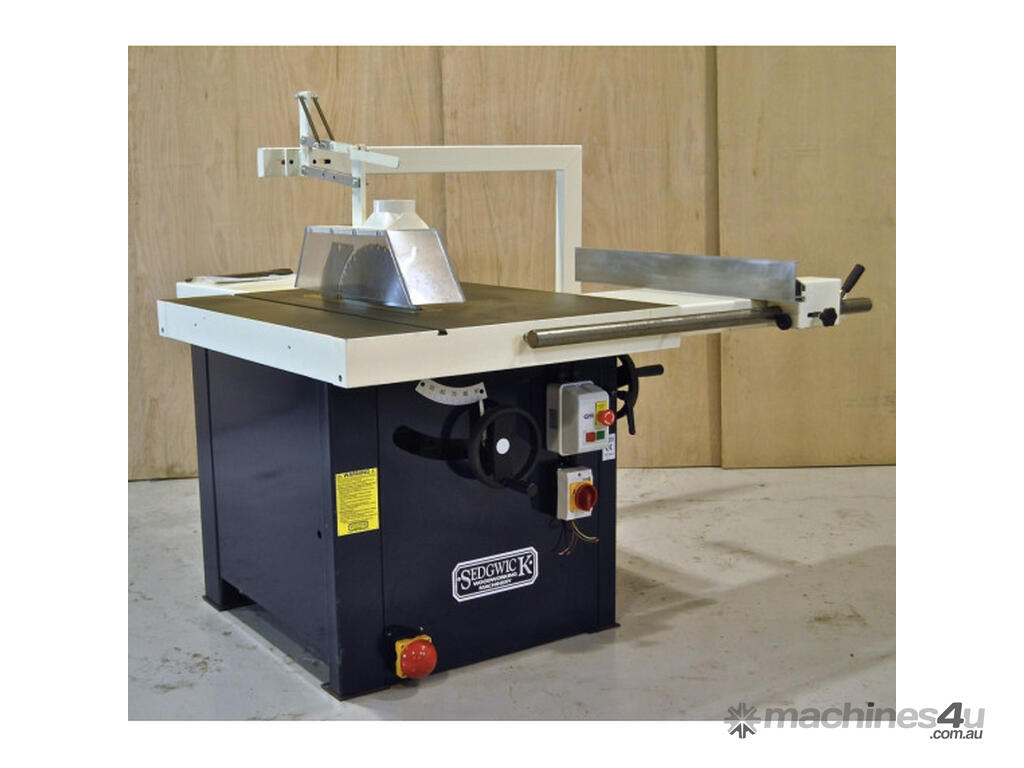

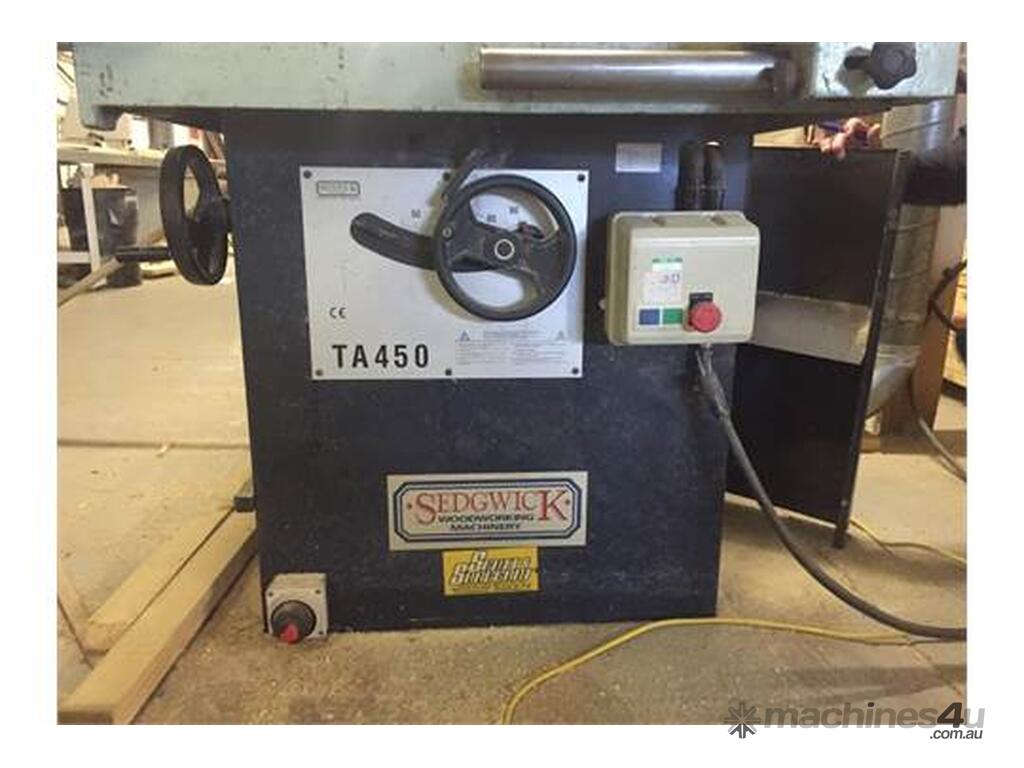

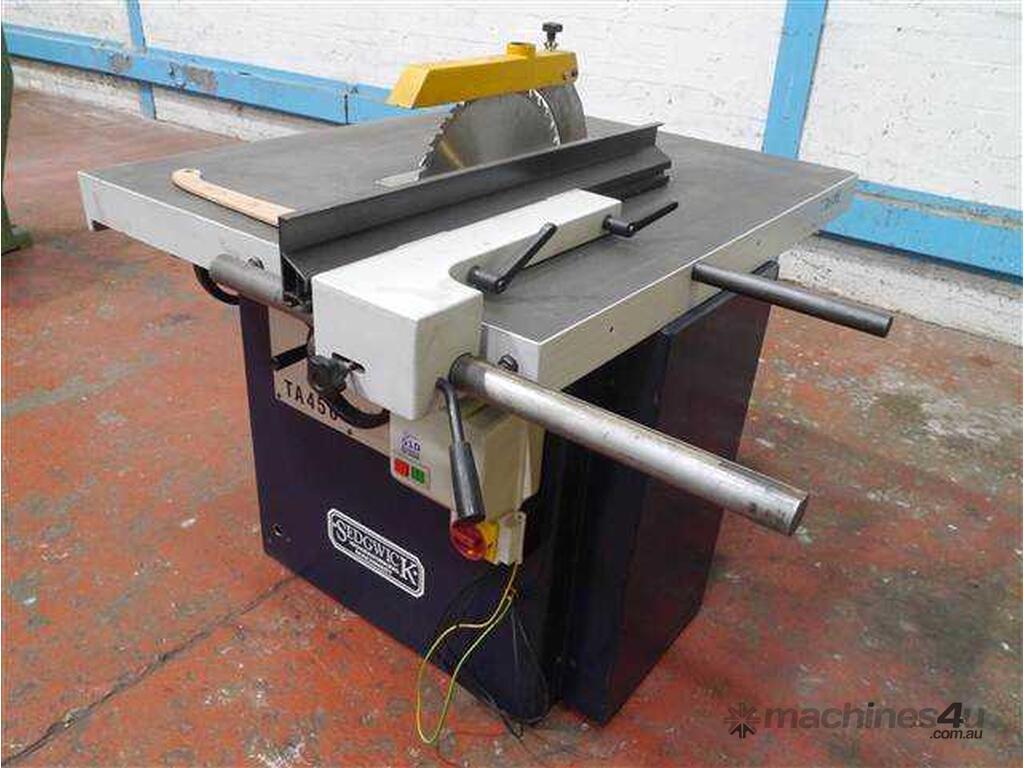

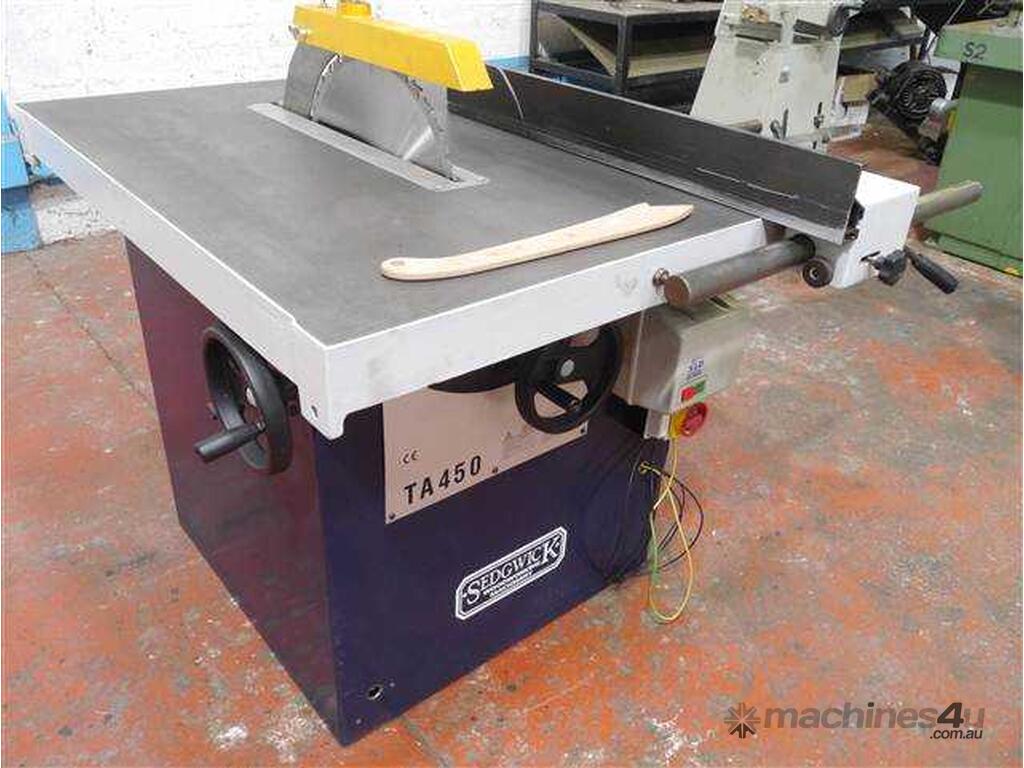

SEDGWICK TA450 Heavy duty Tilt Arbour ripsaw. MADE IN ENGLAND

Made in England. SEDGWICK is one of the only British Traditional machine manufacturers still producing. No mass production here so product is of very good quality
TA450 Includes
Ease of operation
The backbone of a joinery workshop is its sawbench. It should be powerful, accurate, reliable and simple and safe to operate. The Sedgwick range of saws is designed with this in mind, and offers outstanding value for money. Their strength is in their construction, precision engineering, and our insistence on using only the best quality components.

Construction
A large cast iron table mounted on a heavy duty steel cabinet provides maximum timber support and a stable and accurate base for anchoring the spindle, rise and fall, and tilt mechanisms. The spindle is powered by a high efficiency IE2 industrial rated motor via a three belt drive, and features large diameter saw flanges for blade stability. It runs in ‘sealed for life’ bearings mounted in a cast iron housing, and requires only minimal maintenance.
Rise and fall and tilt mechanisms are square thread screws operated by handwheels at the front and side of the machine. Both are easily accessible.

Versatility
The rip fence is aluminium section, allowing for two working positions (ripping and angled ripping) and for movement fore and aft in relation to the sawblade. It is fixed to a heavy duty cast iron mounting bracket for rigidity, and has integral micro adjustment. The assembly runs on a nylon roller, gliding easily across the beds, and is supported by a 40mm diameter solid steel bar for rigidity, which gives 915mm capacity from the sawblade (an optional RH extension table is available to increase this to 1220mm).

Safety Features
- Polycabonate overhead sawguard with 100mm dia Extraction Outlet
- Electro-magnetic Braked Motor
- Thermal overload no volt release protection
- Lock off emergency stop Button
- Lock off emergency foot switch
- Lockable isolator
Optional Cross Cut Table
Designed for cutting mitres and compound angles, end trimming, squaring, dividing and trimming, the Cross Cut Table is supported on the RHS by precision ground, case hardened bearing rollers running on a 40mm diameter solid steel bar, and on the LHS by a cast jib. The fence is aluminium section and features a telescopic arm, a flip over stop, and a quadrant scale (90o - 45o).

Machine Specification
SAW BLADE DIAMETER 450mm
SAW BLADE BORE 30mm
SAW BLADE PROJECTION 155mm 90o - 105mm 45o
SPINDLE SPEED 3000rpm
SIZE OF TABLE (LENGTH x WIDTH) 1125x1000mm
TABLE HEIGHT 855mm
DISTANCE SAW TO FENCE 915mm
FENCE WITH MICRO ADJUSTMENT 825x100mm
DUST EXTRACTION OUTLET MACHINE 150mm, 100mm
TOTAL AIR VOLUME REQUIRED 1870CMH
VOLTAGE/FREQUENCY
3 PHASE+EARTH; 400/230v – 50/60 Hz
MOTOR RATING 5.5Kw (7.5HP) IE2 (S1)
MOTOR FULL LOAD CURRENT IN AMPS 11.5A
STARTING CURRENT IN AMPS 69A
REQUIRED FUSE SIZE IN AMPS 25A/ph
REQUIRED CABLE SIZE 4mm2
NETT WEIGHT 468 kg
OPTIONAL 610mm CROSS CUT TABLE
OPTIONAL RIGHT HAND EXTENSION TABLE
DISTANCE SAW TO RIP FENCE 1220mm
OPTIONAL REAR TAKE OFF TABLE
