New Sedgwick Single End Tenoner for sale - SEDGWICK Tenoner

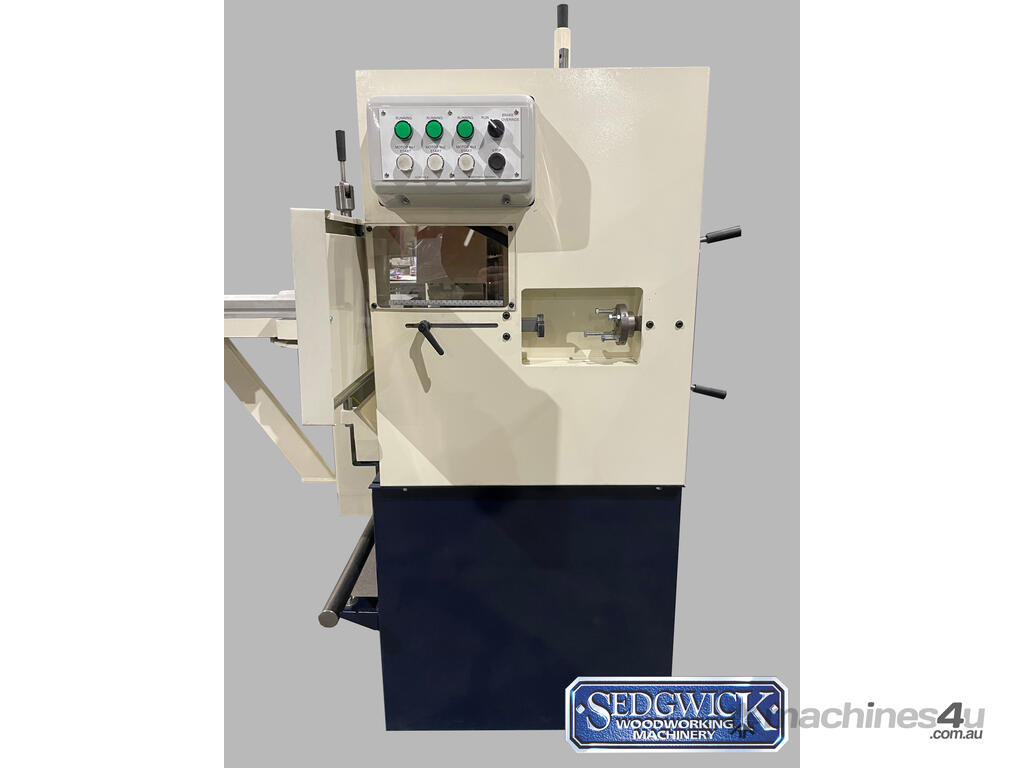

New SEDGWICK single end tenoner available from Euro Legno Machine Pty

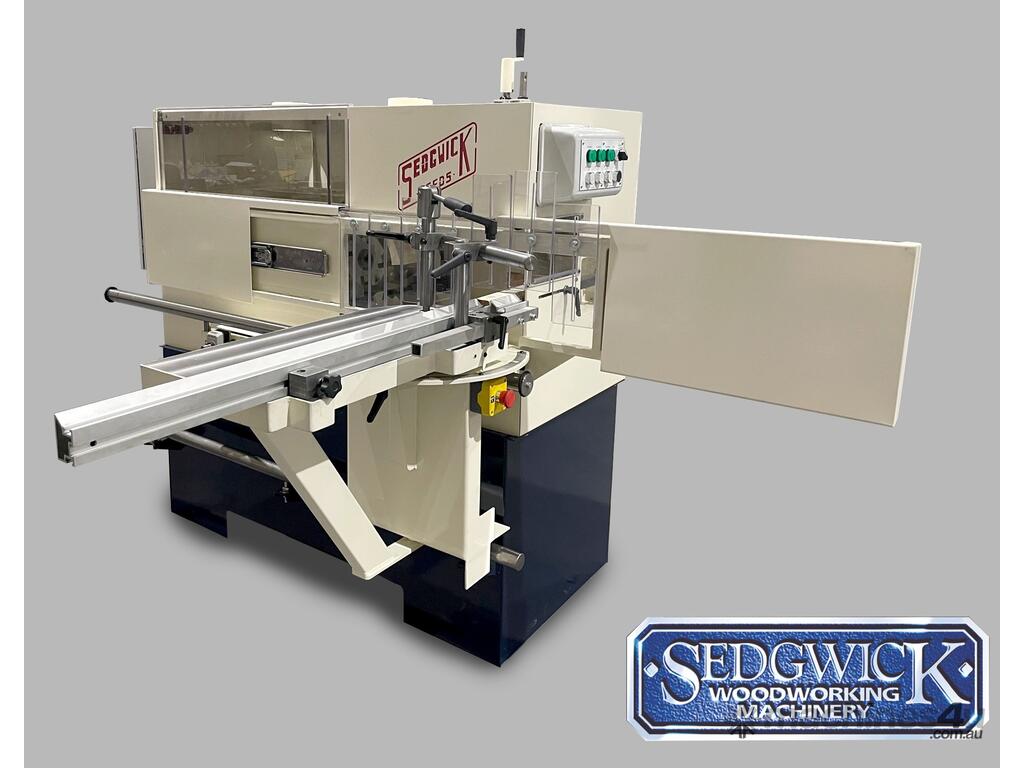

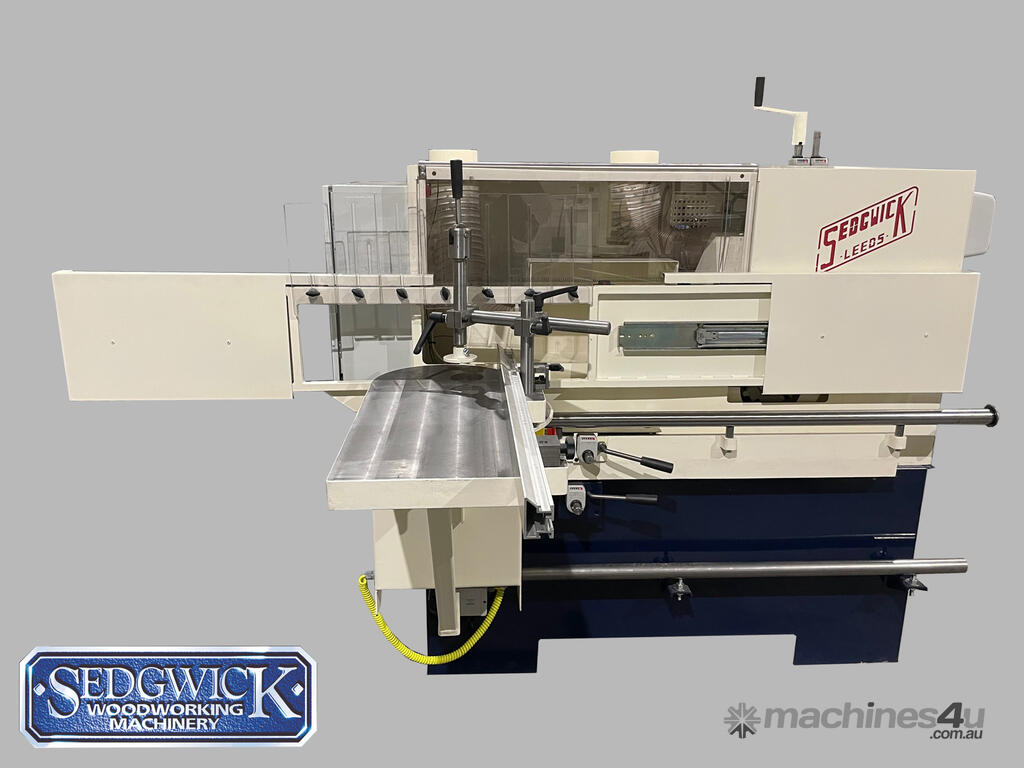

Quality MADE IN ENGLAND, Strong and solid single end tenoner.
Ease of operation

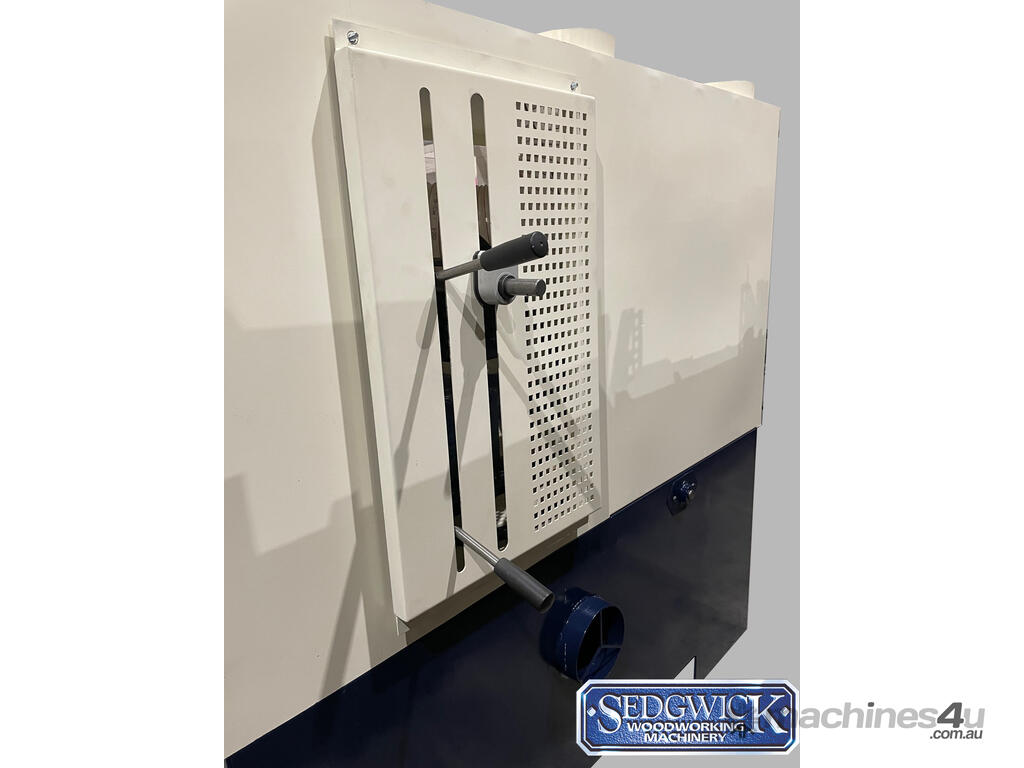

Taking only minutes to set up, the Sedgwick TE is easy to use and accurate in operation. Work is positioned on the rolling table against an end stop and a fence, and is secured by a cam action clamp. Its end is then passed between two vertically mounted cutter heads which machine the top and bottom cheeks of the tenon. The tenon width is set by raising or lowering the top motor, and its position on the timber by raising/lowering the two motors in tandem. Variations in shoulder length are set using the rule on the end stop, and staggered tenons are achieved by simple handwheel adjustment of the top motor, again reading from a rule.

Versatility

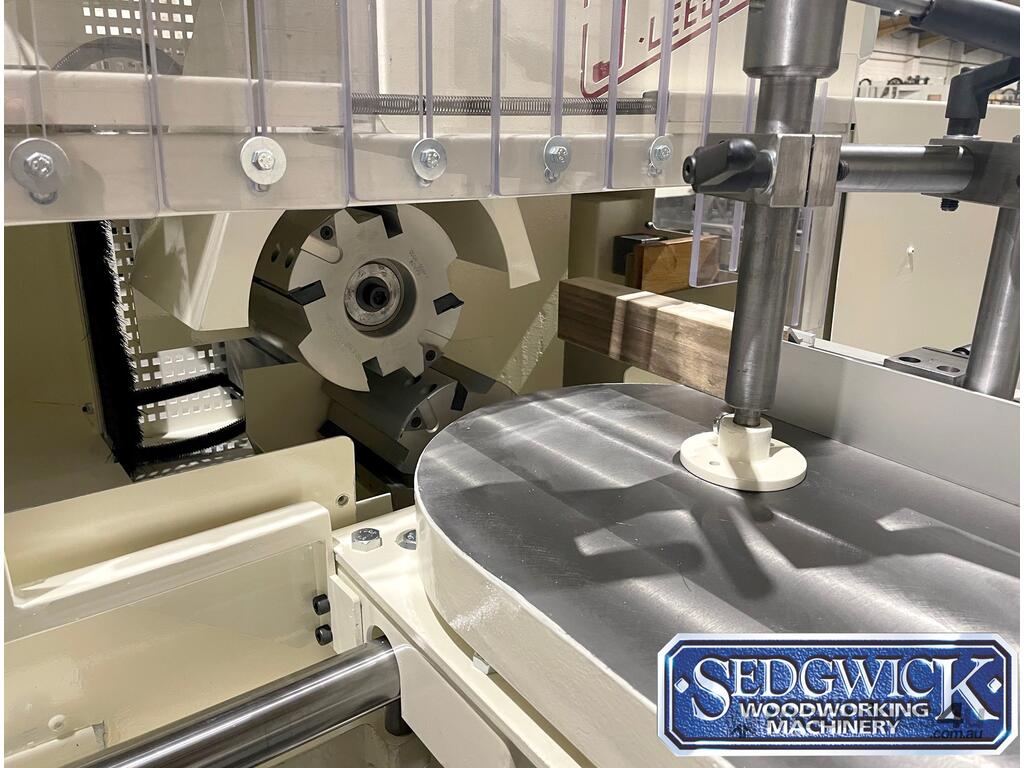

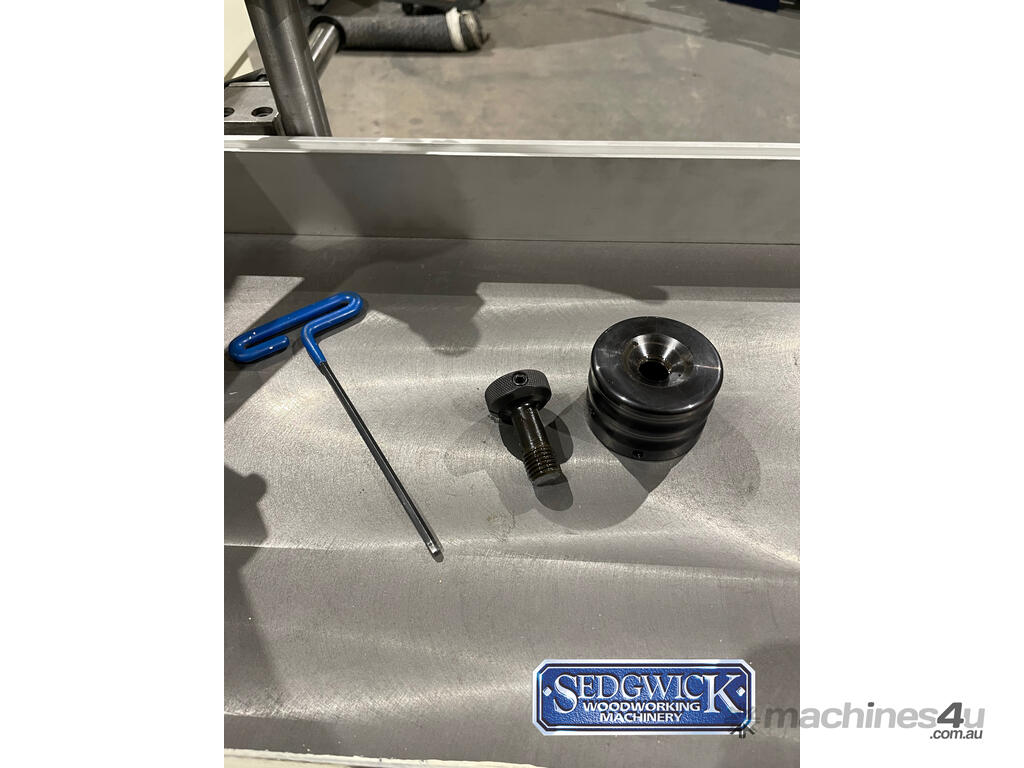

Each cutting head has provision for profile knives to enable the operator to match the cross section of the components being jointed. Alternatively the optional scribing head provides improved accuracy, ease of setting, and finish. Stepped tenons, splayed tenons, scribed tenons, double tenons, and multiple bridles are all possible on this versatile machine. Combinations of 90 degree and bevelled cutting discs with appropriate spacers can also be fitted to produce interleaved joints as used in sash window construction.

Construction

The Sedgwick TE350 is designed and built to withstand continuous production use. Its cast iron base, column and slideways provide a rigid and durable mainframe assembly, and the 2.2Kw motors supply ample power. The generously proportioned cast iron sliding table is mounted on bearing equipped hardened steel rollers for minimum wear, and cutter-head slide movements are easily adjusted on dovetail slides for ease of maintenance.


The TE/TESH offers all of these safety features as standard:
TIMBER CAPACITY mm 300 x 300mm
MAXIMUM TENON LENGTH 150mm
TABLE SIZE mm 765 x 340 (765x300 useful)
TABLE WORKING HEIGHT 890mm

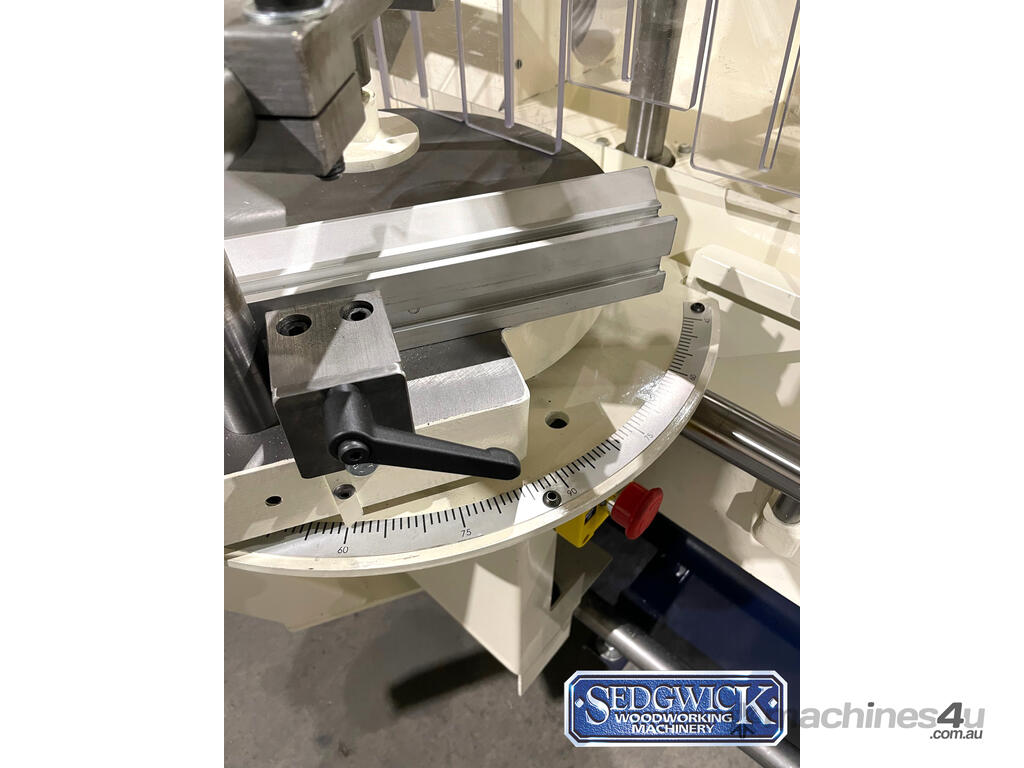

TABLE QUADRANT ADJUSTMENT +/- 0-60 degrees
HORIZONTAL TENONING HEADS
CUTTERBLOCKS 150 x 150 x 30mm
MAX TOOLING DIAMETER 155mm (BOTTOM) 200mm (TOP)
VERTICAL ADJUSTMENT OF BOTTOM CUTTERBLOCK -2mm / + 77mm
VERTICAL ADJUSTMENT OF TOP CUTTERBLOCK +4mm / + 150mm
HORIZONTAL ADJUSTMENT OF TOP CUTTERBLOCK -50mm /+ 20mm
DUST EXTRACTION OUTLETS 2 x 150mm
MOTOR RATING 2 x 2.2 Kw (S6 40%)
FULL LOAD CURRENT 4.75 AMPS
STARTING CURRENT 35 AMPS

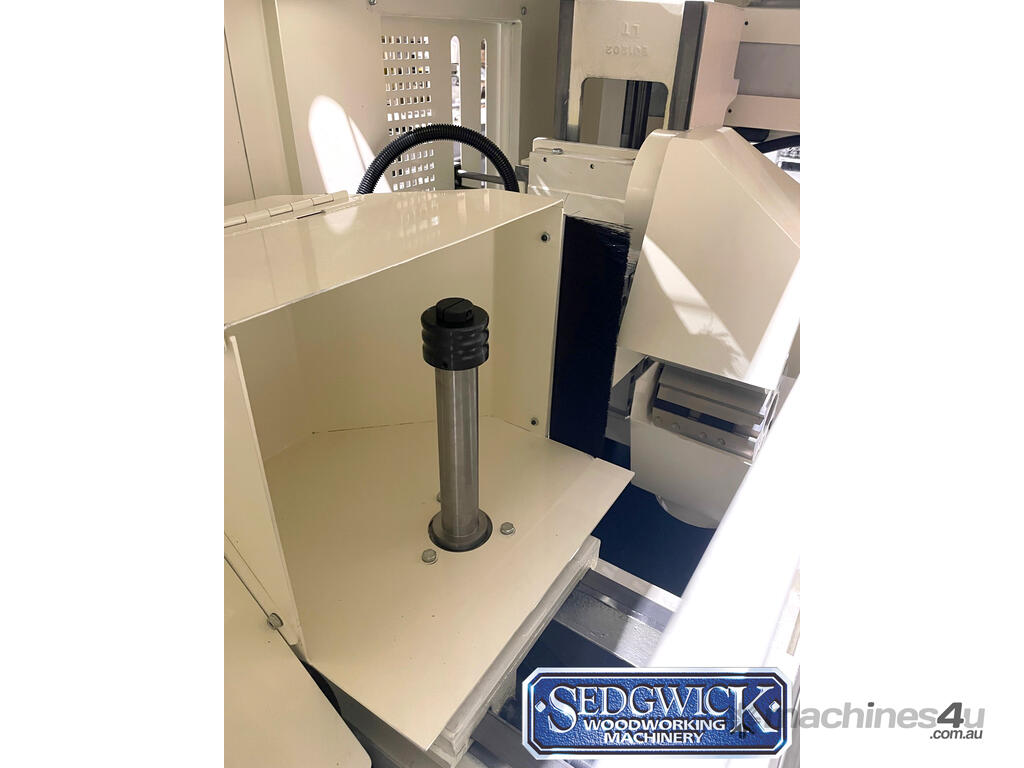

VERTICAL SPINDLE
SHAFT DIAMETER 40mm
EFFECTIVE LENGTH OF SHAFT 205mm
VERTICAL MOVEMENT 140mm
HORIZONTAL MOVEMENT 150mm
MAXIMUM TOOLING DIAMETER 350mm
SPINDLE SPEED 4000 RPM
MOTOR RATING 5.5Kw (S1)
FULL LOAD CURRENT 11.5 AMPS
STARTING CURRENT 69 AMPS
ELECTRICAL
VOLTAGE / FREQUENCY 3 PHASE + EARTH; 400/230 V – 50/60 Hz
REQUIRED FUSE SIZE 25A/ph
REQUIRED CABLE SIZE 4mm2
