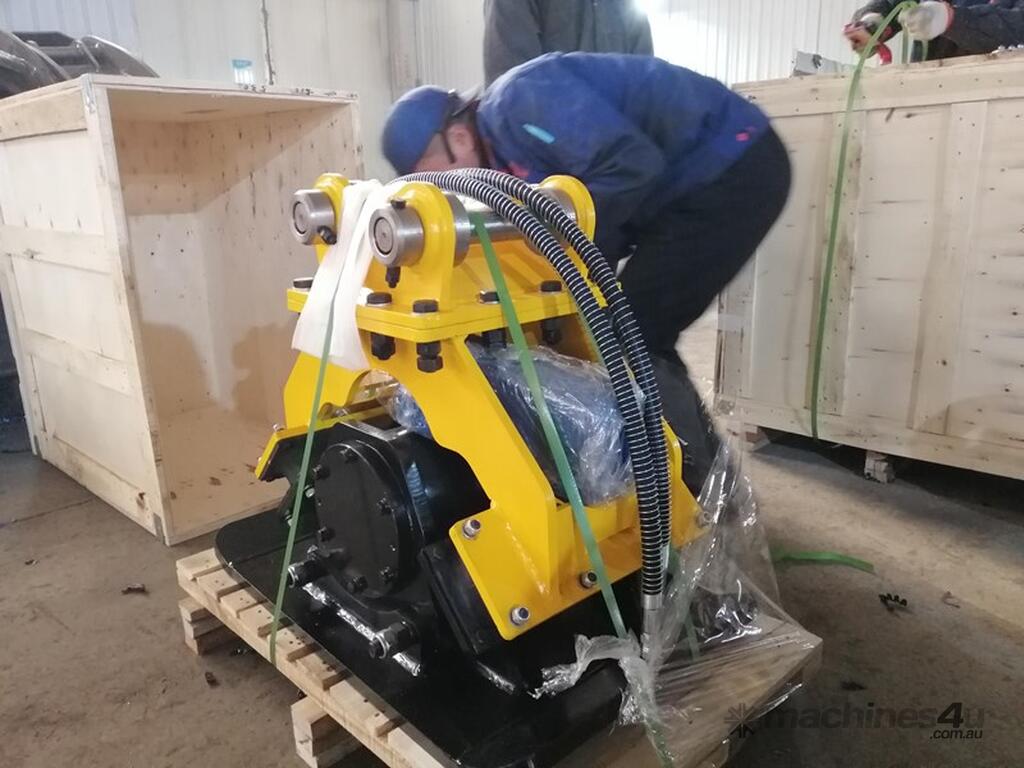

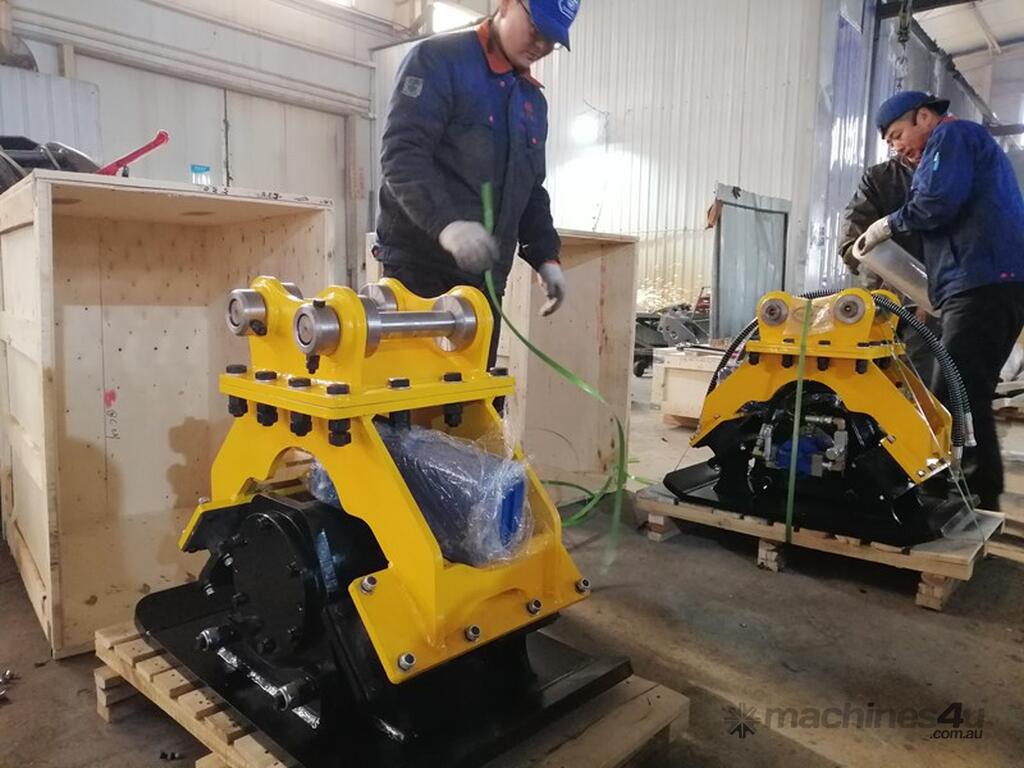

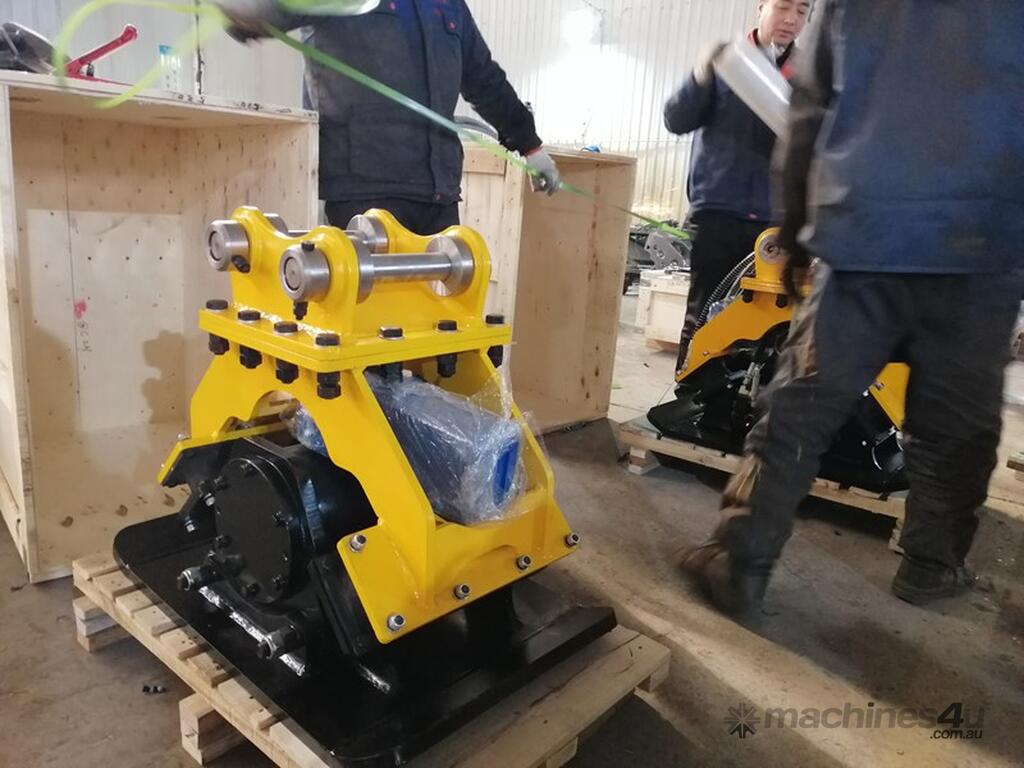

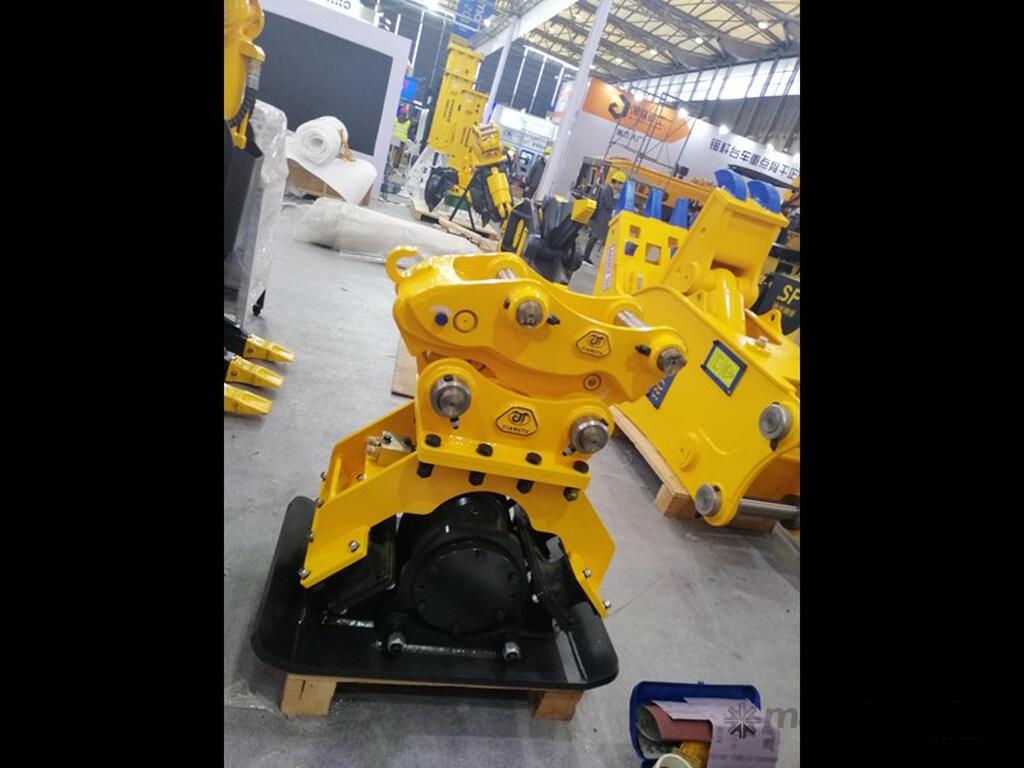

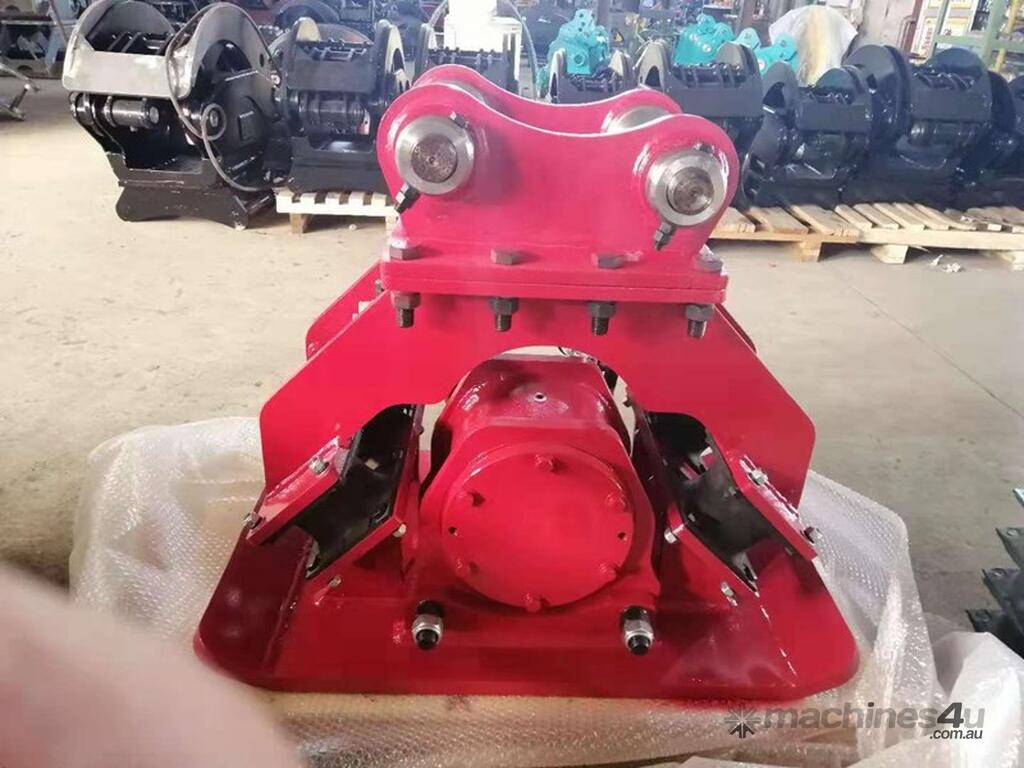

SEEMARK SC-03 HYDRAULIC COMPACTION PLATE (suit 4 ~ 10T EXCAVATOR)

SEEMARK Hydraulic COMPACTION PLATES are very robust, productive, and reliable.

This model SC03 is recommended for excavator range 4 - 10T. Head brackets are removable to enable fitting of a different bracket to suit differing quick hitch specifications

WARRANTY is 2 Years with the exception of service parts.

SPARE PARTS are in stock so feel free to contact us.

SERVICE is available at our Tahmoor workshop, or we will assist your own choice.

Our Operation & maintenance manual can be found (and downloaded) from our , free at: seemark/manuals. Doesn't matter where you are, simply download it to your PC or phone from anywhere, anytime.

COMPACTION PLATES come ready to go and complete with:

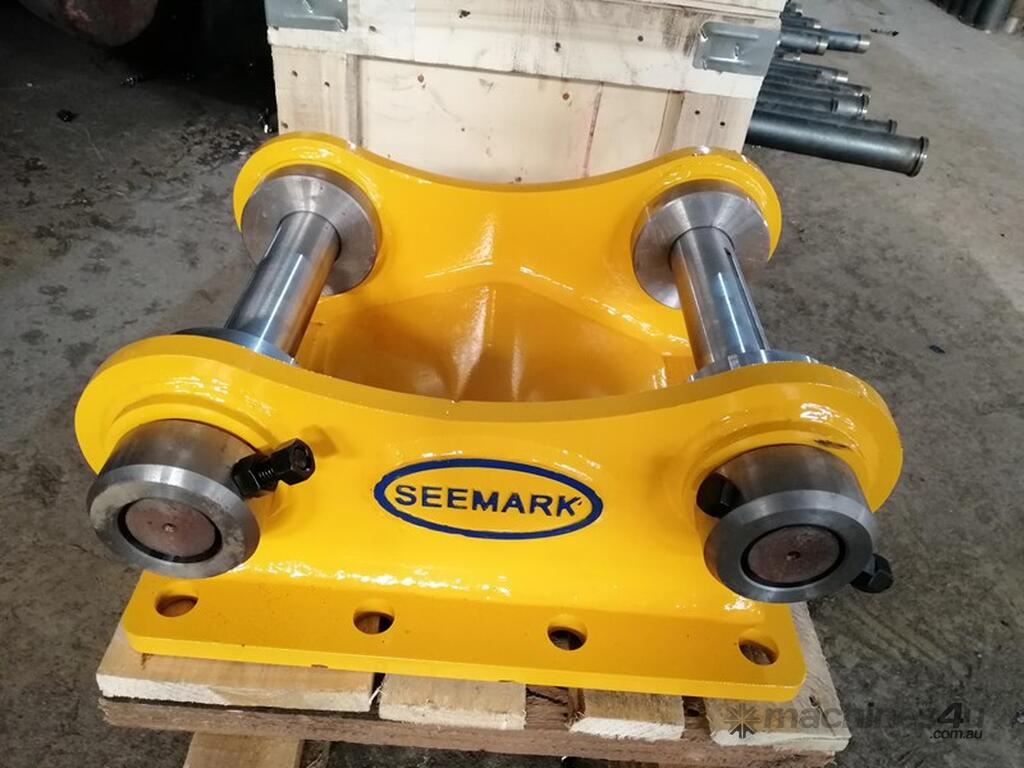

1 x Removable Mounting Bracket
2 x Mounting Pins
2 x Hydraulic Hoses 1.7mts long with ½” BSP female fittings
1 x Tool Kit

Model SC03 Specification
Unit Model SC03
Applicable machine ton 4 ~ 10
Operating weight kg 350
Hydraulic oil pressure kg/cm (bar 97-126)
Hydraulic oil flow l/min 45-85
Impact frequency bpm 2000 (adjustable with engine RPM and subsequent oil flow)
Hose diameter mm 12.5 (inch ½”)
Impact force ton 4
Height mm 750
Width mm 550
Plate size mm 900x550

Seemark (Australia) Pty Ltd was established in 2012 as a supplier of machinery attachments. Our staff have considerable experience in the civil contracting industry, and we know our products well. We pride ourselves on product knowledge, and service both before and after sales and think we would be as good as any, if not the best! Call any time. We expect to resolve your enquiry quickly and without wasting your time.
