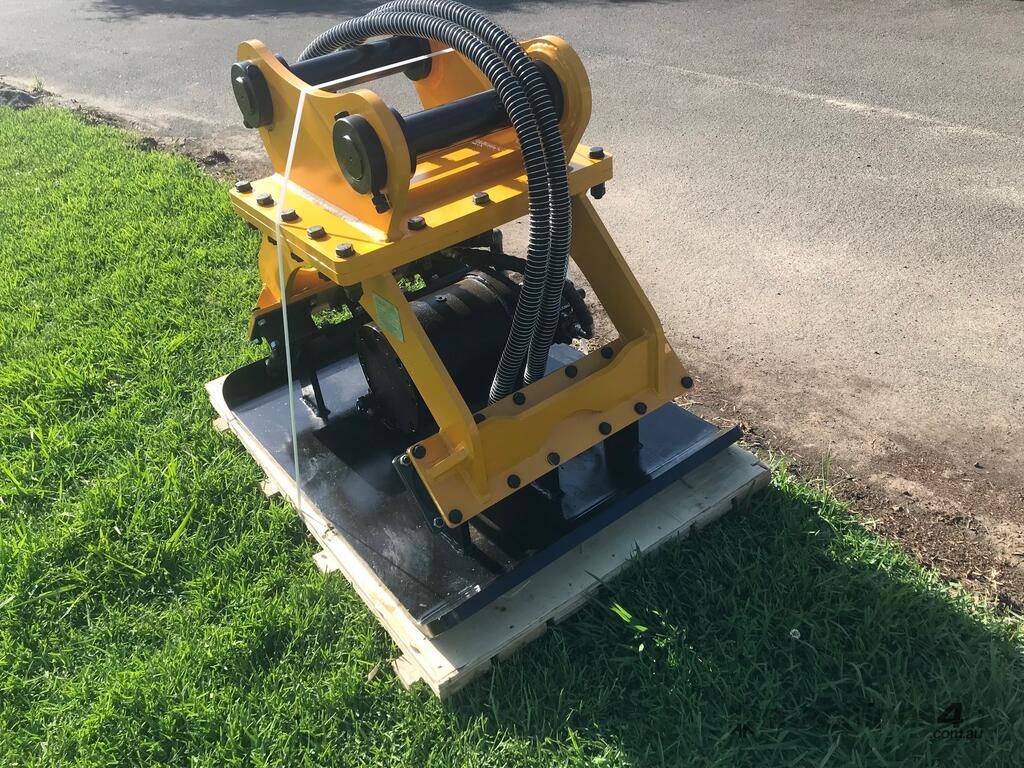

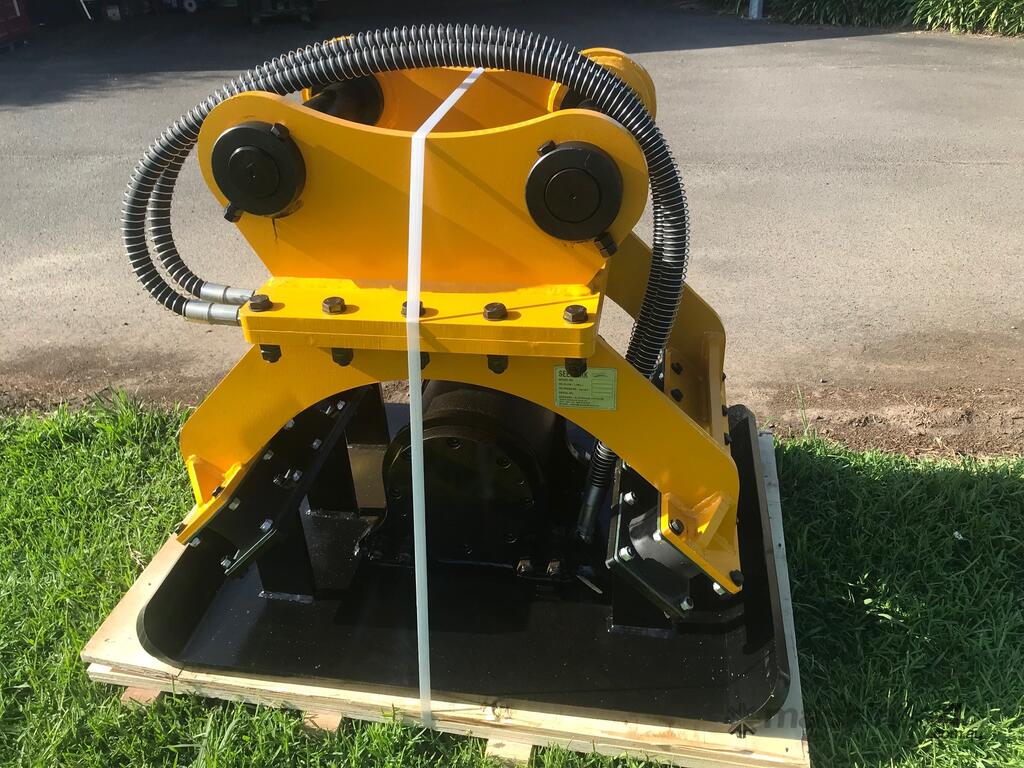

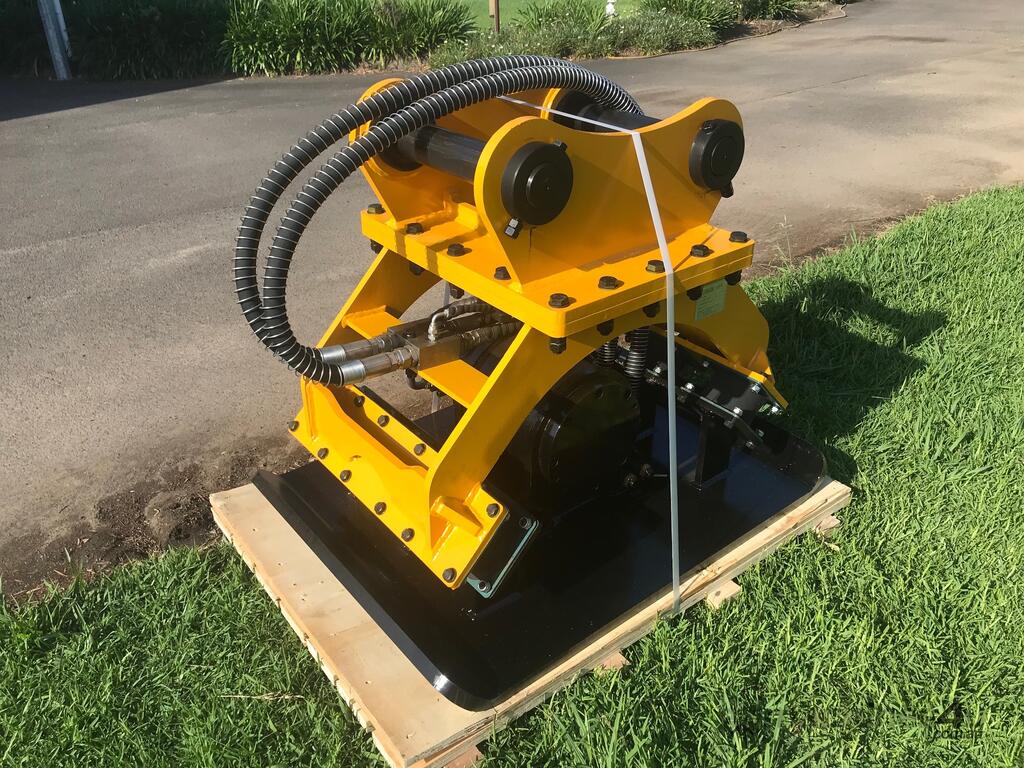

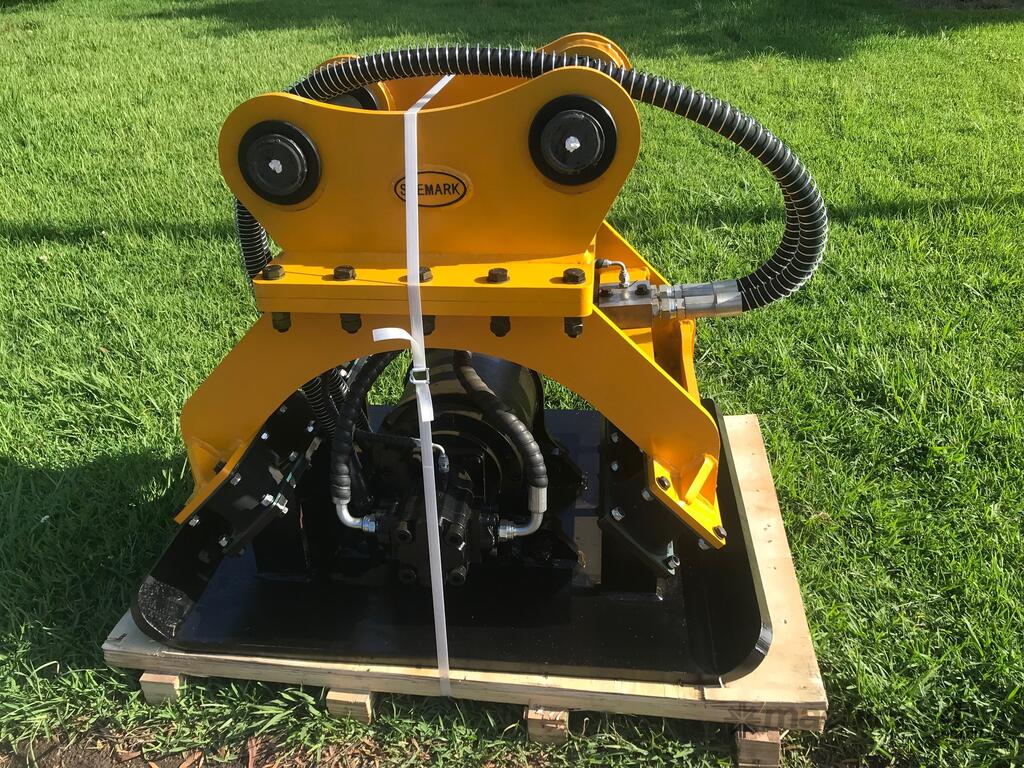

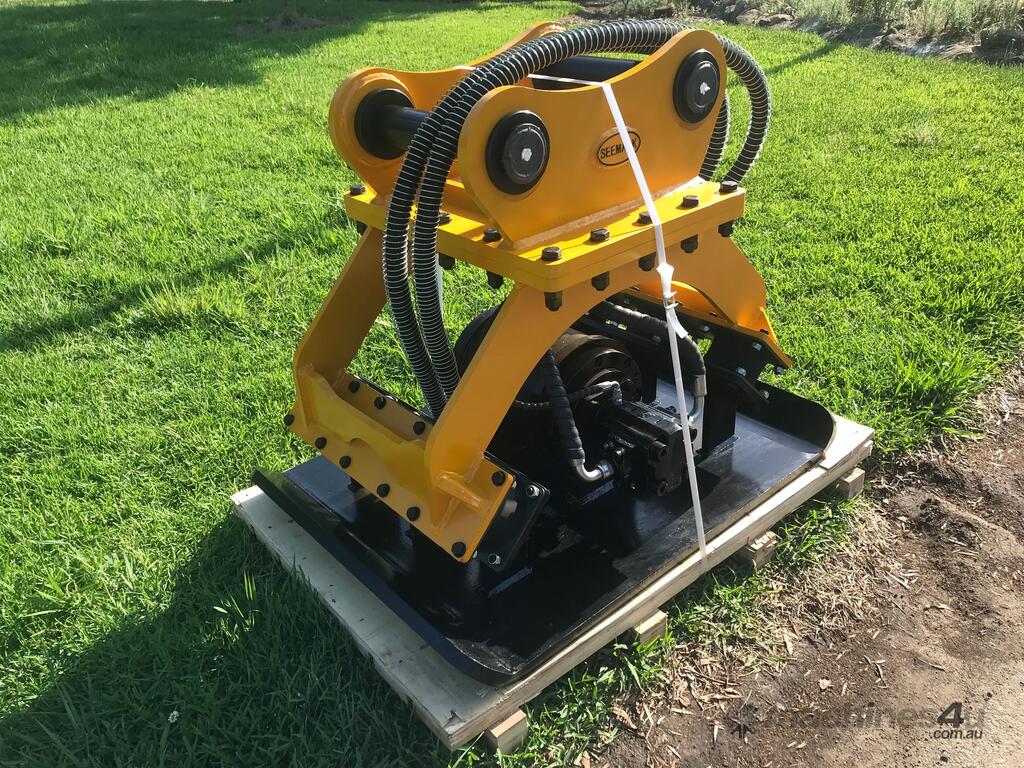

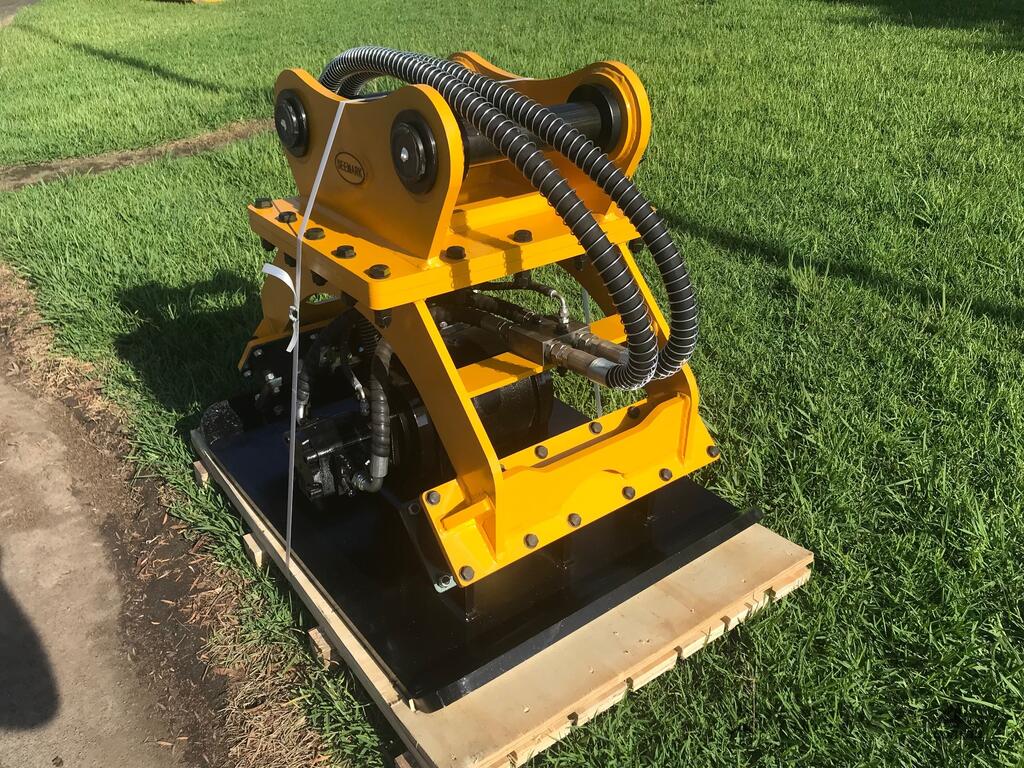

SEEMARK SC-08 HYDRAULIC COMPACTION PLATE (suit 18 ~ 26T EXCAVATOR) *11 TONNES OF IMPACT *

SEEMARK Hydraulic COMPACTION PLATES are very robust, productive, and reliable.

This model SC08 is recommended for excavator range 18 - 26T. Head brackets are removable to enable fitting of a different bracket to suit differing quick hitch specifications.

COMPACTION PLATES come ready to go and complete with:

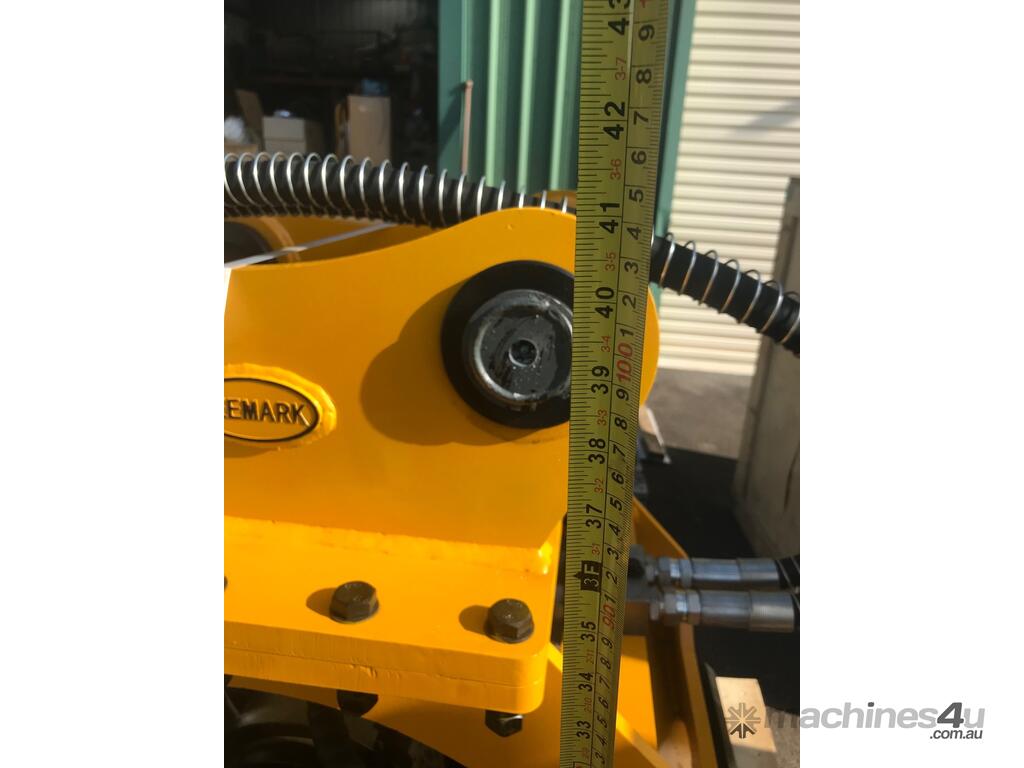

1 x Removable Mounting Bracket (80mm pins, 475mm pin centres, 320mm between ears)

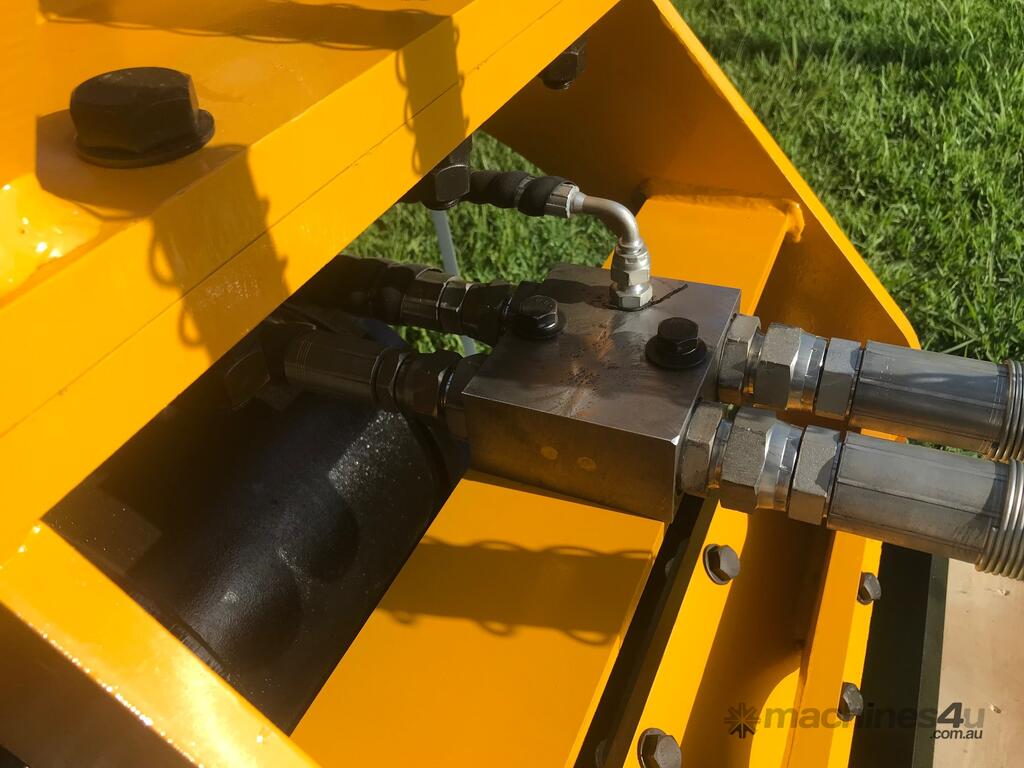

2 x Hydraulic Hoses

Model SC08 Specification
Unit Model SC08
Applicable machine ton 18 ~ 26
Operating weight kg 1000
Hydraulic oil pressure kg/cm (bar 147-196)
Hydraulic oil flow l/min 120-170
Impact frequency bpm 2000 (adjustable with engine RPM and subsequent oil flow)
Hose diameter mm 19 (inch ¾”)
Impact force ton 11
Height mm 1040
Width mm 900
Plate size mm 1200x900

WARRANTY is 1 Year with the exception of service parts.

SPARE PARTS are in stock so feel free to contact us.

SERVICE is available at our Tahmoor workshop, or we will assist your own workshop by phone/.

Since 2012, Seemark (Australia) Pty Ltd has supplied their range of powerful machinery attachments to the civil and earthmoving industry nationally. Seemark's range of compactors and rock breakers have been proven in the field for their quality hydraulics and outstanding performance, delivering strength where it counts and exceptional reliability.

Go to Seemark's showroom to see the full range of our attachments that are available for immediate delivery, or send Seemark a message about the machine that you need, or call Seemark speak to our experts who have decades of experience in the civil contracting industry and operating machines.

* CLICK ON THE PDF SPEC SHEET FOR MORE INFORMATION *
