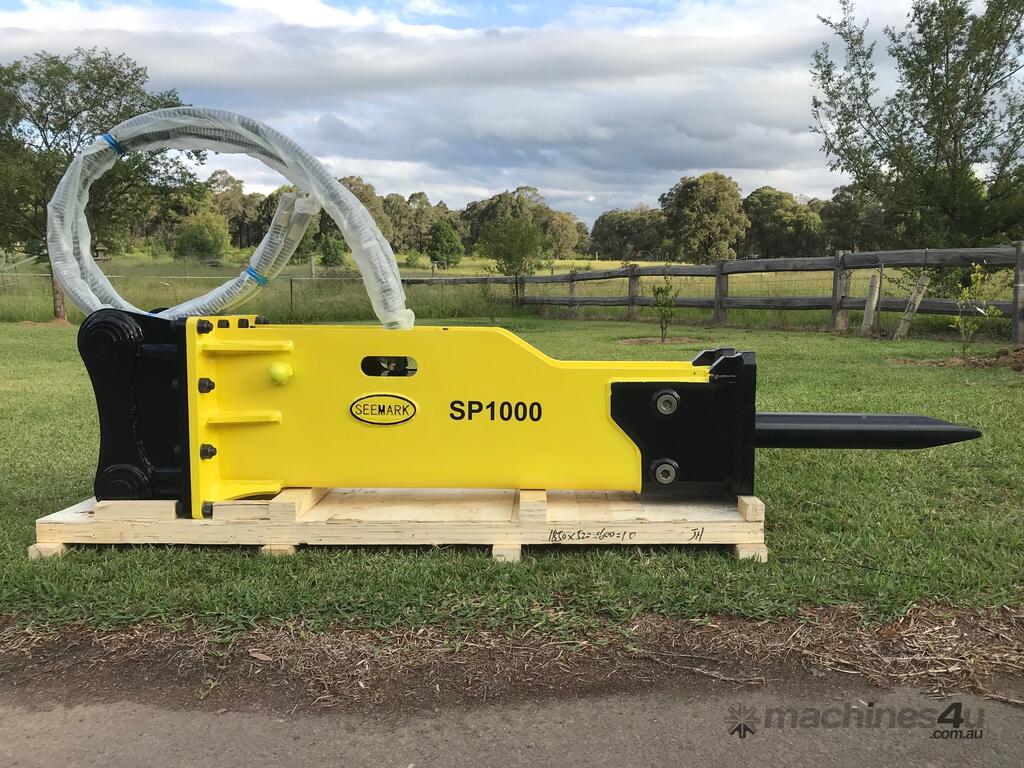

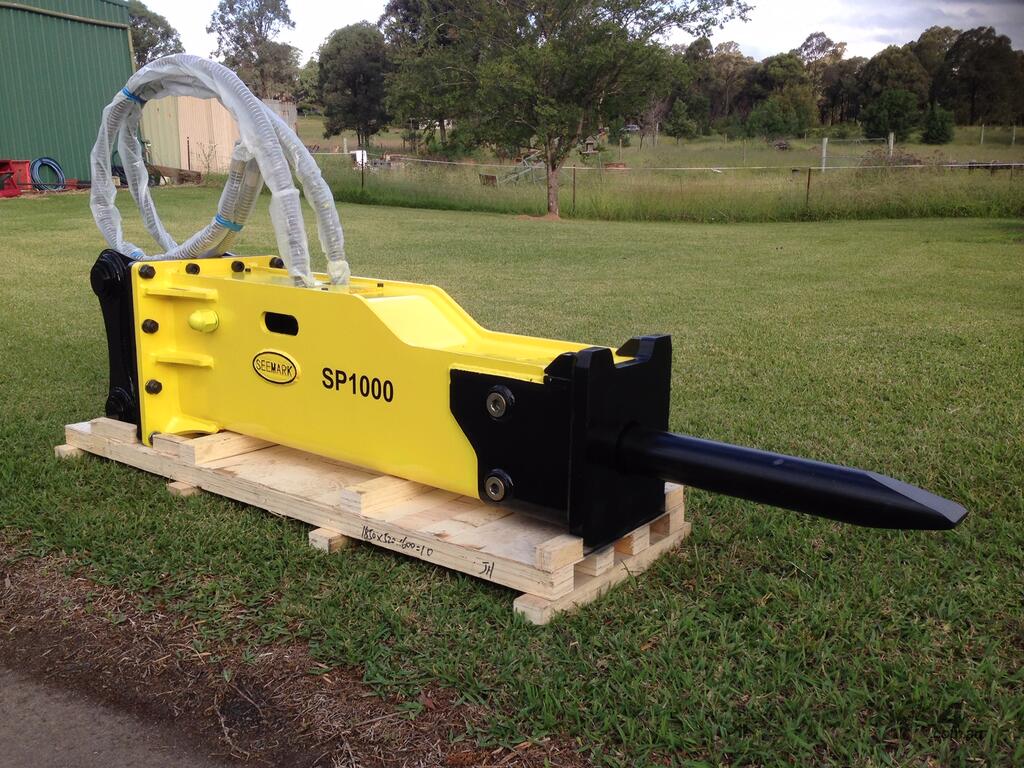

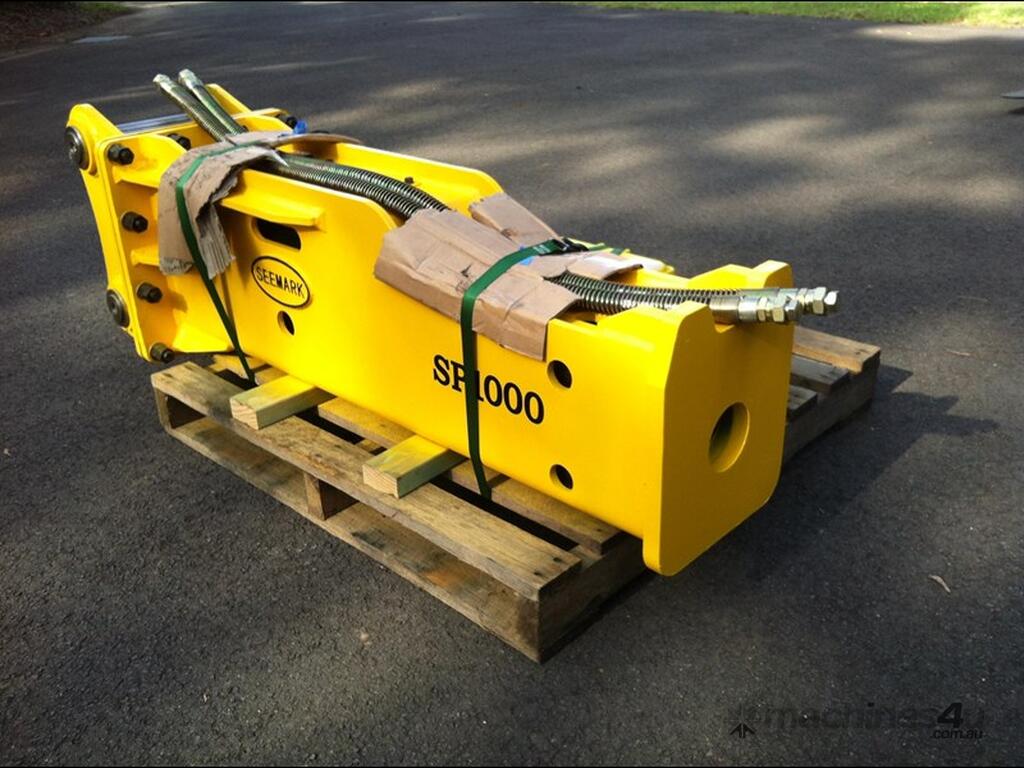

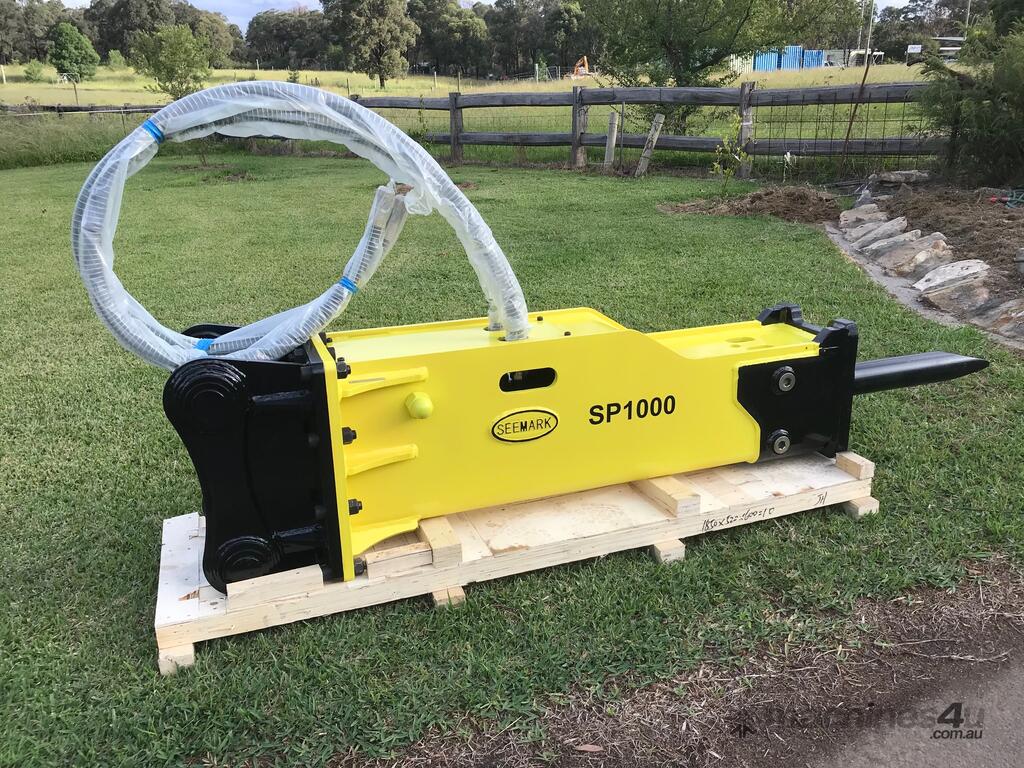

SEEMARK SP-1000 HYDRAULIC HAMMER (suit 11 - 16T EXCAVATOR)

SEEMARK Hydraulic Rock Breakers have been developed in Germany and Korea and are sold world-wide.

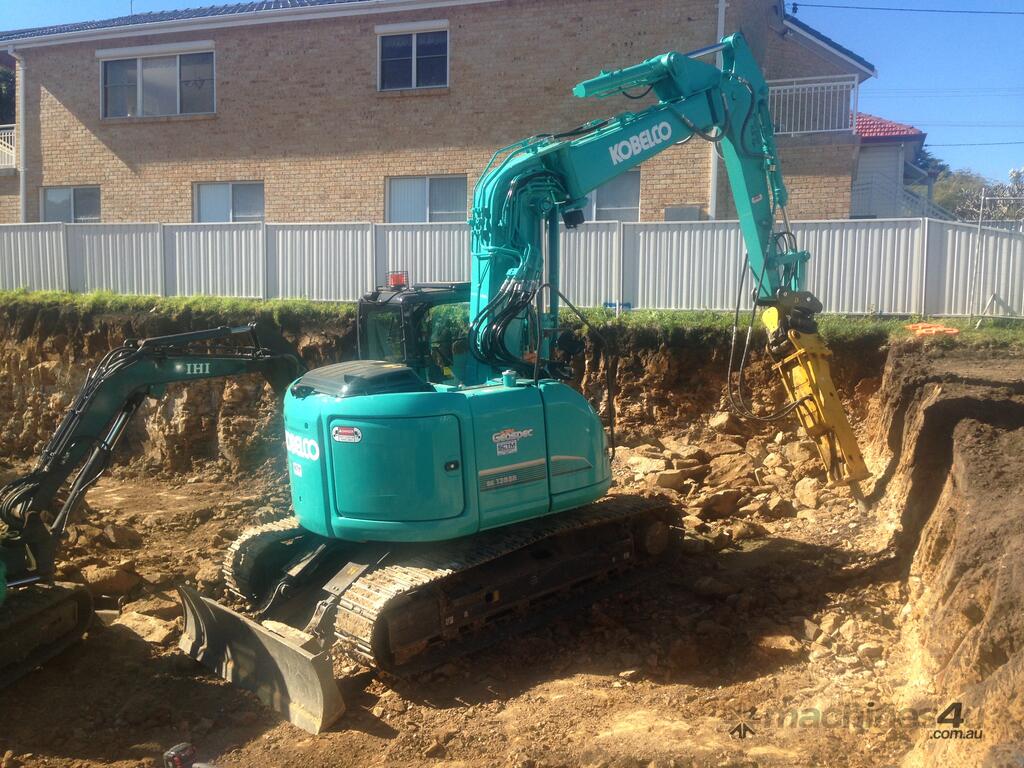

This model SP-1000 is recommended for excavator range 11 - 16T. It is very robust, productive, reliable and popular.

WARRANTY is 2 Years with the exception of service parts.

SPARE PARTS are in stock so feel free to contact us.

SERVICE is available at our Tahmoor workshop, or we will assist your own choice.

Our Operation & maintenance manual can be found (and downloaded) from our , free at: seemark/manuals. Doesn't matter where you are, simply download it to your PC or phone from anywhere, anytime.

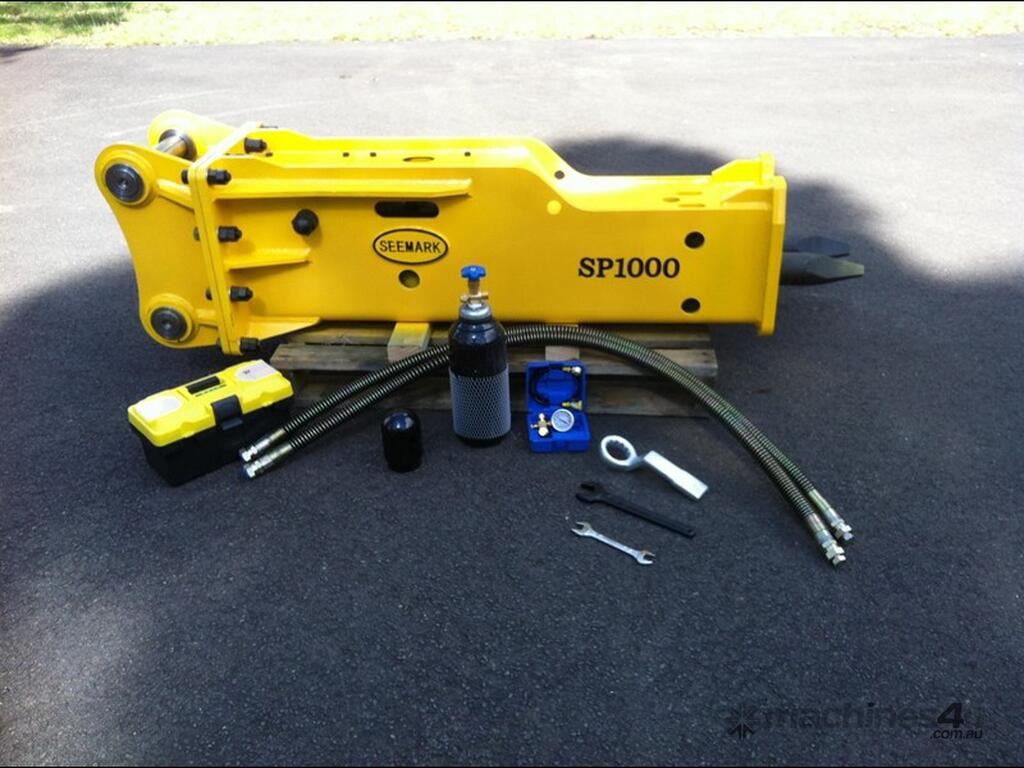

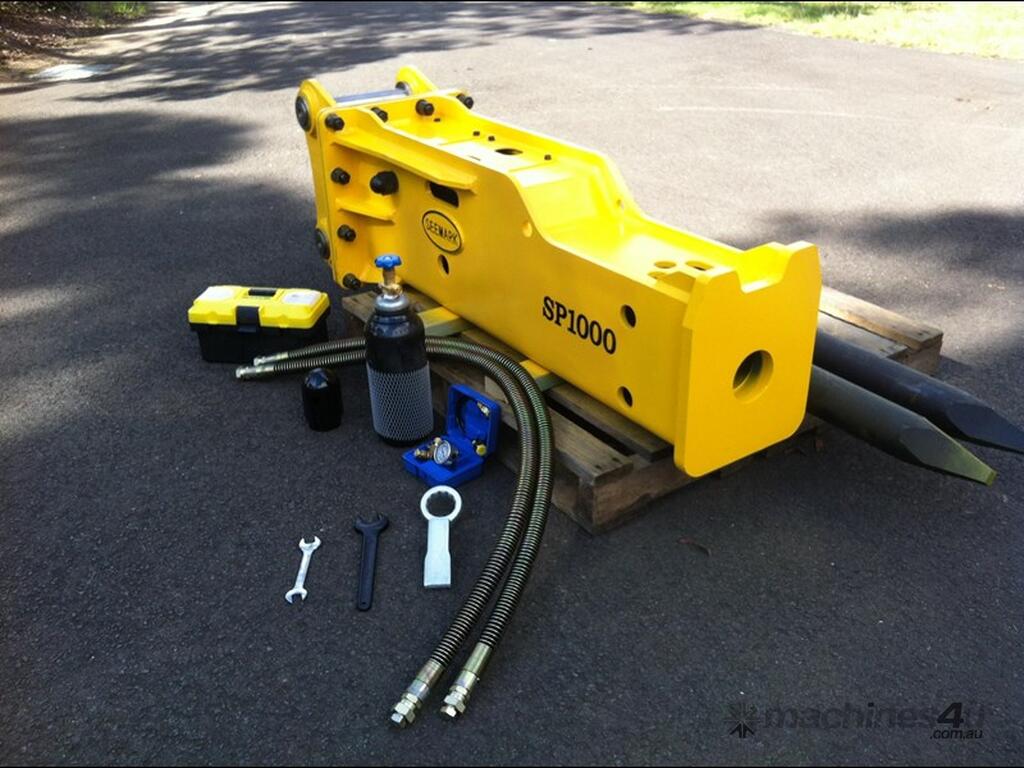

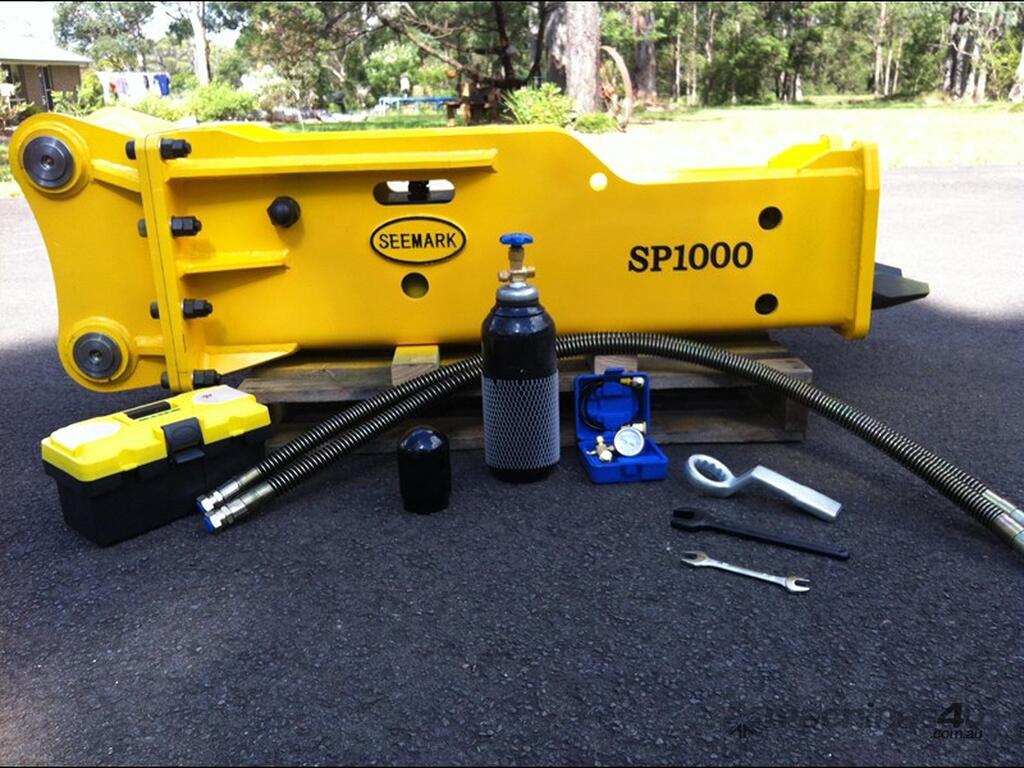

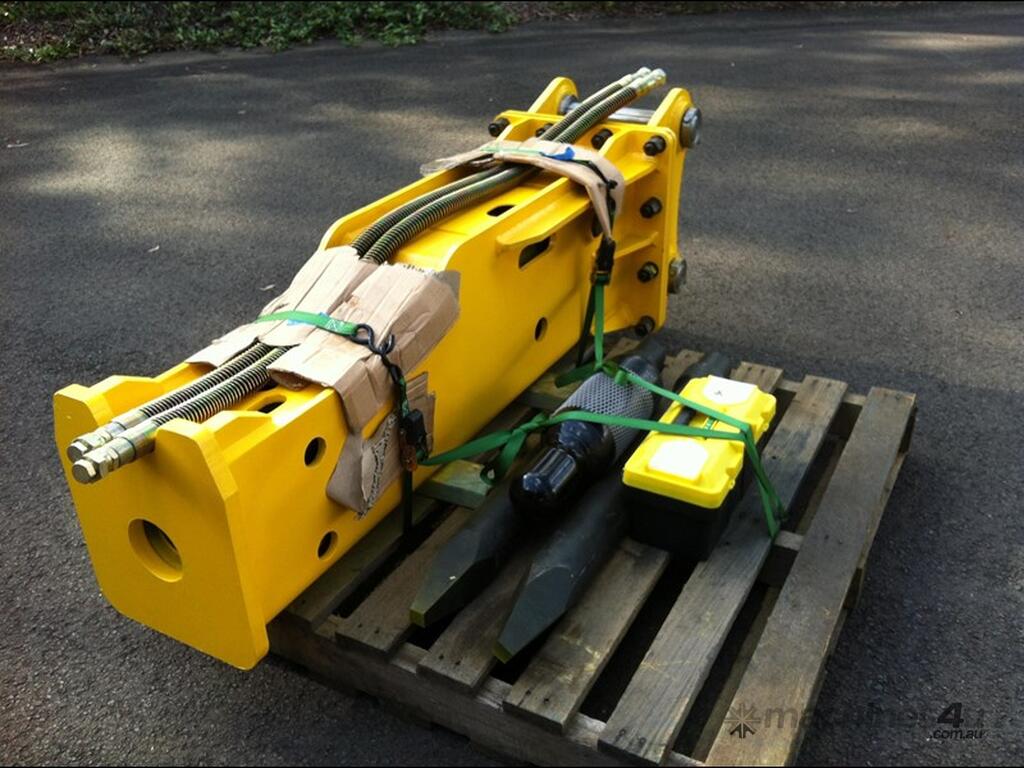

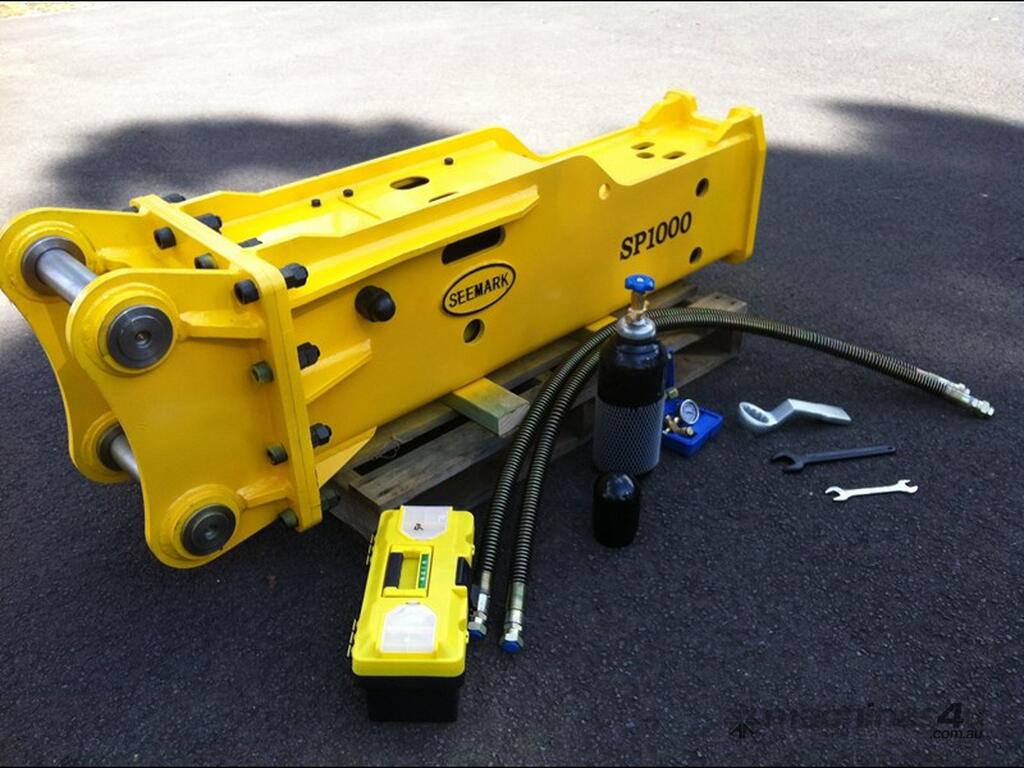

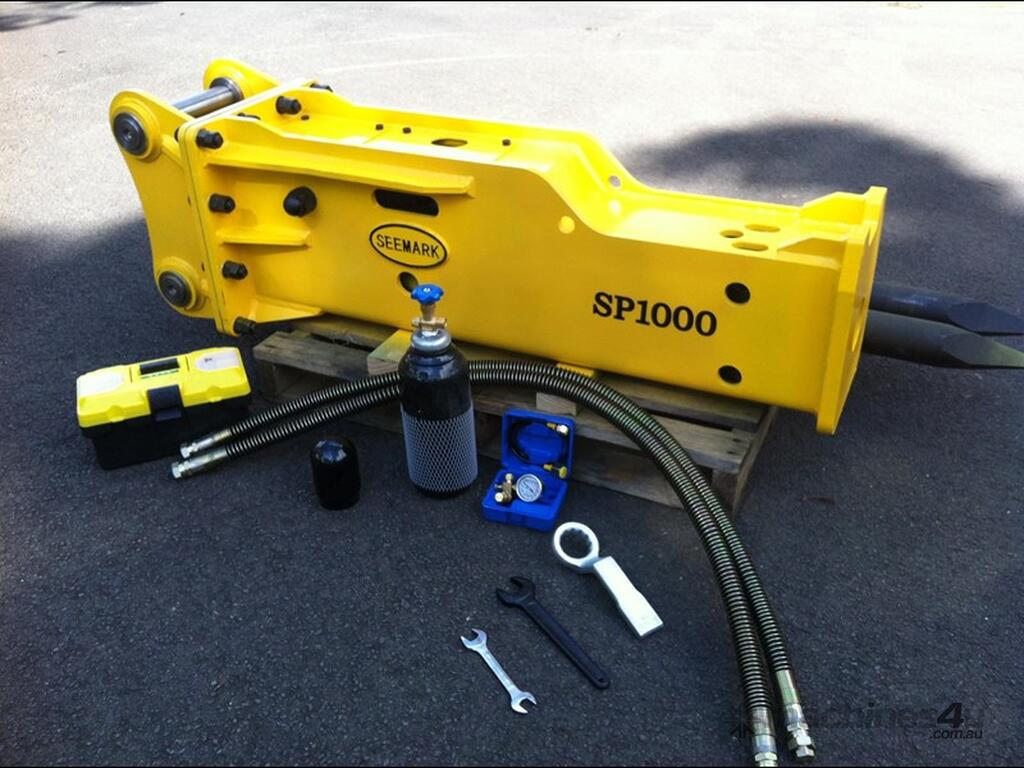

Hammers come ready to go and complete with:

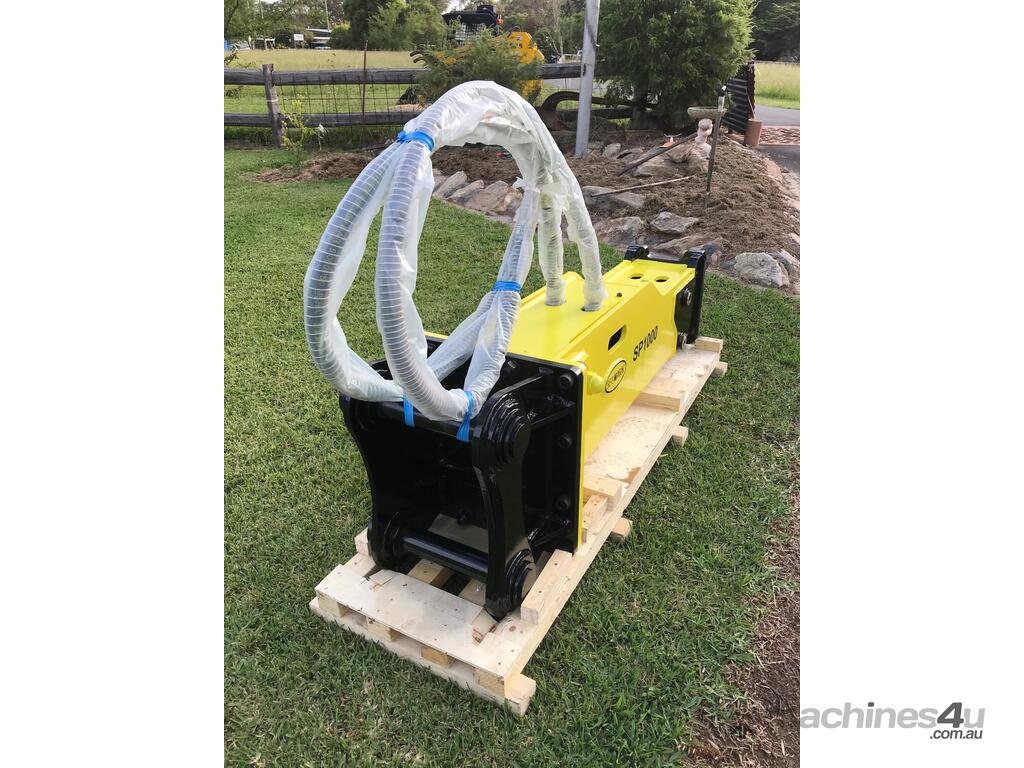

1 x Mounting Bracket
2 x Mounting Pins
2 x Hydraulic Hoses 2.6mts long (3/4” BSP female fittings)

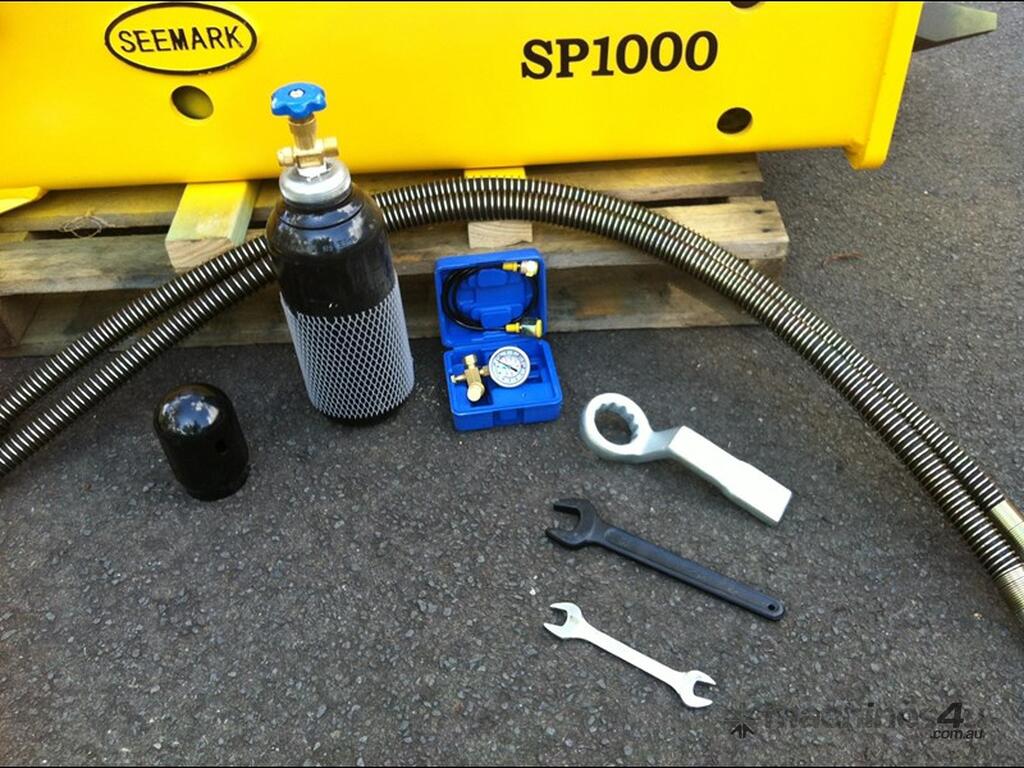

1 x Tool Kit

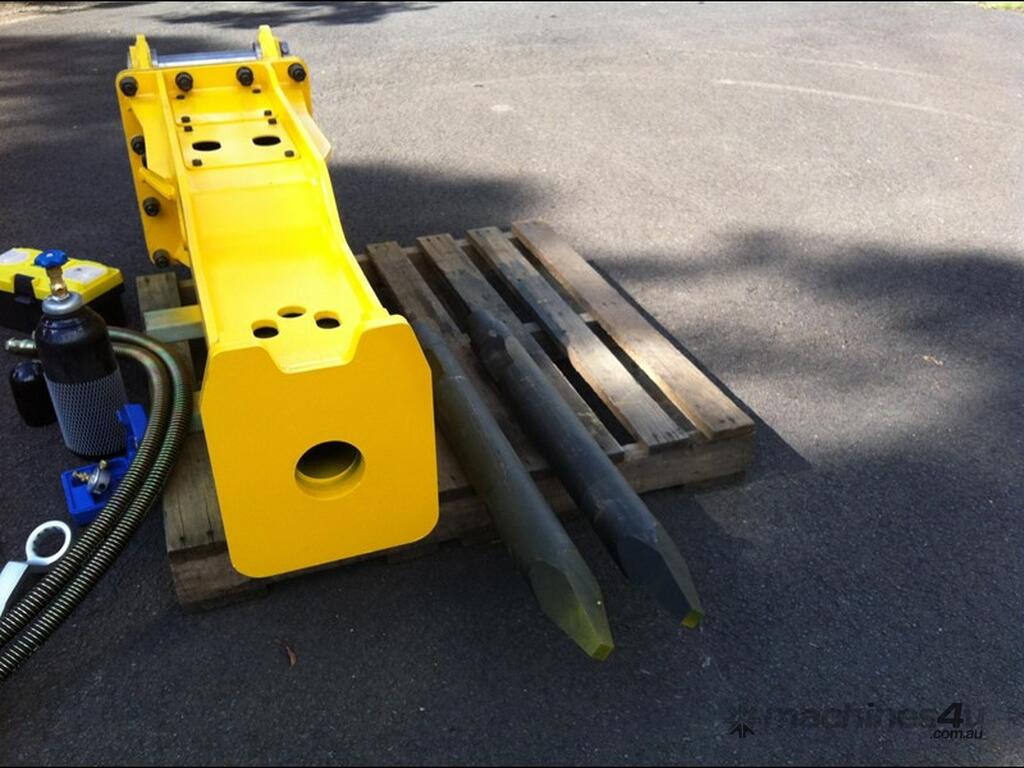

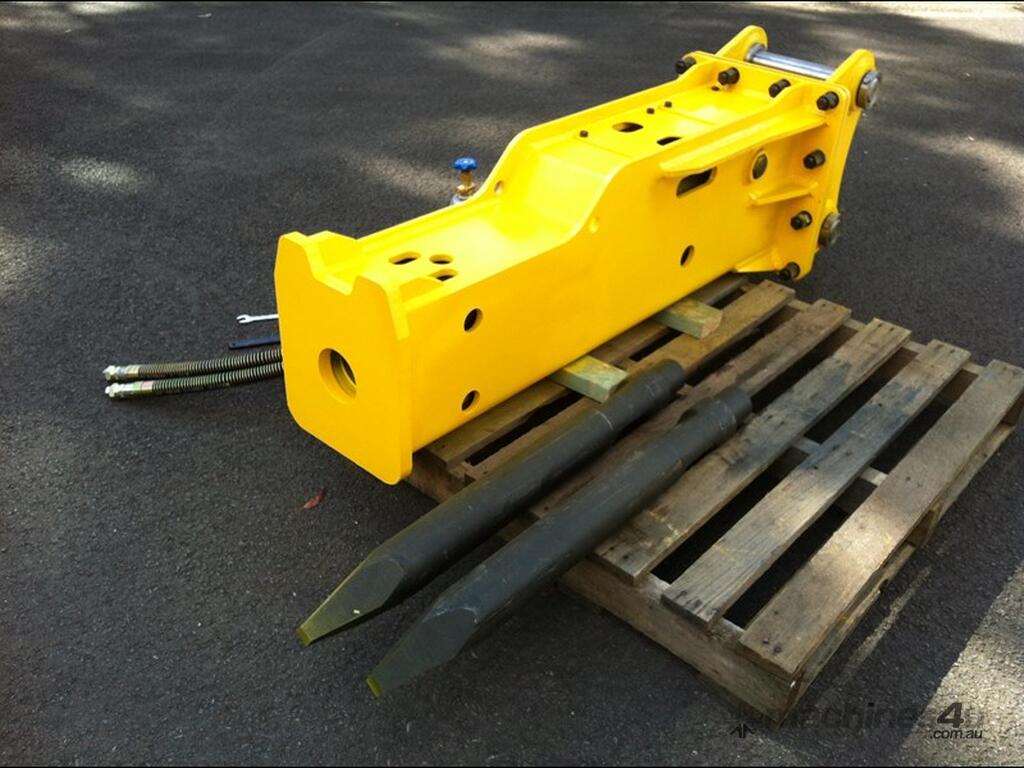

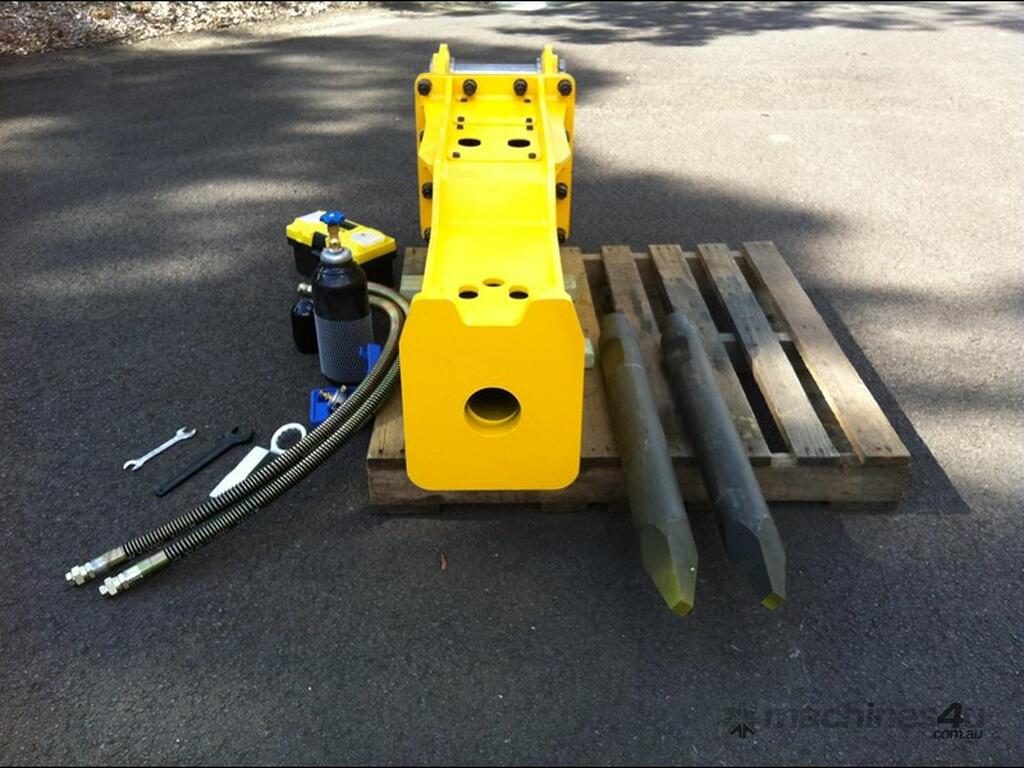

1 x Pointed Moil 100mm diameter
1 x Chisel Moil 100mm diameter


Model SP-1000 Specification
Unit Model SP-1000
Applicable machine ton 11-16
Operating weight kg 1007
Hydraulic oil pressure kg/cm
bar 147-166
Hydraulic oil flow l/min 80-110
Impact frequency bpm 350-700
Hose diameter mm 19.05 (inch ¾”)
Chisel diameter mm 100
Chisel weight kg 57
Impact power ft-lbs 1548 (Joule 2100)

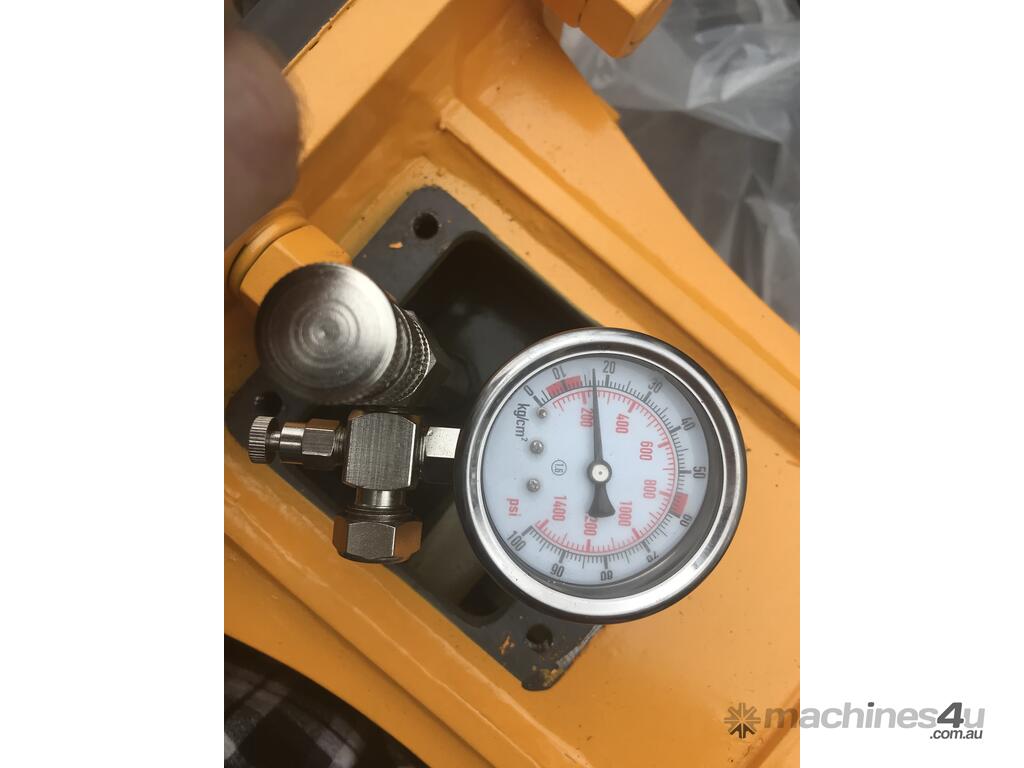

Nitrogen pressure kg/cm2 16.5
Main valve type Inward
Accumulator None

Seemark (Australia) Pty Ltd was established in 2012 as a supplier of machinery attachments. Our staff have considerable experience in the civil contracting industry, and we know our products well. We pride ourselves on product knowledge, and service both before and after sales and think we would be as good as any, if not the best! Call any time. We expect to resolve your enquiry quickly and without wasting your time.
