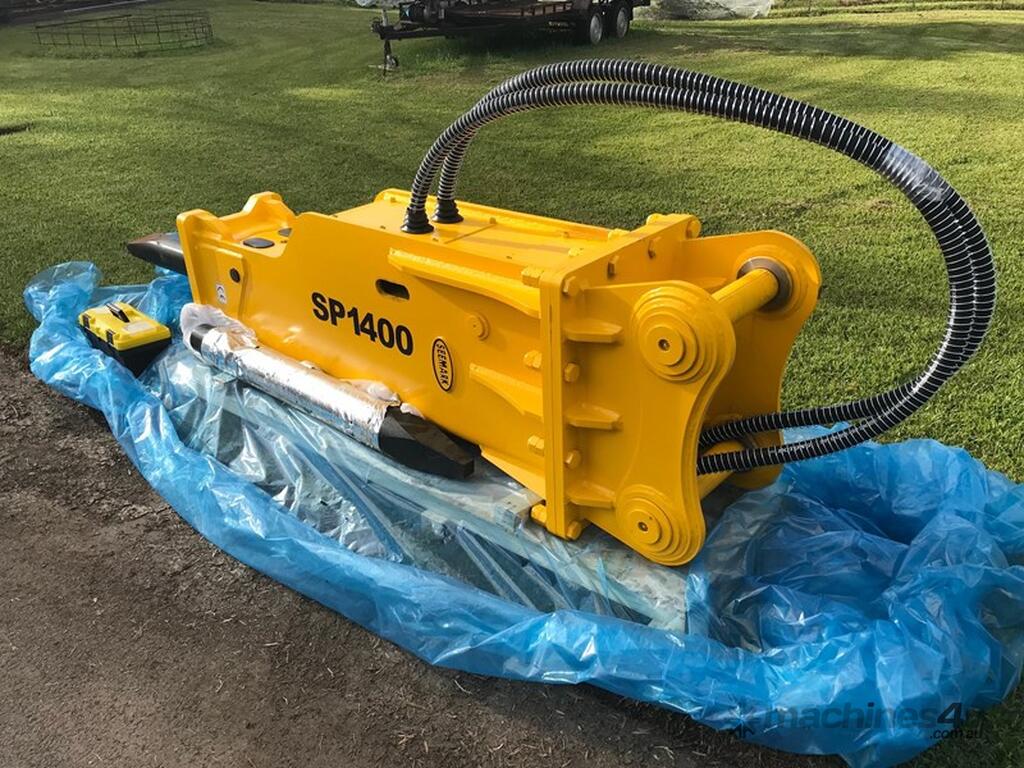

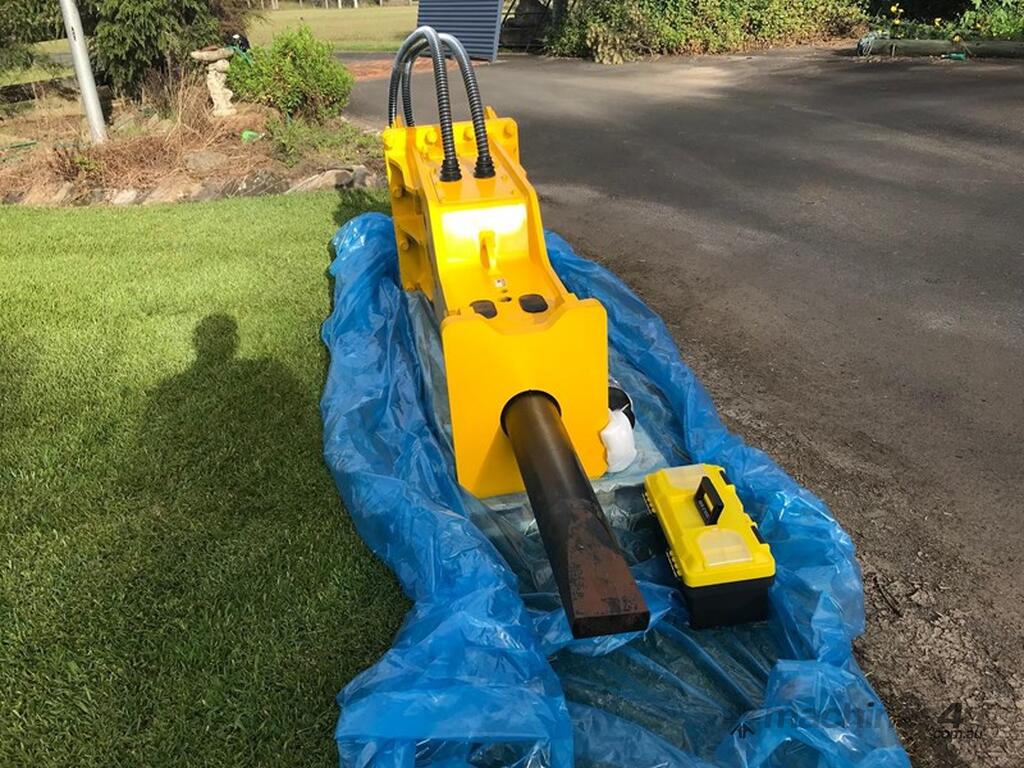

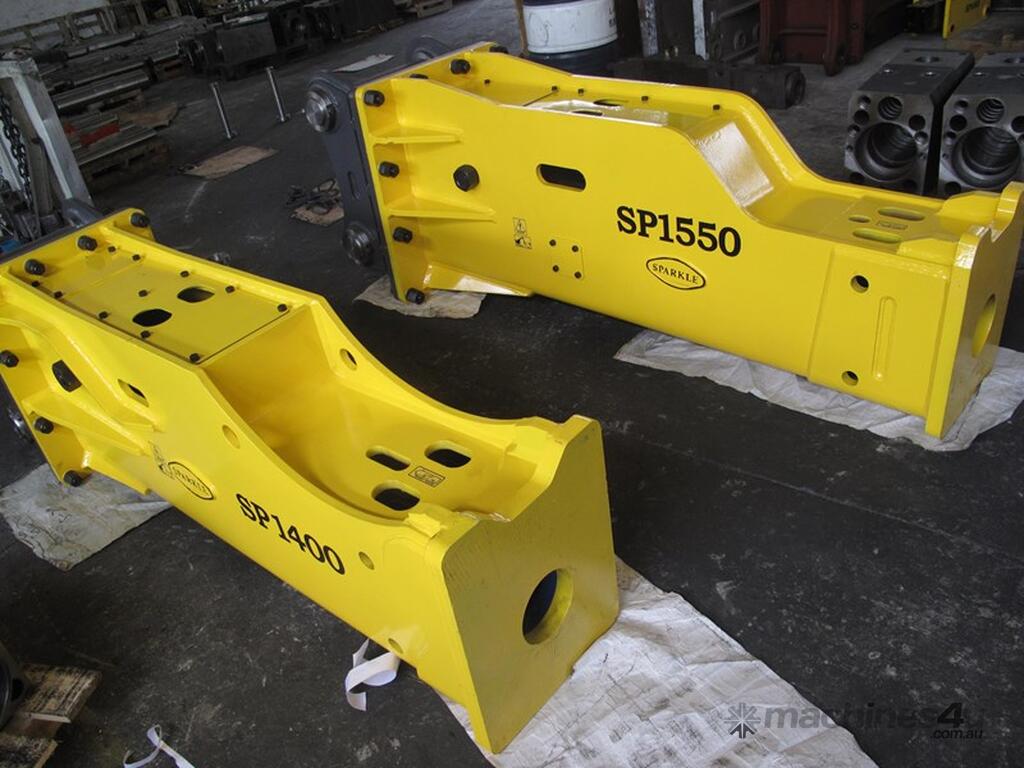

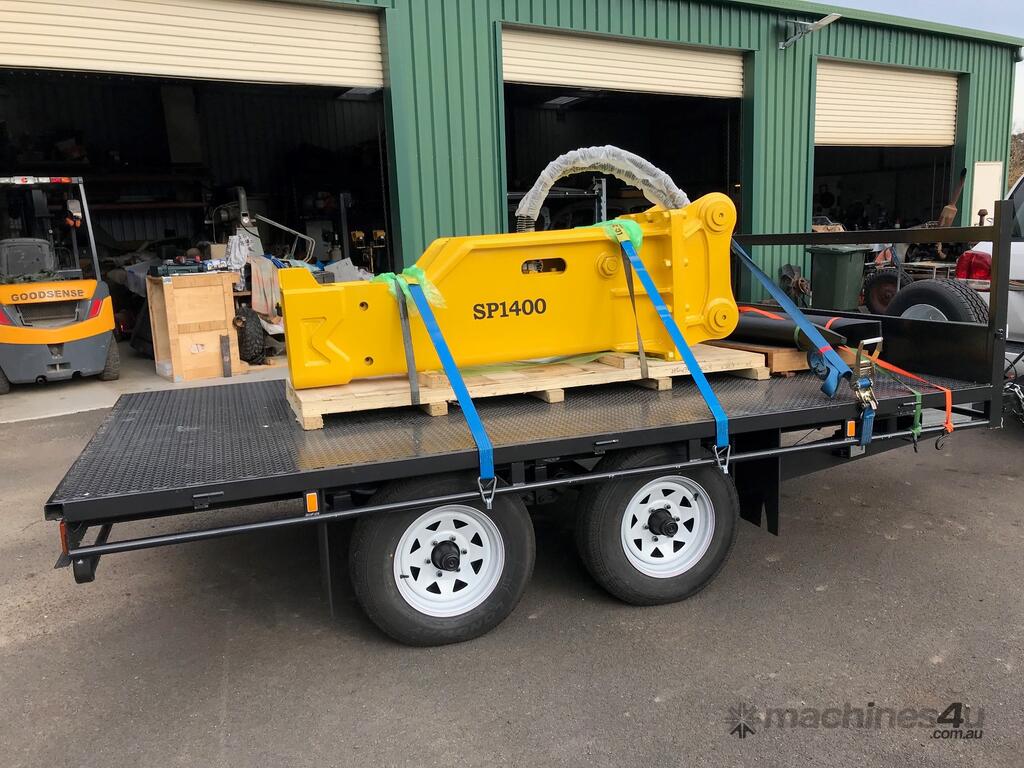

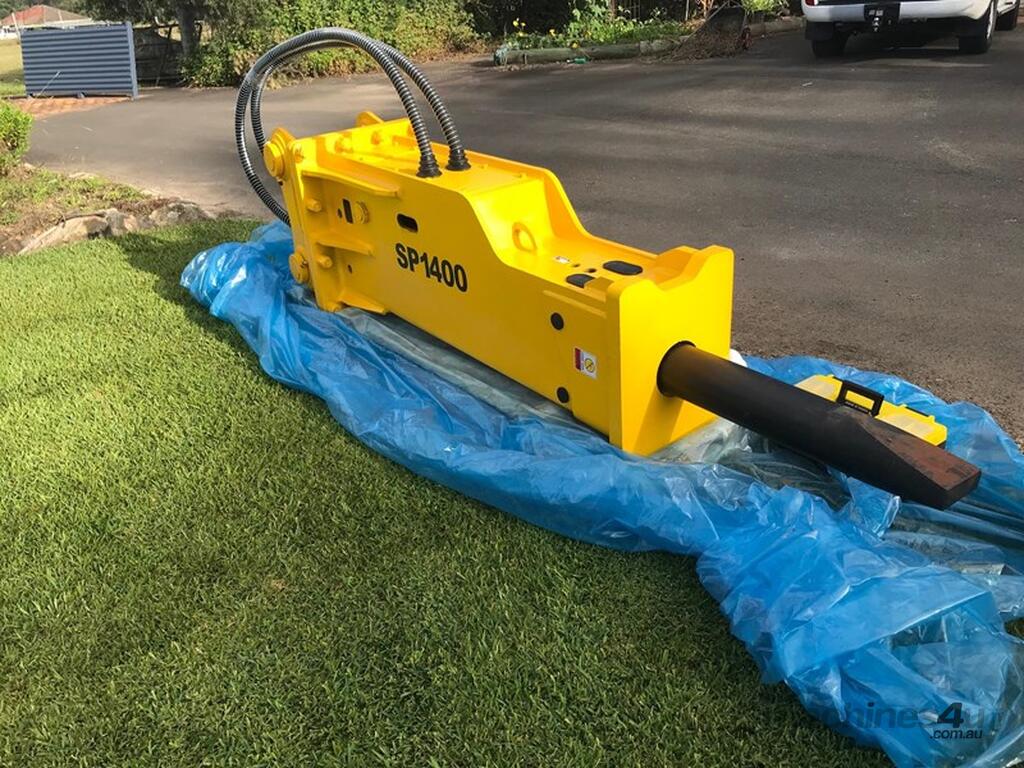

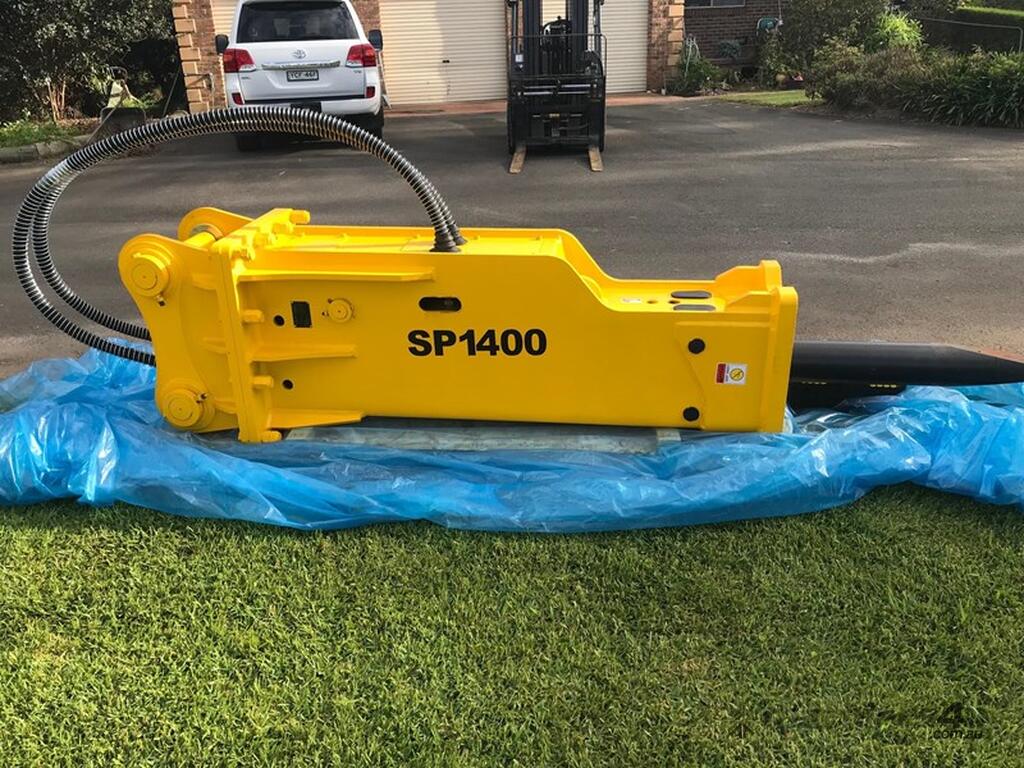

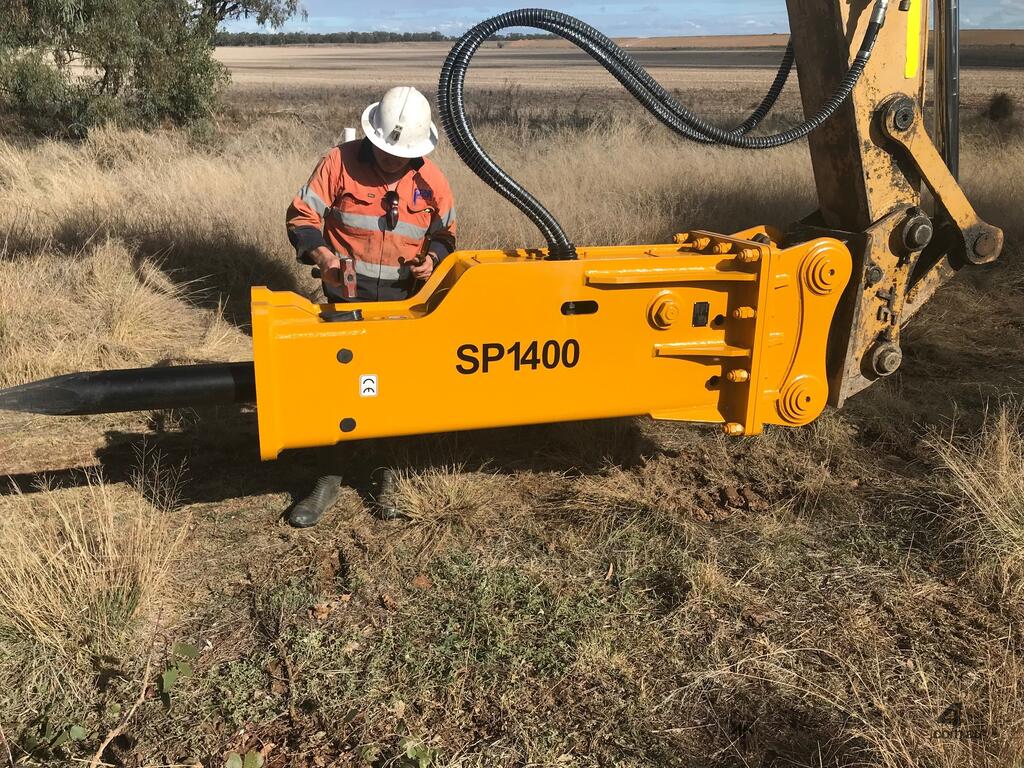

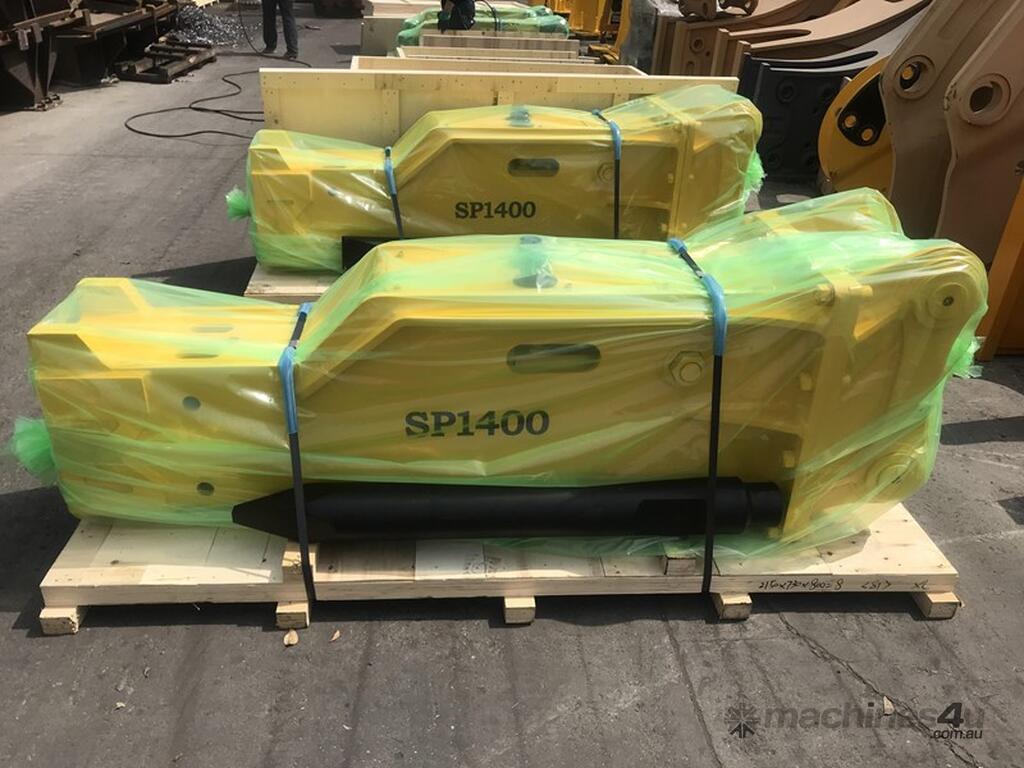

SEEMARK SP-1400 HYDRAULIC HAMMER (suit 18 - 26T EXCAVATOR)

SEEMARK Hydraulic Rock Breakers have been developed in Germany and Korea and are sold world-wide. They are manufactured in the worlds factory (China) and the quality is second to none. Key components are manufactured from the finest grade of steel available and there are only two moving parts, the piston and the internal valve.

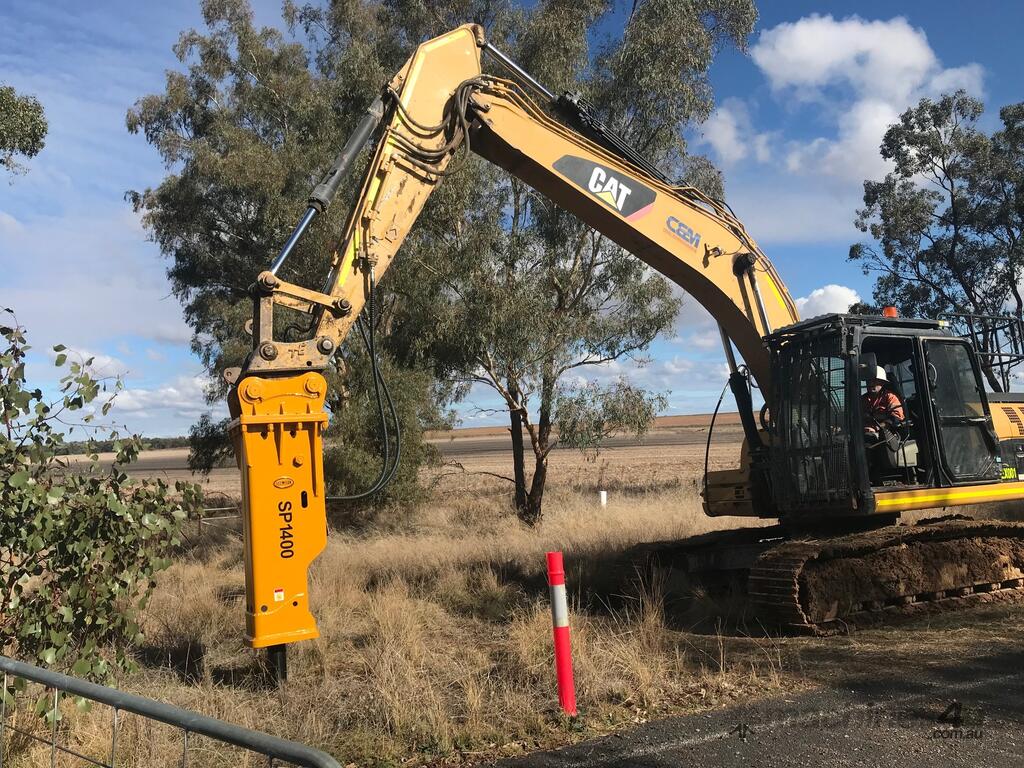

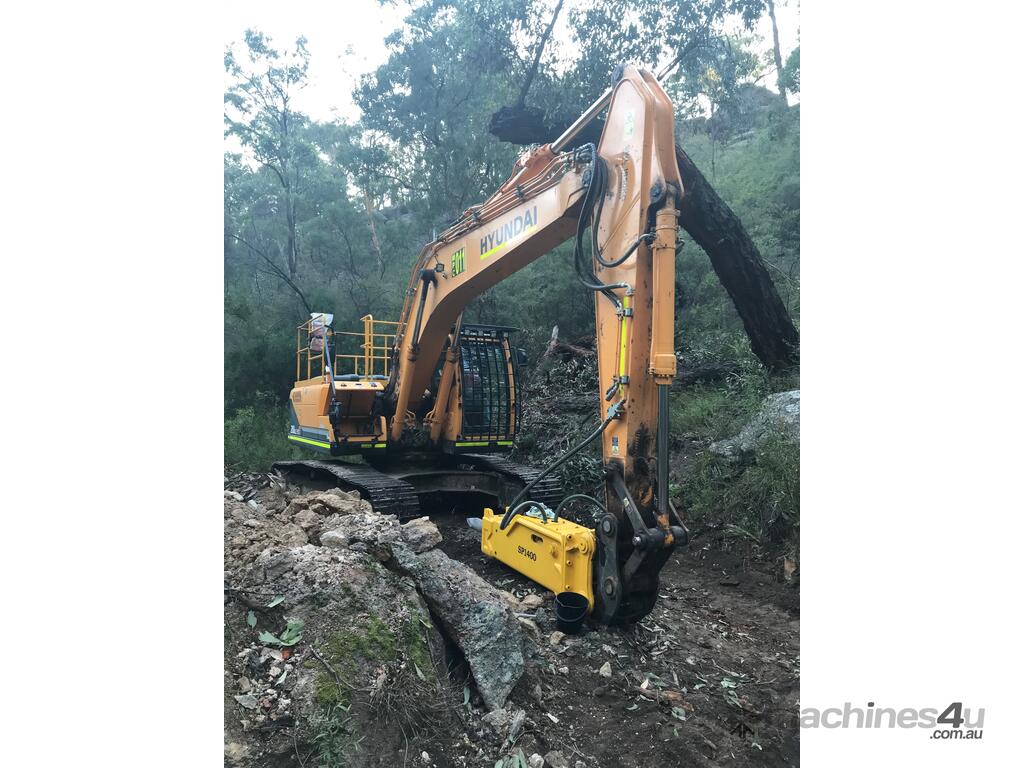

This model SP-1400 is recommended for excavator range 18 - 26T. It is very robust, productive, and reliable. We have customers running this hammer round the clock, 24/7 in quarry applications. An "Auto-greaser" is now fitted standard on this model.

WARRANTY is 2 Years parts and labour with the exception of service parts.

SPARE PARTS are in stock so feel free to contact us.

SERVICE is available at our Tahmoor workshop, or we will assist your own workshop or choice of service agent.

HELP (if ever required) is a phone call away - 7 days.

Our Operation & maintenance manual can be found (and downloaded) from our . Doesn't matter where you are, simply download it to your PC or phone from anywhere, anytime.

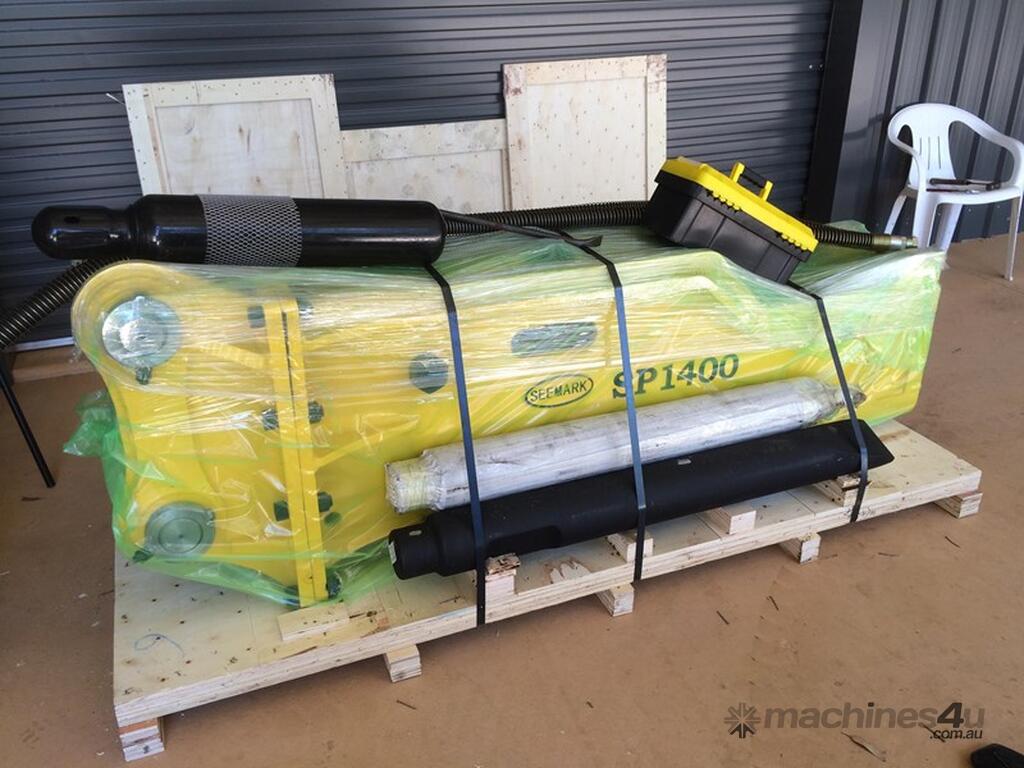

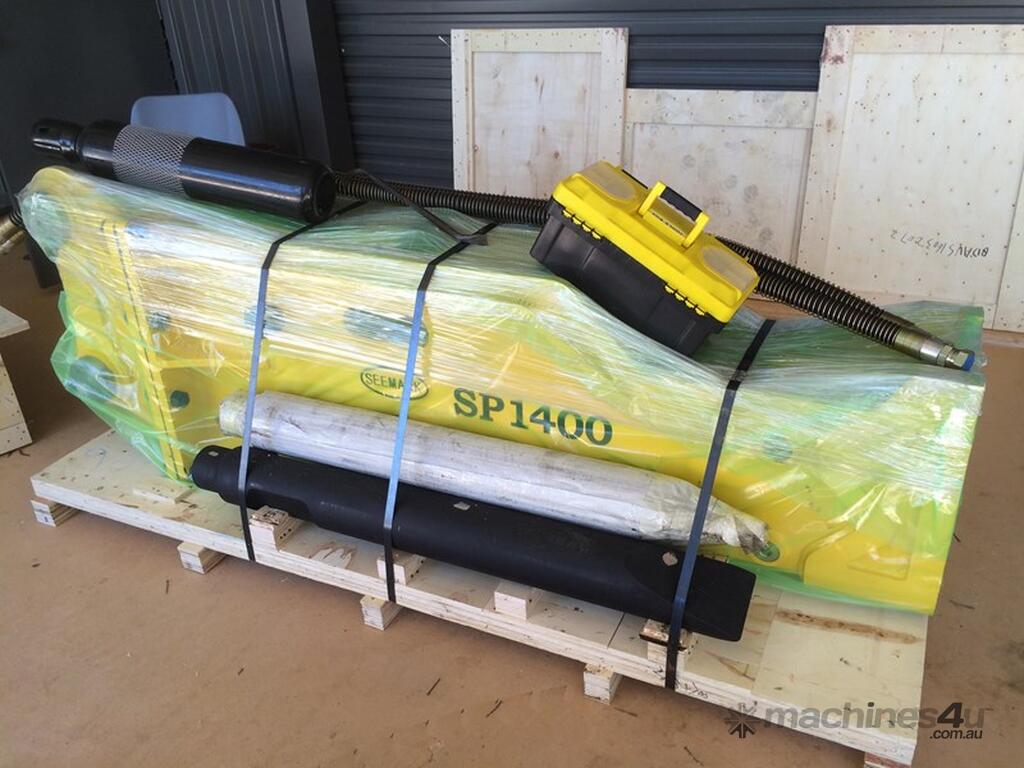

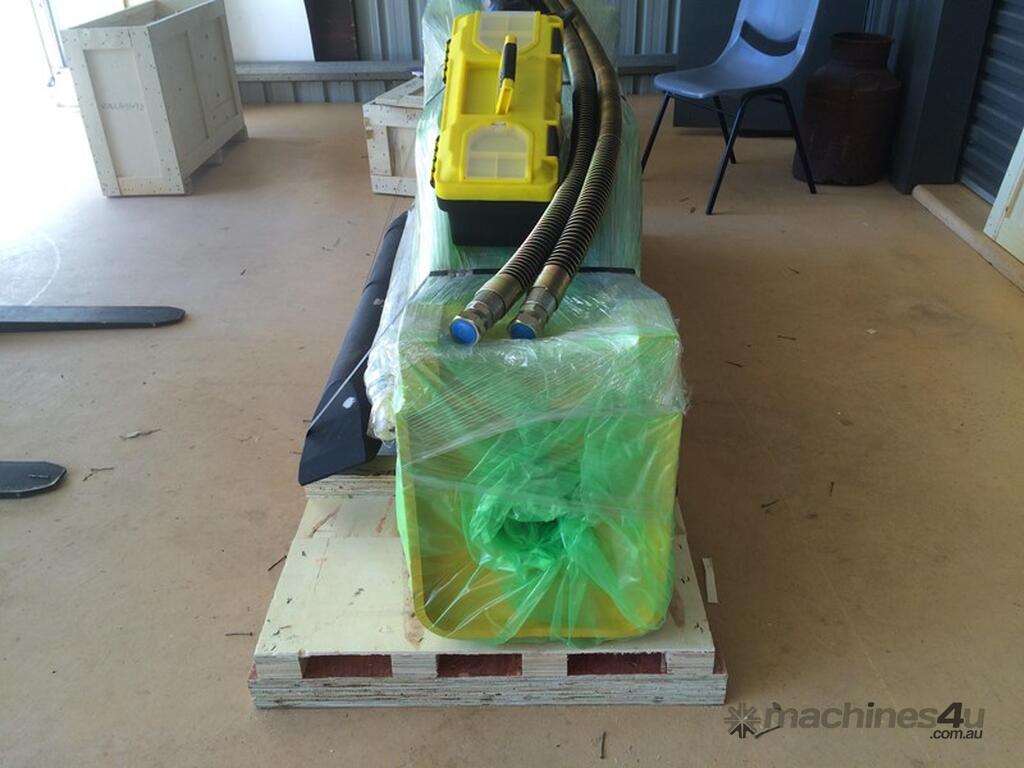

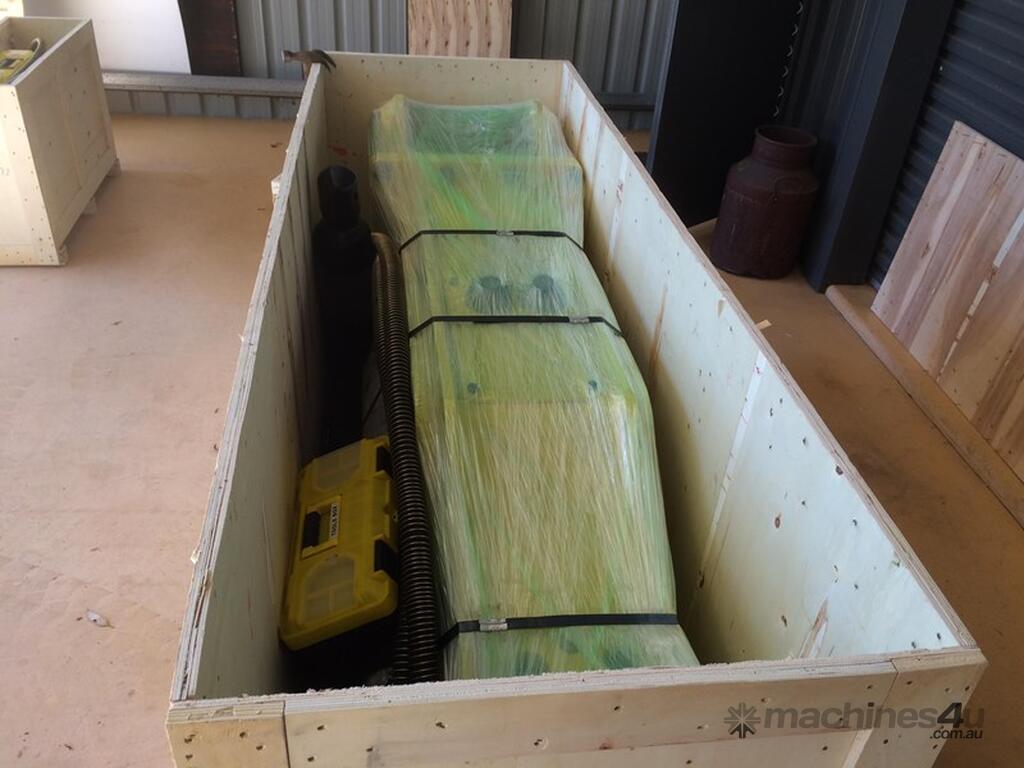

Hammers come ready to go and complete with:
1 x Mounting Bracket
2 x Mounting Pins
Auto-greaser

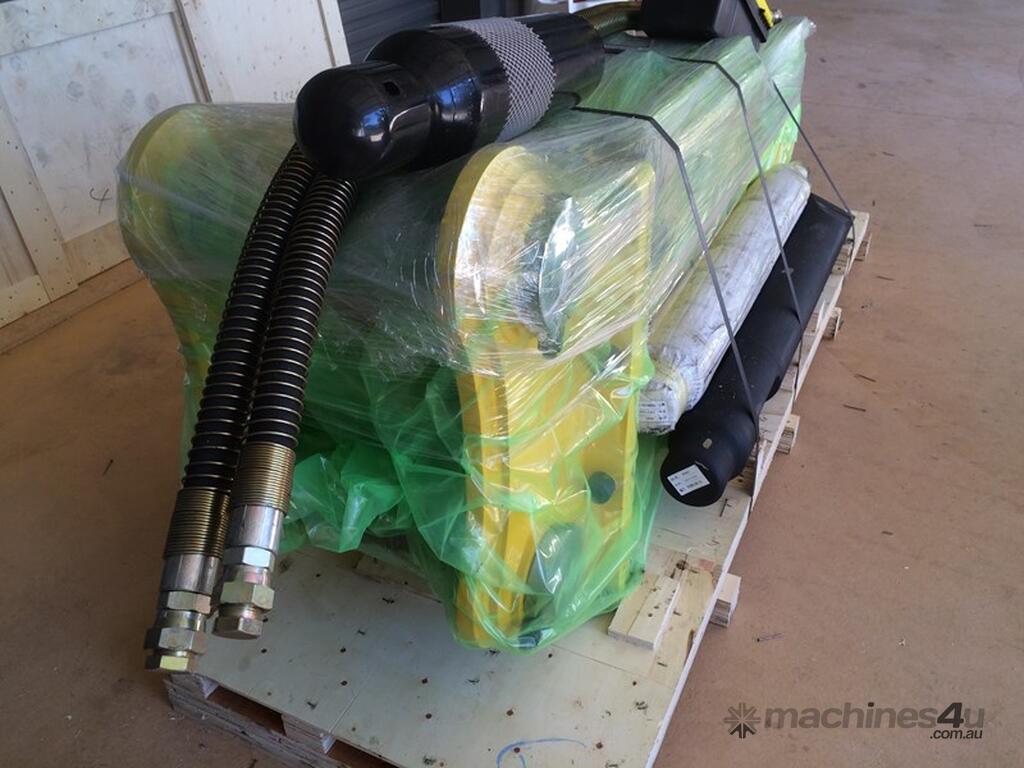

2 x Hydraulic Hoses 2.7mts long with 1” BSP female fittings

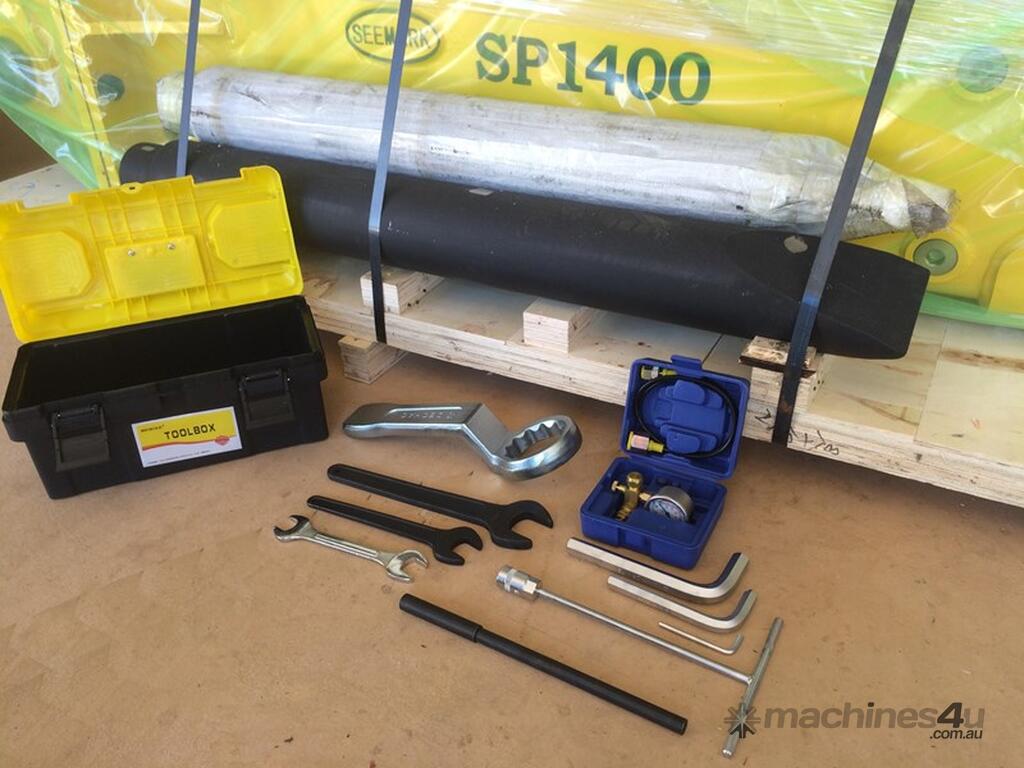

1 x Tool Kit
1 x Pointed Moil 140mm diameter
1 x Chisel Moil 140mm diameter


Model SP-1400 Specification
Unit Model SP-1400
Applicable machine ton 18 - 26
Operating weight kg 2004
Hydraulic oil pressure kg/cm (bar 156-176)
Hydraulic oil flow l/min 120-180
Impact frequency bpm 350-700 (adjustable on the hammer)
Hose diameter mm 25.4 (inch 1”)
Chisel diameter mm 140
Chisel weight kg 126
Impact power ft-lbs 3097 (Joule 4200)

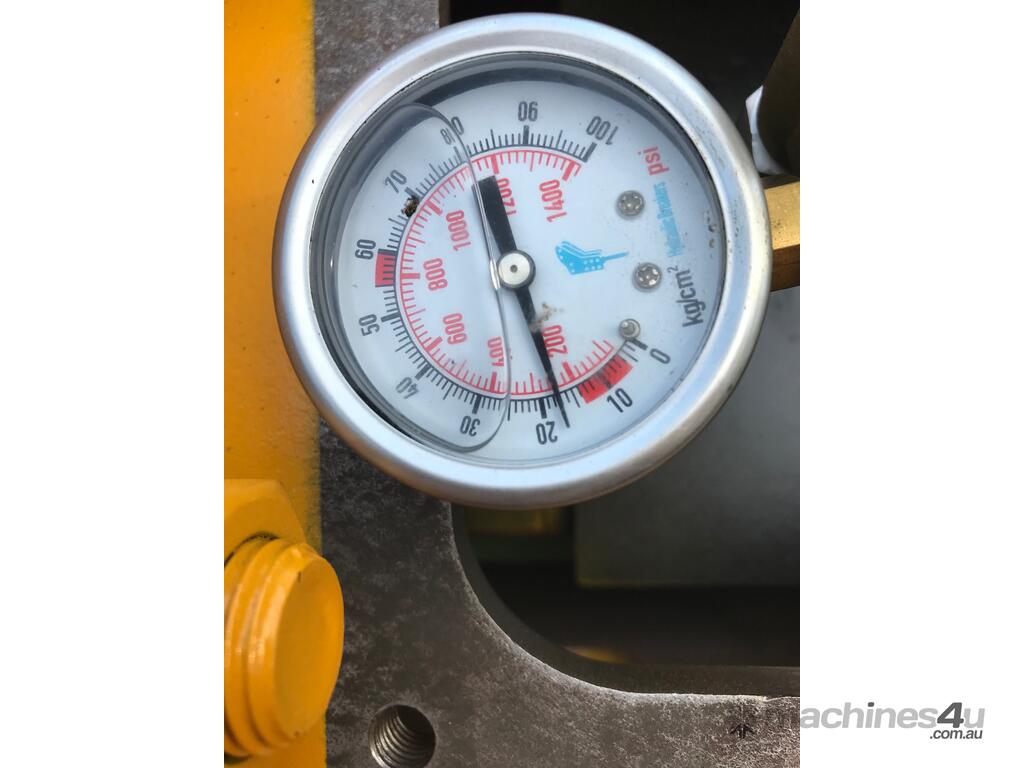

Nitrogen pressure kg/cm2 = 16.5
Main valve type Inward
Accumulator None (available to order)
Auto Greaser Fitted standard on this model

Seemark (Australia) Pty Ltd was established in 2012 as a supplier of machinery attachments. Our staff have considerable experience in the civil contracting industry, and we know our products well. We pride ourselves on product knowledge, and service both before and after sales and think we would be as good as any, if not the best! Call any time. We expect to resolve your enquiry quickly and without wasting your time.
