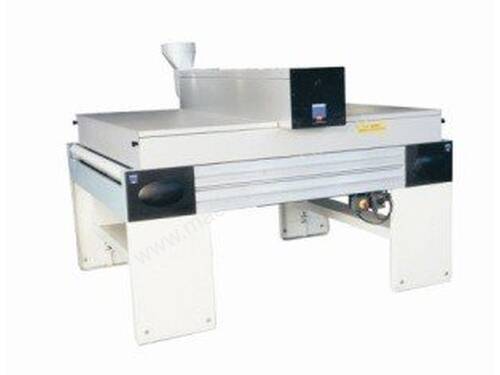

SELECURE - UVM1 PLUS

The ordinary ultraviolet sources produce a string infrared radiation that may cause a relevant overheating of the irradiated substrates. Thanks to a refined device developed by Superfici, it is possible to filter the emitted radiation taking away all the infrared portion. The result is a cold ultraviolet light which can be used with any kind of thermo-sensitive material. The above mentioned Coldcure system combined with the development of a special UV-PLUS module achieves the possibility of positioning the reflector in three different positions: 1. Direct irradiation – on the surface to be cured. 2. Coldcure position – to achieve a “cold” polymerisation. 3. Stand-by position – in case of conveyor stop with lamp power supply cut to 50%.

Advantages:
- versatility of the modular system
- high focal yield of the reflector mod. Labes, developed by Superfici to achieve a high concentration of the UV rays together with a wide versatility in the applications
- possibility to work in Coldcure mode for a “cold” polymerisation
- possibility of stepless adjustment of the UV lamp power
- excellent reliability of the power supply
- Wide range of available modules

Technical data:
UV MODULE SELECURE UVM1 PLUS
available lamp length from 300 to 2300 mm.
available lamp power from 80 to 120 W/cm
cooling type air
power supply type inductive
functioning mode direct - cold - stand by
