SEMI OPTIMISING DOCKING SAW (MODEL: SOC-100)

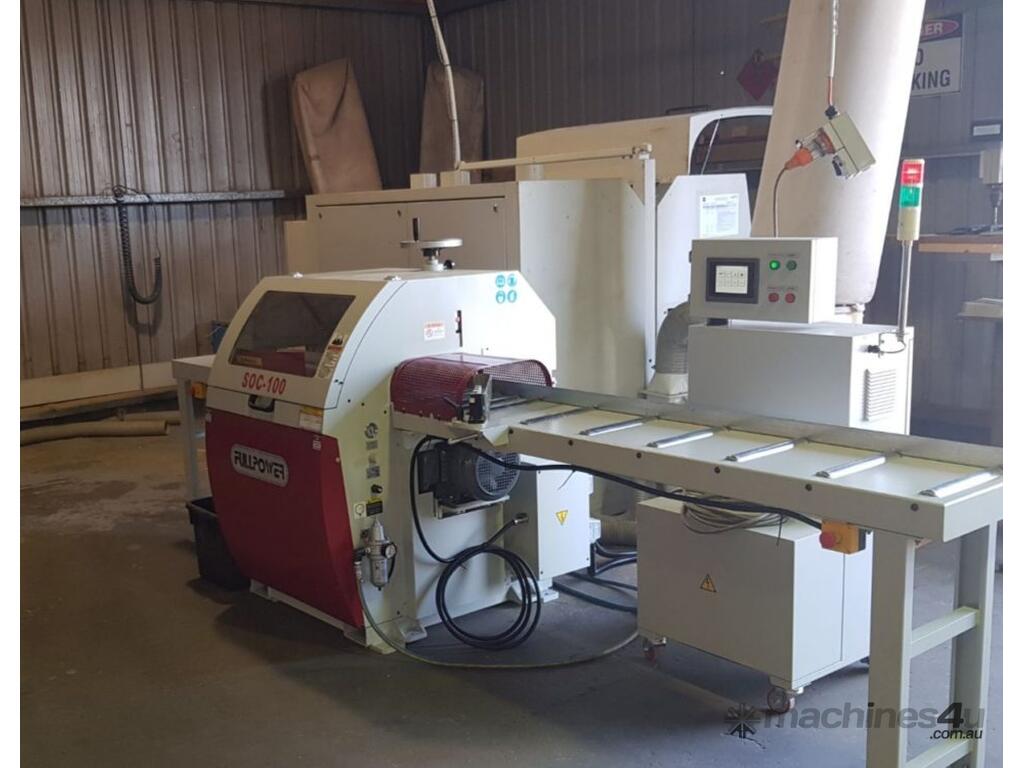

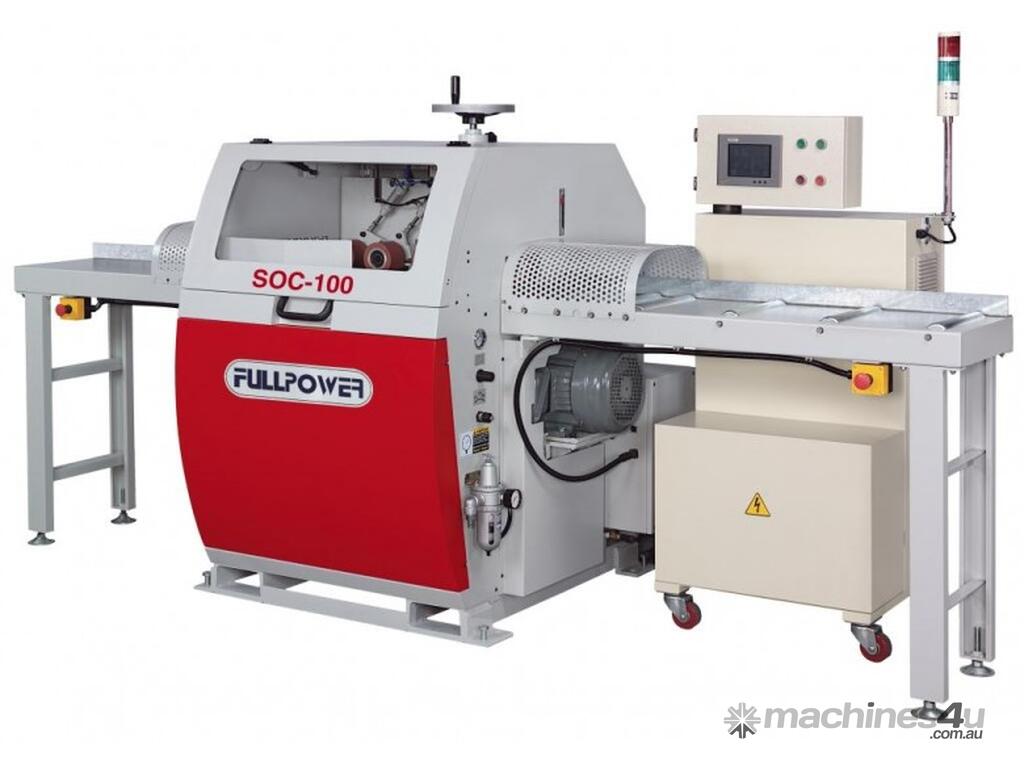

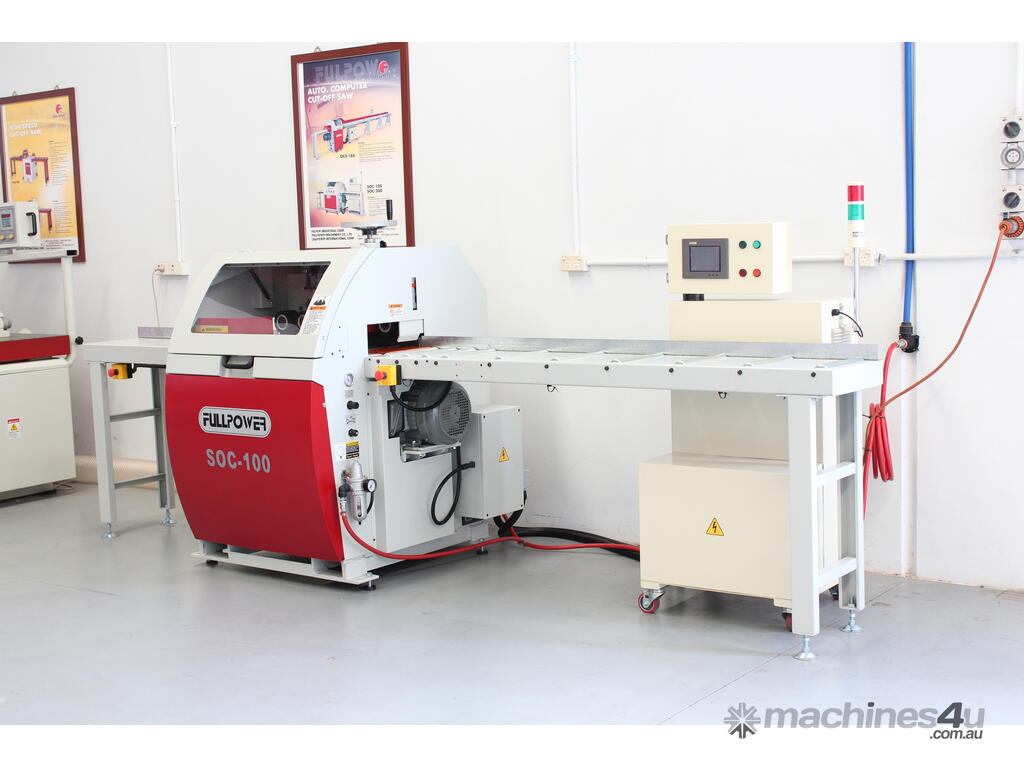

FULLPOWER SOC-100 SEMI OPTIMISING DOCKING SAW

The Fullpower SOC-100 is a heavy duty yet economically priced fault docker with the added benefit of automatic front and rear end trim and up to 100 preset lengths to an accuracy of approximately +/- 1mm on lengths up to 1000mm. A feed rate of 80m/min makes this machine suitable for fault docking all production products such as finger joint feedstock, decking, T&G flooring, etc.

STANDARD FEATURES:
Solid fabricated steel construction

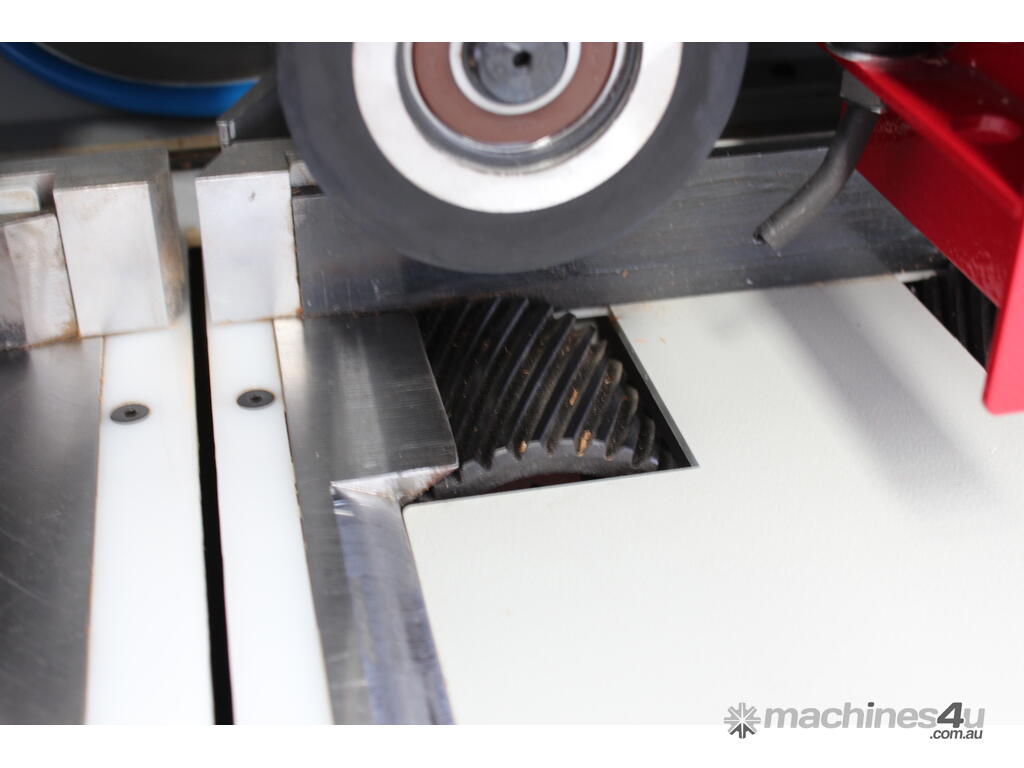

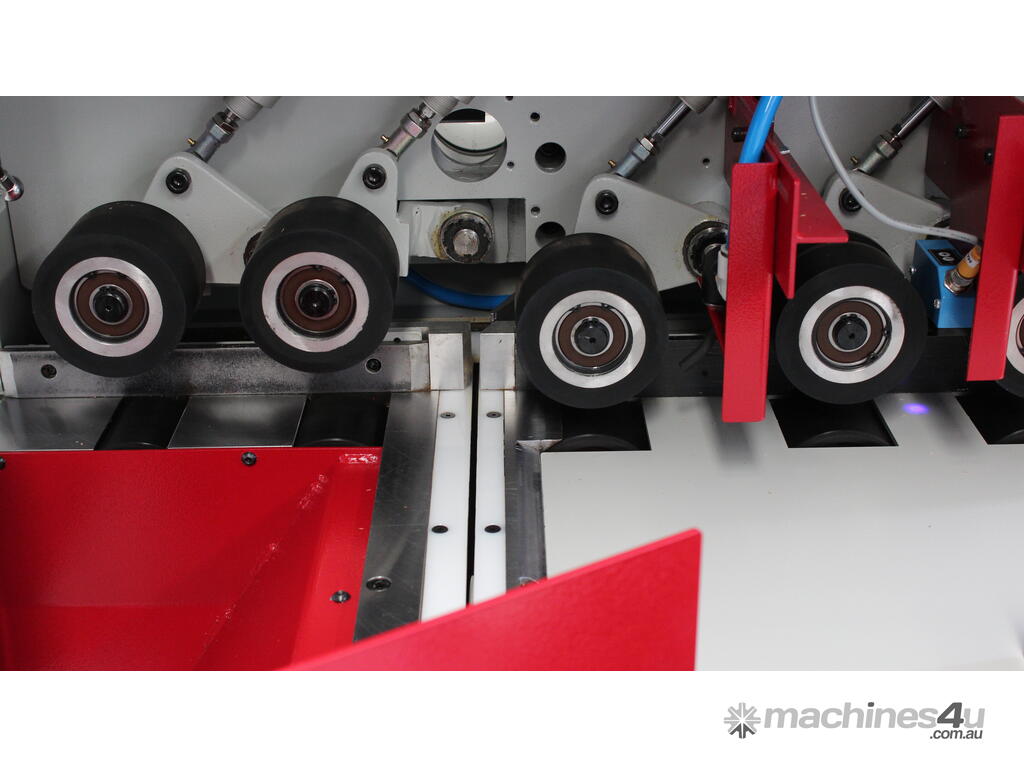

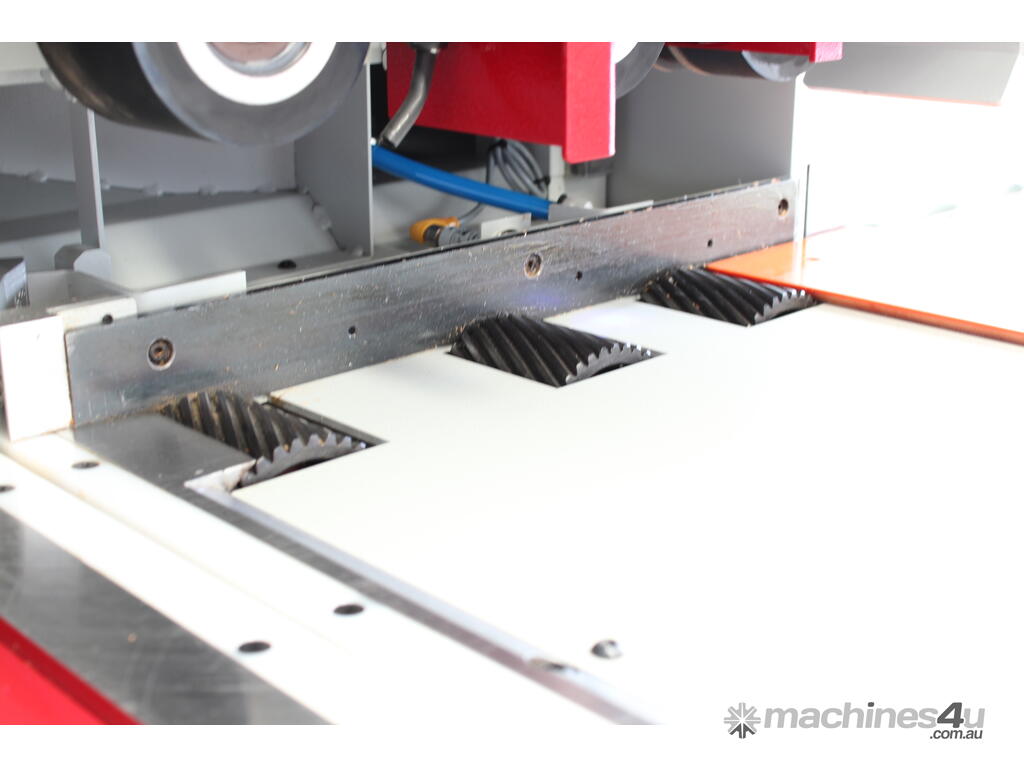

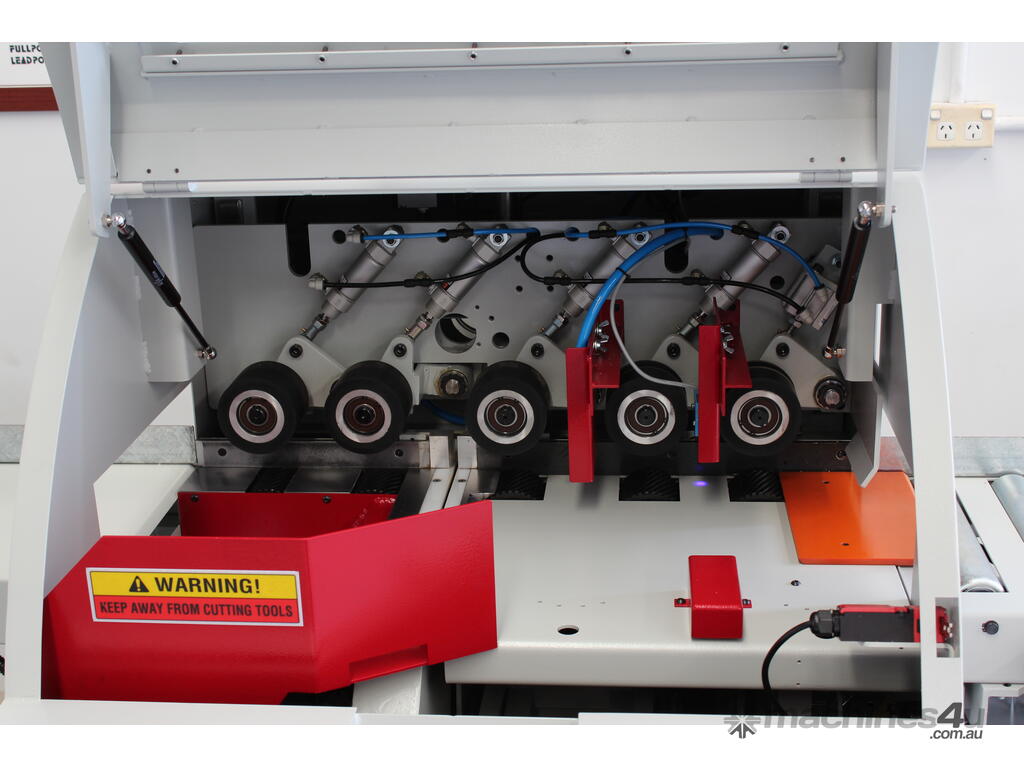

Positive feeding due to five opposing pressure/feed wheels
100 Preset lengths
Automatic end trimming function (Adjustable)
Mitsubishi servo motor for accurate positioning
Blower for removal of end trim

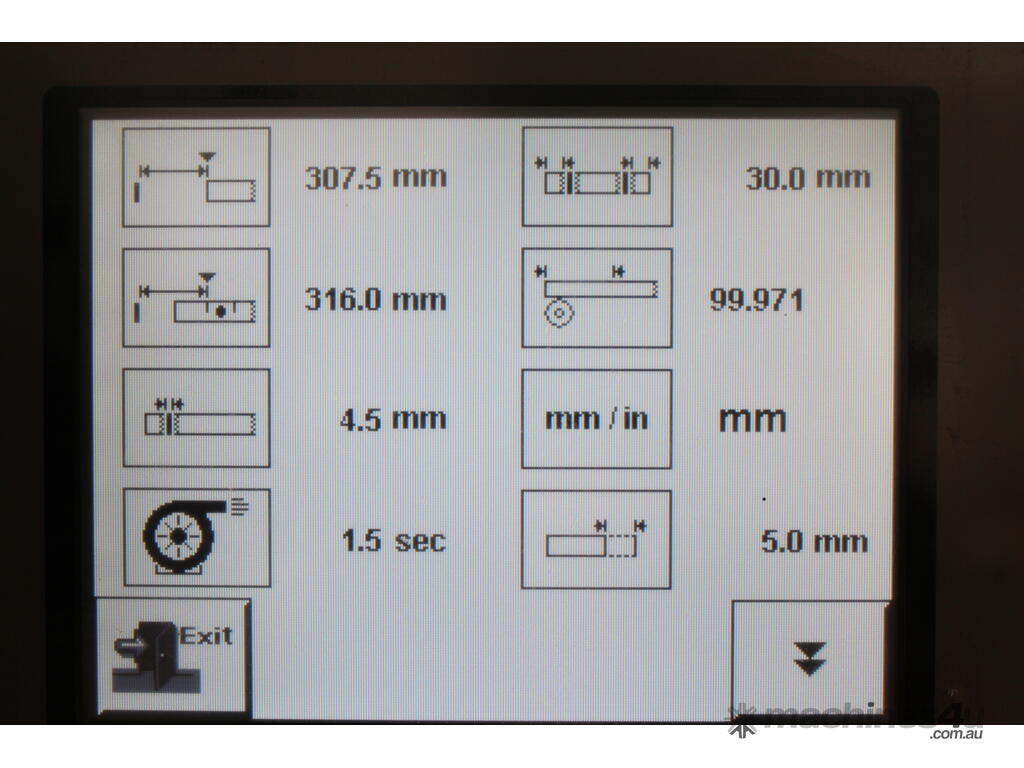

PC based 32 bit floating point DSP system with flash & battery backup with SRAM
CE certified

SPECIFICATIONS:
Maximum length of timber No limit
Minimum length of timber 300mm
Maximum width of timber 320mm
Maximum thickness of timber 100mm
Minimum end section 30mm x 10mm
Feed speed 80m/min (max.)
Saw motor 7.5kw
Saw spindle 30mm
Saw diameter 450mm

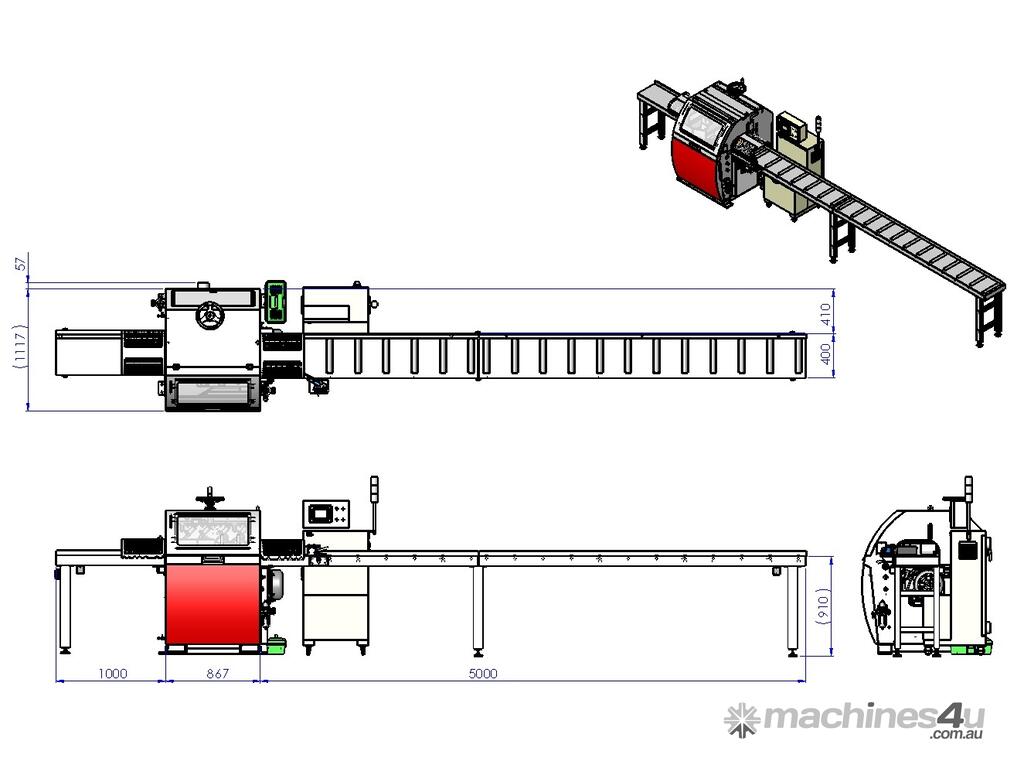

Infeed 5m Static Roller
Outfeed 1m Static Table
Working pressure 3 - 7kg/cm2
Electrical supply 415v, 3ph, 50 Hz
Machine weight 950kg (Approx.)

STANDARD ITEMS WITH MACHINE:
1 Only 450mm x 120T TCT saw blade
Set of operating tools operation manual

*Disclaimer*
Note: All photos and pricing are indicative only and have been prepared in good faith and with due care. Photos provided may include some optional features. Please contact us for an accurate quotation.
