SENFENG SF6020T METAL TUBE FIBER LASER CUTTING MACHINE

Ultra High Speed Laser Tube Cutting Machine

METAL TUBE LASER CUTTING MACHINE OVERVIEW

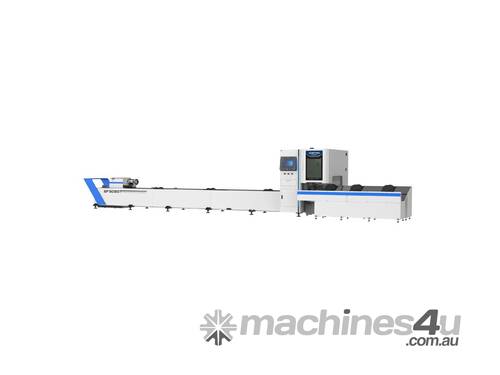

SENFENG SF6020T

The SENFENG SF6020T tube laser cutter, which has a laser power range of 1.5kw to 6kw, is capable of processing up to 6000mm of tubes (round tubes up to 220mm and 240mm, and square tubes up to 20×20-150x150mm and 20*20-240*240mm). In addition, it supports high-precision and high-efficiency cutting of racetrack-shaped and oval-shaped stretching tubes, angle steel, channel steel, I-beams, and other special shapes of steel.

FEATURES OF SF6020T TUBE LASER CUTTING MACHINE

AUTOMATIC LOADING AND UNLOADING SYSTEM (OPTIONAL)
With the bearing of loading 3,000kg, the automatic loading and unloading device is equipped with a 6-meter tube bundle, which can be sorted intelligently.
High degree of automation saves your labor costs and improves work efficiency.

SMALL FOOTPRINT
High processing accuracy, good cutting quality, the positioning accuracy ±0.05mm;repeated positioning accuracy ±0.02mm;machining accuracy is 0.1mm.

PNEUMATIC SELF-CENTERING CHUCK
The intelligent pneumatic jaws have a large clamping force and stable feeding, which can effectively improve the cutting accuracy and ensure the processing progress.

SUPER SHORT TAIL
Short tail material cutting function, the rear chuck can be extended into the main chuck, effectively shorteningThe rear chuck can be extended to the main chuck with a short tail-cutting function to effectively shorten the distance between the rear chuck and the cutting head, thereby reducing the length of tailings by 2.5 times, which can improve material utilization, and save production costs.

POWERFUL DYNAMIC PERFORMANCE
Standard high torque and large inertia servo motor can achieve faster acceleration, higher chuck speed, and doubled production efficiency.

HIGH STRENGTH MACHINE BED
The machine tool bed is welded with high-quality steel plates and pipes to ensure its sufficient structural stability and shock resistance. There are also three pneumatic eccentric wheels to assist in feeding.

APPLICATION MATERIALS OF TUBE LASER CUTTER
SF6016T metal tube fiber laser cutting machine can cut carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.widely used in furniture, medical equipment, fitness equipment, oil pipelines, exhibition equipment, engineering machinery, bus manufacturing, locomotive manufacturing, agricultural and forestry machinery, bridges, ships, structural parts, household appliances manufacturing and other industries.
