SG-420 Hydraulic Guillotine 1300 x 2mm Mild Steel Shearing Capacity Manual Backgauge

METALMASTER SG-420 Hydraulic Guillotine 1300 x 2mm Mild Steel Shearing Capacity Manual Backgauge
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S535

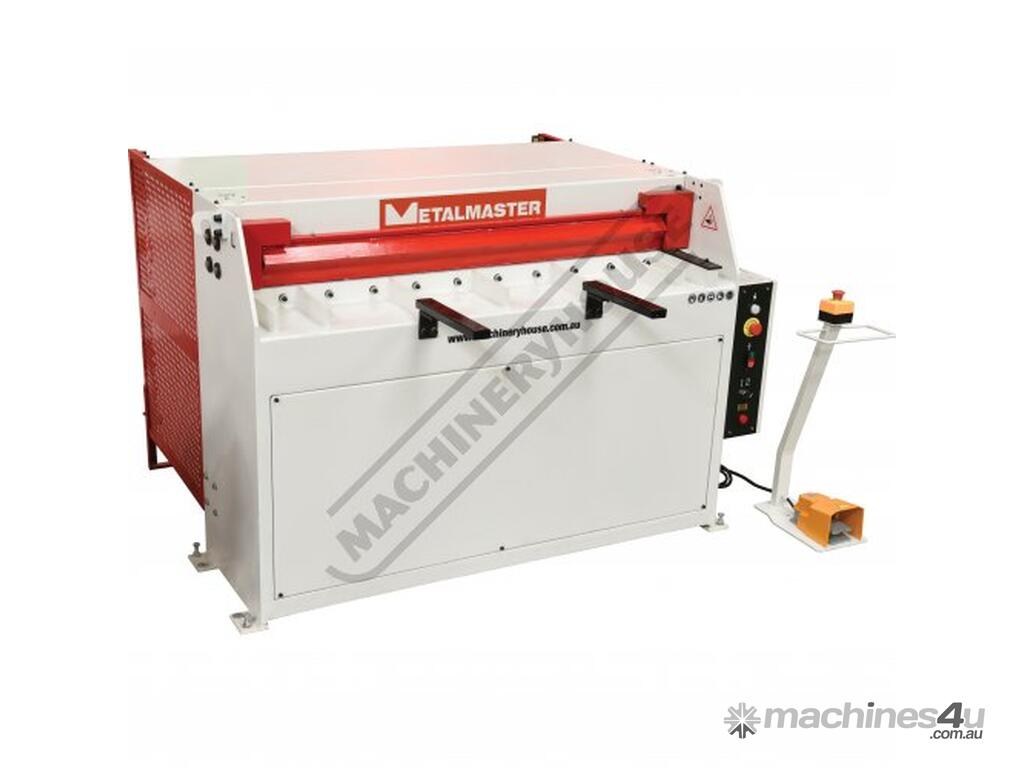

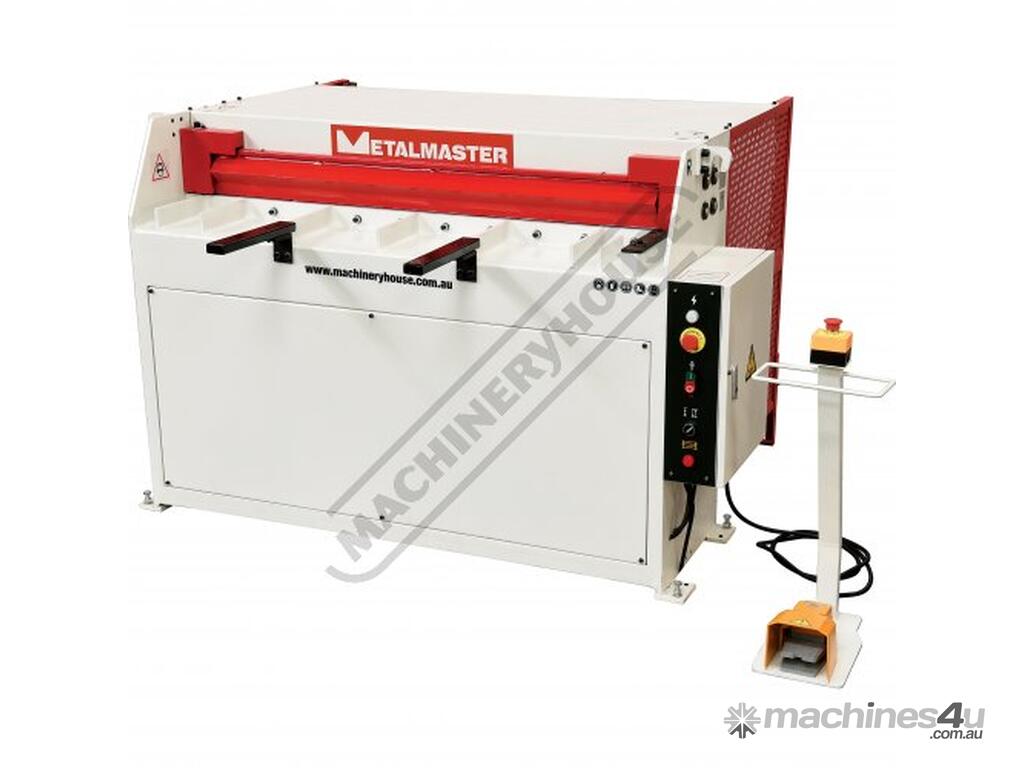

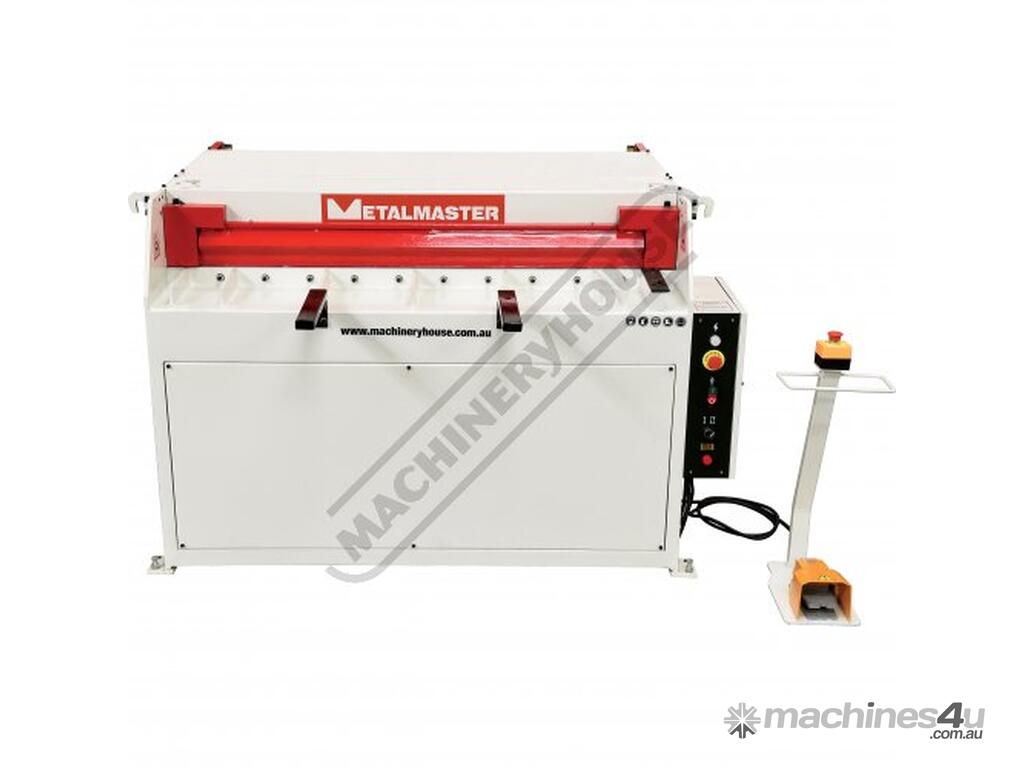

The SG-420 compact hydraulic guillotine is a machine that should be in every sheet metal fabrication shop. This 1300mm guillotine will easily cut 2mm mild steel over its full length and operates on 240 volt 15 amp single phase power. The SG-420 comes complete with an adjustable back gauge for precise repeatability. It also comes standard with a squaring arm and front sheet supports.

Features:
1300mm x 2mm cutting capacity
2.2kW / 3hp 240V motor
880mm work table height

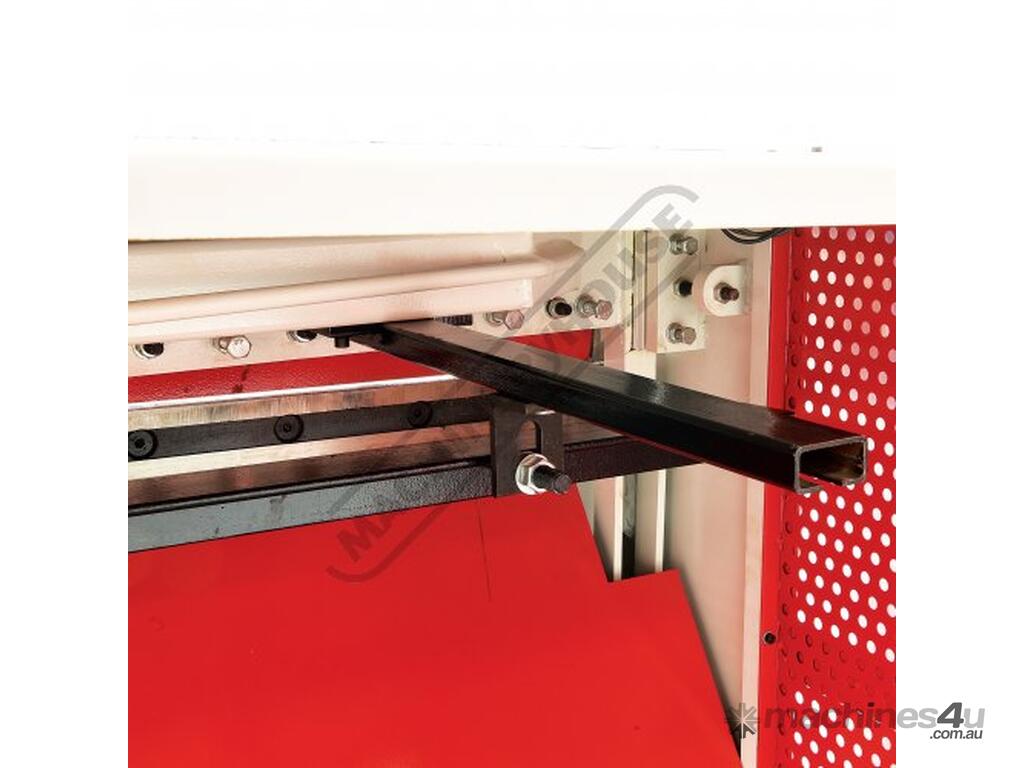

Adjustable manual backgauge

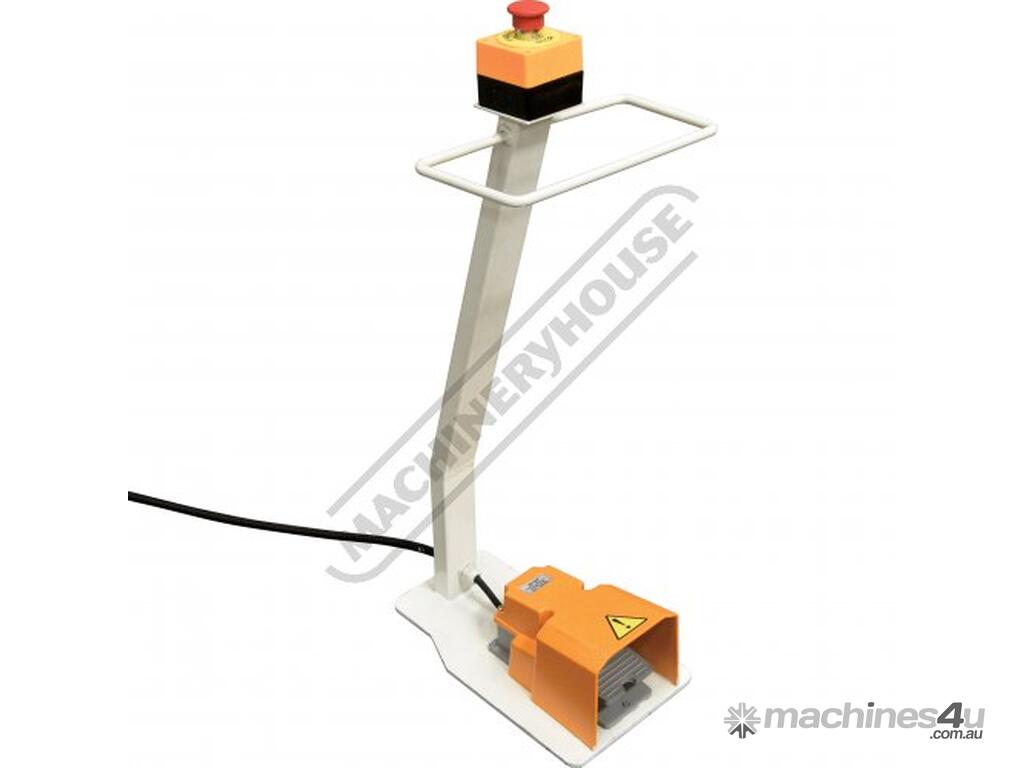

Roving foot pedal control
Blades made from 9CrSi material suitable for cutting stainless steel

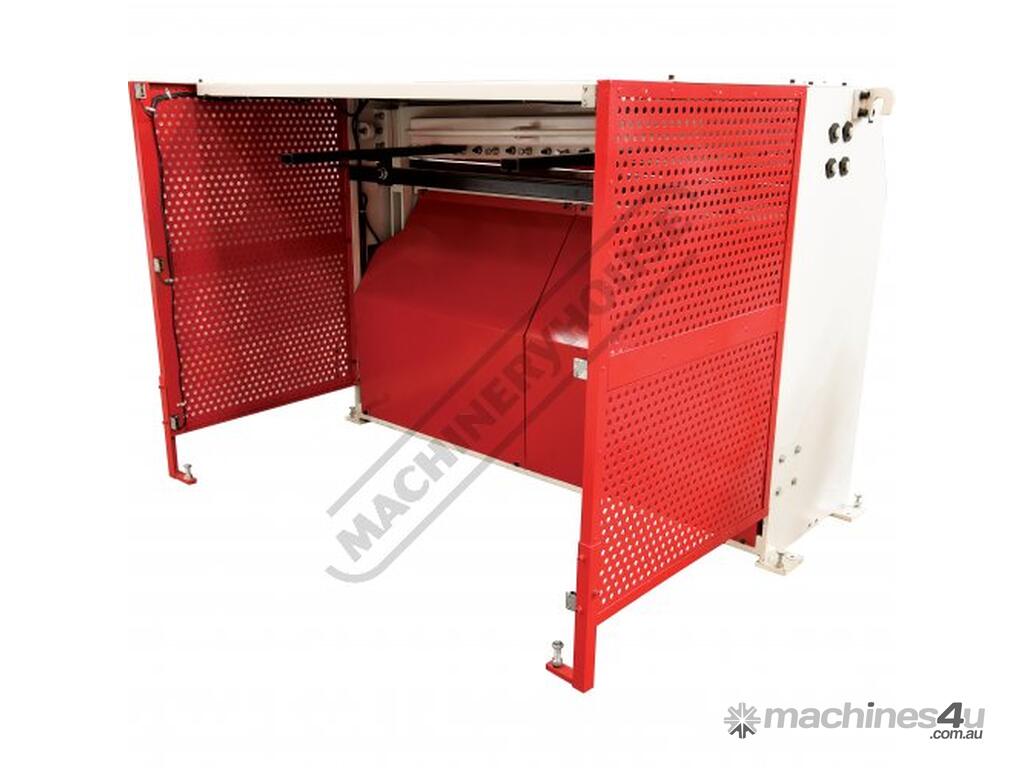

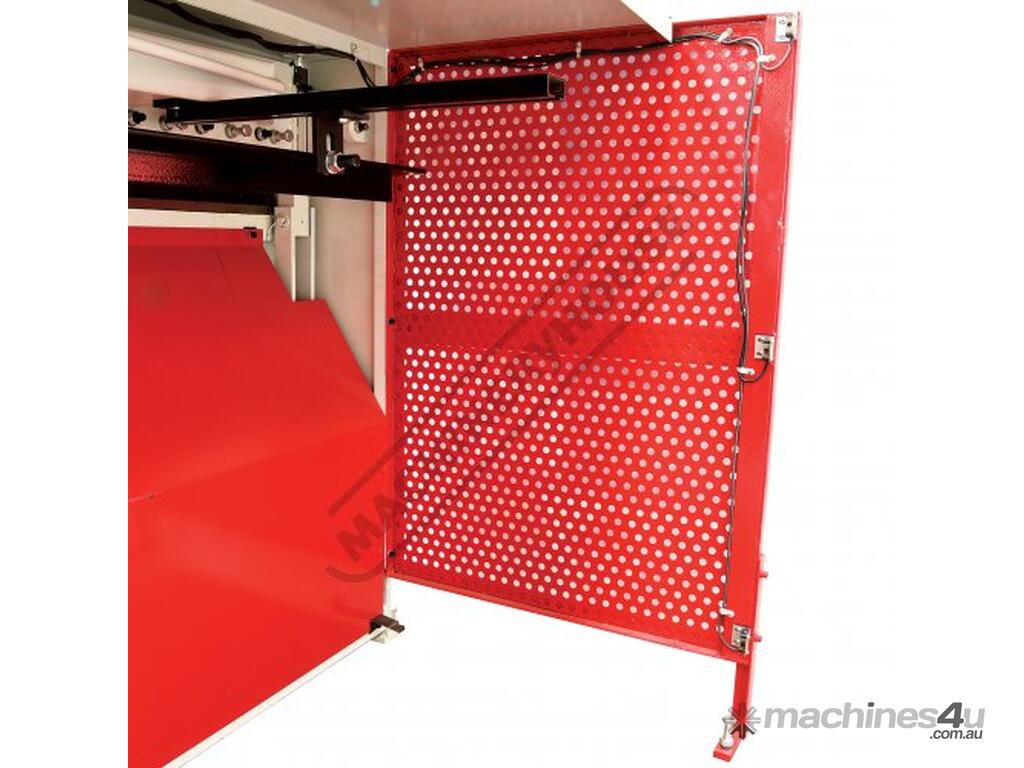

Safety photo electric rear guarding with 3 beams
Safety reset rear guarding button mounted to back of electrical box

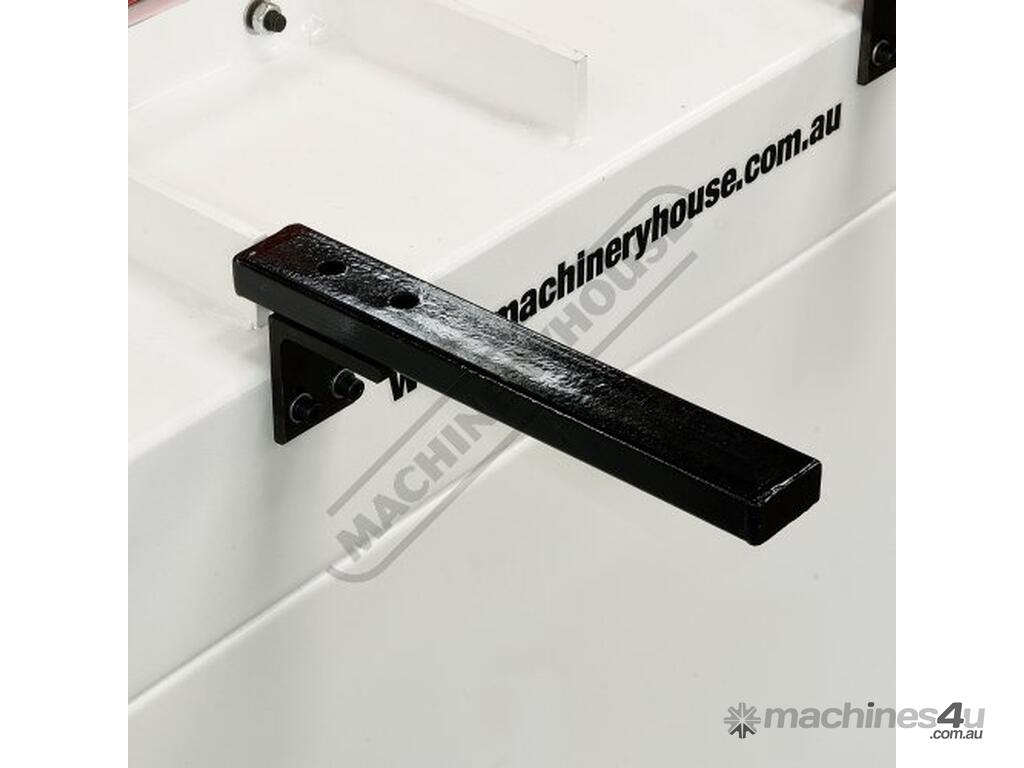

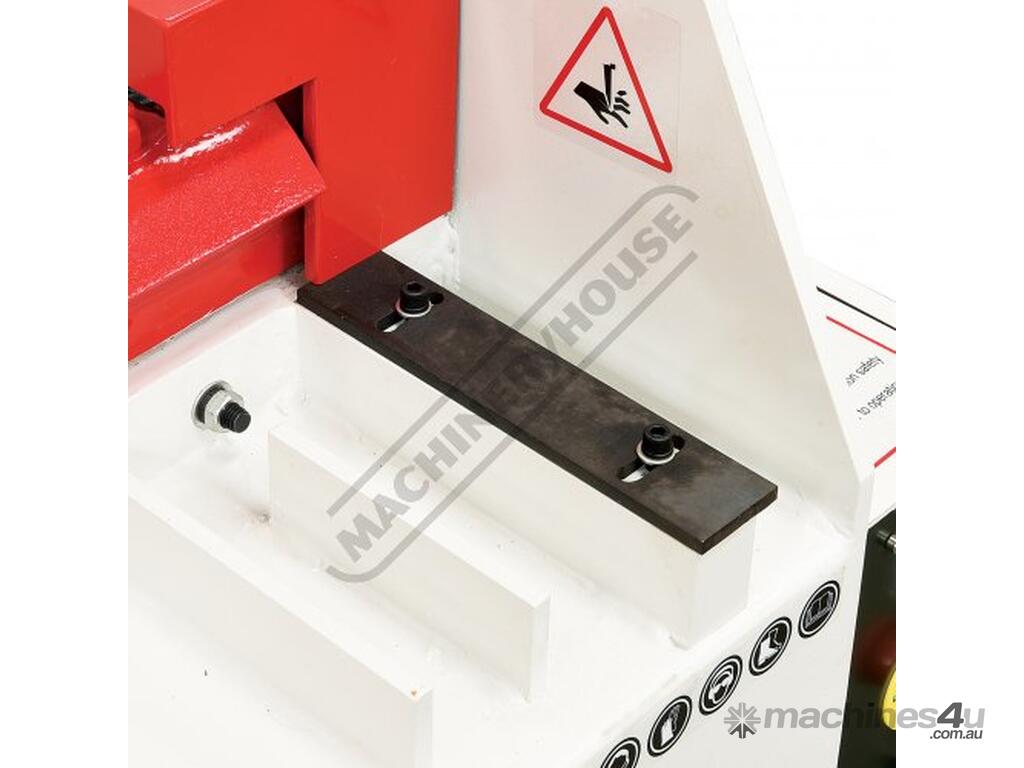

Front arm supports & squaring guide
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Guillotine is run & tested prior delivery
2. Hydraulic oil is included with machine


Specifications:
ORDER CODE: S535
MODEL: SG-420
Shearing Capacity - Mild Steel (mm): 2
Shearing Capacity - Stainless Steel (mm): 0.9
Shearing Length (mm): 1300
NC Control (Type): ~
Backgauge (Type): Manual
Backgauge Travel (mm): 550
Pneumatic Sheet Supports: ~
Quick Action Blade Clearance Adjustment: ~
Strokes / min (SPM): ~
Blade Angle (deg): ~
Blade Angle (deg): ~
Throat Depth (mm): ~
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Floor Space Requirements (L x W x H) (mm): 1750 x 1475 x 1110
Nett Weight (kg): 560
