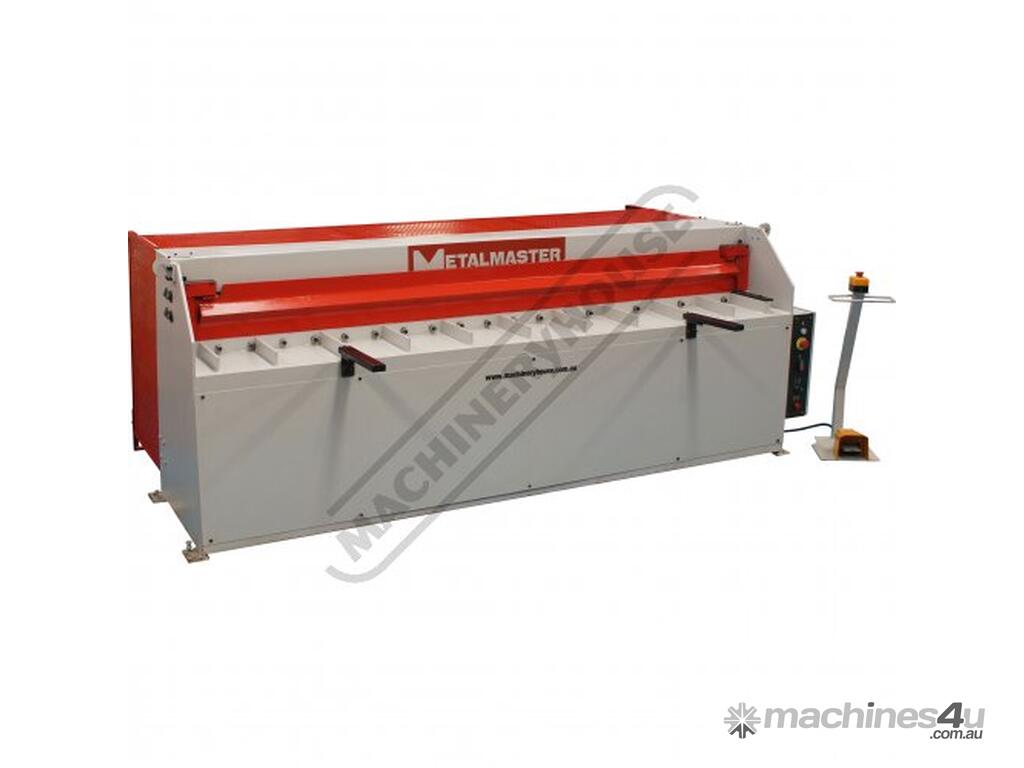

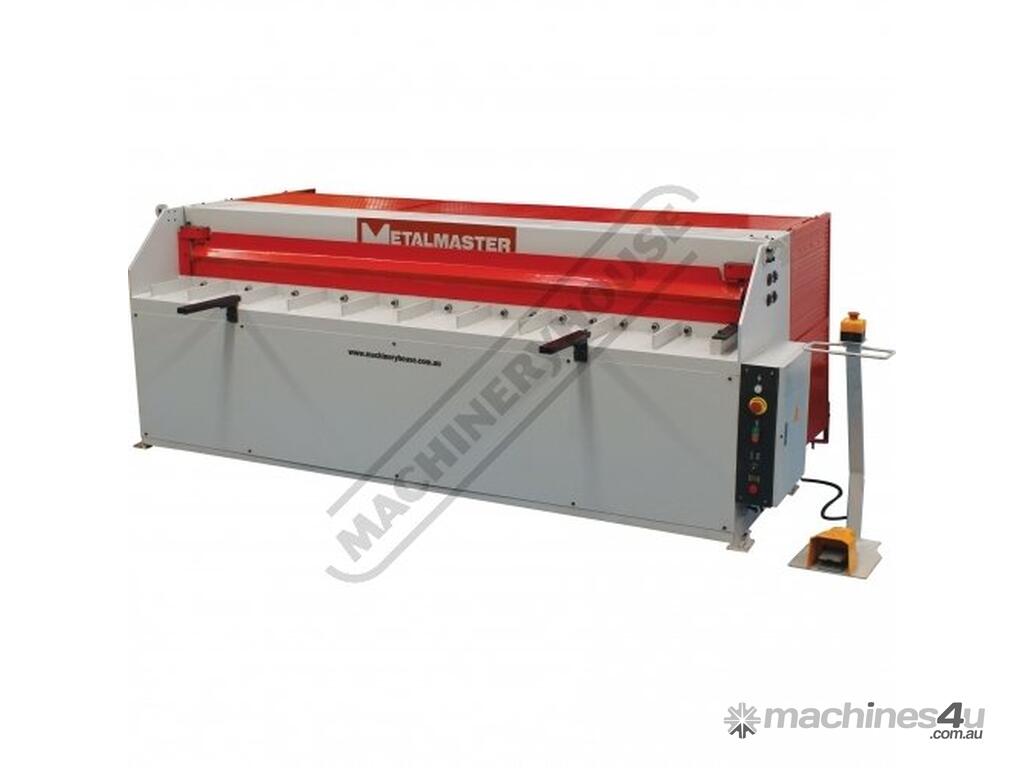

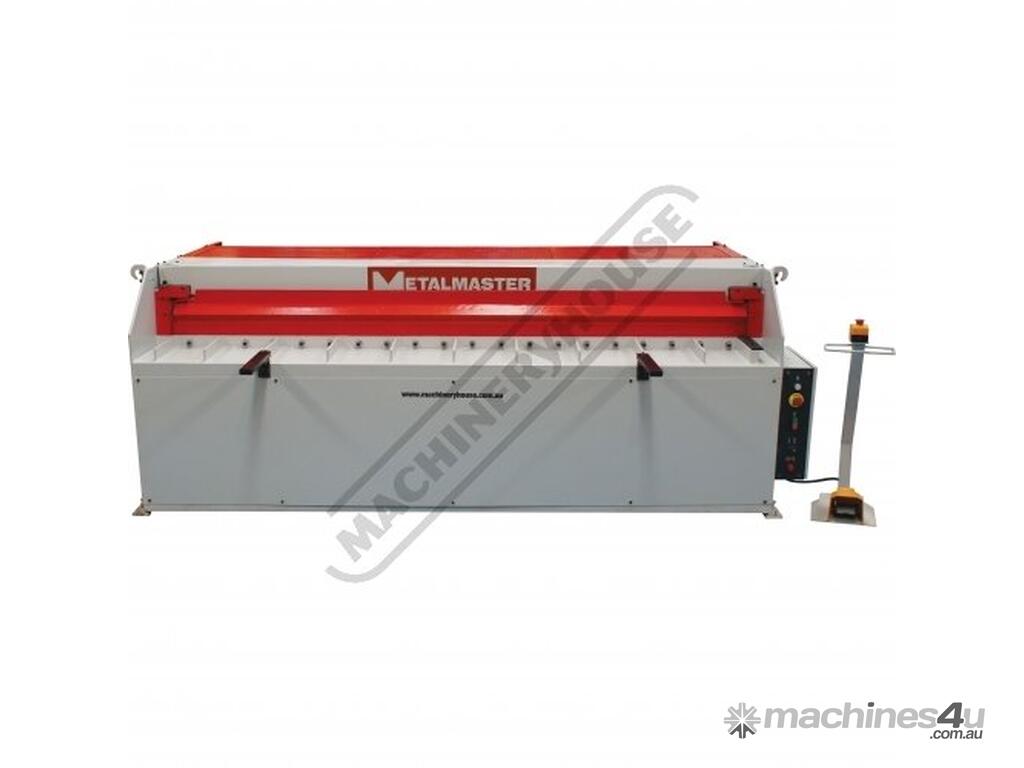

SG-815H Hydraulic Guillotine 2470 x 1.6mm Mild Steel Shearing Capacity Manual Backgauge

METALMASTER SG-815H Hydraulic Guillotine 2470 x 1.6mm Mild Steel Shearing Capacity Manual Backgauge
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S537

The SG-815H compact hydraulic guillotine is a machine that should be in every sheet metal fabrication shop. This 2470mm guillotine will easily cut 1.6mm mild steel over its full length and operates on 240 volt 15 amp single phase power. The SG-815H comes complete with an adjustable back gauge for precise repeatability. It also comes standard with a squaring arm and front sheet supports.

Features:
2470mm x 1.6mm cutting capacity
2.2kW / 3hp 240V motor
880mm work table height
Adjustable manual backgauge

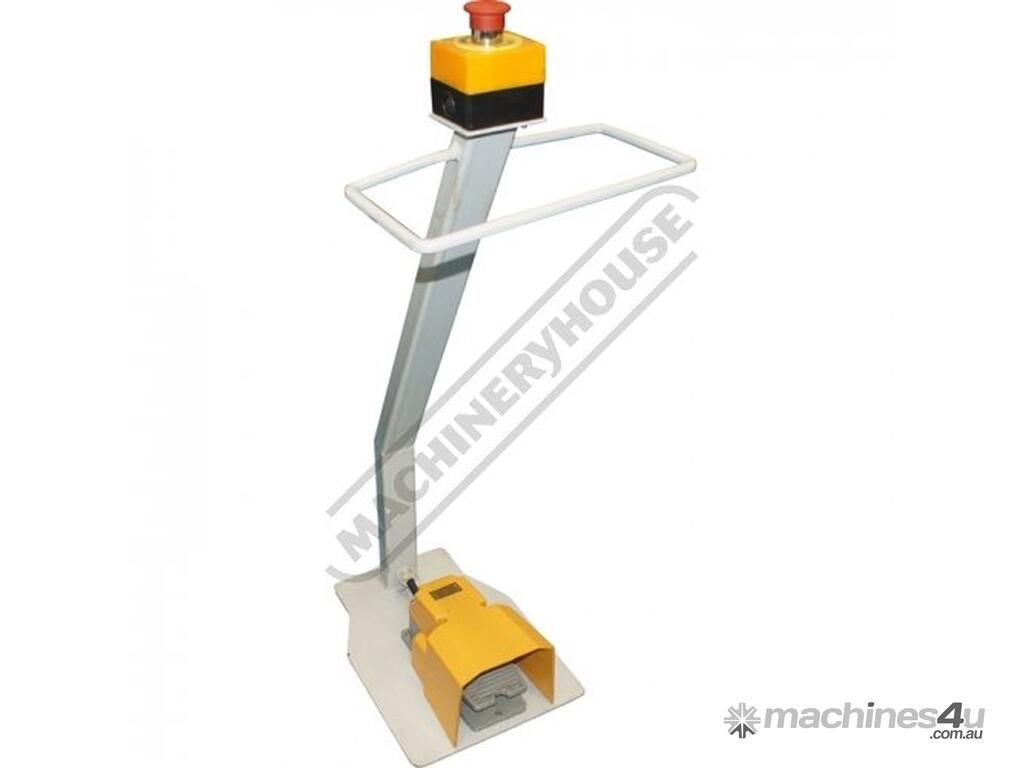

Roving foot pedal control

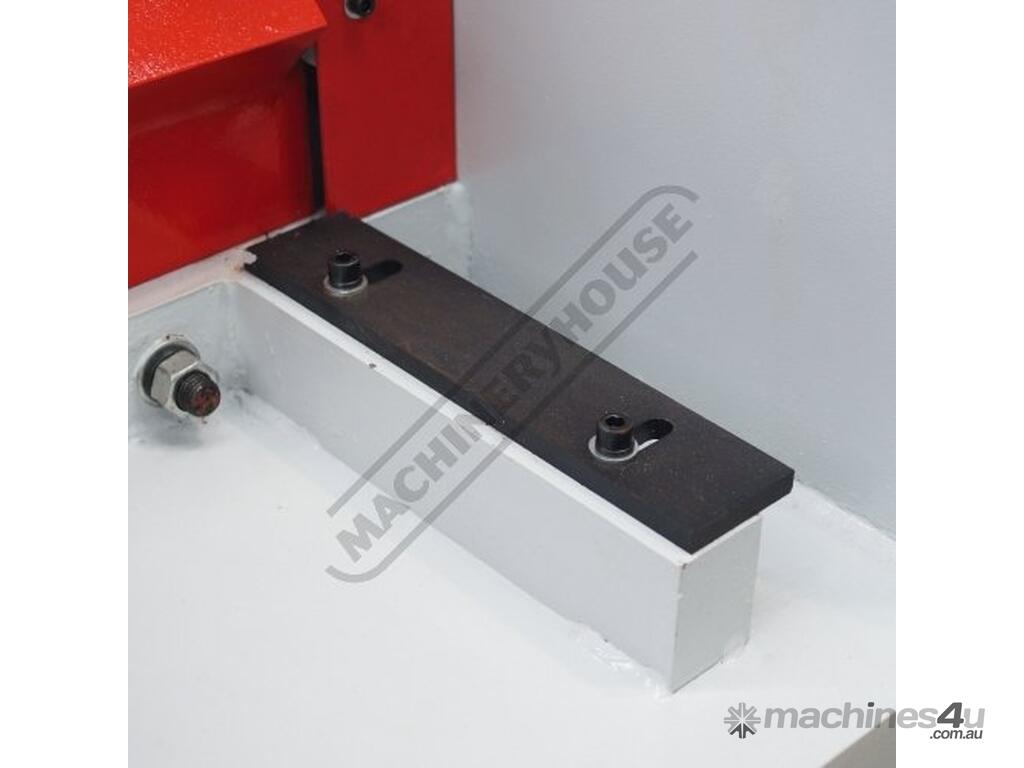

Blades made from 9CrSi material suitable for cutting stainless steel

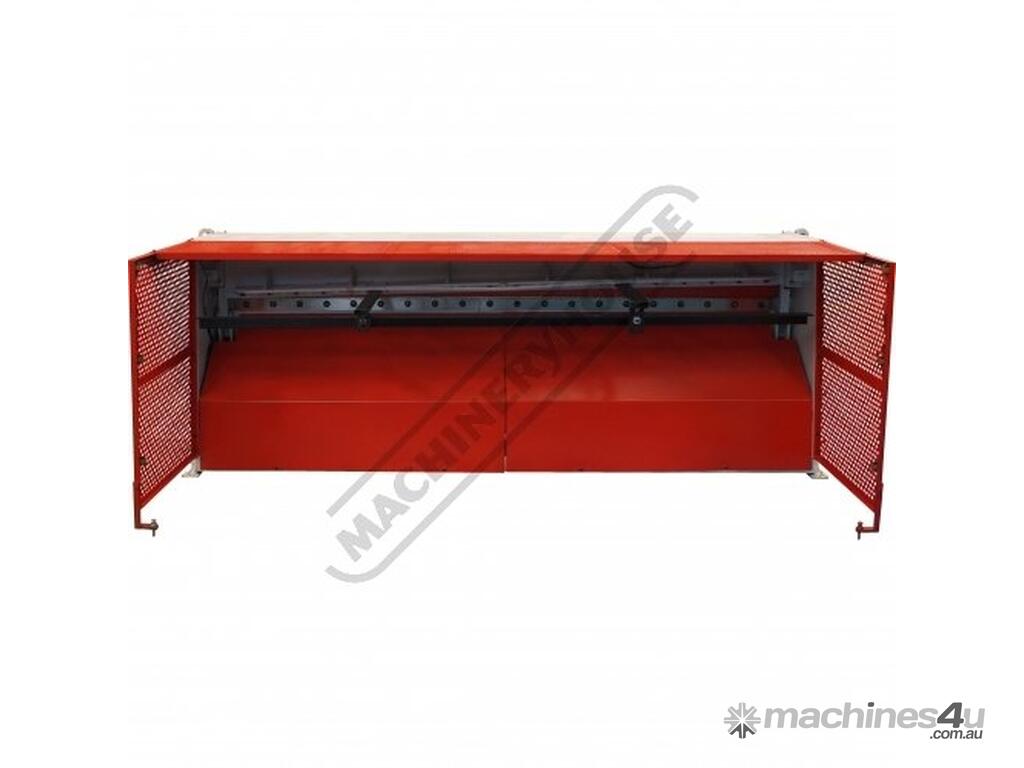

Safety photo electric rear guarding with 3 beams
Safety reset rear guarding button mounted to back of electrical box
Front arm supports & squaring guide
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Guillotine is run & tested prior delivery
2. Hydraulic oil is included with machine


Specifications:
ORDER CODE: S537
MODEL: SG-815H
Shearing Capacity - Mild Steel (mm): 1.6
Shearing Capacity - Stainless Steel (mm): 0.8
Shearing Length (mm): 2470
NC Control (Type): ~
Backgauge (Type): Manual
Backgauge Travel (mm): 550
Pneumatic Sheet Supports: ~
Quick Action Blade Clearance Adjustment: ~
Strokes / min (SPM): ~
Blade Angle (deg): ~
Blade Angle (deg): ~
Throat Depth (mm): ~
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Floor Space Requirements (L x W x H) (mm): 2970 x 1720 x 1200
Nett Weight (kg): 1173
