SG-820 Manual Surface Grinder 530 x 220mm Table Travel

HAFCO-METALMASTER SG-820 Manual Surface Grinder 530 x 220mm Table Travel
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G218

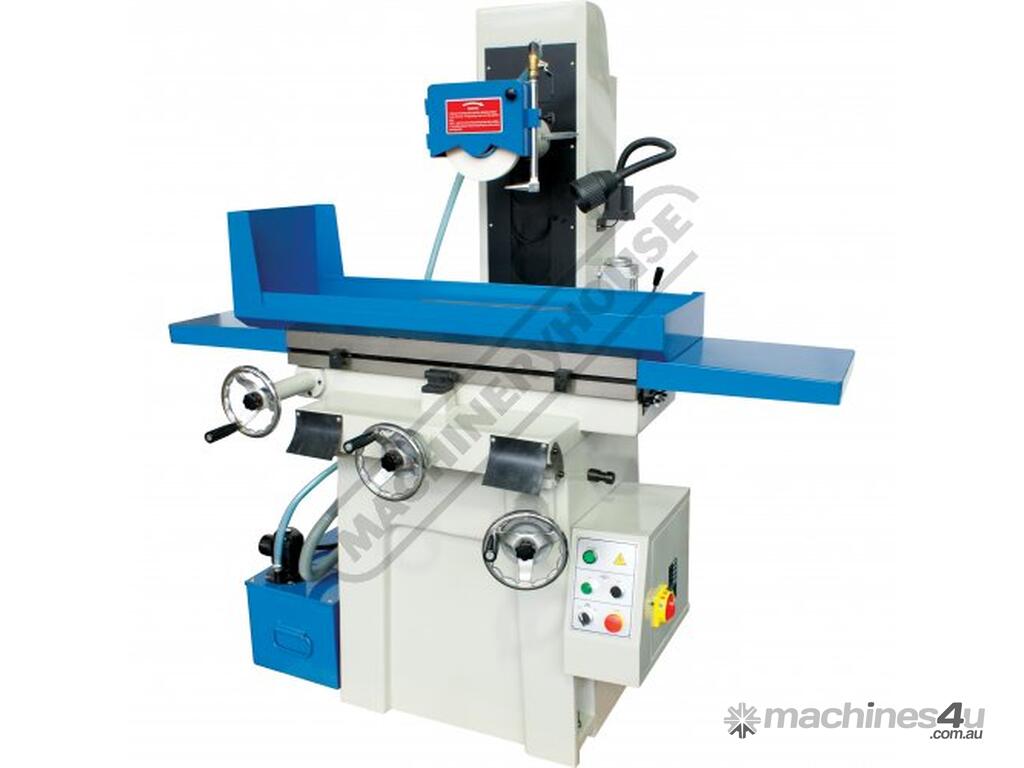

The SG-820 is an excellent surface grinder for grinding precision parts in hardened or annealed ferrous metals. It features heavy duty cast iron construction, quiet running precision spindle, ball bearing longitudinal slide, coolant system and more.

Features:
Quality castings and Precision Japanese P4 ball bearing supporting the spindle

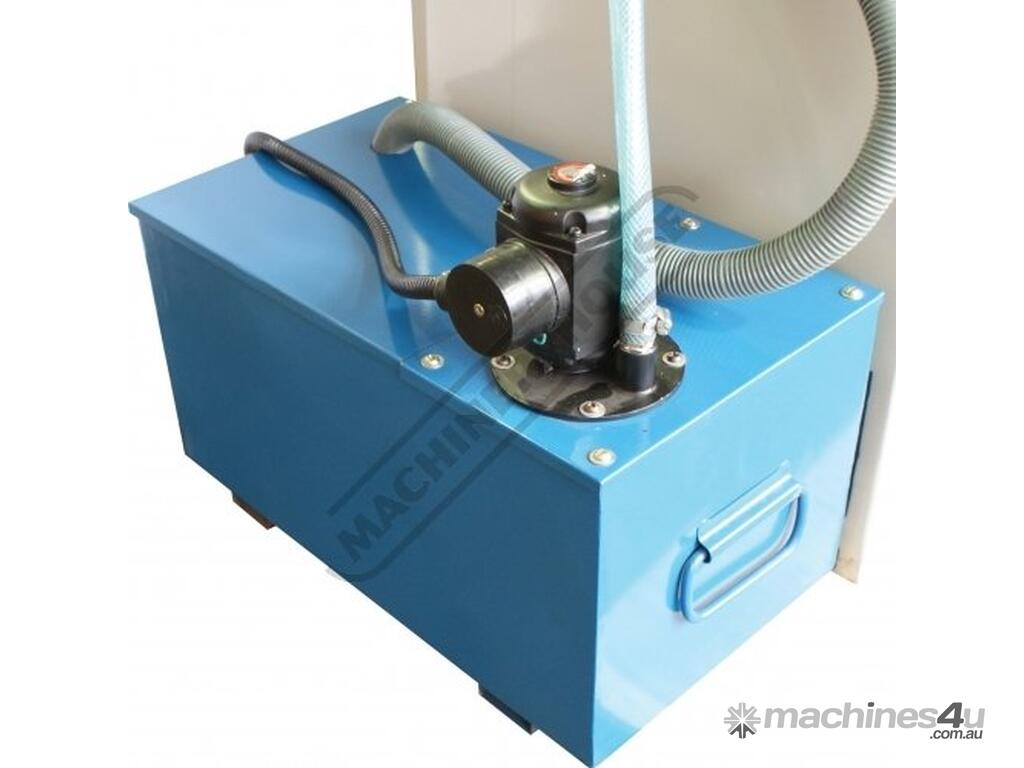

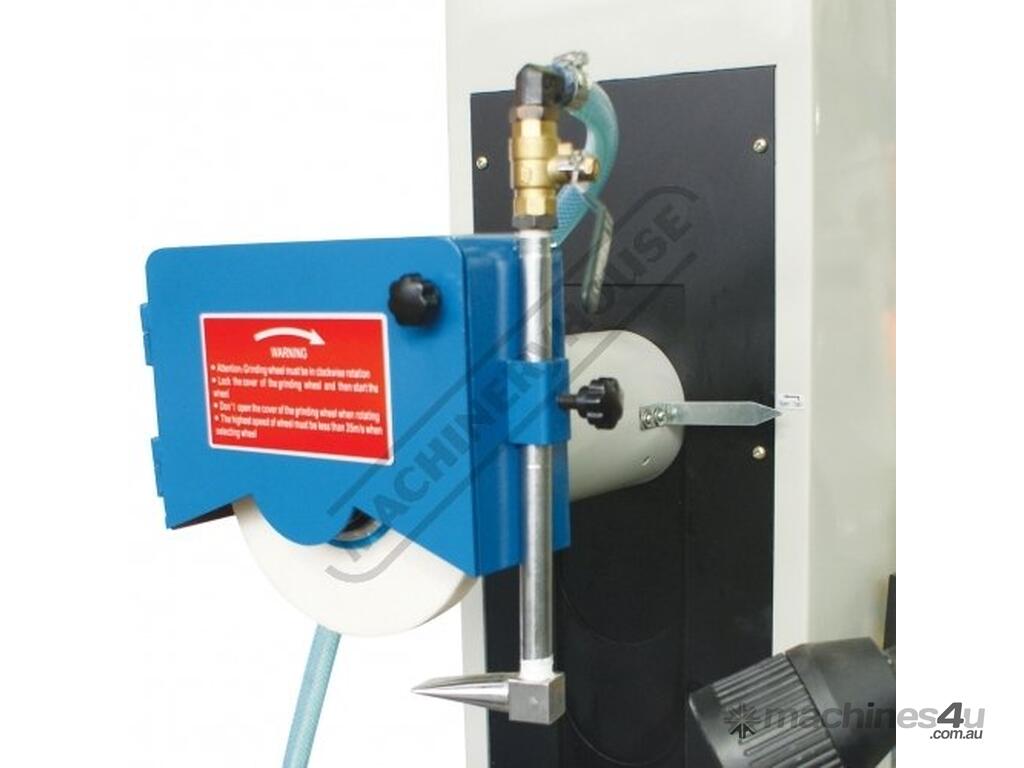

Coolant system with nozzle and flow control valve
Cast iron machine body and stand for maximum rigidity and smooth operation

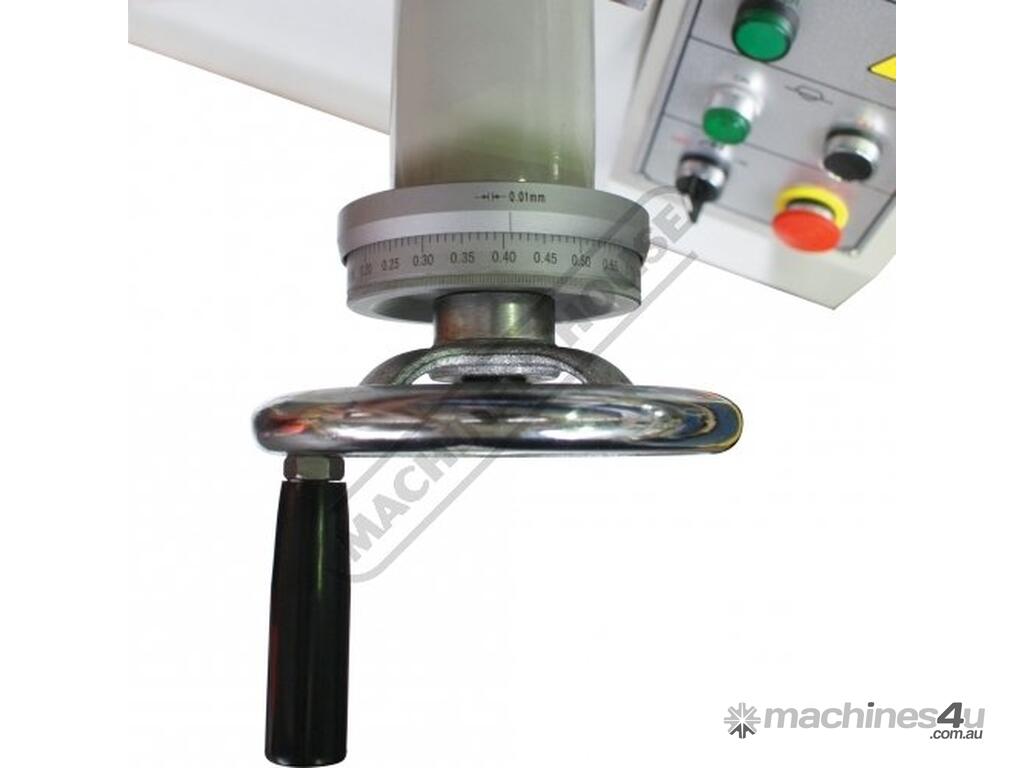

Vertical dial graduations 0.01mm

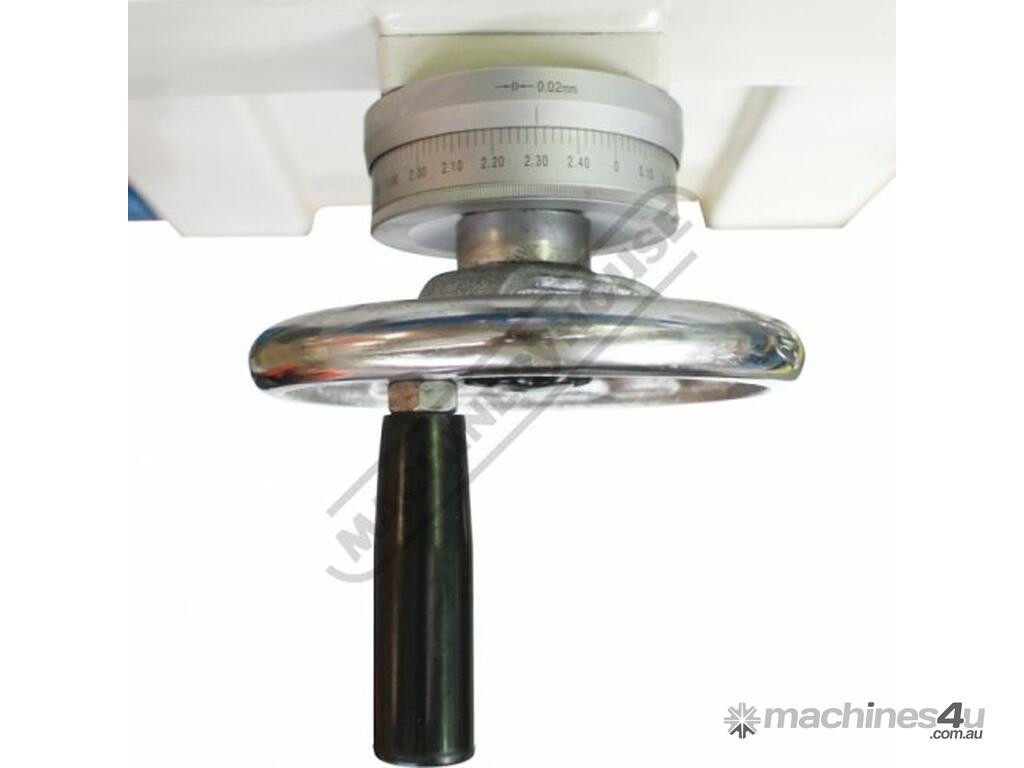

Cross travel graduations 0.02mm

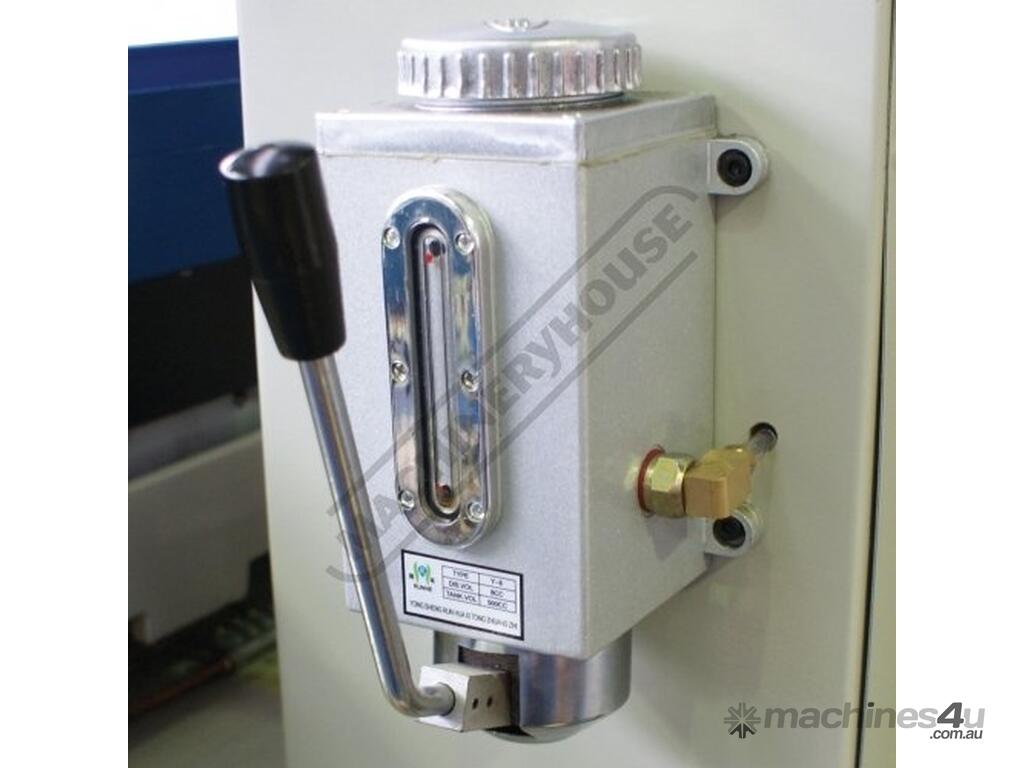

Manual one shot lubrication pump
Wheel balancing stand and arbor

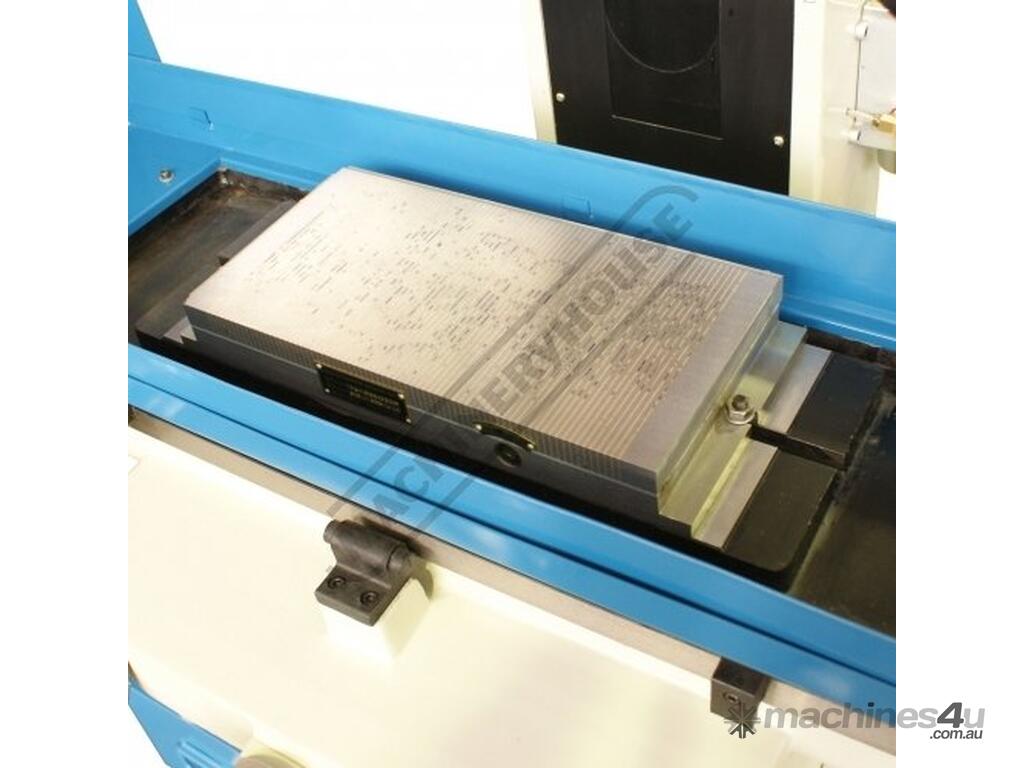

400 x 200mm Magnetic Chuck
Diamond wheel dresser

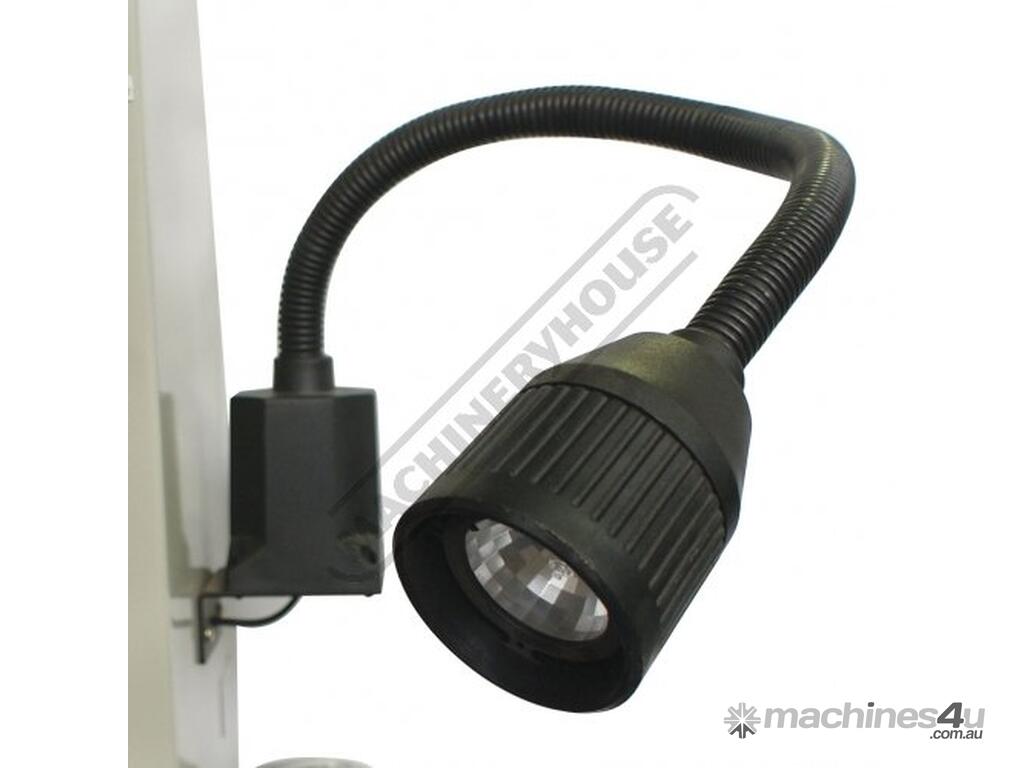

Halogen work light


Specifications:
ORDER CODE: G218
MODEL: SG-820
AD5 Controller: ~
Magnetic Chuck Size (mm): 400 x 200
Longitudinal Table Traverse - Maximum (mm): 530
Cross Table Traverse - Maximum (mm): 220
Table Bed Size (mm): 480 x 200
Spindle To Table - Maximum (mm): 490
Wheel Diameter (mm): 200
Vertical Increment Graduations (mm): 0.01
Vertical Graduations Per Revolution (mm/rev): 1.25
Cross Increment Graduations (mm): 0.02
Cross Graduations Per Revolution (mm/rev): 2.5
Spindle Motor (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 800
