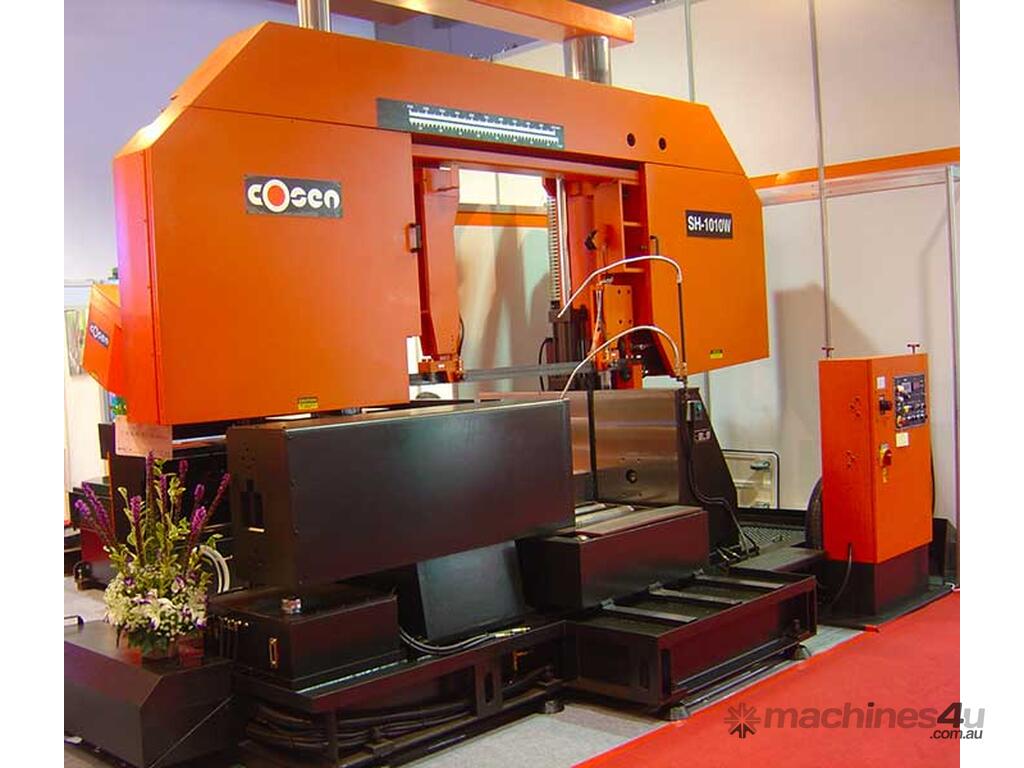

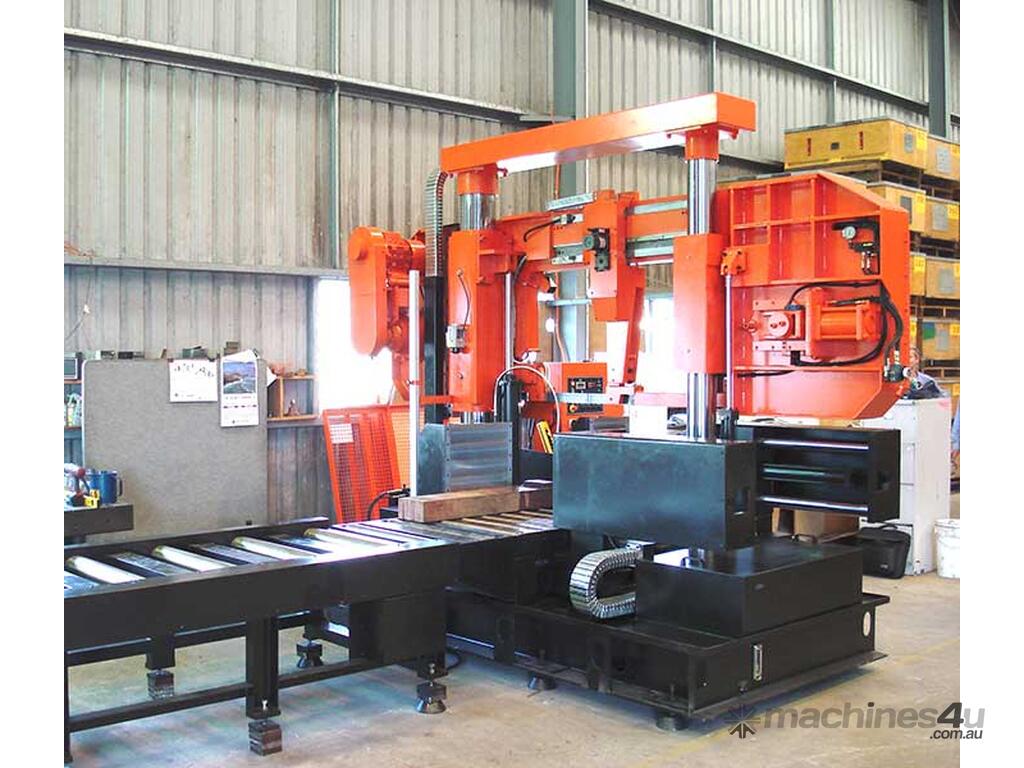

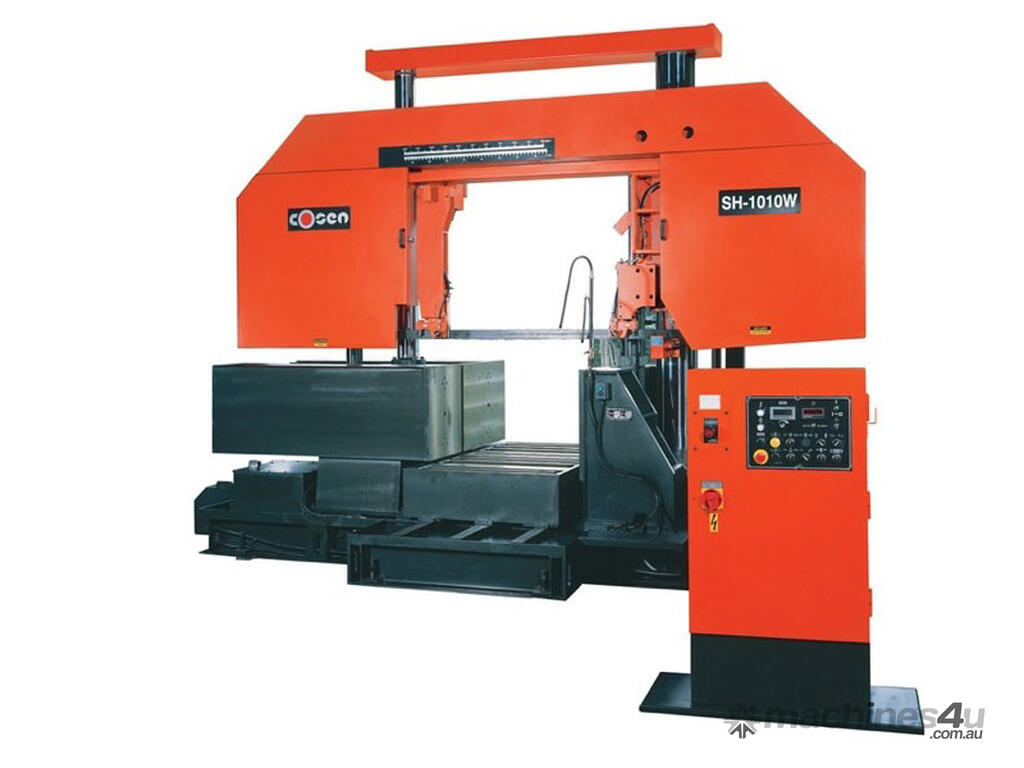

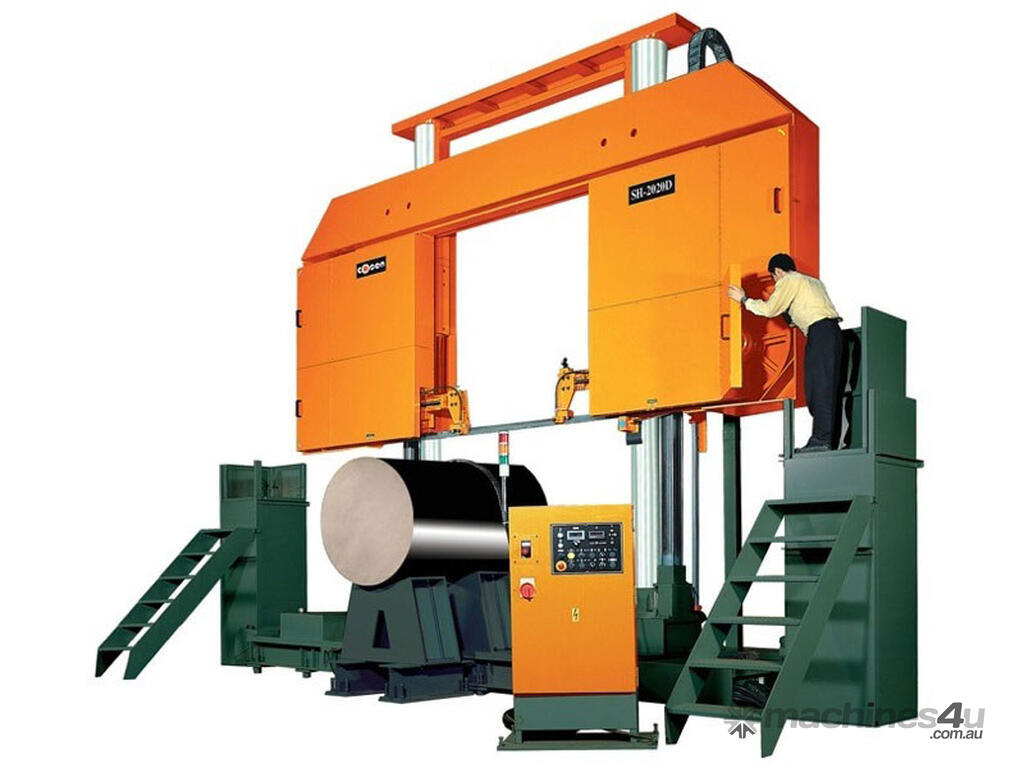

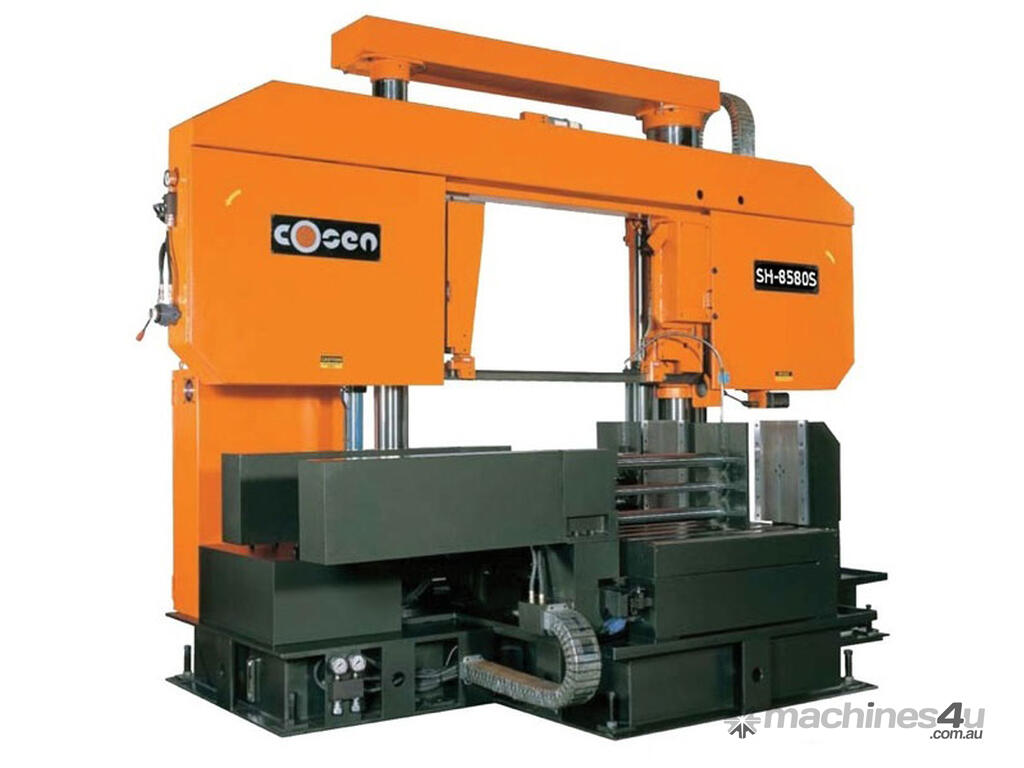

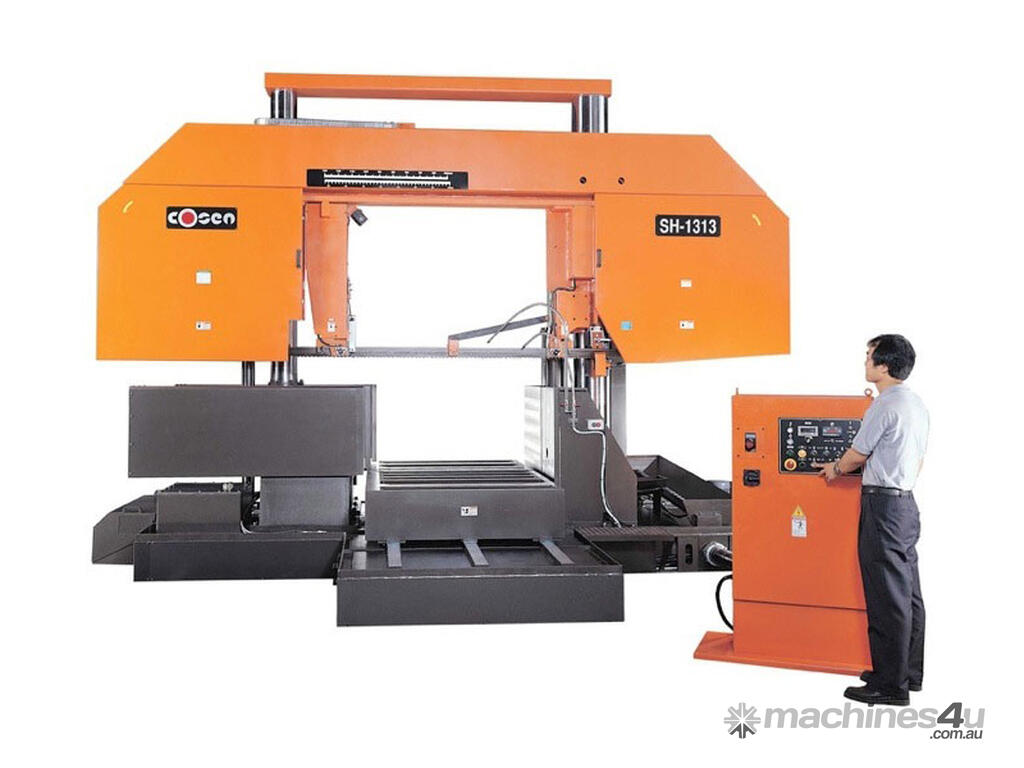

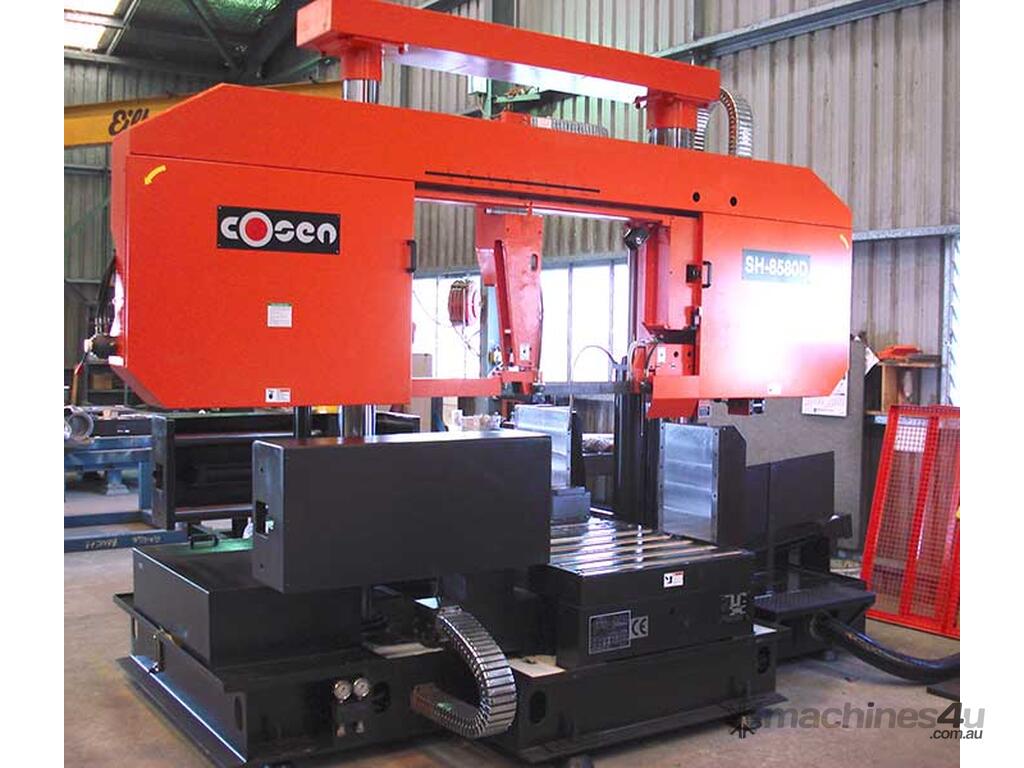

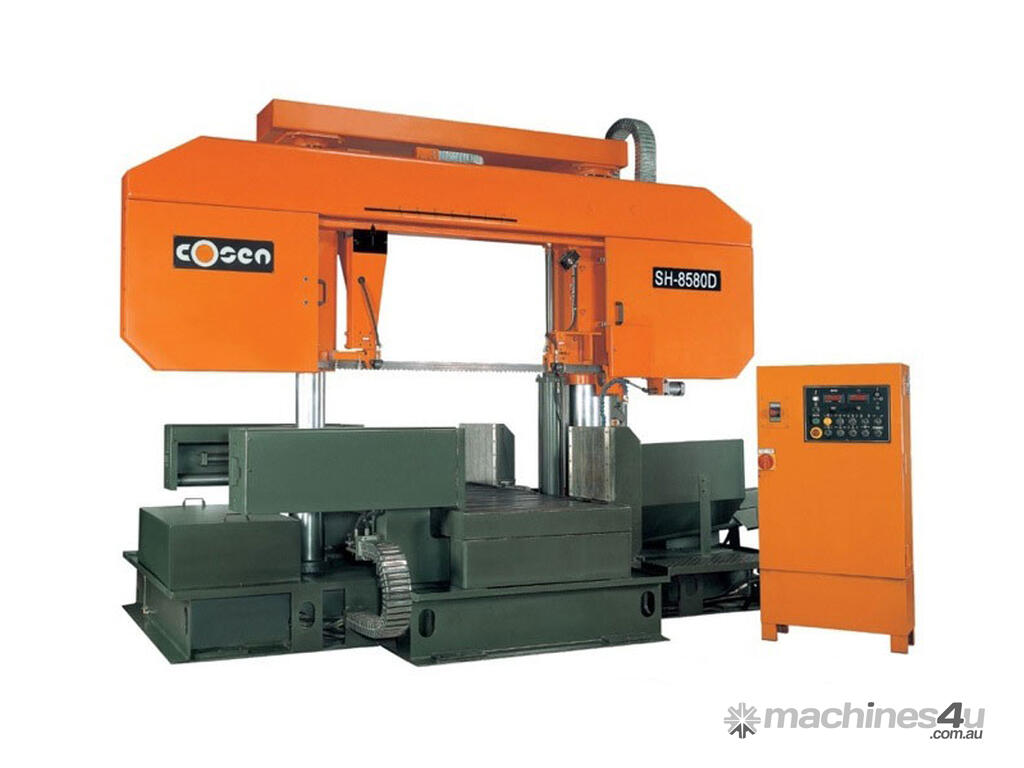

SH-8580-1000-1300-1700-2000 LARGE BILLET BANDSAWS

Large capacity bandsaws with oversized dual columns for cutting steel billets, plate and blocks.

Machine Structure

The heavy duty, rigid saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity, and the smoothest cutting attainable throughout the cutting cycle.
Dual Column design with rigid, precision ground columns
Blade Drive & Lubrication System

Planetary gear reducer drive.
Inverter Blade Speed Control
Powered Chip Brush
Hydraulically powered guide arm

Blade Guidance System

Hydraulic Blade Tension
Carbide blade guides
Additional blade guiding bearings
Heavy cast iron moveable Guide Arm

Control

Last Cut function
Ergonomically designed, user-friendly control panel.
Precision Feed Pressure control valve
Saw Blade Height Selector

Material Feeding and Clamping

Hydraulic driven work bed
Vises on both sides of the blade
Stock Position Cylinder, which is built in the fixed vise, will push the stock away from the fixed vise for easier handling and lifting.
Shadow Light

Safety

Blade breakage / slippage detector
Electrical and hydraulic system Interlock
All moving parts, blade covers, and guarding on the saw are painted Alert Orange to increase safety awareness.


MODEL C-800NC SH-8580 SH-1311 SH-1713 SH-2020
Operation Auto Semi-Auto Semi-Auto Semi-Auto Semi-Auto
Capacity (mm) 800 x 850 800 x 850 800 x 850 1300 x 1700 2000 x 2000
Blade Size (mm) 8300 x 67 8300 xÊ67 8300 x 67 13000 x 80 15920 x 80
Blade Tension Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Blade Motor 10 hp 10 hp 15 / 20 hp 20 hp 25 hp
Work Feeding NC Auto Hydraulic driven Hydraulic driven Hydraulic driven Hydraulic driven
Vice Full stroke hydraulic Full stroke hydraulic Full stroke hydraulic Stationary & movable Stationary & movable
Weight 6000 kgs 10500 kgs 14000 kgs 18000 kgs 35000 kgs
