SHA-125 Precision Slotting Head Attachment 125mm Stroke

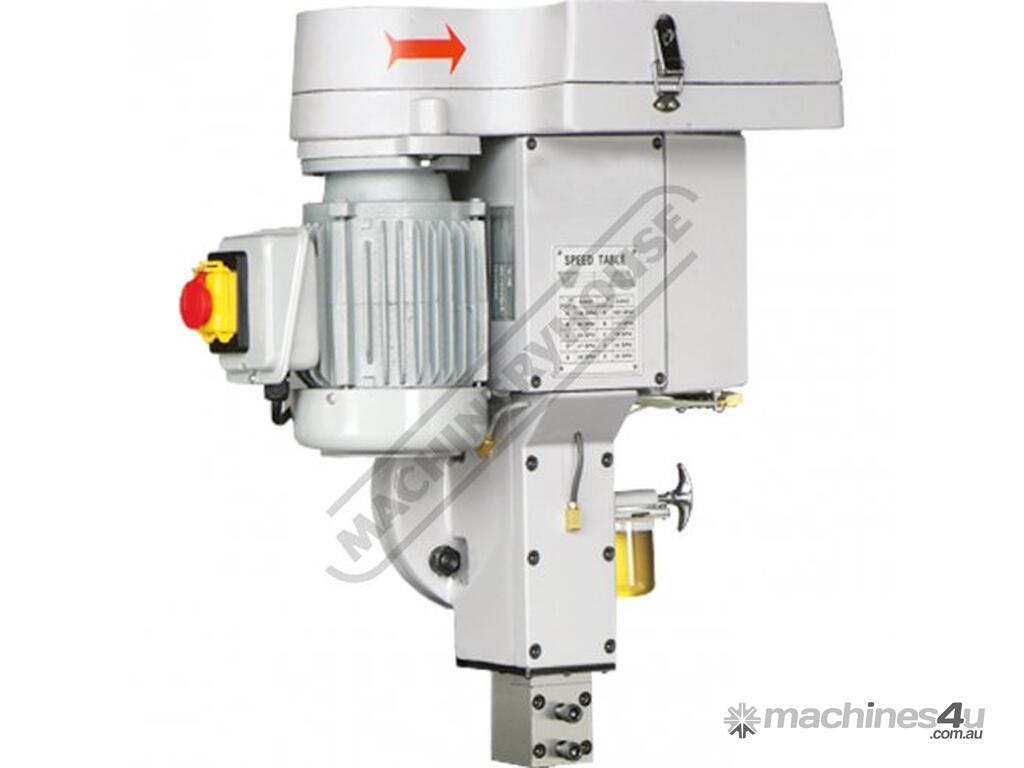

HAFCO-METALMASTER SHA-125 Precision Slotting Head Attachment 125mm Stroke
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M225

Designed for turret milling machines with a tail lug.

Features:
Manufactured from heavy duty casting for rigidity
Transmission of power is provided through a specifically designed high output worm drive
The sliding surfaces of the Ram are hardened and ground
One shot lubrication built in
Emergency stop for safe operation

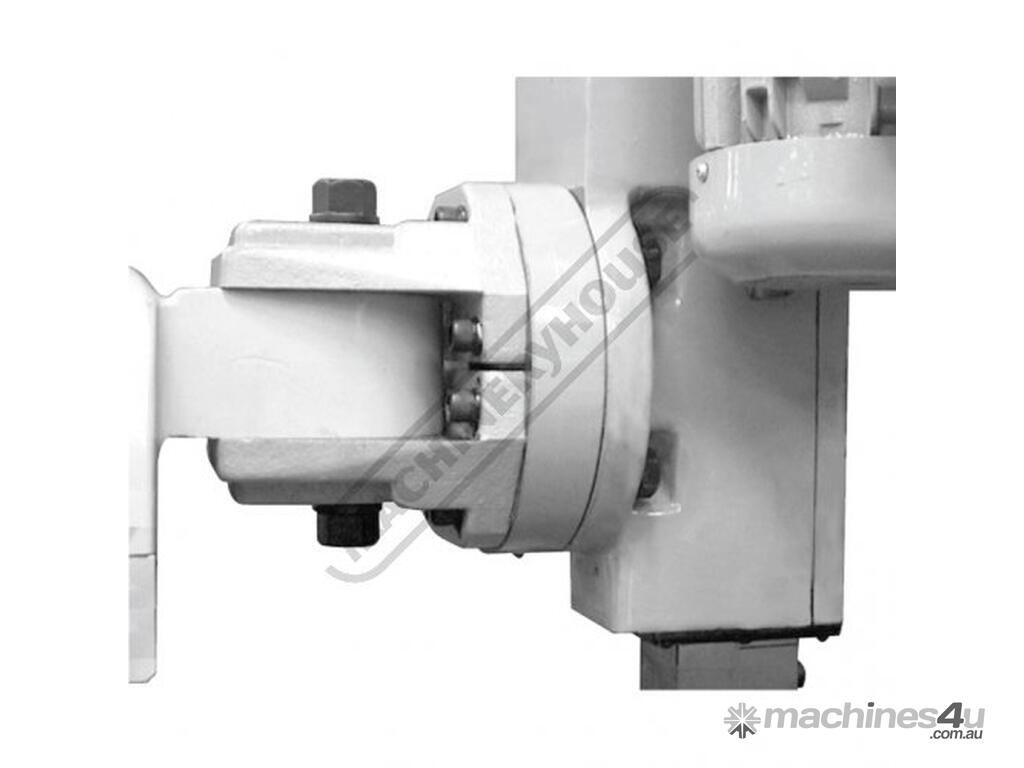

Includes adjustable mounting bracket to suit most turret type milling machines
Suits 25mm diameter tooling


Specifications:
ORDER CODE: M225
MODEL: SHA-125
Stroke (mm): 125
Ram Stroke (stroke/min.): 30, 47, 69, 98, 140
Motor Power (hp): 3/4
Voltage (V): 415
Nett Weight (kg): 180


To Purchase Online Please Visit The Machineryhouse & Search For 'M225'
