Manufactured in Turkey

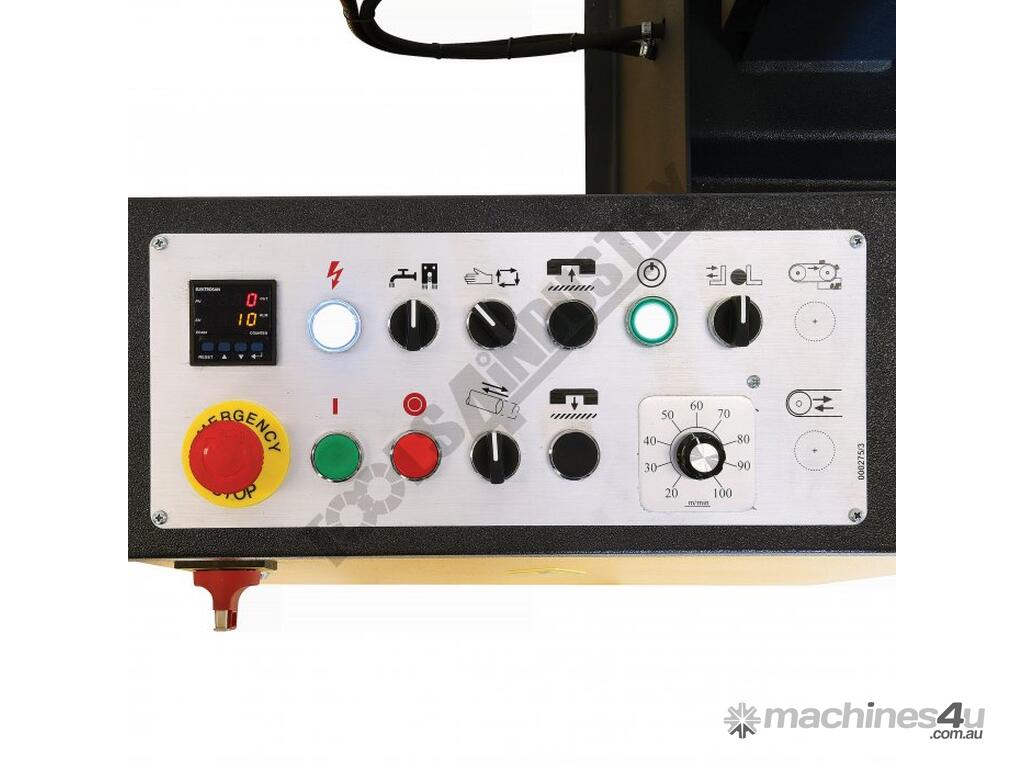

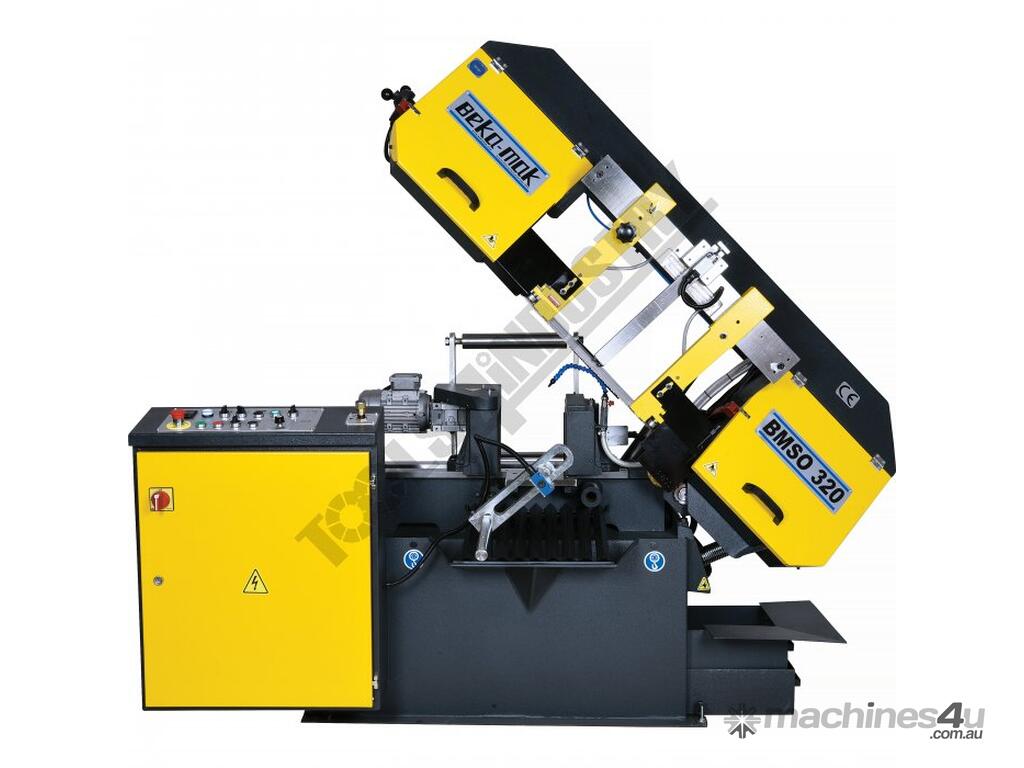

The BSMO-320 fully automatic metal cutting band saw with a cutting capacity of up to 320mm diameter or 300 x 300mm in steel at 90º. The auto feed rollers enables you to set up the control & material length stop to cut autonomously when auto mode is selected and the machine will also automatically stop after the programmed cut quantity is reached. Changing the blade speed to suit your material specifications is easily done by the electronic variable speed dial on the control panel and the ball bearing & carbide blade guides provide optimal control to achieve accuracy when cutting.
Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible, this means reliability and accurate square cuts is easily achieved. There is a built-in coolant system that ensures maximum cutting efficiency and longer blade life when using the correct cutting-cooling fluid.
If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting bandsaw with all these features and at this great price, it represents excellent value.
Features
Ø320mm round capacity
300 x 300mm (W x H) square capacity
Pre-set cut counter, machine stops when count cycle is reached

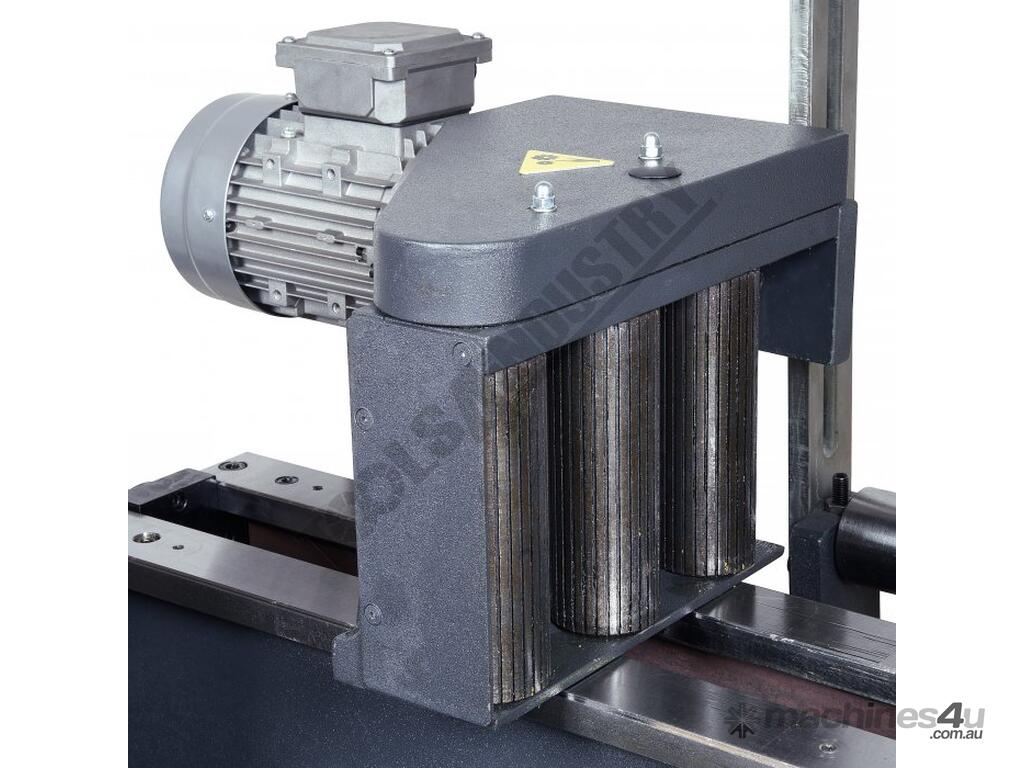

Automatic material feed roller system with micro switch stop
Blade breakage sensor fitted that automatically shuts machine off
Material height sensor for beam to rapid down and start cut feed rate when reached material
Variable speed drive system changes blade speed from 20-100mpm
Automatic operation, automatic arm rise after completion of cut

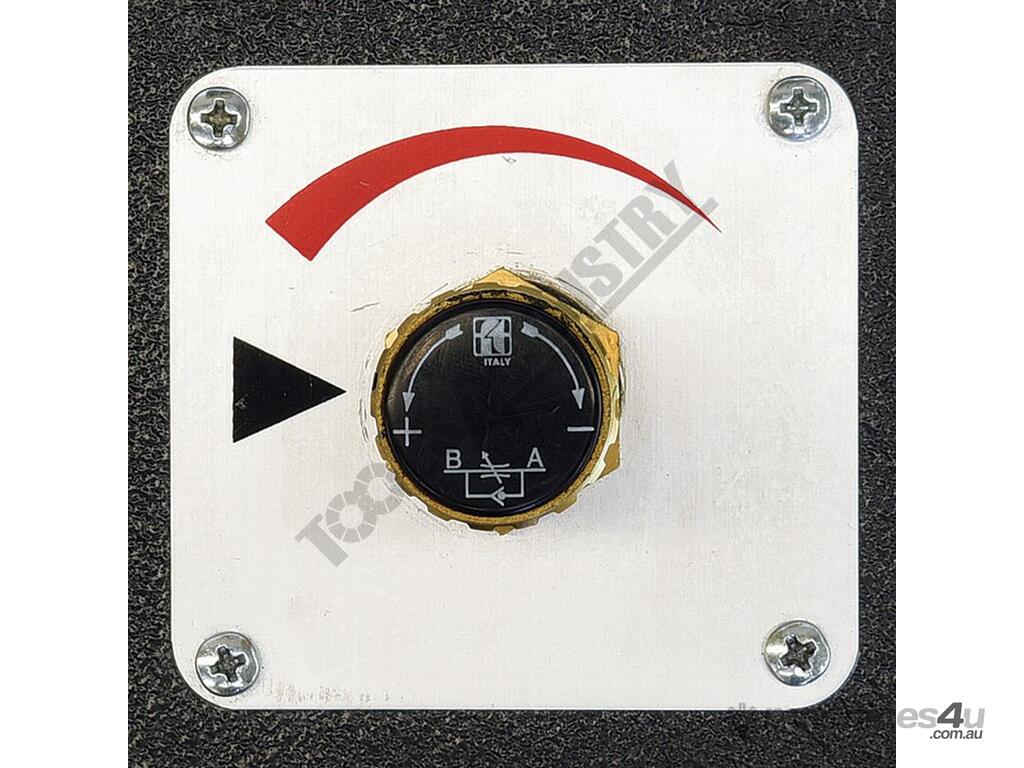

Adjustable hydraulic cutting feed rate for multiple applications
Built-in coolant system for maximum cutting efficiency

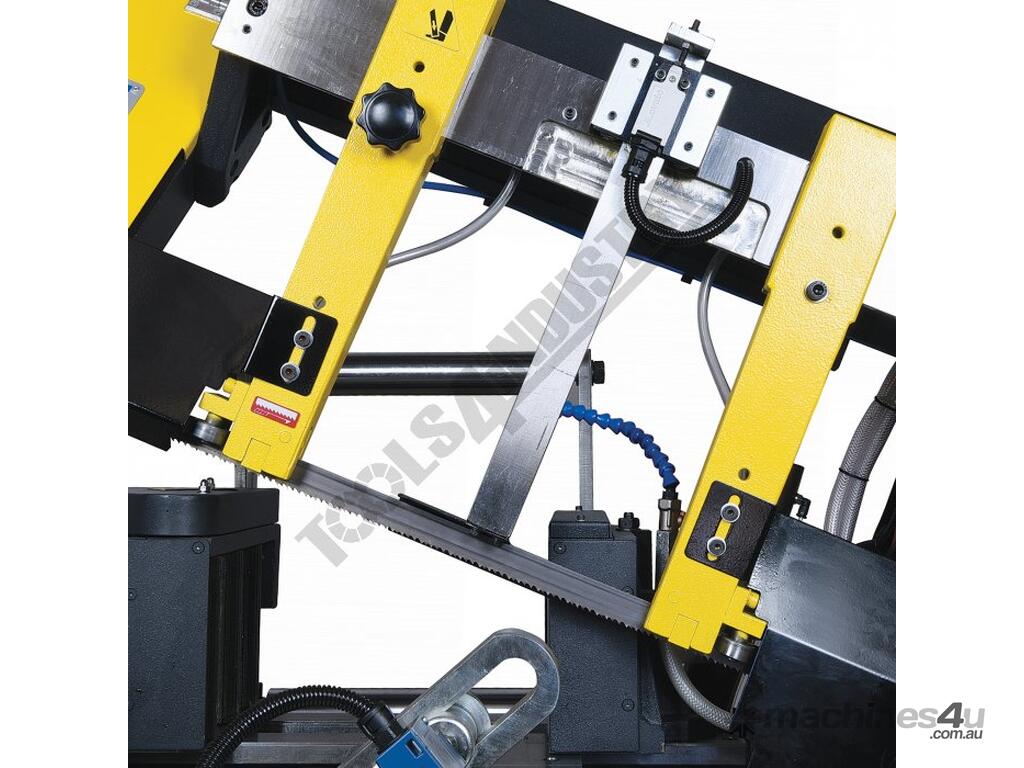

Adjustable carbide blade guides provides accurate cutting
Integrated hydraulic unit with arm feed control trimming

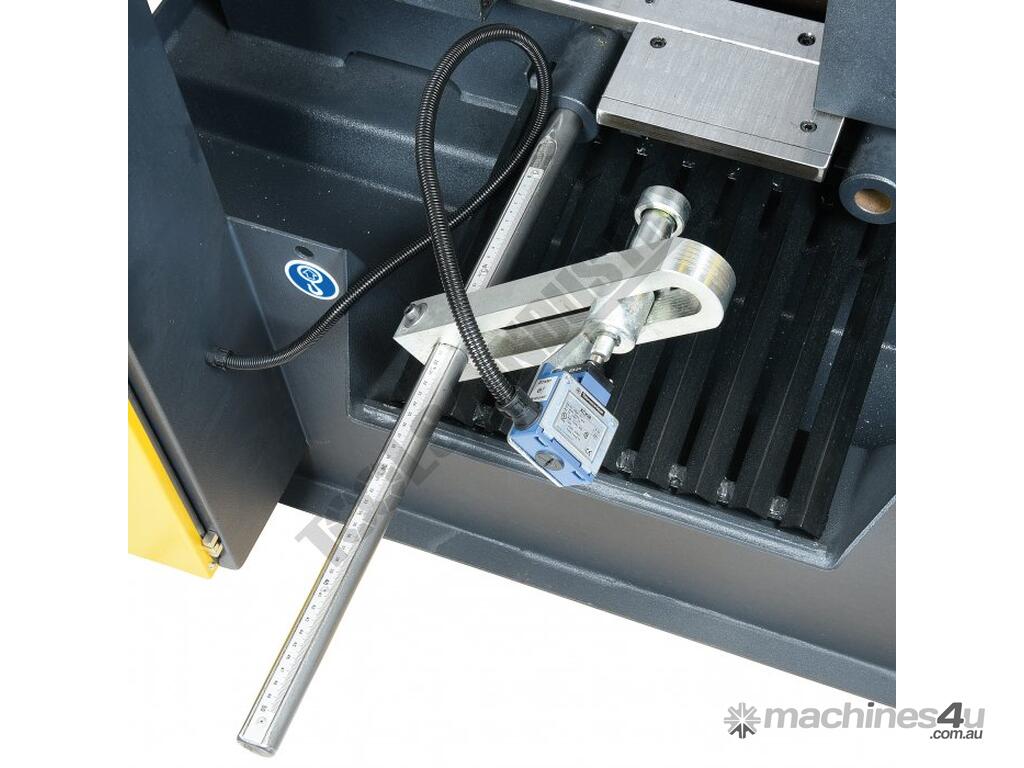

Adjustable length stop with micro for repetition cutting 10 ~ 500mm
Wire wheel brush to clean swarf from blade
Designed for accurate 90º multiple job cutting
Heavy-duty gearbox driven by a 2.2kW / 3hp 415V motor
Rectangle 90 Deg 300 x 300
Weight 735
415 volt
