SHAW - Centre Lathe TM-26120G 660 x 3000mm

TM-26120G 660 x 3000mm CENTRE LATHE (415V)

CALL FOR OUR BEST PRICE

Manufactured in Taiwan

Features

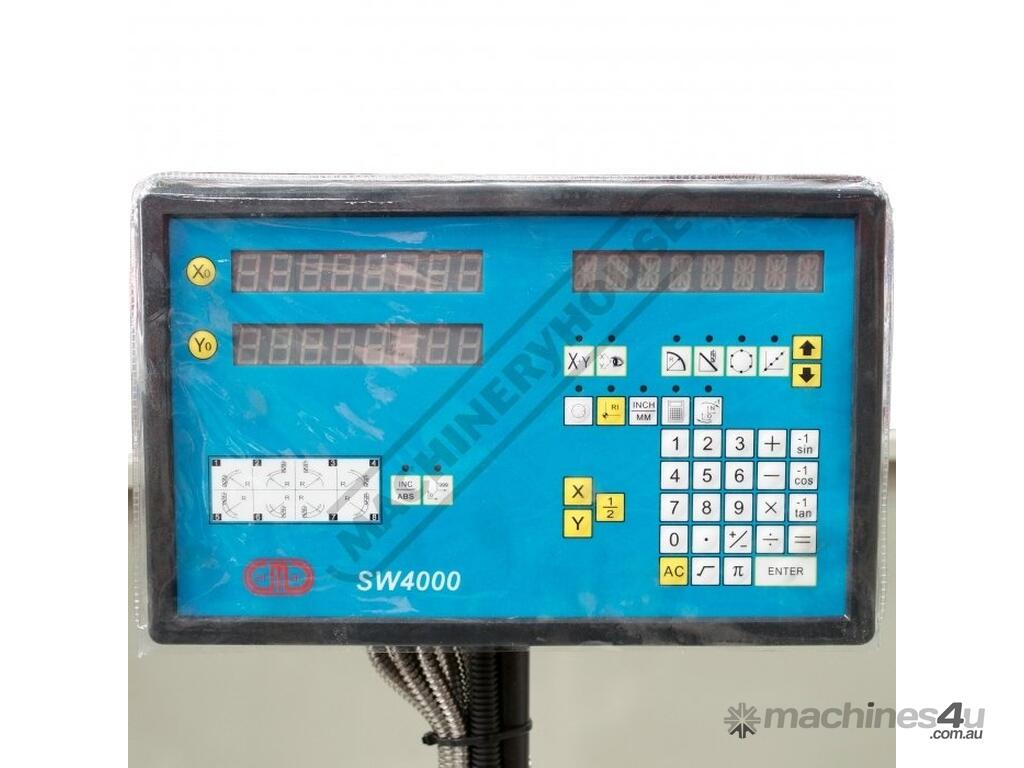

2 axis digital readout system
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds and headstock gears are all hardened and ground
High quality one-piece Meehanite cast base increases rigidity
Overload protection on drive motor and coolant system

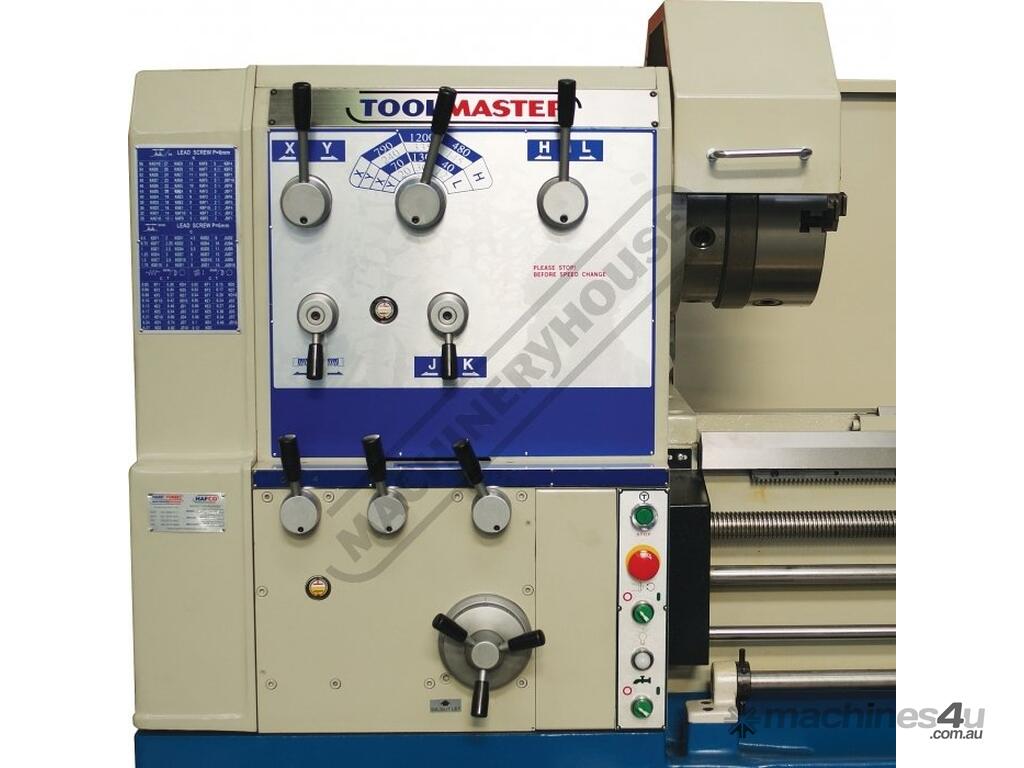

Universal enclosed gearbox incorporating metric and imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
400mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 890mm

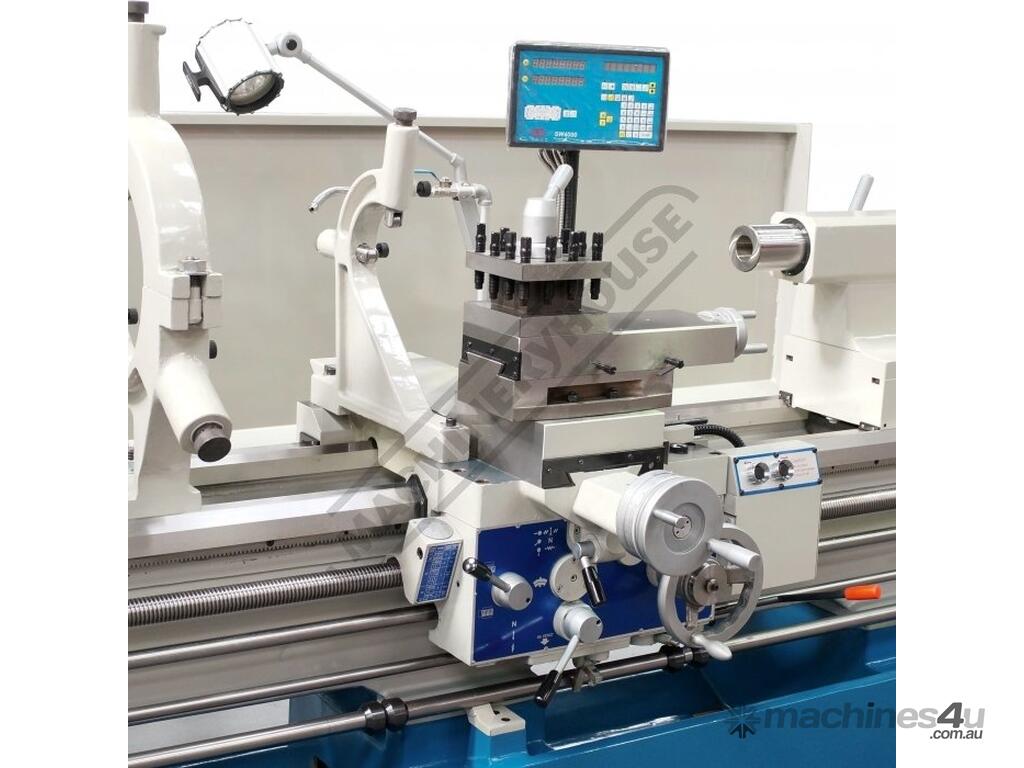

Powered longitudinal and cross feeds
Rapid traverse buttons Z axis
Adjustable 4 position length-stop mechanism for accurate repetitive operation
Dual calibrated dials incorporating metric and imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Rack and pinion mechanism assists tail stock movement
Oil sight glass for head stock, gearbox and apron
Low voltage halogen work light
Lubrication pump on saddle oiling slides
D1-11 camlock spindle for quick chuck removal

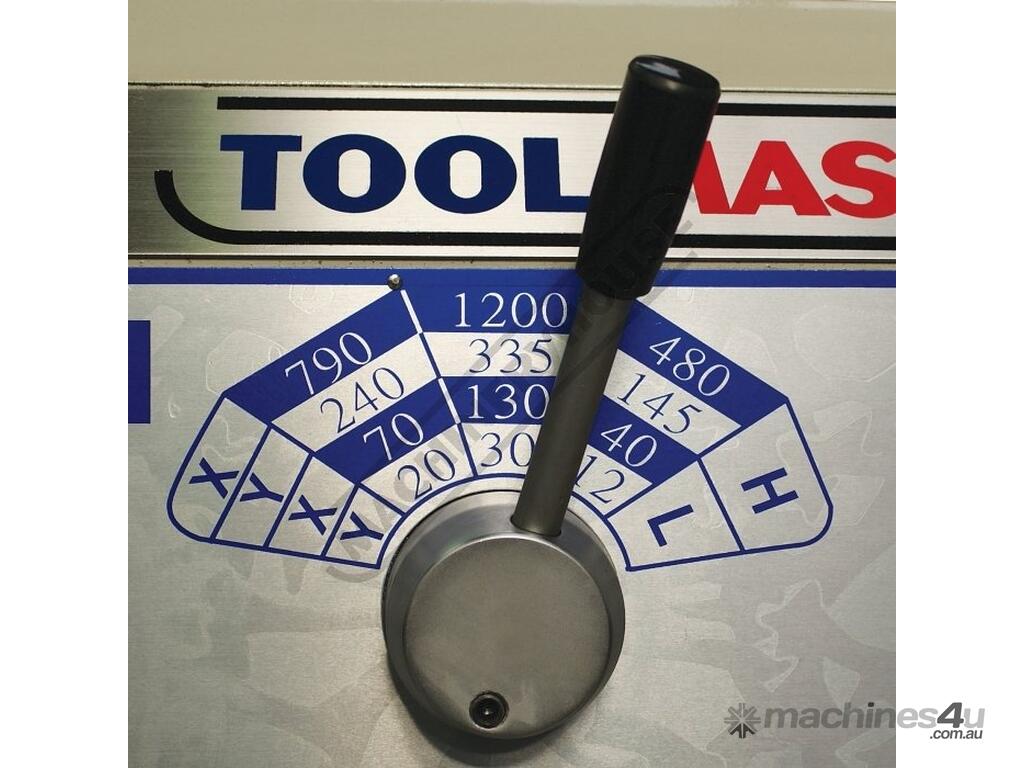

12 Spindle speeds from 10 - 1000rpm
Large 115mm spindle bore
11.25kW / 15HP 415V main motor
12 months warranty

Standard Accessories

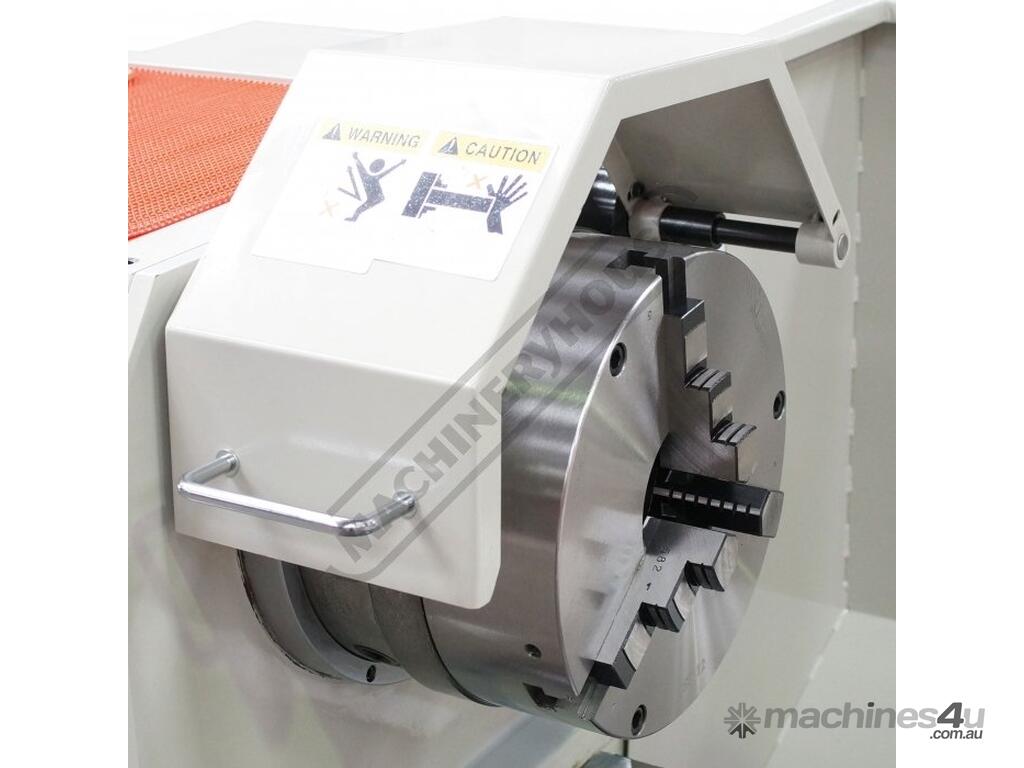

310mm 3-jaw chuck with reverse jaws
400mm 4-jaw chuck
Faceplate

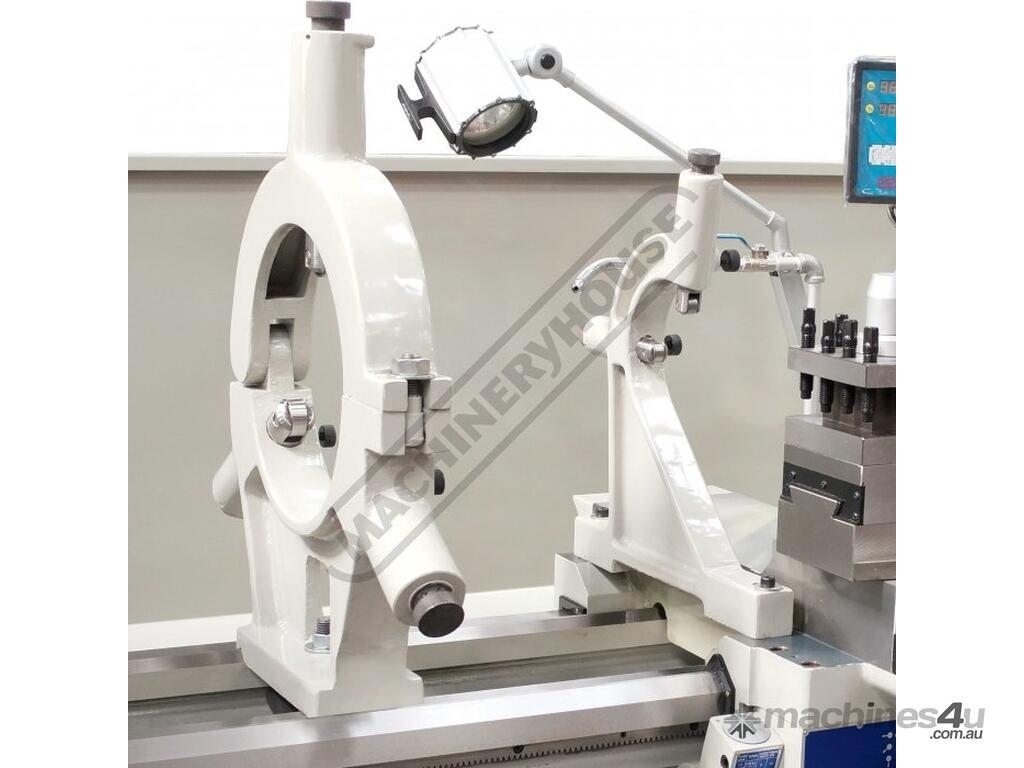

Fixed Steady with roller bearings
Travelling steady with roller bearings
4-position knock out feed system
Dead centres
Thread chasing dial
Foot brake
Coolant system
Work light
Rear splash guard
Spindle reducing bush
Instruction booklet

Specifications:
CODE:L642D
MODEL:TM-26120G
DIGITAL READOUT:Yes
TOOL TO SUIT:30mm
DISTANCE BETWEEN CENTRES:3000mm
SWING OVER BED:660mm
SWING OVER GAP:890mm
SWING OVER CROSS-SLIDE:438mm
CENTRE HEIGHT:330mm
SPINDLE BORE:115mm
CAMLOCK SPINDLE SIZE:D1-11
BED WIDTH:400mm
HEAD STOCK SPINDLE TAPER:7MT
TAIL STOCK TAPER:5MT
CROSS SLIDE TRAVEL:375mm
COMPOUND SLIDE TRAVEL:200mm
LEAD SCREW:Metric
CROSS FEED:0.02-0.4mm/rev
LONGITUDINAL FEED:0.05-0.82mm/rev

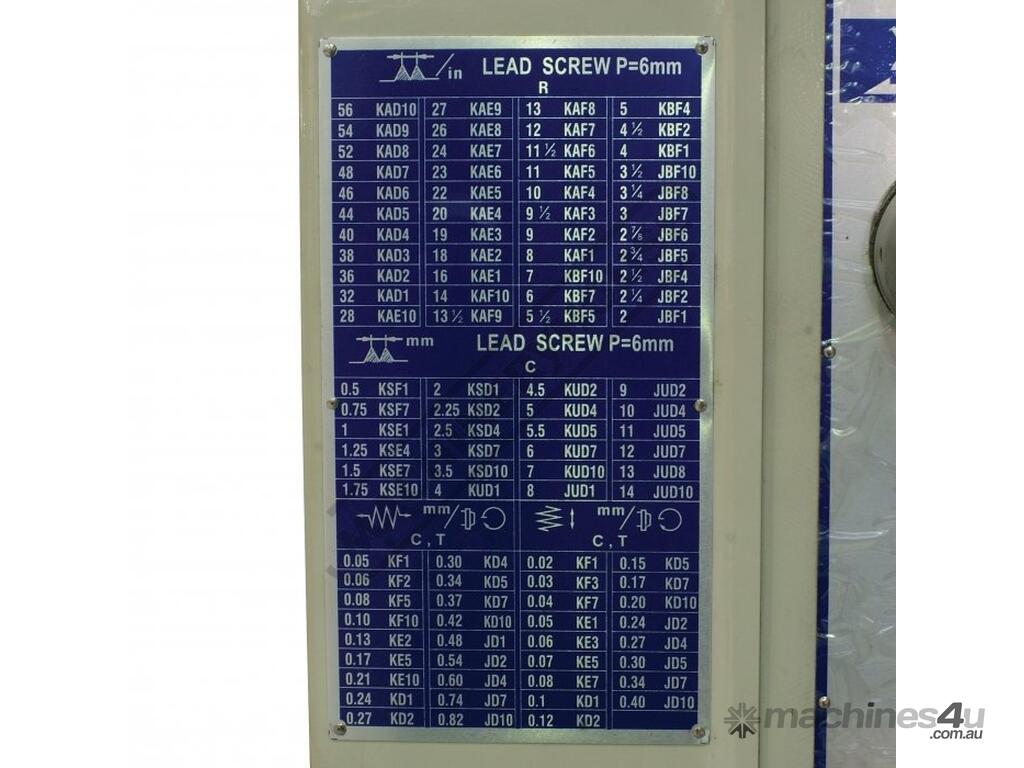

METRIC THREAD RANGE:0.5-14mm
IMPERIAL THREAD RANGE:2-56TPI
3 JAW CHUCK Diameter :310mm
4 JAW CHUCK Diameter :400mm
SPINDLE STEPS/SPEEDS:12 (10-1000rpm)
MOTOR POWER:11.25kW / 15HP
VOLTAGE:415V
WEIGHT (Nett):4000Kg

All prices and specifications are subject to change and are GST exclusive
