SHAW - HAFCO 100 ton Hydraulic Press HP100T

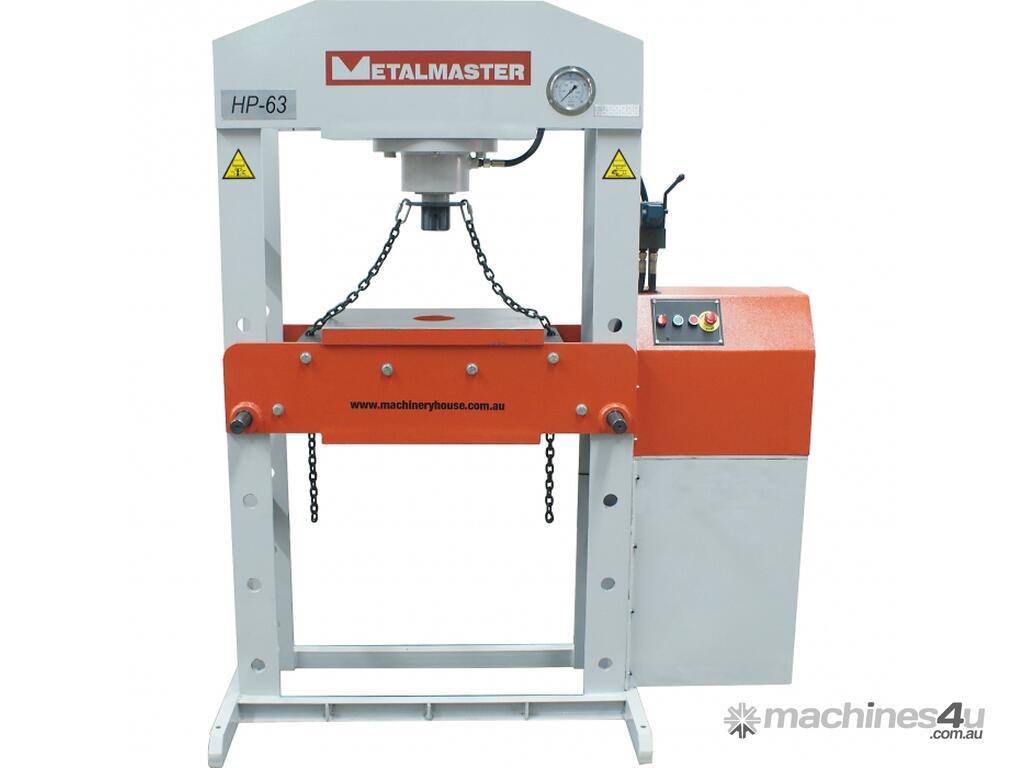

100 Ton Hydraulic Press

Features
Easy to use and powerful press for most applications, choose from one of the models 63 - 300 Tonne that best suits your requirements
I deal for repairs & assembly work, for the repair of axles, shafts, and press fit of bearings and bushings
Heavy duty welded steel fabricated frame

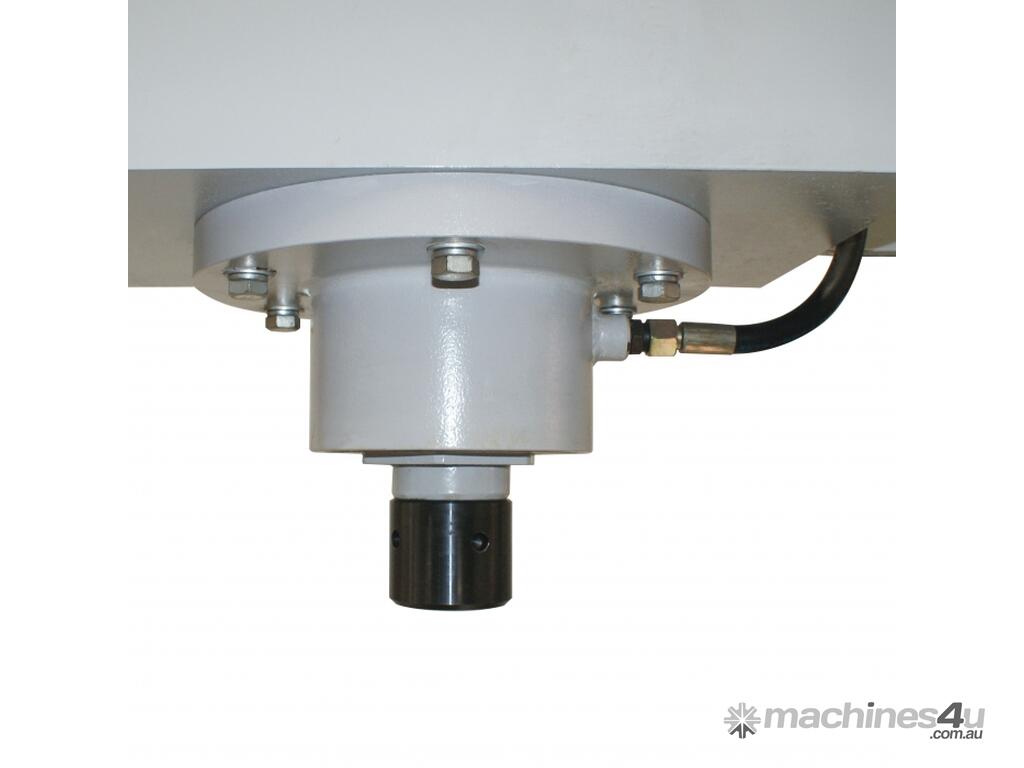

Strong hydraulic cylinder ensures precise pressing during operation

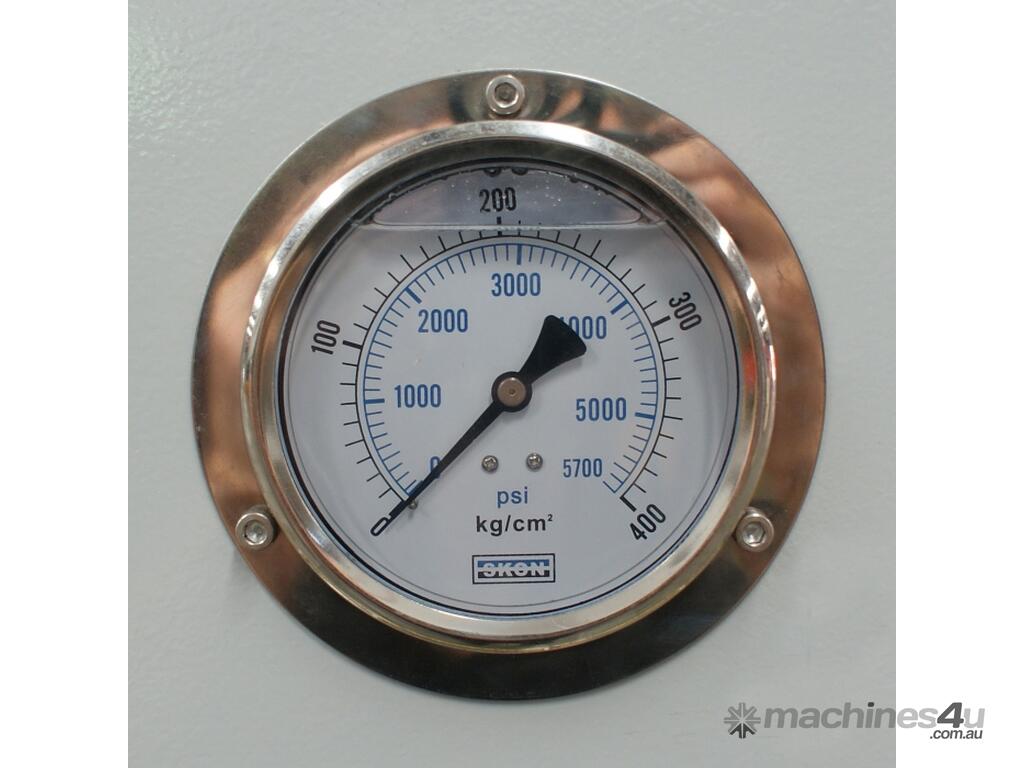

Fitted with pressure gauge
Safety overload valve

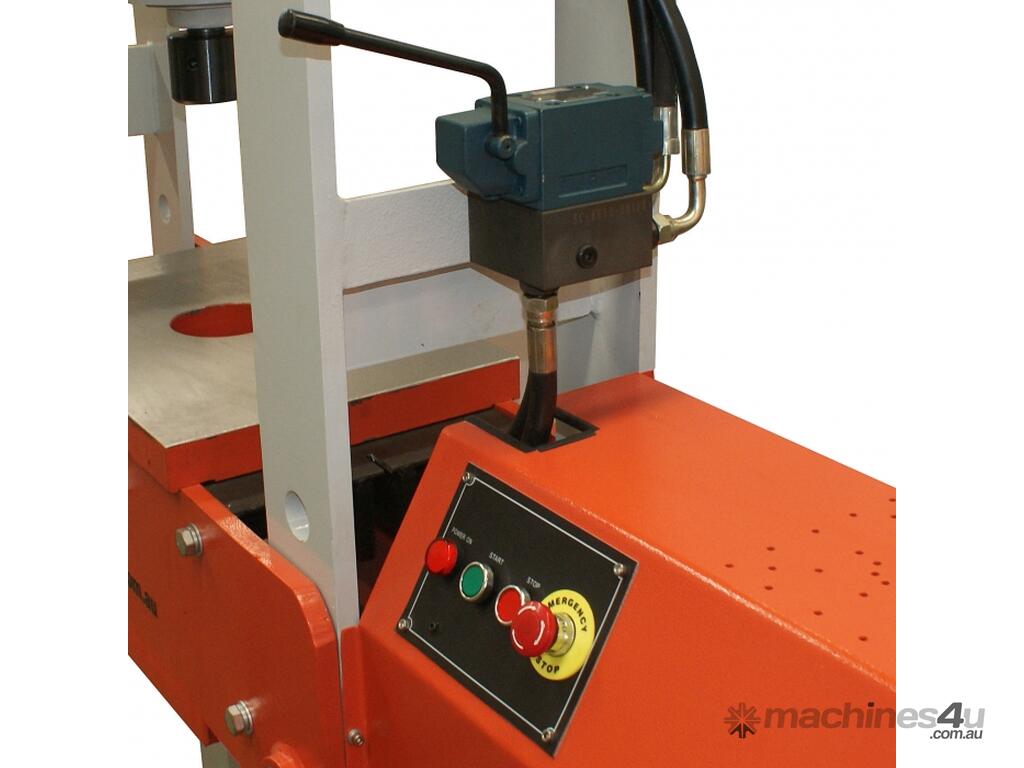

Hydraulic joystick control lever
Powerful TEFC motors

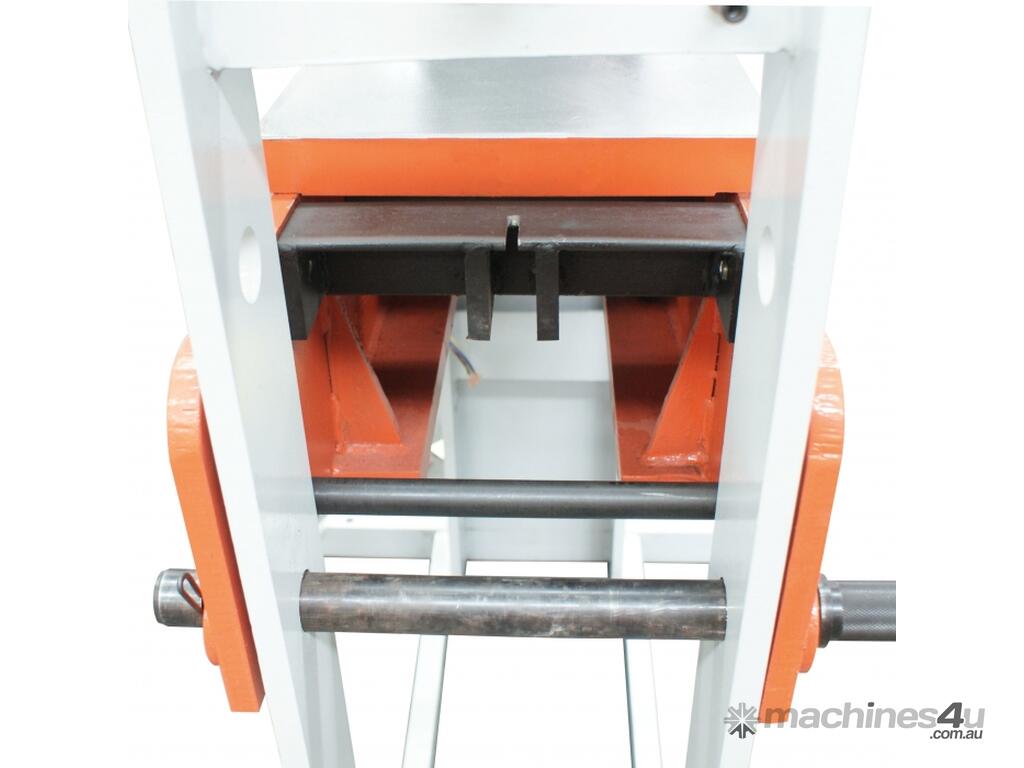

Heavy duty one piece table plate insert

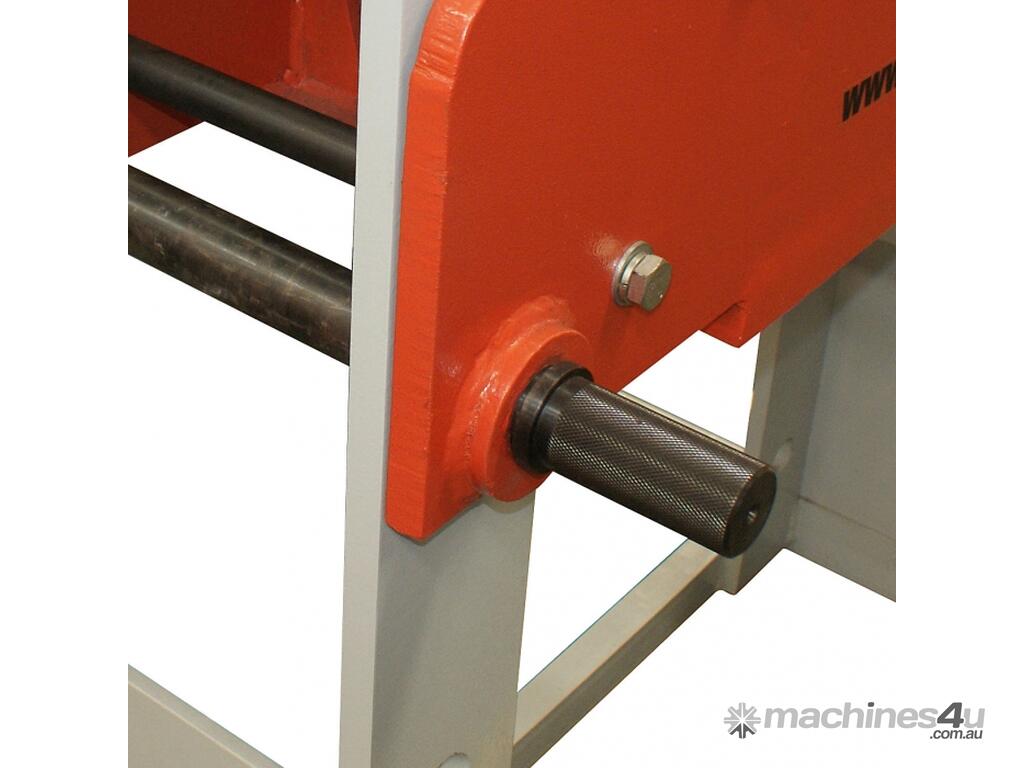

Extra heavy duty table support with high tensile setting pins
Tables can be adjusted for height using chains and Hydraulic ram
Supplied with hydraulic oil

ORDER CODE: P402
Model: HP-100T
Pressing Capacity: 100 tonne
Hydraulic Ram Operation Type: Motorised / Hydraulic
Working Pressure: 30mpa
Width Between Front Posts: 1050mm
Width Between Side Posts: 310mm
Maximum Ram To Table: 1010mm
Piston Ram Stroke: 390mm
Motor Power: 7.5kW / 10hp
Motor Voltage: 415V
Dimensions (L x W x H): 1970 x 1050 x 2230mm
Weight (nett): 1650kg

All prices and specifications are subject to change
