SHAW - HAFCO 2500mm x 4mm Mech Guillotine

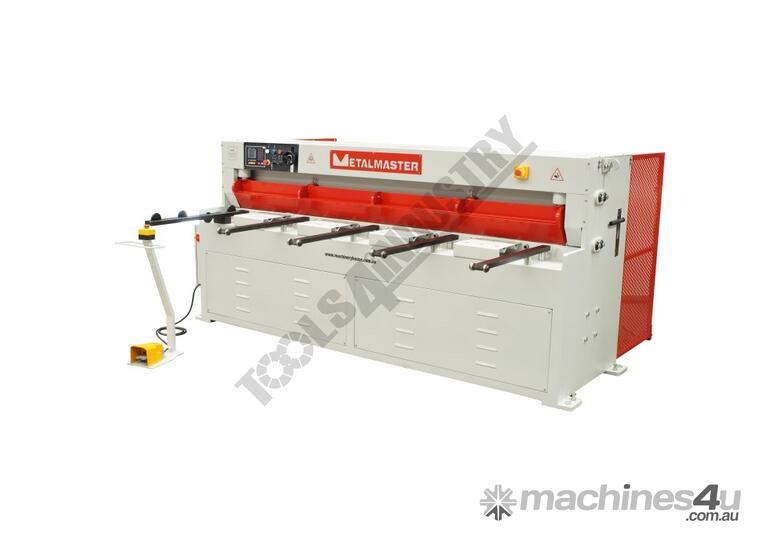

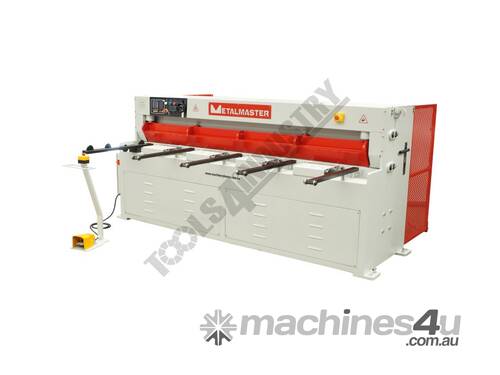

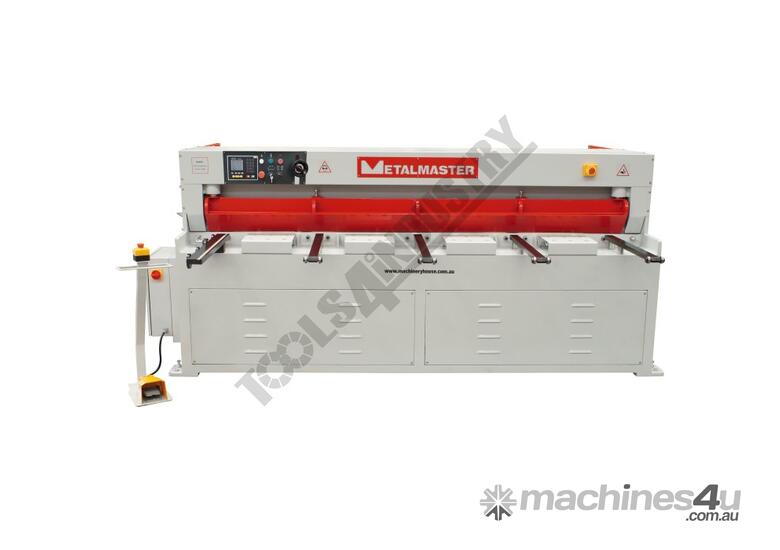

New MG-840B Mechanical Guillotine
2500mm x 4mm Mild Steel Capacity

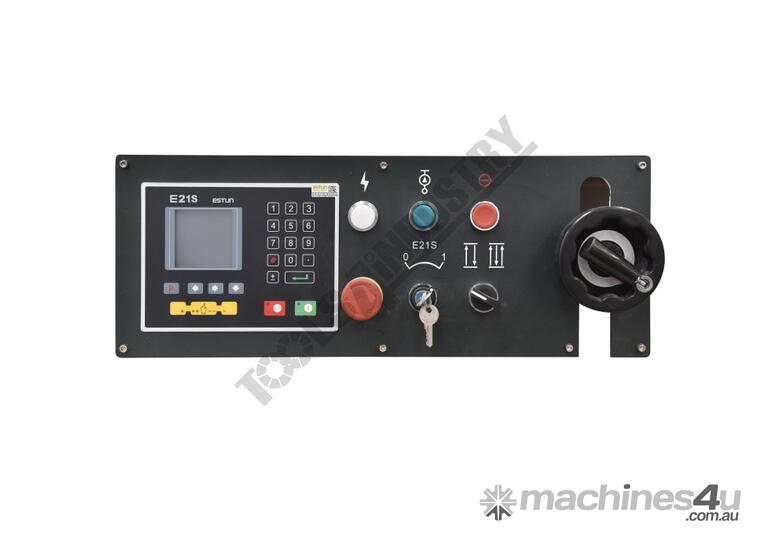

Estun E21S Controller

Features
2500mm x 4mm cutting capacity
7.5kW / 10hp 415V brake motor
Estun E21S controller with 700mm motorised backgauge
Quick action blade clearance adjustment for shearing material 1 - 4mm
Full length material clamp bar load spring assisted
One shot lubrication pump & reservoir for slideway protection
Equipped with shadow line lighting-alignment device
Roving foot pedal control
Clamp beam design allows clear view to shadow line on material
Blades made from 9CrSi material suitable for cutting stainless steel
Transfer balls inserted into work table allowing larger sheets to be easily positioned to the cut position and squaring arm
Front sheet supports with ball bearing guides preventing material damage when setting up
Three safety photo electric light beams on rear guarding
Safety reset rear guarding button mounted to back of electrical box
Mild steel capacity is rated on hot rolled material with 250MPA

4mm Mild Steel
2.5mm Stainless
Leadscrew Backgauge with 700mm Travel
7.5 KW, 10 HP Motor
2.6 ton

Pre-Commissioning:
1. Guillotine is run & tested prior delivery
