SHAW - HAFCO 4 m x 8mm Variable Rake Guillotine & PSS HG4008VR

Metalmaster Variable Rake Hydraulic Guillotine HG4008VR
Pneumatic Sheet Supports
4 metre x 8mm

Features
Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.

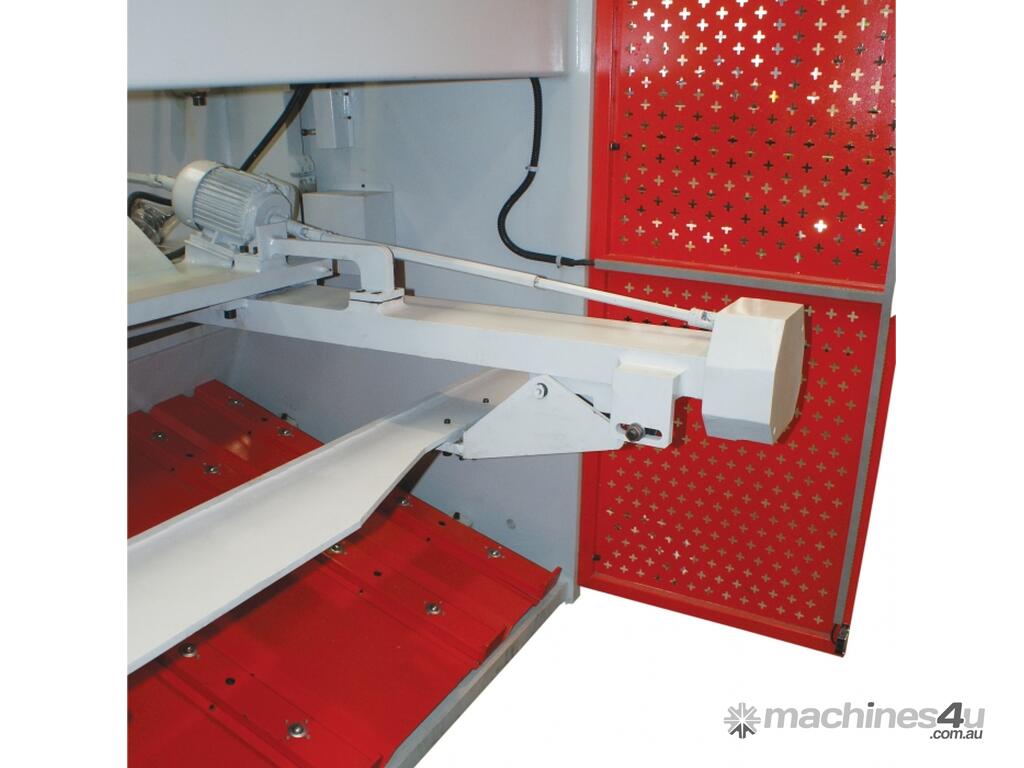

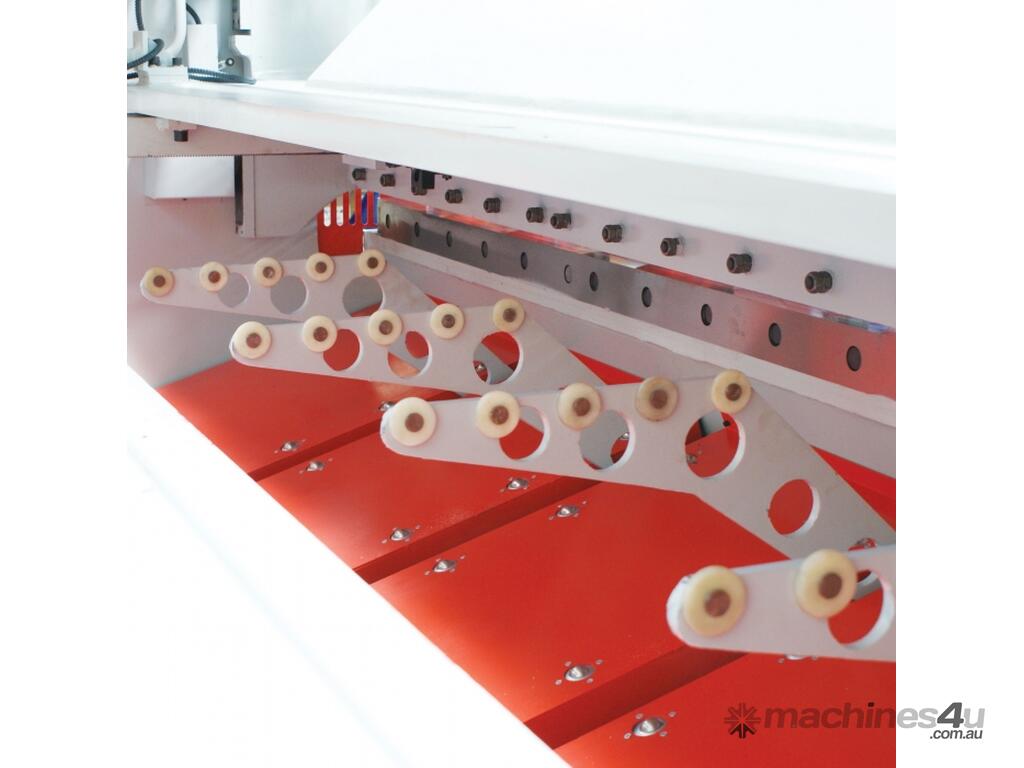

Pneumatic operated material sheet supports mounted to rear of machine. This feature assists in shearing thin material to the correct cut length required simply by preventing thinner material flexing and falling below the back gauge prior to shearing.

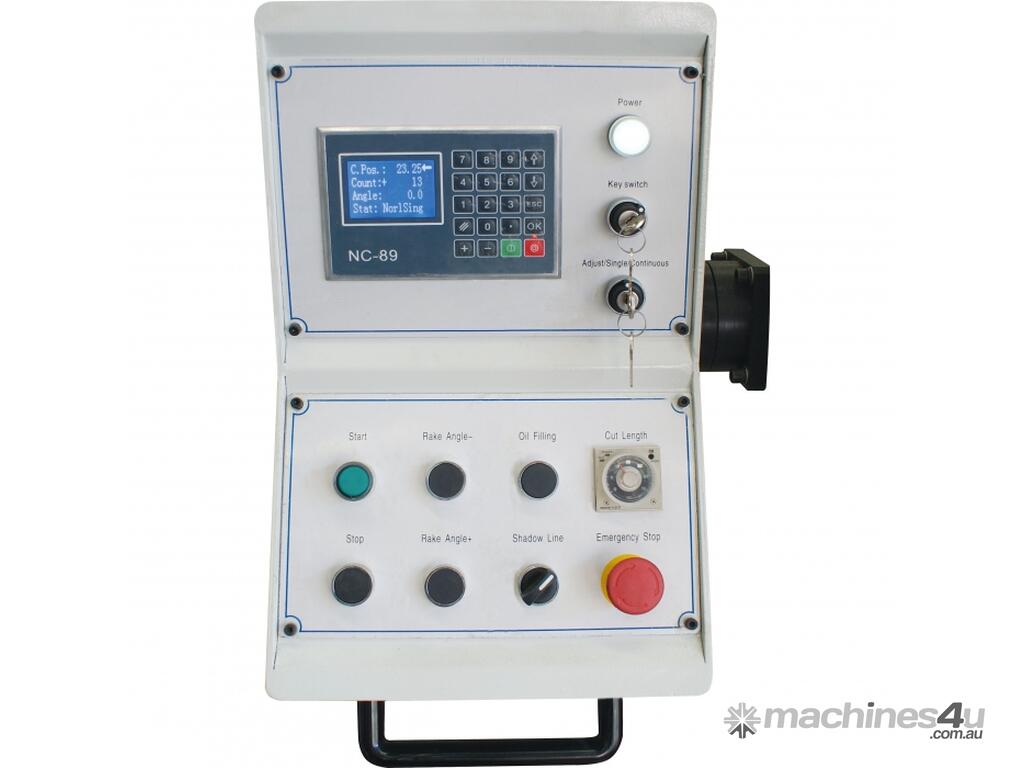

Ezy-Set NC-89 Go-To Programmable digital controller provides up to 1000mm travel on the powered leadscrew back gauge allowing operator to program the cut length required. Also fitted is a stroke counter & stroke adjustment dial allowing shorter materials to be cut using a shorter stroke length, this feature will increase production.

Hydraulic adjustable variable rake 0.5° - 2° (shearing angle) via push buttons on Control box with angle light indicating selected position.

Control box mounted higher than standard on side of machine to protect it from material damaging the control unit due to heavy material loading on sheet supports prior shearing.

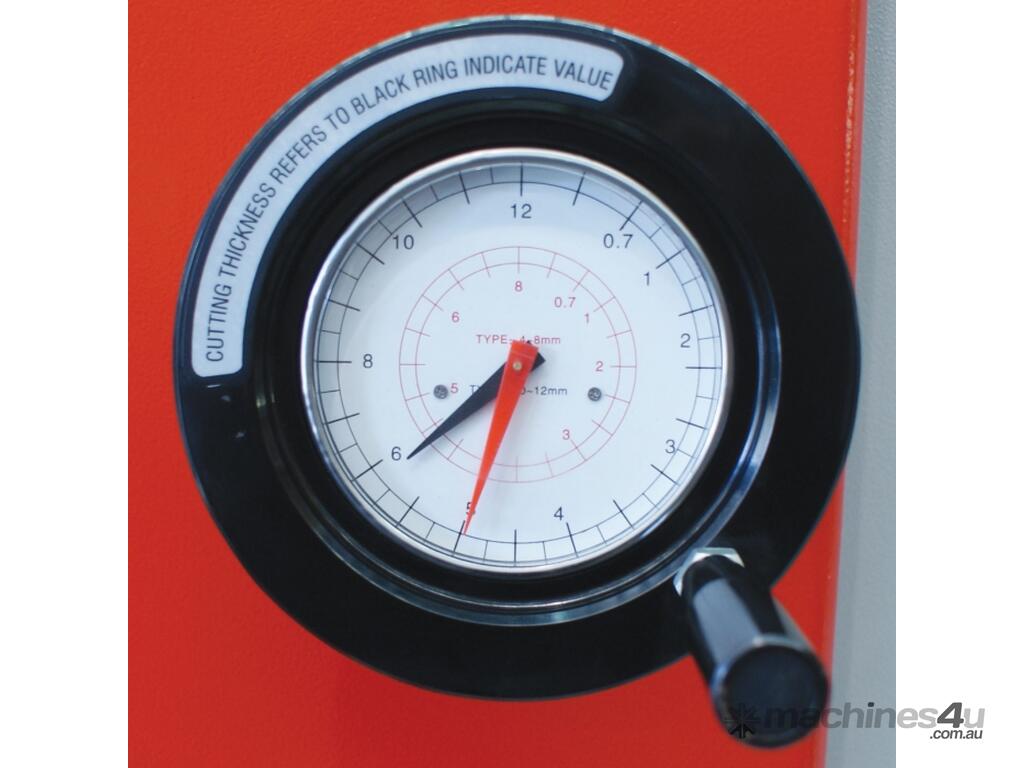

Simplified blade gap adjustments to allow for a wide range of material types and thicknesses of 0.5 - 8mm enabling minimised distortion of the cut length.

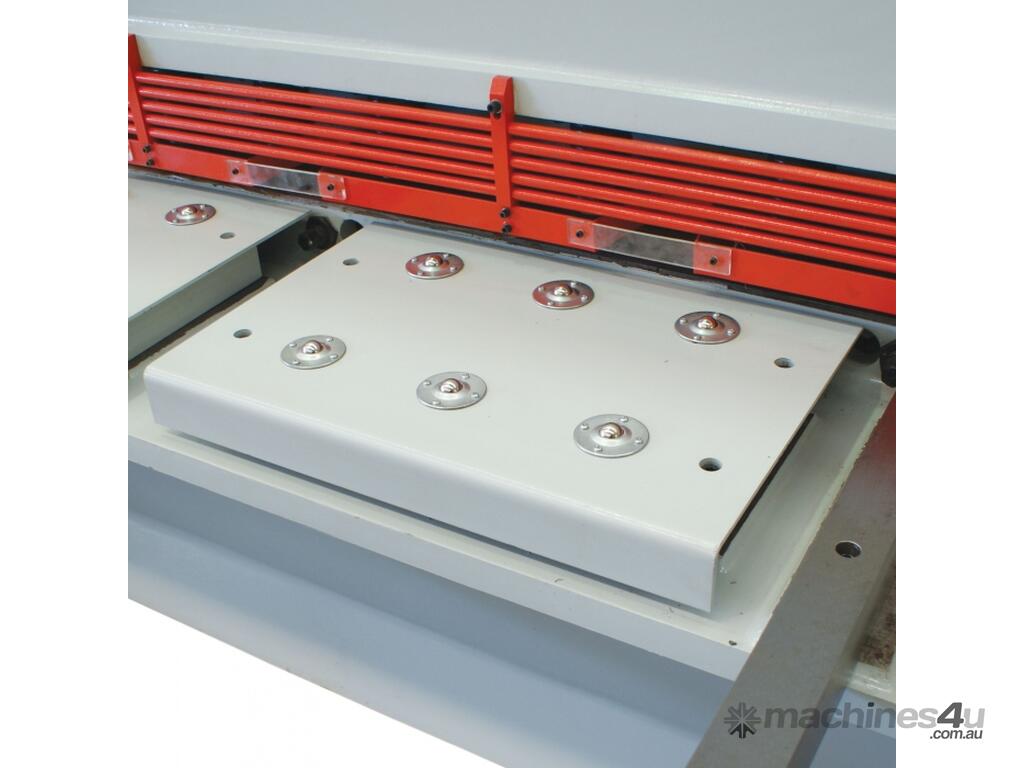

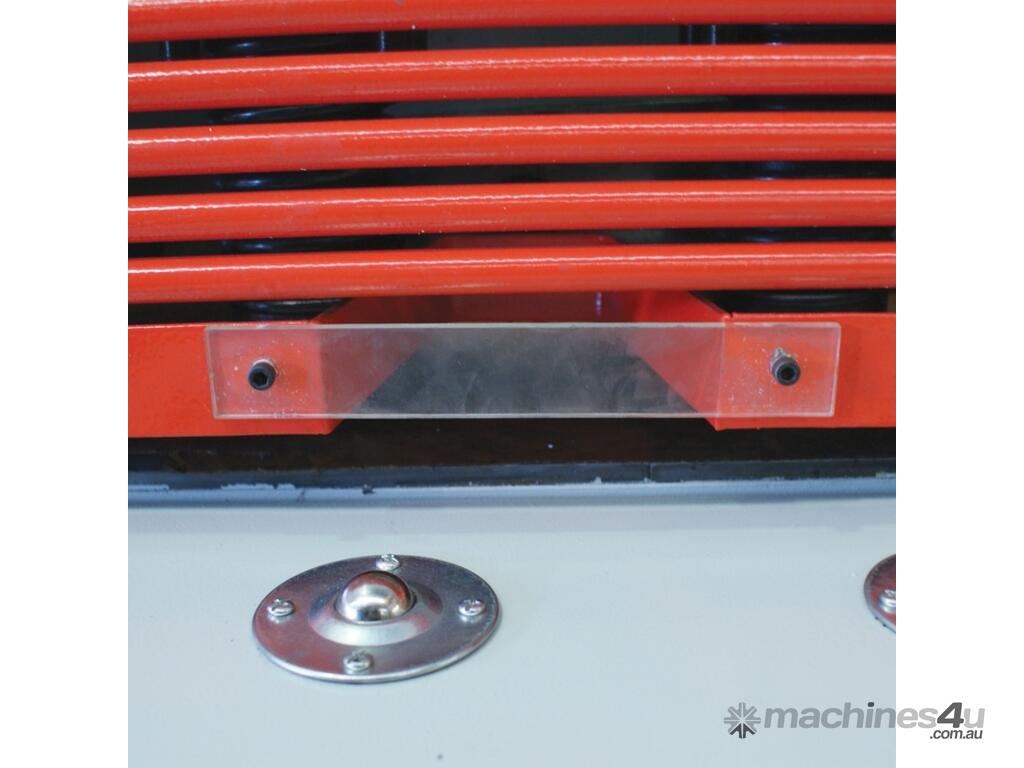

Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.

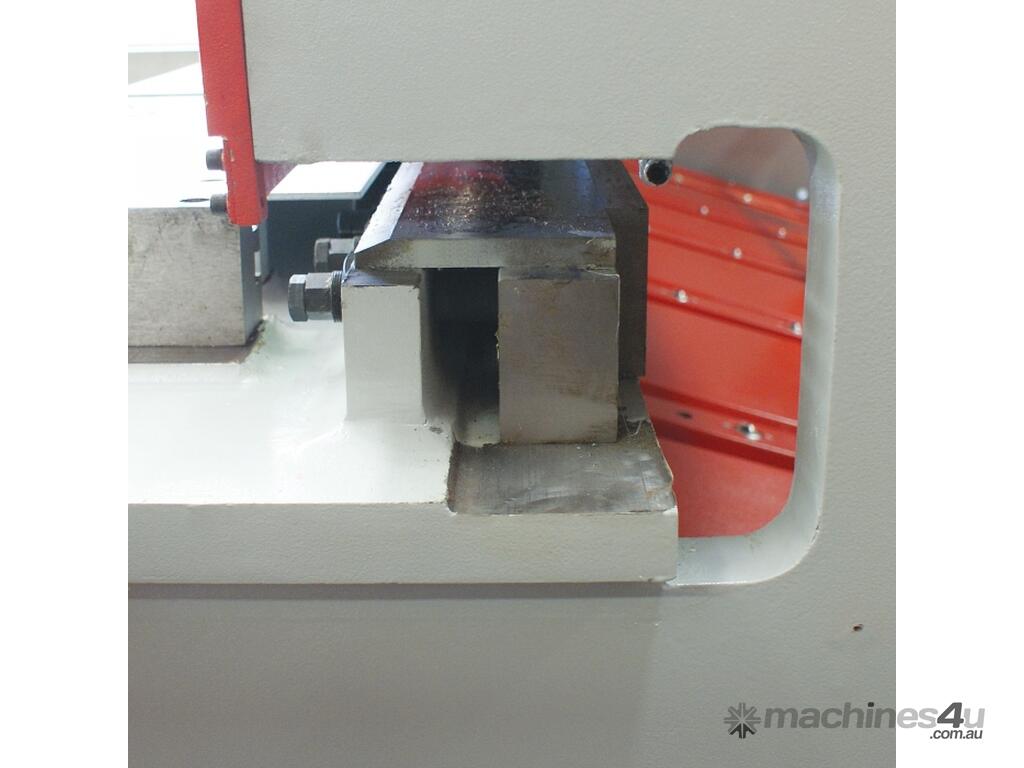

Top shearing blade made from Inox quality composite and has two (2) cutting edges allowing minimised down time in blade rotation.

Bottom shearing blade made from Inox quality composite and has four (4) cutting edges allowing minimised down time in blade rotation.

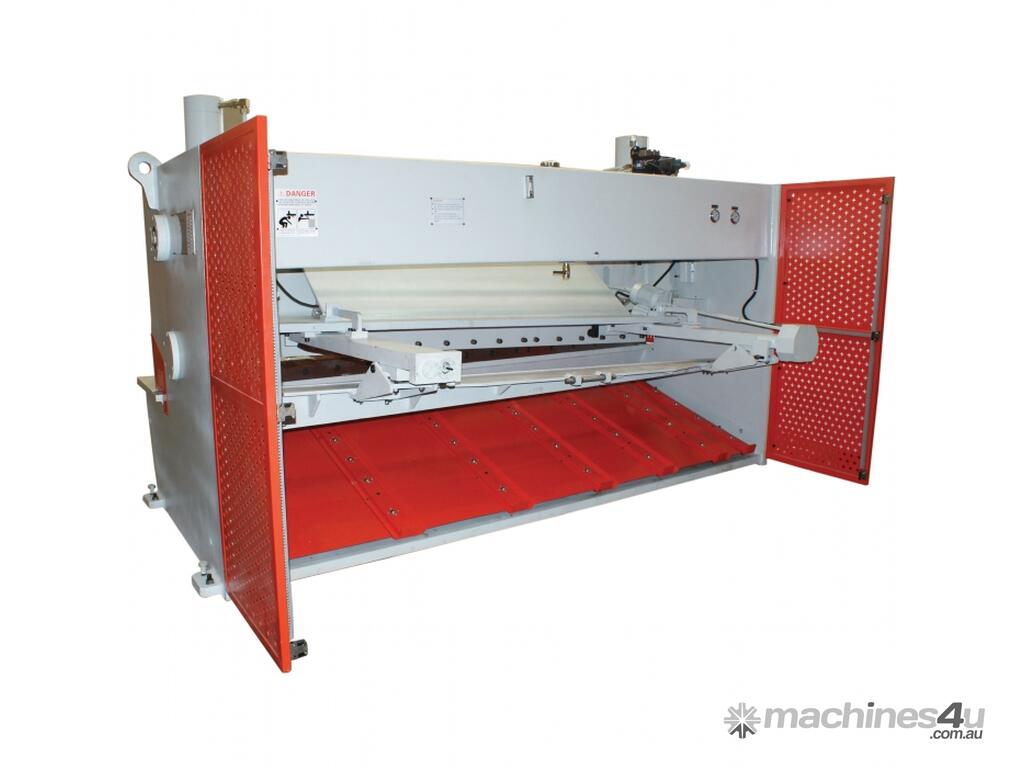

The core structure of the steel main frame has been electronically welded ensuring maximum penetration during the manufacturing process. In addition to this feature the cutting beam has been stress relieved eliminating any distortion after manufacturing.

Shadow line lighting has been incorporated into the machine frame providing a clear cutting line on the work piece and enabling scribed or marked material to be cut with simplicity as required.

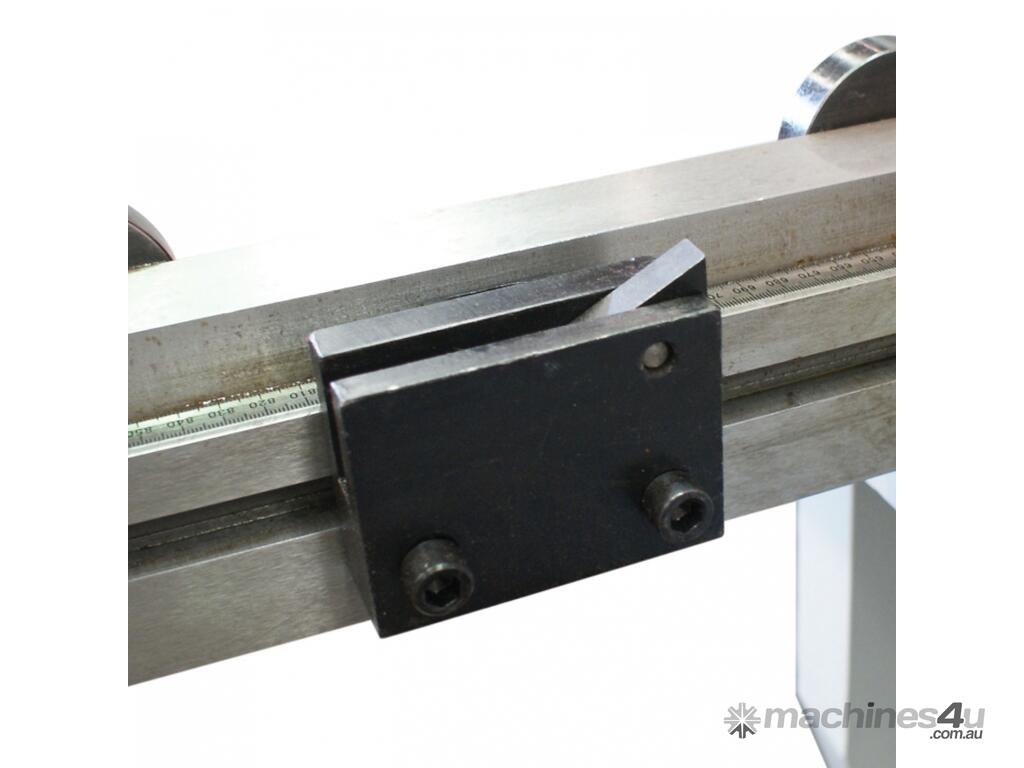

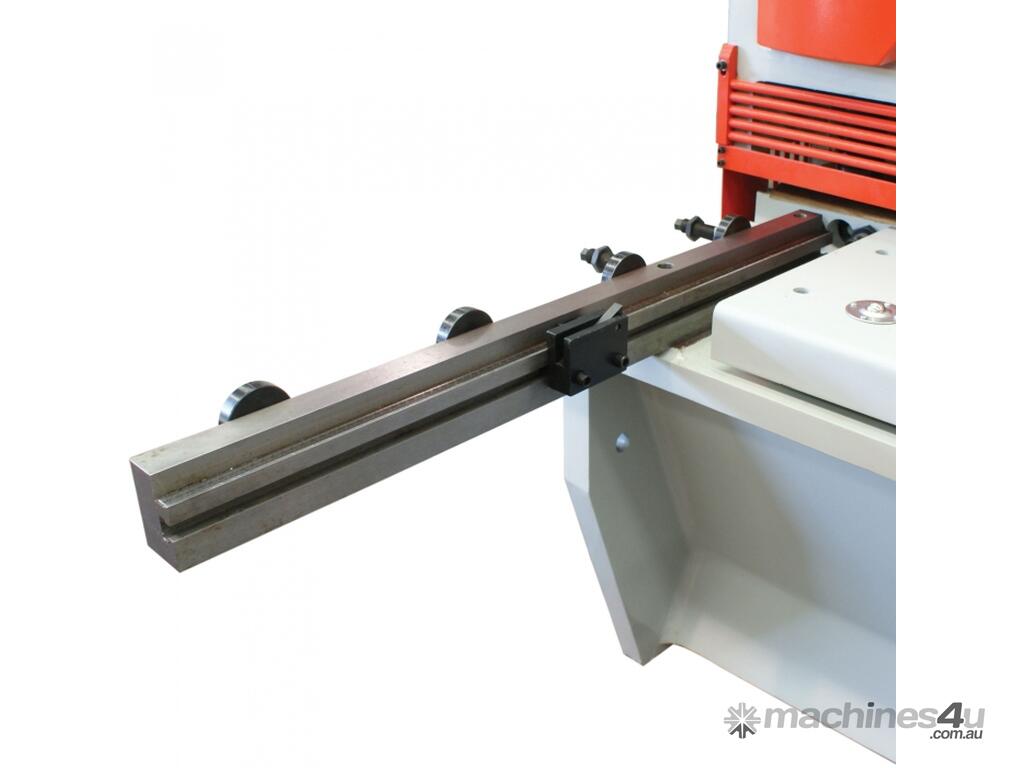

Heavy duty squaring arm is fitted with a graduated rule and adjustable flip up front stops allowing operator to cut to measure from the front of machine. Flip over stops can be set to repeat cutting length required with accuracy. The arm also aligns the material to be located square to the cutting edge.

Standard Equipment:
Heavy duty over driven machine construction.
Pneumatic material sheet supports.
Rapid blade gap adjustment.

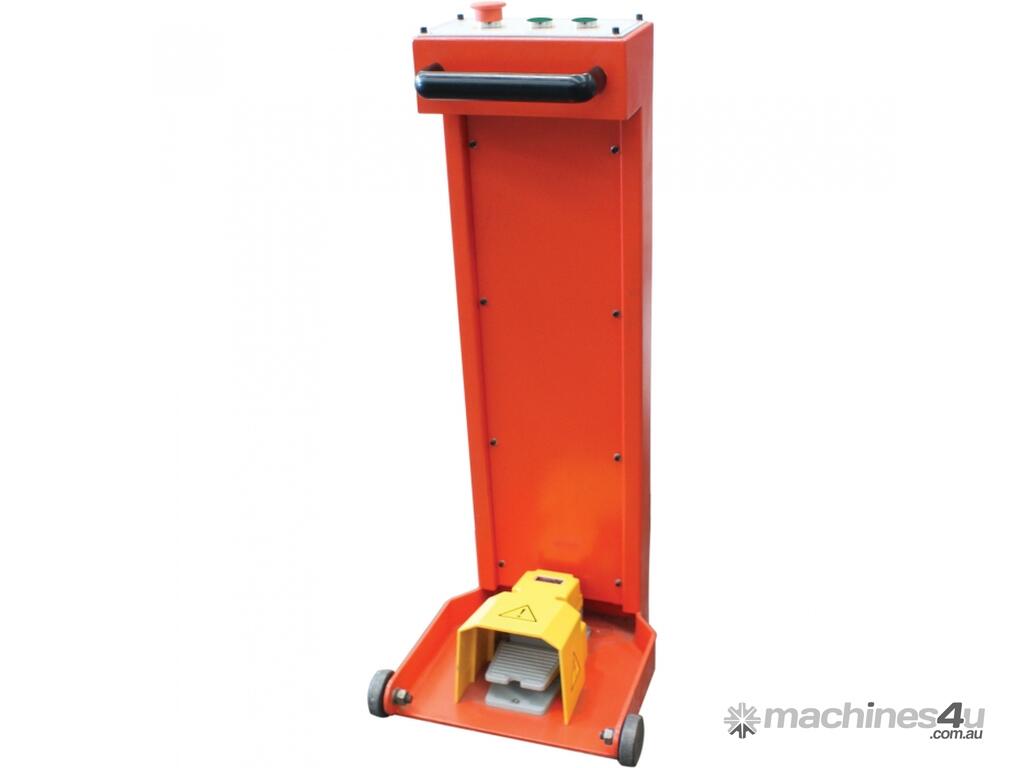

Emergency stops fitted on both ends of machine for additional safety.
Individual hydraulic hold downs with nylon pads.
Shadow line lighting.
Ezy-Set NC-89 Go-To Programmable back gauge 1000mm travel with fine adjustment.
Swing away back gauge function for cutting long sheets.
4 edge quality INOX blade suitable for stainless steel.
Rexroth & Bosch hydraulic valves.
Telemecanique electrical components.
Transfer balls on table & support arms.
Heavy duty support arms and squaring arms.
Stroke counter and short stroke adjustment.
Sliding chute with ball transfers inserts for cut pieces.

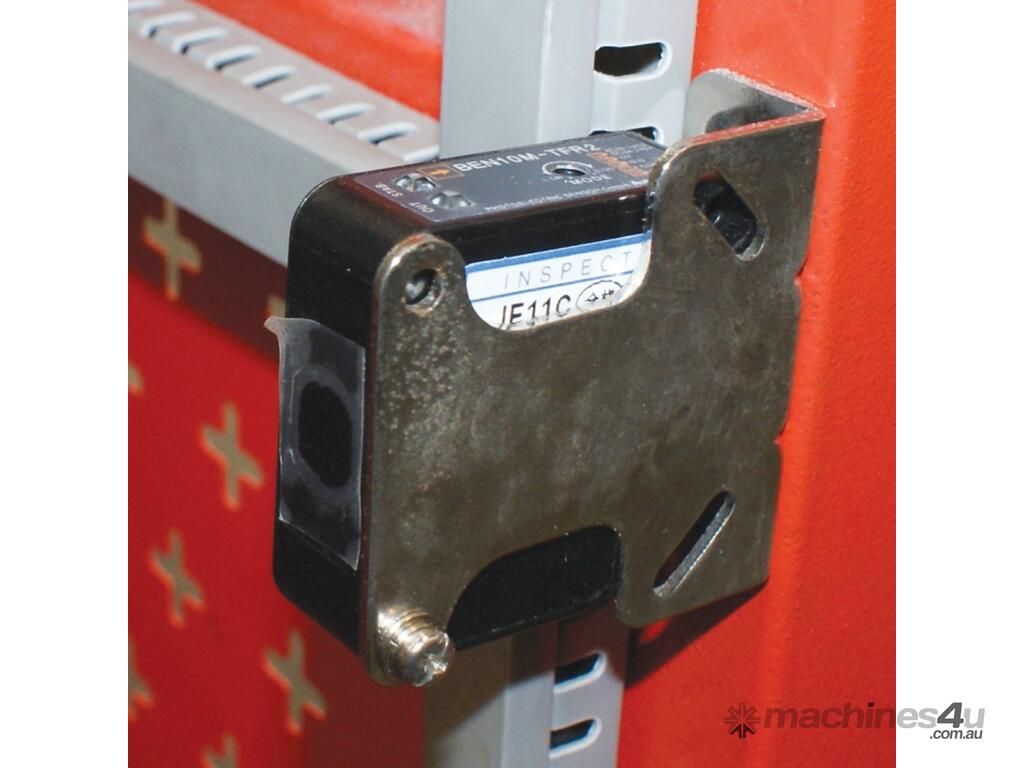

Three photo electric sensors rear guarding.

Includes
Pneumatic sheet supports

Specifications:
CODE:S962S
MODEL:HG-4008VR
SHEARING THICKNESS:8mm
SHEARING LENGTH:4000mm
BACK GAUGE TRAVEL:1000mm
BACK GAUGE CONTROL:Ezy-Set NC-89 Go-To
PNEUMATIC SHEET SUPPORTS:YES
STROKES(/min):10
BLADE ANGLE:Variable 0° - 2.5°
THROAT DEPTH:120mm
MOTOR:7.5kW / 10hp
MOTOR VOLTAGE:415V
WEIGHT (NETT):9400kg

Prices and specifications listed are subject to change and are GST exclusive
