SHAW - HAFCO AL-1000D Tawian Centre Lathe

Taiwanese Quality Lathe

Swing Over Bed 356 mm
Distance Between Centres 1000 mm
Spindle Bore 40 mm
Swing Over Cross-slide 225mm
Swing In Gap 516mm
Digital Readout System Yes
Quick Change Tool post Optional
Leadscrew Covers Fitted Yes
Coolant System Yes
Tool Height To Suit 16mm
Centre Height 176 mm
Spindle Nose Size or Type D1-4 Camlock
Bed Width 190 mm
Headstock Spindle Taper 5MT

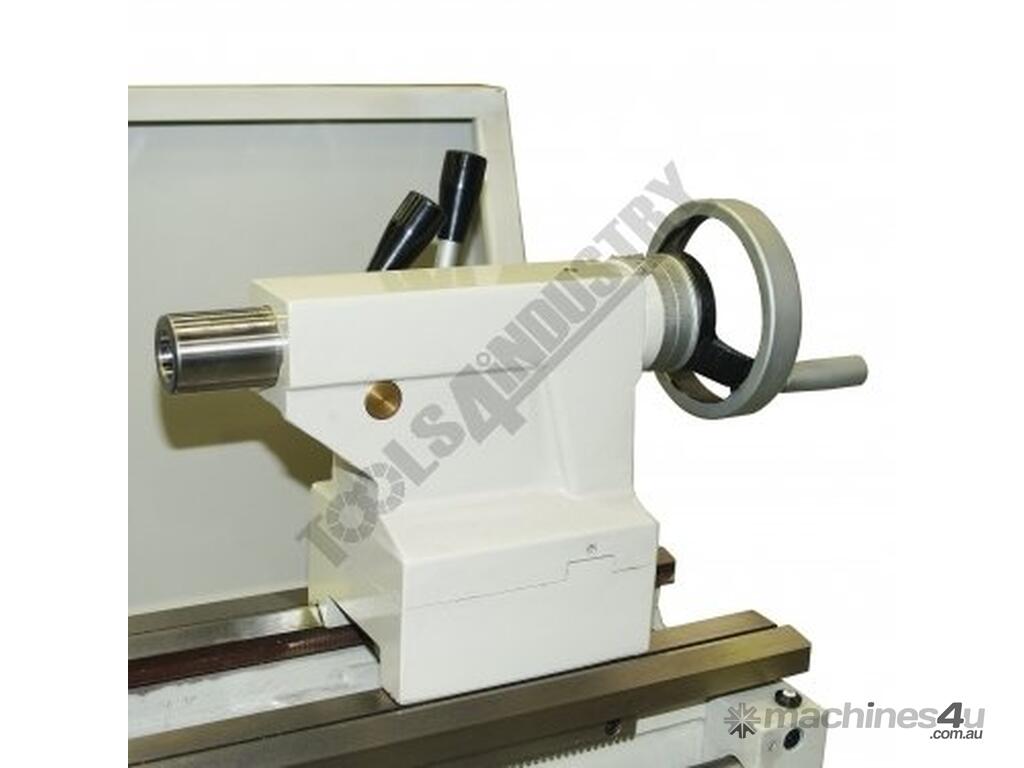

Tailstock Taper 3MT
Cross Slide Travel 175mm

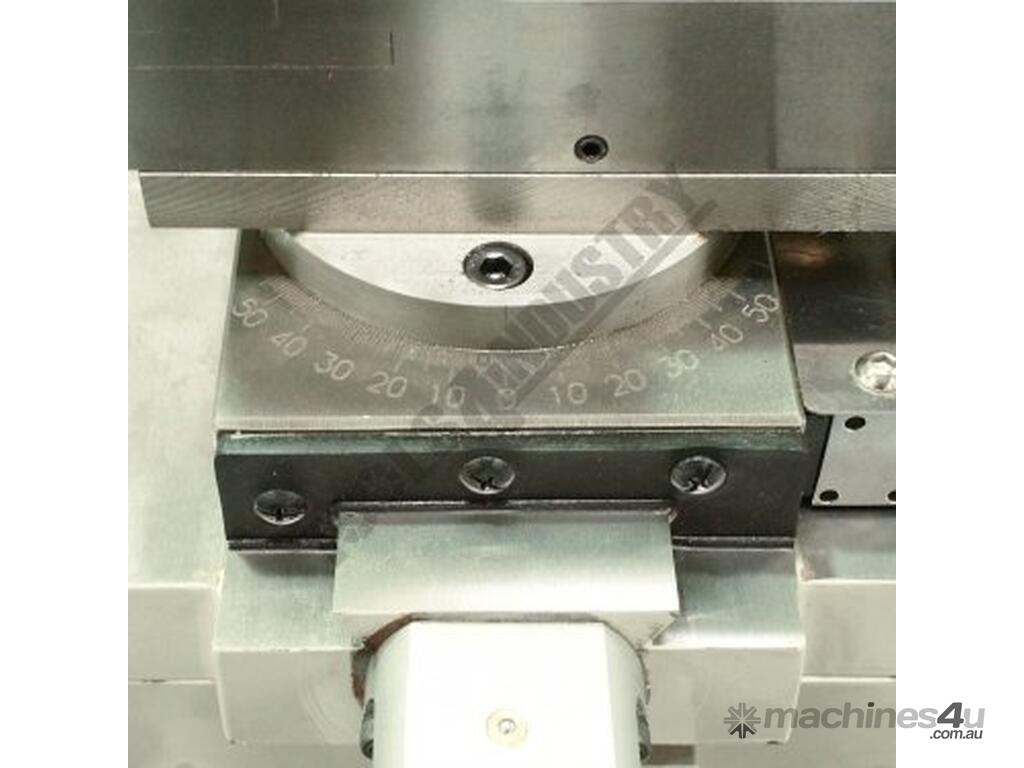

Compound Slide Travel 100mm
Leadscrew Type - Metric
Metric Cross Feed (X-Axis) 0.034 - 0.468 mm/rev
Metric Longitudinal Feed (Z-Axis) 0.068 - 0.936 mm/rev

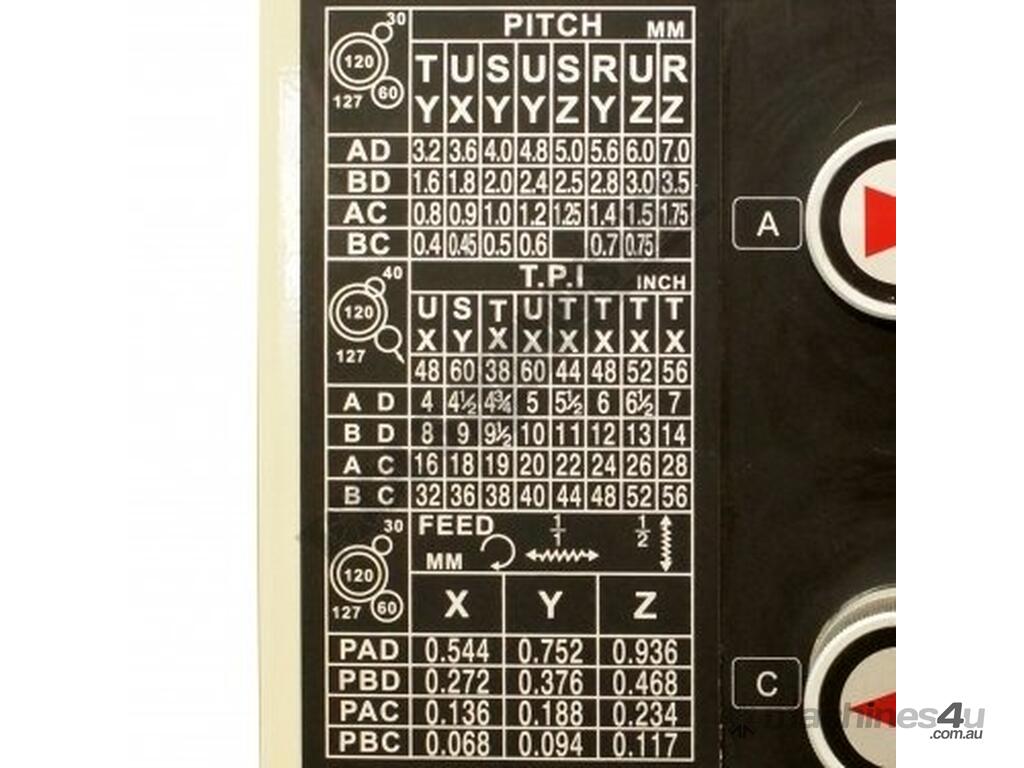

Metric Thread Steps & Pitch 30(0.4 - 7.0) No. / mm
Imperial Thread Steps & TPI 32(4 - 56) No. / TPI
3 Jaw Chuck Diameter 160mm
4 Jaw Chuck Diameter 200mm

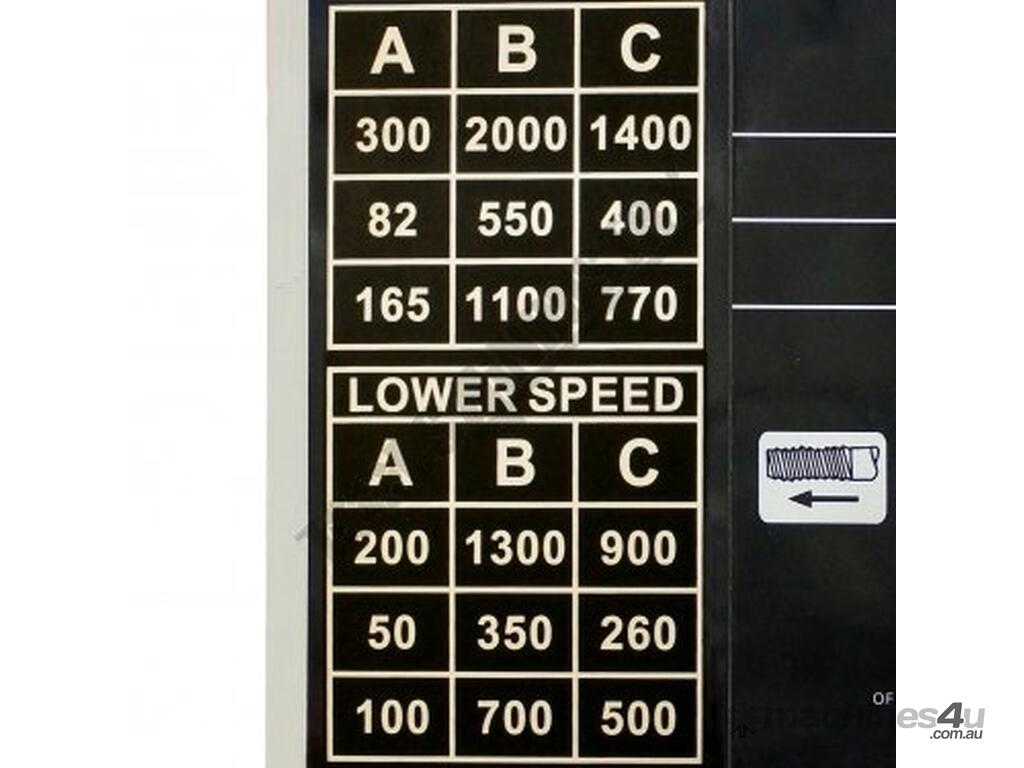

Spindle Steps / Speeds 18 (50 - 2000) No. / rpm
Motor Power kW / hp 2.25 / 3
Voltage / Amperage 415 volt
Nett Weight 700 kg

Tool room quality precision lathe and have been sold for over 20 years

Features

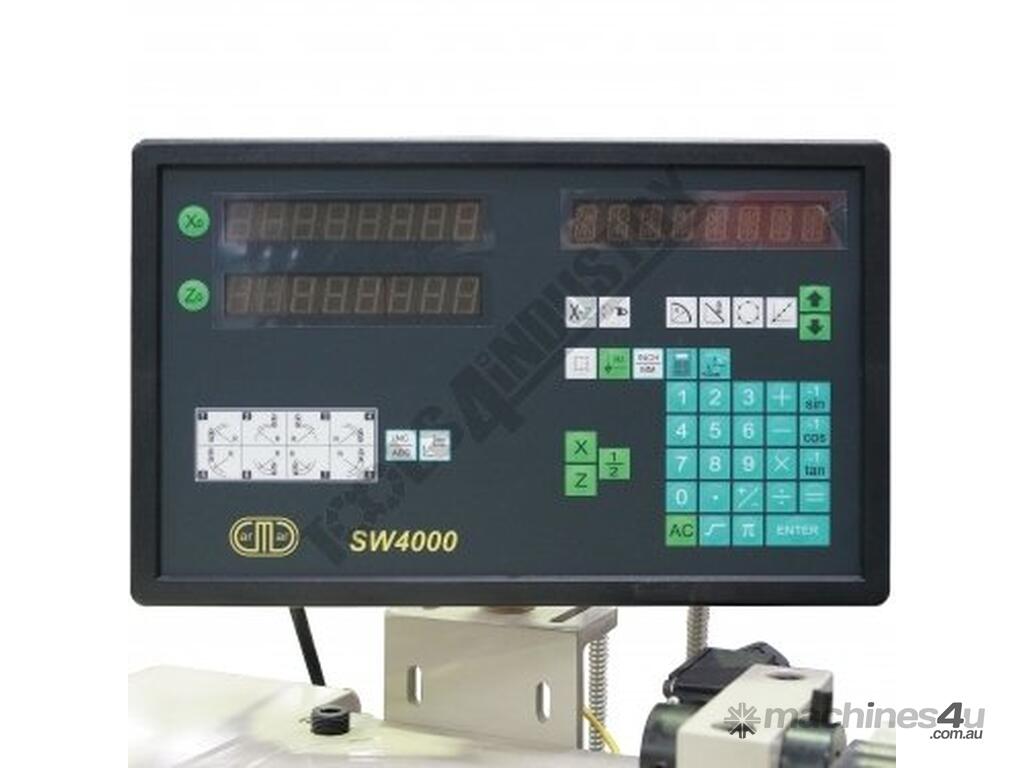

2 axis digital readout system

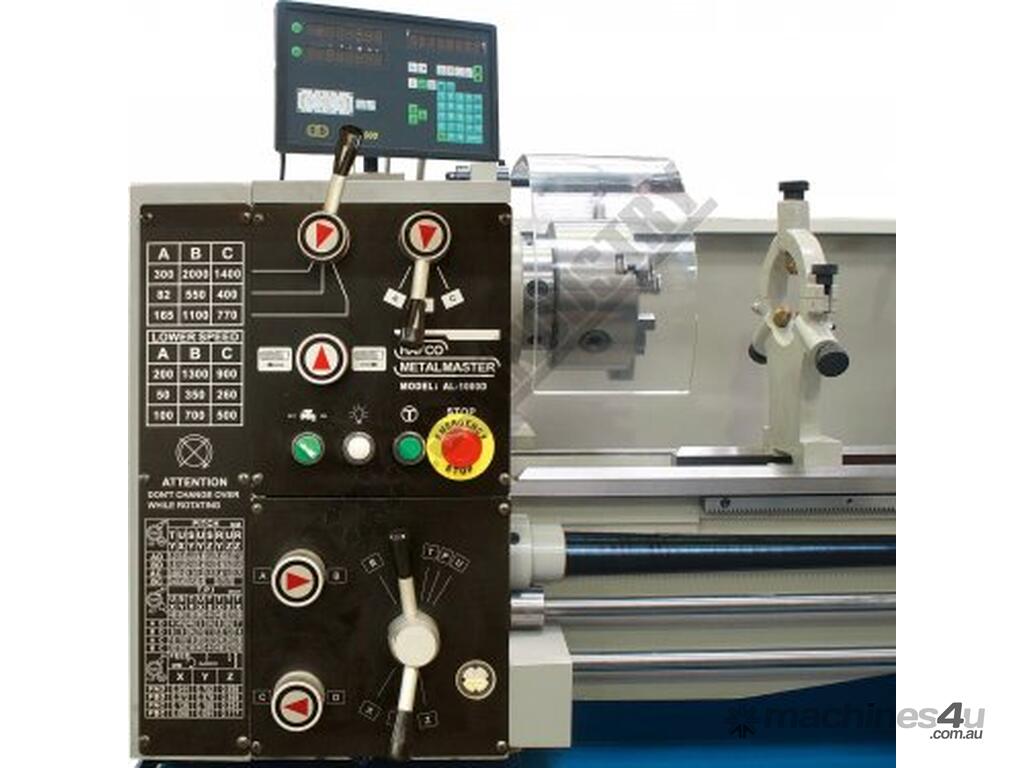

Gear drive headstock for quick change of spindle speeds
Stand increasing rigidity and reducing vibration
Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
Foot operated spindle brake with safety cut out switch
Slide out front swarf tray for easy cleaning
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
Overload clutch mechanism on auto power feed
Overload protection on drive motor and coolant system
3hp 415V motor, 18-speed (50 - 2000rpm)

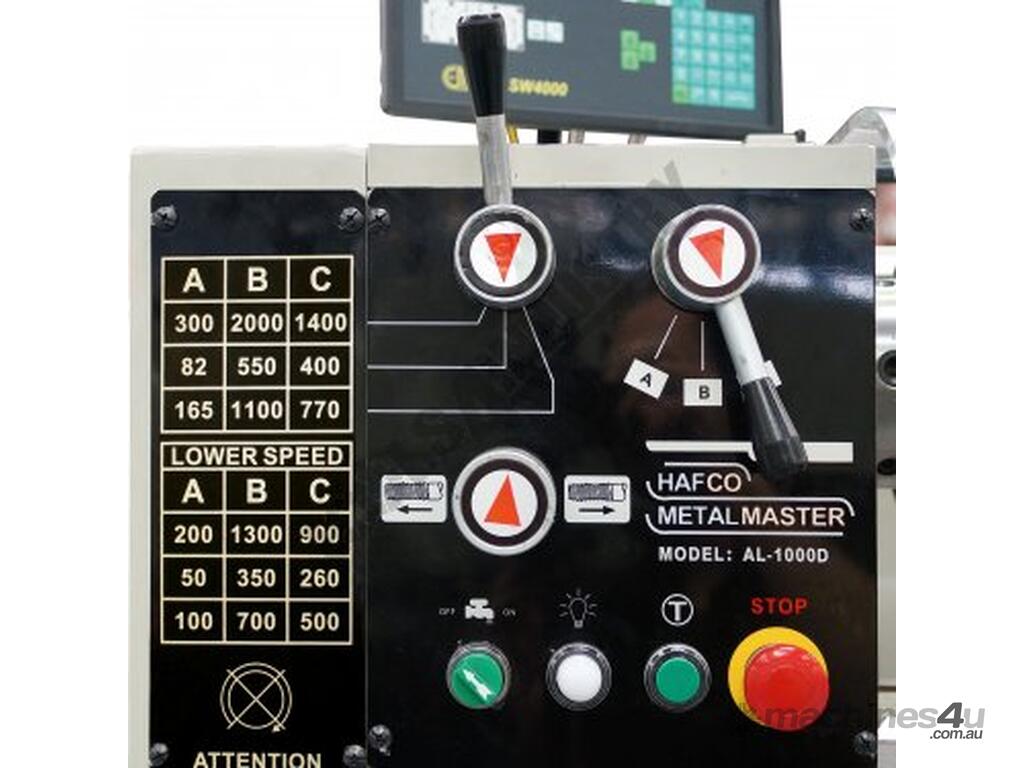

Inching button is incorporated on the control panel for convenient spindle speed selection

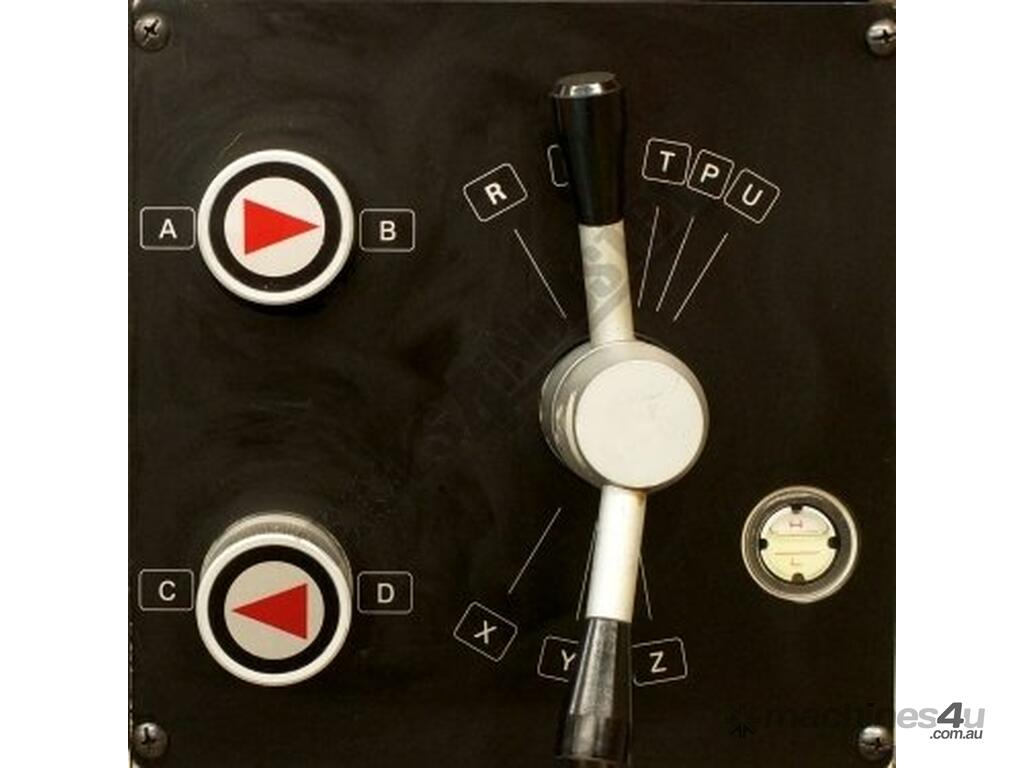

Enclosed quick action gearbox for thread cutting and auto feeding

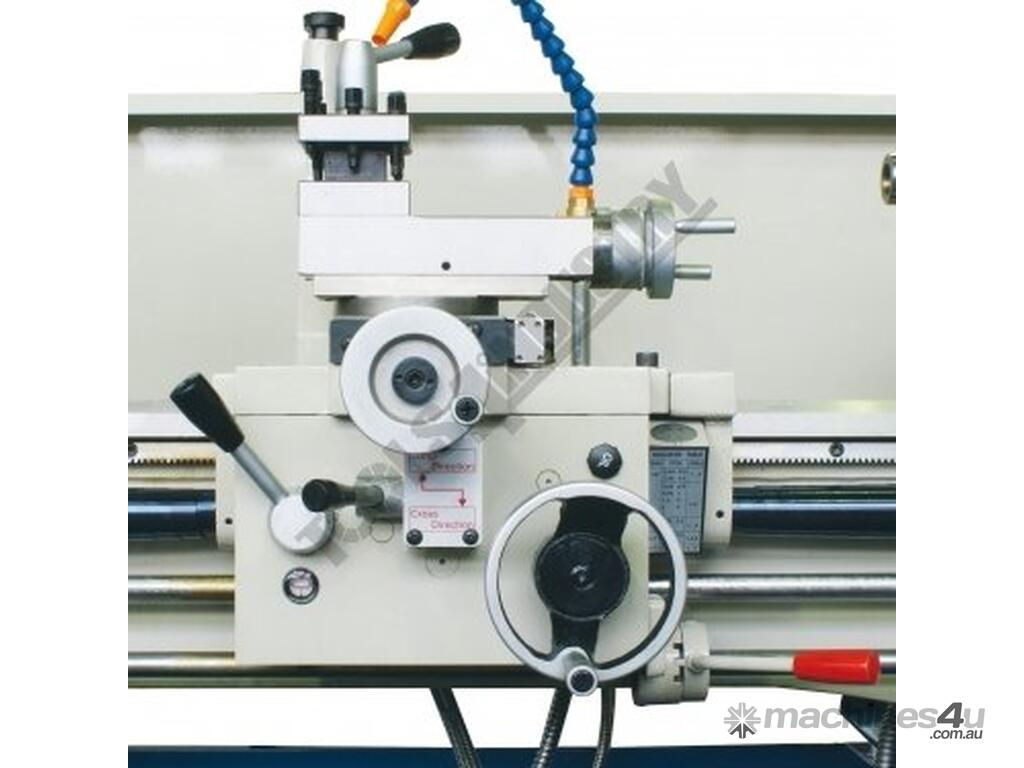

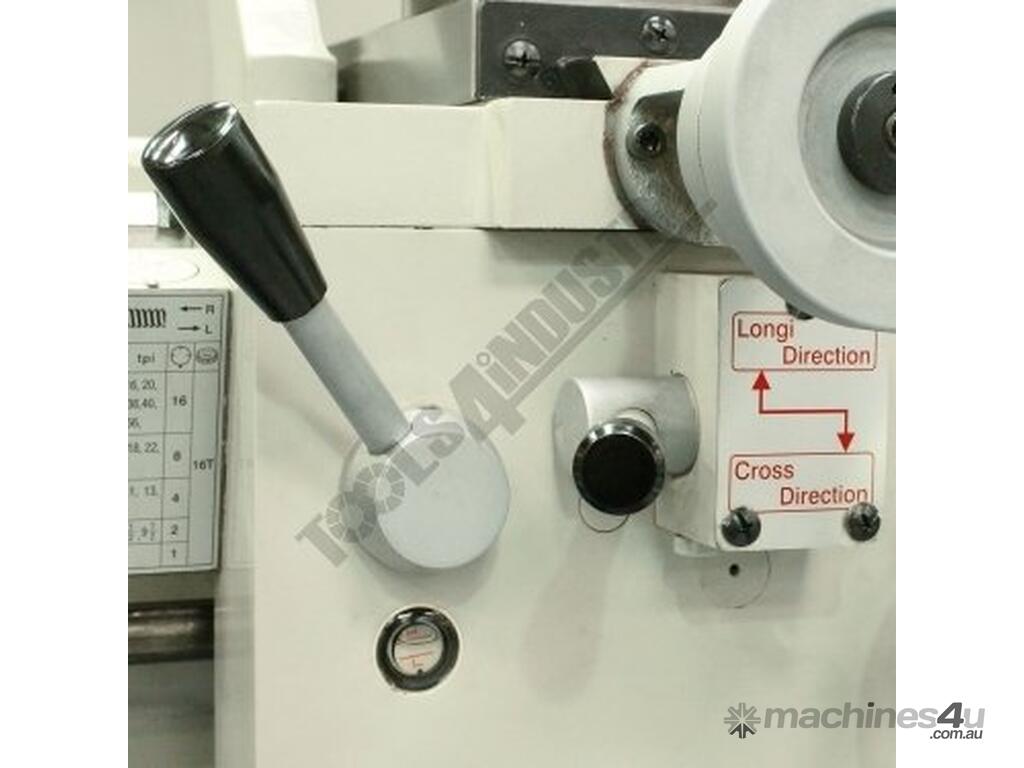

Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Removable gap bed-way for larger diameter jobs

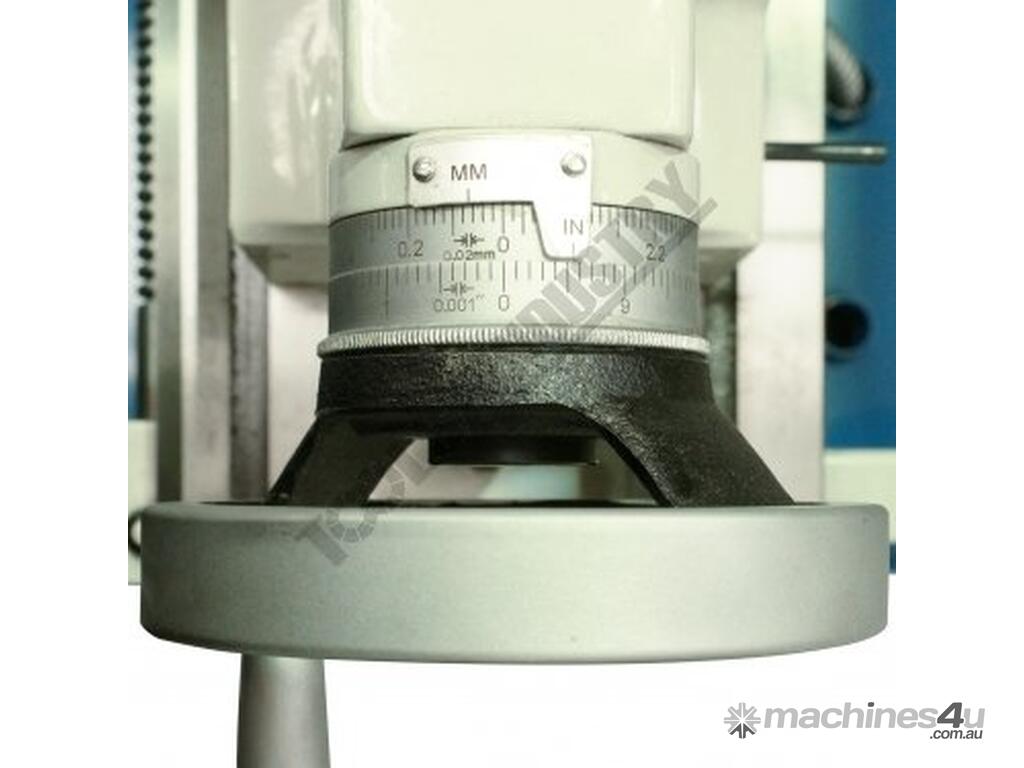

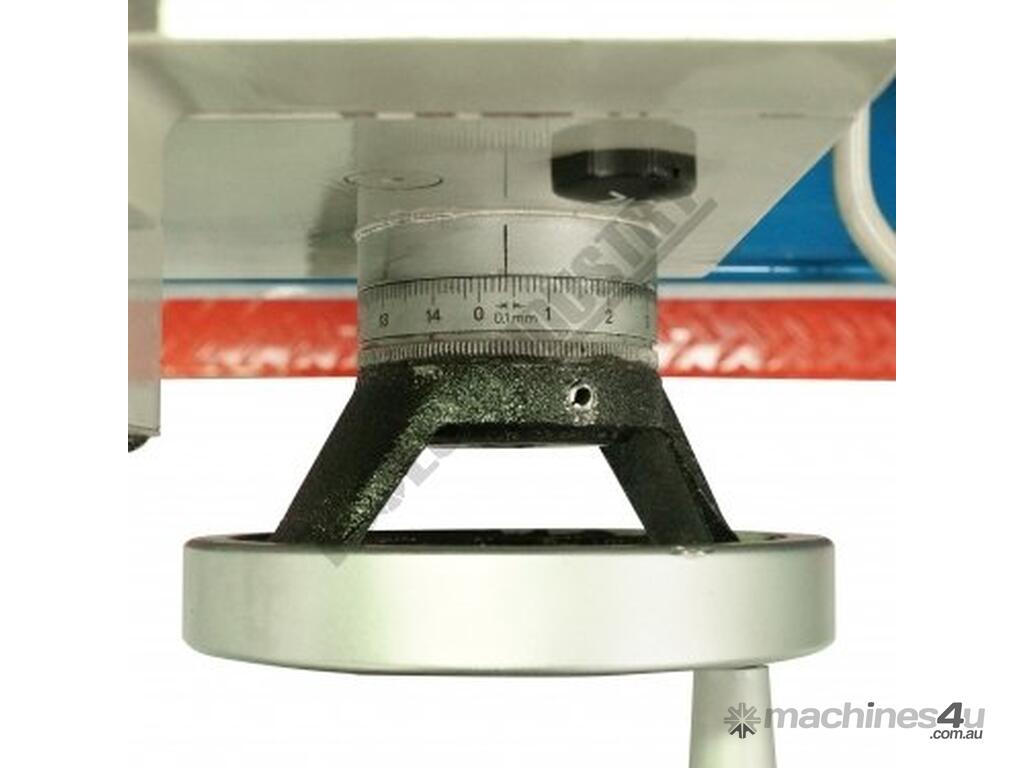

Dual calibrated dials (except for saddle hand wheel)

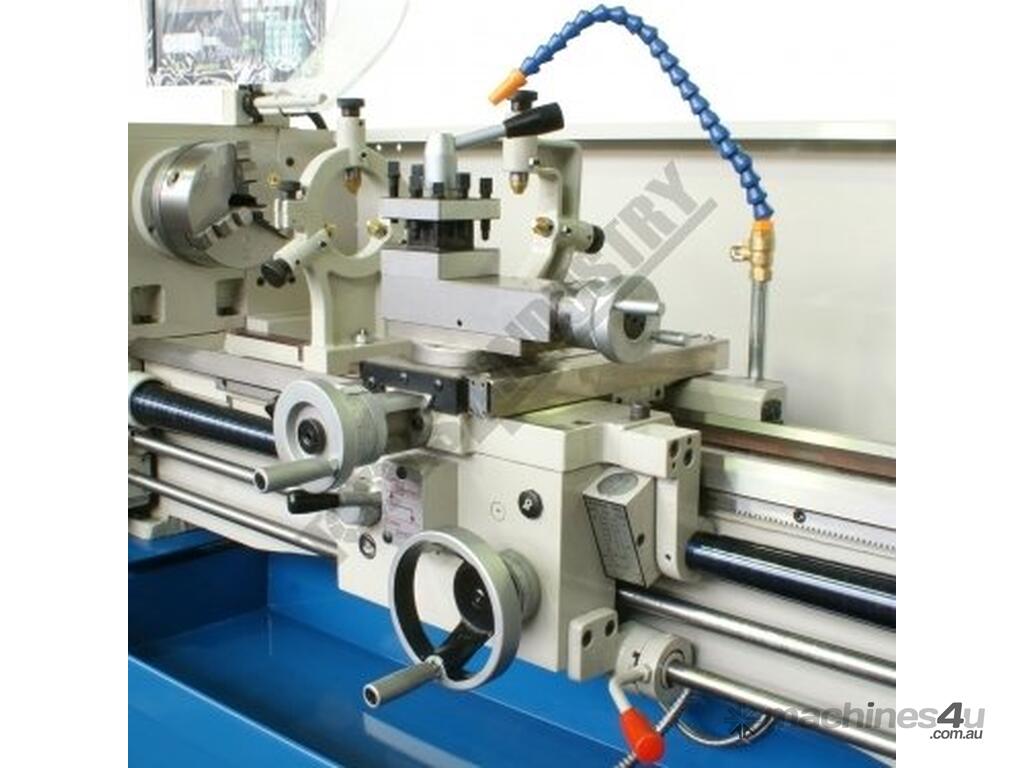

Coolant system with flexible hose
Slide out swarf tray

Includes
2 axis digital readout system
Concertina leadscrew cover
Slide out front swarf tray
160mm 3-jaw chuck with reverse jaws
200mm 4-jaw chuck
Face plate

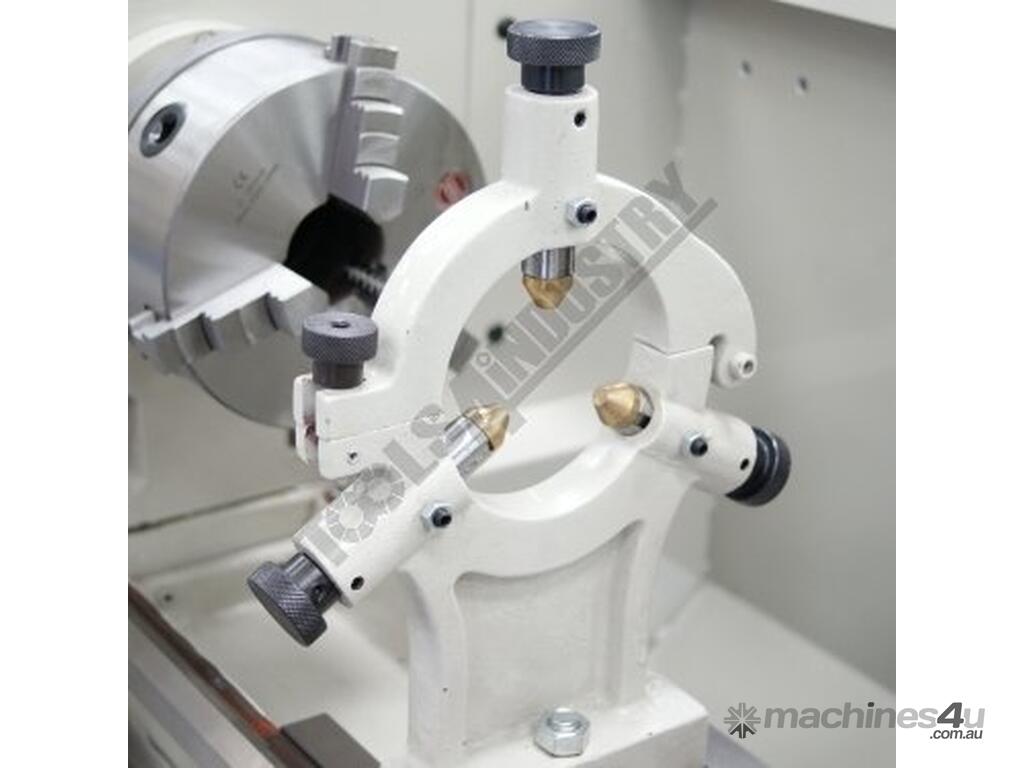

Fixed steady
Travelling steady
Change gears
Dead centres

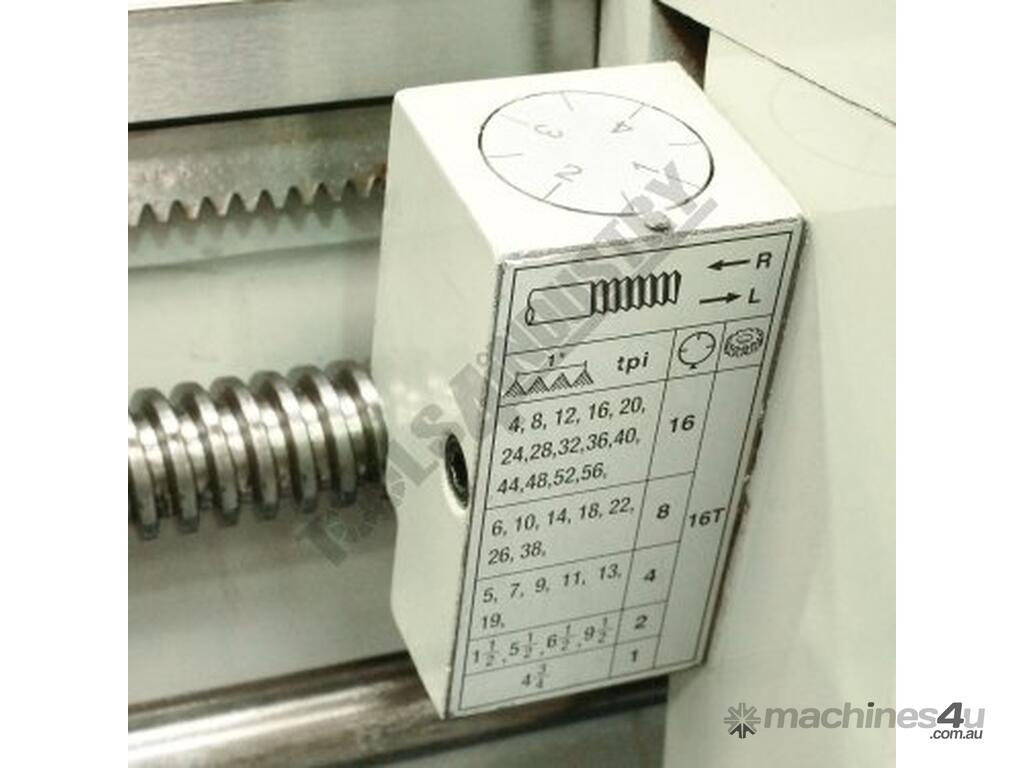

Thread-chasing dial

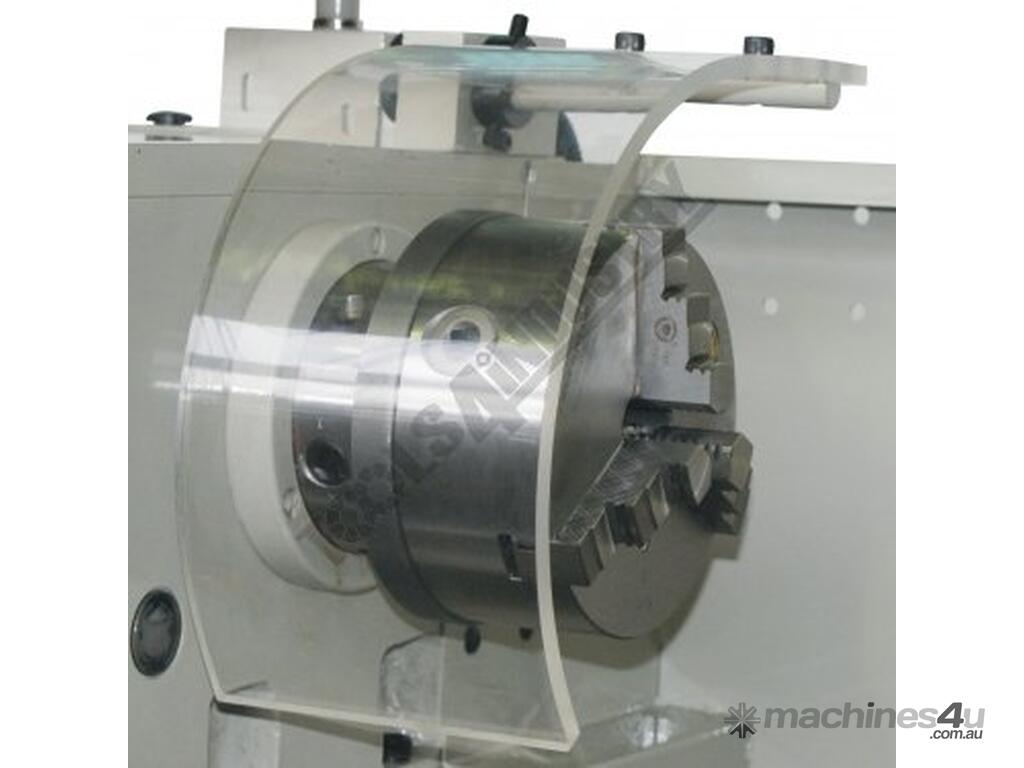

Safety chuck guard
Stand
Foot brake
Rear splash guard & swarf tray
Tool box
Instruction booklet
