Manufactured in Taiwan
Includes DRO
Swing Over Bed 330 mm
Distance Between Centres 600 mm
Spindle Bore 40 mm
Swing Over Cross-slide 200 mm
Digital Readout System Yes
Quick Change Tool post Optional
Leadscrew Covers Fitted Yes
Coolant System Yes
Tool Height To Suit 16mm
Centre Height 165 mm
Spindle Nose Size or Type D1-4 Camlock
Bed Width 190 mm
Headstock Spindle Taper 5MT
Tailstock Taper 3MT
Cross Slide Travel 175mm
Compound Slide Travel 100mm
Leadscrew Type - Metric
Metric Cross Feed (X-Axis) 0.034 - 0.468 mm/rev
Metric Longitudinal Feed (Z-Axis) 0.068 - 0.936 mm/rev

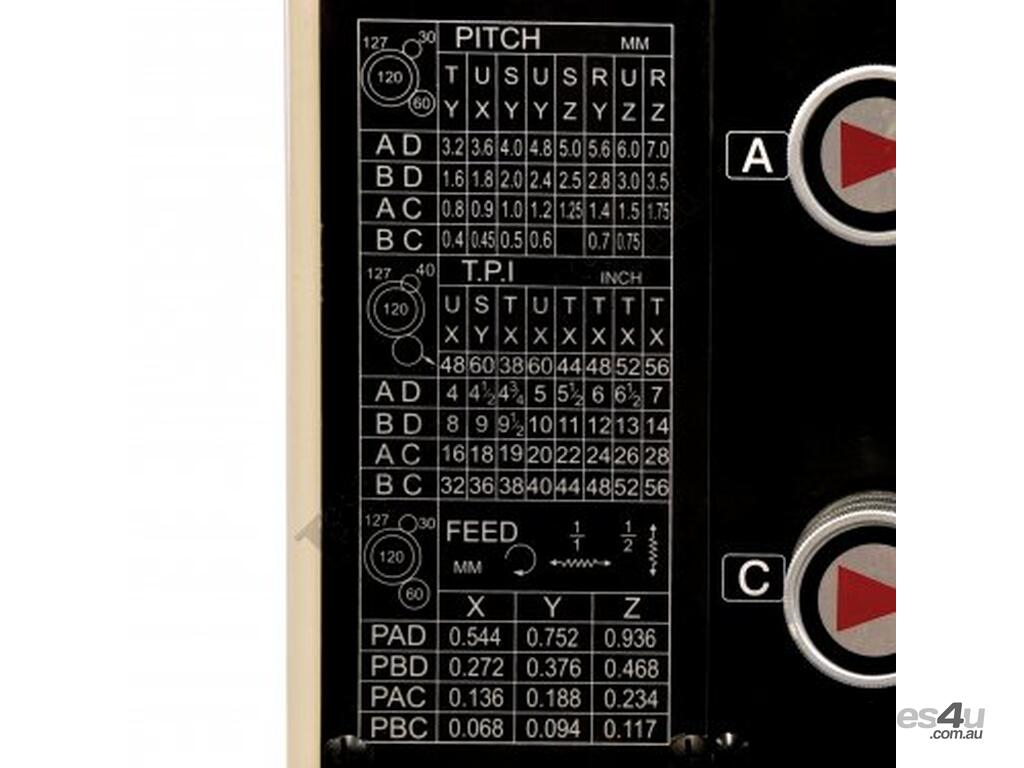

Metric Thread Steps & Pitch 30(0.4 - 7.0) No. / mm
Imperial Thread Steps & TPI 32(4 - 56) No. / TPI
3 Jaw Chuck Diameter 160mm
4 Jaw Chuck Diameter 200mm

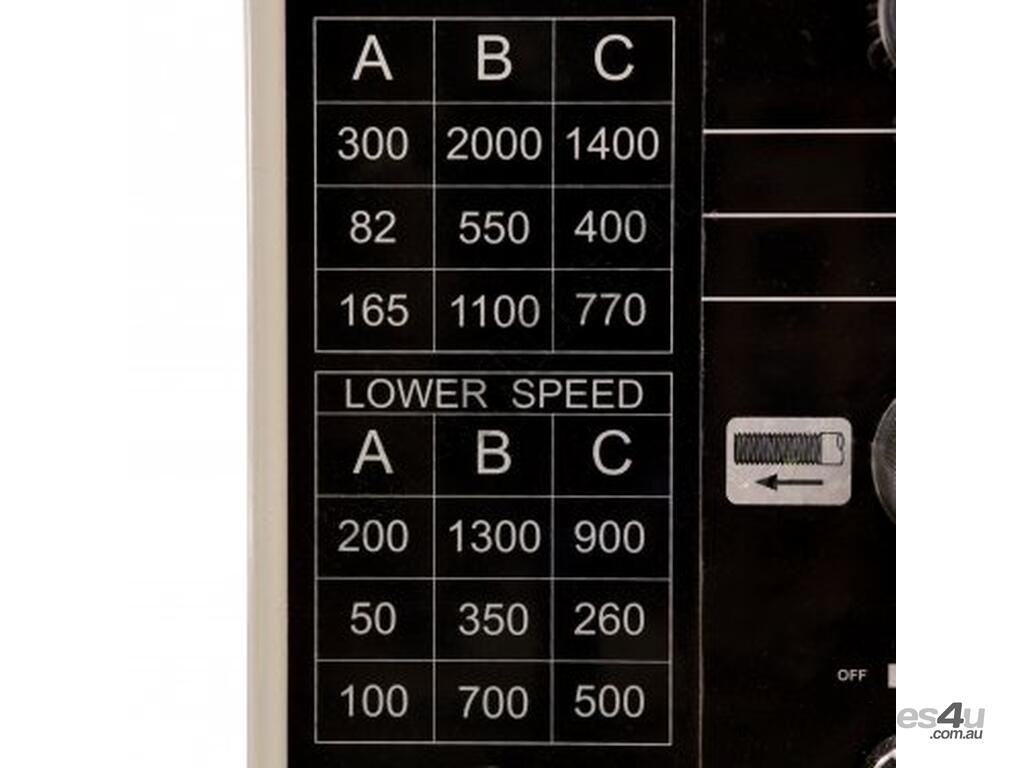

Spindle Steps / Speeds 18 (50 - 2000) No. / rpm
Motor Power kW / hp 2.25 / 3
Voltage / Amperage 415 volt
Nett Weight 580 kg
Features
Tool room quality precision lathe, Made in Taiwan and have been sold for over 20 years

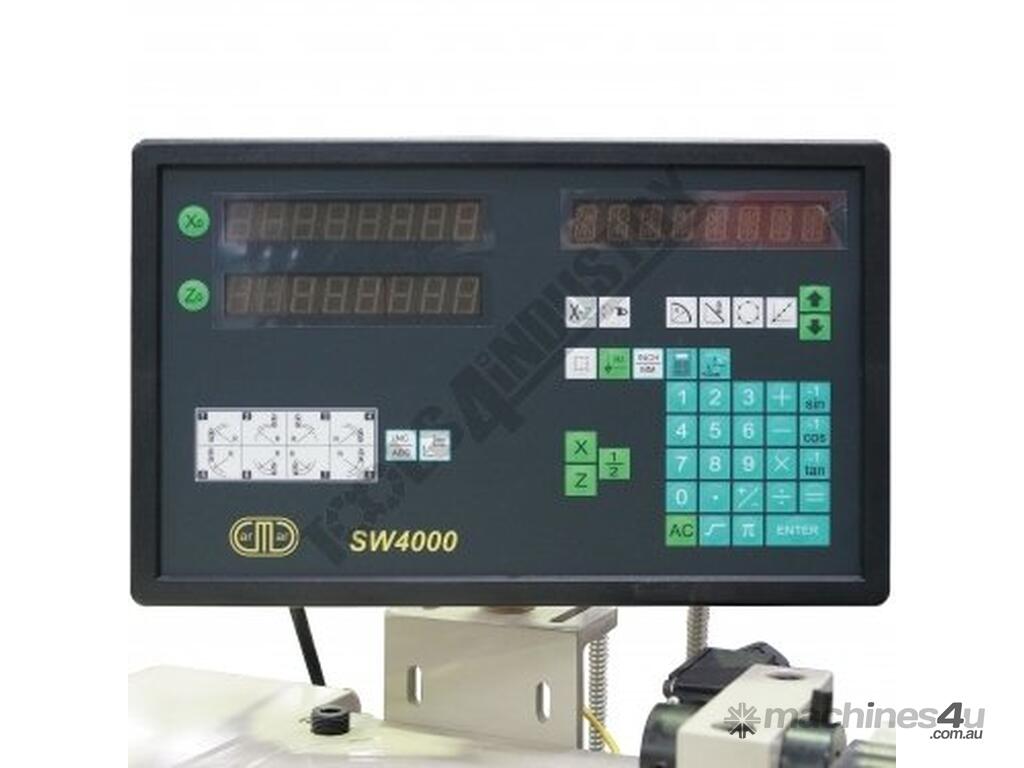

2-Axis digital readout system fitted

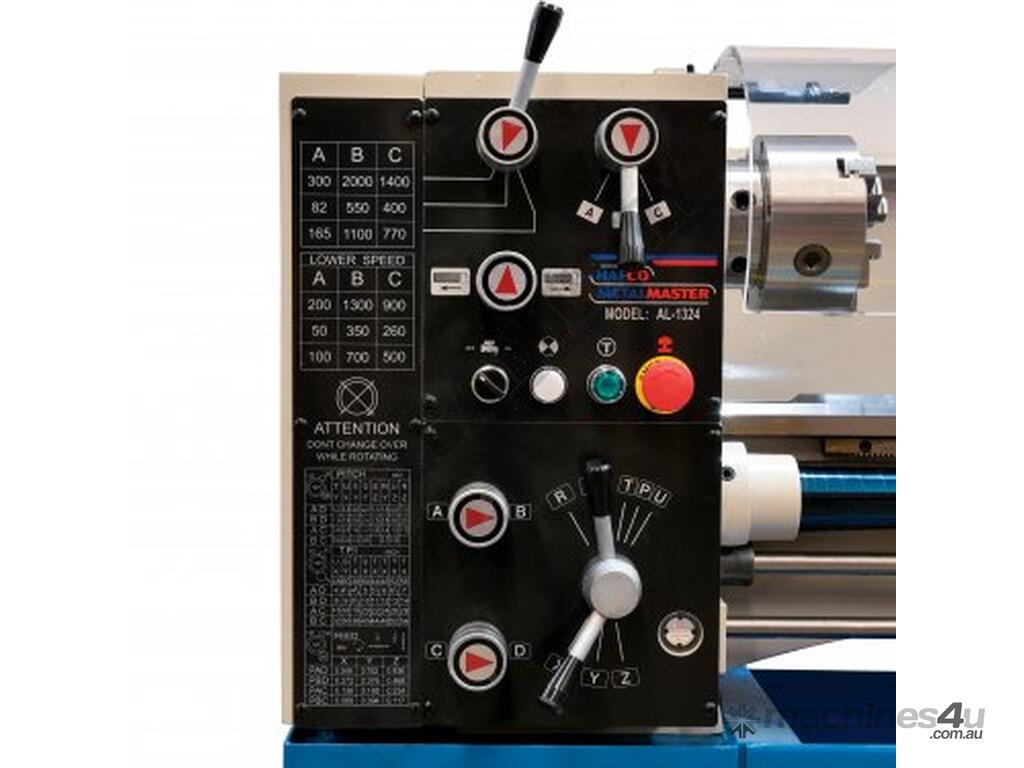

Gear drive headstock for quick change of spindle speeds
Stand increasing rigidity and reducing vibration
Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting

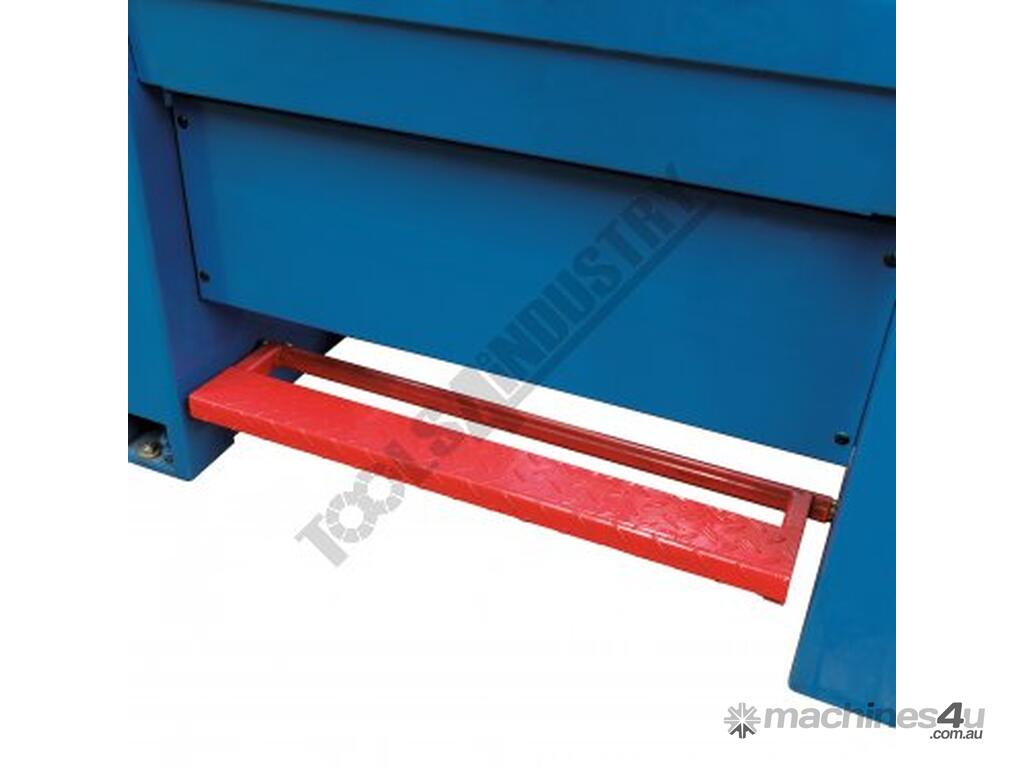

Foot operated spindle brake with safety cut out switch

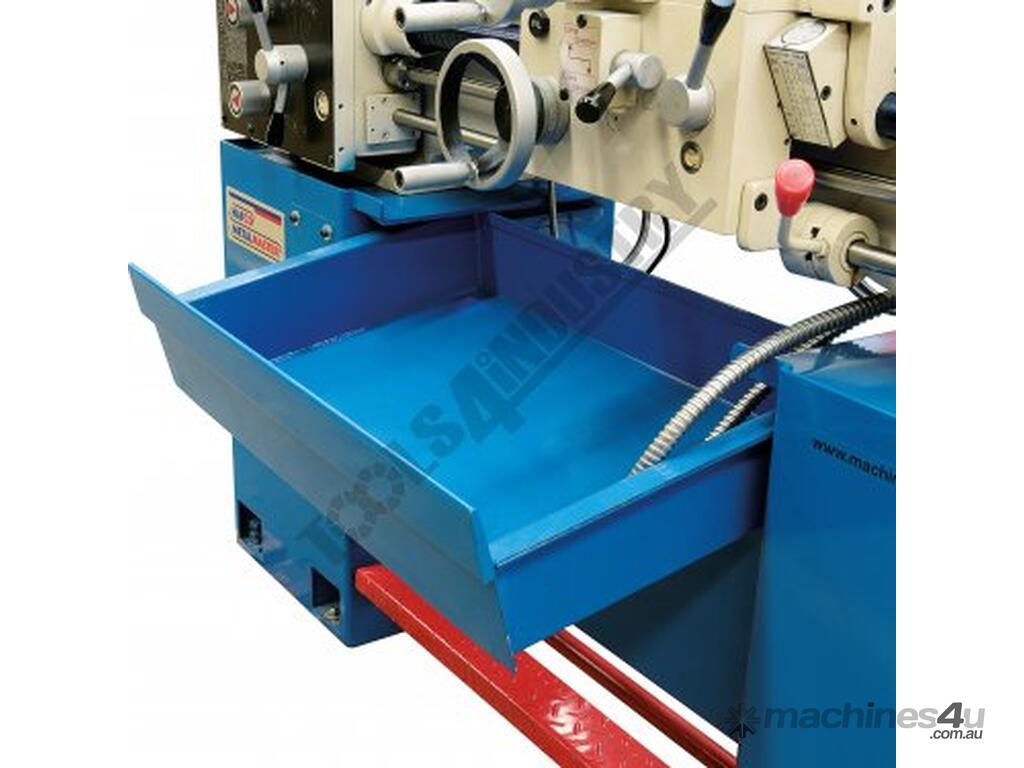

Slide out front swarf tray for easy cleaning

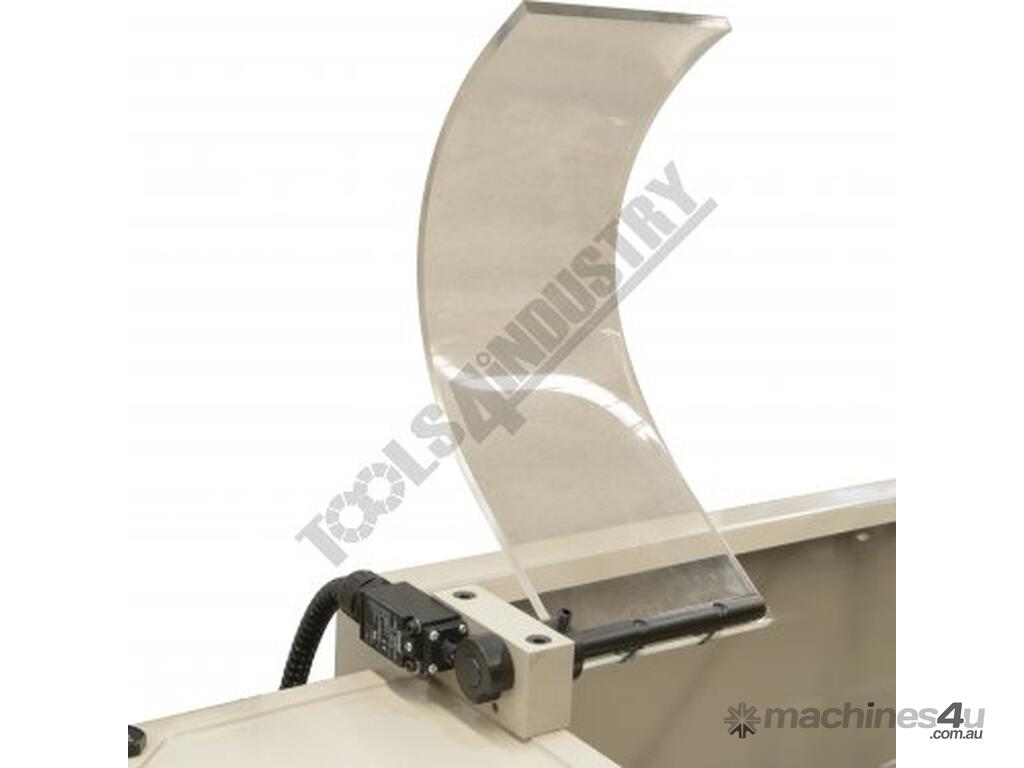

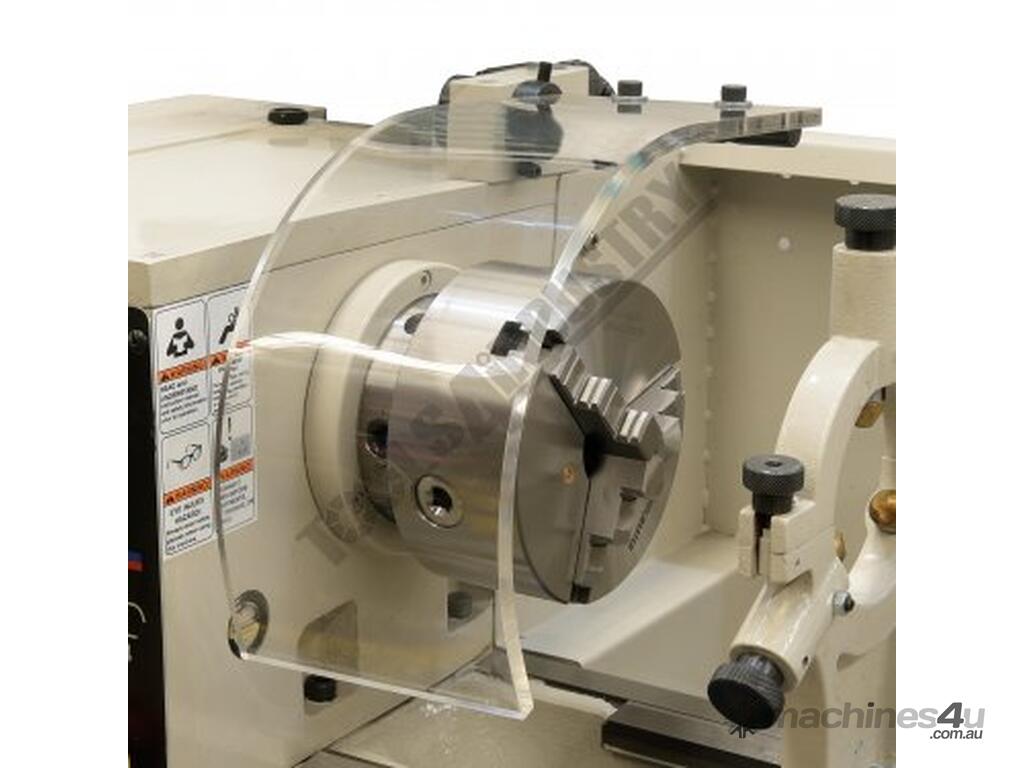

Chuck guard fitted fitted with micro switch

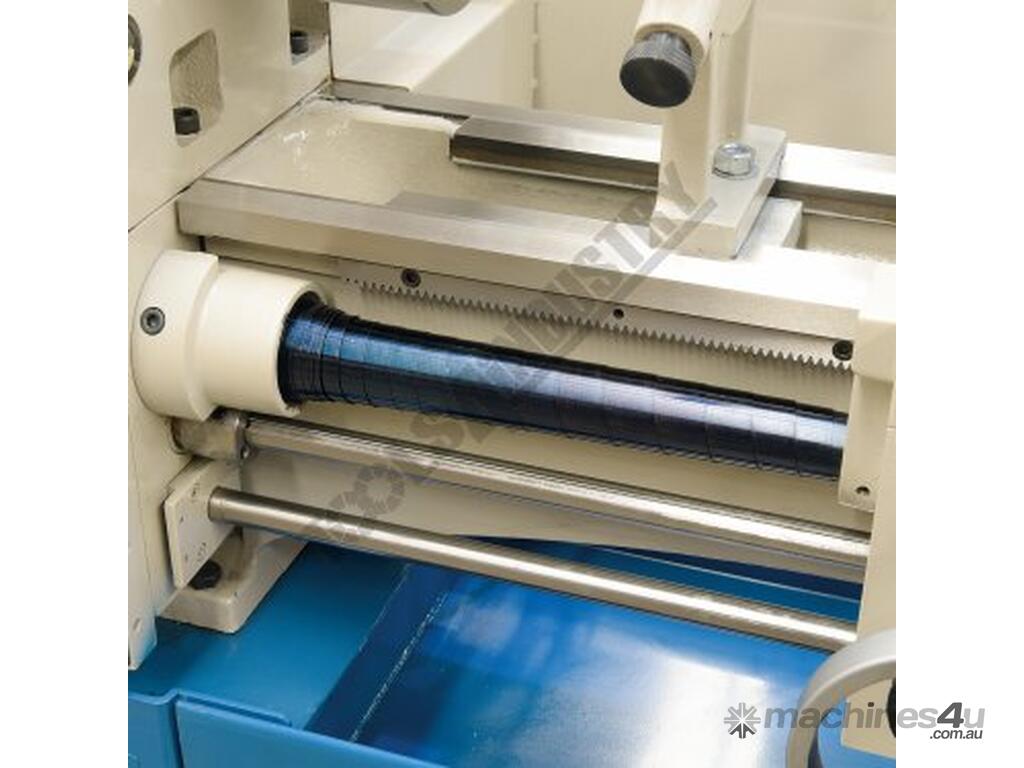

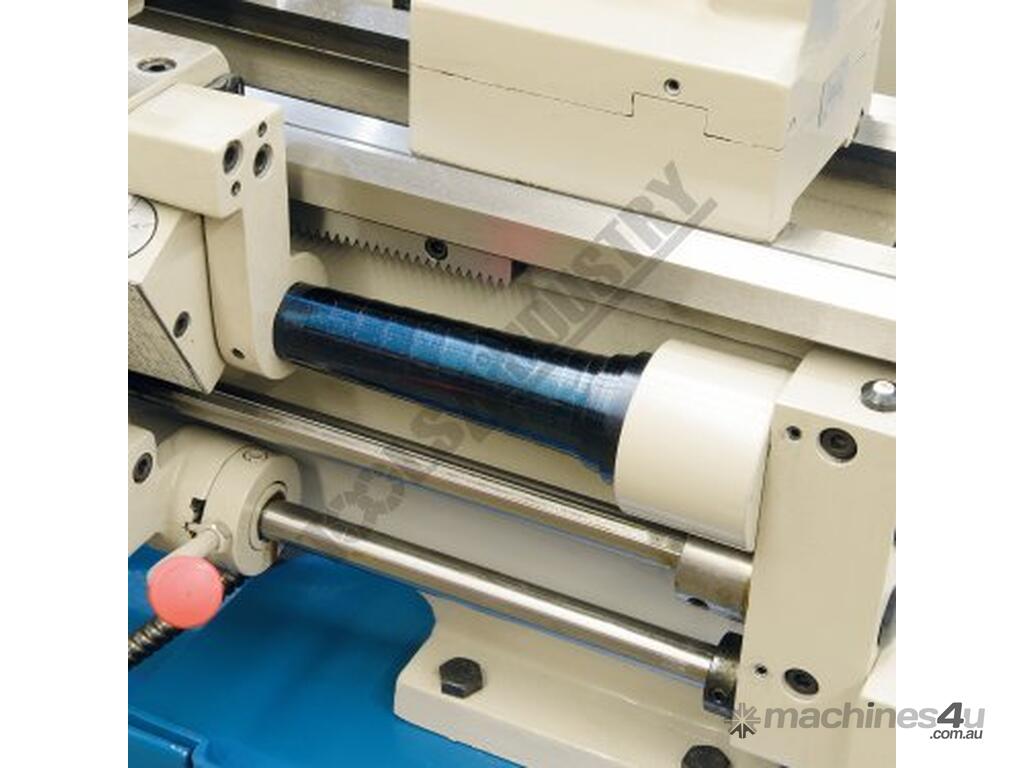

Leadscrew cover ensures swarf not reaching clasp nut
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
Overload clutch mechanism on auto power feed
Overload protection on drive motor and coolant system
3HP/415V motor, 18-speed (50 - 2000rpm)

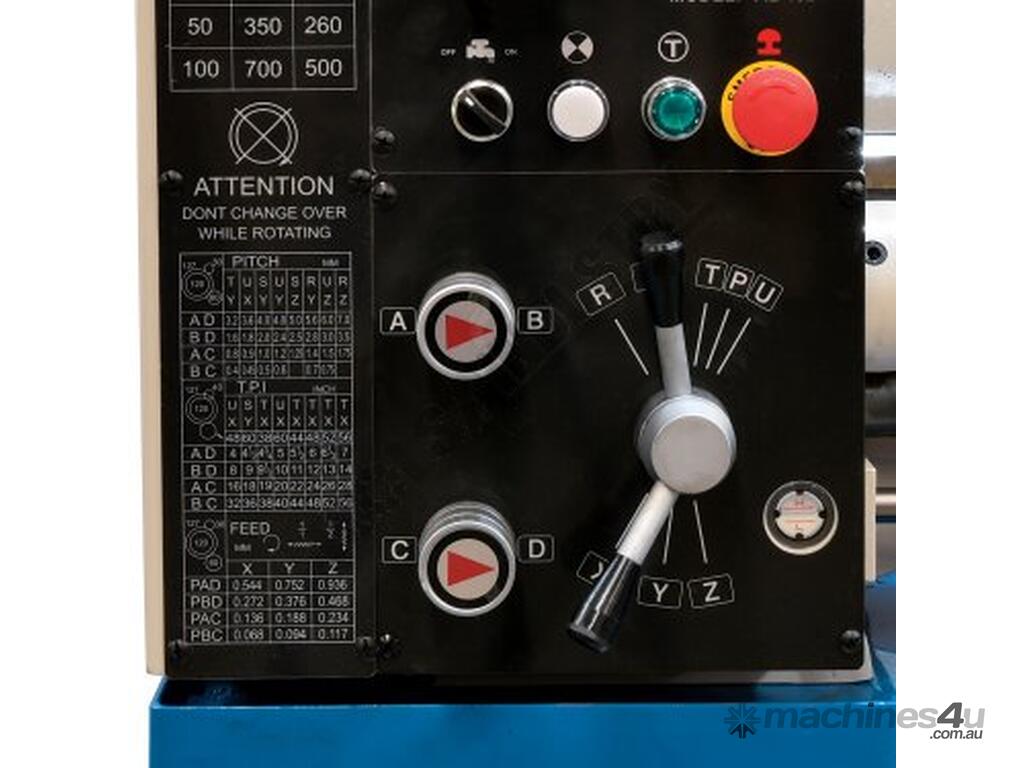

Enclosed quick action gearbox for thread cutting and auto feeding

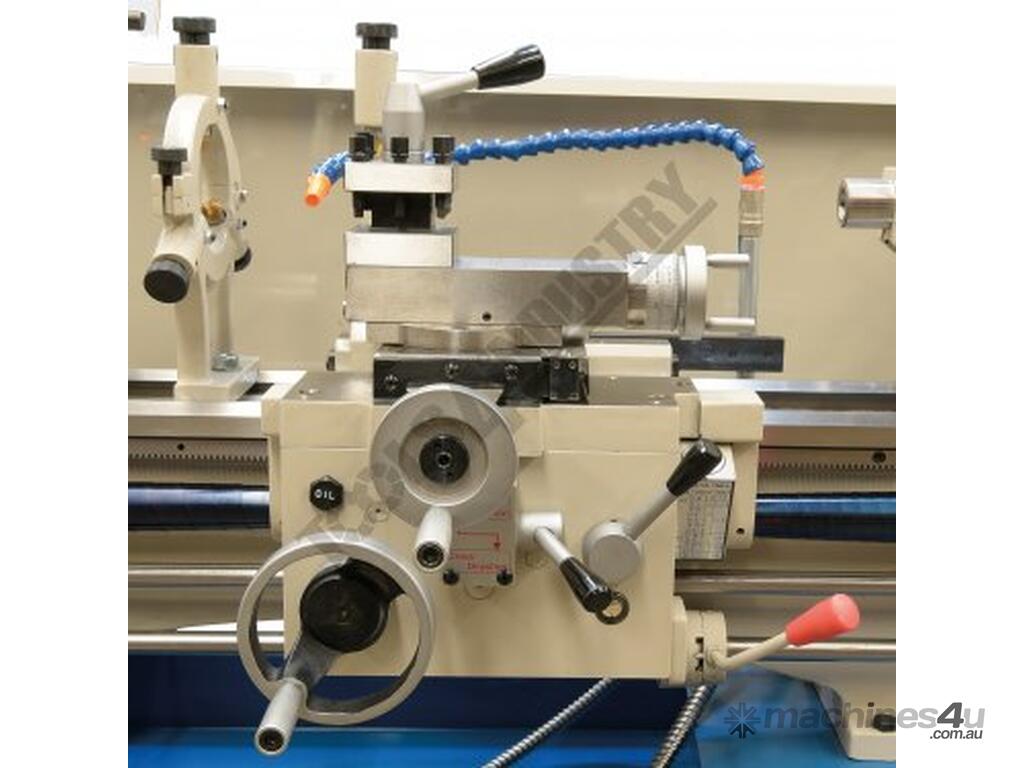

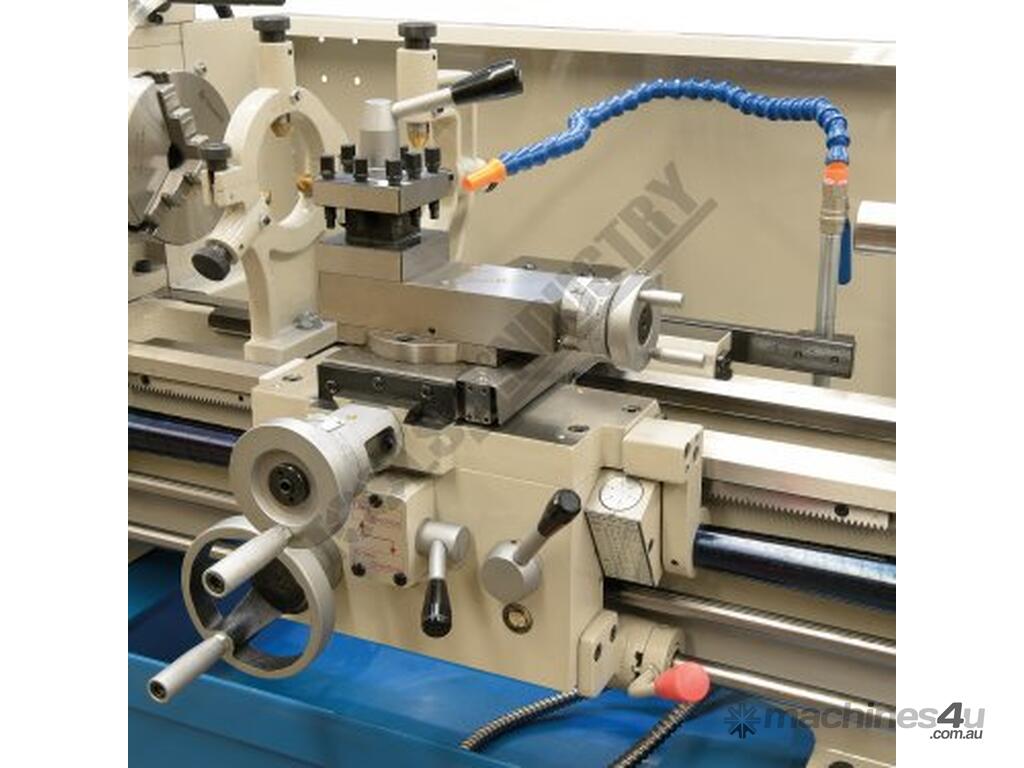

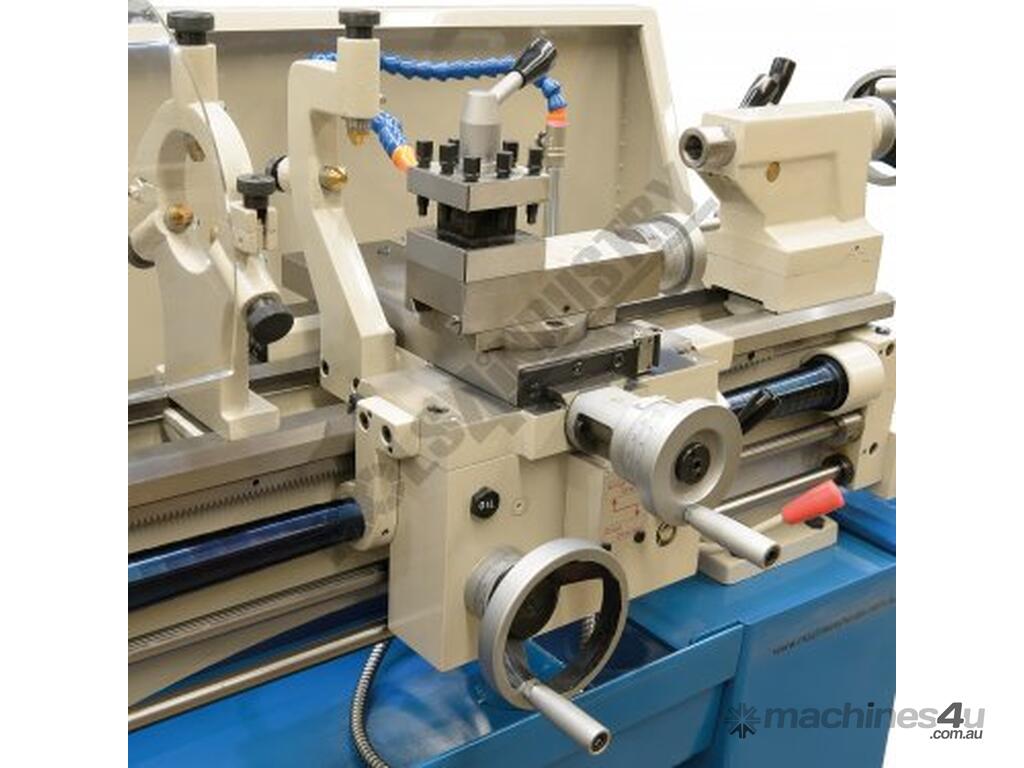

Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Dual calibrated dials

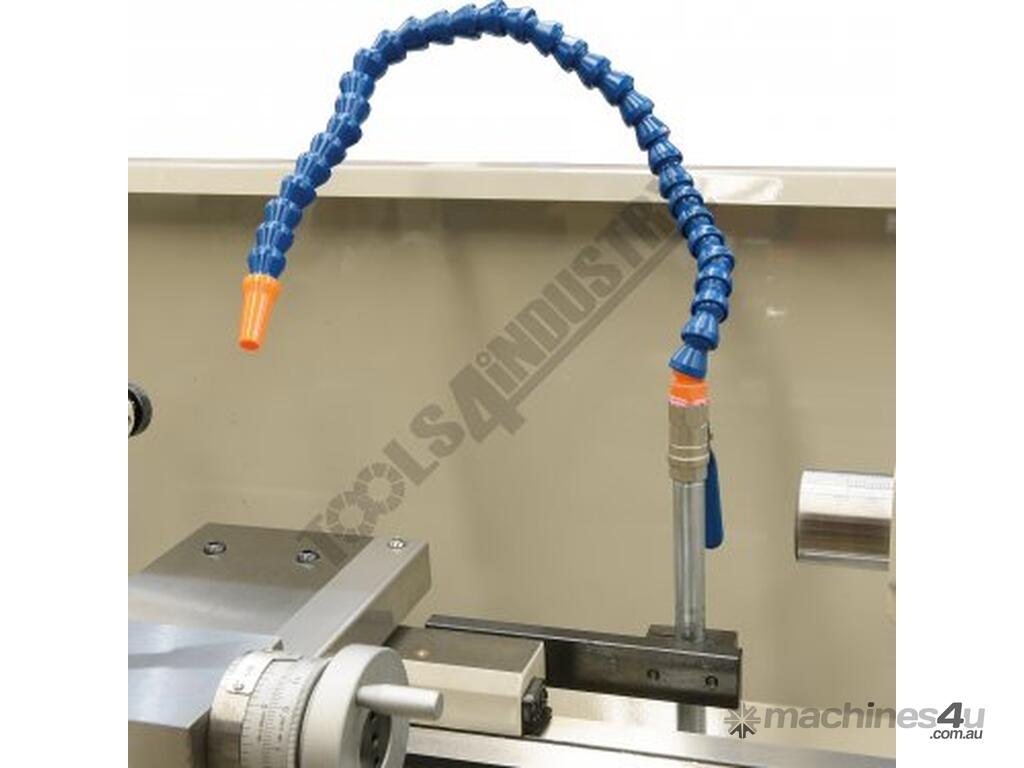

Coolant system with flexible hose
Slide out swarf tray
Includes
2-Axis digital readout system fitted

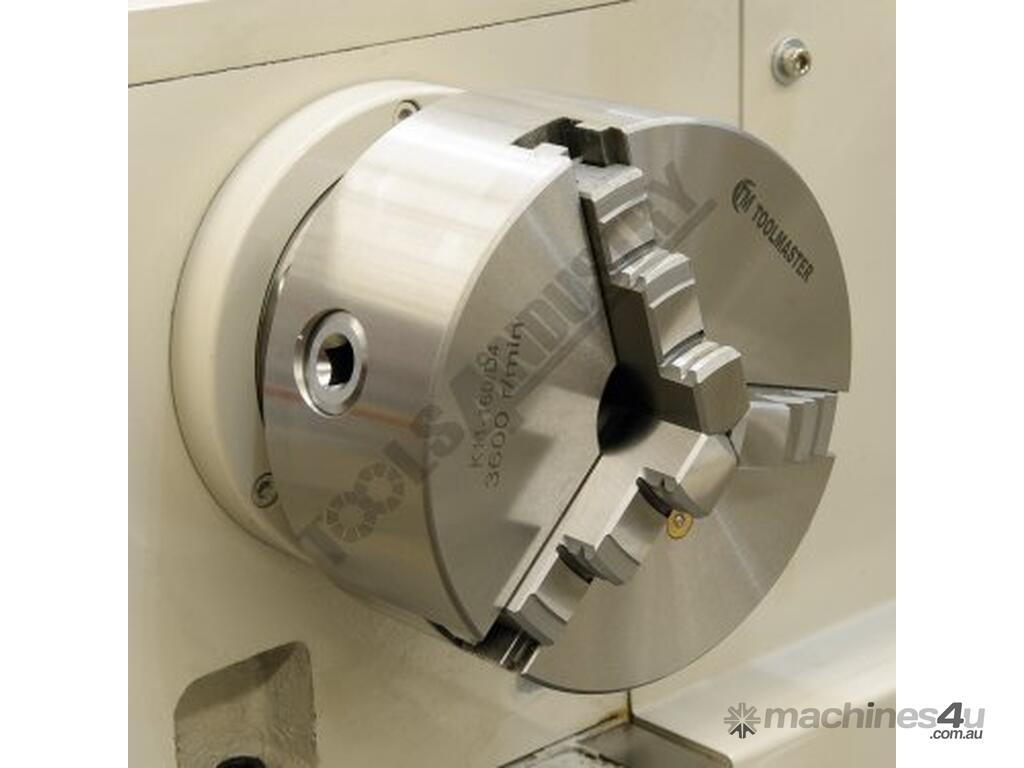

3-jaw chuck with reverse jaws
4-jaw chuck
Faceplate

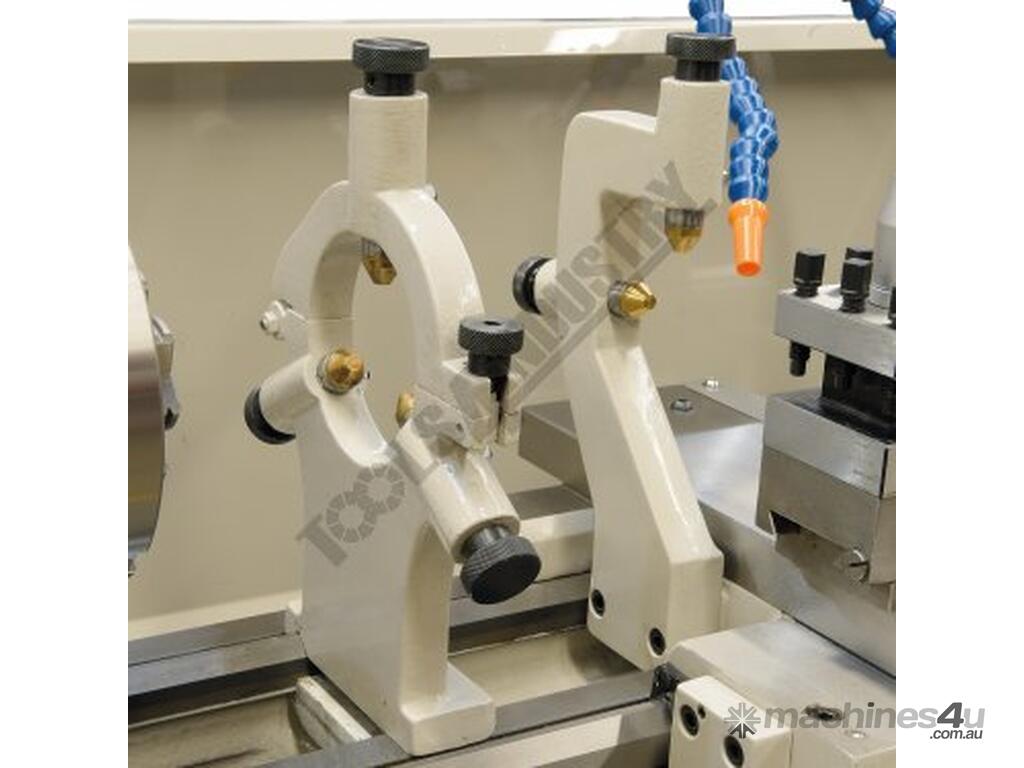

Fixed Steady
Travelling steady
Chuck guard
Concertina leadscrew covers
Slide out front swarf tray
Dead centre
Thread chasing dial
Foot brake
Coolant system
Rear splash guard
Instruction booklet
