SHAW - HAFCO AL-250G Bench Lathe

New Hafco Lathe:

CALL FOR OUR BEST PRICE

Order Code: L149

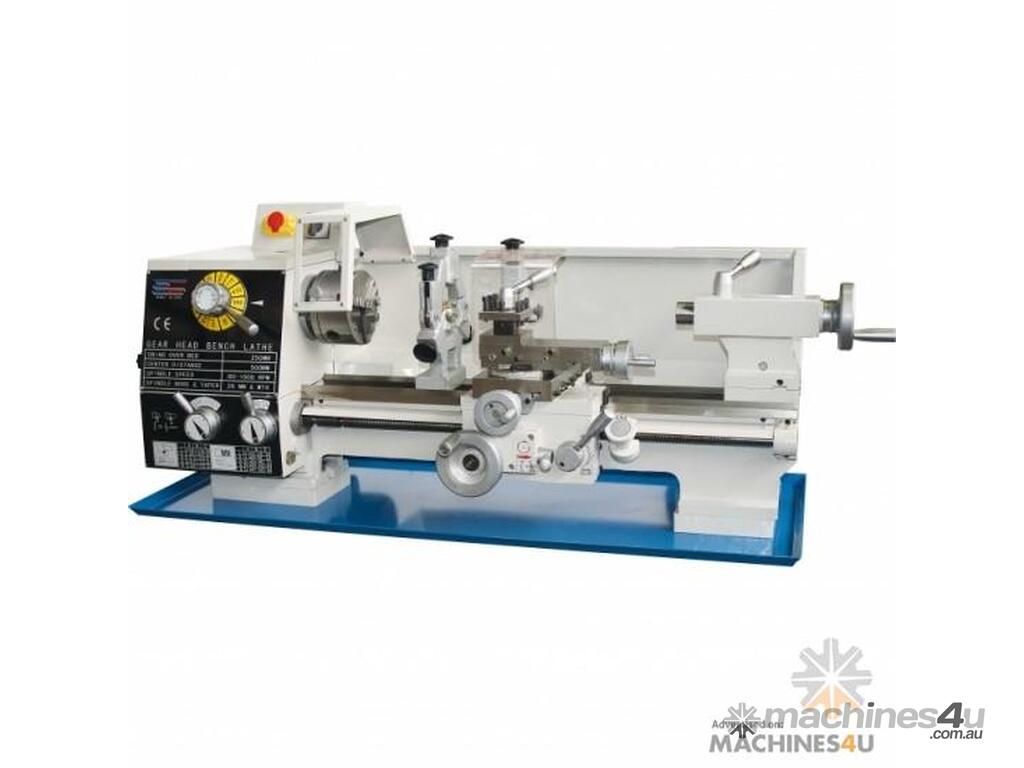

AL-250G - Bench Lathe (240V)
250 x 500mm

Features

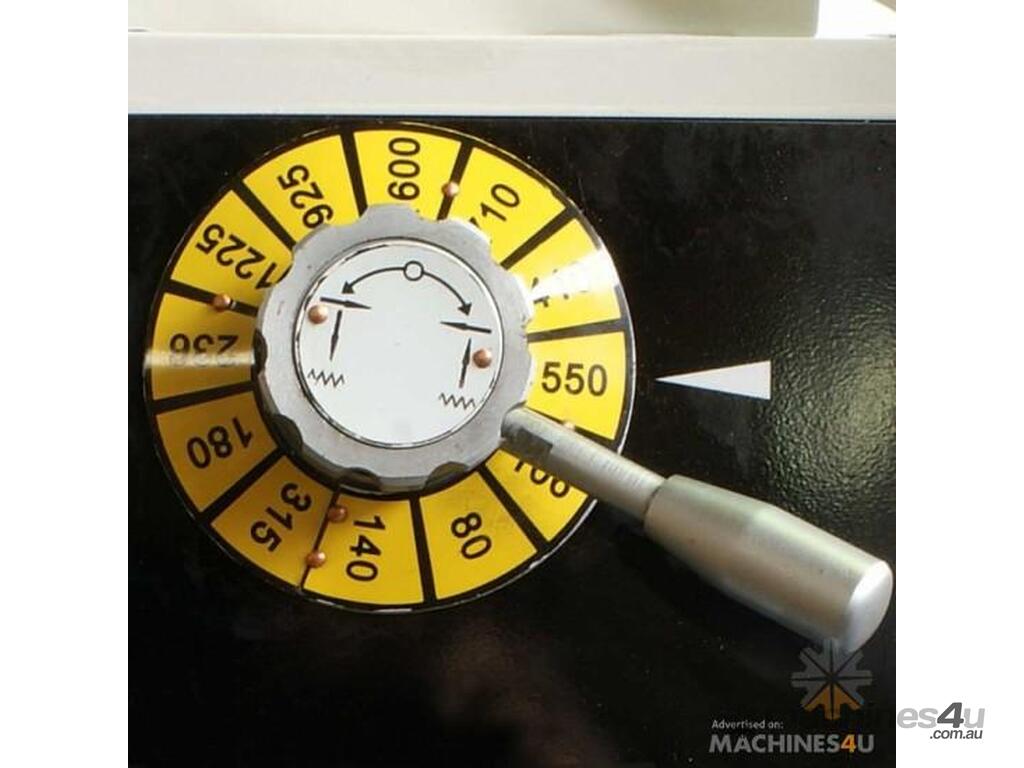

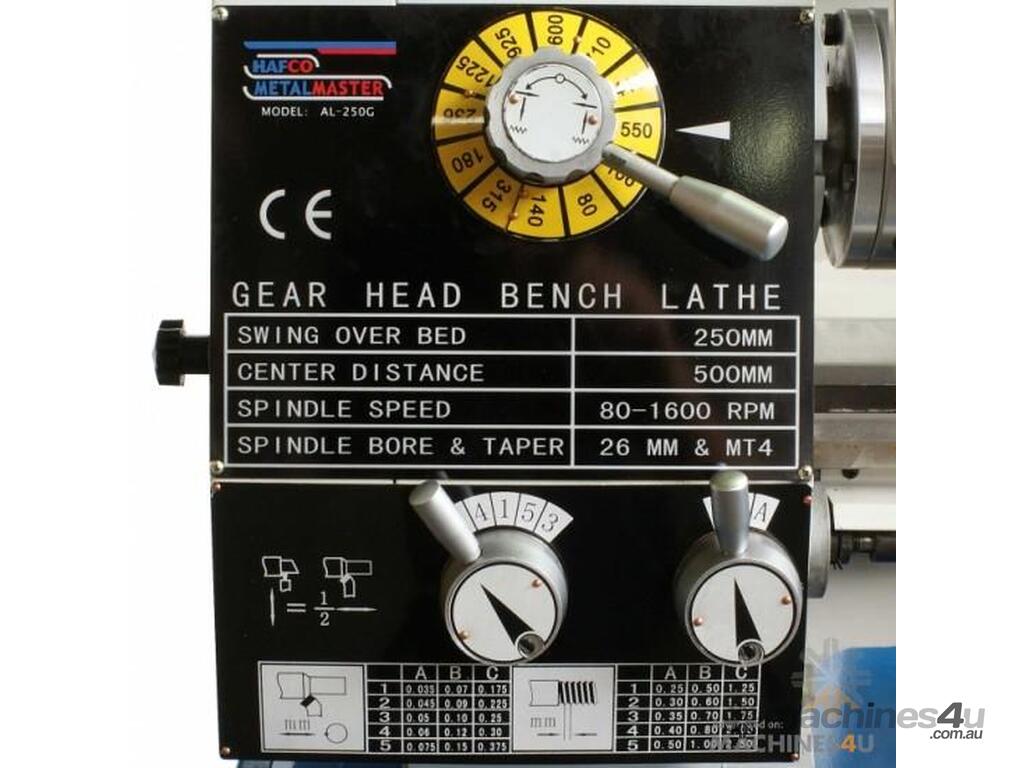

12 spindle speed geared headstock incorporates a single progression dial
26mm spindle bore

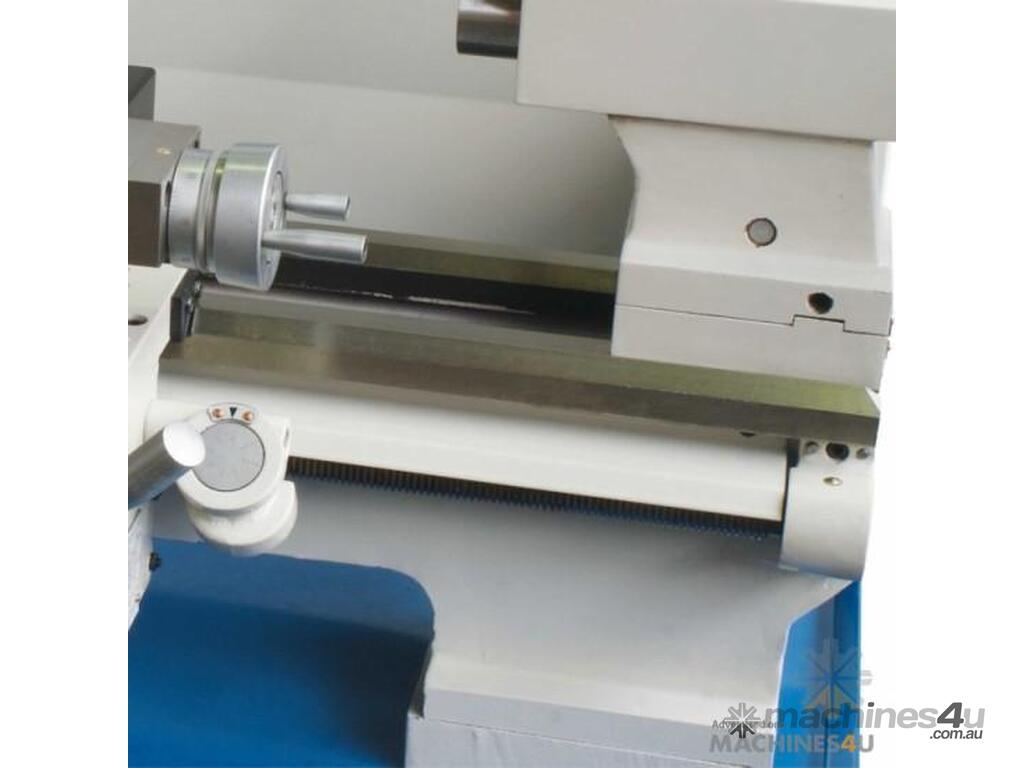

Hardened and ground bed

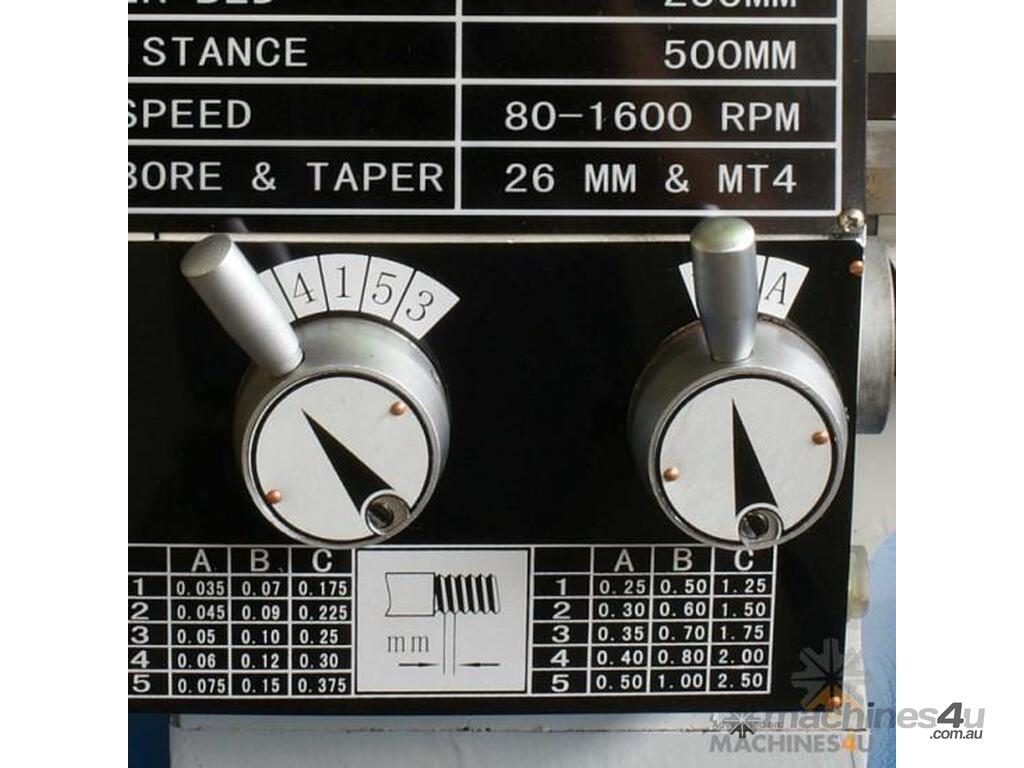

Enclosed quick action gearbox for thread cutting & auto feeding
Adjustable taper roller spindle bearings
Metric thread cutting

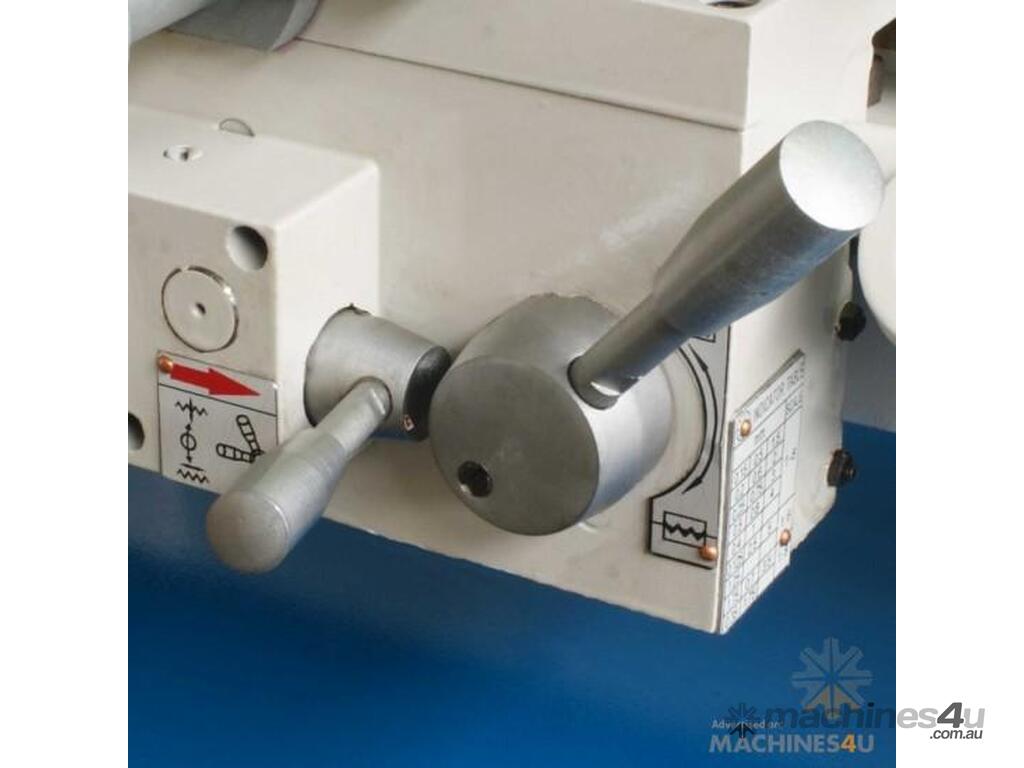

Powered longitudinal and cross feeds
Headstock and gearbox oil sight glass

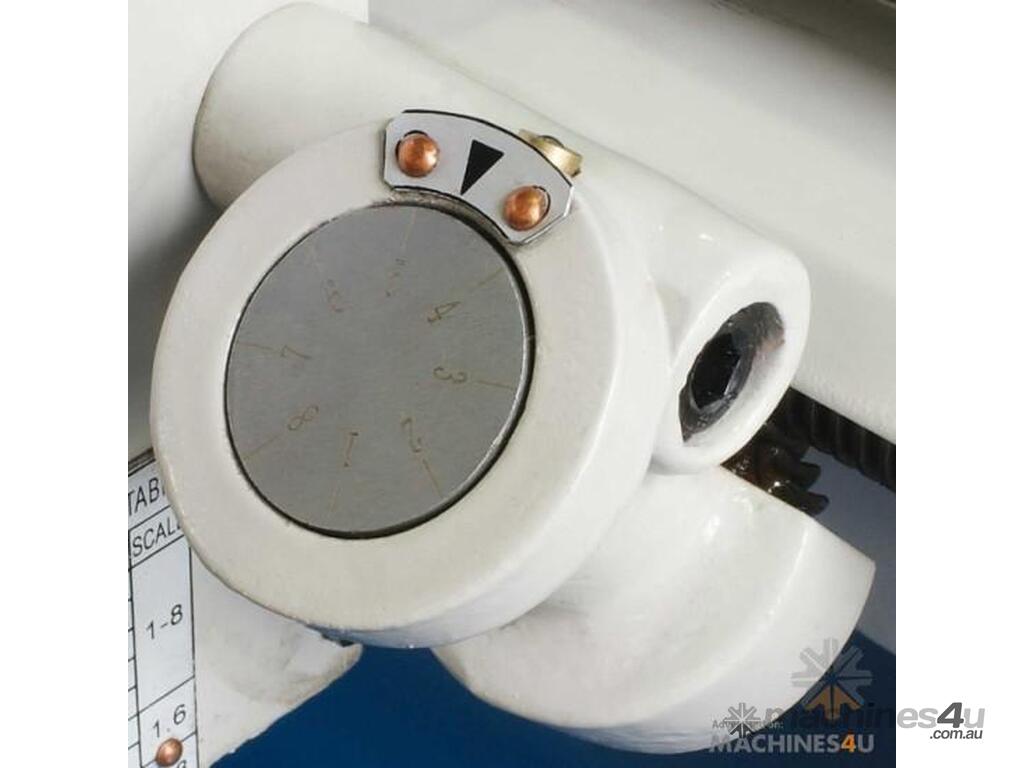

Metric thread chasing dial
Quick action tailstock locking lever
Forward/reverse spindle switch
0.75kW / 1hp 240V motor

Includes
130mm 3-jaw chuck with reverse jaws
Face plate
Fixed steady

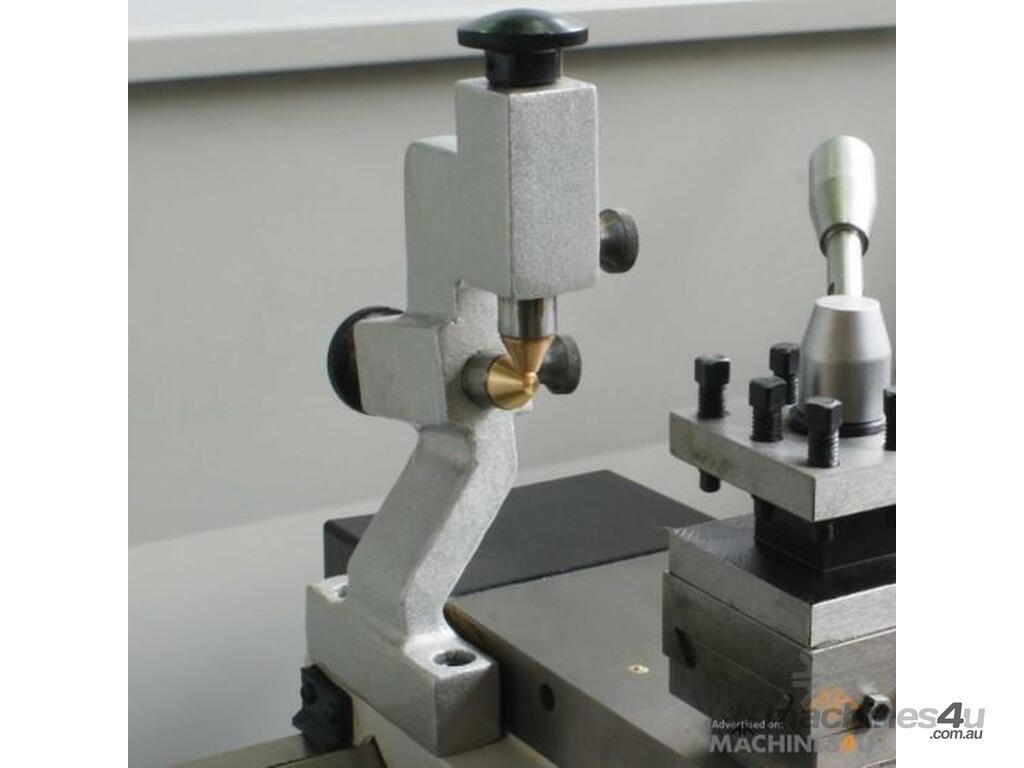

Travelling steady
Change gears
Dead centre
Rear splash guard & swarf tray

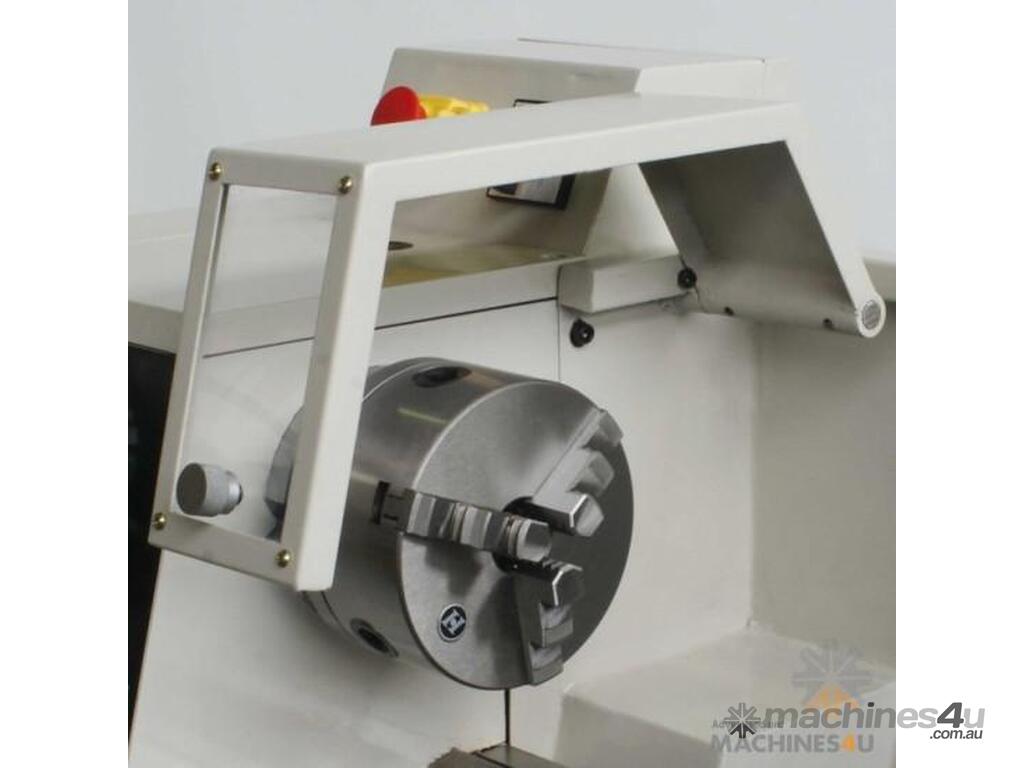

Safety chuck guard
Leadscrew Cover
Adaptor backing plate to suit optional 4 jaw chuck
Instruction booklet

ORDER CODE: L149
Model: AL-250G
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted:
Tool Height To Suit: 16mm
Distance Between Centres: 500mm
Swing Over Bed: 250mm
Swing Over Cross-slide: 150mm
Centre Height: 125mm
Spindle Bore: 26mm
Spindle Nose Type: Fixed
Bed Width: 140mm
Headstock Taper: 4MT
Tailstock Taper: 3MT
Cross-slide Travel: 145mm

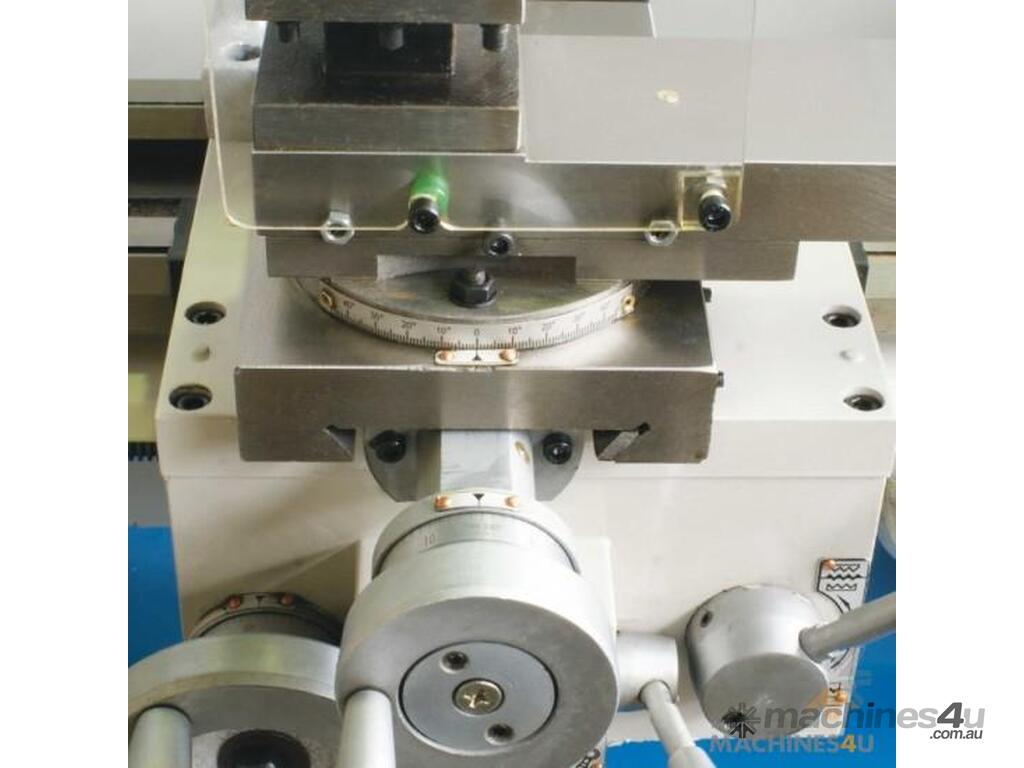

Compound-slide Travel: 75mm
Leadscrew Type: Metric
Cross Feed Range (X-Axis): 0.017 - 0.187mm/rev
Longitudinal Feed Range (Z-Axis): 0.035 - 0.375mm/rev
Metric Thread Steps & Pitch Range: 15 (0.25 - 2.5mm)
Three Jaw Chuck Diameter: 130mm
Four Jaw Chuck Diameter: Optional
Spindle Steps / Speed Range: 12 (80 - 1600rpm)
Motor Power: 0.75kW / 1hp
Voltage: 240V
Weight (Nett): 180kg

All prices and specifications are subject to change
