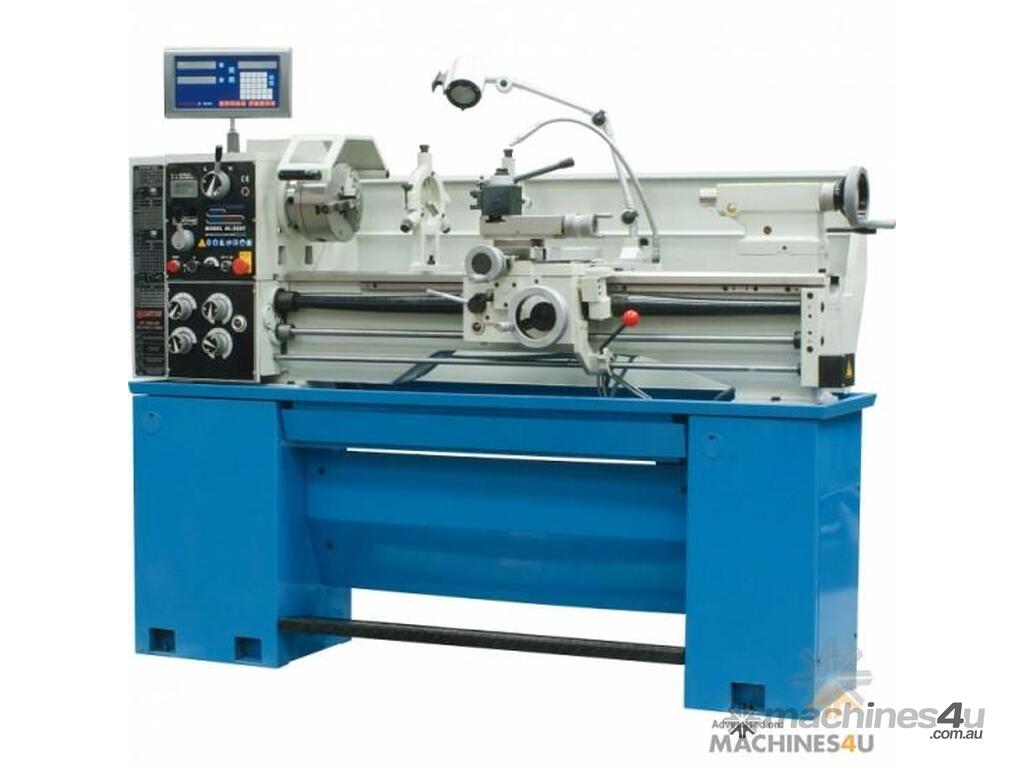

SHAW - HAFCO AL-356V Centre Lathe

AL-356V

Centre Lathe (240V)
356 x 1000mm - 51mm Bore
Includes Digital Readout, Quick Change Toolpost & Electronic Variable Speed With Digital Readout

Features

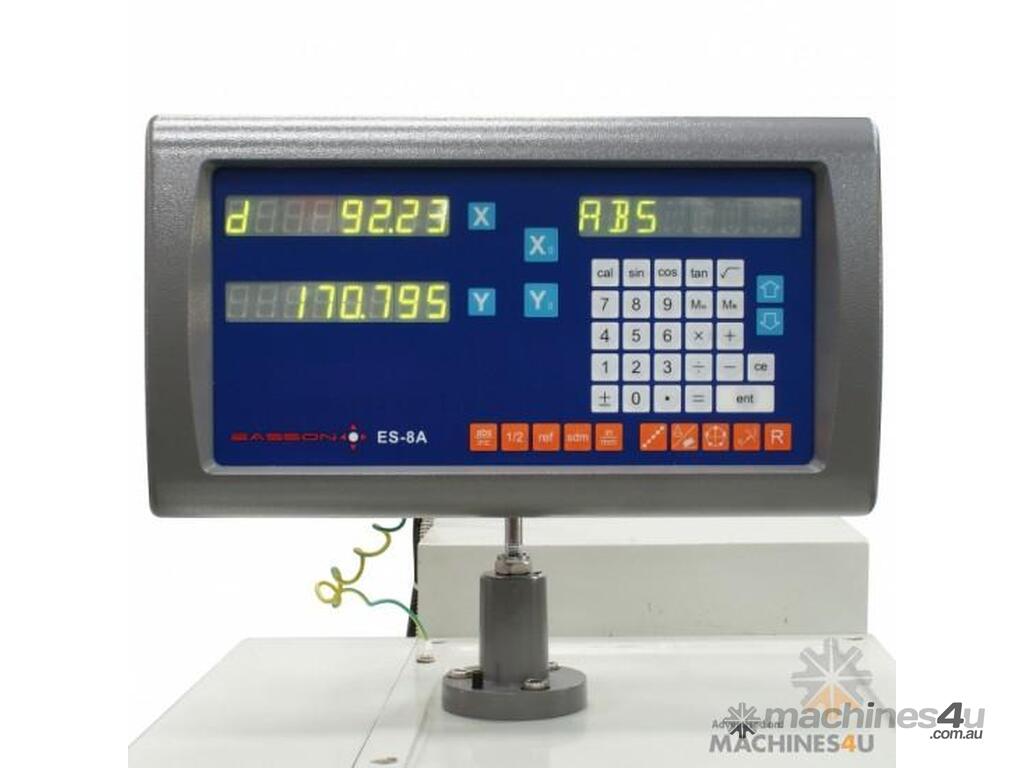

2 Axis digital readout system

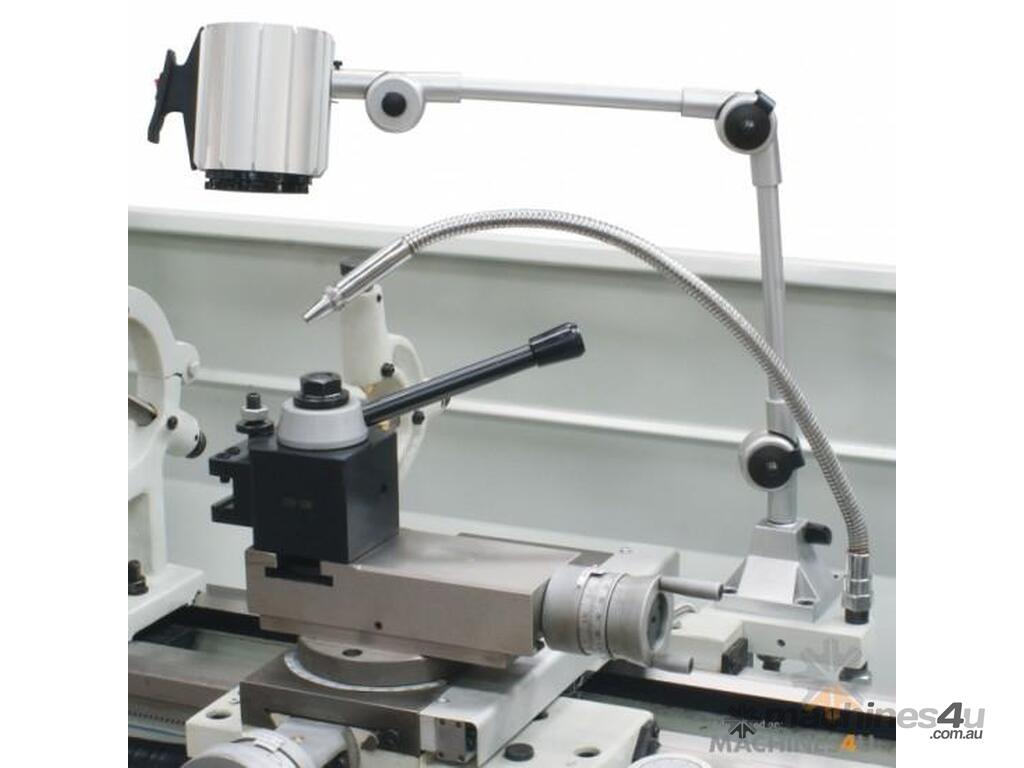

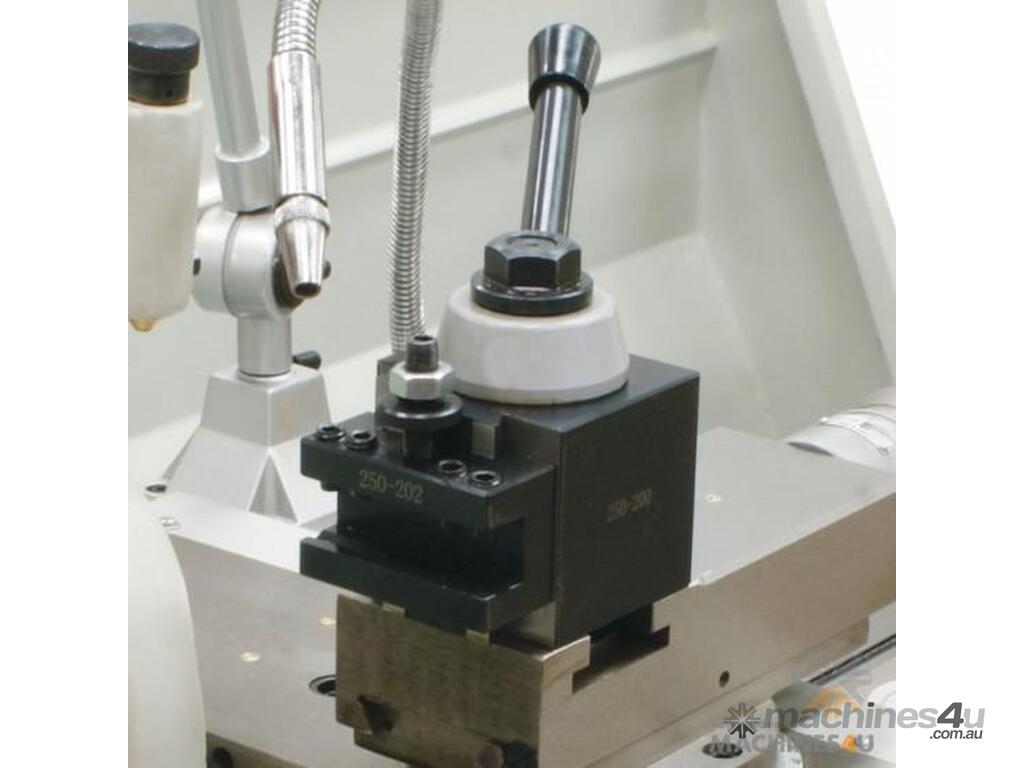

Quick change toolpost with 4 holders
Concertina leadscrew cover

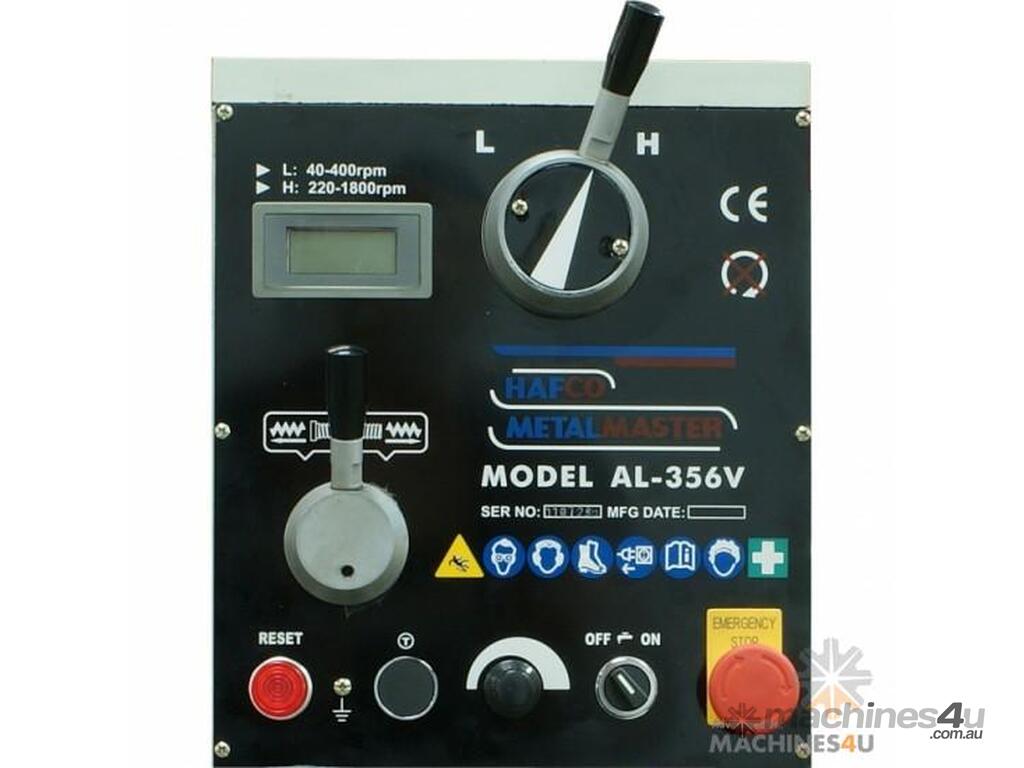

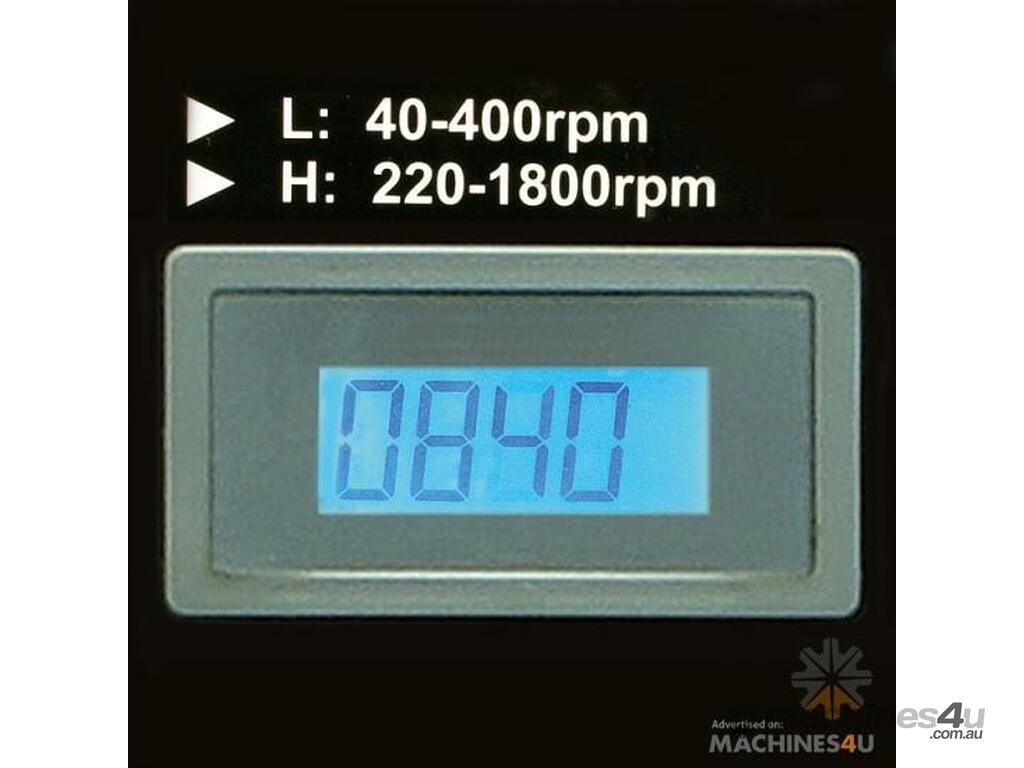

Electronic infinitely variable spindle speed with digital readout
Gear drive headstock for quick change of spindle speeds
Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
Low voltage work light
Foot operated spindle brake with safety cut out switch
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle

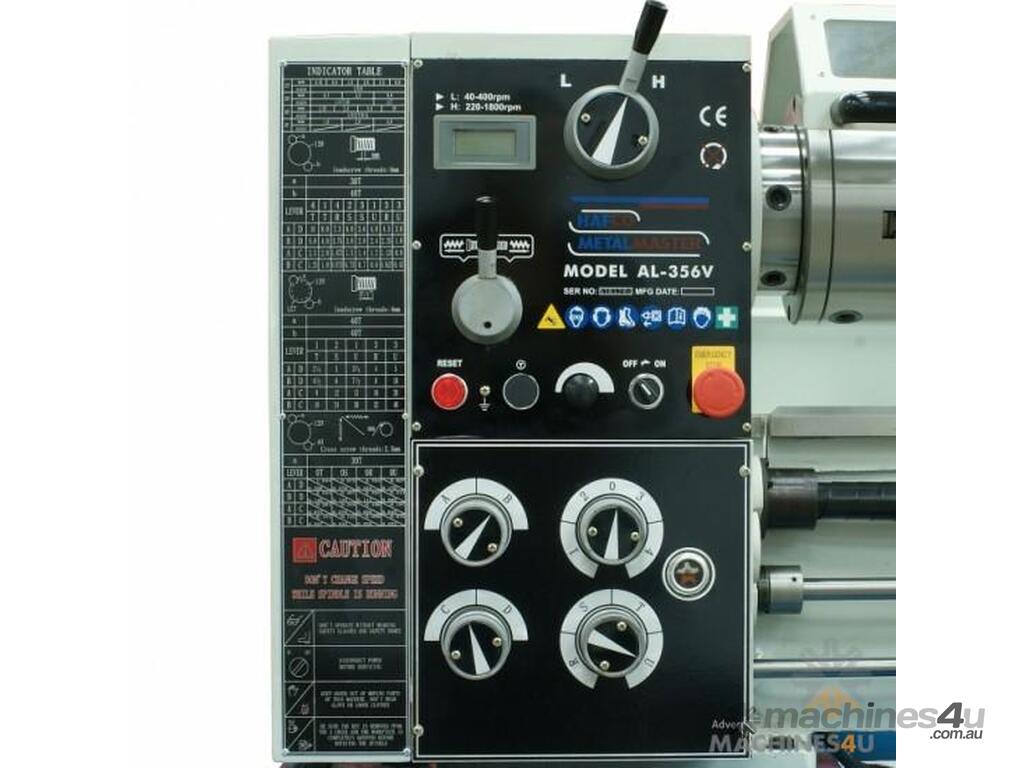

Inching button is incorporated on the control panel for convenient spindle speed selection

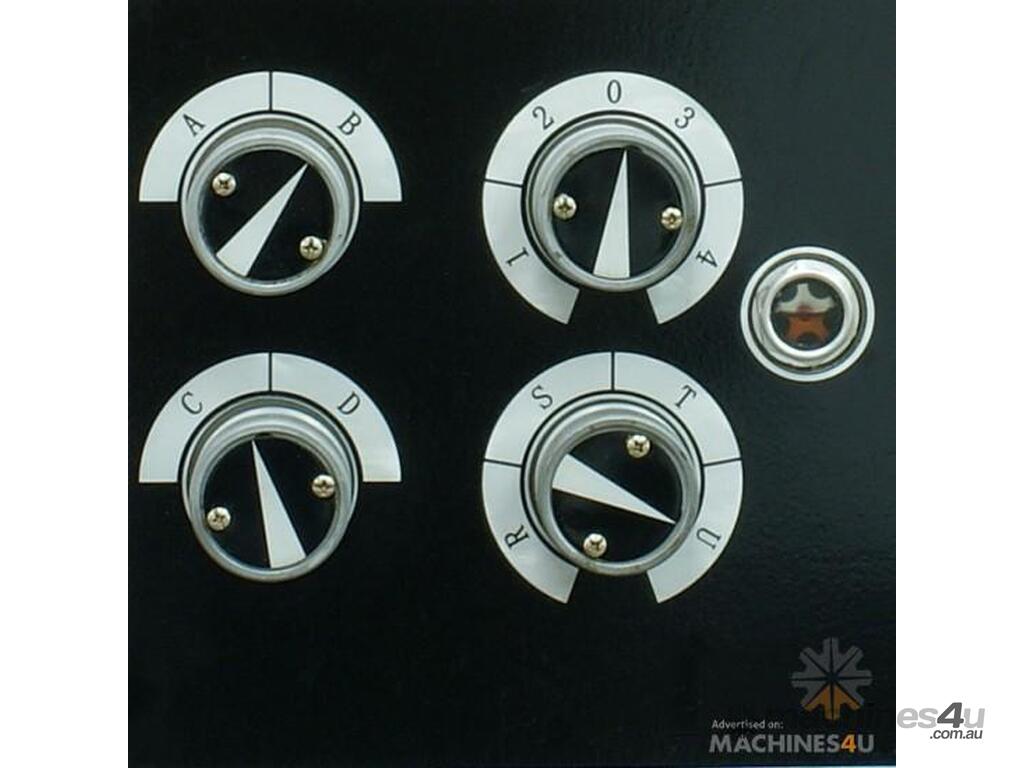

Enclosed quick action gearbox for thread cutting and auto feeding

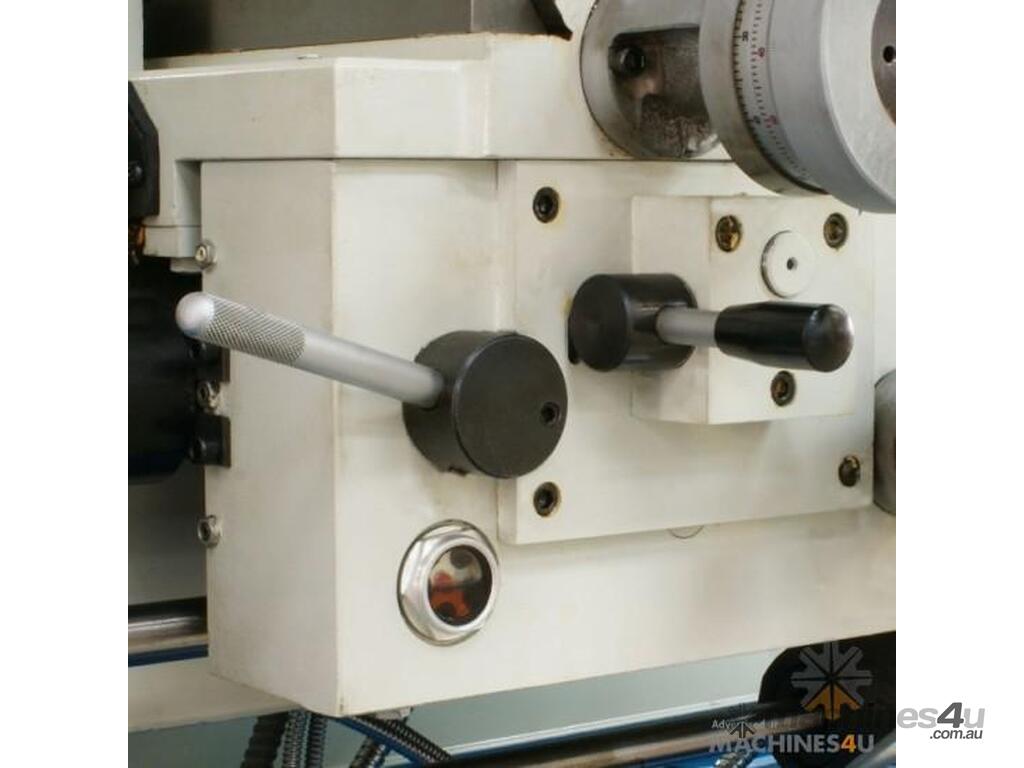

Powered longitudinal and cross feeds
D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Removable gap bed-way for larger diameter jobs
Dual calibrated dials (except for saddle hand-wheel)

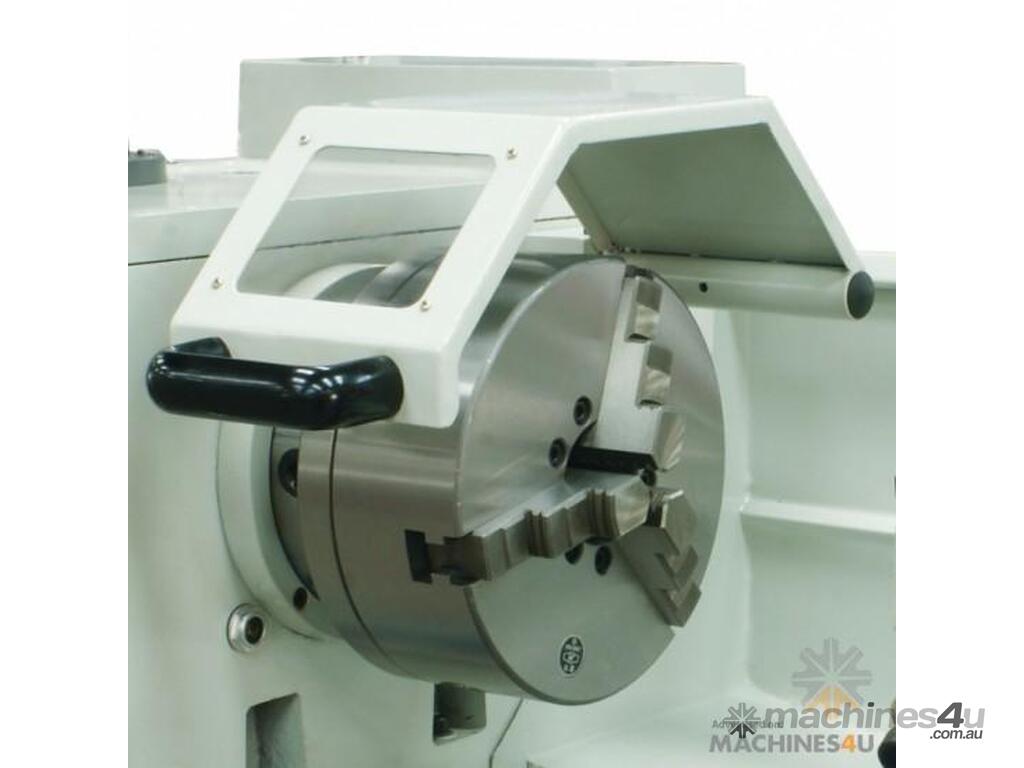

Chuck & change gear guards are fitted with micro switches
Coolant system with flexible hose
Slide out swarf tray

Includes
2 Axis digital readout system
Concertina leadscrew covers
Quick change tool-post with 4 holders
200mm 3-jaw chuck with reverse jaws
200mm 4-jaw chuck
Face plate

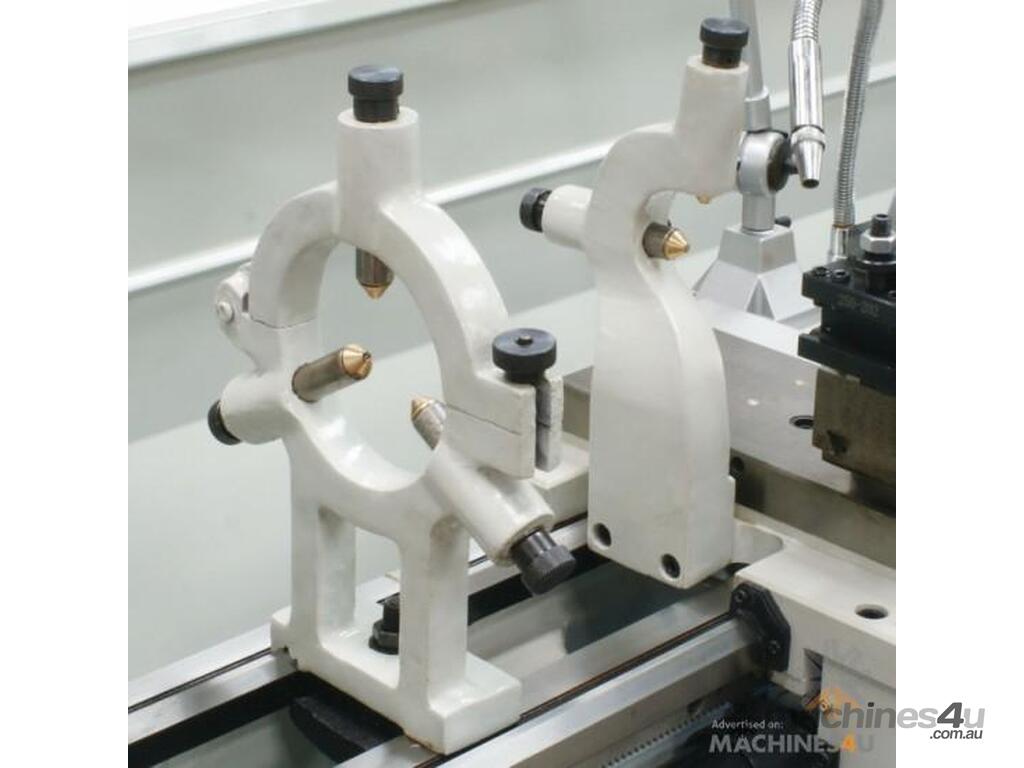

Fixed steady
Travelling steady
Change gears
Dead centres
Thread-chasing dial
Work light
Cast iron stand
Foot brake
Rear splash guard & swarf tray
Tool box
Instruction booklet


CODE: L565D
Model: AL-356V
Digital Readout System Fitted: Y
Quick Change Toolpost Fitted: Y
Leadscrew Covers Fitted: Y
Tool Height To Suit:16mm
Distance Between Centres: 1000mm
Swing Over Bed: 356mm
Swing Over Cross-slide: 224mm
Swing In Gap: 476mm
Centre Height: 178mm
Spindle Bore: 51mm
Camlock Spindle Size: D1-5
Bed Width: 187mm
Head Stock Spindle Taper: 6MT

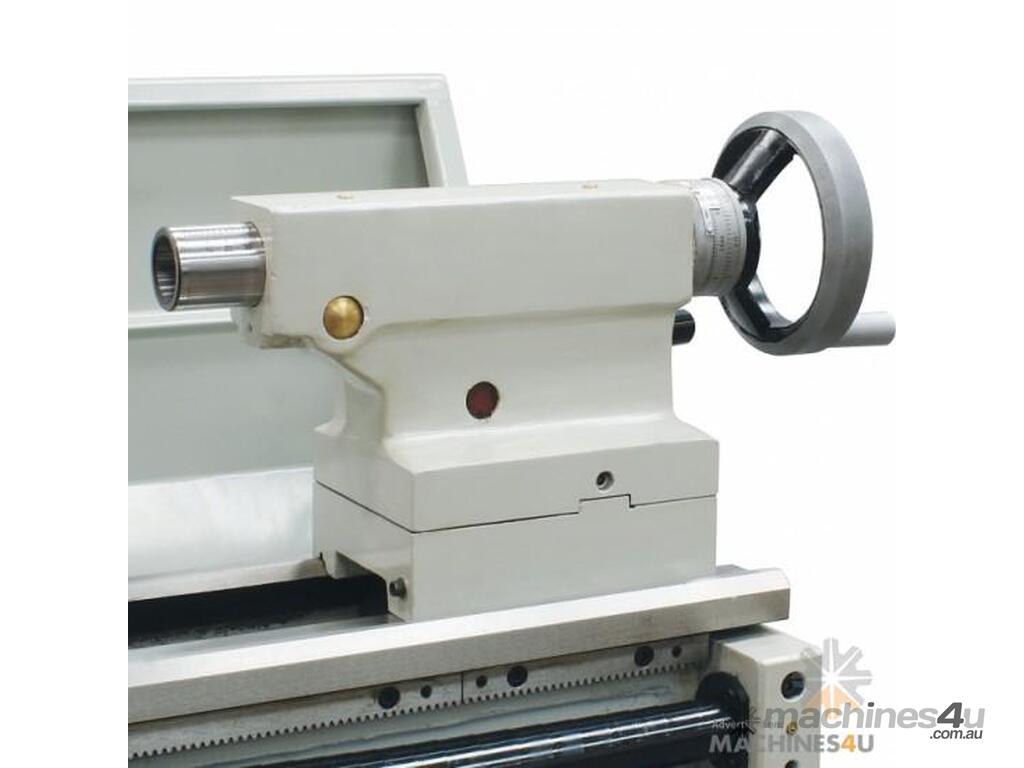

Tail Stock Taper: 4MT
Cross Slide Travel: 160mm

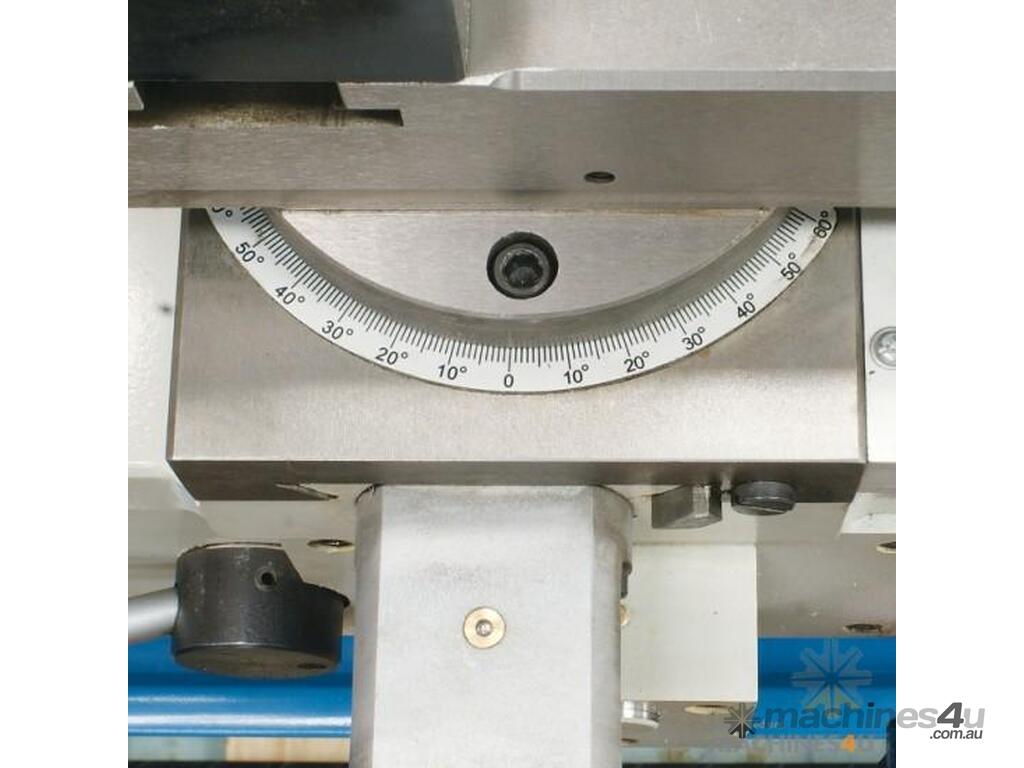

Compound Slide Travel: 68mm
Lead Screw: Metric
Cross Feed Range (X-Axis): 0.022-0.298mm/rev
Longitudinal Feed Range (Z-Axis): 0.078-1.044mm/rev
Metric Thread Steps & Pitch Range: 32 (0.45-10mm)
Imperial Thread Steps & TPI Range: 20 (2-1/4-40TPI)
3 Jaw Chuck Diameter: 200mm
4 Jaw Chuck Diameter: 200mm
Spindle Steps / Speed Range: Variable (40-1800rpm)
Motor Power: 1.5kW / 2hp
Voltage: 240V
Weight (nett): 650Kg

All Prices and specifications are subject to change and are GST exclusive
