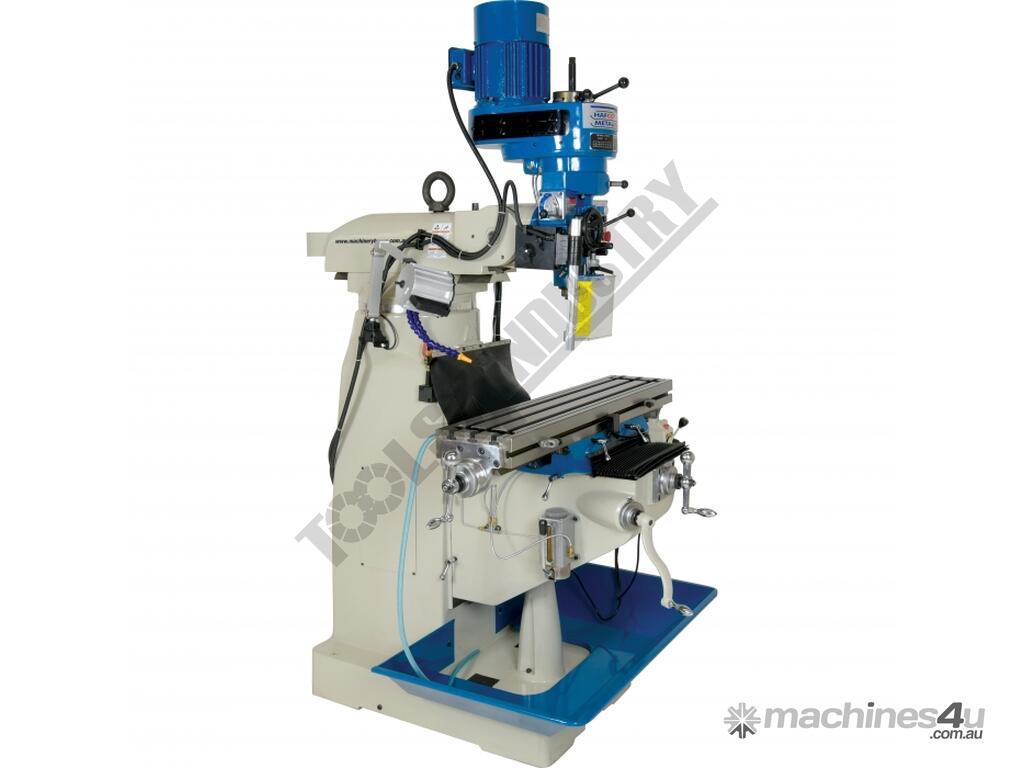

SHAW - HAFCO BM-23A Turret Mill (240V)

BM-23A Turret Milling Machine (X) 585mm (Y) 295mm (Z) 400mm Includes Digital Readout

Includes:

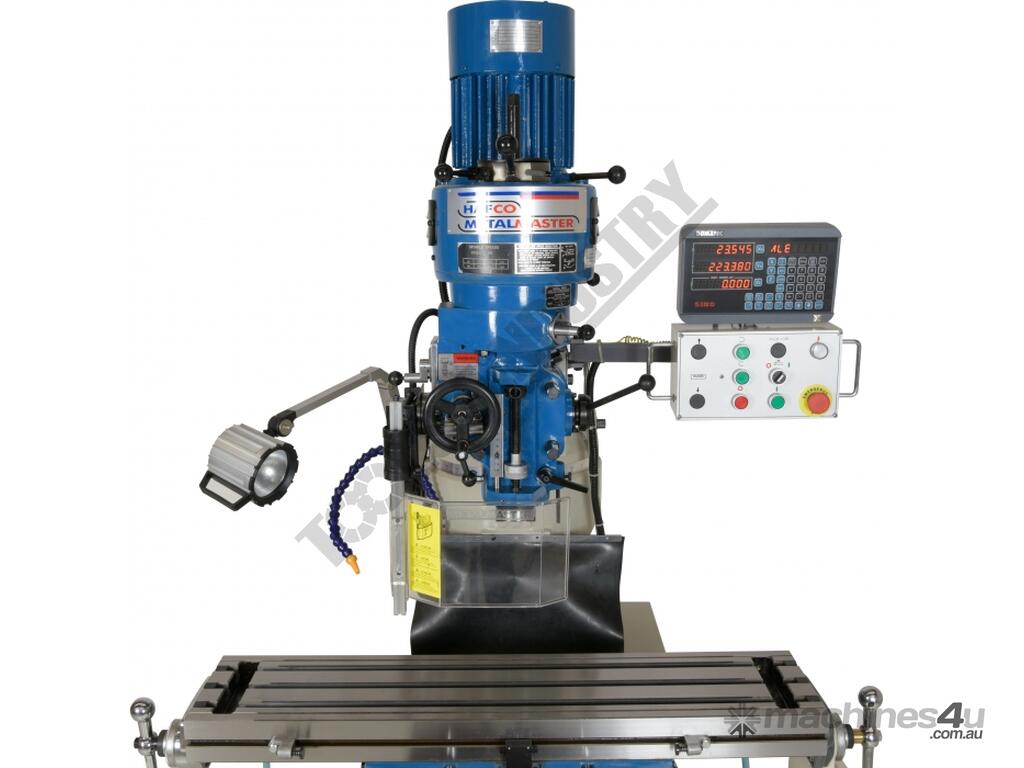

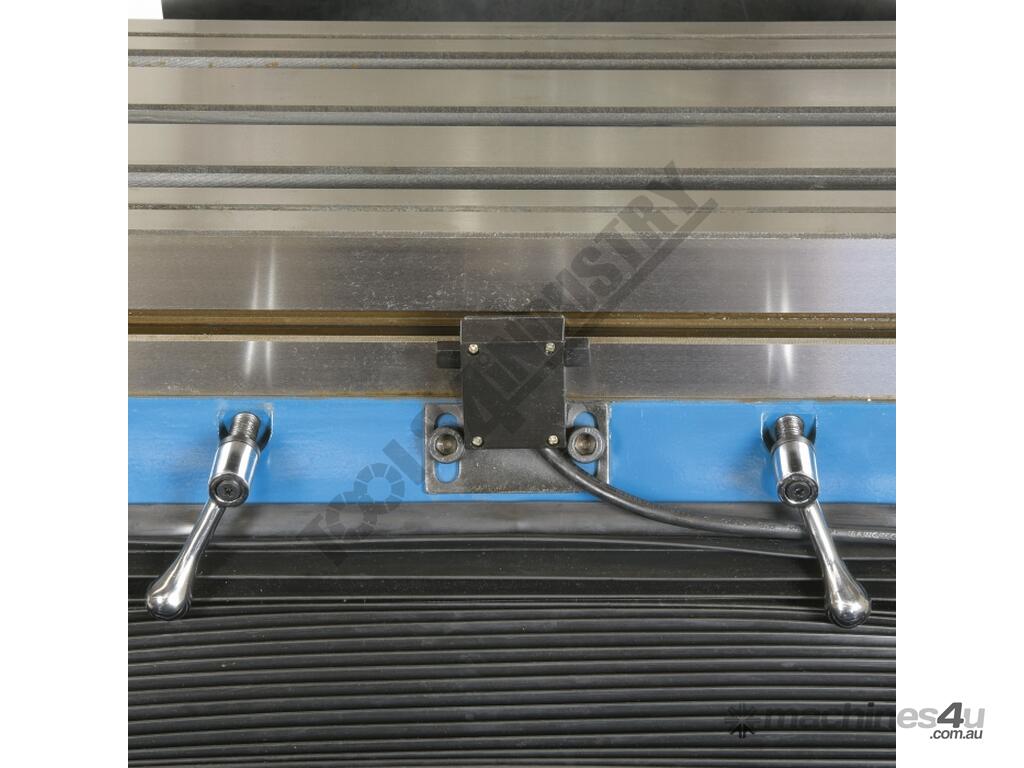

- 3-Axis digital readout counter fitted with X & Y scales only
- One-shot oil lubrication pump and reservoir
- Drawbar M12 thread
- Coolant system
- Slideway covers

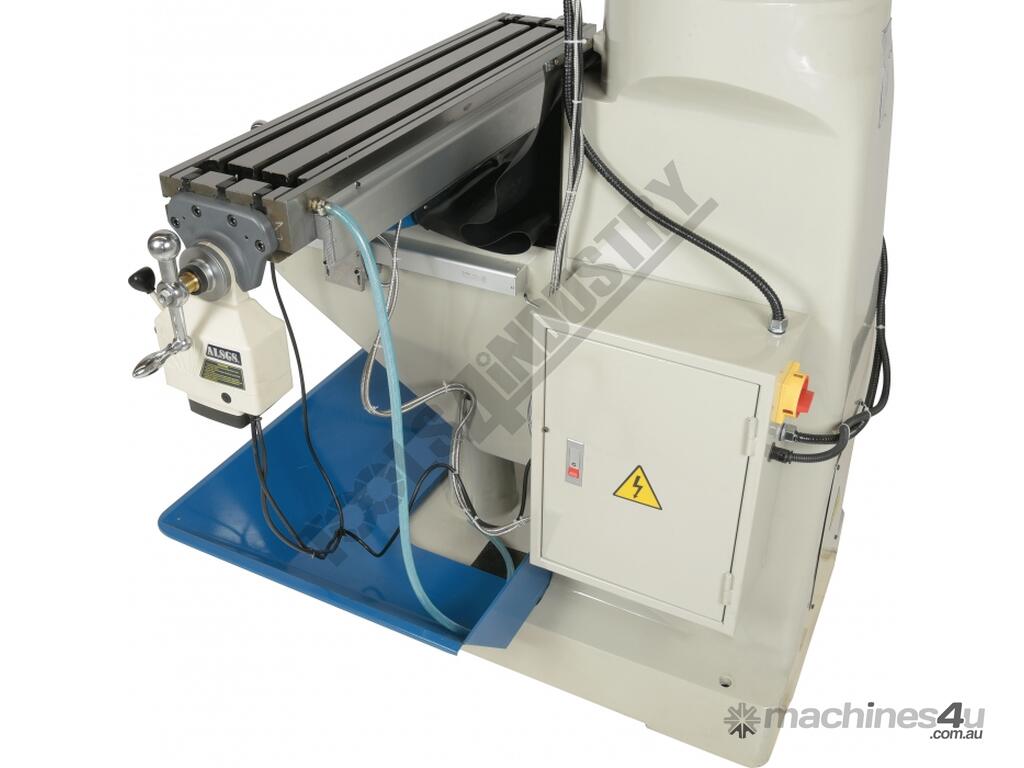

- X-Axis power-feed

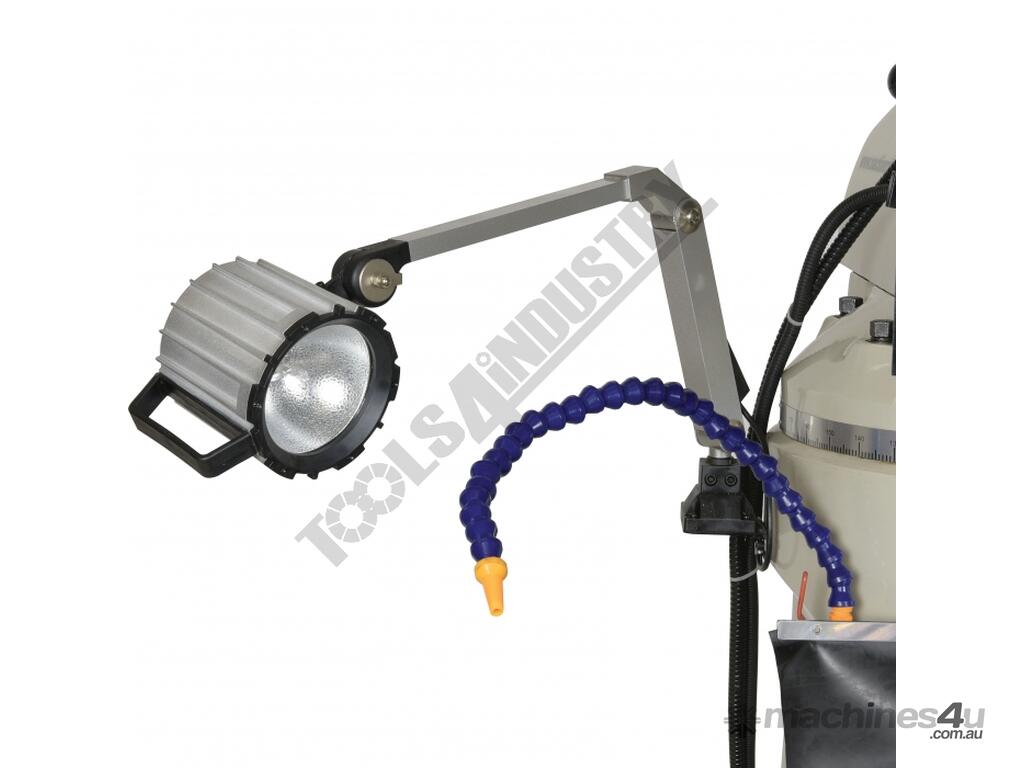

- Halogen light

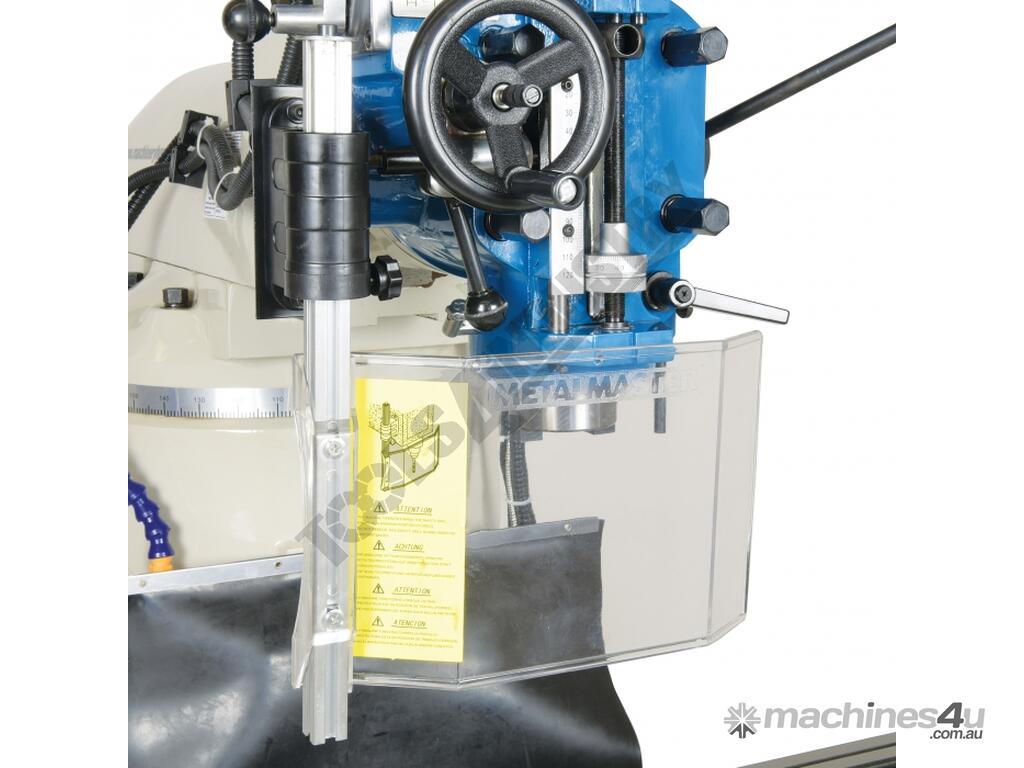

- Safety cutter guard
- Swarf tray

ORDER CODE: M595D
MODEL: BM-23A
Digital Readout: 3-Axis Counter, X, Y Scales
Type: Vertical
Table Size (mm): 1066 x 230
Spindle Taper - Vertical: NT30
Longitudinal Travel (X-Axis) (mm): 585
Cross Travel (Y-Axis) (mm): 295
Vertical Travel (Z-Axis) (mm): 400
Type of Slides: Dovetail
Ram Travel (mm): 420
Spindle to Table (mm): 480
Quill Travel / Diameter (mm): 127 / 86
Throat Depth (max.) (mm): 545
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º

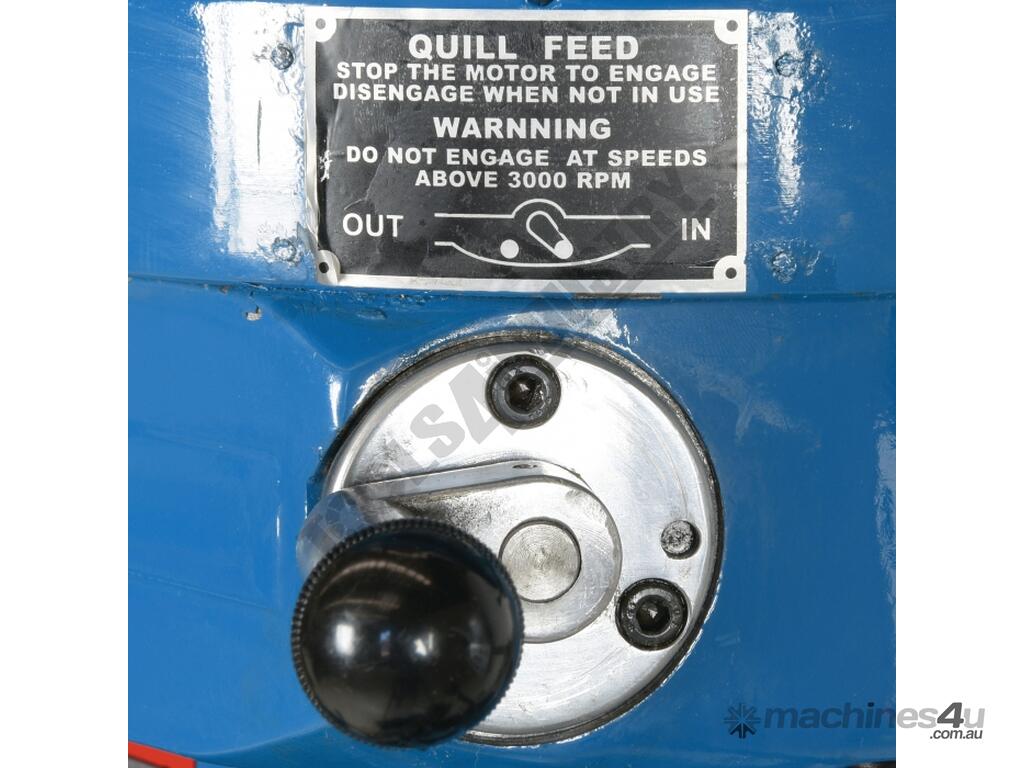

Power Feed - Quill (mm/rev): 0.04 / 0.08 / 0.15
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional
Power Feed - Vertical (Z-Axis) (mm/min): Optional
Table T-Slot Size (inch / mm): 16
Work Table Load Capacity (kg): 250
Spindle Speeds Vertical (No./ rpm): 8 (65 - 2330)

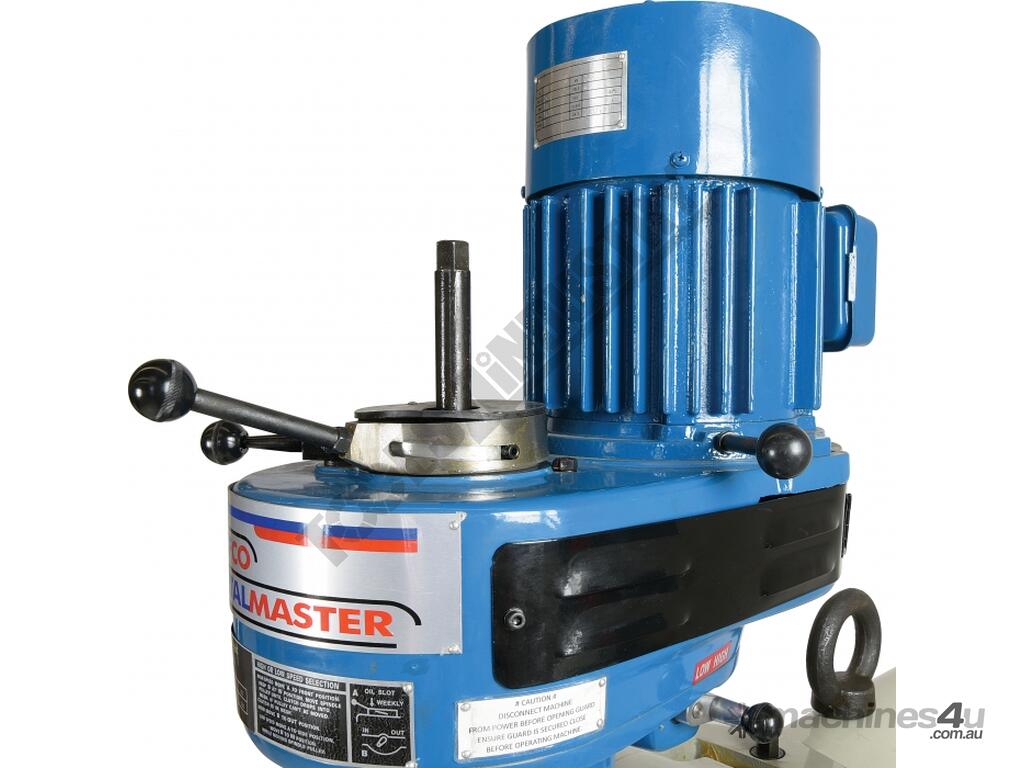

Motor Power - Vertical (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Overall Height (mm): 2200
Nett Weight (kg): 1100

*All Prices and Specification are subject to change.
