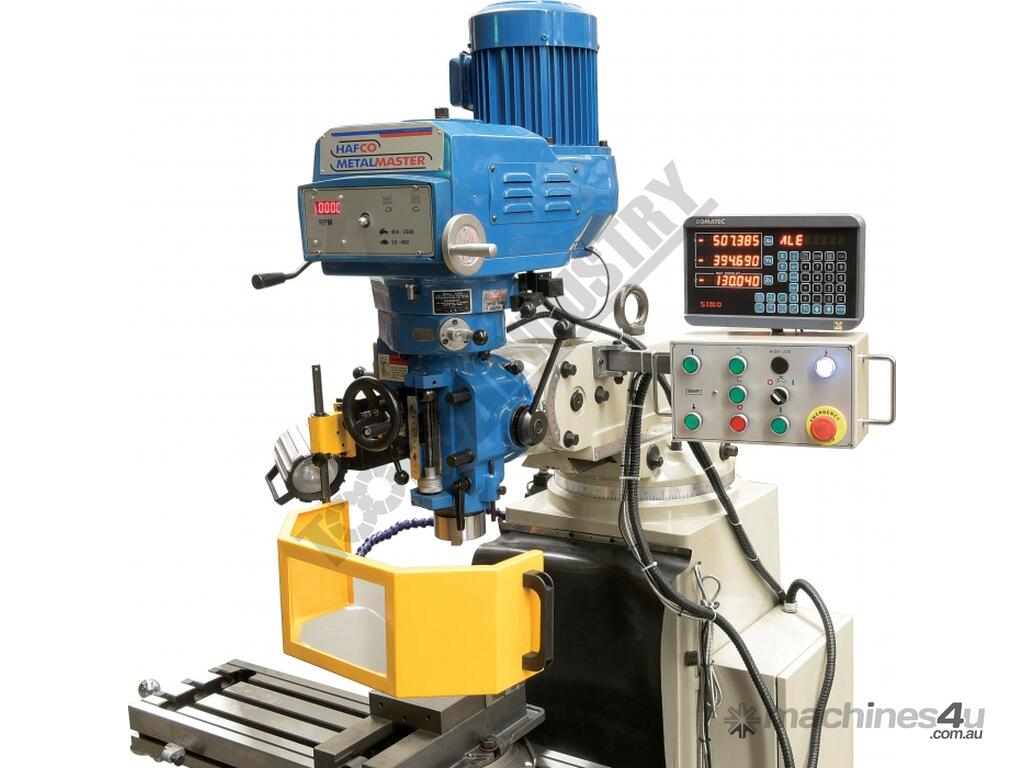

SHAW - HAFCO BM-53VE Turret Mill

BM-53VE Turret Milling Machine (X) 910mm (Y) 00mm (Z) 385mm Includes Digital Readout

Includes:

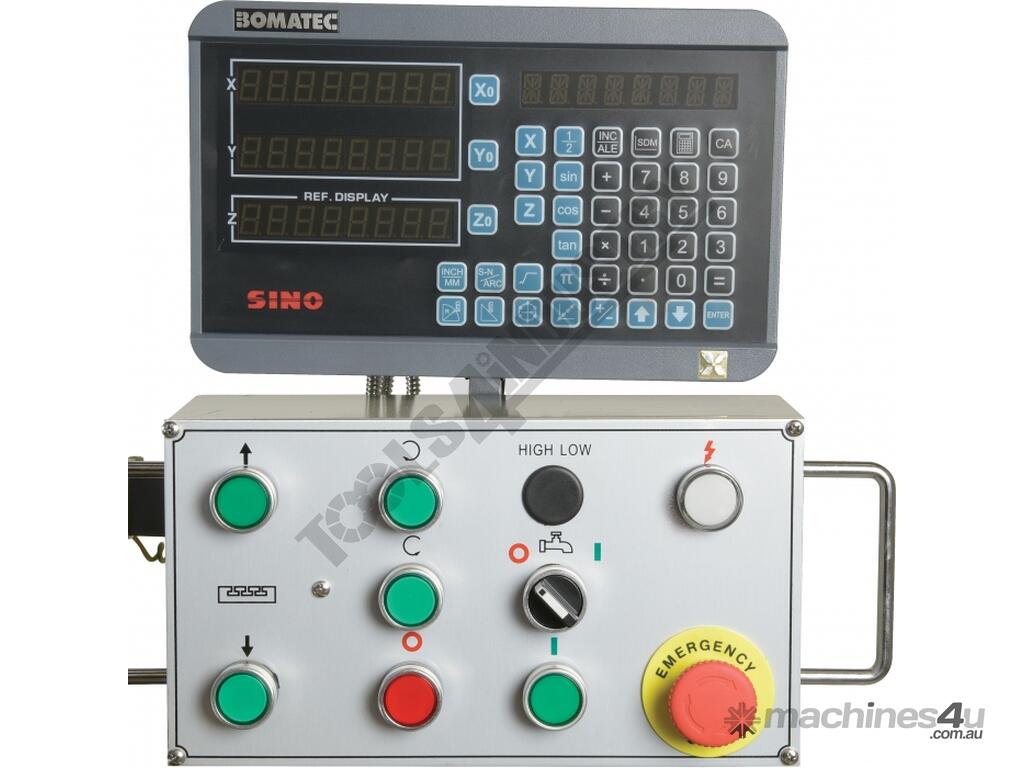

- 3 Axis digital readout fitted

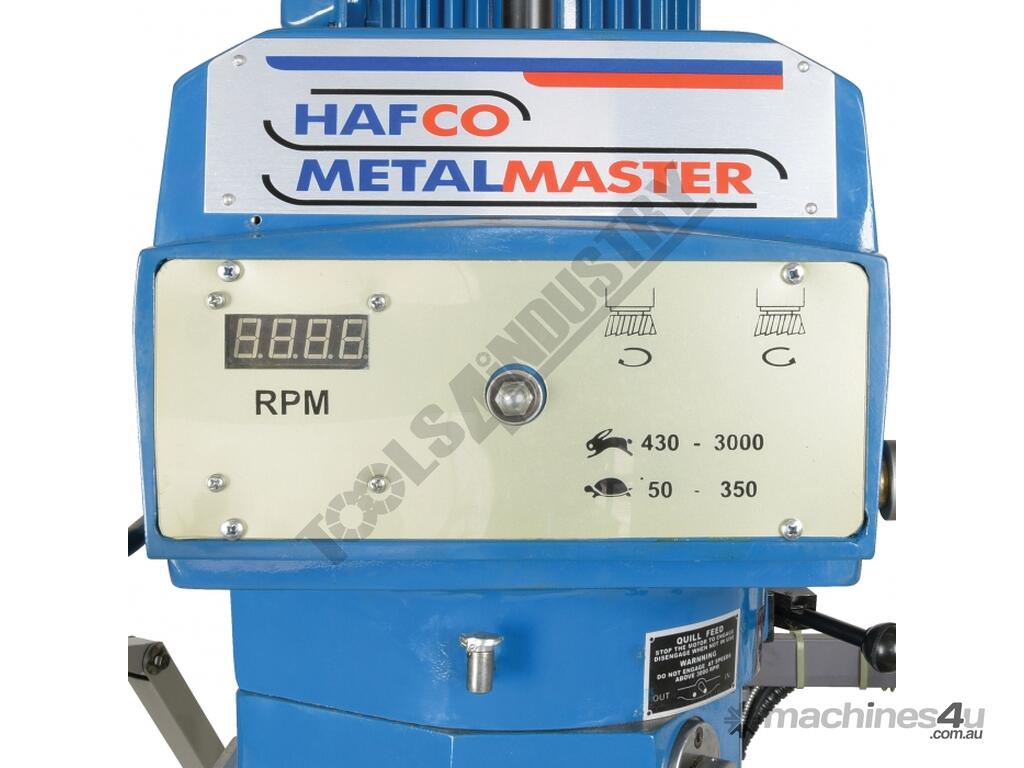

- Digital speed readout display
- Z-Axis powered elevating motor

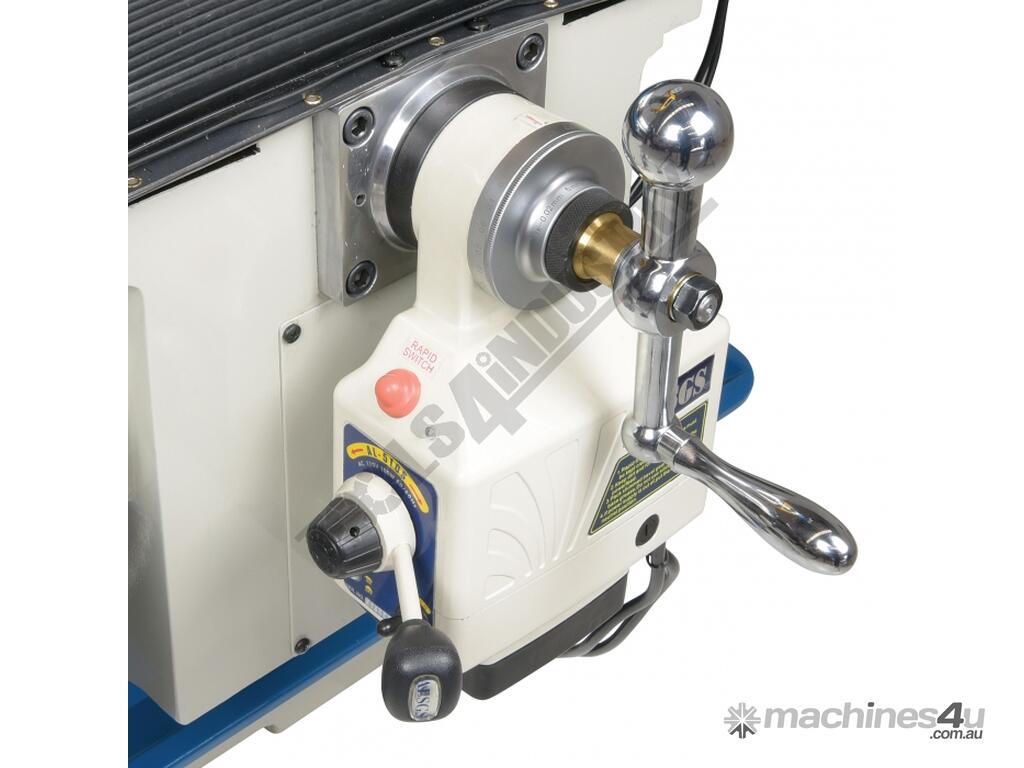

- X & Y-Axis power-feeds
- One-shot oil lubrication pump and reservoir
- Drawbar M16 thread
- Coolant system

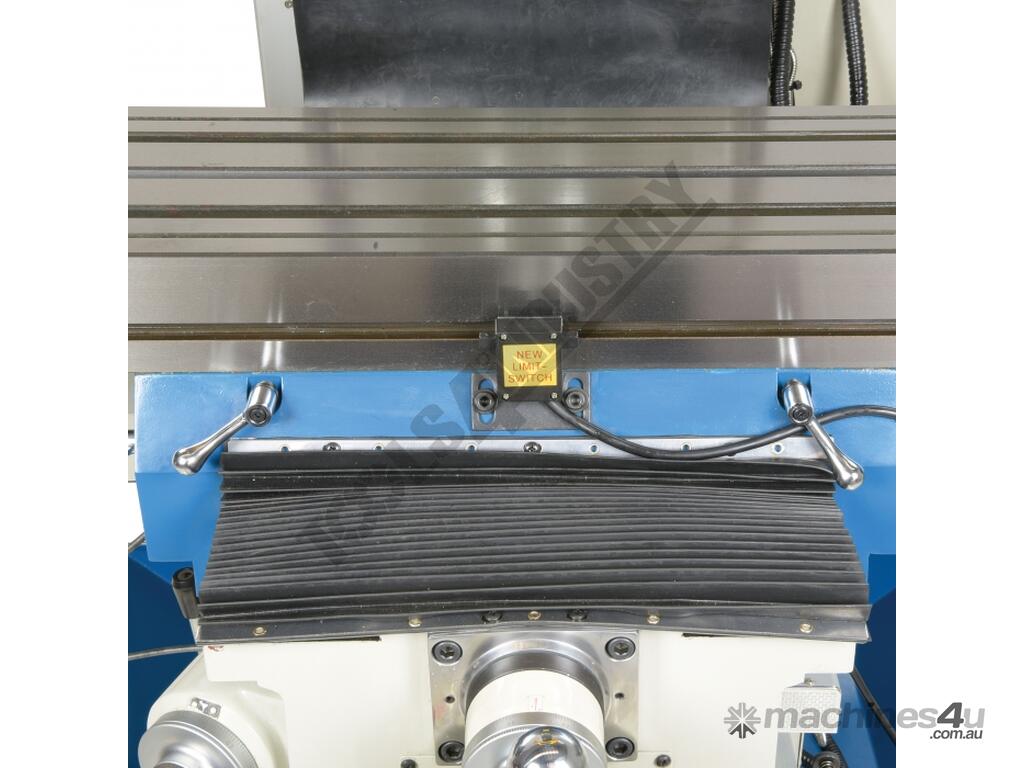

- Slideway covers
- Halogen light
- Safety cutter guard
- Swarf tray

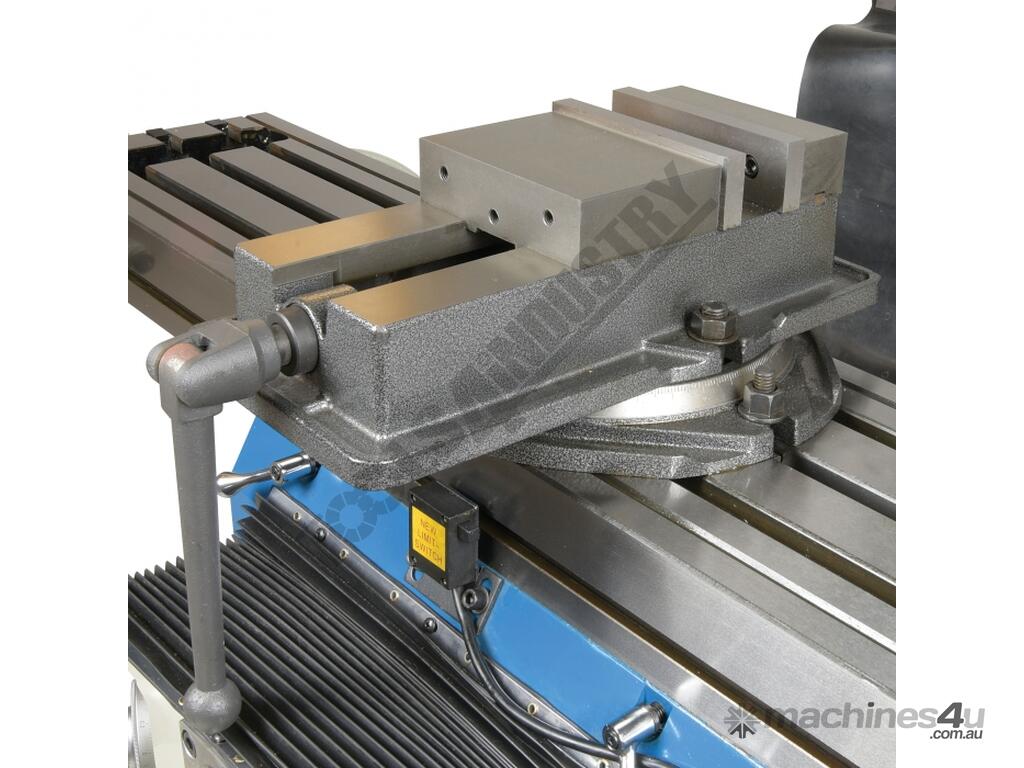

Vice and Clamp Kit

Specifications:
ORDER CODE: M597D
MODEL: BM-53VE
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1370 x 254
Spindle Taper - Vertical: NT40
Longitudinal Travel (X-Axis) (mm): 910
Cross Travel (Y-Axis) (mm): 400
Vertical Travel (Z-Axis) (mm): 385
Type of Slides: Dovetail (X), Square (Y & Z)
Ram Travel (mm): 555
Spindle to Table (mm): 385
Quill Travel / Diameter (mm): 127 / 86
Throat Depth (max.) (mm): 635
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º

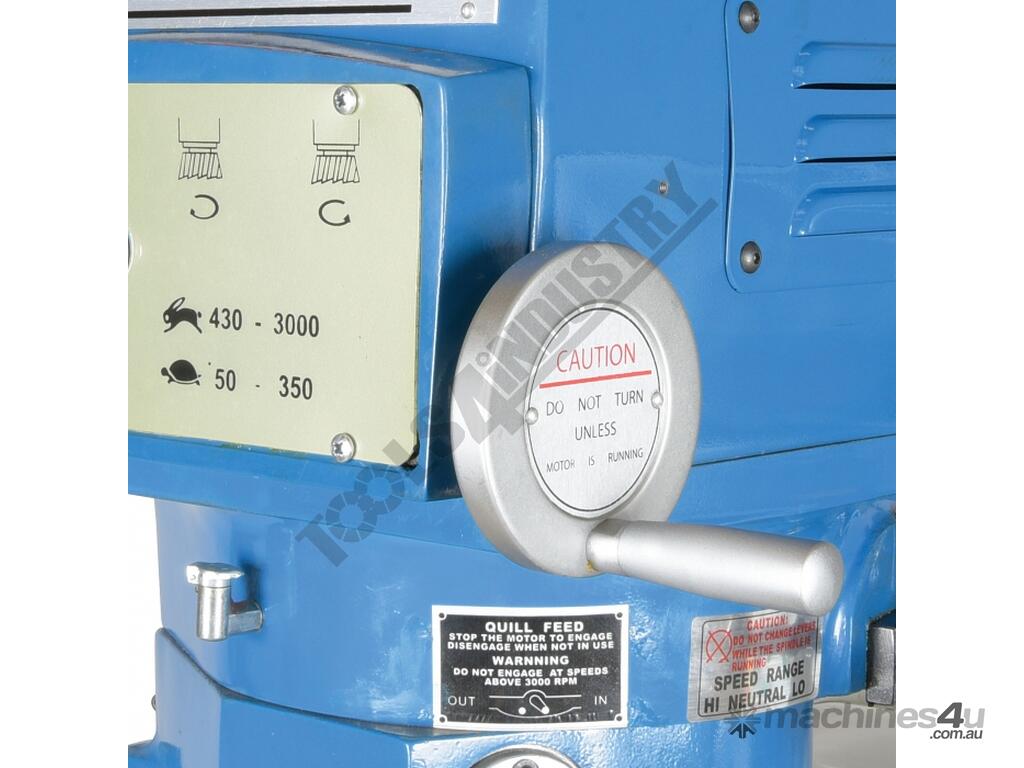

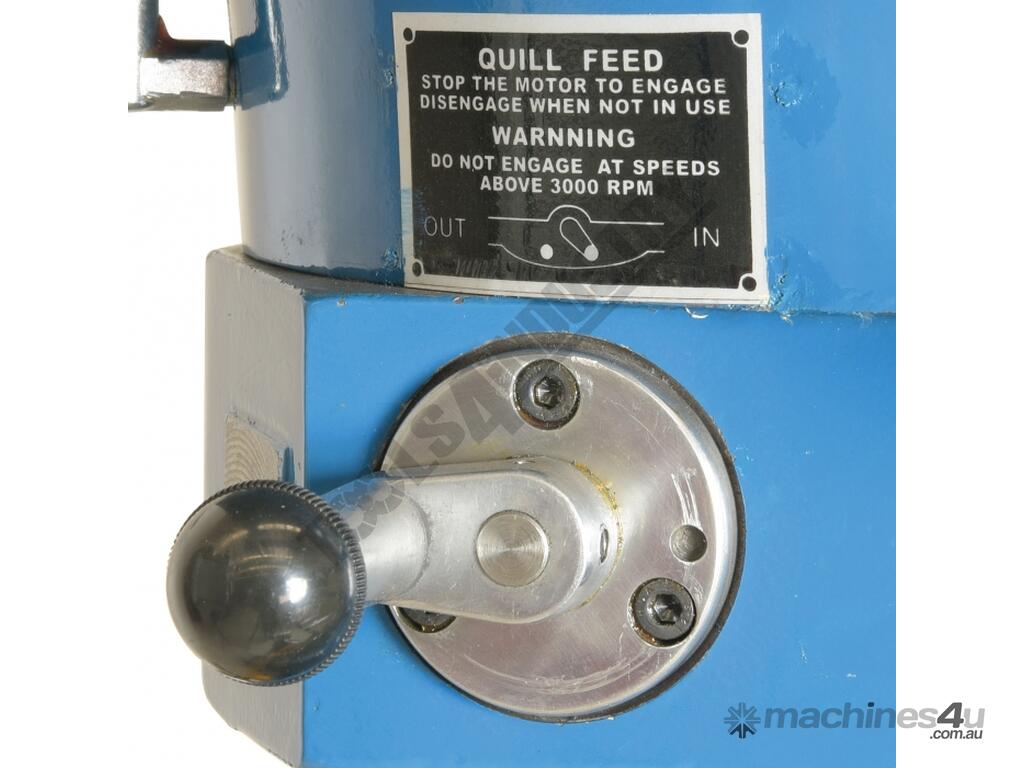

Power Feed - Quill (mm/rev): 0.04 / 0.08 / 0.15
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): 20 - 2000
Power Feed - Vertical (Z-Axis) (mm/min): Rapid
Table T-Slot Size (inch / mm): 16
Work Table Load Capacity (kg): 350
Spindle Speeds Vertical (No./ rpm): Variable (50 - 3550)
Motor Power - Vertical (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Overall Height (mm): 2200
Nett Weight (kg): 1365

*All Prices and Specification, can be subject to change
