SHAW - HAFCO BM-63VE Turret Mill

(X) 890mm (Y) 400mm (Z) 400mm Includes Ballscrews X & Y Axis, Digital Readout, Machine Vice & Clamp Kit

Includes:

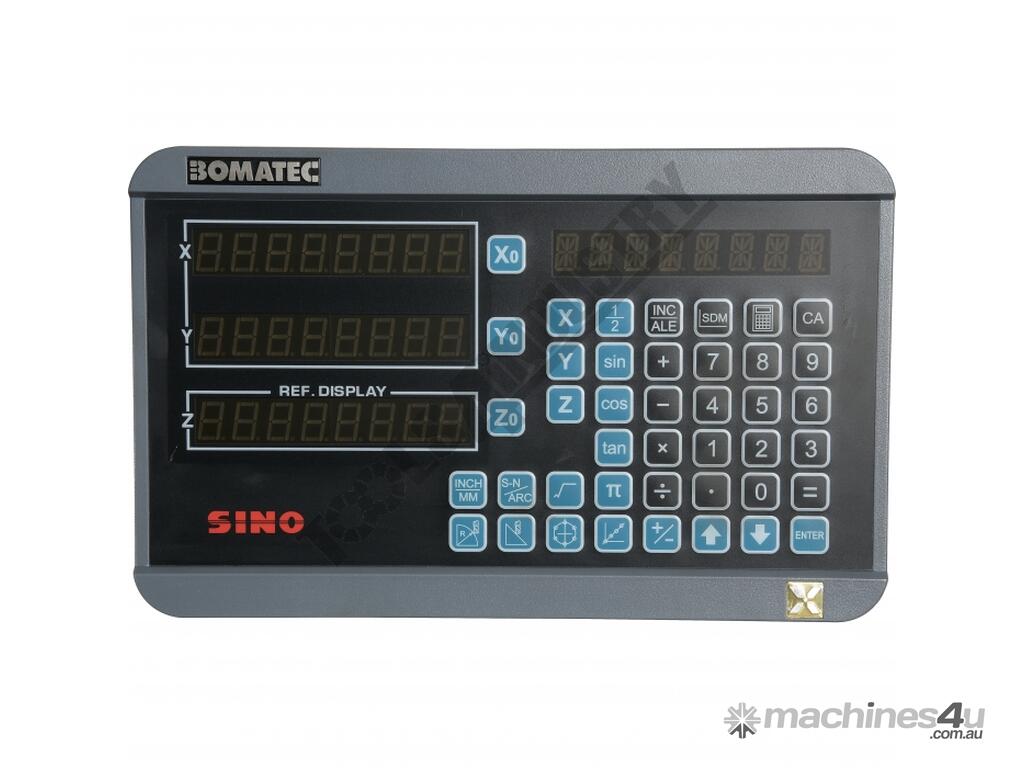

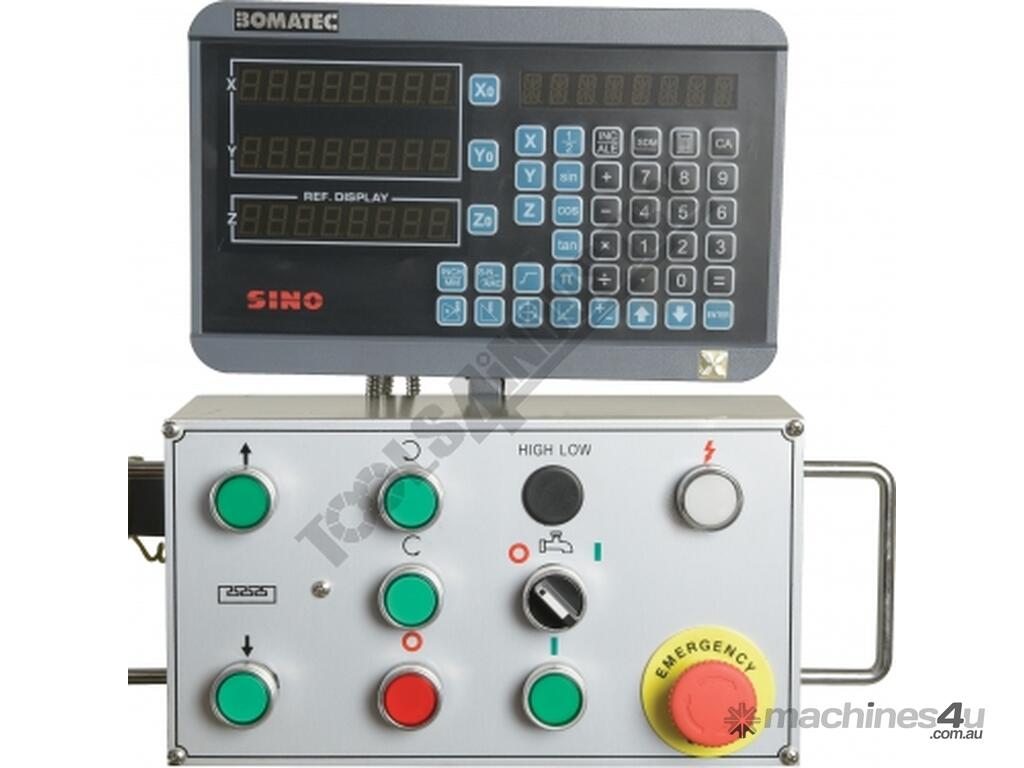

- 3 Axis digital readout fitted
- Hardened ballscrew X & Y-Axis

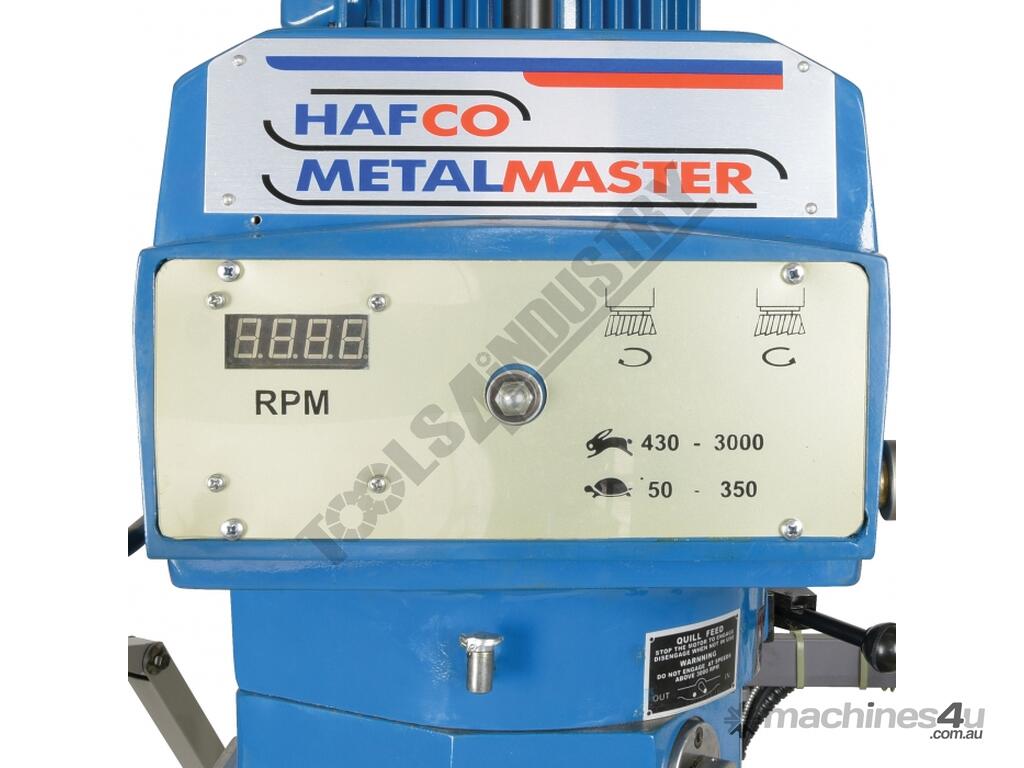

- Digital speed readout display
- One-shot oil lubrication pump and reservoir

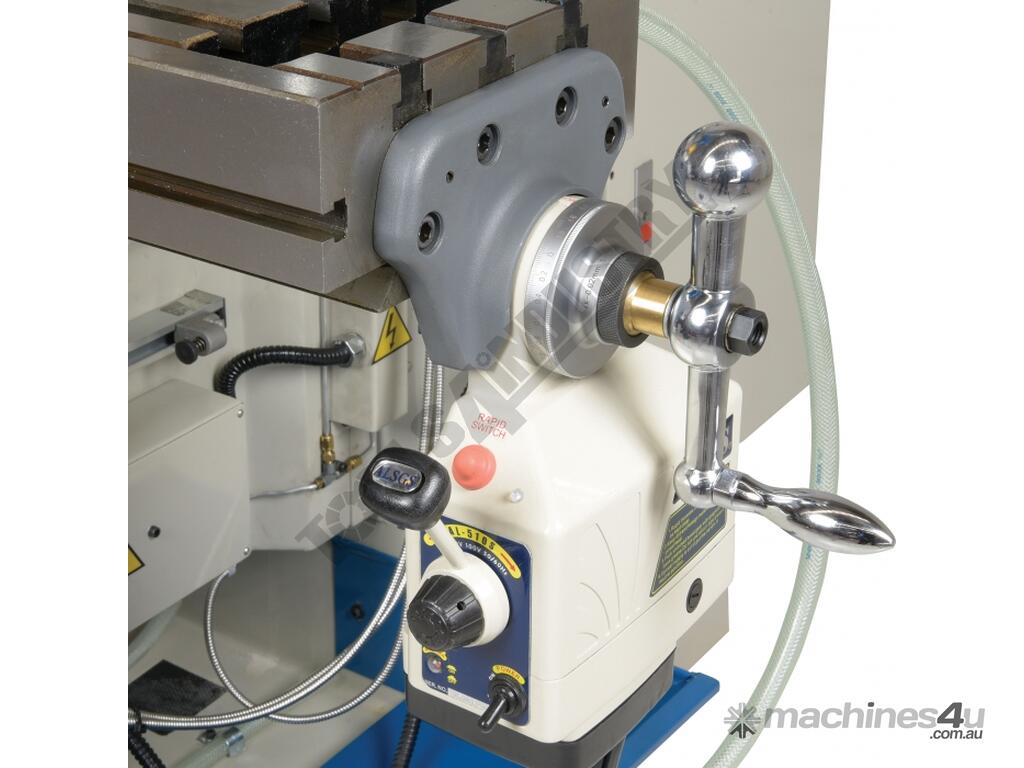

- X & Y-Axis power-feed
- Z-Axis powered elevating motor

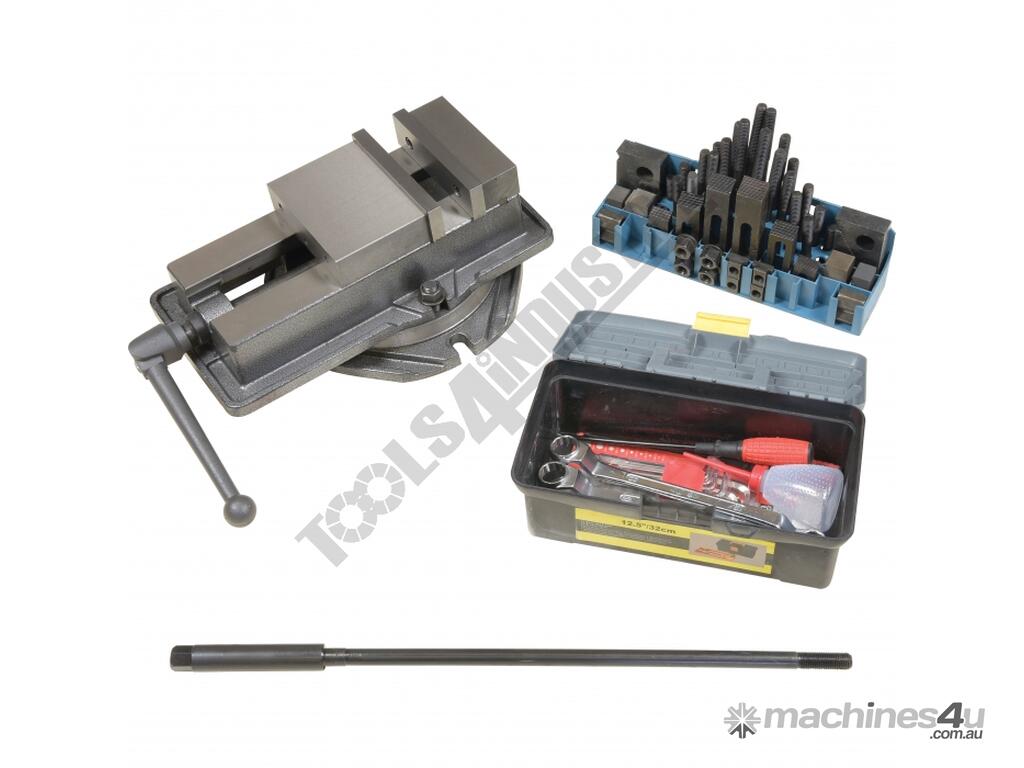

- Machine vice 160mm
- Clamp kit set

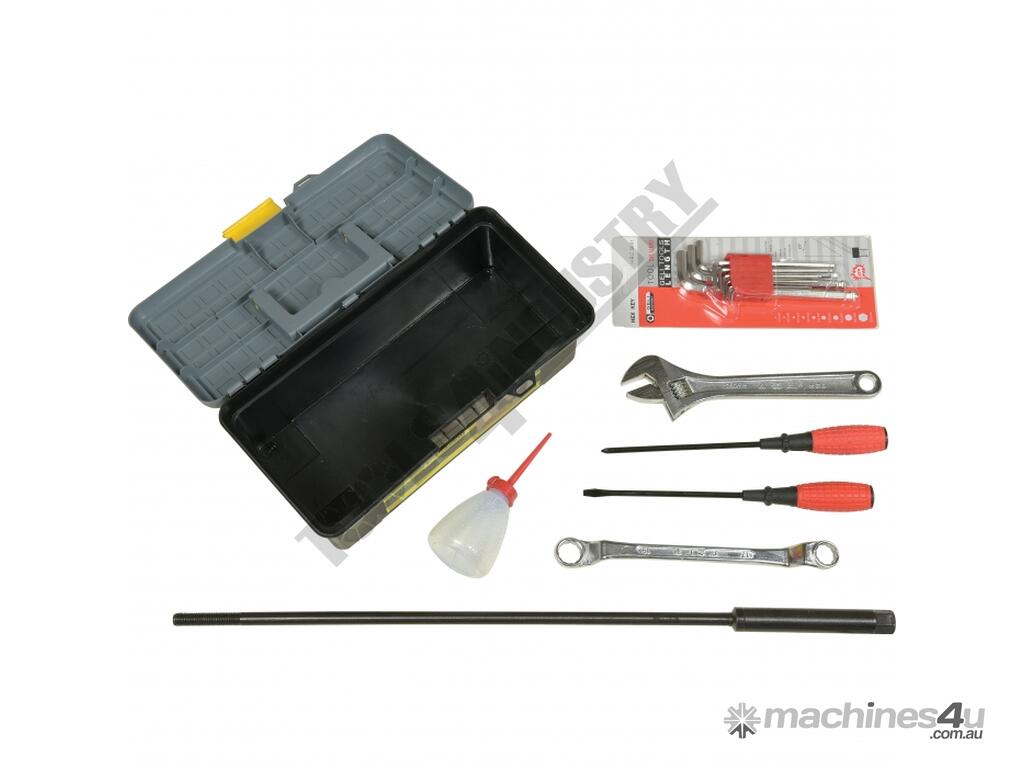

- Drawbar M16 thread
- Coolant system
- Slideway covers

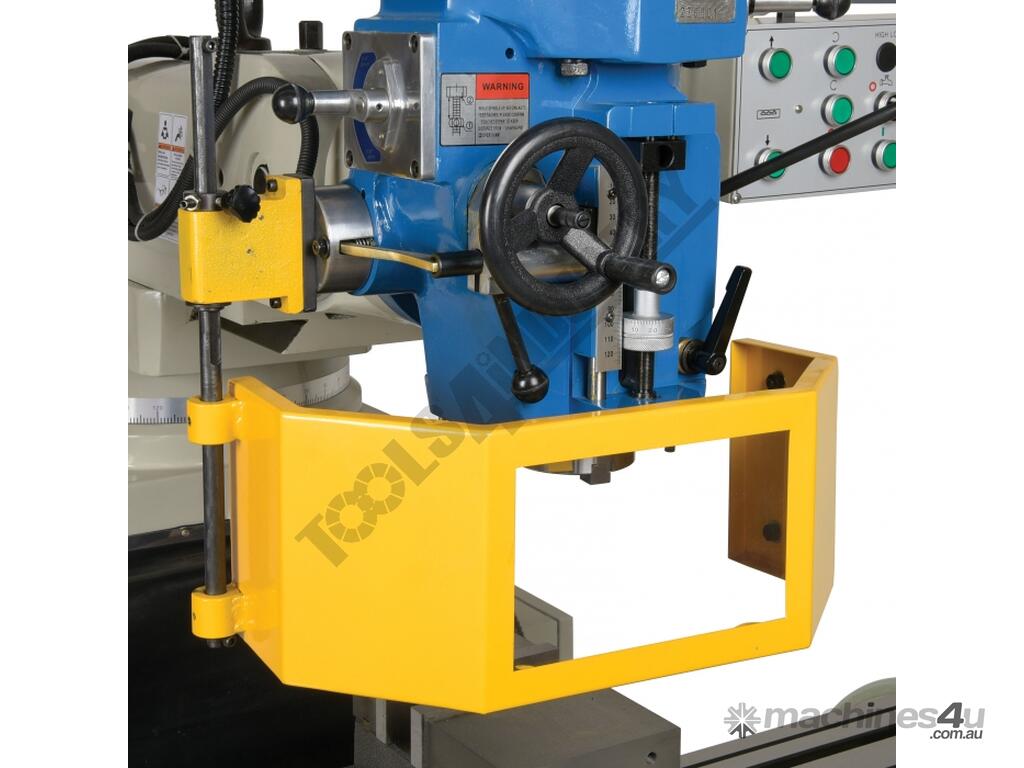

- Safety cutter guard
- Halogen light
- Swarf tray

Specifications:
ORDER CODE: M599D
MODEL: BM-63VE
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1370 x 254
Spindle Taper - Vertical: NT40
Longitudinal Travel (X-Axis) (mm): 890
Cross Travel (Y-Axis) (mm): 400
Vertical Travel (Z-Axis) (mm): 400
Type of Slides: Dovetail (X), Square (Y&Z)

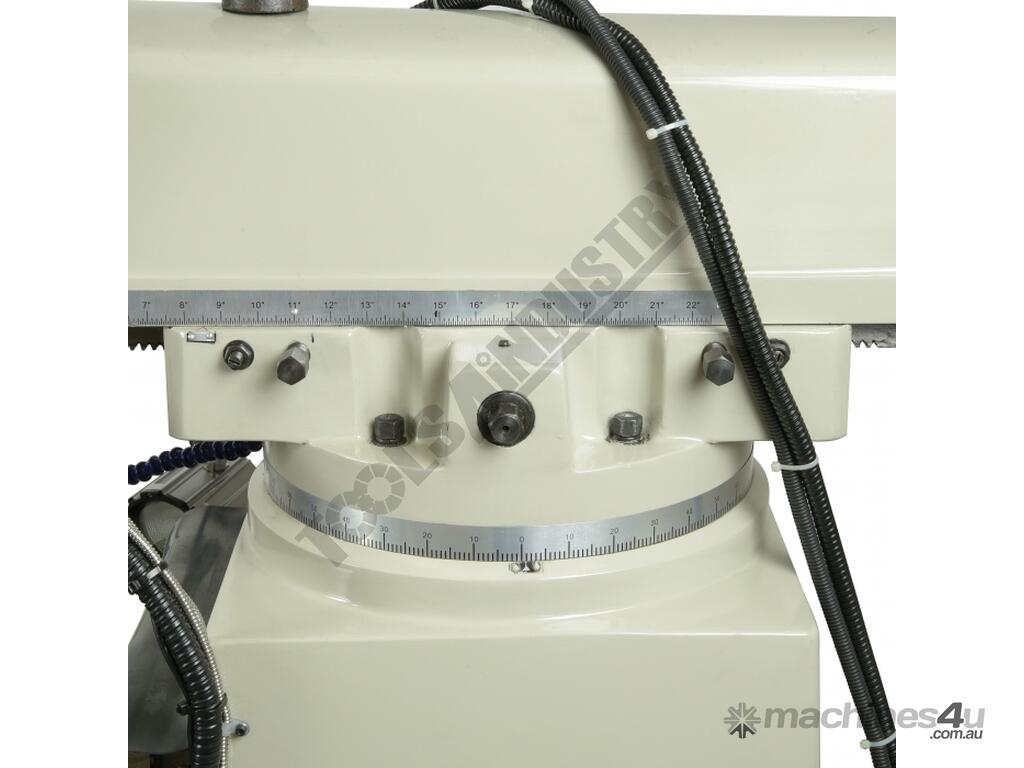

Ram Travel (mm): 550
Spindle to Table (mm): 450

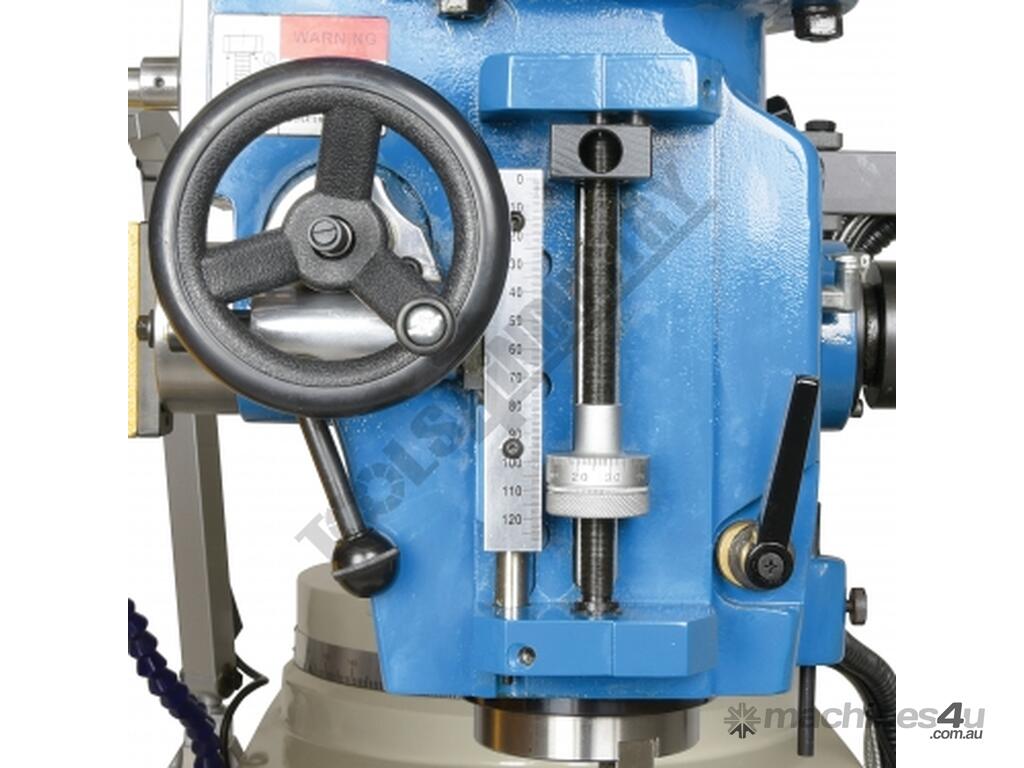

Quill Travel / Diameter (mm): 127 / 105
Throat Depth (max.) (mm): 740

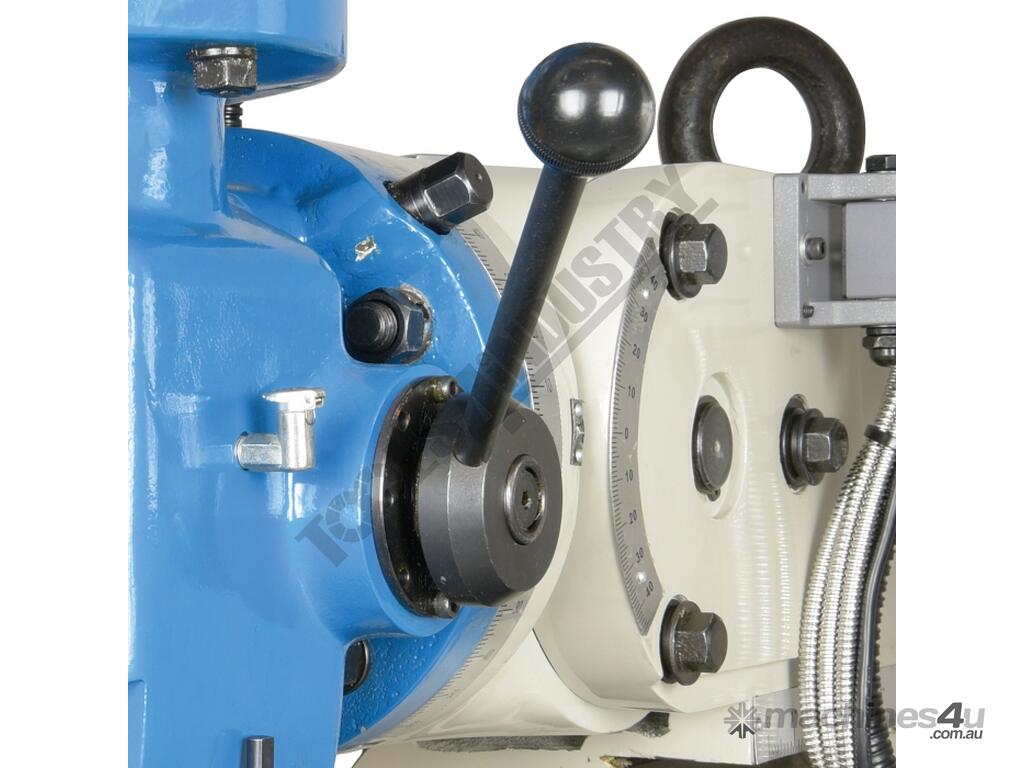

Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º
Power Feed - Quill (mm/rev): 0.04 / 0.08 / 0.15
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): 20 - 2000
Power Feed - Vertical (Z-Axis) (mm/min): Rapid
Table T-Slot Size (inch / mm): 16
Work Table Load Capacity (kg): 400
Spindle Speeds Vertical (No./ rpm): Variable (50 - 3550)
Motor Power - Vertical (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Overall Height (mm): 2200
Nett Weight (kg): 1375
