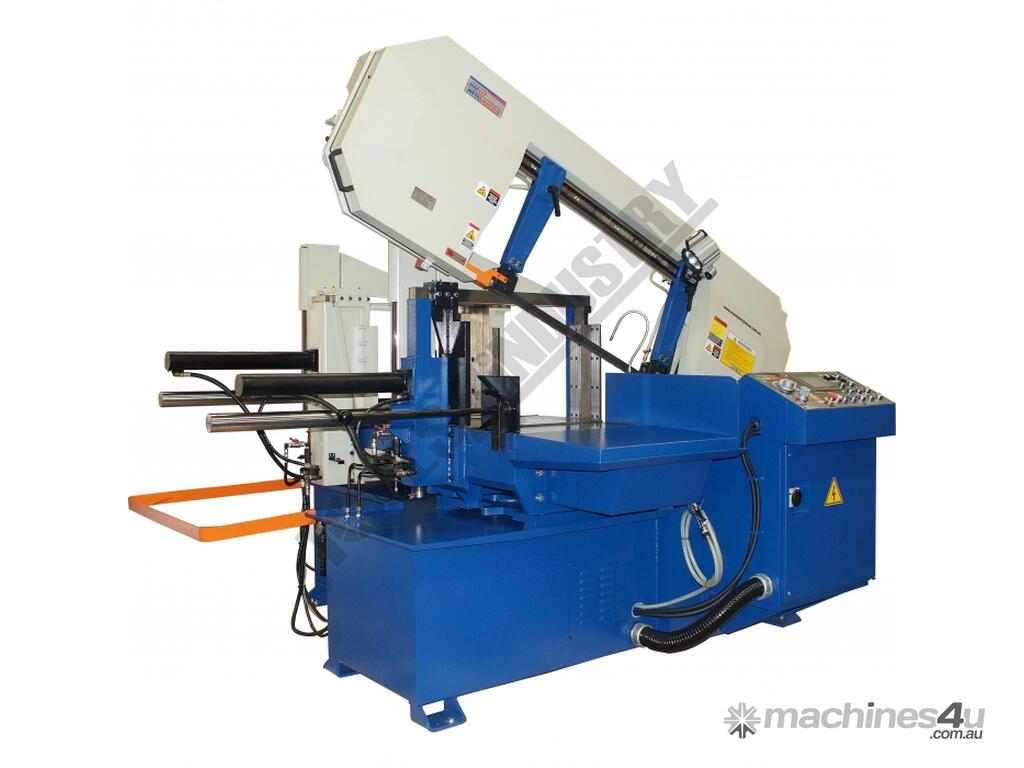

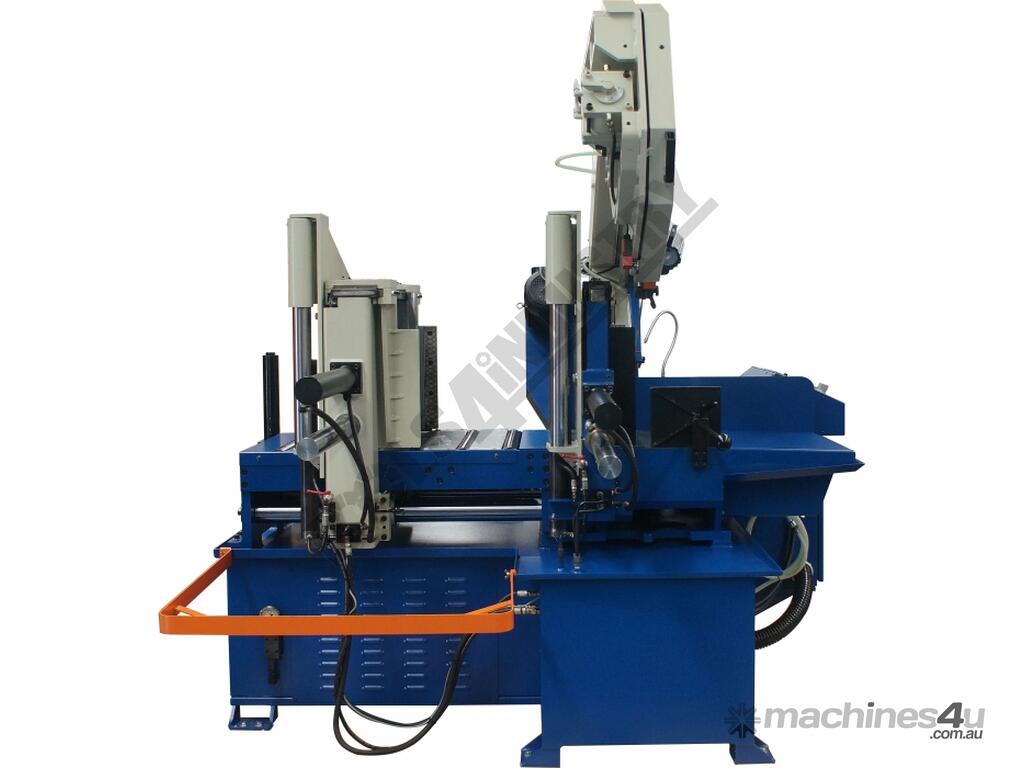

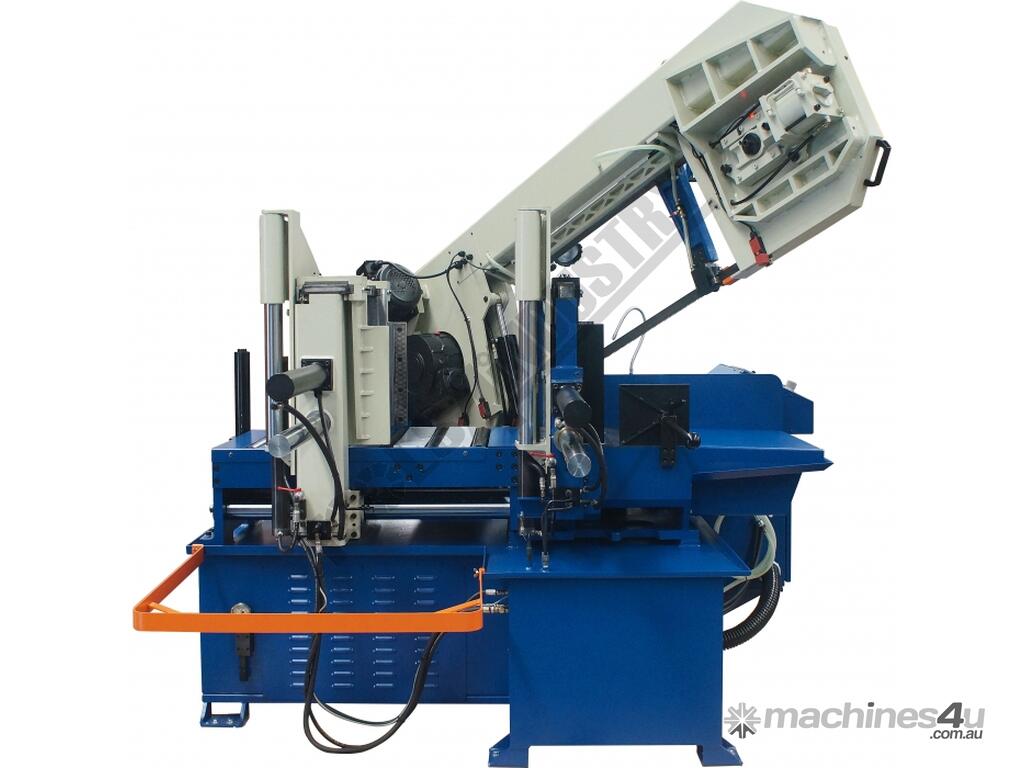

SHAW - HAFCO BS-460FAS - NC Swivel Head Metal Cutting Band Saw

BS-460FAS - NC Swivel Head Metal Cutting Band Saw - Automatic Hitch Feed (415V)
610 x 380mm (W x H) Rectangle Capacity
45 degree Mitre Cutting

Description
Manufactured in Taiwan

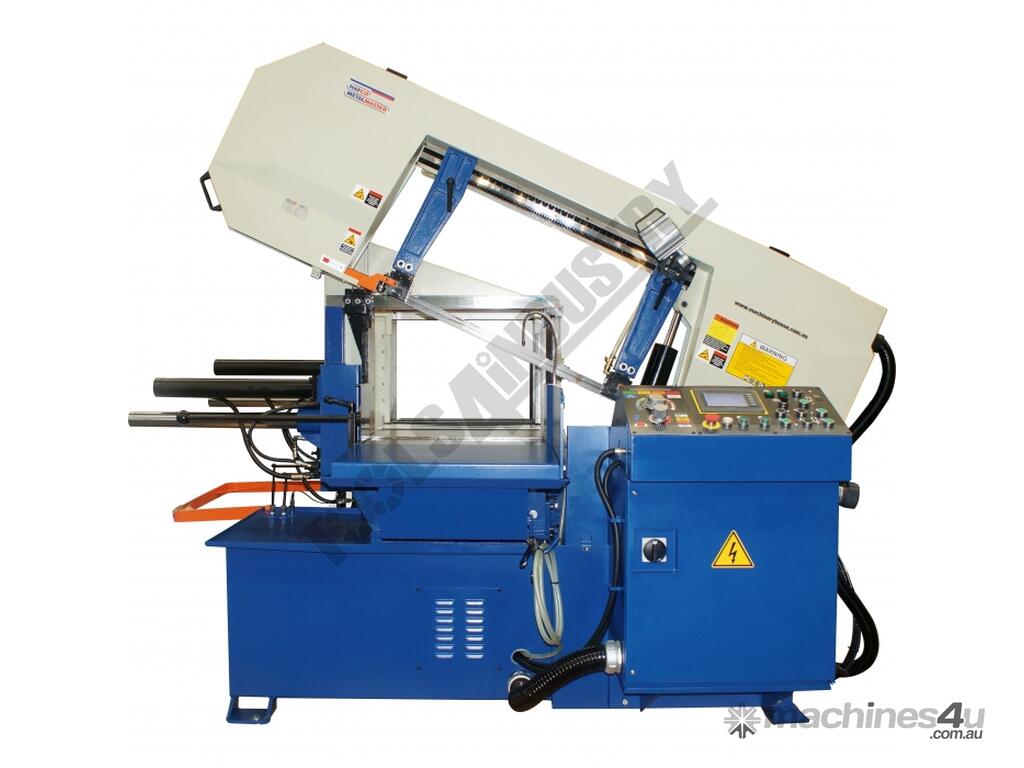

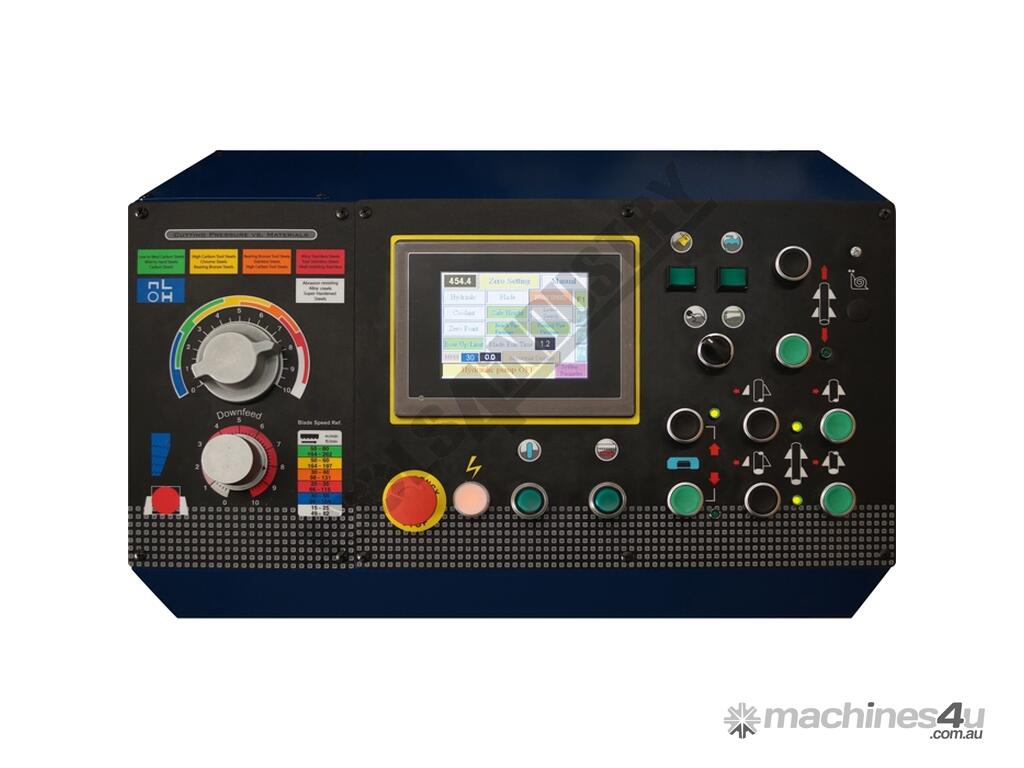

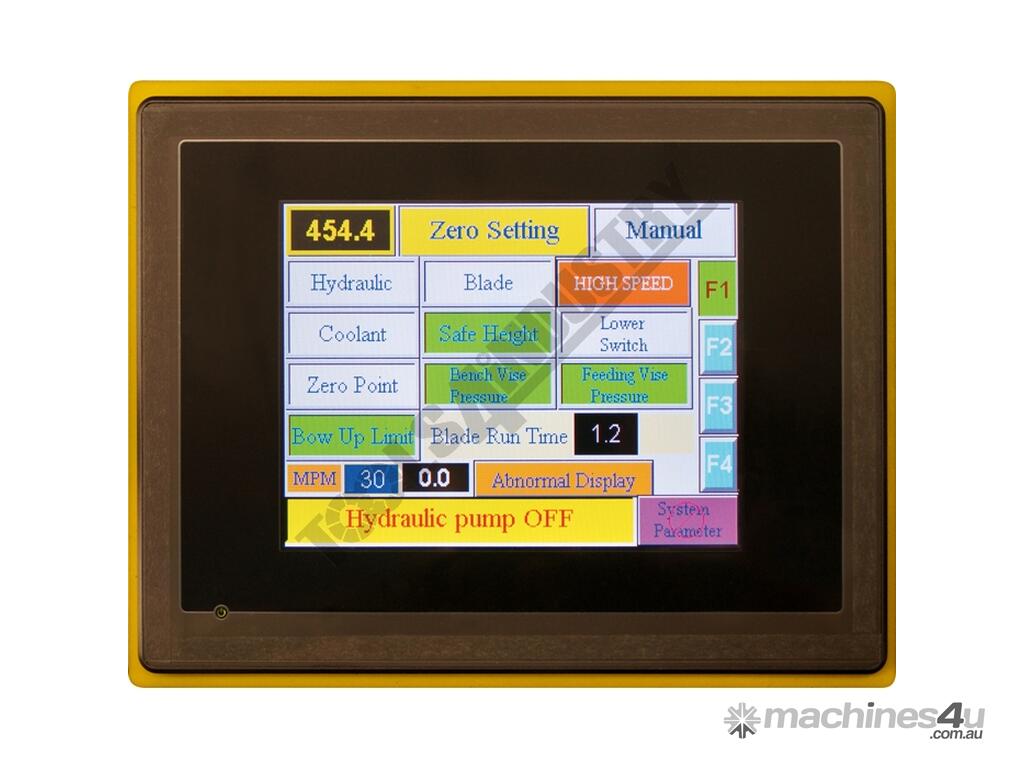

Fully automatic and intelligent HMI touch screen programmable control accepts many different job quantities and lengths complete with hydraulic vice clamping and hitch feed system
Features

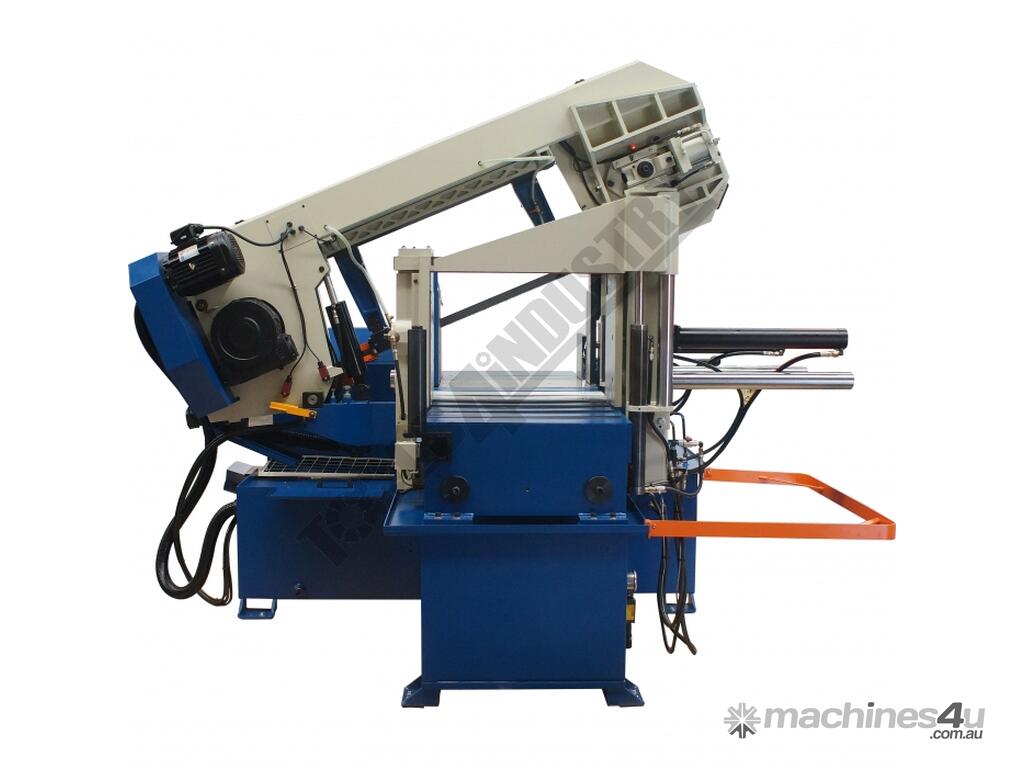

Swivelling head for mitre cutting to 45 degree
Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)
Idle wheel motion proximity switches shuts off machine if blade breaks or slips
Coolant system incorporating a wash down hose with trigger gun
Inverter controlled infinitely variable blade speed 25-85mpm
Precision feed pressure & feed rate dual valve system for optimal performance in any material
Hydraulic retracting rear vice jaw (feeding vice only) reduces friction from jaws rubbing on material during the feeding process
Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life

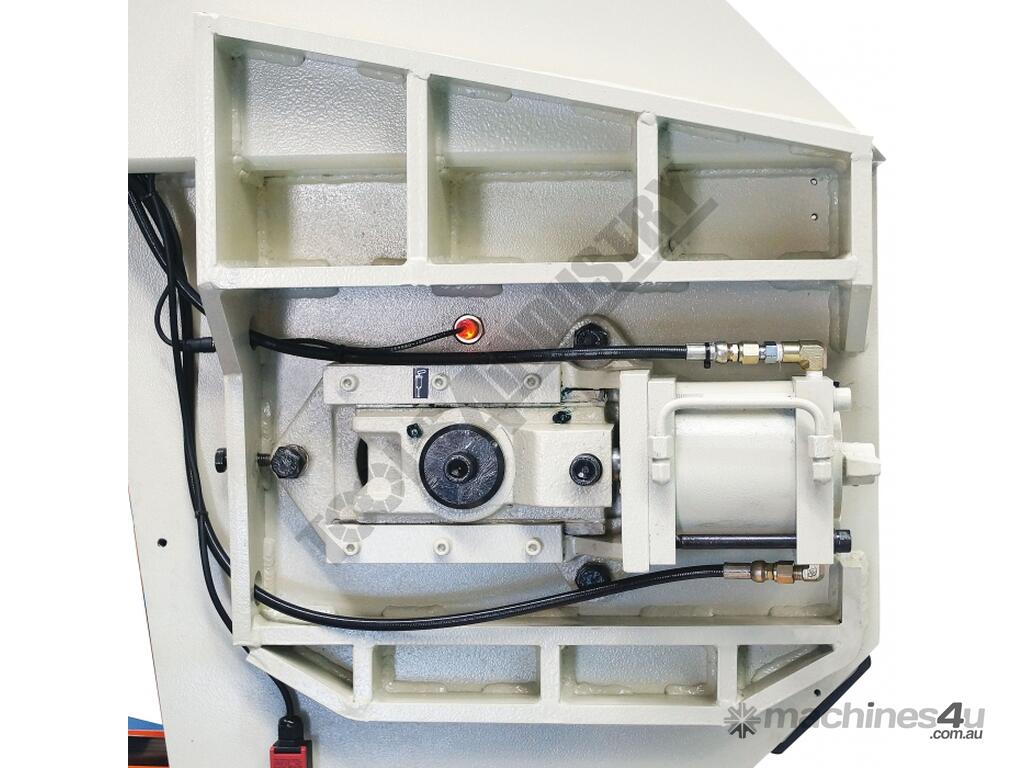

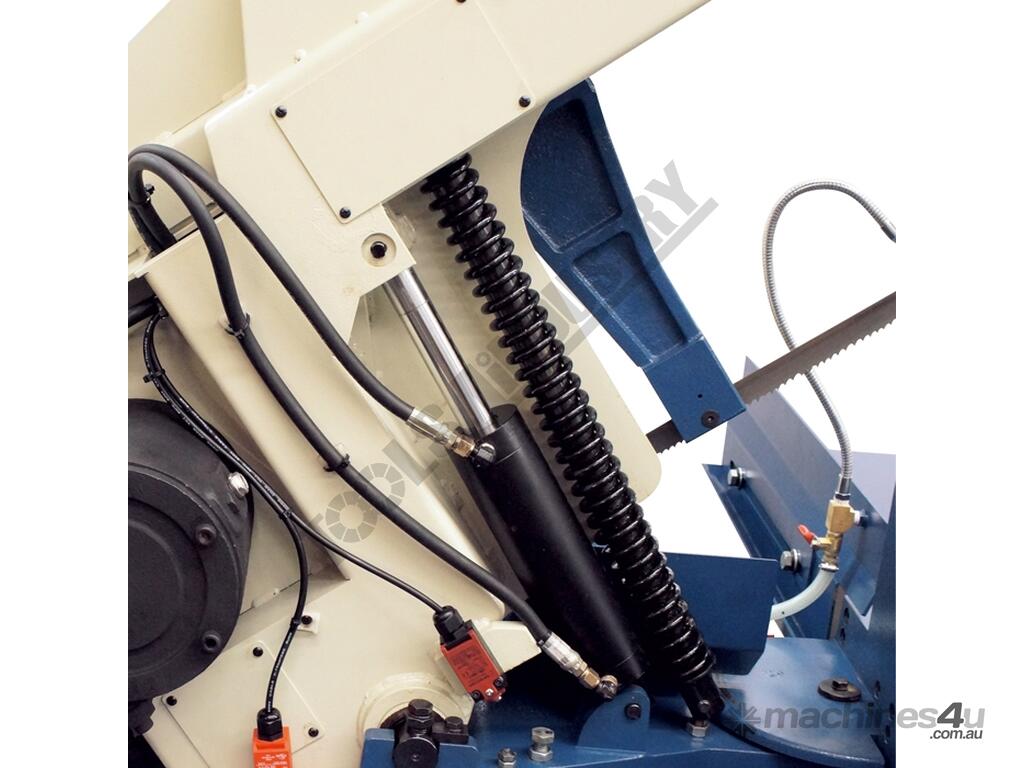

Hydraulic blade tensioning system with maximum pressure of 30kg/cm2
Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped

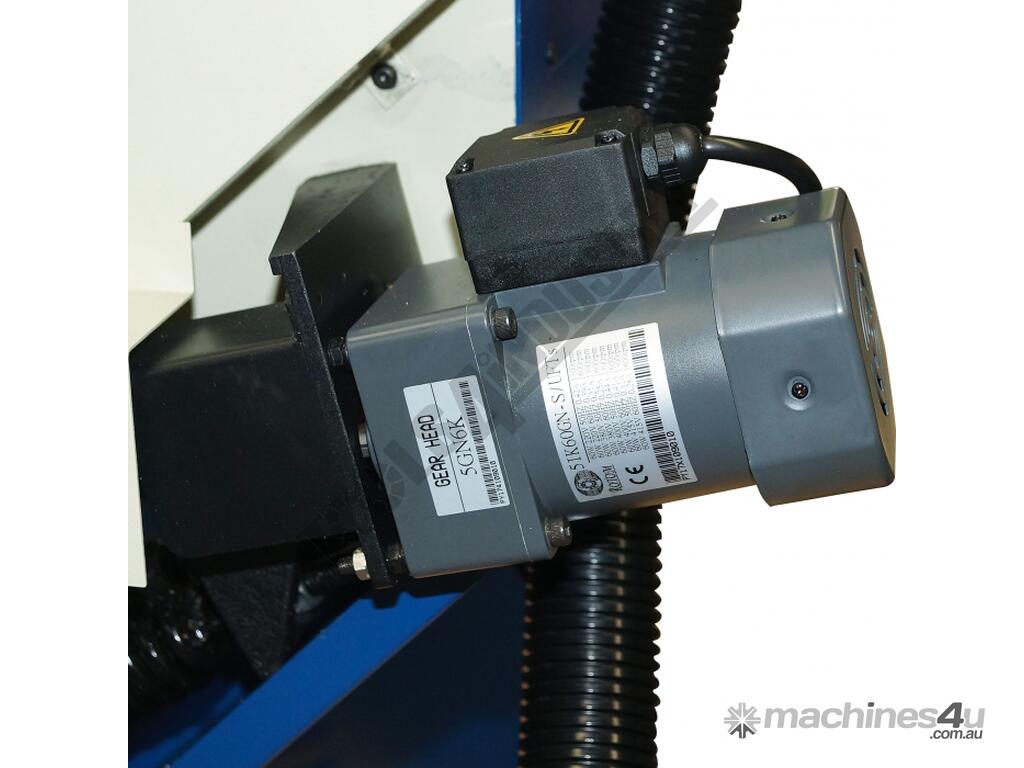

Synchronised power driven blade cleaning brush removes swarf from blade

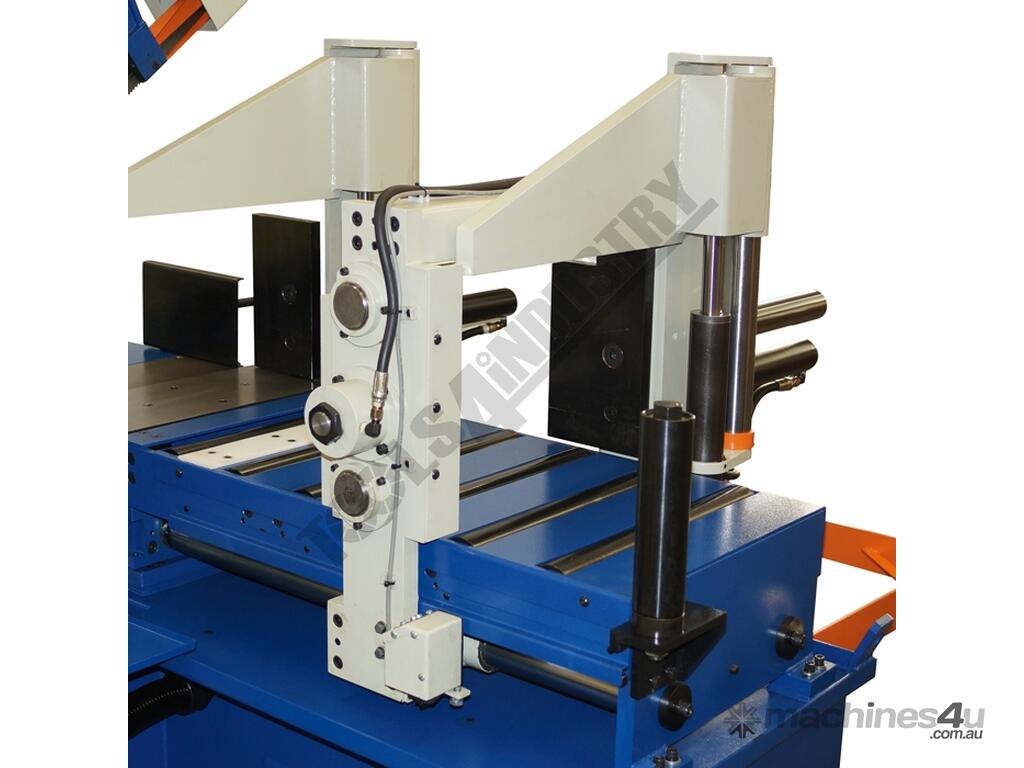

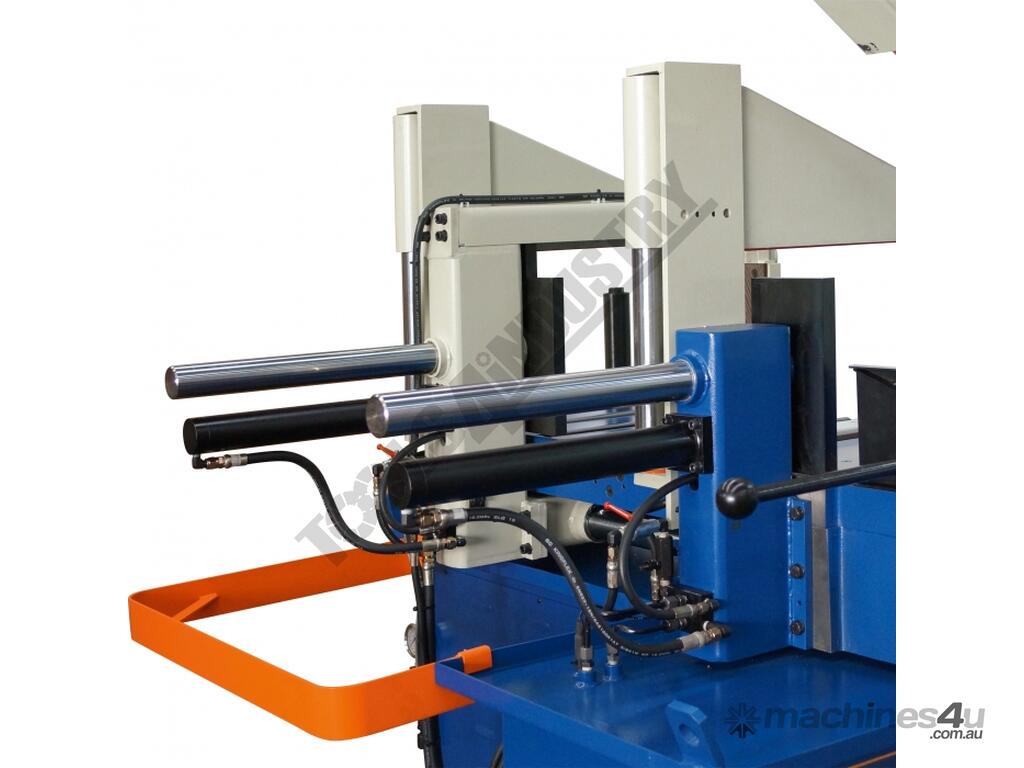

Full stroke hydraulic vice for quick & easy set-up of jobs
Hydraulic swarf conveyor directs excess waste to side of machine.

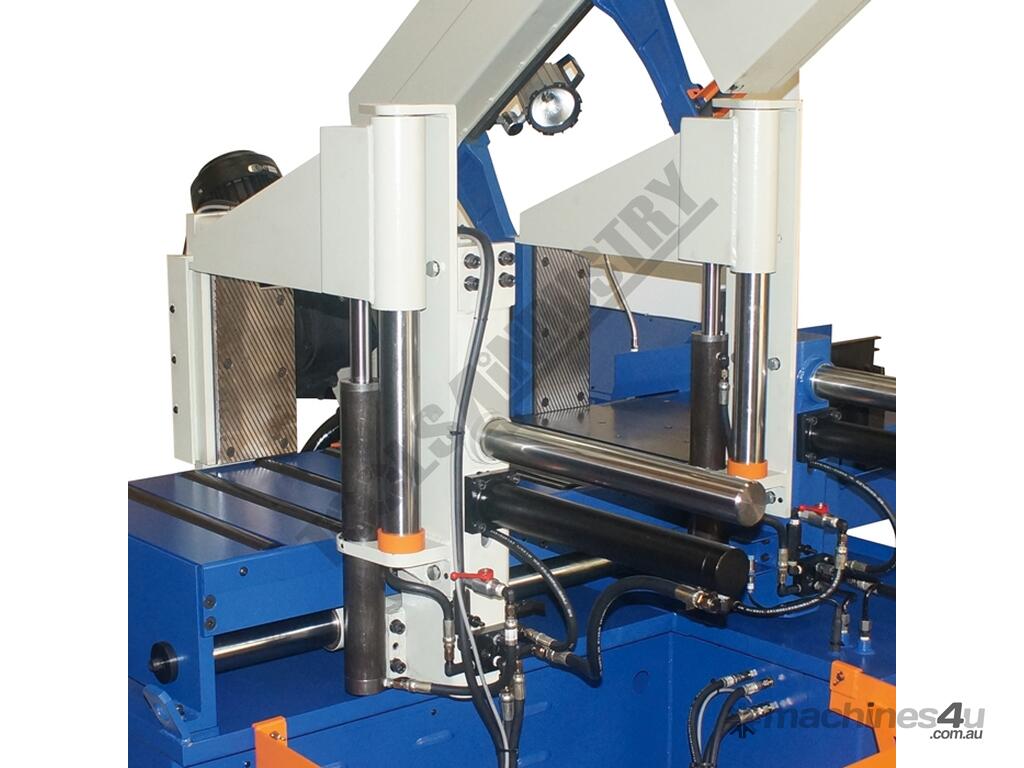

Dual vice clamping providing burr free cut
Adjustable vice pressure regulator

ORDER CODE B112
Model BS-460FAS
Operation Type Swivel Head
Cutting Head Beam Type Fully-Automatic
Cutting Head Beam Return Auto-Hydraulic Return

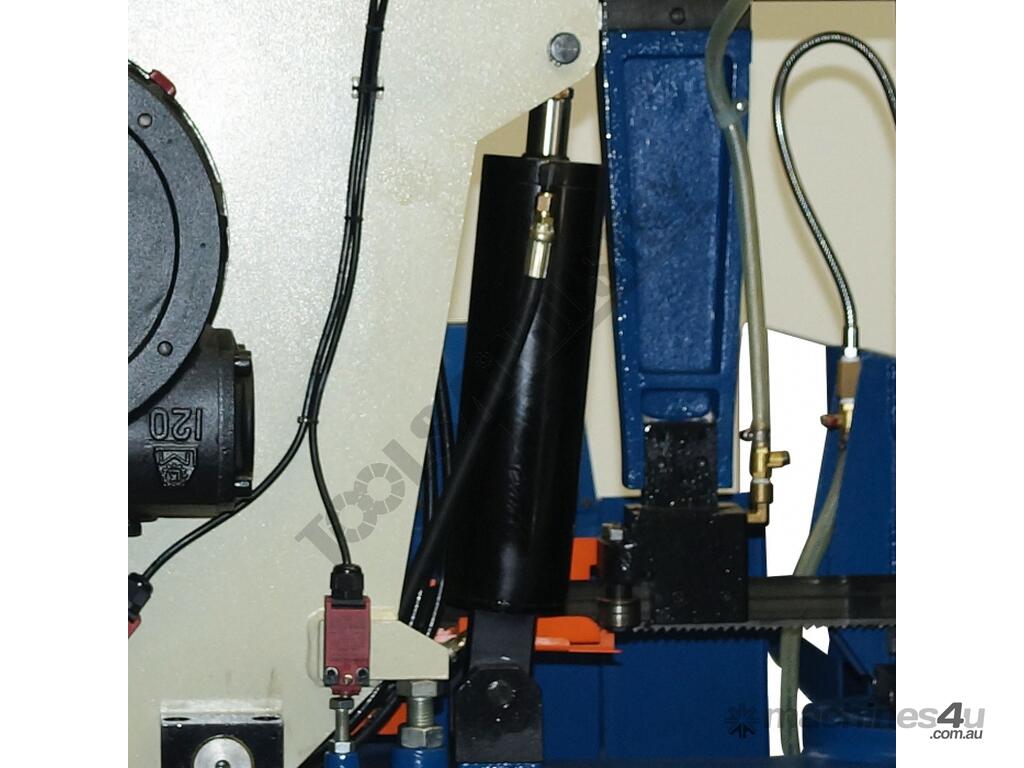

Cutting Head Down Feed Control Adjustable Hydraulic
Round 90º 460mm
Round 45º 380mm
Square 90º 460mm
Square 45º 380mm
Rectangle (W x H) 90º 610 x 380mm
Rectangle (W x H) 45º 380 x 380mm
Vice Clamping Fixture Automatic-Hydraulic
Bundle Cutting Fixture
Coolant System
Table Working Height 925mm
Blade Steps / Speeds Variable 25-85 M/min
Blade Size (L x W x T) 5330 x 41 x 1.3mm

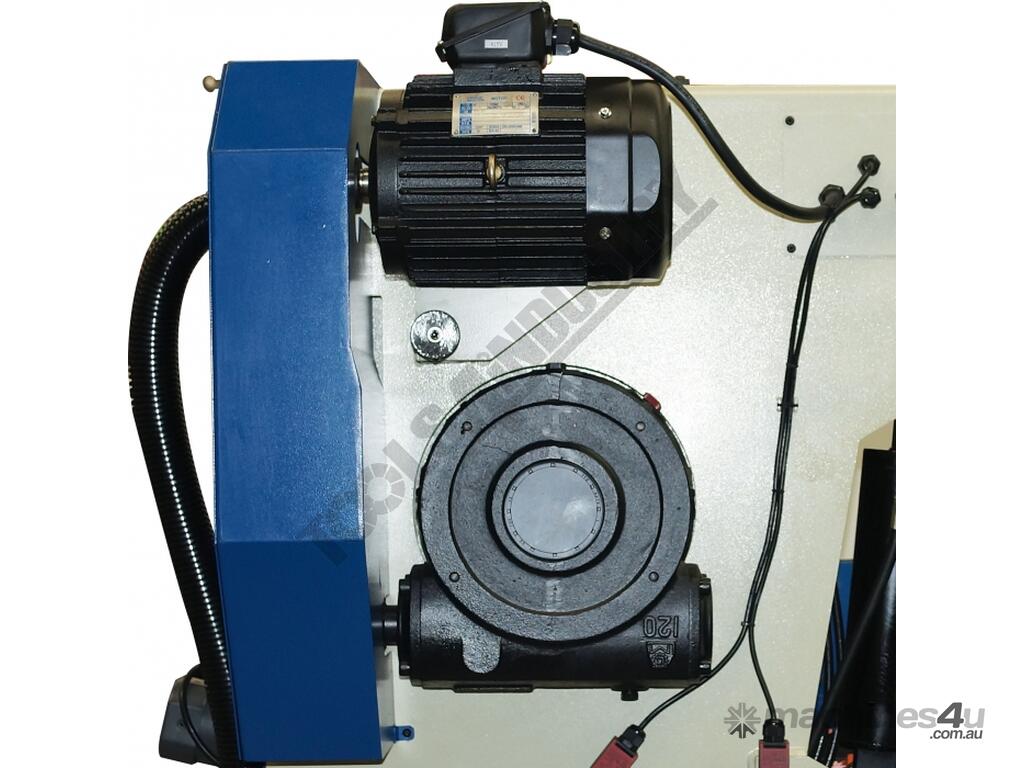

Motor Power 3.75kW / 5hp
Voltage 415V
Weight (nett) 1770kg
