SHAW - HAFCO BS-4A Metal Cutting Bandsaw

HAFCO METALMASTER Metal Cutting Bandsaw BS-4A

CALL FOR OUR BEST PRICE

Order Code: B002
BS-4A - Metal Cutting Band Saw (240V)
150 x 100mm (W x H) Rectangle

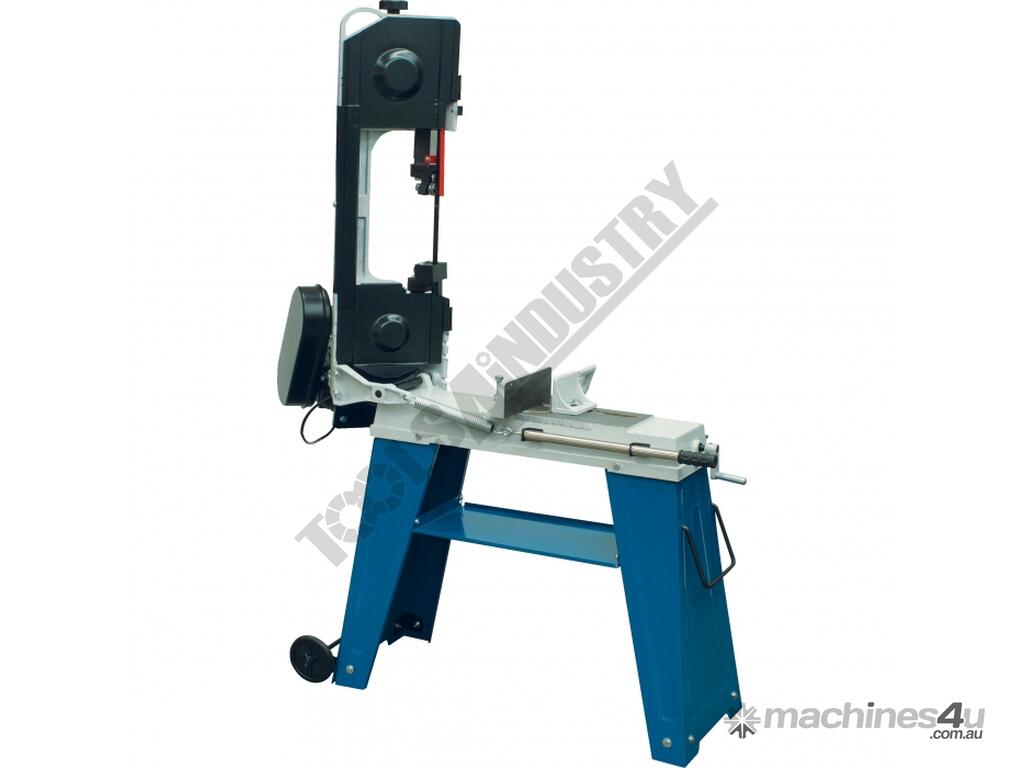

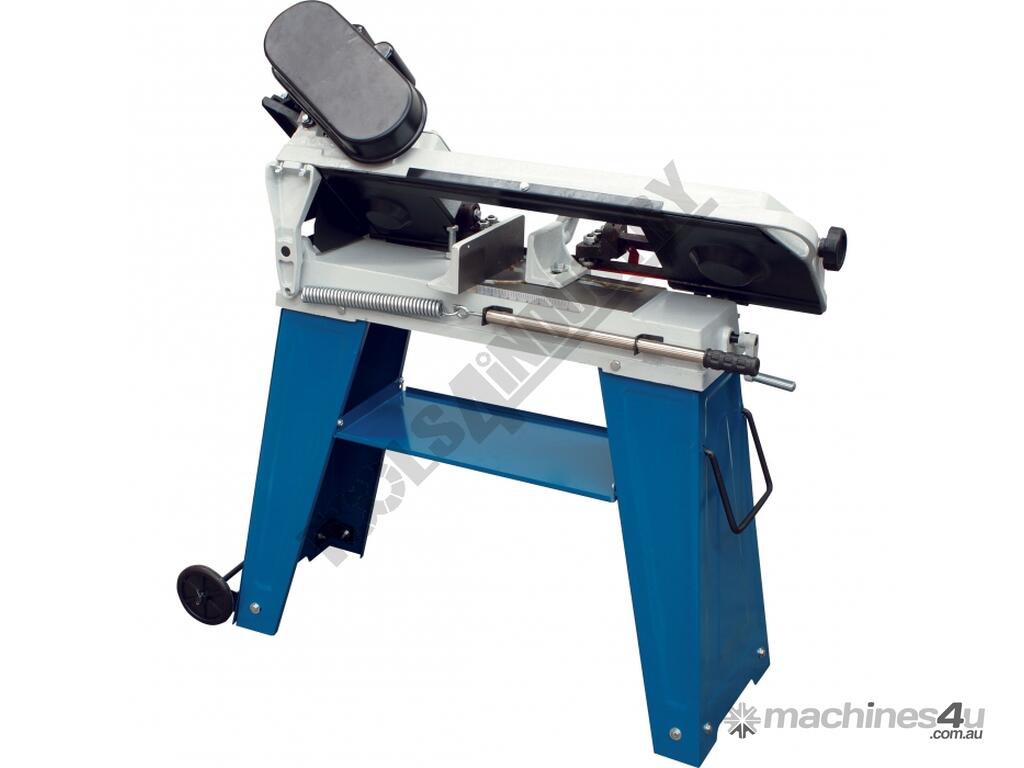

The BS-4A is an economically priced metal cutting band saw with a robust four-legged stand cross braced with a under tray and built-in mitre cutting capability. The ball bearing guided blade can be driven at a choice of three speeds via a reduction gearbox, depending on the type of material being cut and there is an automatic cut-off, adjustable for height, for stopping the motor when the cut is complete.

One notable feature on this saw are the rear mounted wheels on the stand allowing it to be portable, ideal for maintenance shops, light steel fabrications, and engineering workshops. A well priced and very effective machine for cutting steel bars, angles, channels, tubes and so on.

Features
150 x 100mm (W x H) rectangular capacity
Ideal for cutting tube, pipe, solid steel, non-ferrous and wood

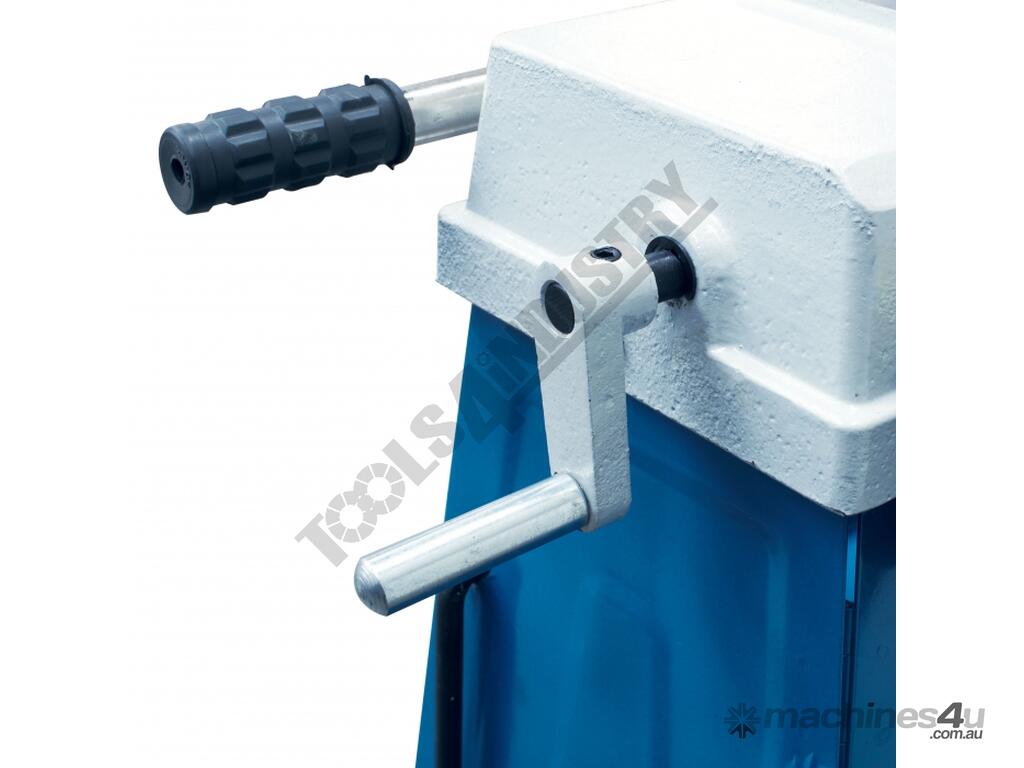

Adjustable spring tension screw regulating cutting feed rate

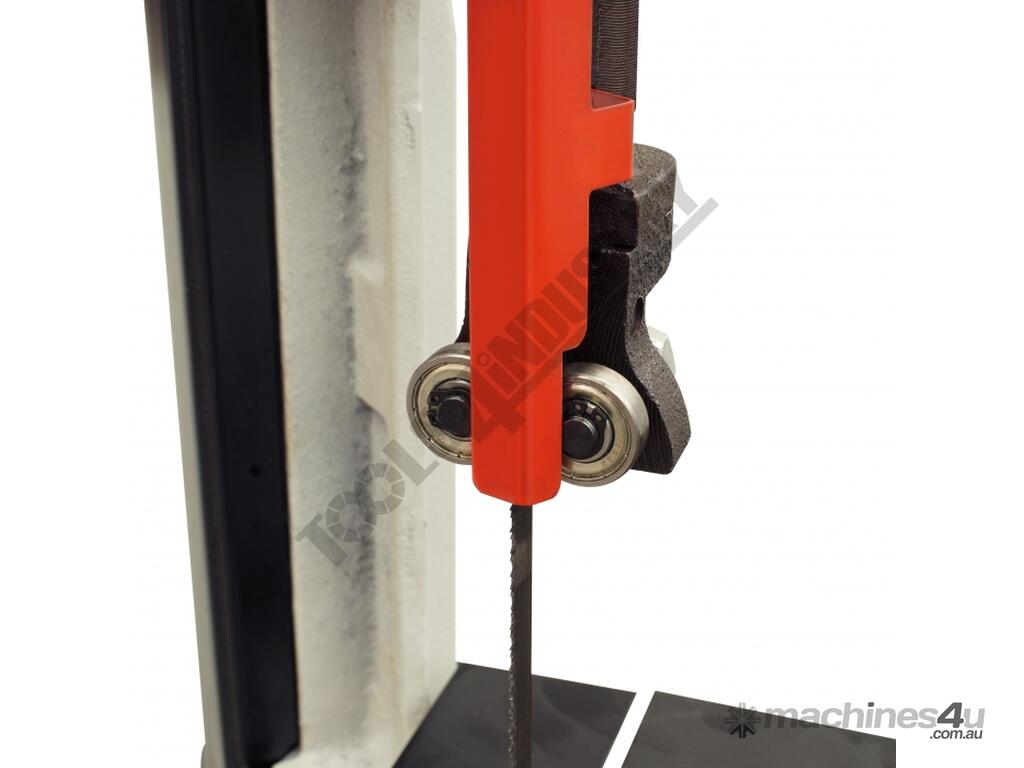

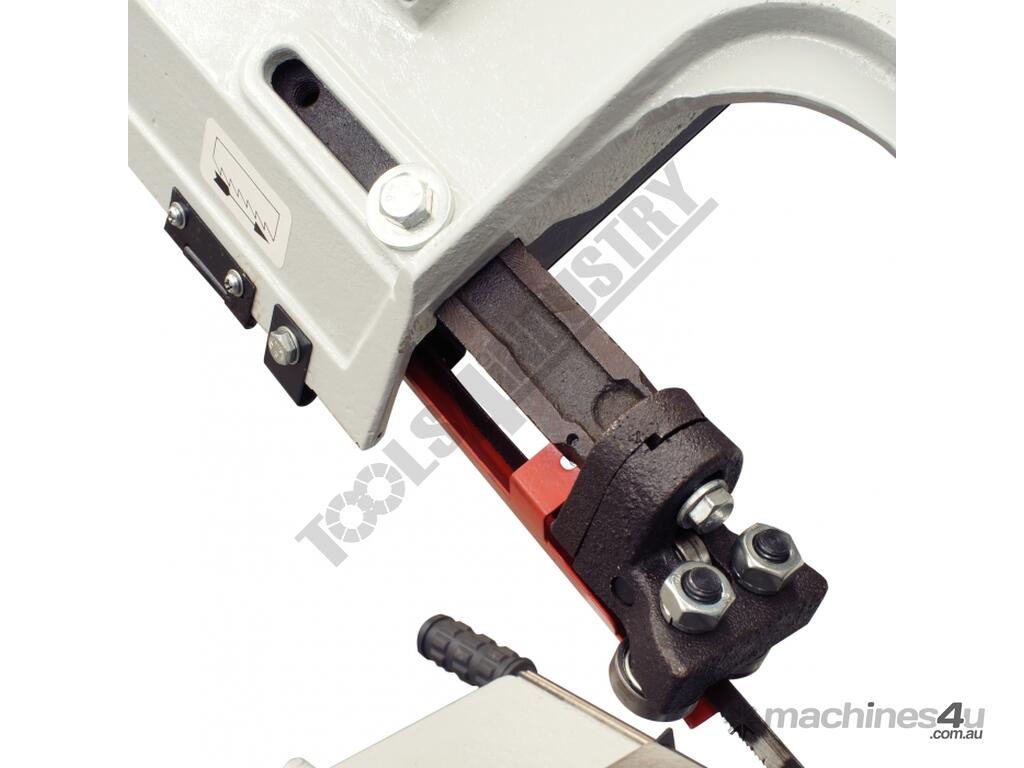

Fully-adjustable blade roller for accurate and straight cutting

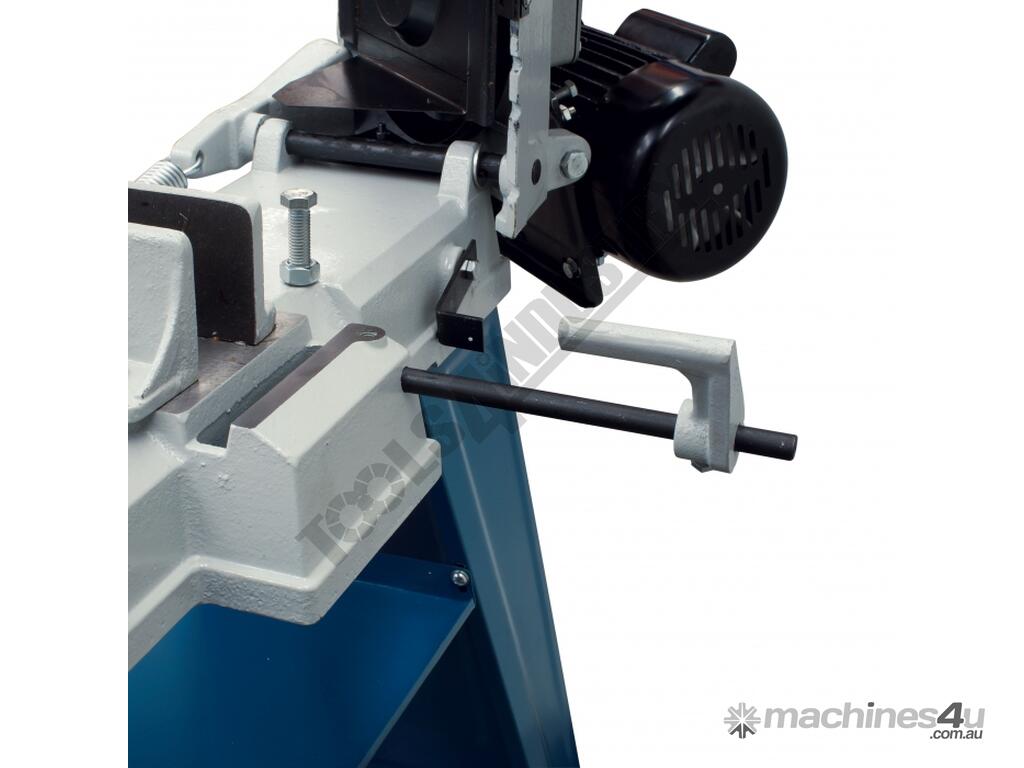

Adjustable length stop for repetition cutting
3-speed pulley drive system

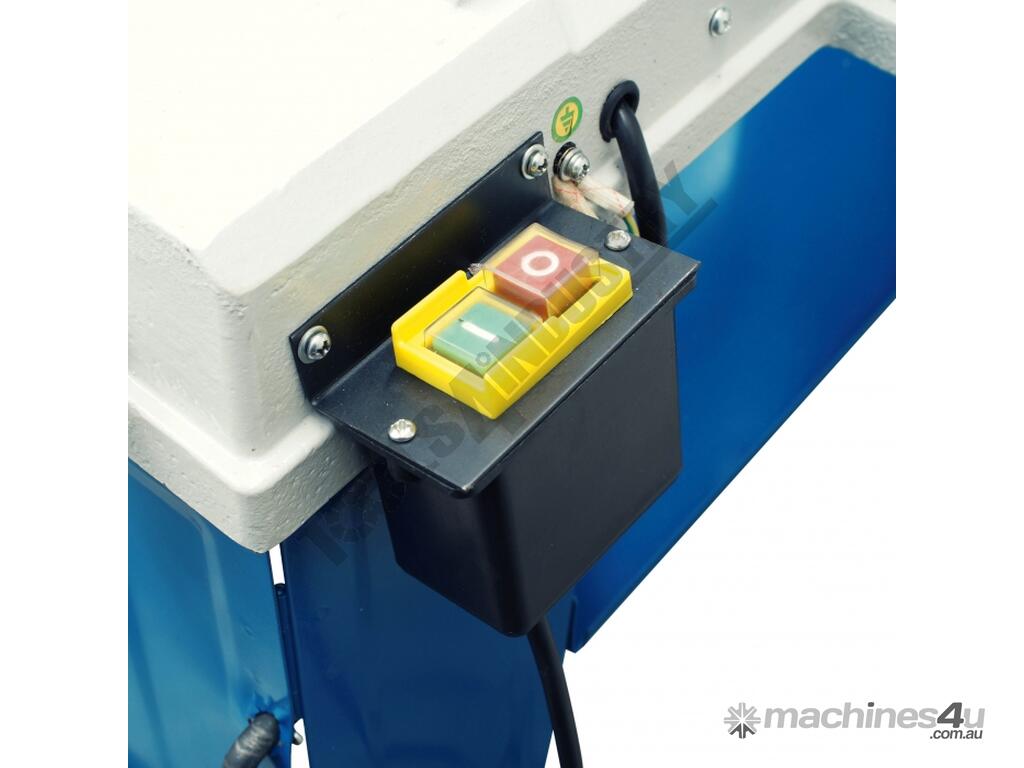

Automatic electric cut-out switch

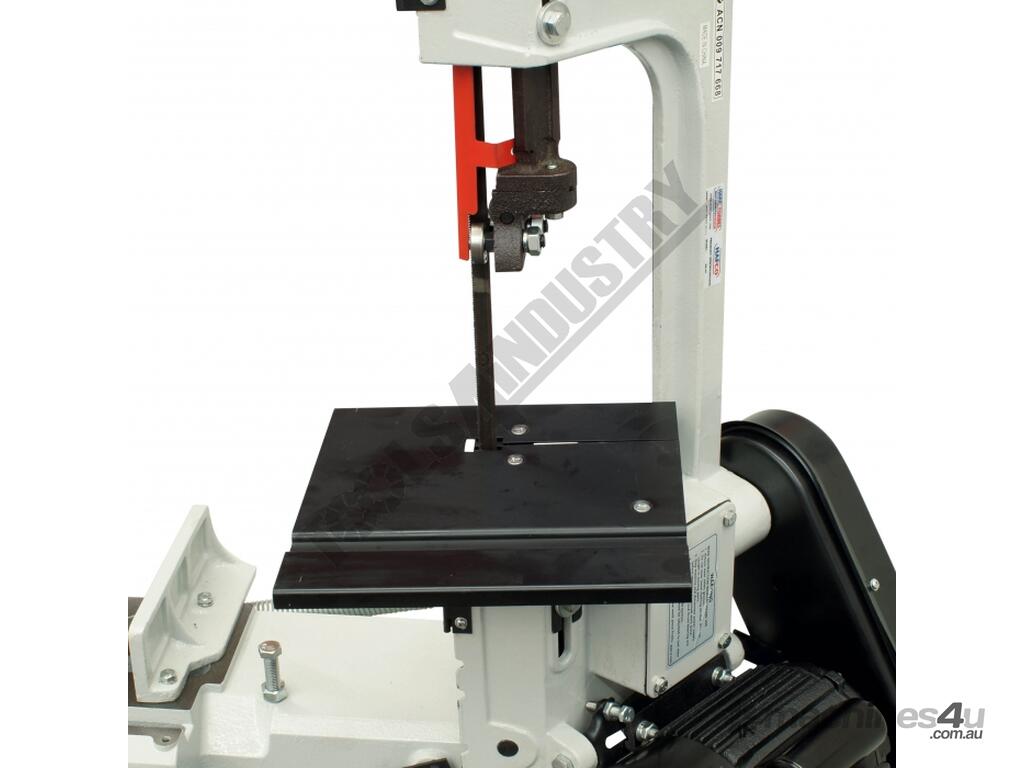

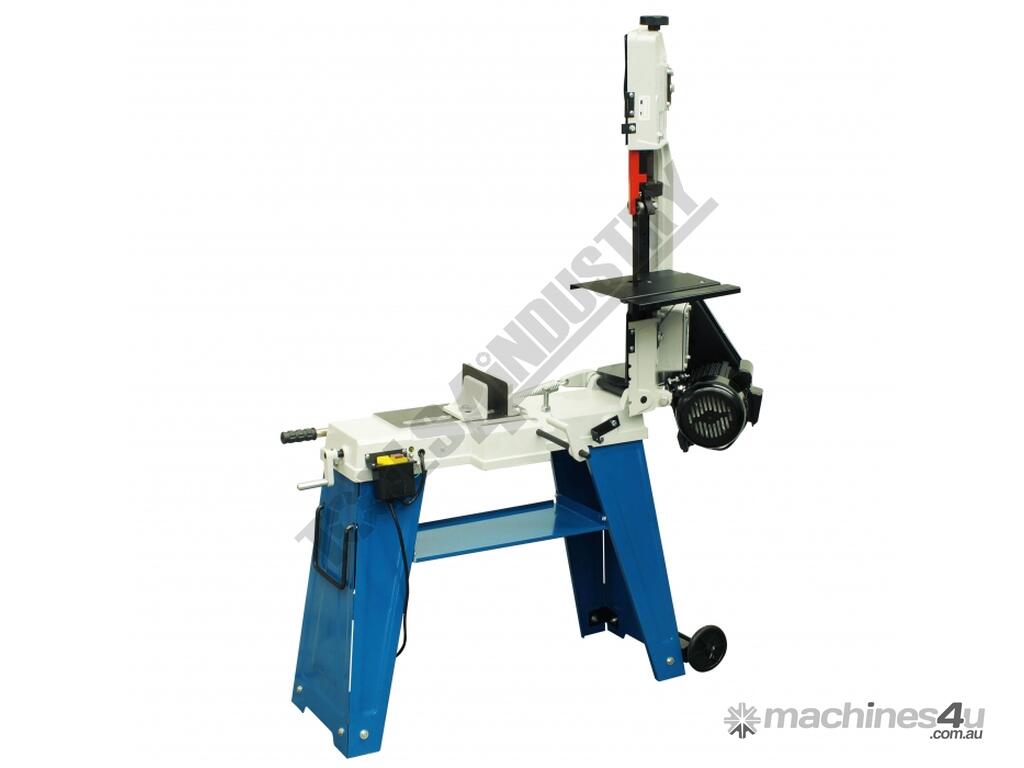

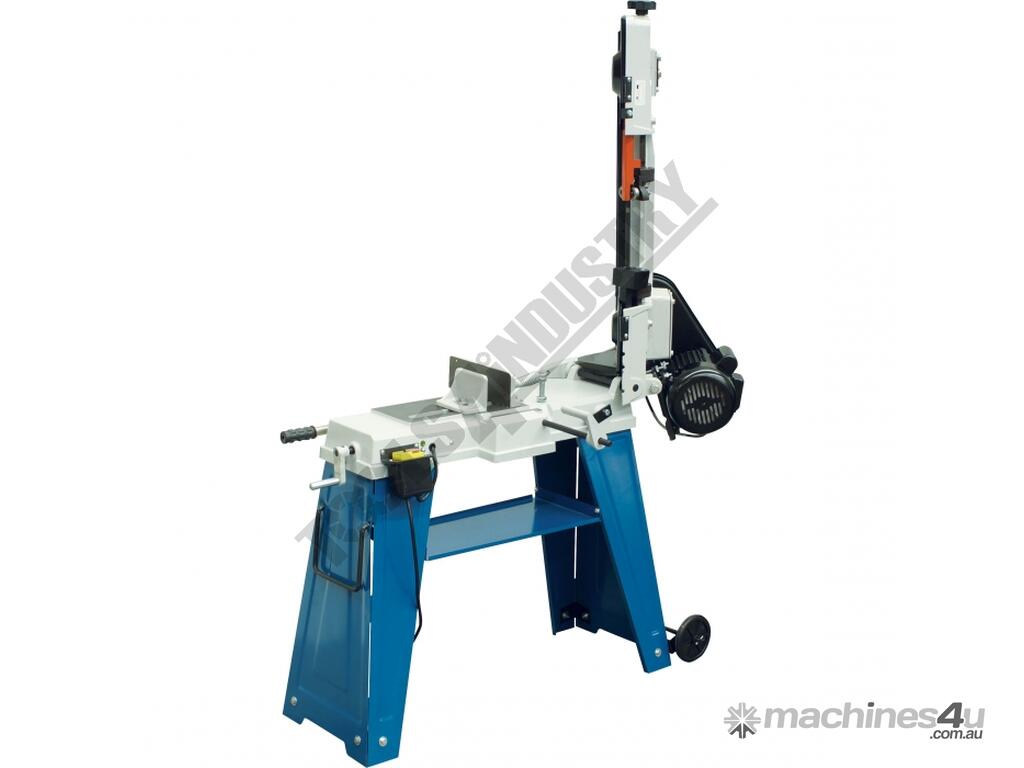

Vertical cutting table included

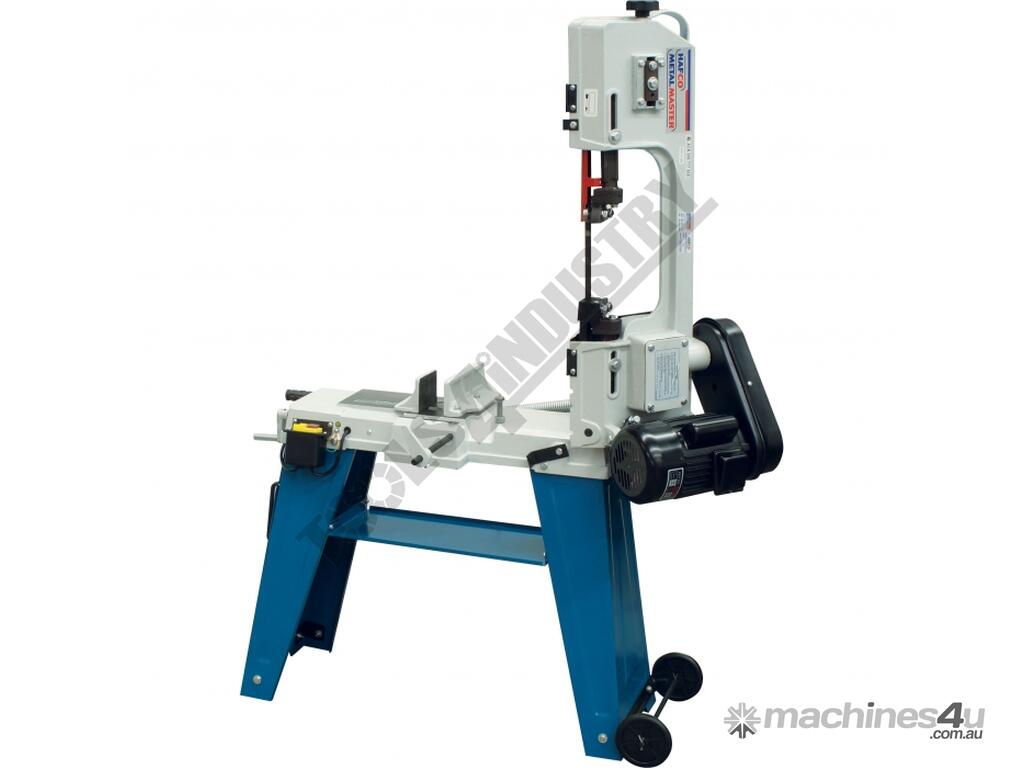

Portable - on wheels for site work

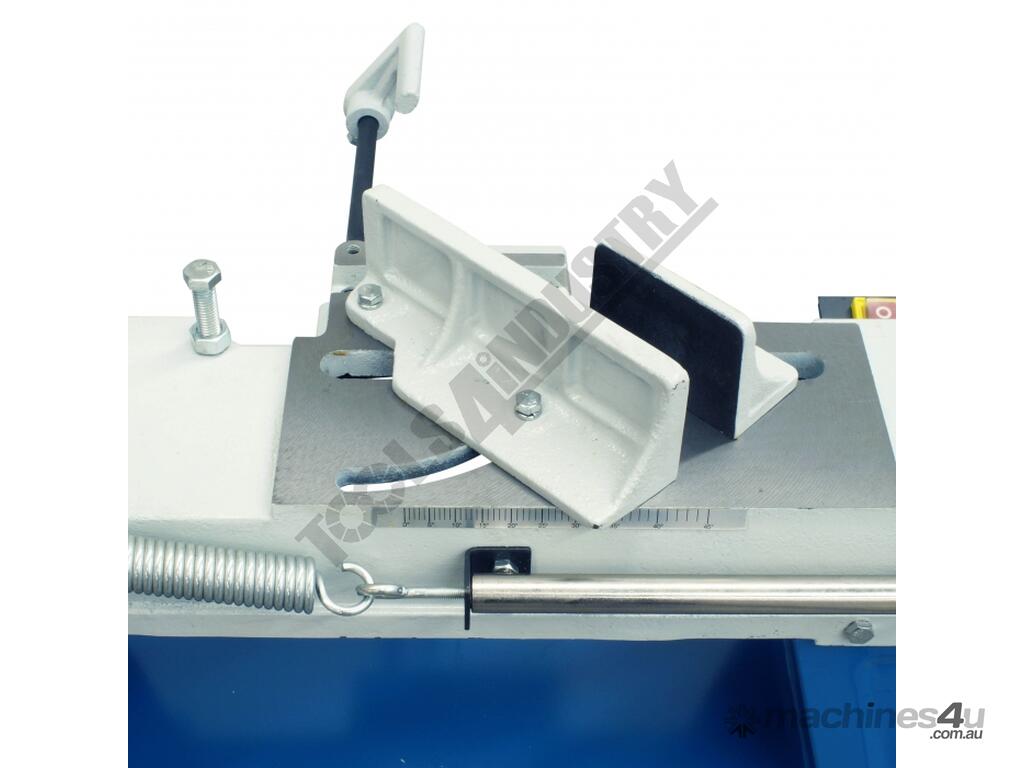

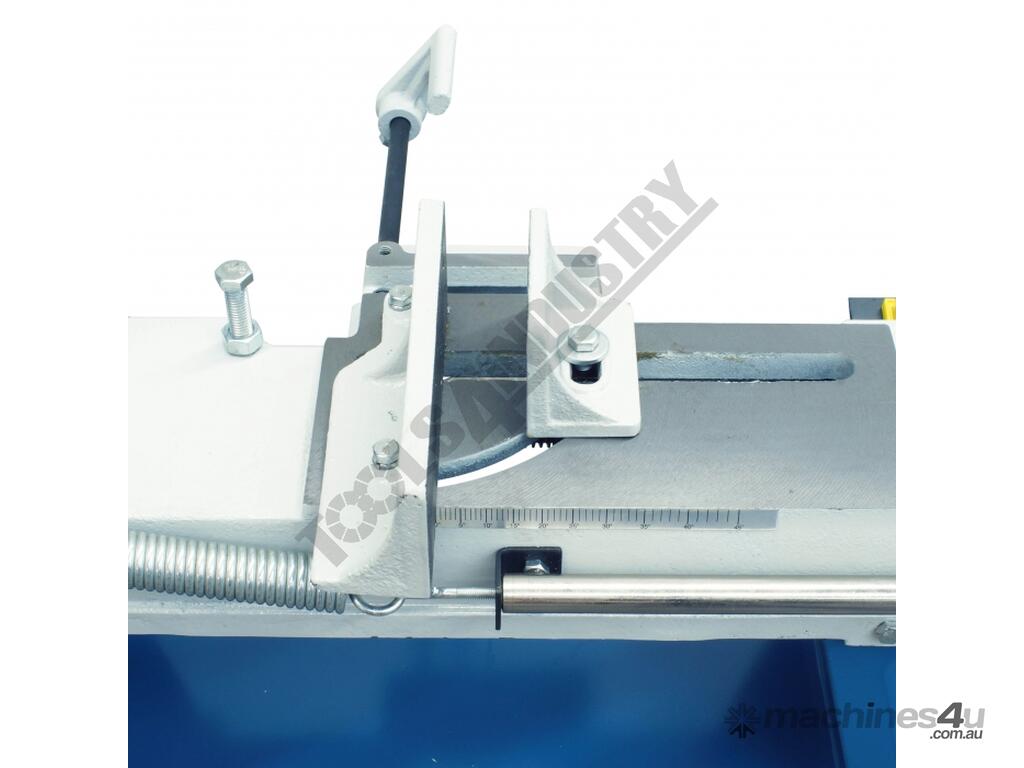

Cuts to 45º degrees in mitre vice
Sealed worm and pinion gearbox drive


Specifications:
ORDER CODE:B002
MODEL:BS-4A
HEAD TYPE:Fixed
TYPE/OPERATION:Hor/Vert/Manual
CAPACITY at Angle:90 degree
Round:100mm
Square:100 x 100mm
Rectangle:150 x 100mm
CAPACITY at Angle:45 degree
Round:72mm
Square:72mm
Rectangle:100 x 72mm
BLADE SPEEDS:mpm
MOTOR:.375W / 1/2HP
VOLTAGE:240V
WEIGHT (NETT):65kg

all prices and specifications are subject to change
