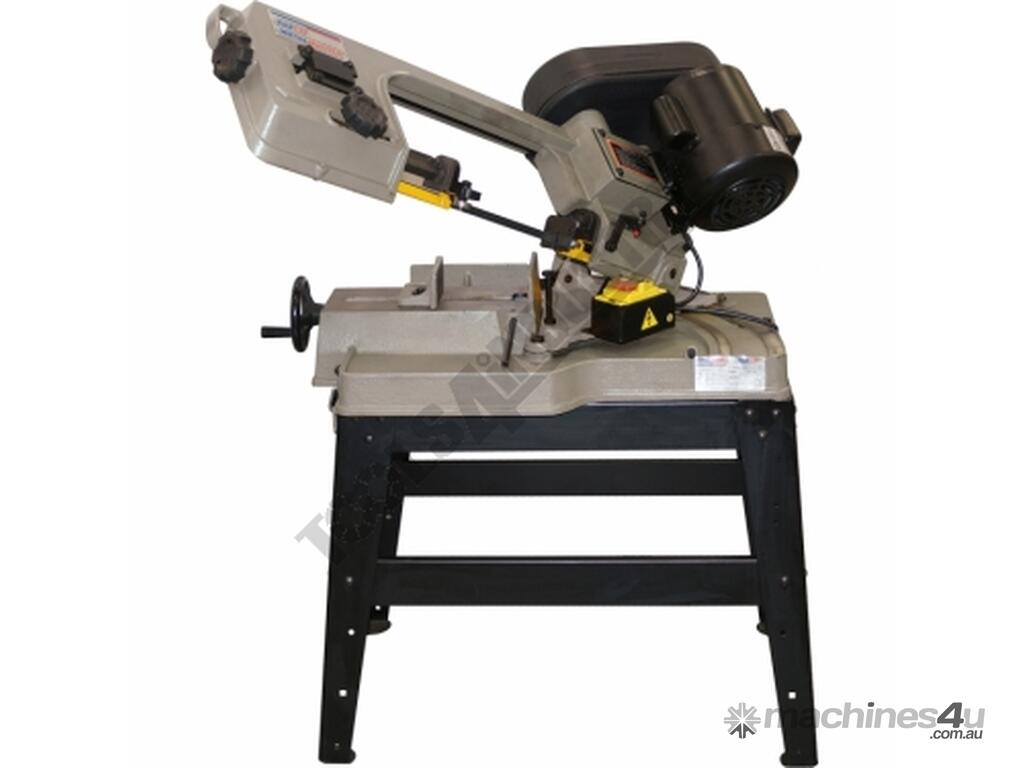

SHAW - HAFCO BS-5S - Swivel Head Metal Cutting

Description
Manufactured in Taiwan

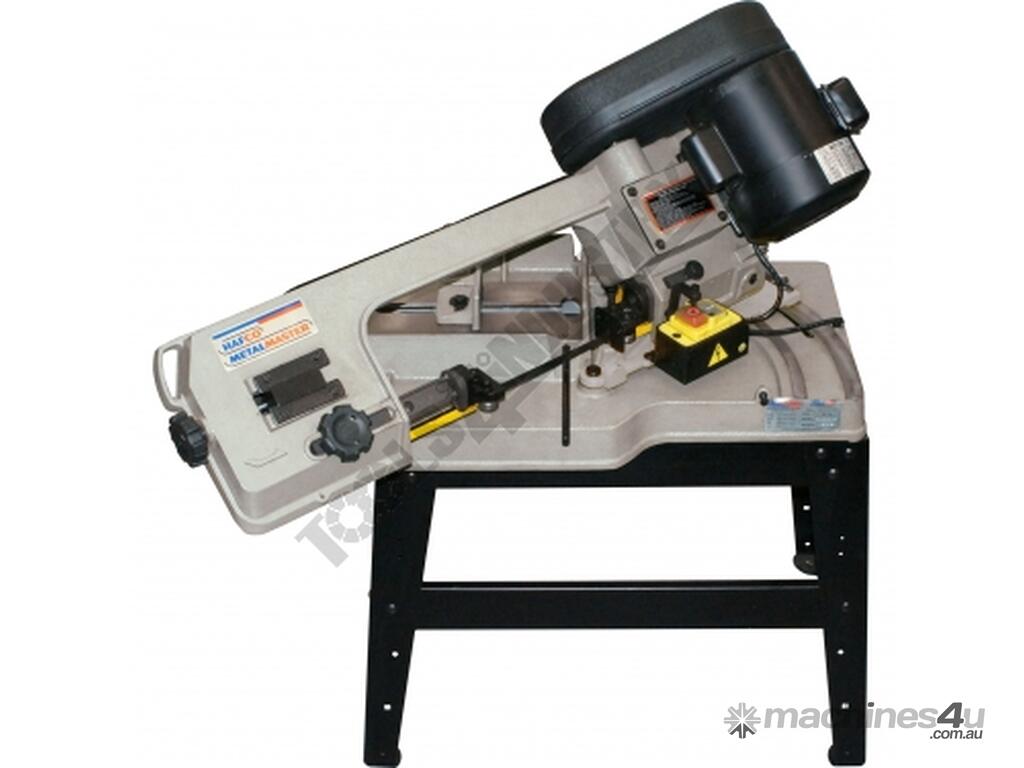

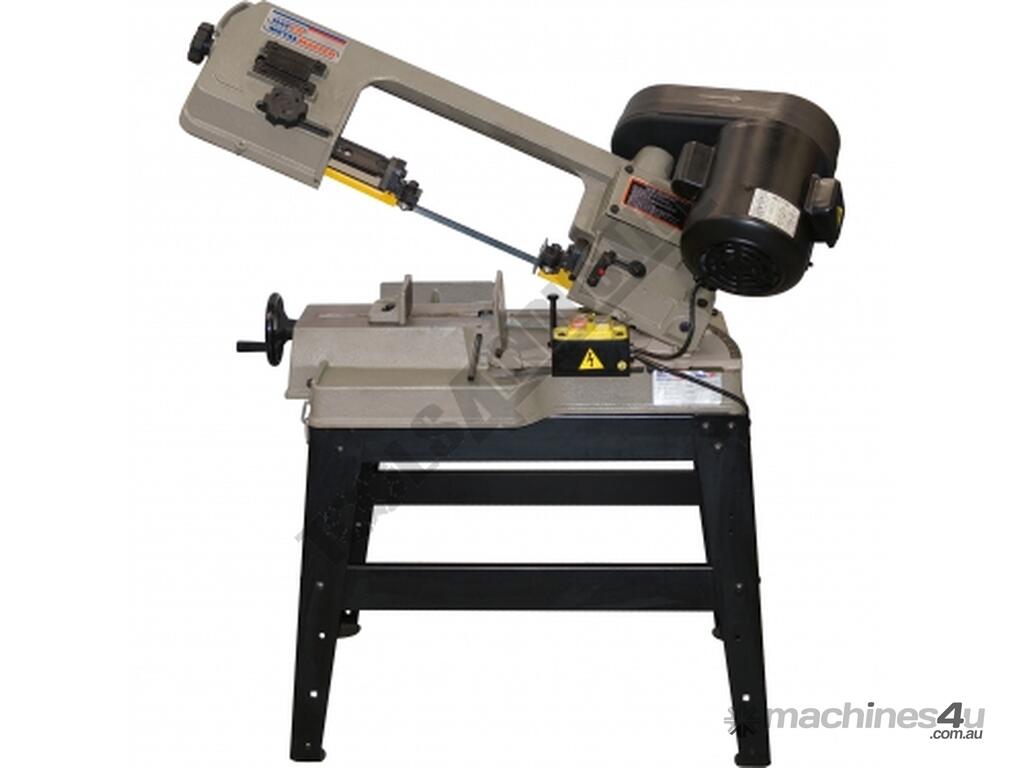

The BS-5S is step up from the BS-4A & BS-5 simply by the unique designed of the swivel head enables the material to be located in its original clamping position, therefore when cutting long material at an angle it wont interfere with other items around the work shop.

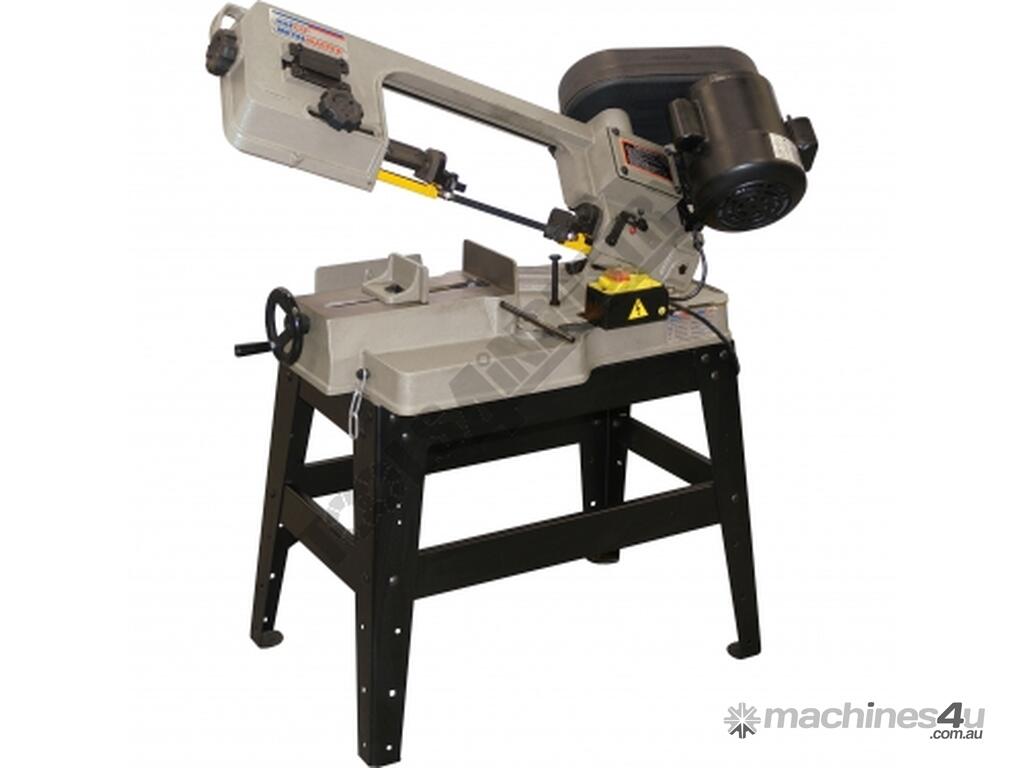

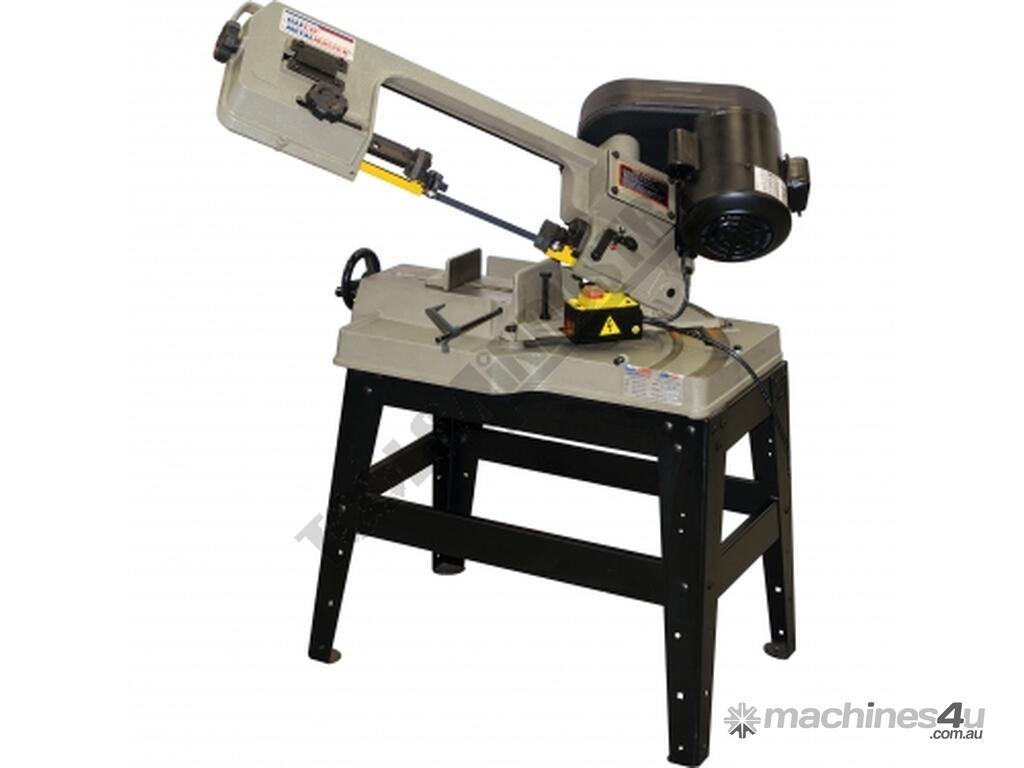

This economically priced metal cutting band saw incorporates a wide and robust four-legged stand cross braced with four leg supports for additional stability when cutting longer and heavier material. The ball bearing guided blade can be driven at a choice of three speeds via a reduction gearbox, depending on the type of material being cut and there is an automatic cut-off, adjustable for height, for stopping the motor when the cut is complete.

One notable feature on this saw is it supplied with an additional work table enabling the operator to use this machine in a vertical operation, ideal for maintenance shops, light steel fabrications, and engineering workshops. A well priced and very effective machine for cutting steel bars, angles, channels, tubes and so on.
Features
200 x 125mm (W x H) rectangular capacity
Ideal for cutting tube, pipe, solid steel, non-ferrous and wood

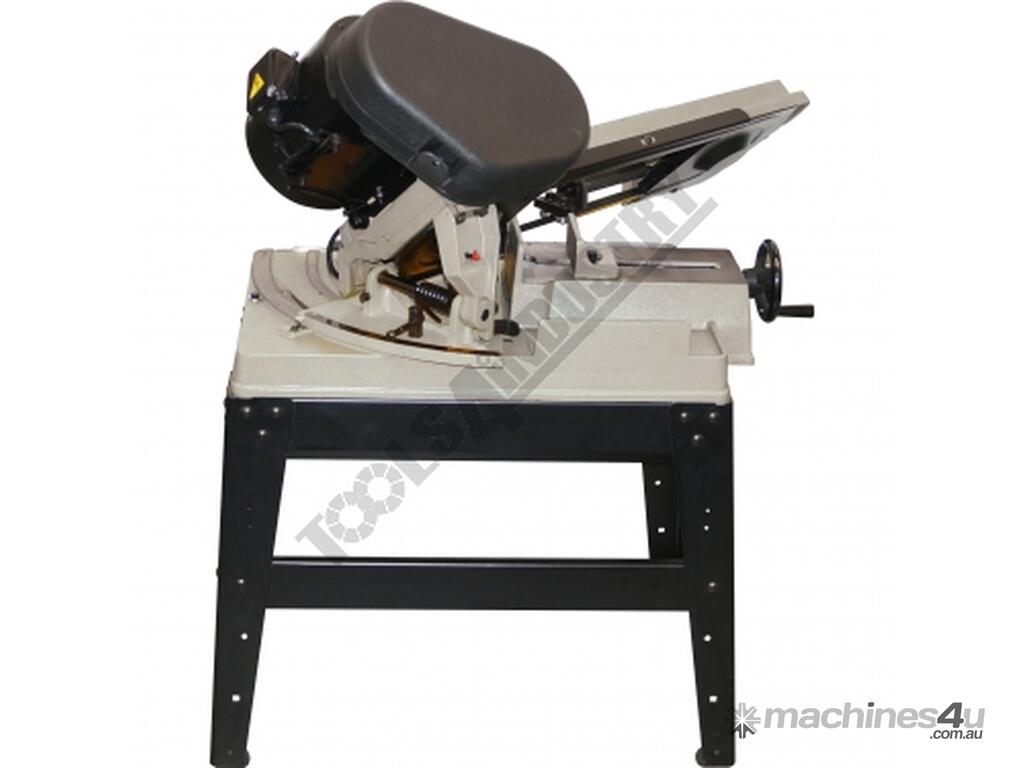

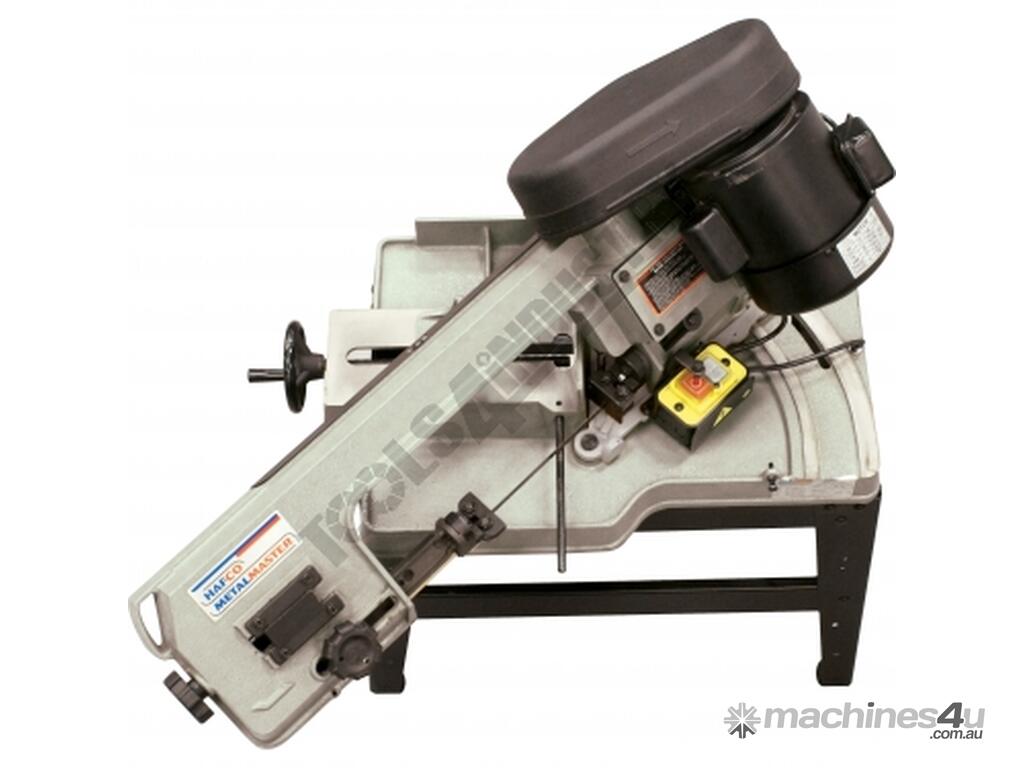

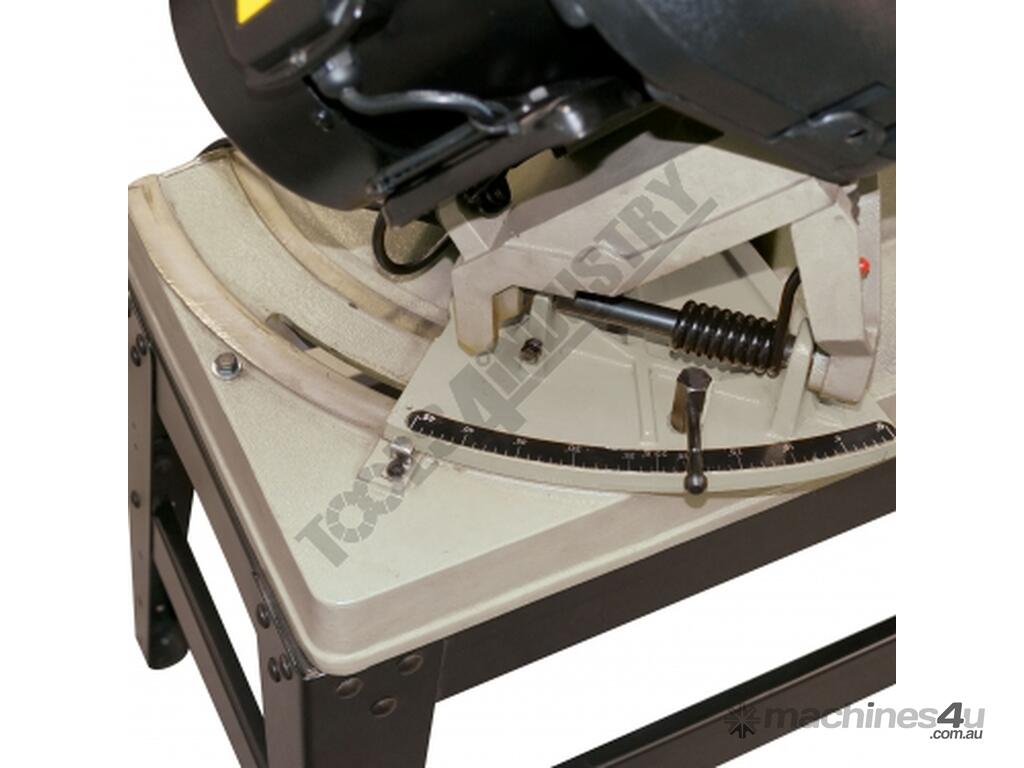

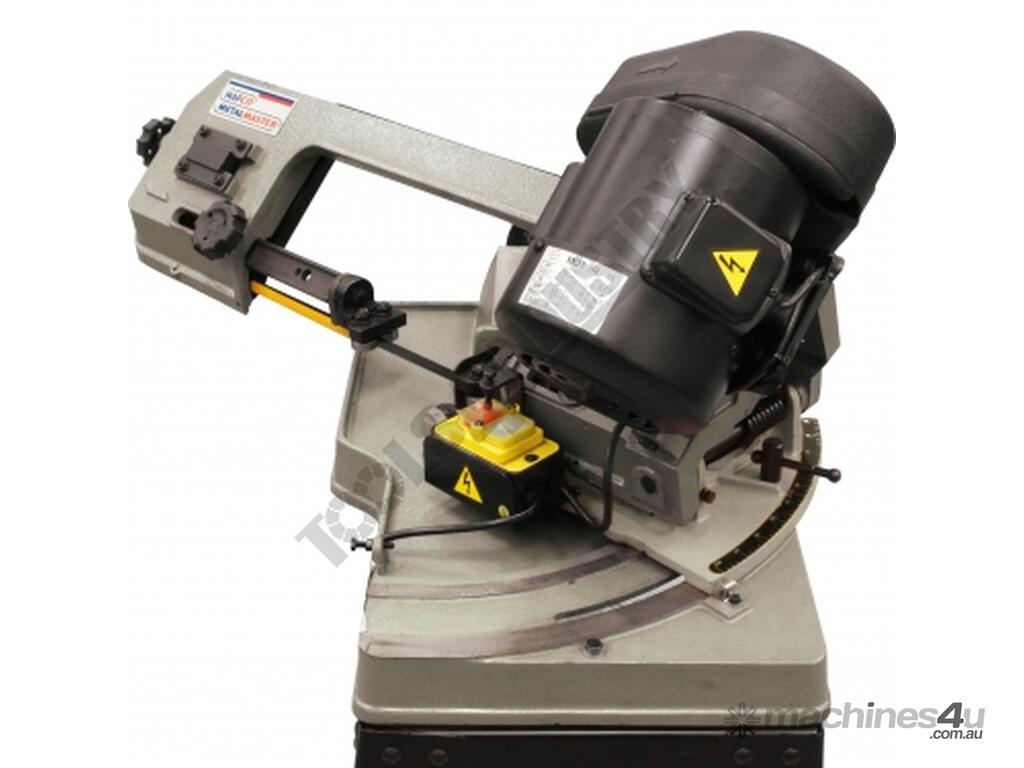

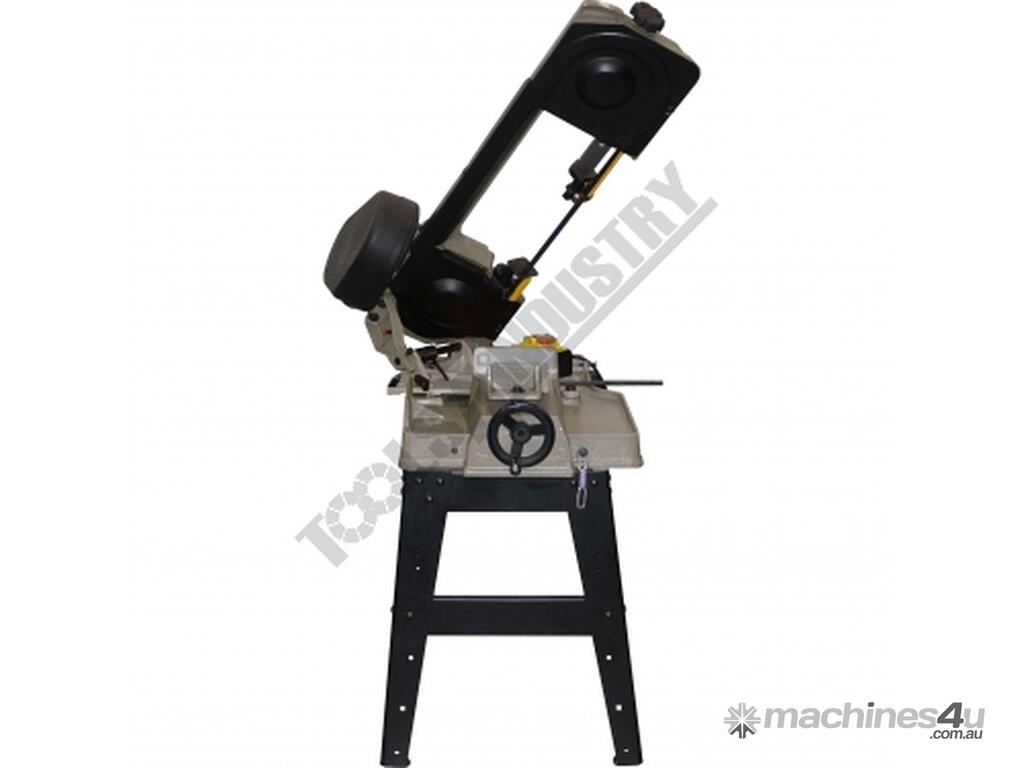

45º swivel head for easy angle cutting without moving the material
Adjustable spring tension screw regulating cutting feed rate

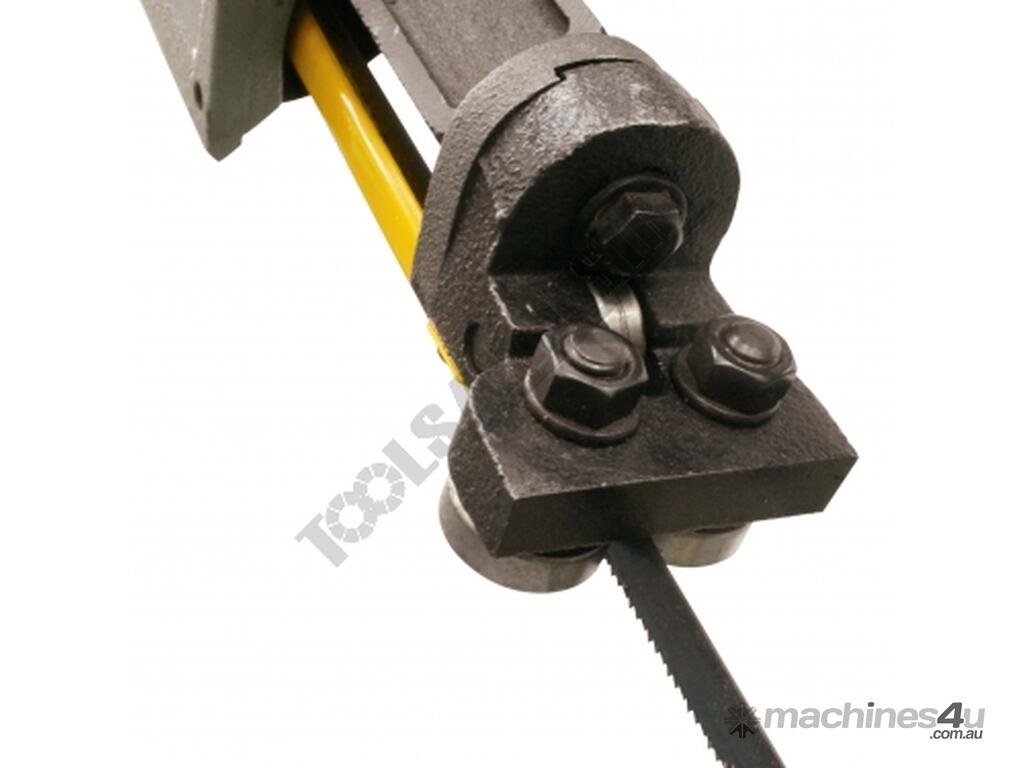

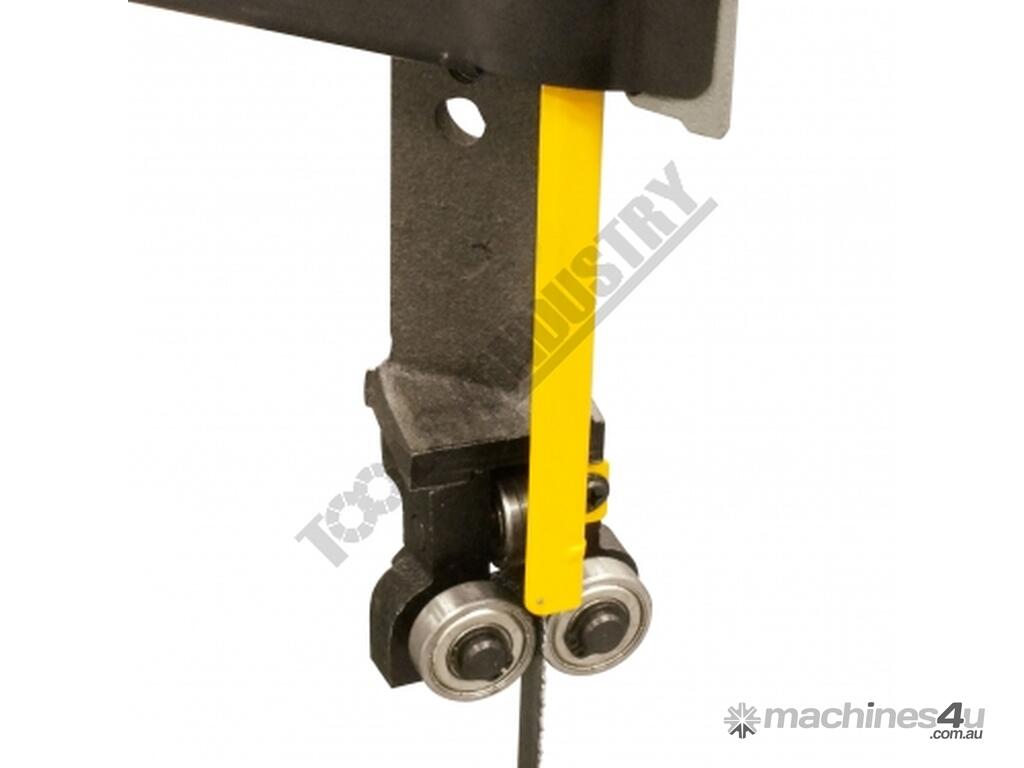

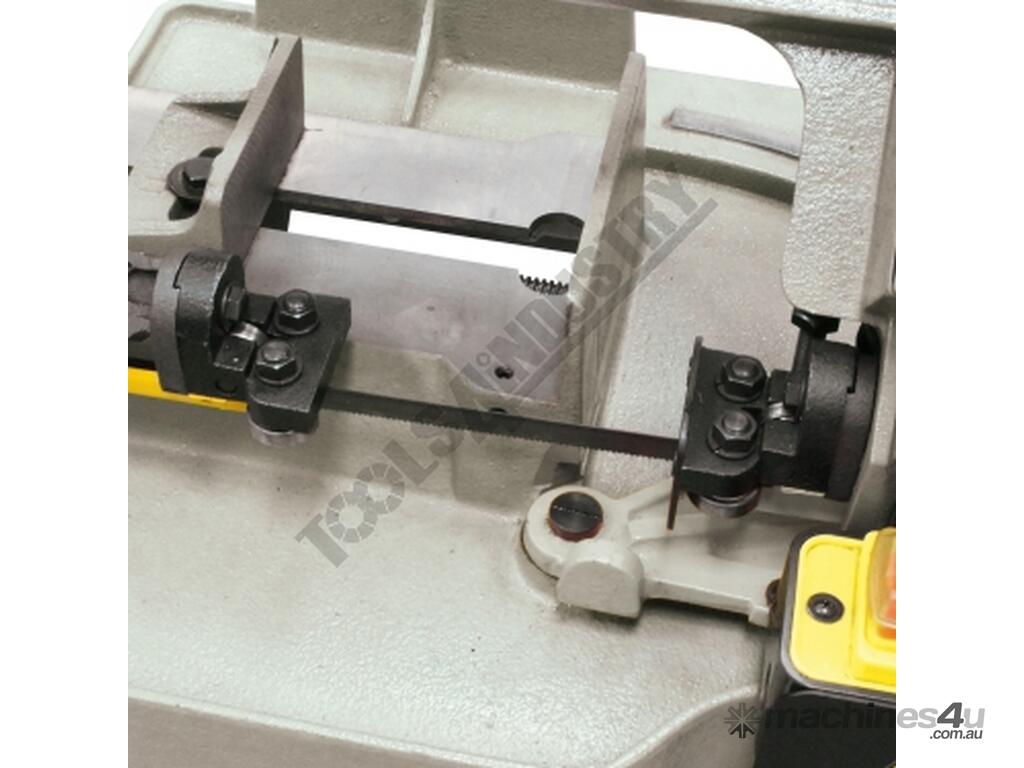

Fully-adjustable blade roller for accurate and straight cutting

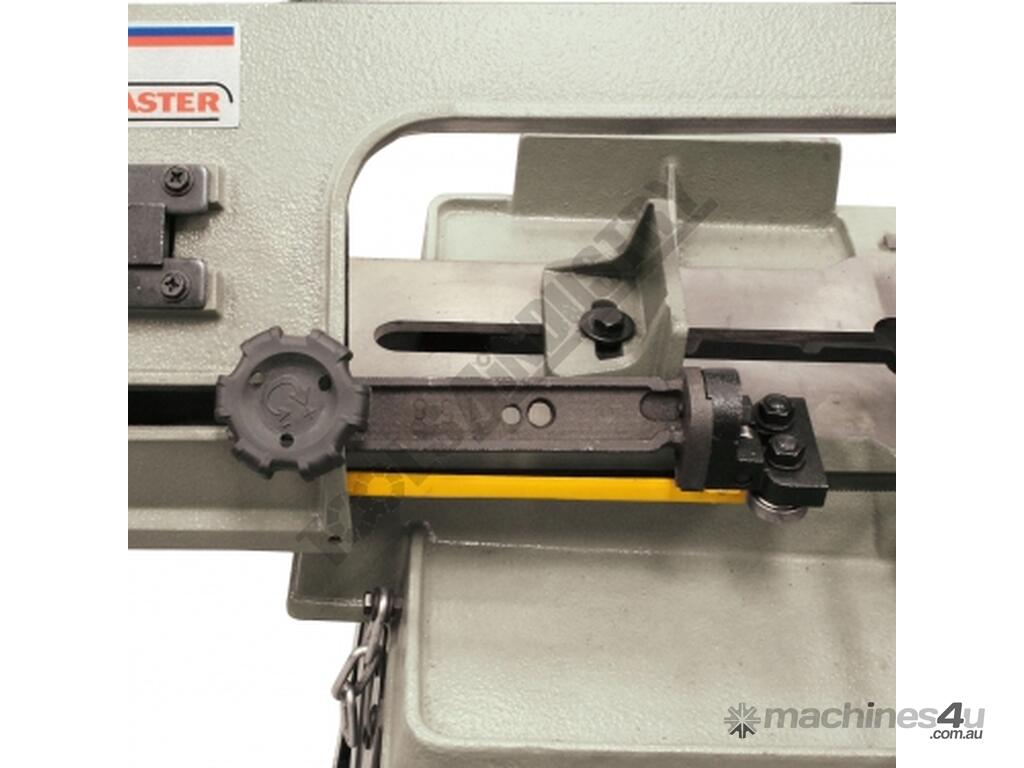

Adjustable length stop for repetition cutting
3-speed pulley drive system

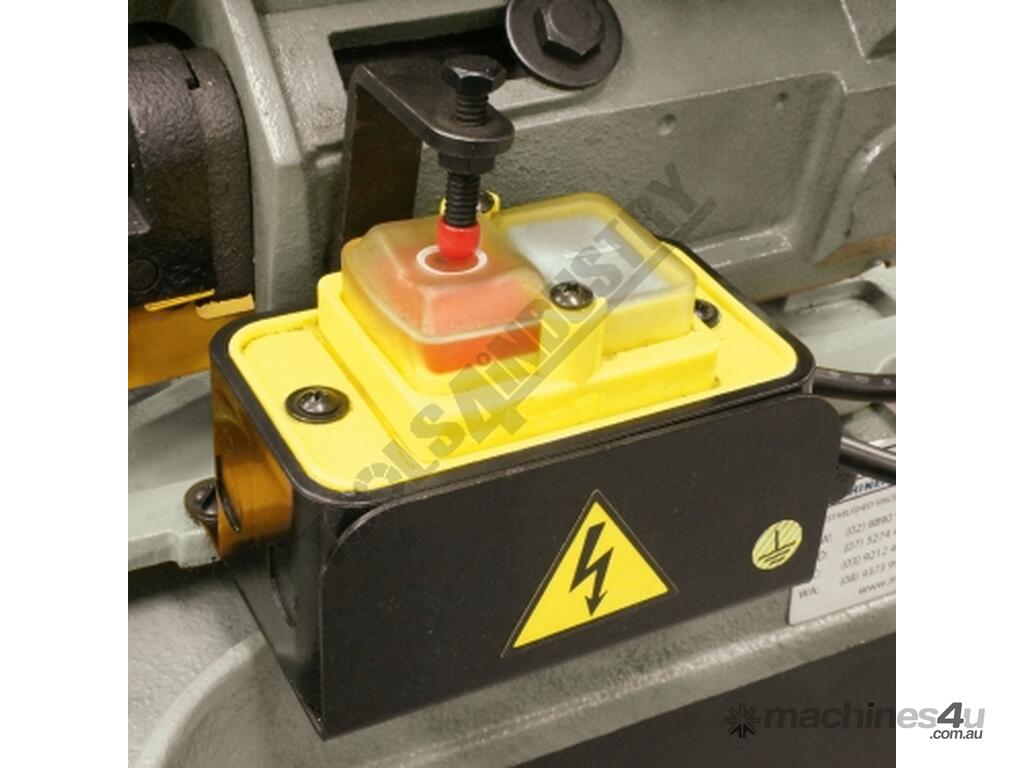

Automatic electric cut-out switch

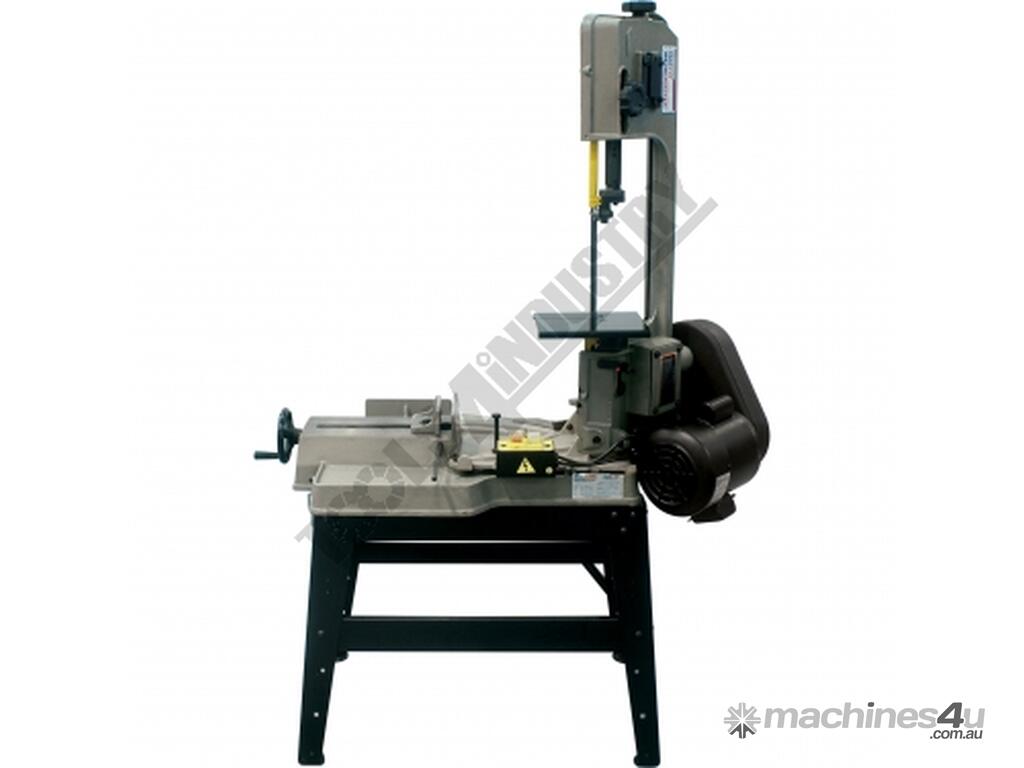

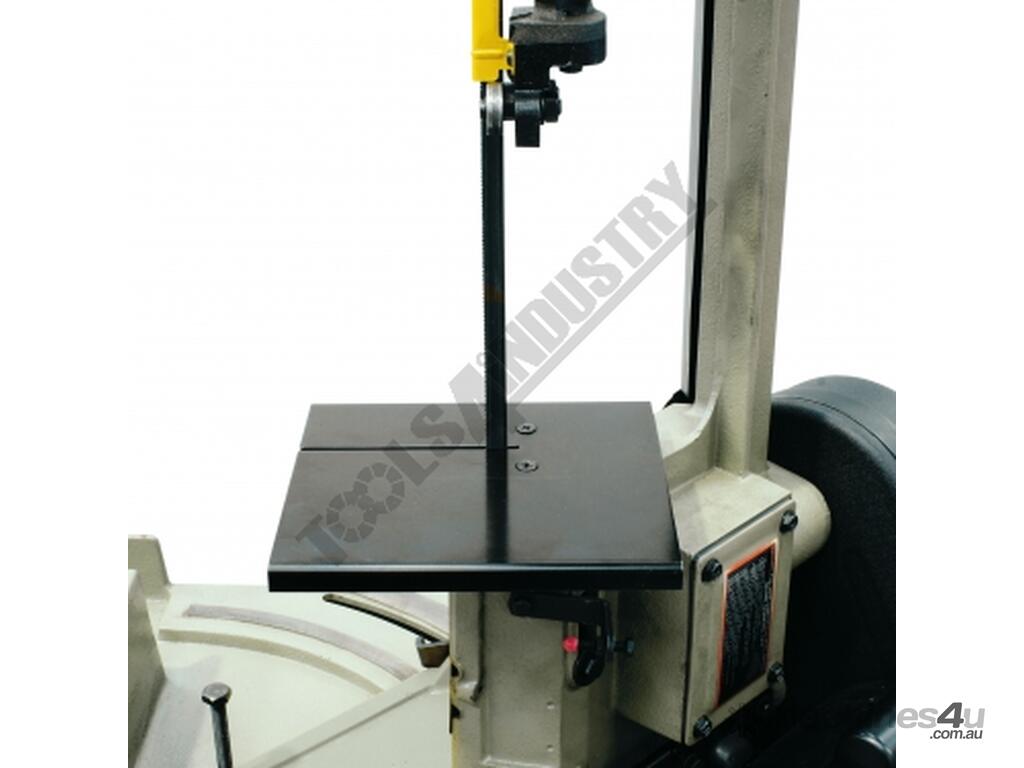

Vertical cutting table included
Sealed worm and pinion gearbox drive

ORDER CODE B003
Model BS-5S
Operation Type Swivel Head
Cutting Head Beam Type Manual
Cutting Head Beam Return Manual Return Cutting Head Down Feed Control Fixed Spring Type
Round 90º 125mm
Round 45º 80mm
Square 90º 125mm
Square 45º 75mm
Rectangle (W x H) 90º 200 x 125mm Rectangle (W x H) 45º 125 x 72mm

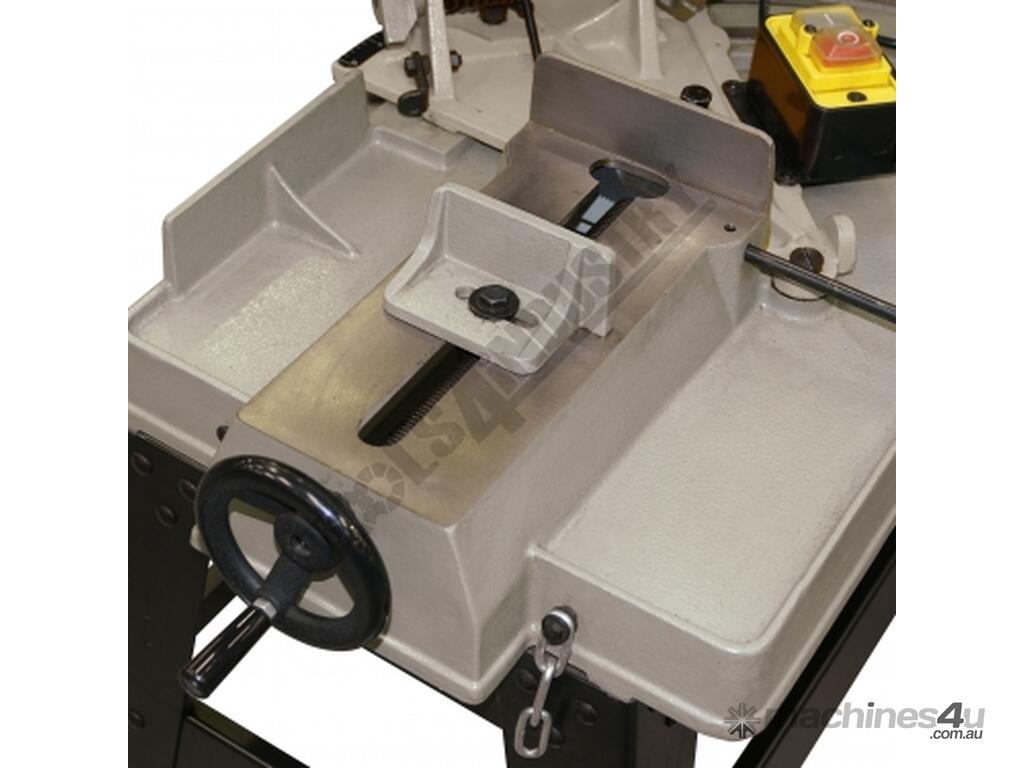

Vice Clamping Fixture Manual
Table Working Height 680mm
Blade Steps / Speeds M/min
Blade Size (L x W x T)1727 x 12.7 x 0.65mm Motor Power 0.375kW / 1/2hp Voltage 240V
Weight (nett)70kg
