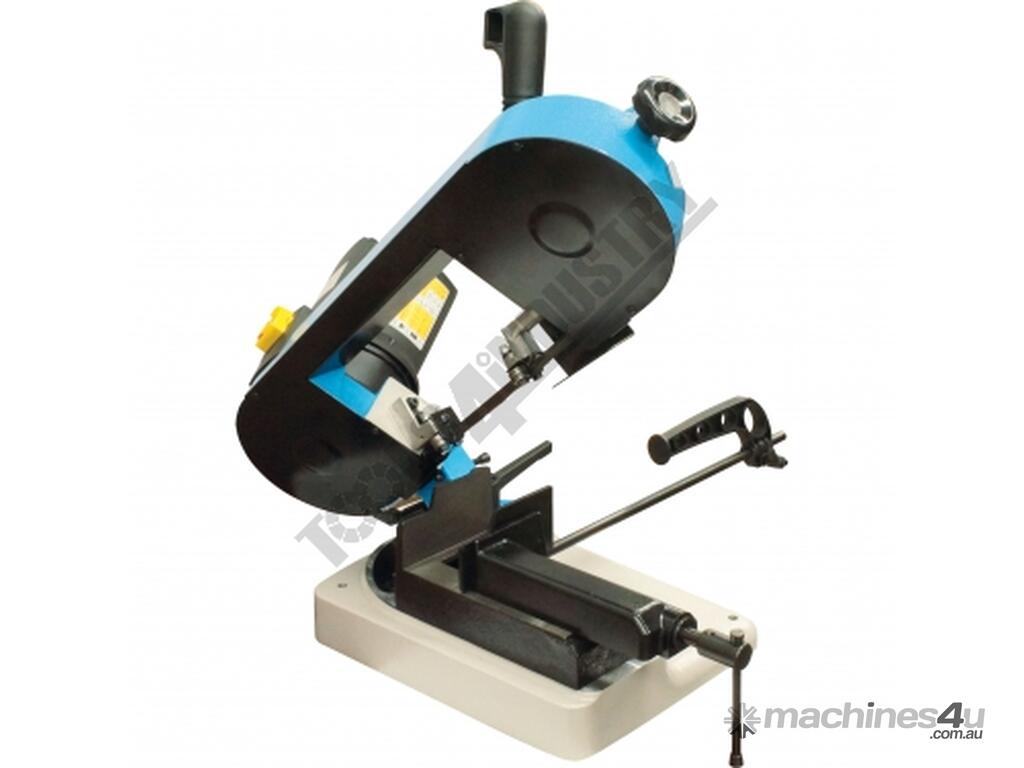

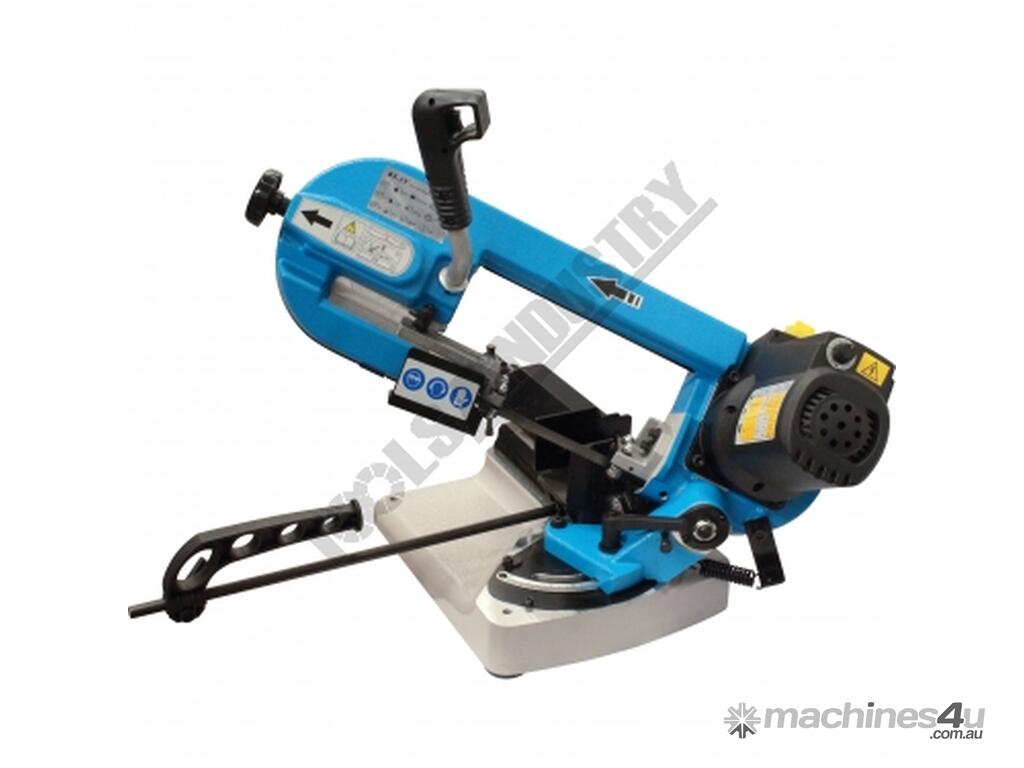

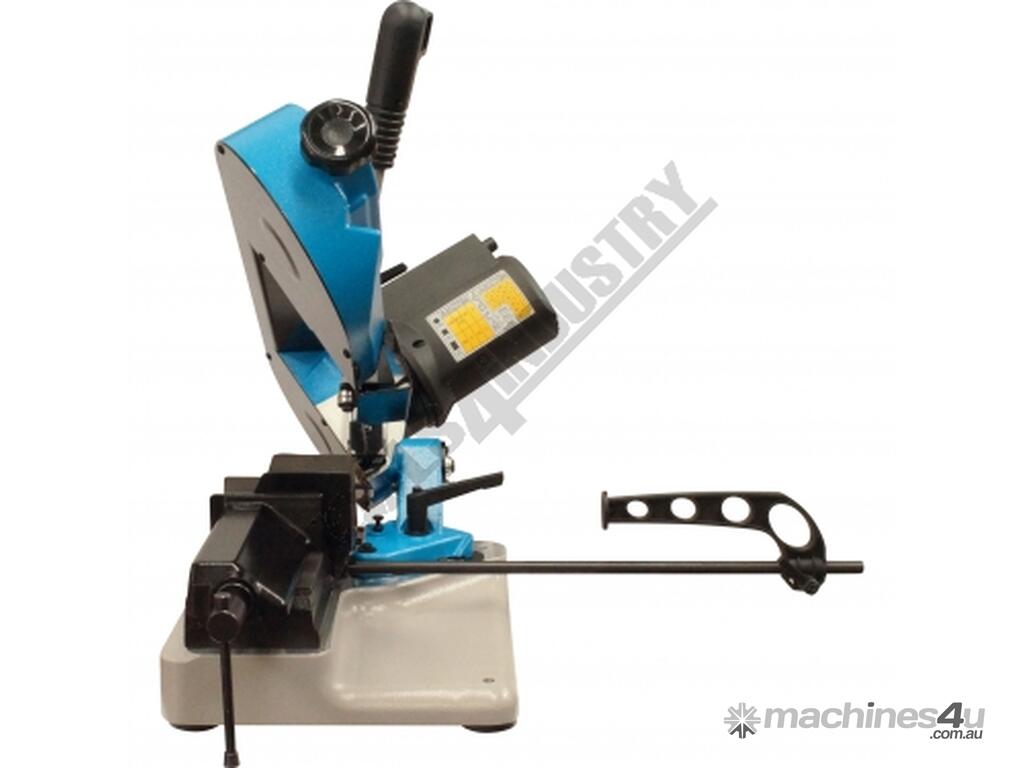

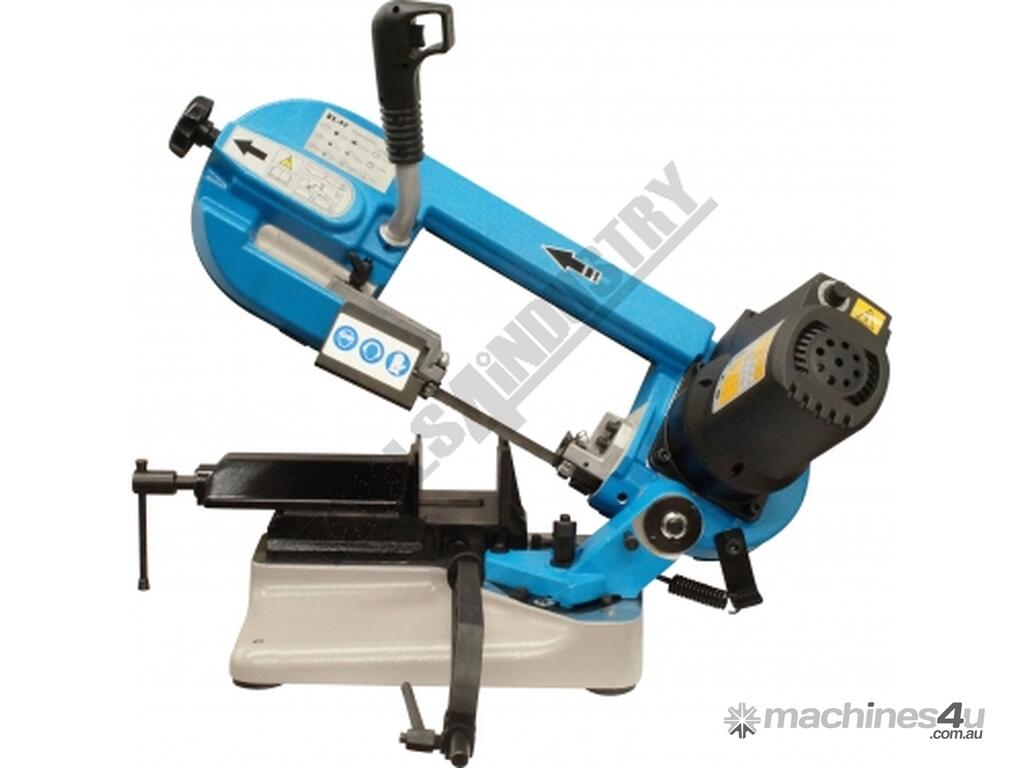

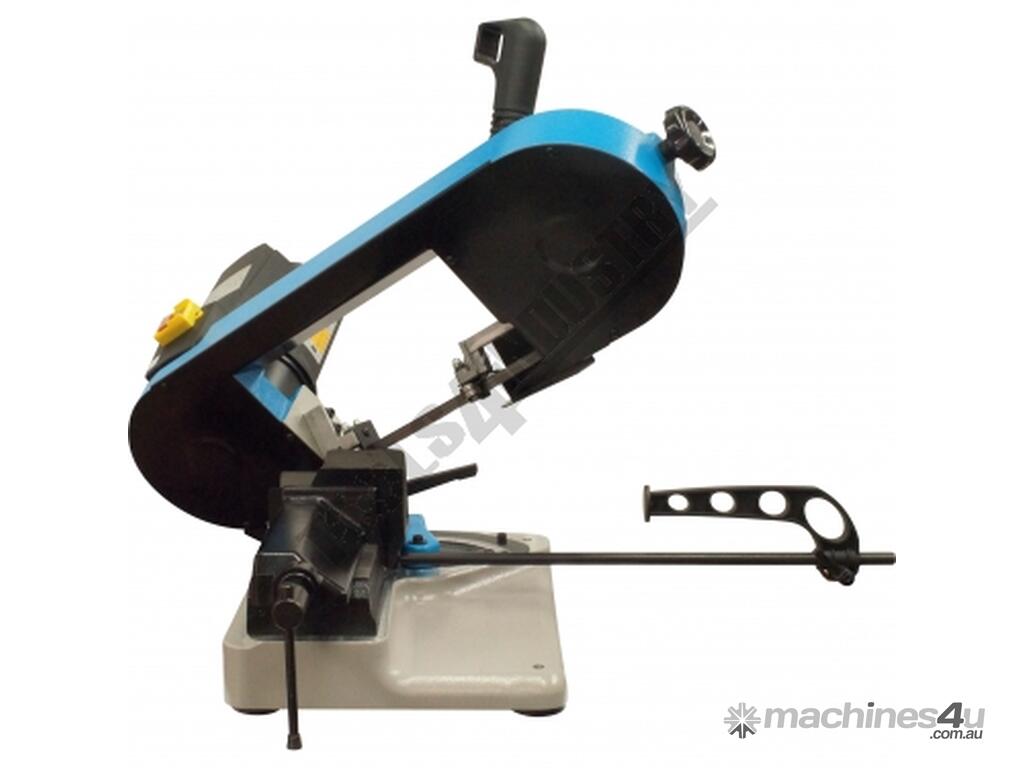

The BS-5V is the smallest portable swivel head metal cutting band saw in our range. It is very suitable for the home model engineer where space may be tight but an accurate machine is required. Constructed mainly from cast alloy and steel, it has a very rigid bow that enables a high degree of tension to be applied to the blade. The whole bow and motor assembly can be swivelled from 0° to 60° to create accurate mitre cuts. The blade is firmly guided by double ball bearing and is driven via the direct drive motor fitted with variable speed, so the blade speed can be adjusted to suit the task in hand. The conveniently located hand trigger switch on the bow and a spring system supports the weight of the bow during operation. This is a compact and very well made machine with enough capacity for most home model engineers and it can be relied on to deliver an accurate cut every time.
Features
Compact & portable design for the smaller workshop where space is at a premium
Cast aluminium base & saw bow frame

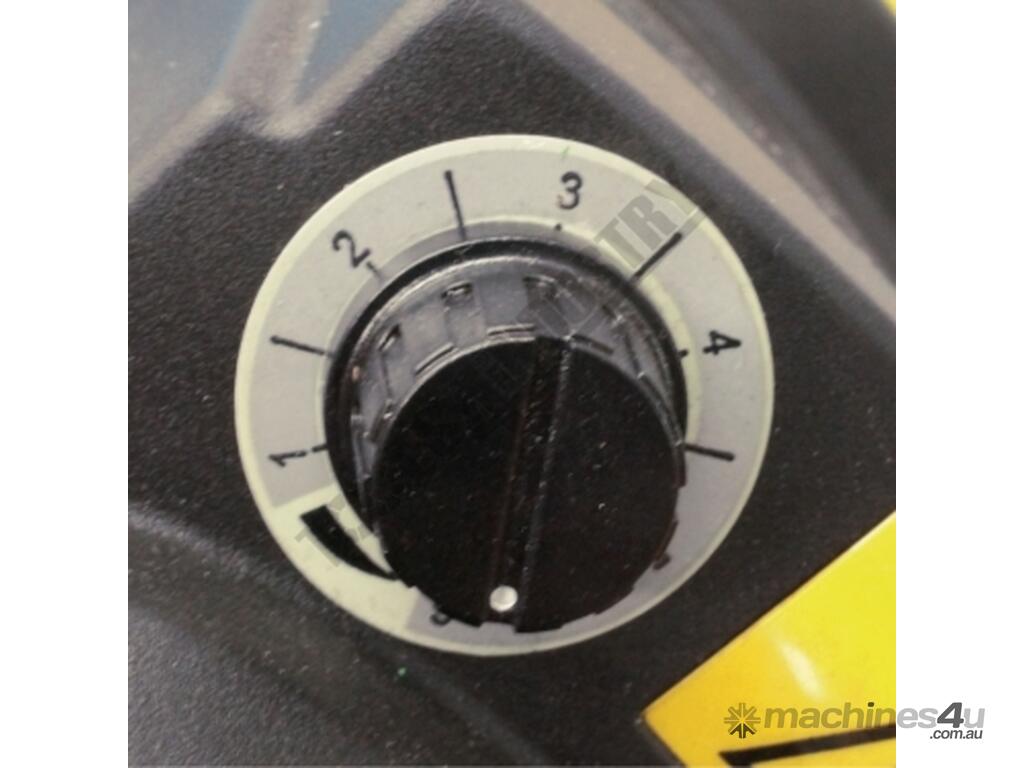

Electronic variable blade speed 30-80mpm
Quiet running, direct drive, variable speed motor

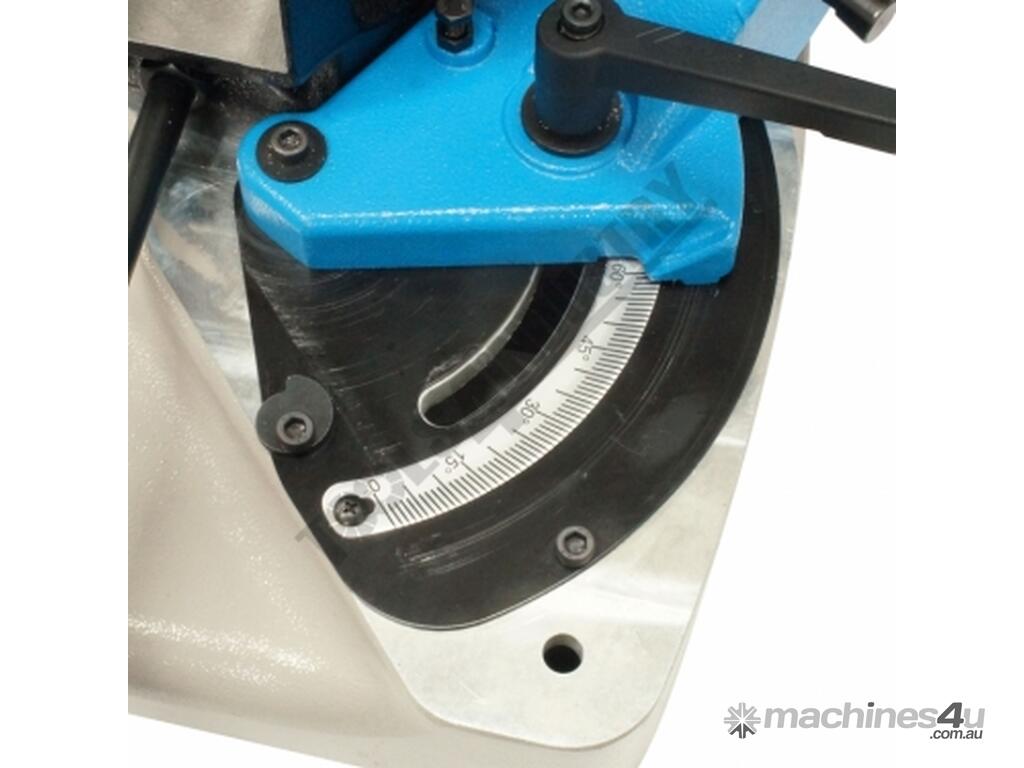

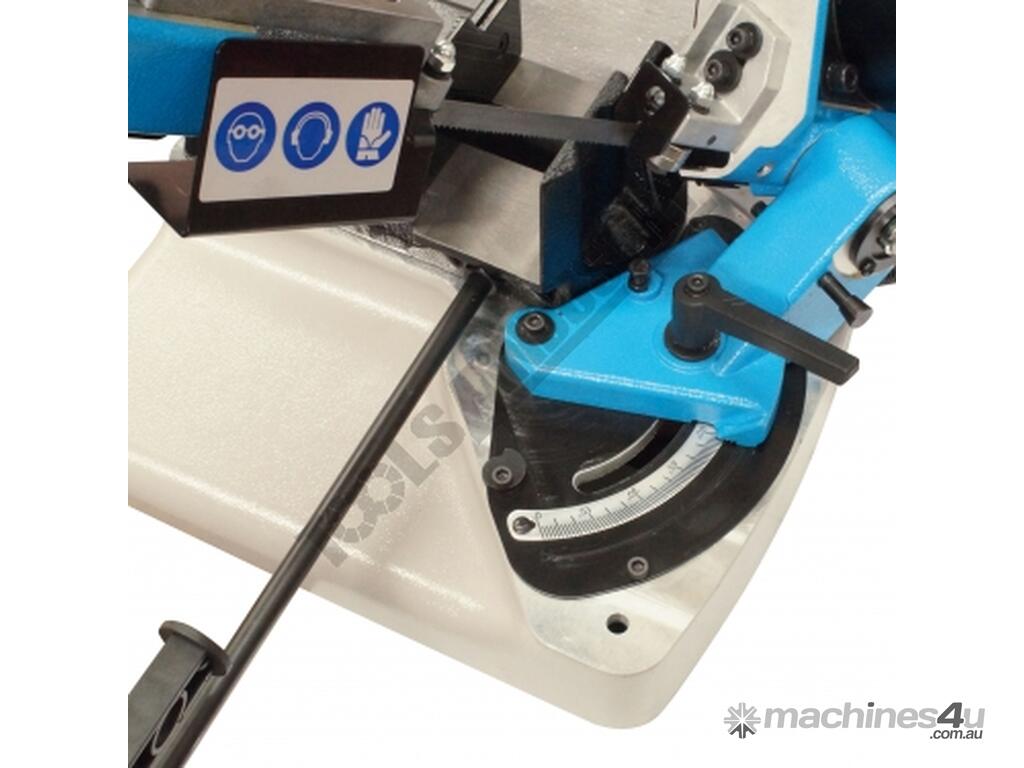

Swivel head to 60º using calibrated vice

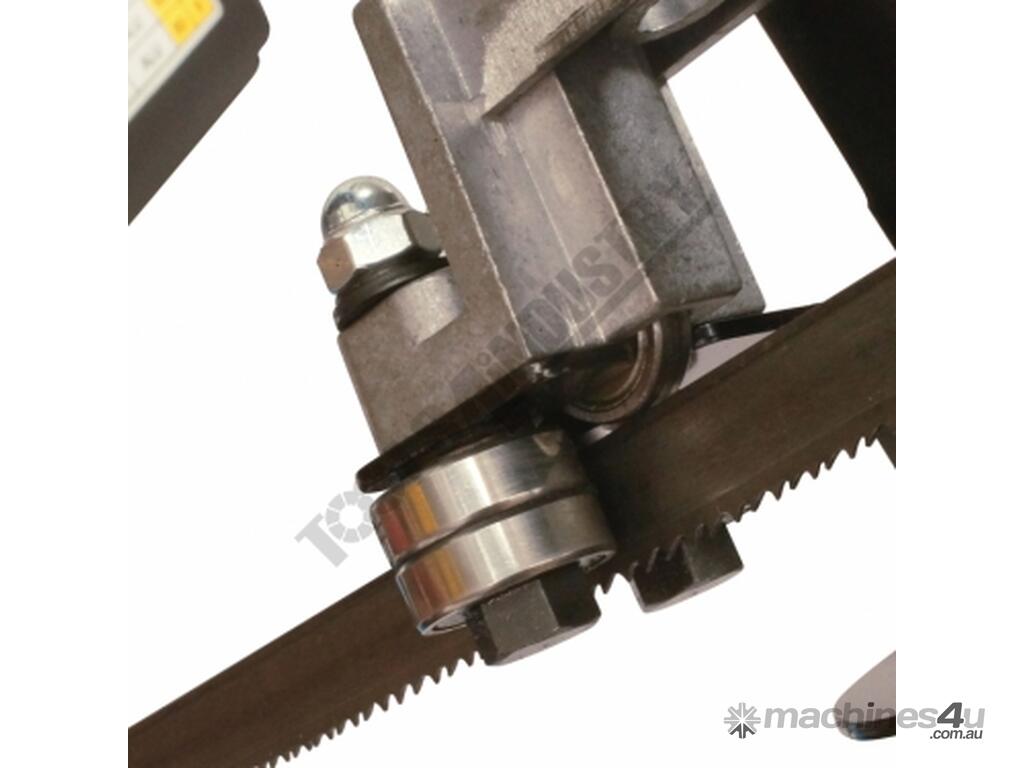

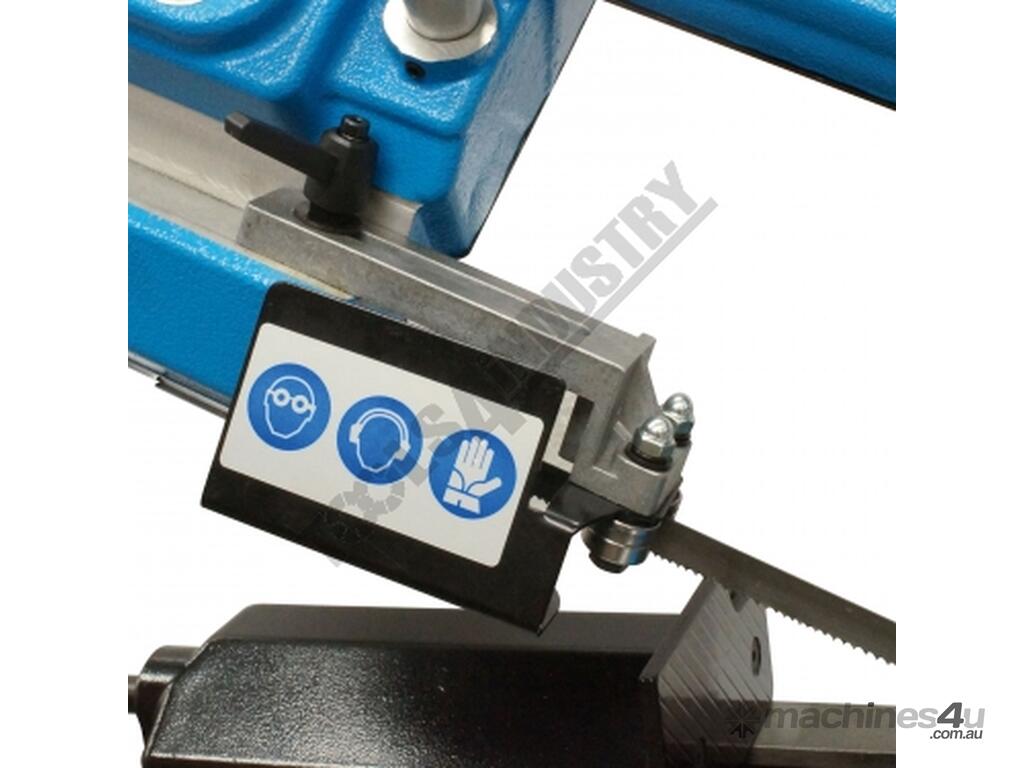

Double ball bearing blade guides
Operational handle with start trigger switch
Adjustable length stop for repetition cutting
Safety magnetic main power switch
Adjustable blade roller guides
1kW / 1.3hp 240V motor
ORDER CODE B004
Model BS-5V
Operation Type Swivel Head
Cutting Head Beam Type Manual
Cutting Head Beam Return Manual Return Cutting Head Down Feed Control Manual Round 90º 125mm
Round 45º 80mm
Round 60º 50mm
Square 90º 125mm
Square 45º 80
Square 60º 50mm
Rectangle (W x H) 90º 130 x 125mm Rectangle (W x H) 45º 80 x 80mm Rectangle (W x H) 60º 50 x 50mm
Vice Clamping Fixture Manual
Table Working Height 110mm
Blade Steps / Speeds variable 30-80 M/min Blade Size (L x W x T)1440 x 12.7 x 0.65mm Motor Power 1kW / 1.3hp
Voltage 240V
Weight (nett) 23kg
