SHAW - HAFCO BS 7L Metal Cutting Bandsaw

BS-7L METAL CUTTING BANDSAW (240V)

CALL FOR OUR BEST PRICE

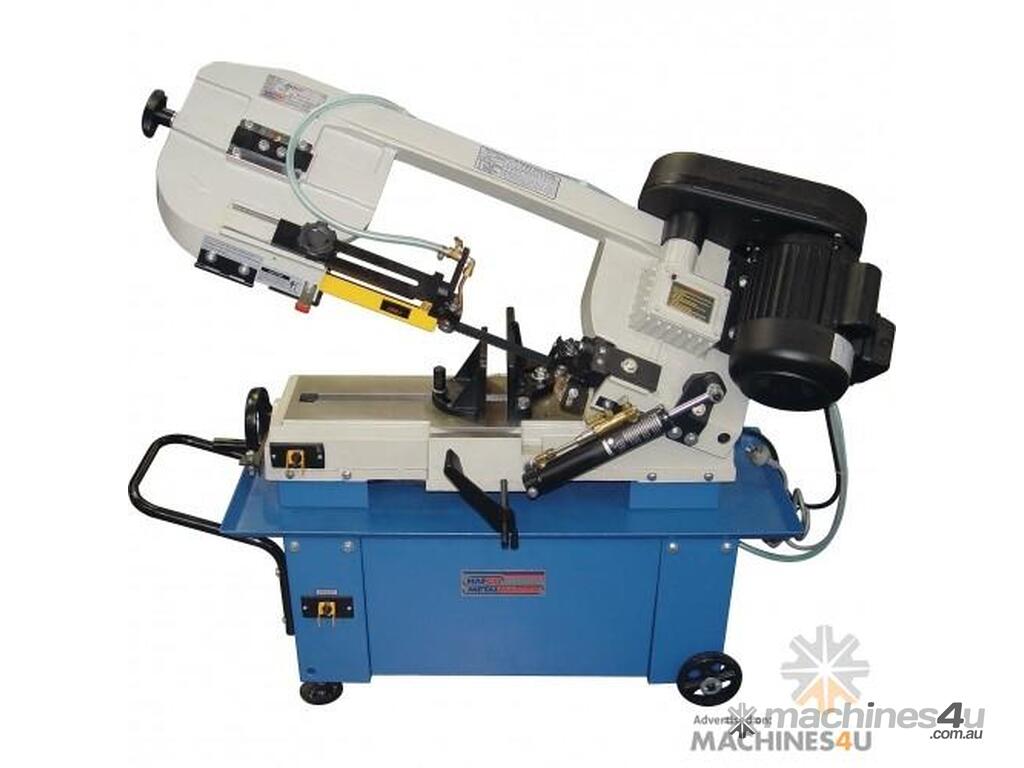

The BS-7L medium duty metal cutting bandsaw has many features on offer with a capacity of up to 178mm diameter or 178 x 305mm in steel. There is a choice of four blade speeds via an adjustable 4 stage pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and long blade life.

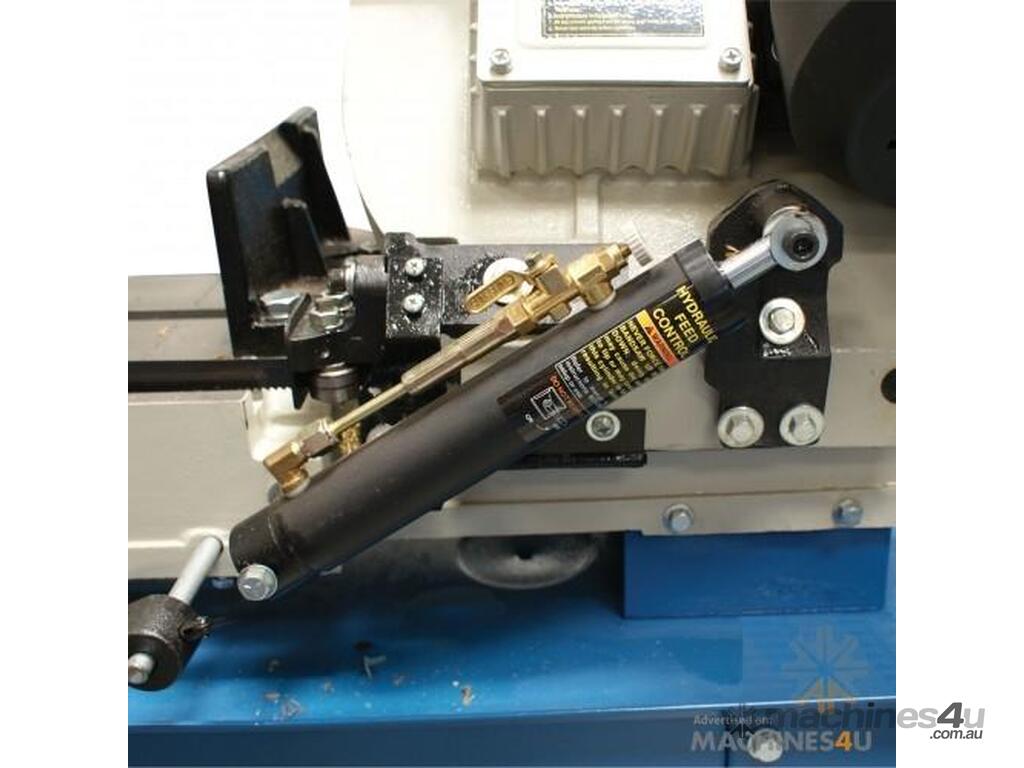

The cutting operation is fully automatic, with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, medium steel fabrications, and engineering workshops.

Features
178 x 305mm rectangular capacity

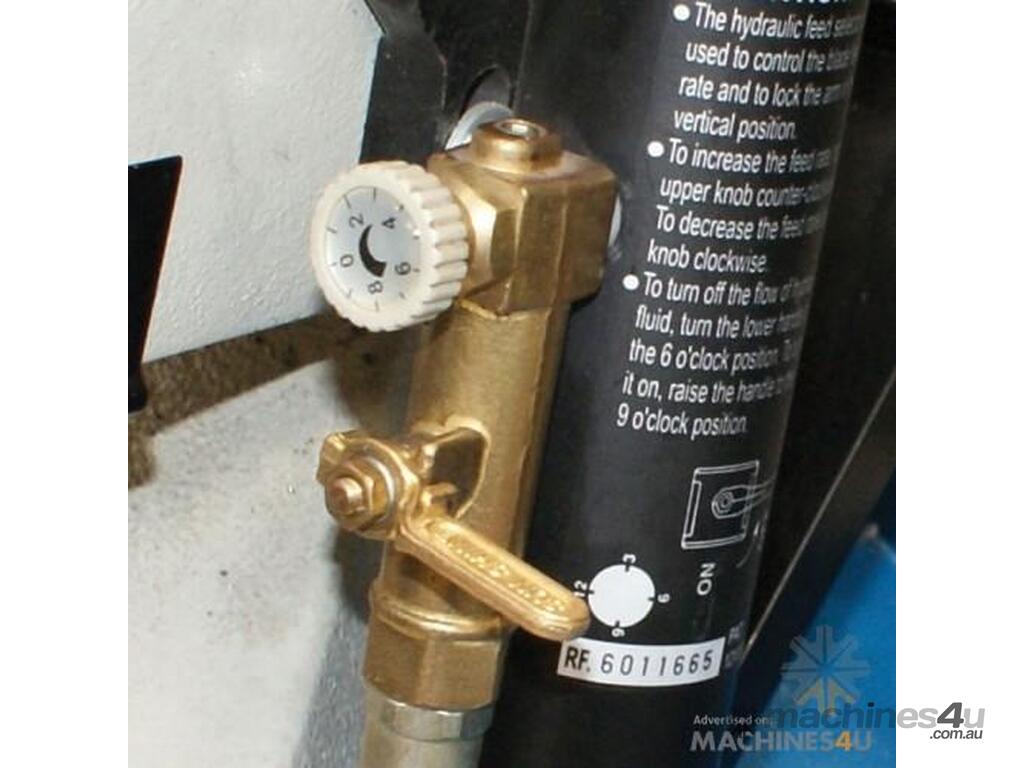

Adjustable hydraulic feed cutting rate for multiple applications
Mitre cuts to 45 degree using calibrated vice

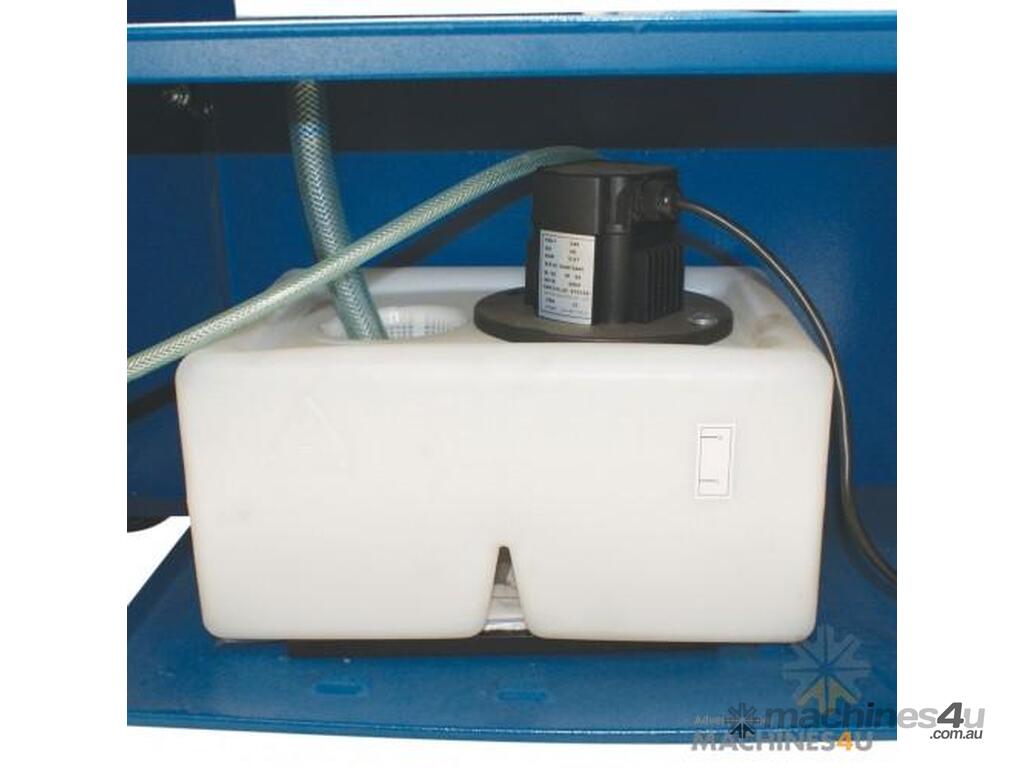

Built-in coolant system for maximum cutting efficiency
Limit switch stops machine when cut is complete

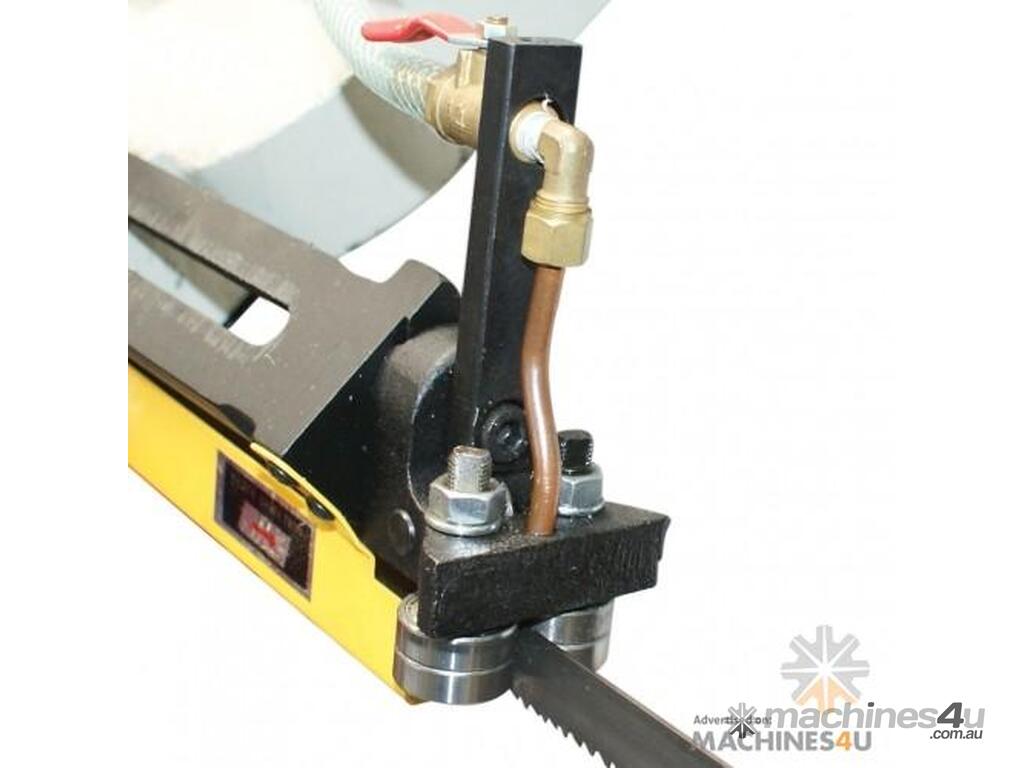

Adjustable blade roller guides provides accurate cutting

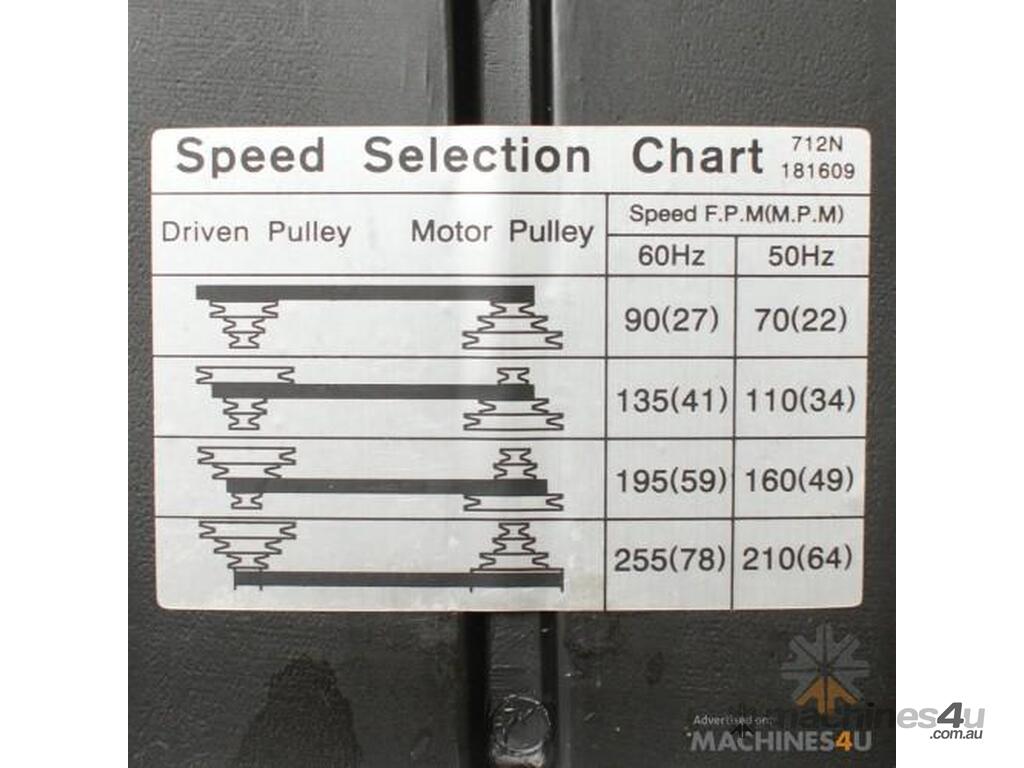

Adjustable 4-speed pulley drive system enabling -64mpm cutting speeds
Adjustable length stop for repetition cutting
Portable - on wheels for ease of use
Vertical cutting table included
Automatic electric cut-out switch
Heavy-duty 750W/240V fully enclosed fan-cooled moto

Specifications:
CODE:B006
MODEL:BS-7L
HEAD TYPE:Fixed
TYPE/OPERATION:Hor/Vert/Manual
CAPACITY at Angle:90 degree
Round:178mm
Square:178 x 178mm
Rectangle:178 x 305mm
CAPACITY at Angle:45 degree
Round:127mm
Square:115mm
Rectangle:120 x 115mm
BLADE SPEEDS:-64mpm
Coolant System:Yes
HYDRAULIC MOTOR:
MOTOR:750W / 1HP
VOLTAGE:240V
WEIGHT (NETT):150kg

All prices and specifications are subject to change
