SHAW - HAFCO Bench Lathe AL-336 300 x 900mm

AL-336 300 x 890mm BENCH LATHE

CALL FOR BEST PRICE

A high quality specification, floor standing, heavy duty metal turning lathe suitable for the keen model engineer, general maintenance and small production work shops. Featuring a precision ground, induction hardened bed, fully gear driven spindle with hardened and ground gears with a speed range of 75 - 1400rpm, selectable via the front of headstock mounted gear selection levers.

2hp single phase 240 volt motor is supplied on machine, taper roller spindle bearings, range of cross and longitudinal feed speeds selected on a separate gearbox, thread chasing dial, spindle foot brake, chuck guard with safety interlock, splash guard, coolant pump system, work lamp.

Supplied with a large range of standard accessories including a 150mm(6``) 3 jaw self centring chuck, 200mm(8``) 4 jaw independent chuck, face plate and dead centres. 5 to 3 MT reduction sleeve, steady rest, follow rest and standard tool post. The floor stand is supplied with a swarf tray and incorporates a foot brake. Change gears and toolbox with maintenance tools.

The overall capacities are 900mm between centres and 300mm swing over the bed. A gap bed facility gives 450mm swing. Thread cutting facilities in metric with a reversible leadscrew, the thread chasing dial provides easy re-engagement of the leadscrew in the correct position. Also supplied are change wheels for imperial thread pitches (note the thread chasing dial is designed for metric only).

Features
Gear drive headstock for quick change of spindle speeds

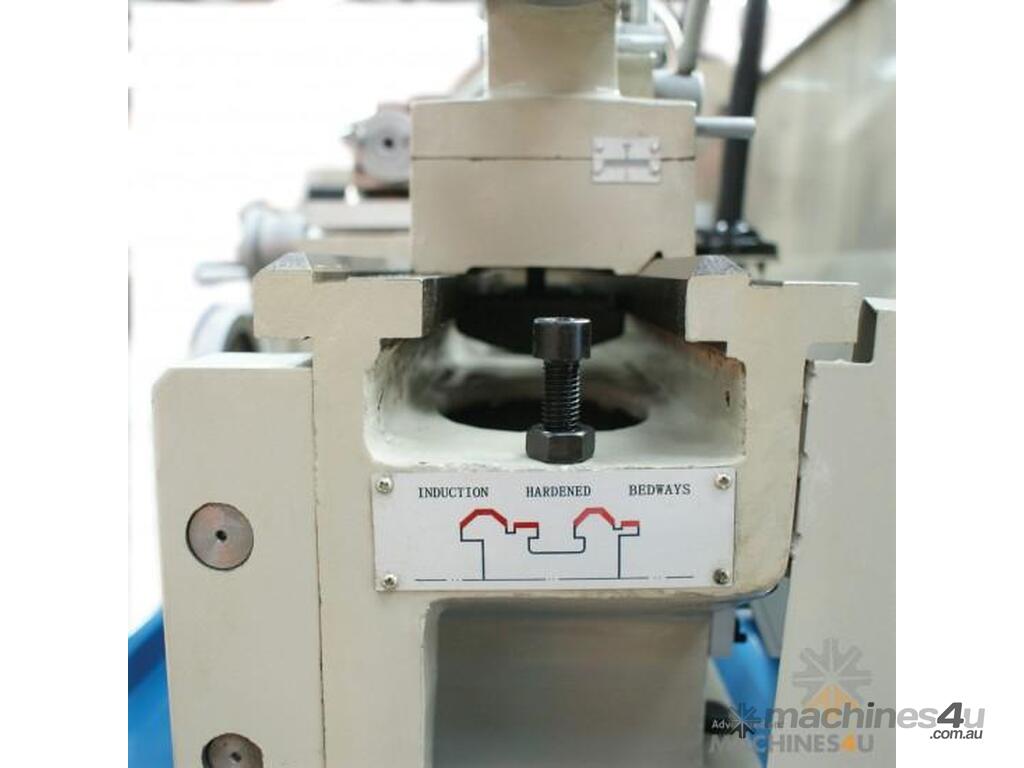

Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
Slide out swarf tray from front of machine
Low voltage work light
Foot operated spindle brake with safety cut out switch
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
18 spindle speeds from 65 to 1810rpm

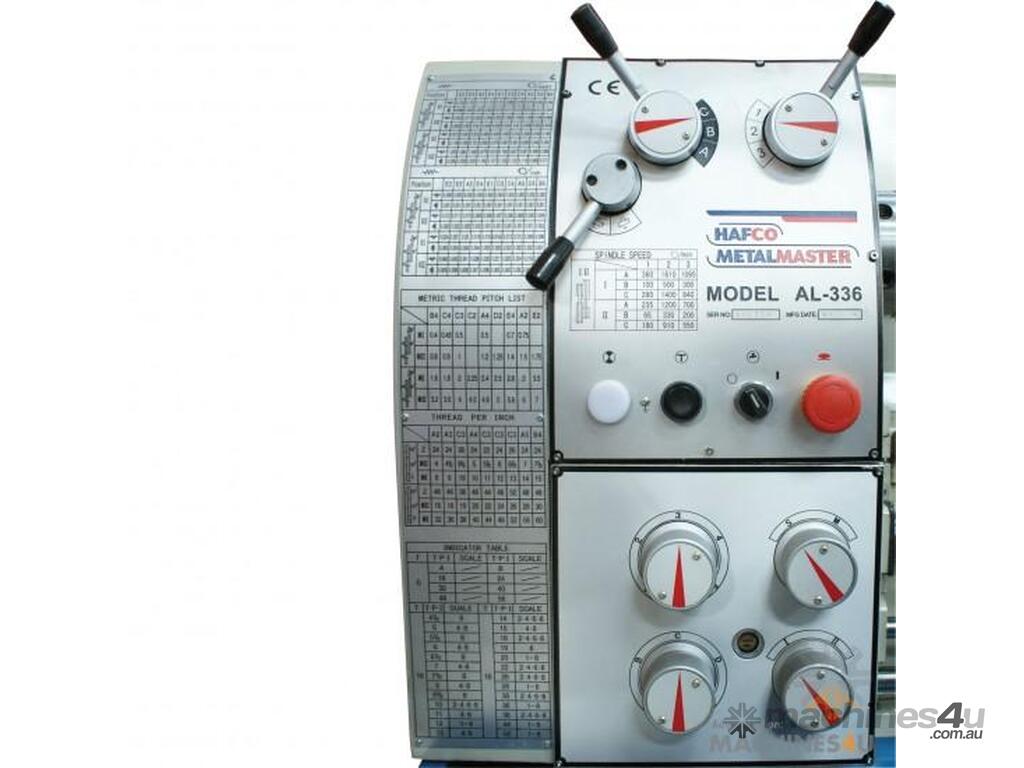

Inching button is incorporated on the control panel for convenient spindle speed selection
Enclosed quick action gearbox for thread cutting and auto feeding

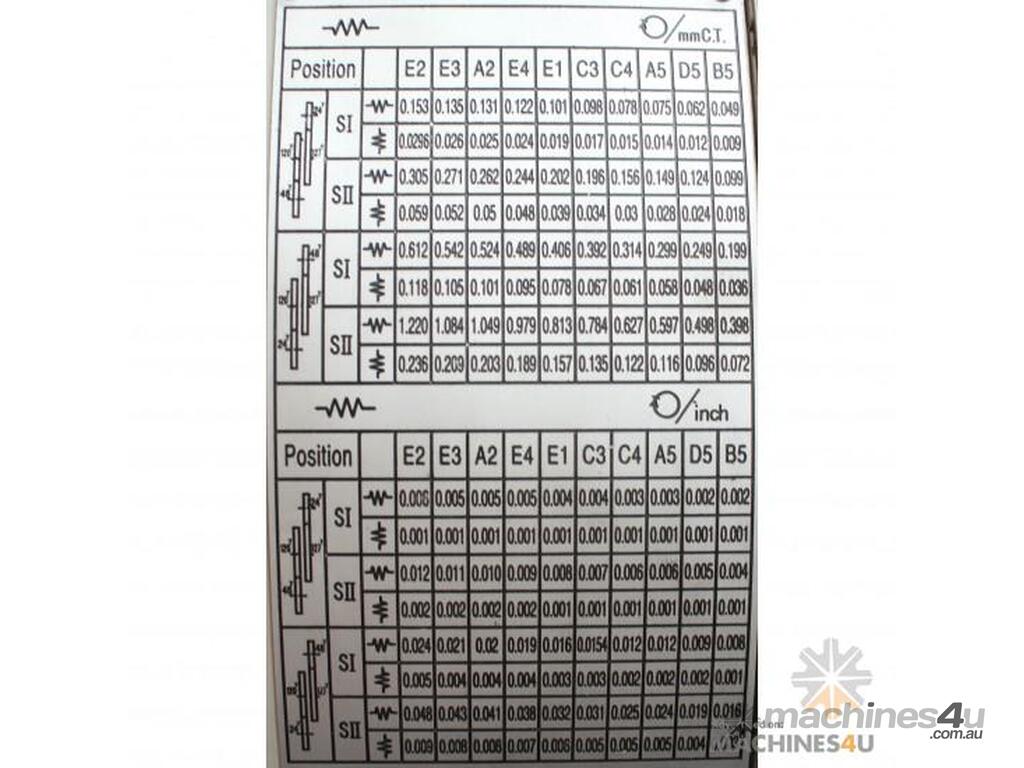

Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Removable gap bed-way for larger diameter jobs
Dual calibrated dials (except for saddle handwheel)

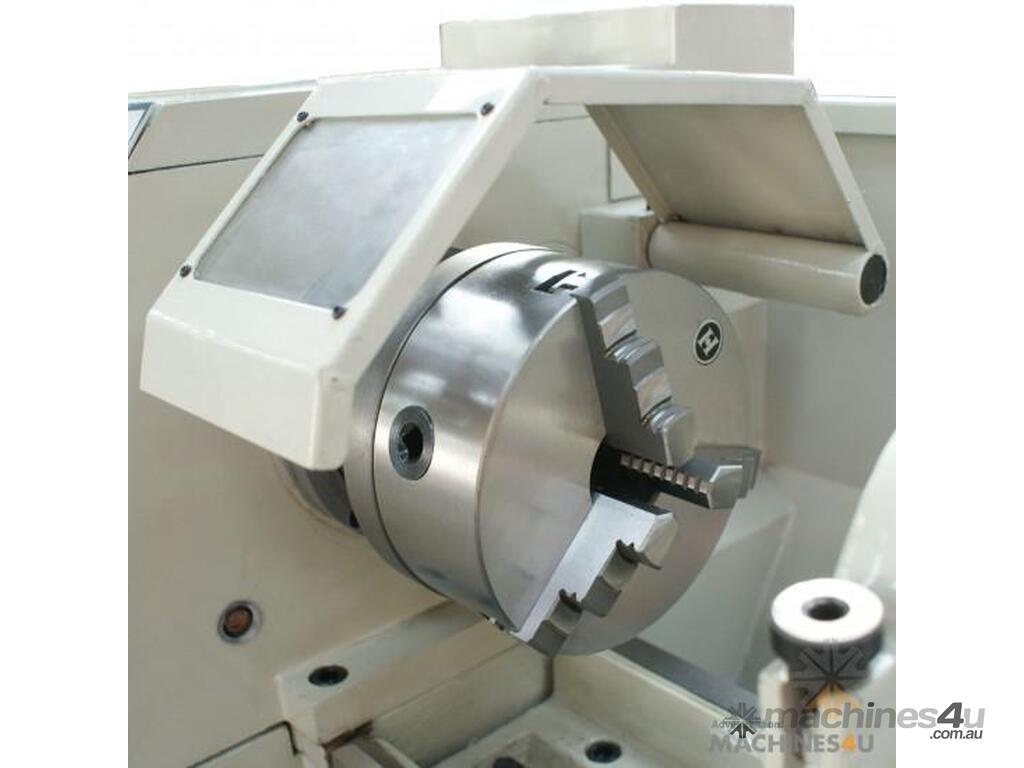

Chuck and change gear guards are fitted with micro switches
12 months warranty

Standard Accessories
3-jaw chuck with reverse jaws
4-jaw chuck
Faceplate
Fixed Steady
Travelling Steady
Change gears
Dead centres

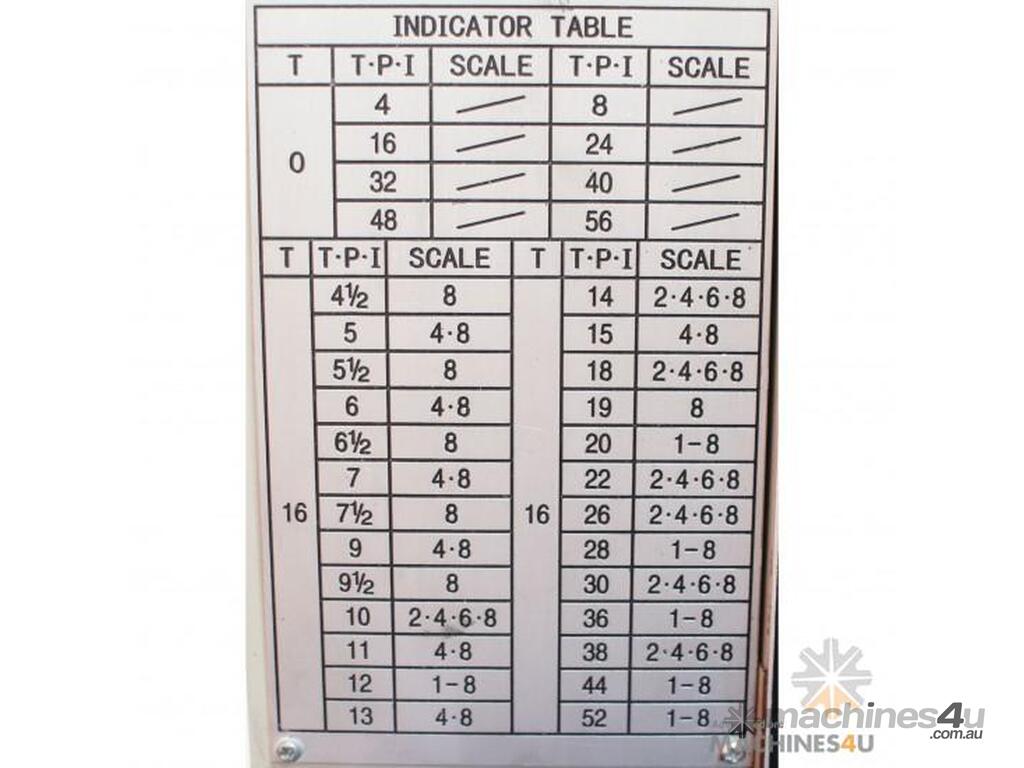

Thread-chasing dial
Work light
Stand
Rear splash guard and swarf tray
Toolbox
Instruction booklet

Specifications:
CODE:L682
MODEL:AL-336
TOOLS TO SUIT:12mm
CENTRE HEIGHT:150mm
DISTANCE BETWEEN CENTRES:900mm
SWING OVER BED:300mm
SWING OVER CROSS-SLIDE:180mm
SWING OVER GAP:450mm
SPINDLE NOSE:D1-4
SPINDLE TAPER:5MT
SPINDLE BORE:38mm
TAILSTOCK TAPER:3MT
SPINDLE SPEED RANGES:18(65-1810rpm)
LEADSCREW:Imperial
IMPERIAL THREAD RANGE:54(4-60TPI)

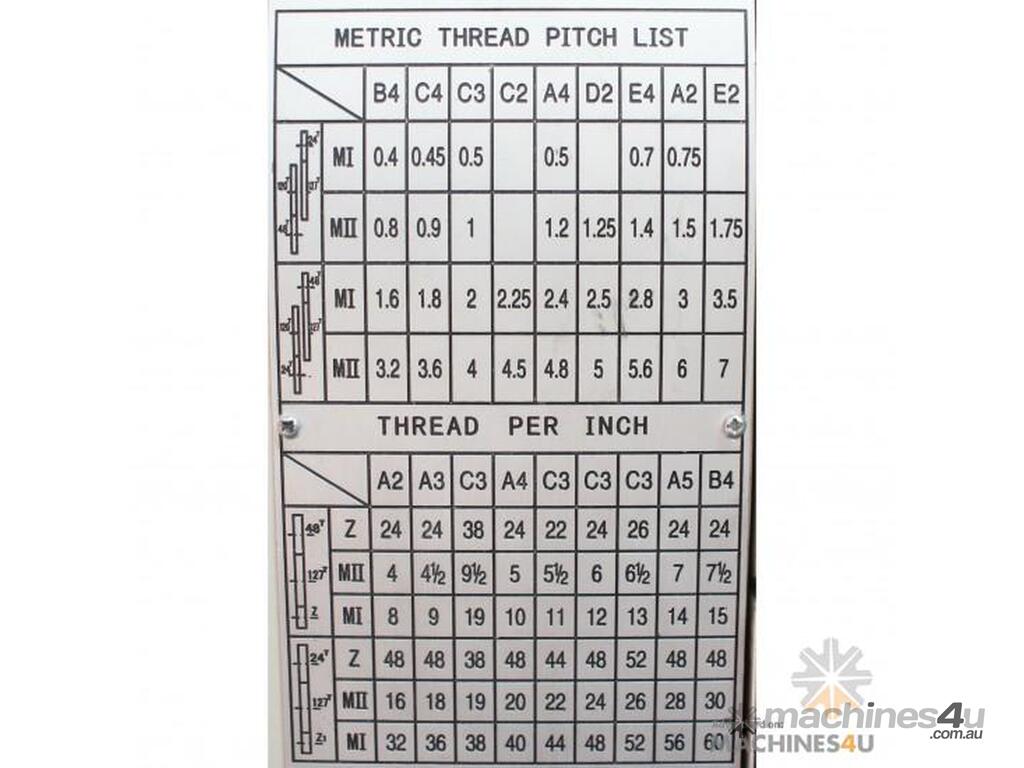

METRIC THREAD RANGE:36(0.4-7mm)
MOTOR:2HP
MOTOR VOLTAGE: 240V
WEIGHT (NETT):590kg

All Prices and specifications are subject to change and are GST exclusive
