SHAW - HAFCO Bench Lathe AL-960B with DRO

New Hafco Lathe:

CALL FOR OUT BEST PRICE

Order Code: L237D
AL-960B - Bench Lathe with Stand (240V)
305 x 925mm
Includes Digital Readout & Cabinet Stand

A superior Taiwanese quality specification, floor standing, heavy duty metal turning lathe suitable for the enthusiastic home model engineer, gunsmith engineers and small work shops. Featuring a precision ground, induction hardened bed, fully gear driven spindle with hardened and ground gears with a speed range of 70 - 1440rpm, selectable via the front of headstock mounted gear selection levers.

2hp single phase 240 volt motor is supplied on machine, taper roller spindle bearings, range of cross and longitudinal feed speeds selected on a separate gearbox, thread chasing dial chuck guard with safety interlock, splash guard.

Supplied with a large range of standard accessories including a 150mm(6``) 3 jaw self centring chuck, 200mm(8``) 4 jaw independent chuck, face plate, live and dead centres. 5 to 3 MT reduction sleeve, steady rest, follow rest, standard tool post, floor stand with a swarf tray. Change gears and toolbox with maintenance tools.

Features

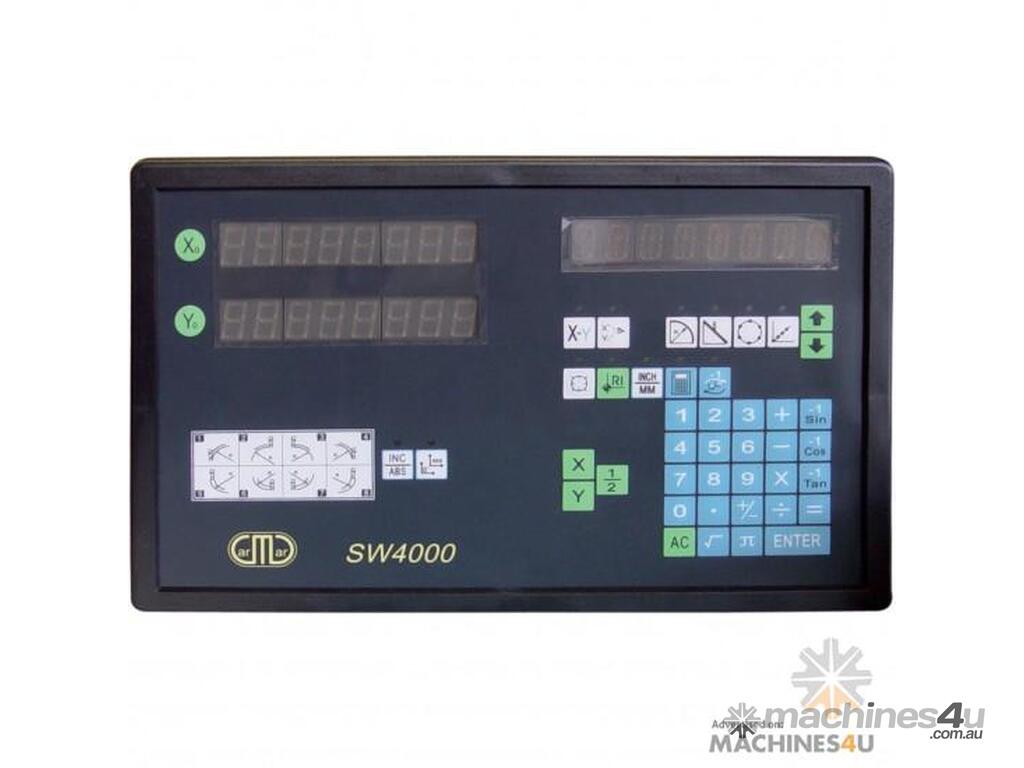

2 Axis digital readout system
Toolroom quality lathe, Made in Taiwan and has been sold for over 20 years

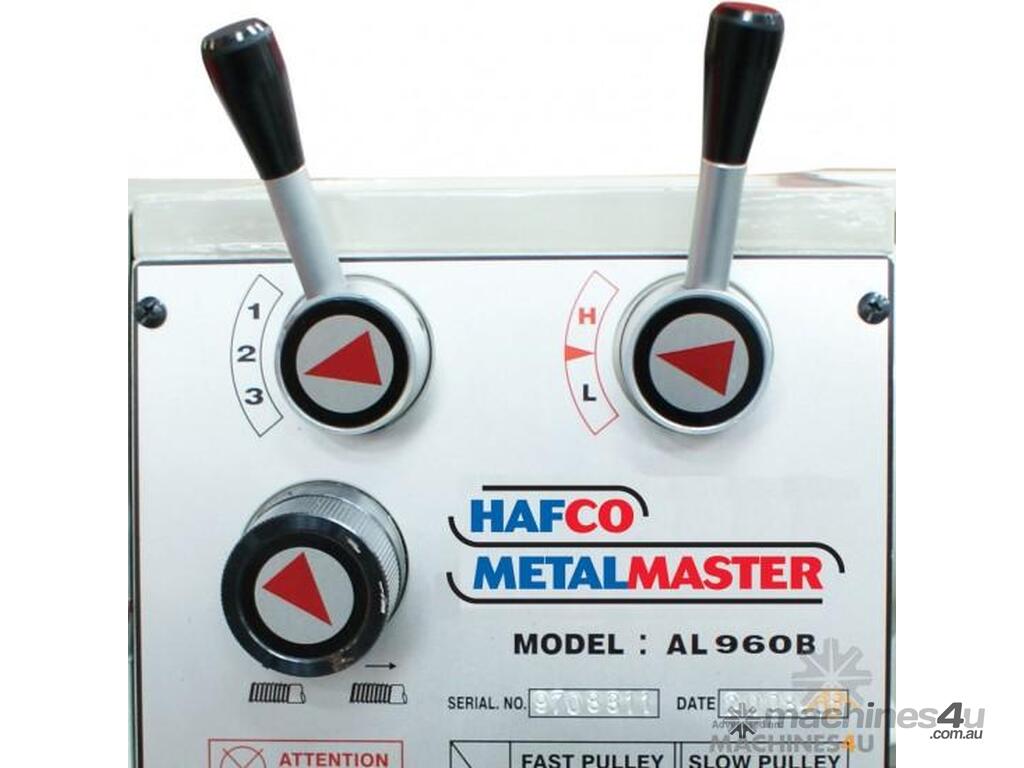

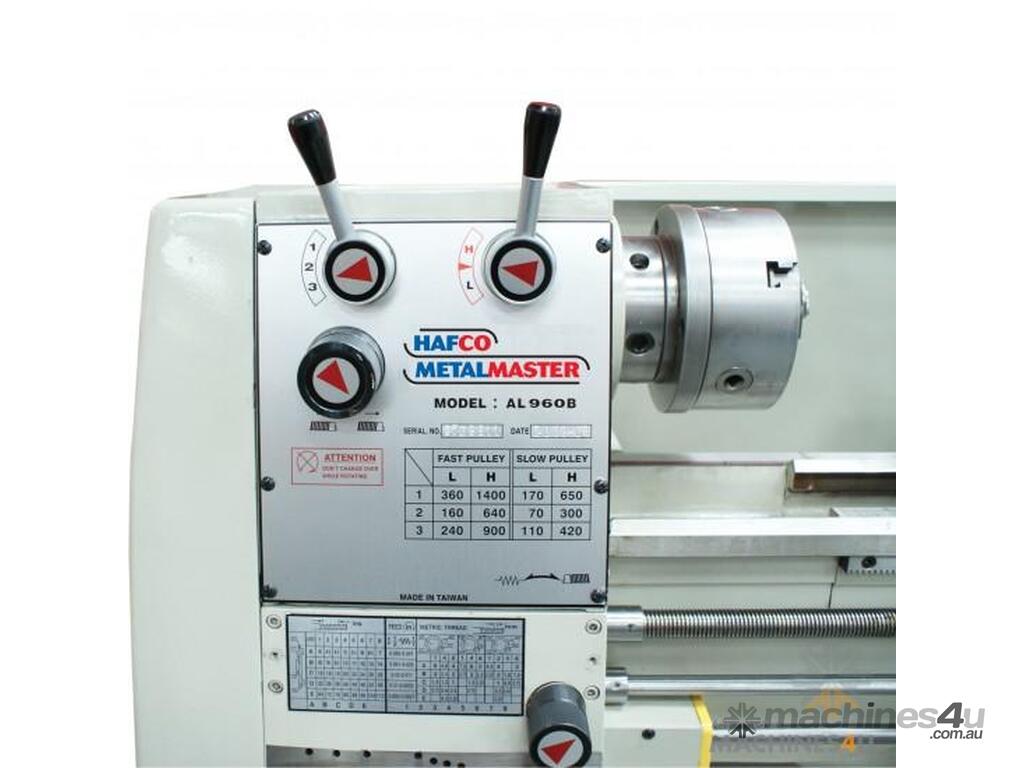

Gear driven headstock for quick change of spindle speeds
Precision 'V'- beds are hardened and ground
Adjustable taper roller bearings support the spindle
Change gears for metric and imperial thread cutting

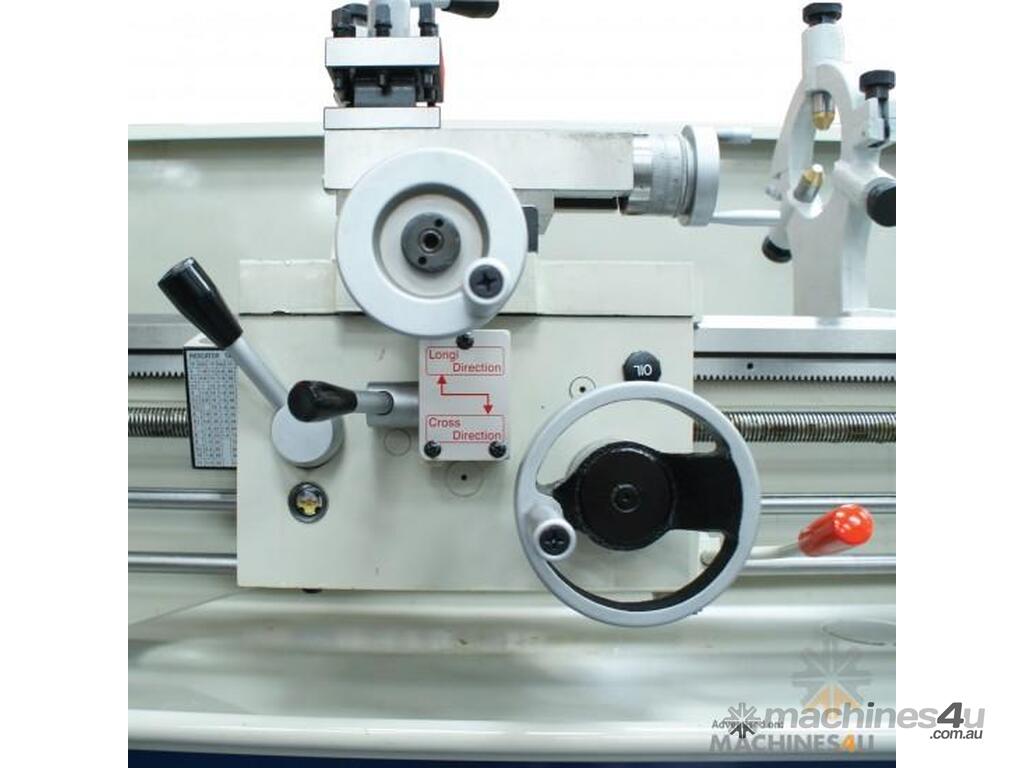

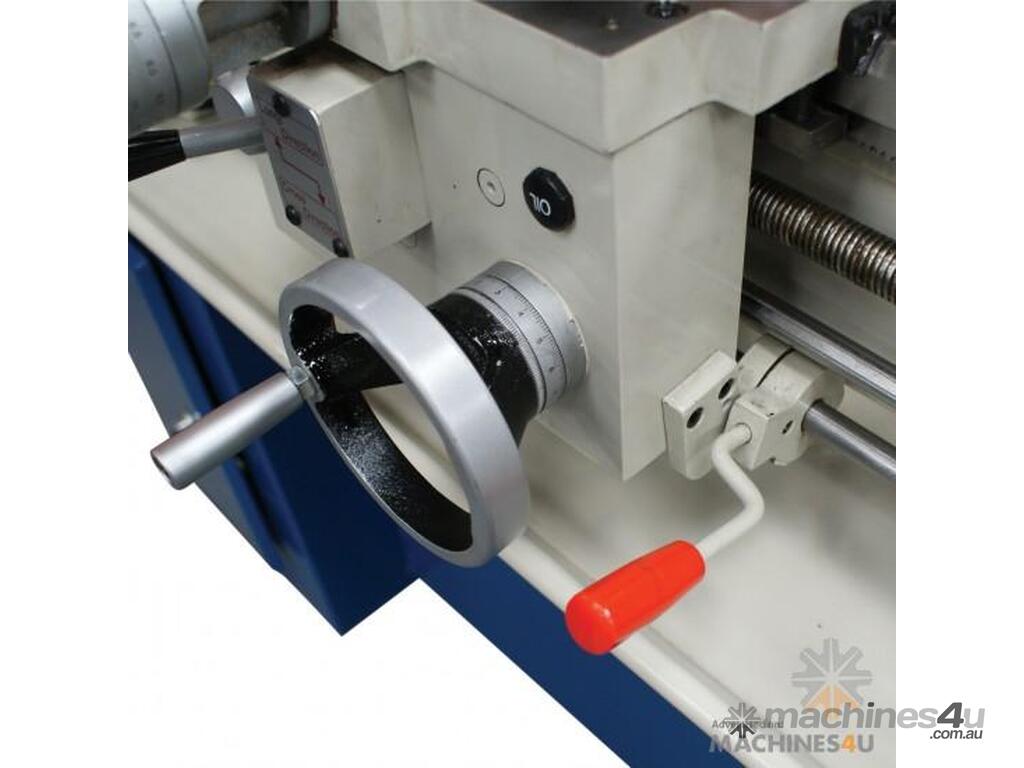

Saddle handwheel mounted on right side of apron reducing swarf contacting the hand

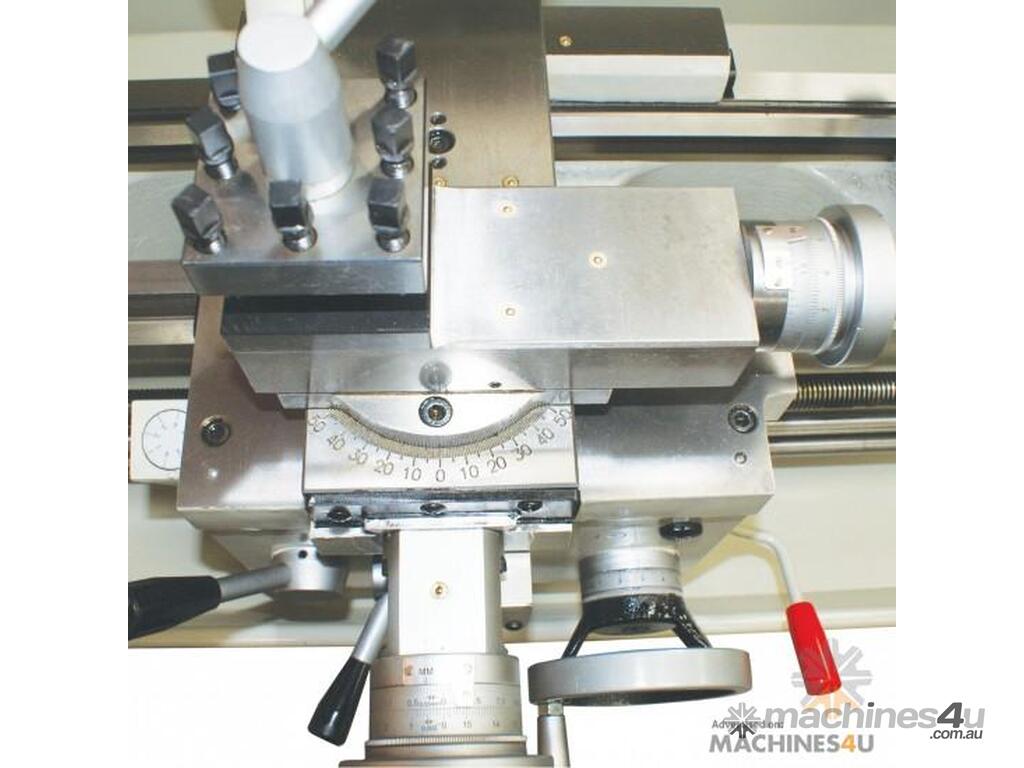

External adjustable cross feed leadscrew nut

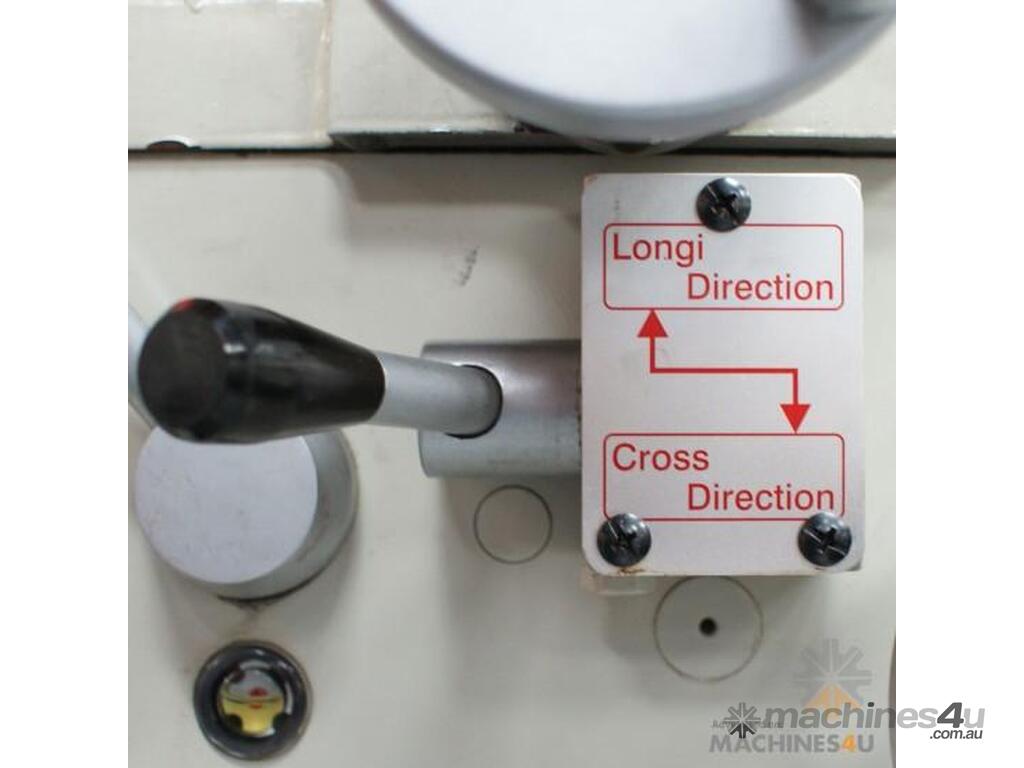

Powered longitudinal and cross feeds

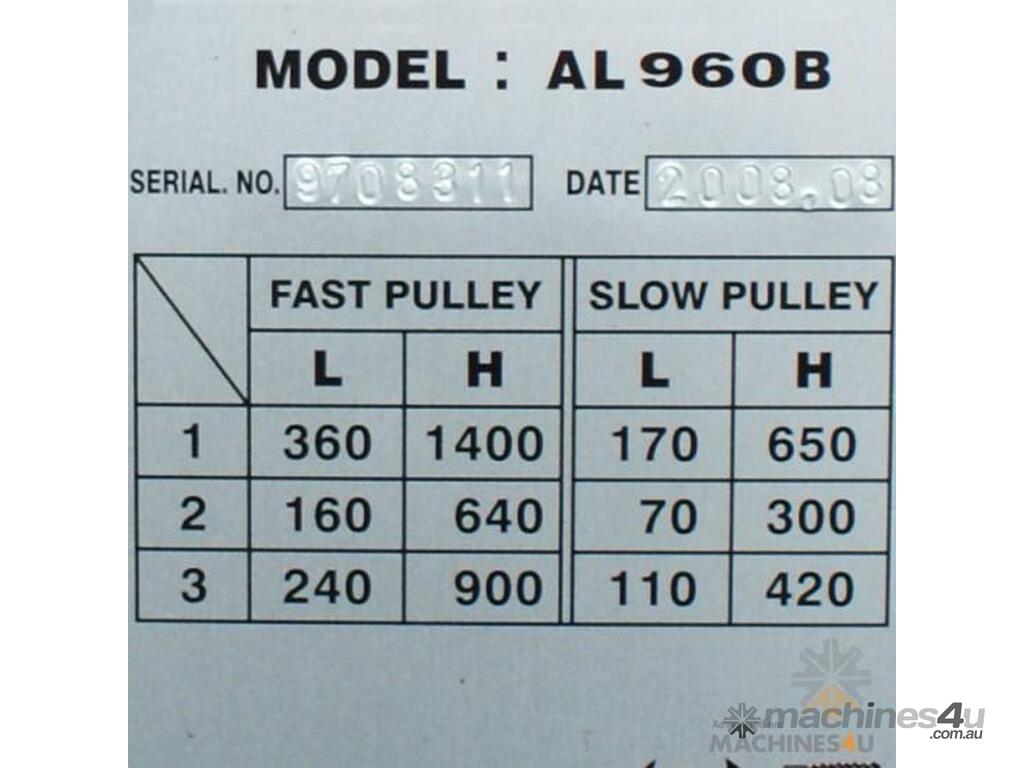

12 spindle speeds 70-1440rpm

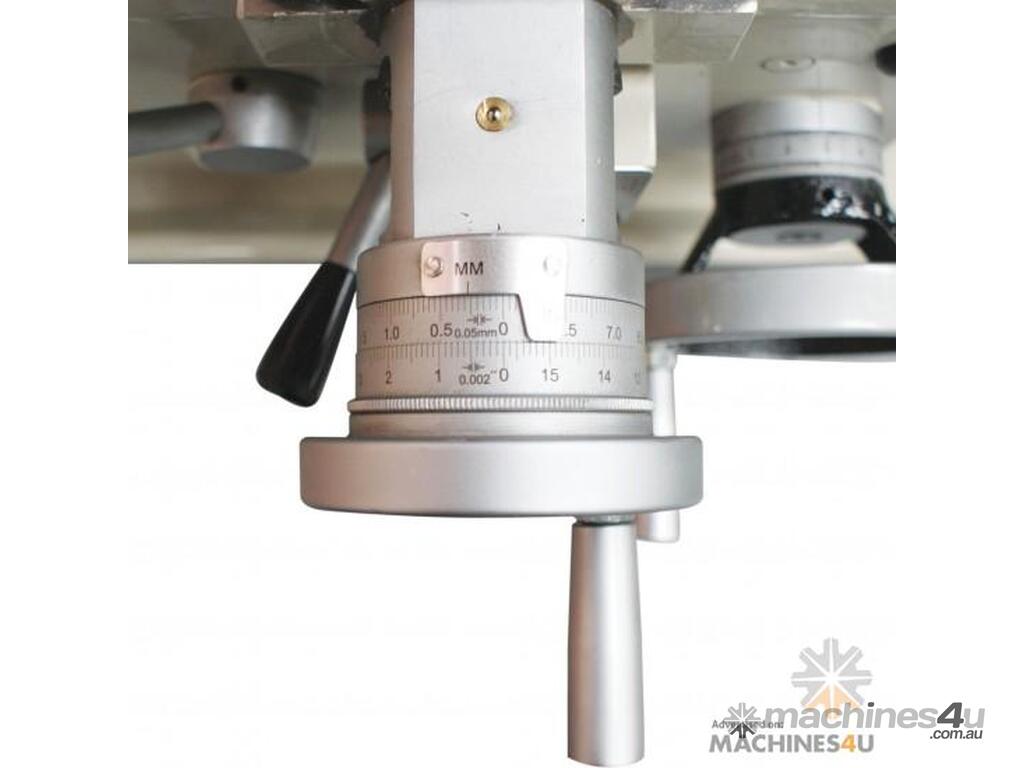

Dual calibrated dials

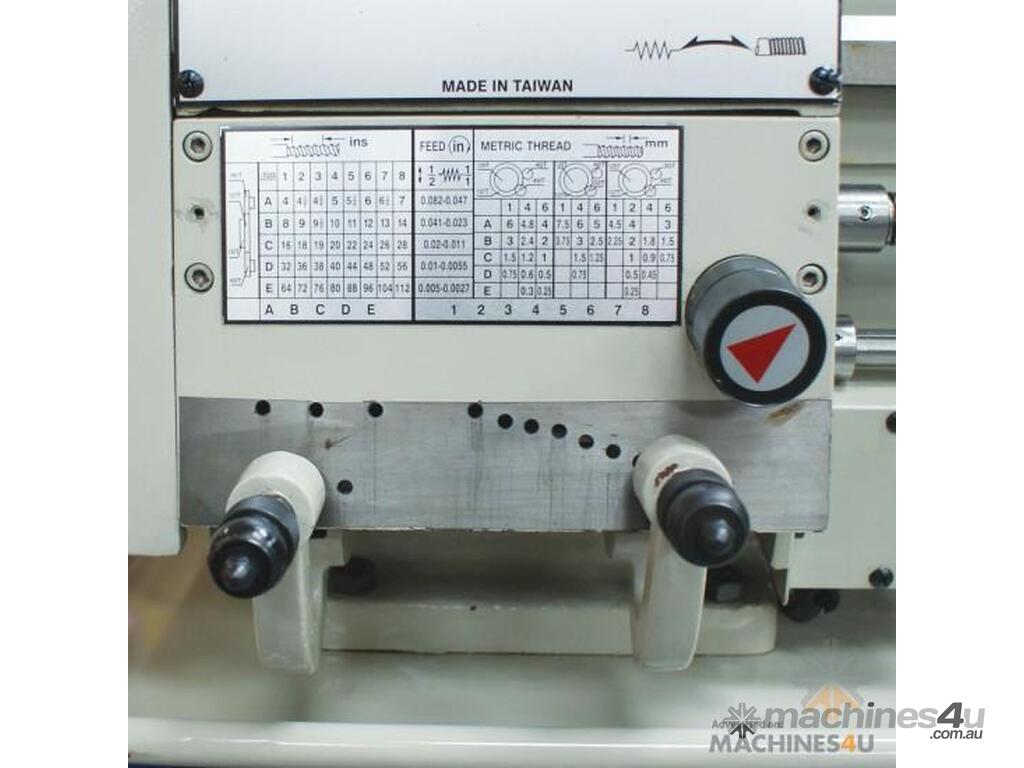

Quick-action feed gearbox for thread cutting
D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning.
Removable gap bedway for larger diameter jobs
12 months warranty

Includes

Standard Accessories

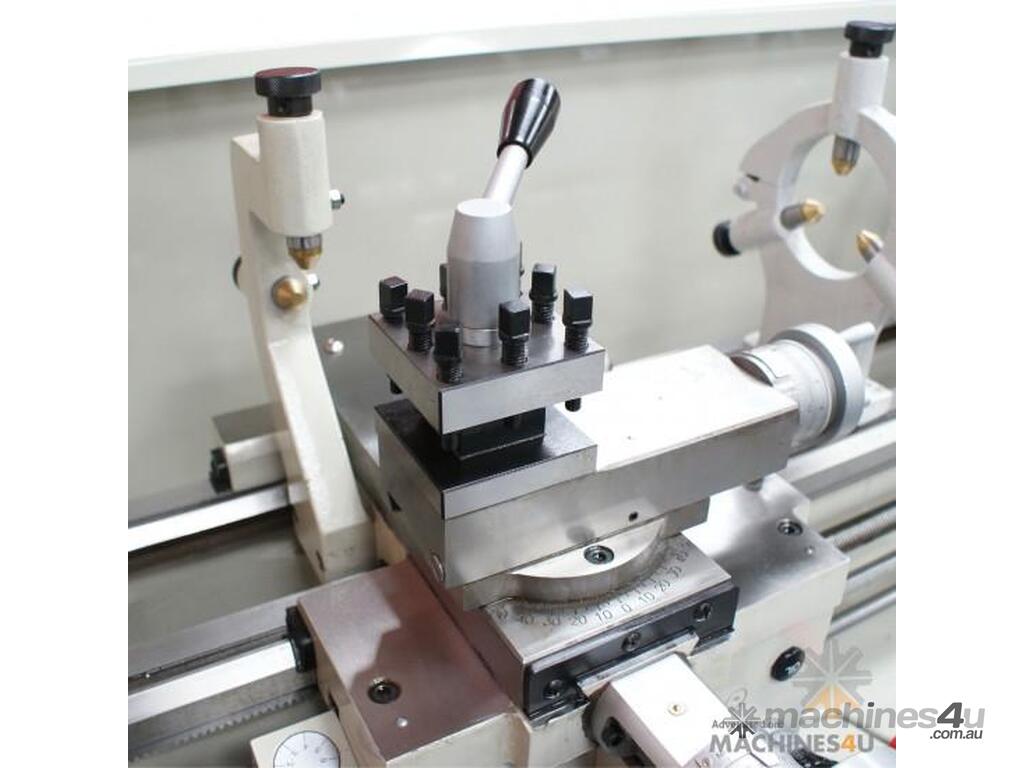

160mm 3-jaw chuck with reverse jaws
200mm 4-jaw chuck
Faceplate
Fixed and travelling steadies
Change gears
Dead centre
Cabinet stand
Splash tray
swarf tray

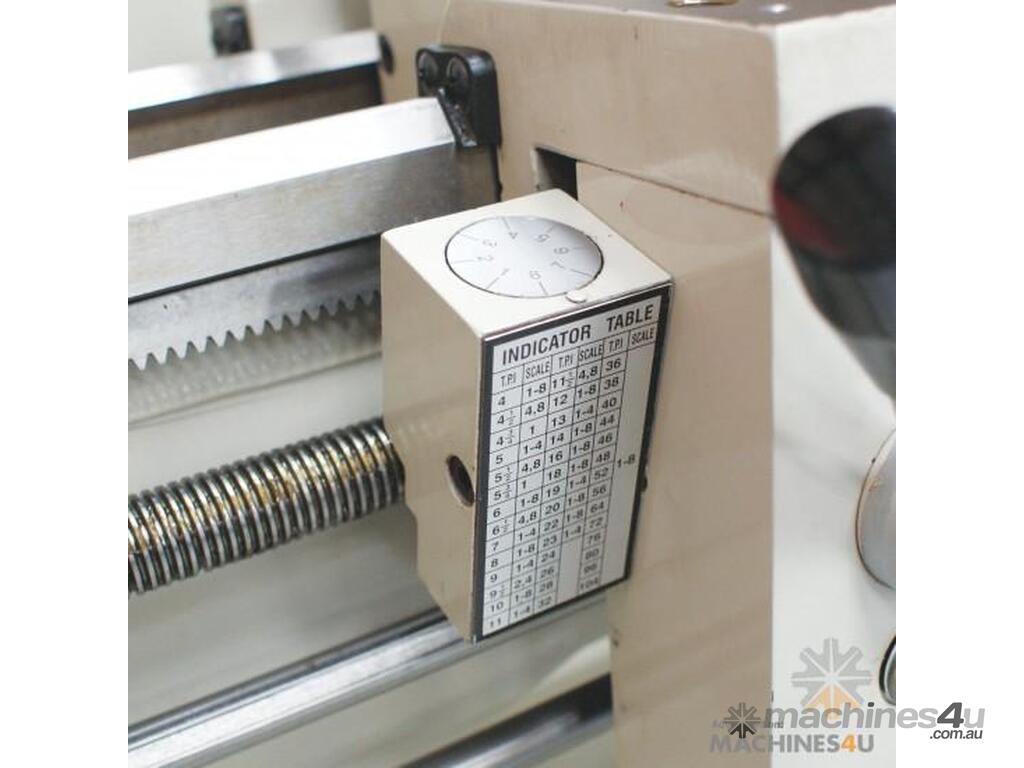

Thread-chasing dial
Toolbox and instruction booklet

Specifications:
ORDER CODE:L237
MODEL:AL-960B
TOOLS TO SUIT:12mm
CENTRE HEIGHT:150mm
DISTANCE BETWEEN CENTRES:925mm
SWING OVER BED:300mm
SWING OVER CROSS-SLIDE:180mm
SWING OVER GAP:460mm
SPINDLE NOSE: D1-4
SPINDLE TAPER:5MT
SPINDLE BORE:40mm

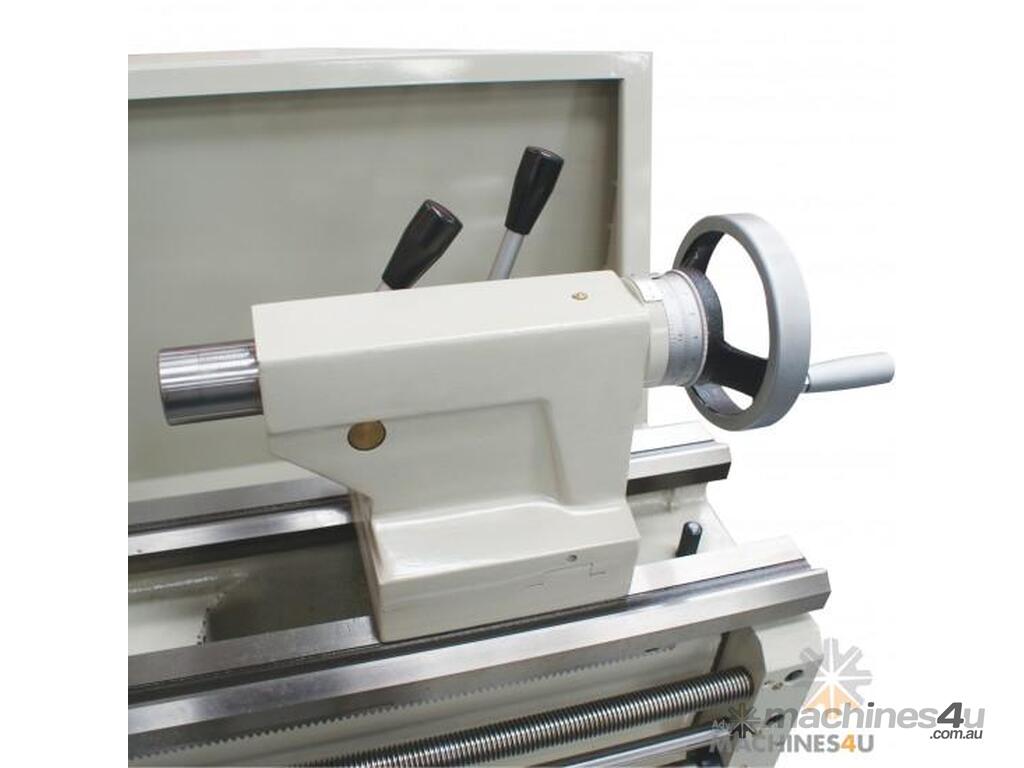

TAILSTOCK TAPER:3MT
SPINDLE SPEED RANGE:12(70-1440rpm)
LEADSCREW:Imperial
IMPERIAL THREAD RANGE:40(4-112TPI)
METRIC THREAD RANGE:26(0.25-7.5mm)
MOTOR:2HP
MOTOR VOLTAGE:240V
WEIGHT (NETT):455kg

All prices and specifications are subject to change
