SHAW - HAFCO CL-460 Centre Lathe 460 x 1000mm Turning Capacity - 80mm Spindle

460 x 1000mm Turning Capacity - 80mm Spindle Bore
Includes Digital Readout, Quick Change Toolpost,
Taper Turning Attachment & Auto Slide-way Lubrication

CALL NOW FOR OUR BEST PRICE
WE CAN ALSO DO TOOLING PACKAGES

Order Code: L606D

Features:

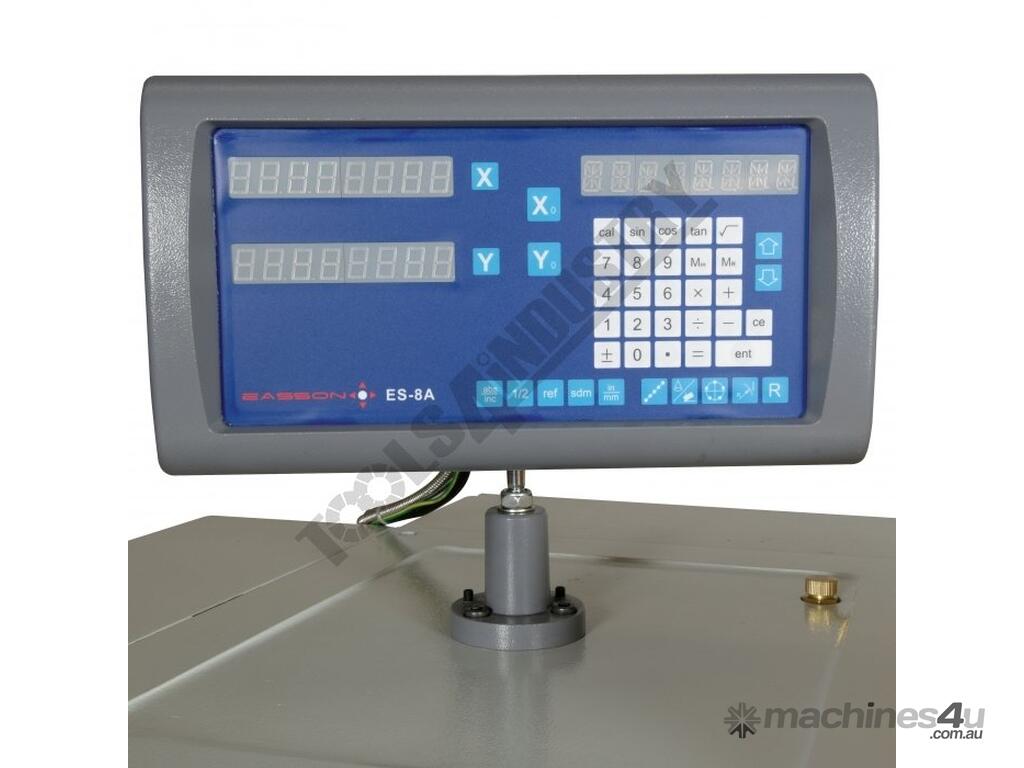

2 axis digital readout system

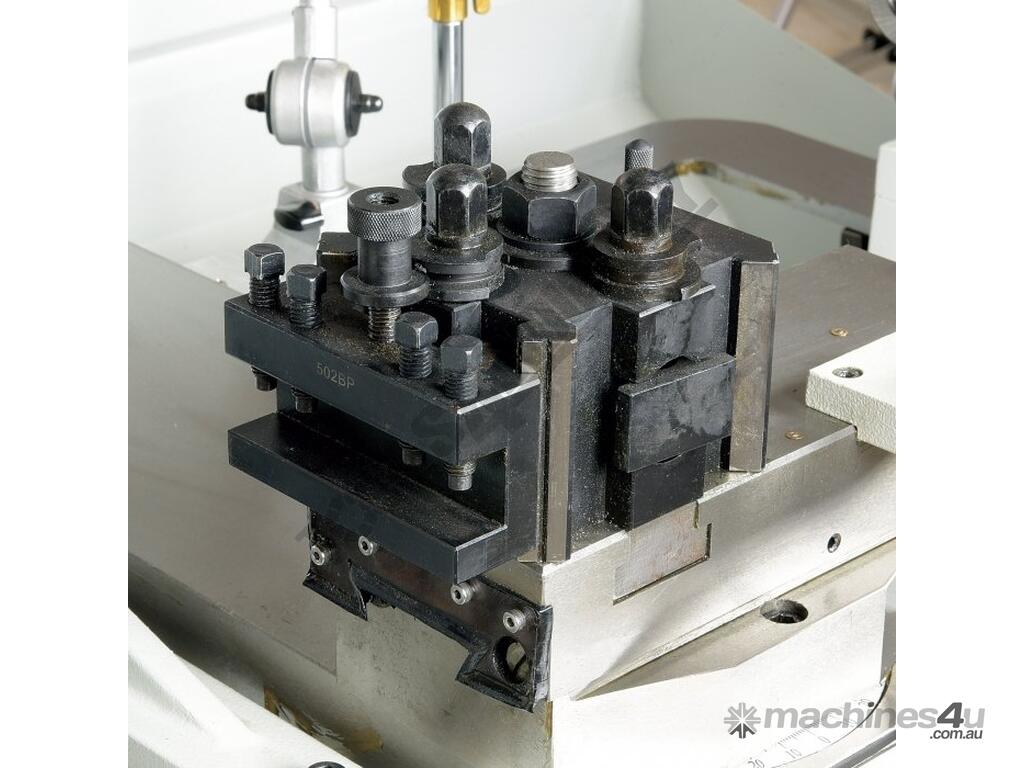

Quick change toolpost

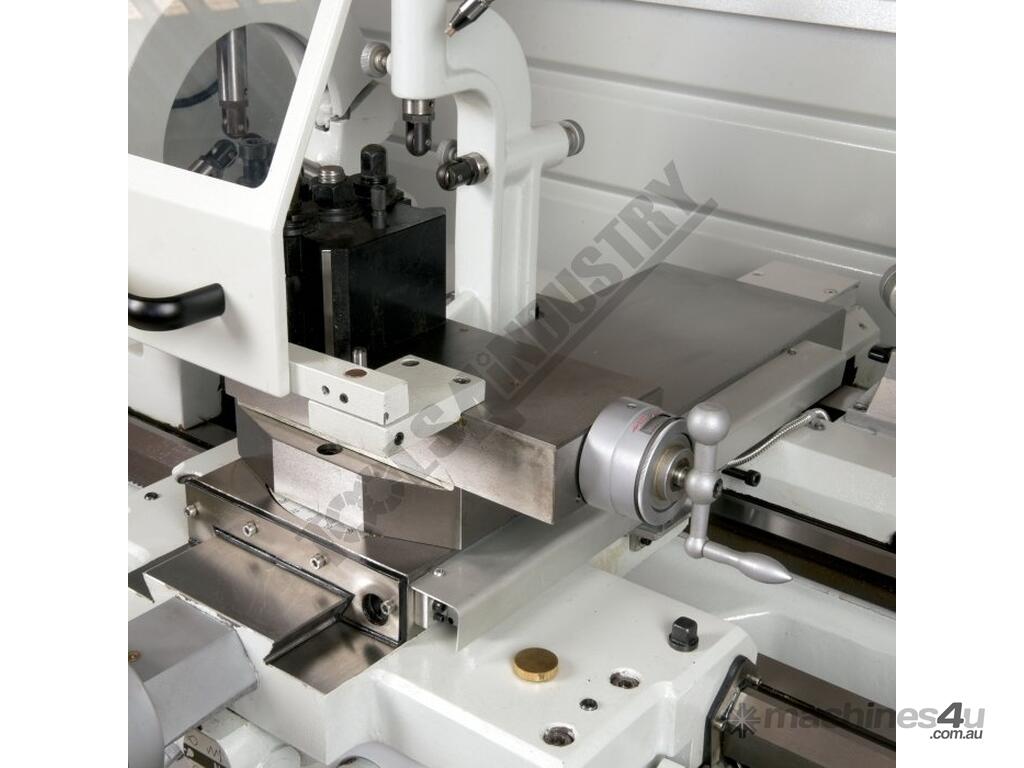

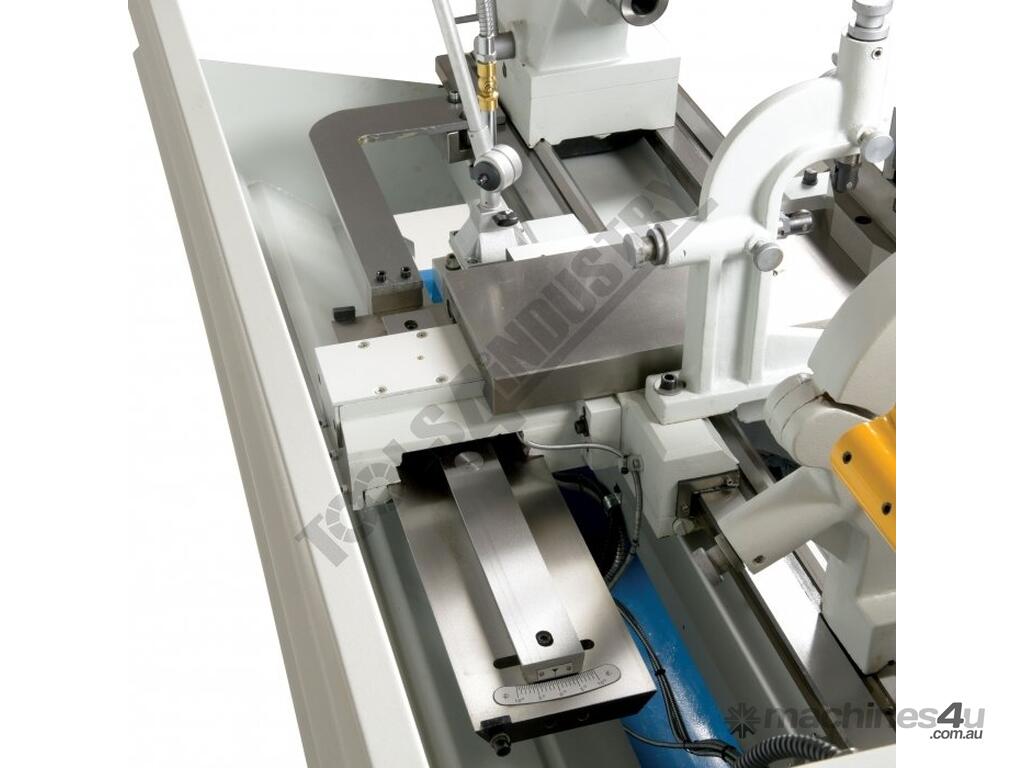

Taper turning attachment fitted to saddle
Automatic lubrication pump oiling slides
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system

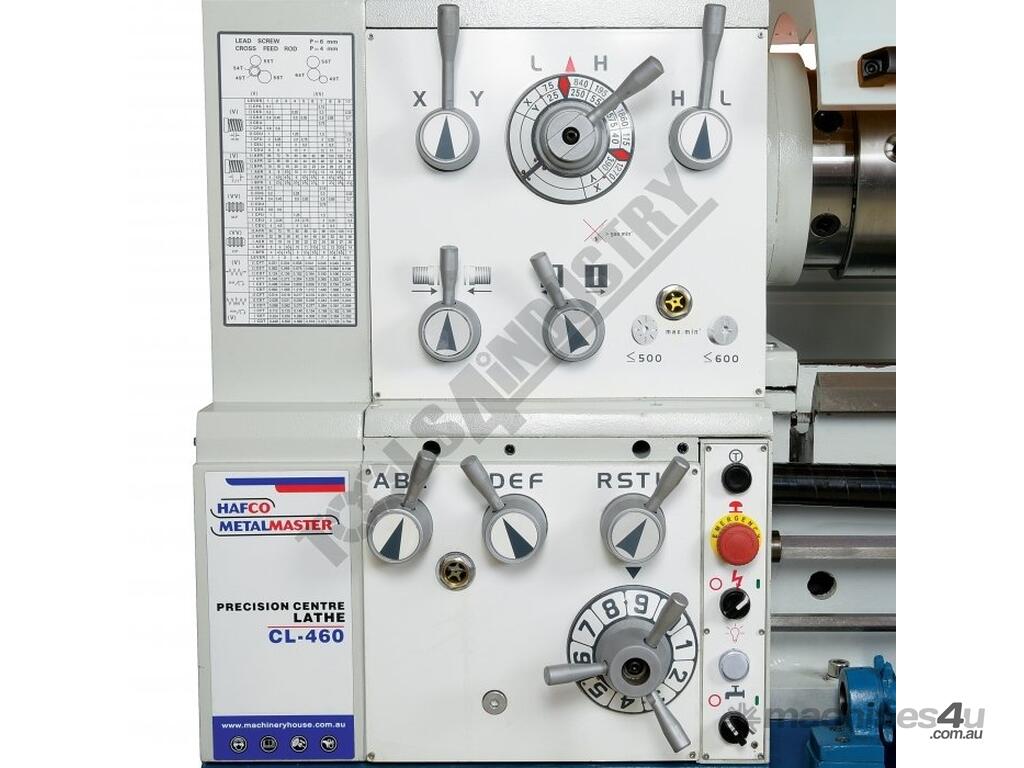

Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection

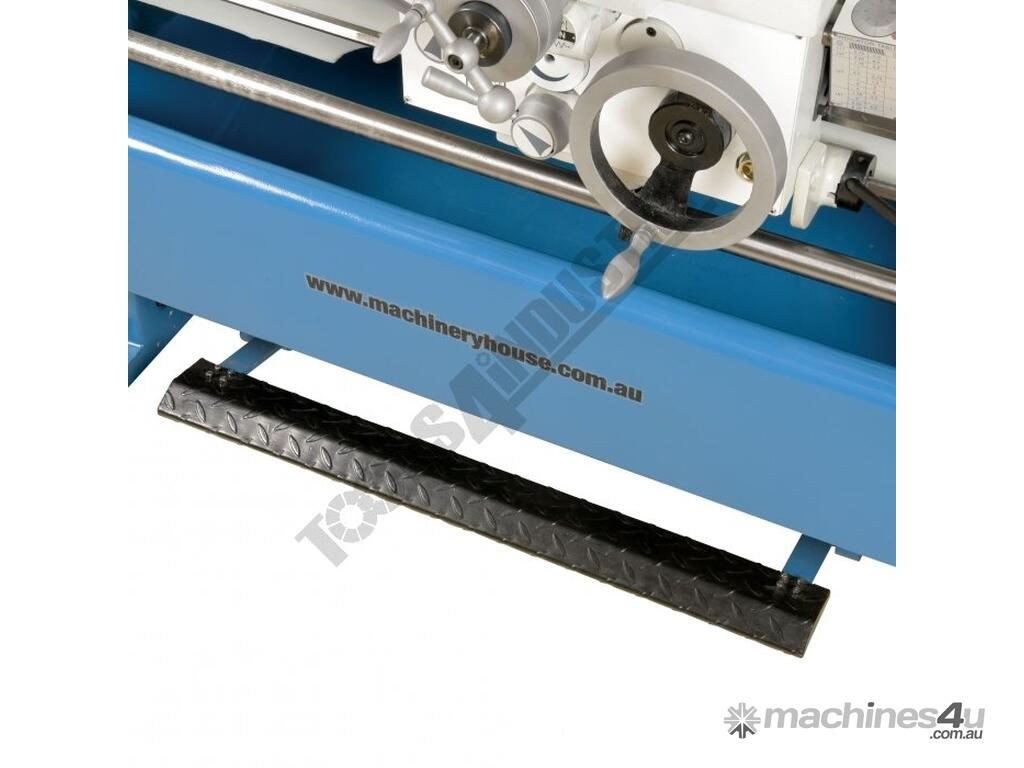

Foot operated spindle brake with safety cut out switch
300mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing workpiece to swing up to 690mm
Chuck guard fitted with safety micro switch
Powered longitudinal and cross feeds
Adjustable 5 position length-stop mechanism for accurate repetitive operation
Micro adjustable saddle stop
Dual calibrated cross feed dial incorporating metric & imperial graduations

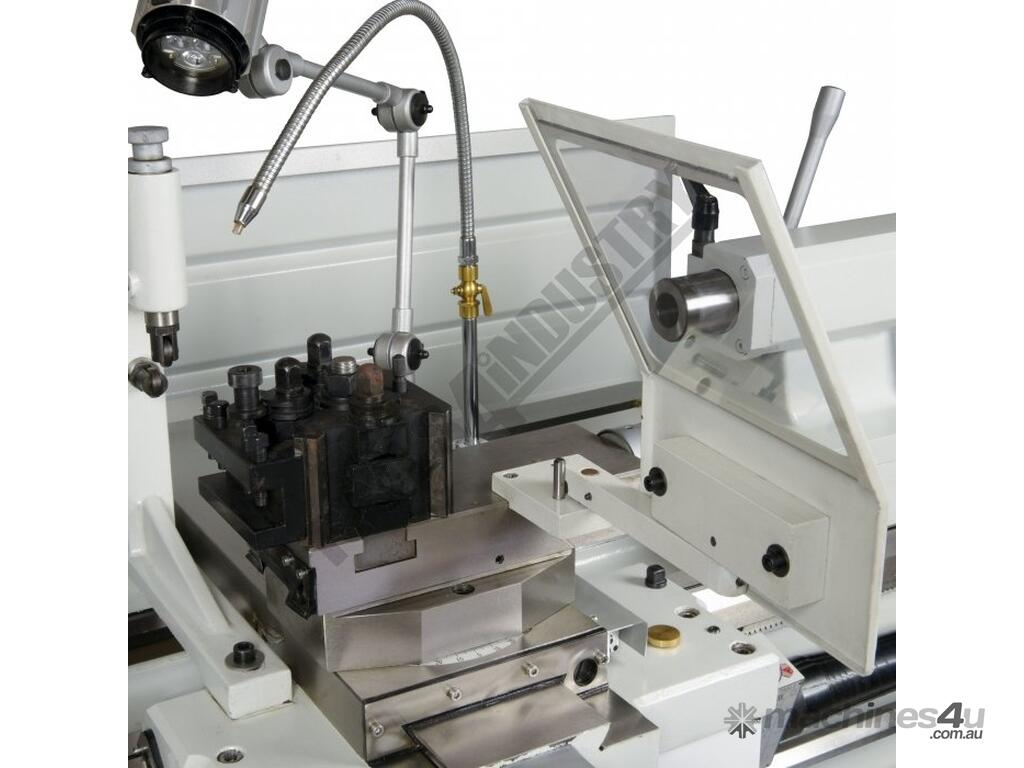

Coolant system with flexible hose enabling operator to manipulate flow direction
Oil level sight glass for headstock and gearbox
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal
12 spindle speeds from 25-1860rpm

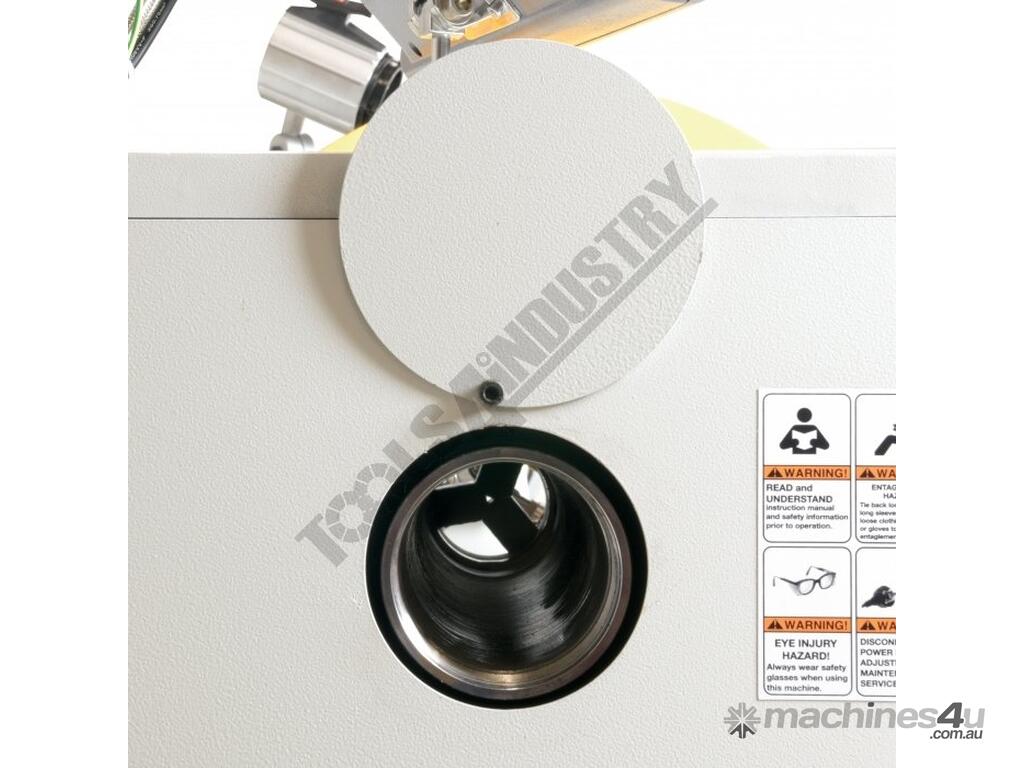

Large 80mm spindle bore
5.5kW / 7.5HP 415V main motor

Includes:
- 2 axis digital readout system
- Taper turning attachment
- Quick change toolpost
- Auto lubrication pump for slides
- Concertina leadscrew covers
- 250mm 3-jaw chuck with reverse jaws
- 350mm 4-jaw chuck
- 350m face plate
- Fixed steady with roller bearings
- Travelling steady with brass guides
- Dead centres
- Thread chasing dial
- Foot brake
- Coolant system
- LED Work light
- Rear splash guard
- Spindle reducing bush

Specifications:
ORDER CODE: L606D
MODEL: CL-460
Swing Over Bed (mm): 460
Distance Between Centres (mm): 1000
Spindle Bore (mm): 80
Swing In Gap (mm): 690
Swing Over Cross-slide (mm): 274
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: Yes
Coolant System: Yes
Tool Height To Suit (mm): 25
Centre Height (mm): 230
Spindle Nose Size or Type: D1-8 Camlock
Bed Width (mm): 300
Headstock Spindle Taper (MT): 6
Tailstock Taper (MT): 4
Cross Slide Travel (mm): 285
Compound Slide Travel (mm): 128
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.014 - 0.784
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.031 - 1.70
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 47 (0.1 - 14)
Imperial Thread Steps & TPI (No. / TPI): 60 (2 - 112)
3 Jaw Chuck Diameter (mm): 250
4 Jaw Chuck Diameter (mm): 350
Spindle Steps / Speeds (No. / rpm): 12 (25 - 1860)
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Shipping Dimensions (L x W x H) (cm): 225 x 112 x 162
Nett Weight (kg): 1950

ALL PRICES AND SPECIFICATIONS, CAN BE SUBJECT TO CHANGE
