SHAW - HAFCO CL-560 Centre Lathe 560 x 1500 x 105

Features

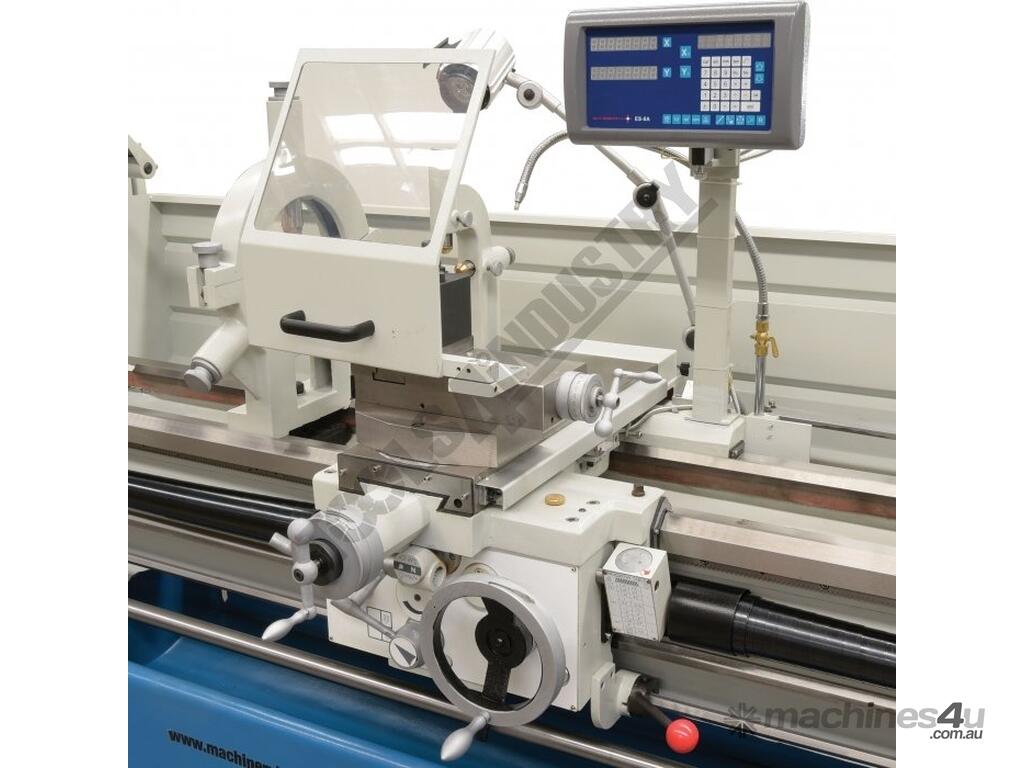

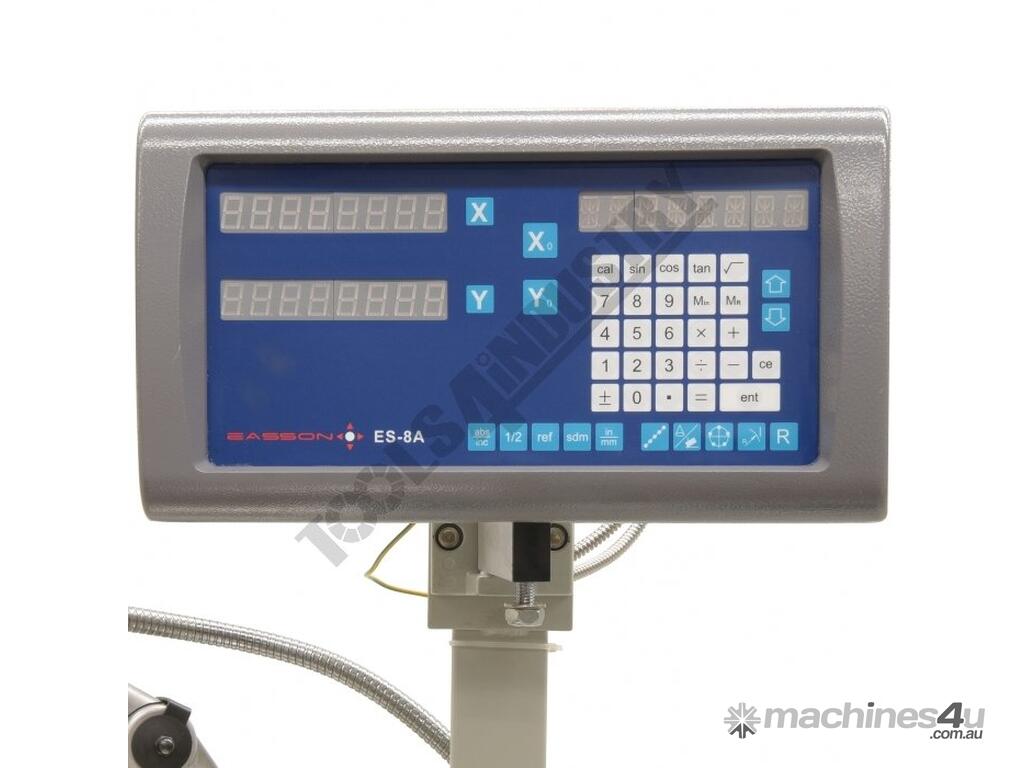

2 axis digital readout system

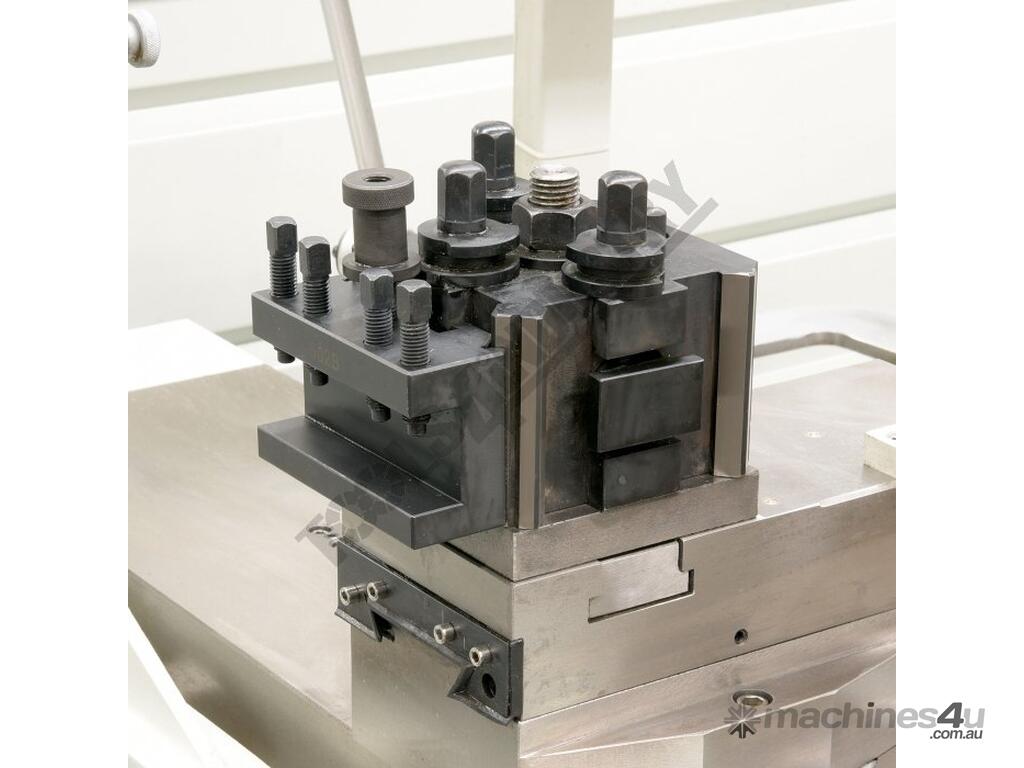

Quick change toolpost
Large 105mm spindle bore

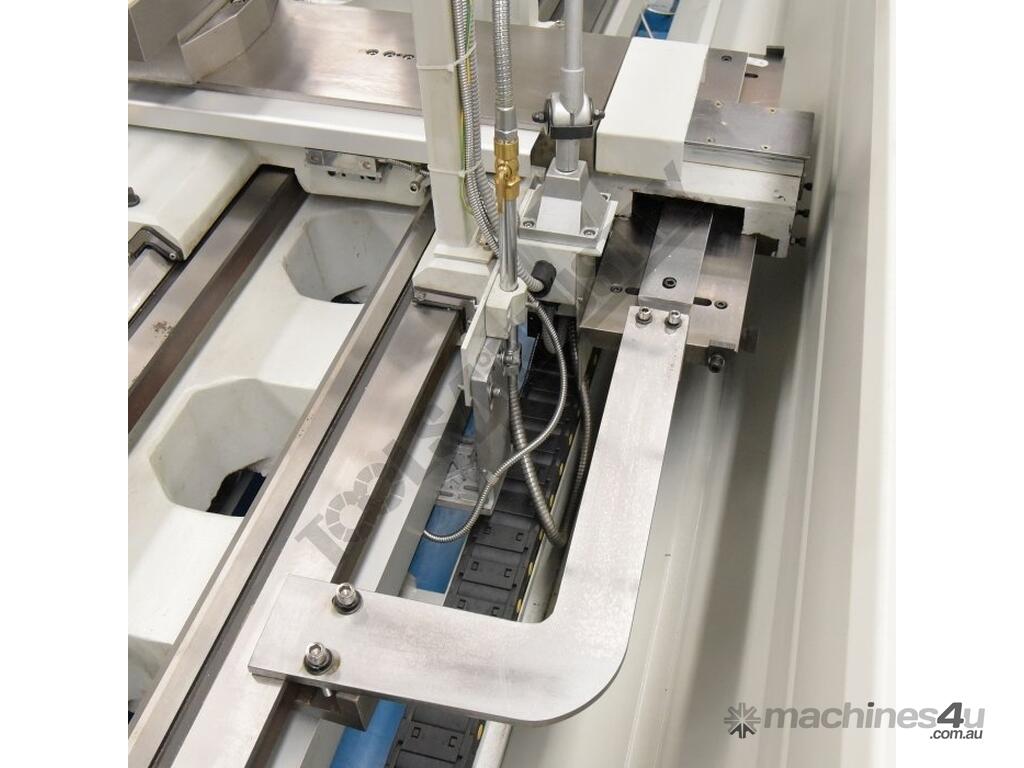

Taper turning attachment fitted to saddle
Automatic lubrication pump oiling slides
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system

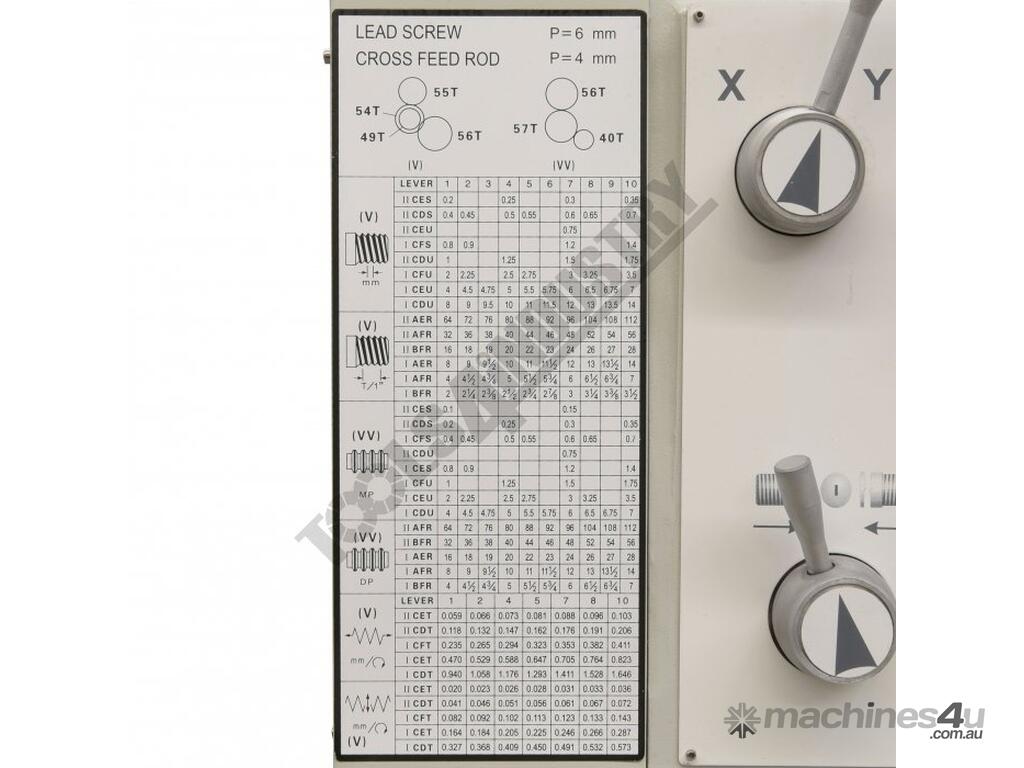

Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection

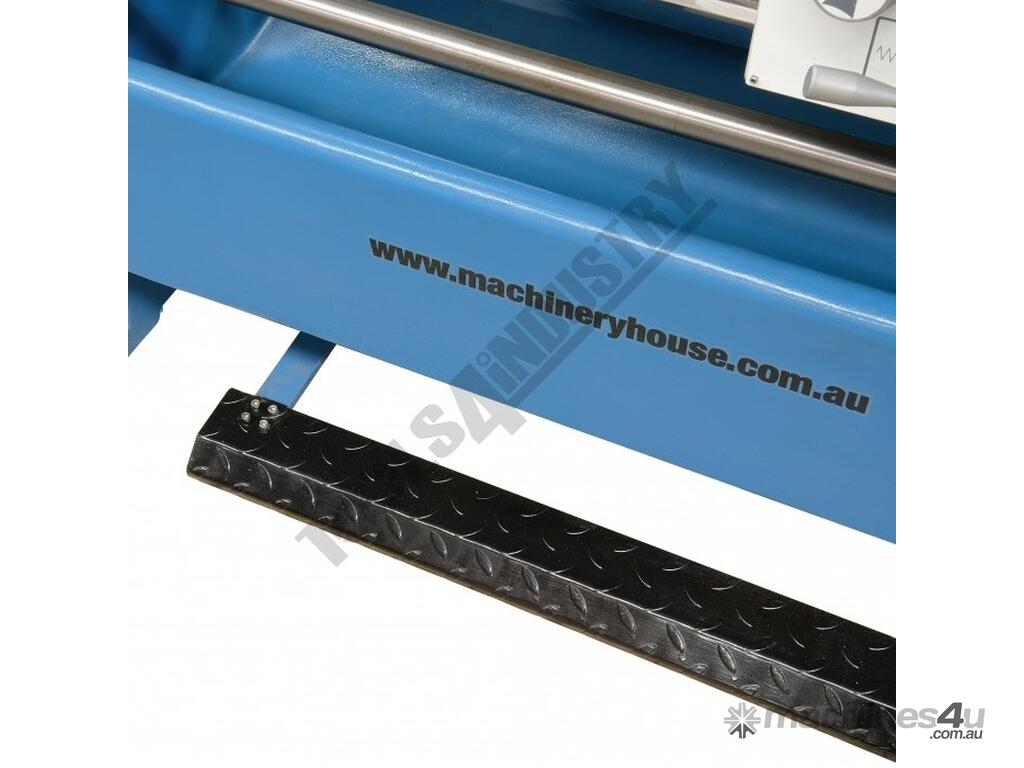

Foot operated spindle brake with safety cut out switch
350mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing workpiece to swing up to 785mm

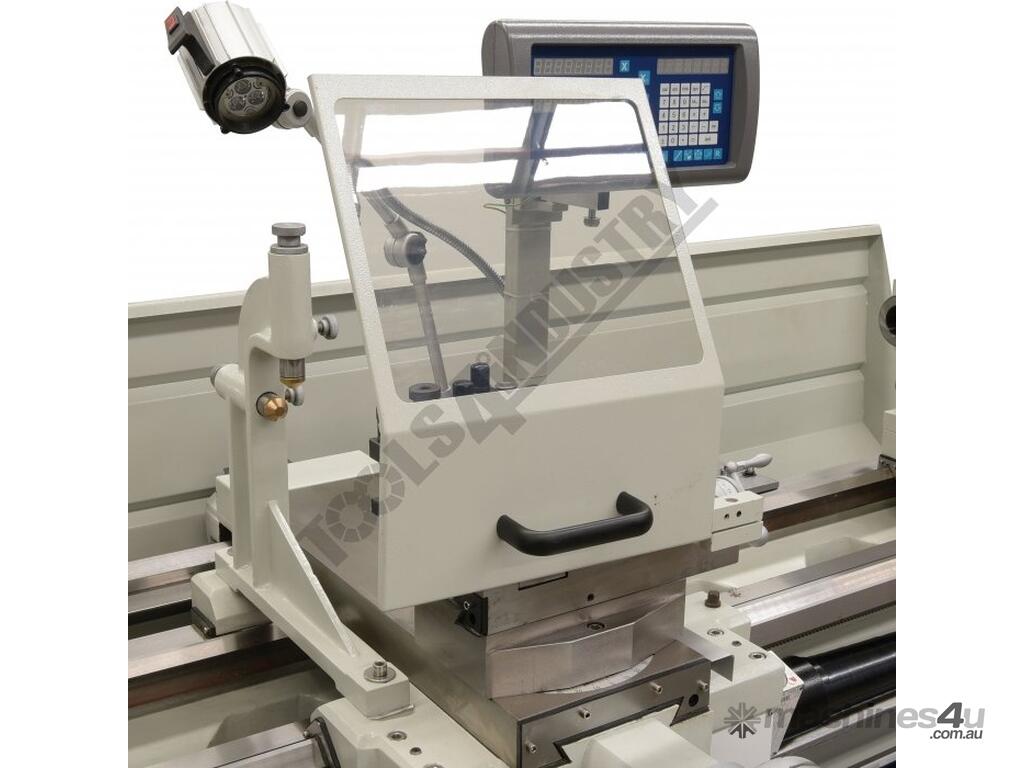

Chuck guard fitted with safety micro switch
Powered longitudinal and cross feeds
Adjustable 5 position length-stop mechanism for accurate repetitive operation
Micro adjustable saddle stop
Dual calibrated cross feed dial incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil level sight glass for headstock and gearbox
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal

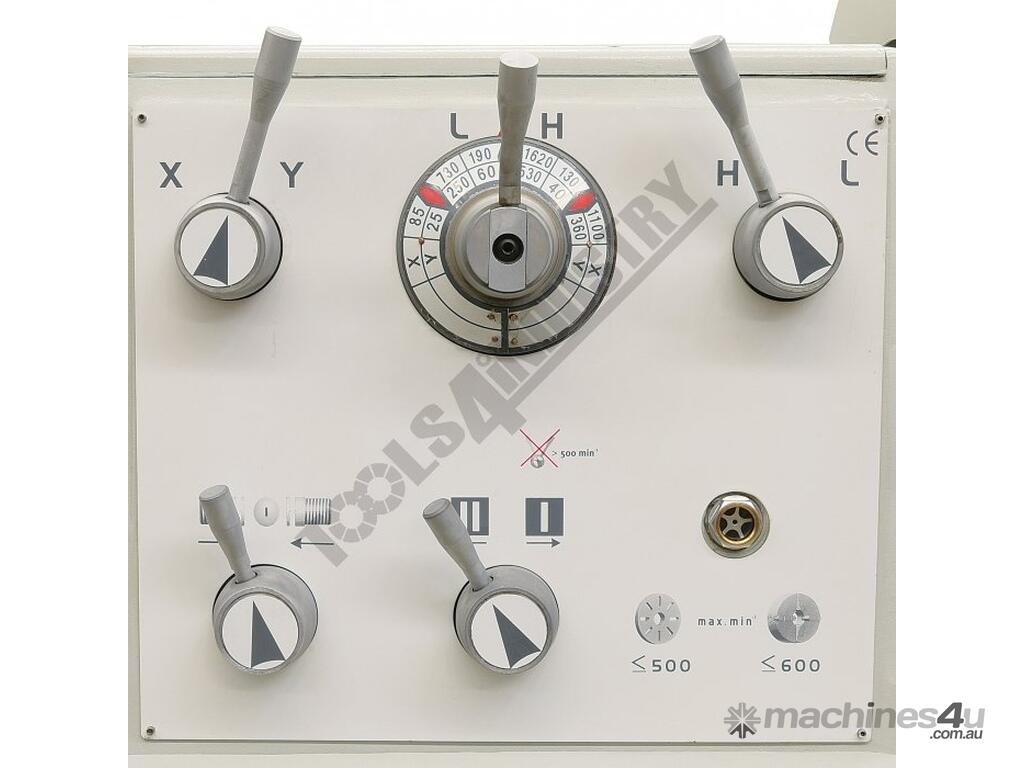

12 spindle speeds from 20-1600rpm
7.5kW / 10HP 415V main motor
Includes
2 axis digital readout system
Taper turning attachment
Quick change toolpost
Auto lubrication pump for slides
Concertina leadscrew covers

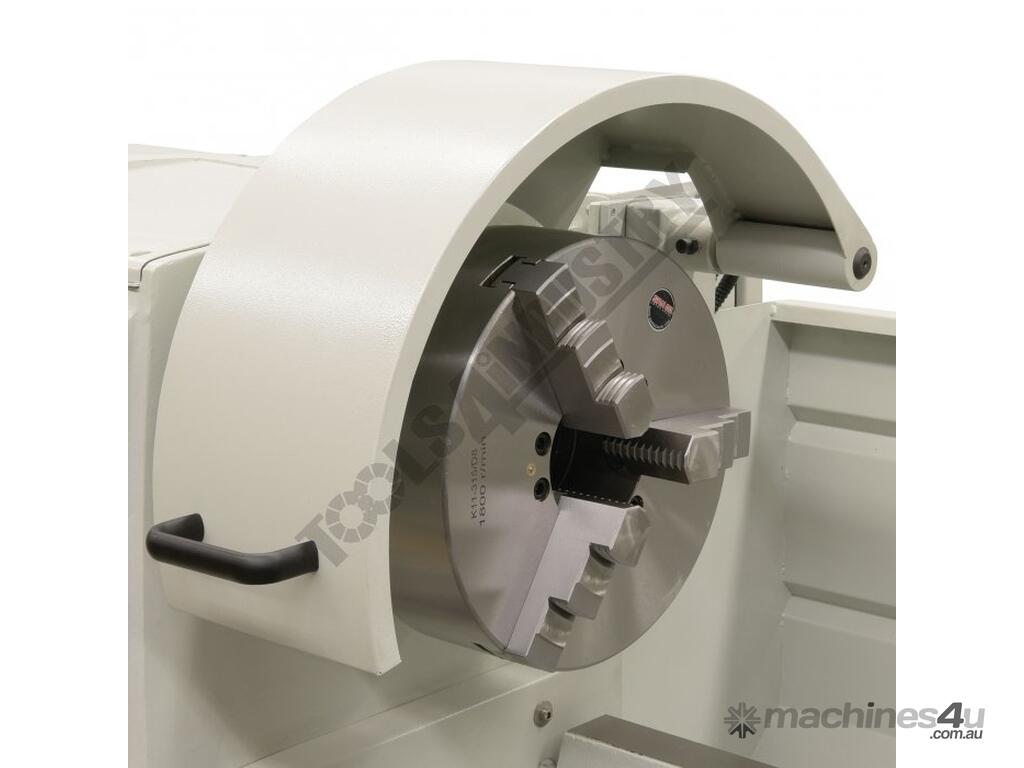

320mm 3-jaw chuck with reverse jaws
400mm 4-jaw chuck
450m face plate

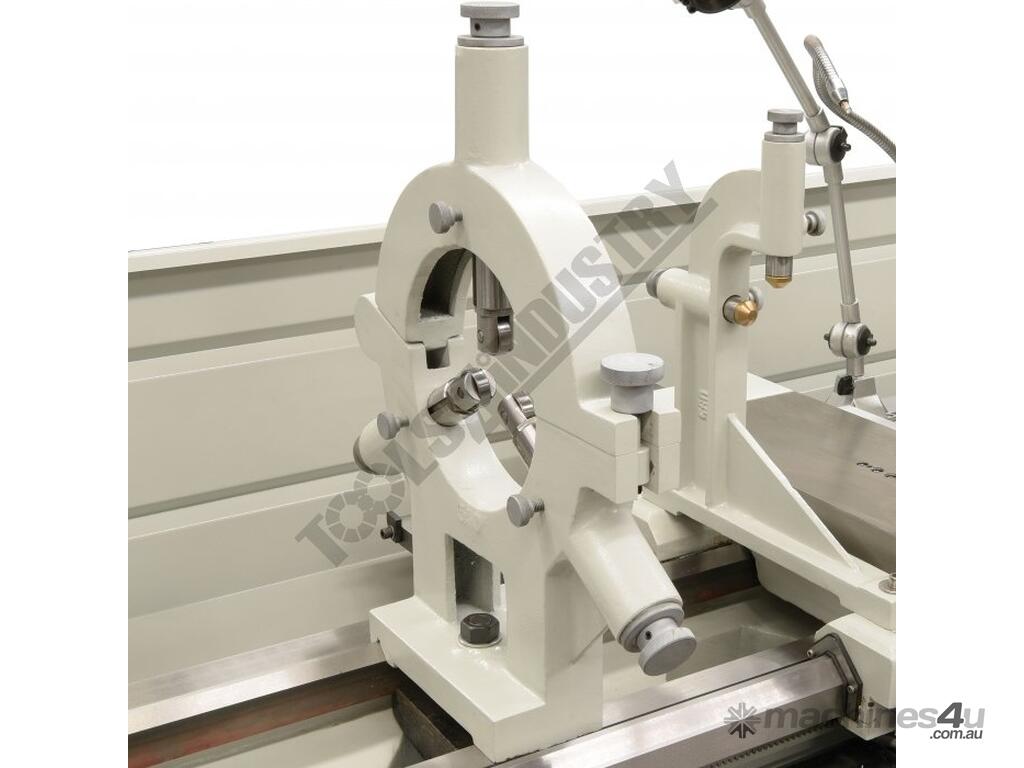

Fixed steady with roller bearings
Travelling steady with brass guides

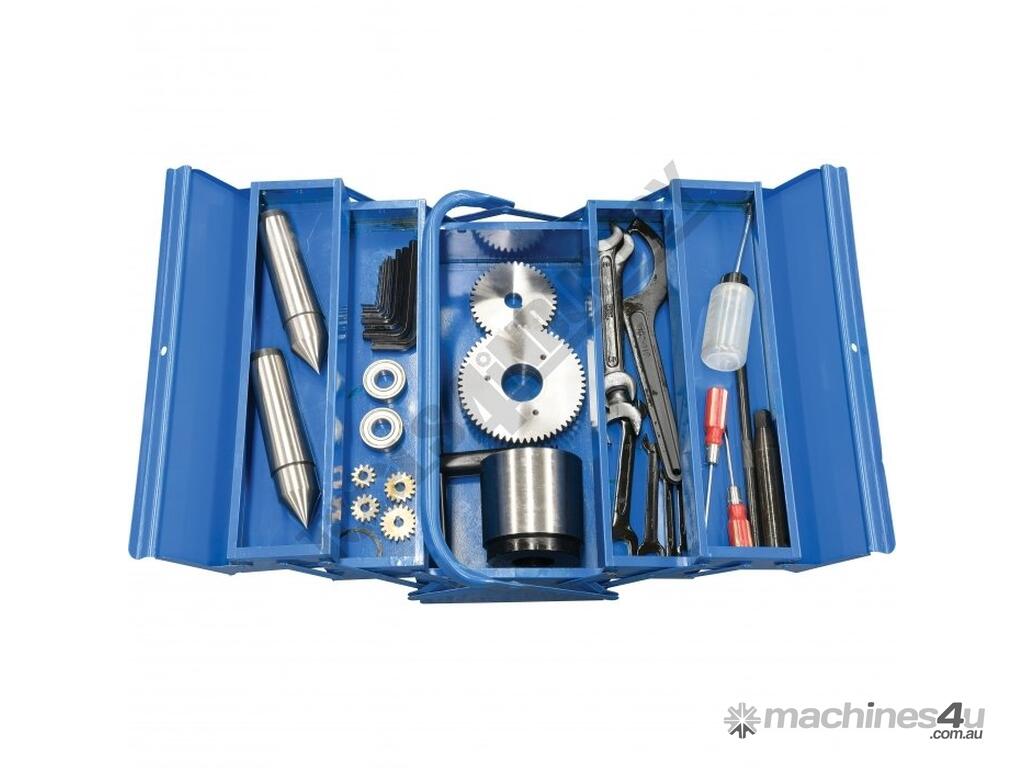

Dead centres

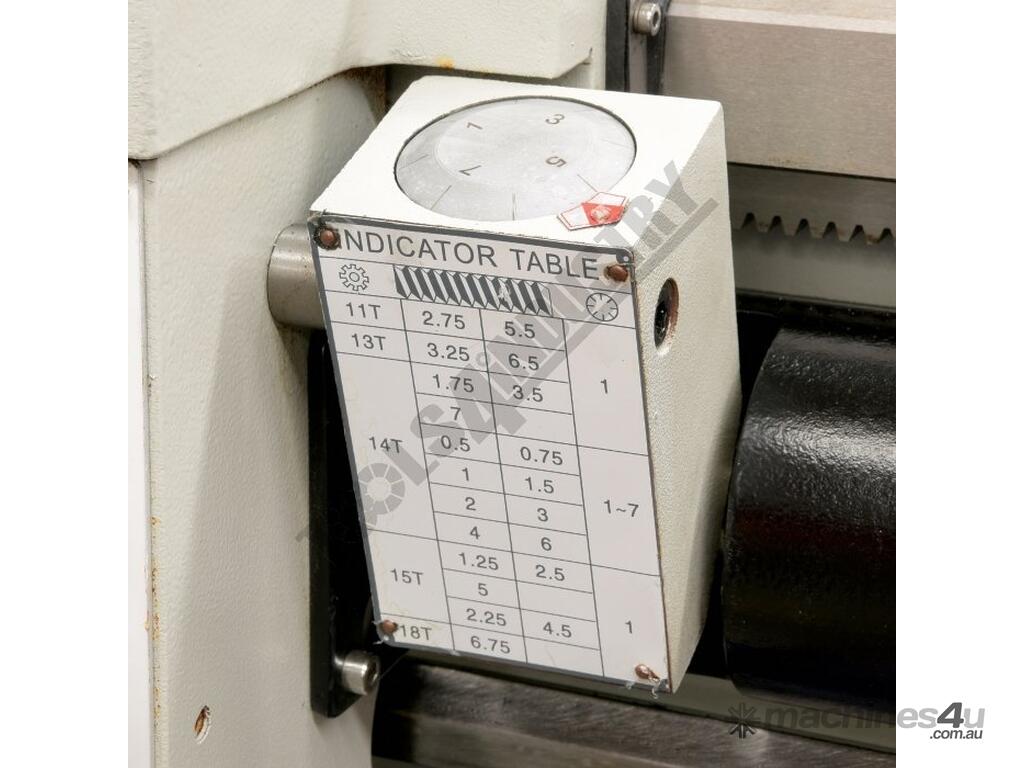

Thread chasing dial
Foot brake
Coolant system
LED Work light
Rear splash guard
Spindle reducing bush

Swing Over Bed 560 mm
Distance Between Centres 1500 mm
Spindle Bore 105 mm
Swing Over Cross-slide 355mm
Swing In Gap 785 mm
Digital Readout System Yes
Quick Change Tool post Yes
Taper Turning Attachment Yes
Leadscrew Covers Fitted Yes
Coolant System Yes
Tool Height To Suit 25mm
Centre Height 280 mm
Spindle Nose Size or Type D1-8 Camlock
Bed Width 350 mm
Headstock Spindle Taper 7MT
Tailstock Taper 5MT
Cross Slide Travel 316 mm
Compound Slide Travel 130 mm
Leadscrew Type - Metric
Metric Cross Feed (X-Axis) 0.020-0.573 mm/rev
Metric Longitudinal Feed (Z-Axis) 0.059-1.646 mm/rev
Metric Thread Steps & Pitch 47 (0.2 - 14) No. / mm
Imperial Thread Steps & TPI ) 60 (2 - 112) No. / TPI
3 Jaw Chuck Diameter 320mm
4 Jaw Chuck Diameter 400mm
Spindle Steps / Speeds 12 (20 - 1600) No. / rpm
Motor Power kW / hp 7.5 / 10
Voltage / Amperage 415 volt
Nett Weight 2700 kg
