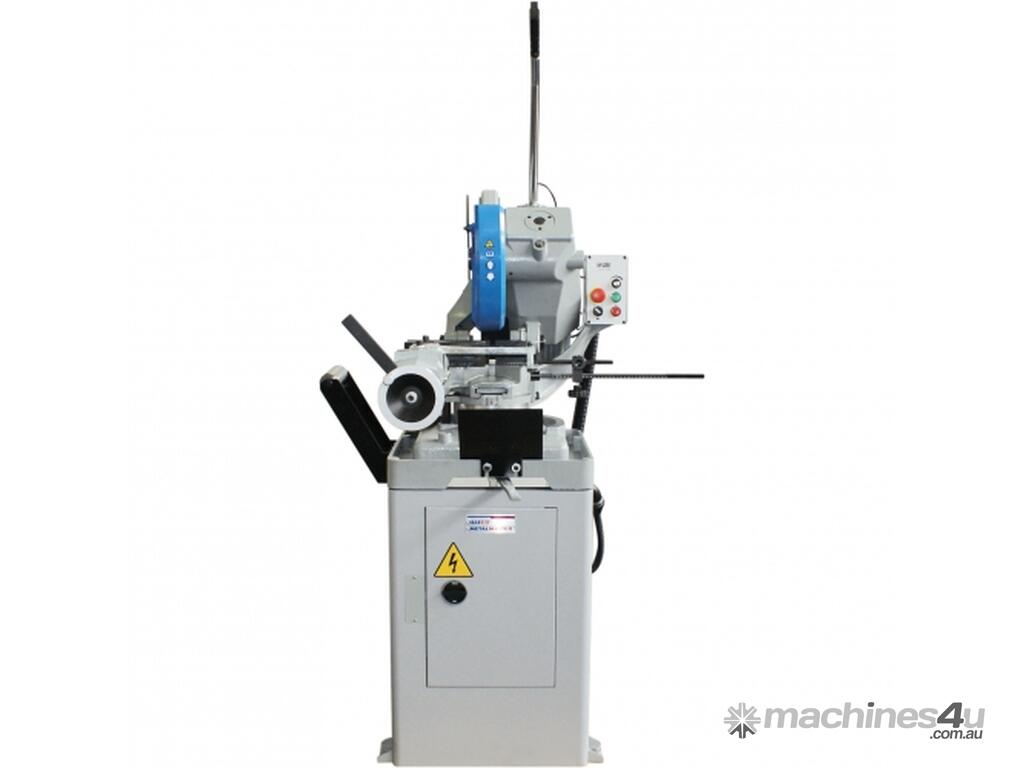

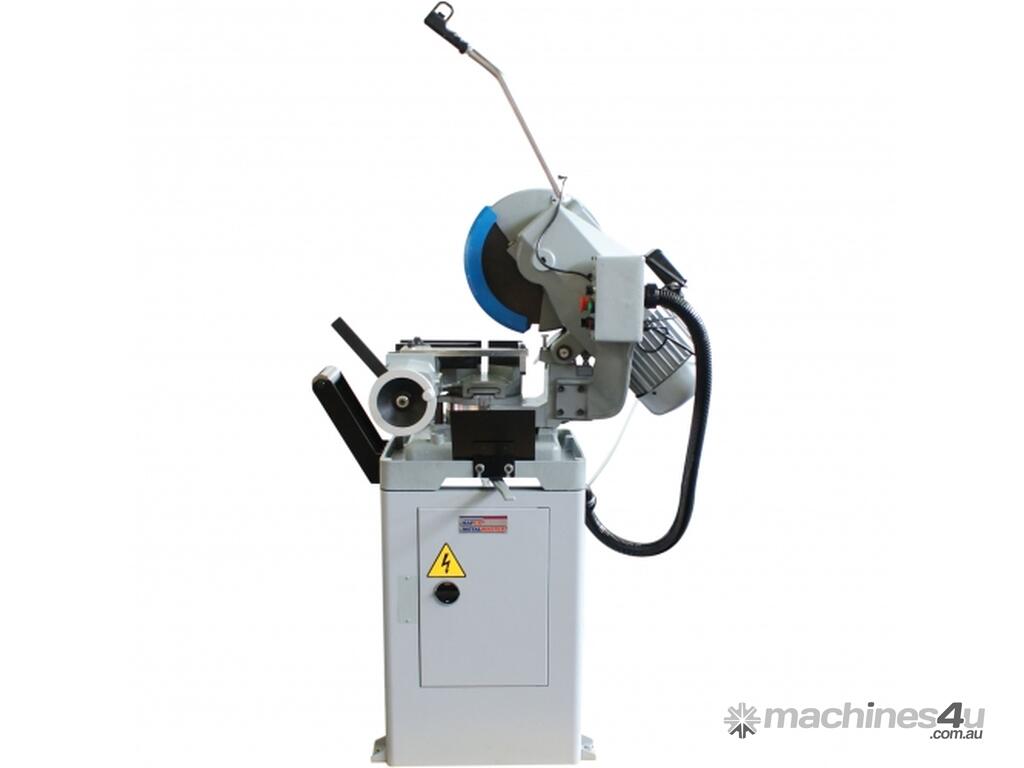

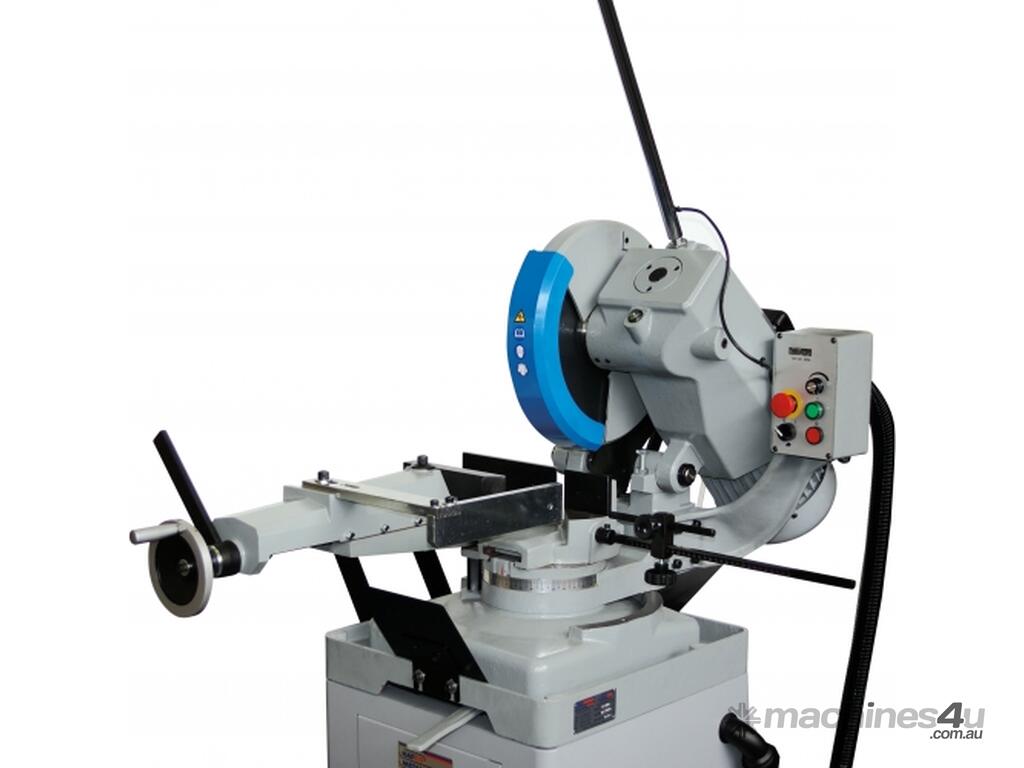

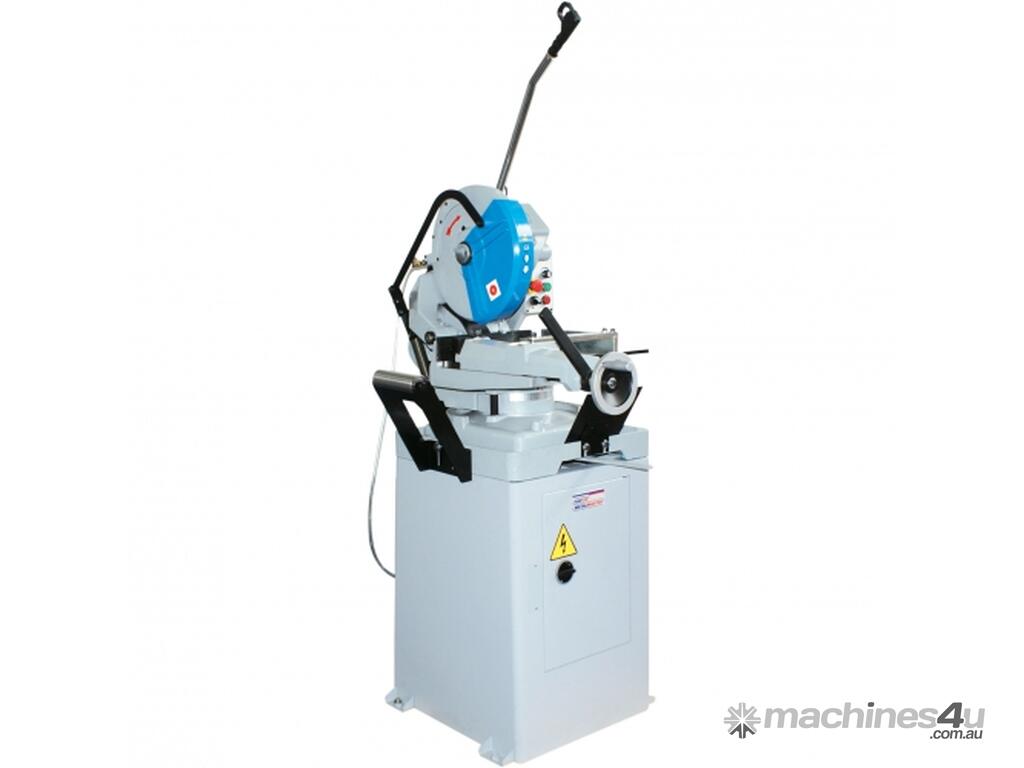

SHAW - HAFCO CS-350V - Cold Saw Includes Stand

CS-350V - MetalMaster Cold Saw Includes Stand

CALL FOR OUR BEST PRICE

Description
Made in Taiwan

The latest 240 volt Hafco MetalMaster manual cold saw consists of a 350mm circular saw blade that can run at 24 to 120rpm via a electronic variable blade speed control and also incorporates a coolant system with an adjustable flow control valve. also available in 415v (3 phase)
These cold saws are designed to cut at 90º, or mitre up to 45º in either left or right side of the material simply by releasing the lever located at front of machine and swivelling the head to the desired angle.
Each machine comes standard with a very heavy and strong cast iron frame base with a cast dual pivot saw head supported by an industrial swivel base system, which makes this MetalMaster cold saw one of the most rugged machines on the market.

The MetalMaster manual cold saw head is well balanced and uses a long actuating handle giving the operator greater leverage and control to guide the saw blade through the work piece of tubing or pipe etc, with ease and utilises a quality head retraction system for returning the cold saw head to the start position. The vice clamps the work piece on both sides of a cut, which extends blade life because the cut off does not drop into the blade.

Features

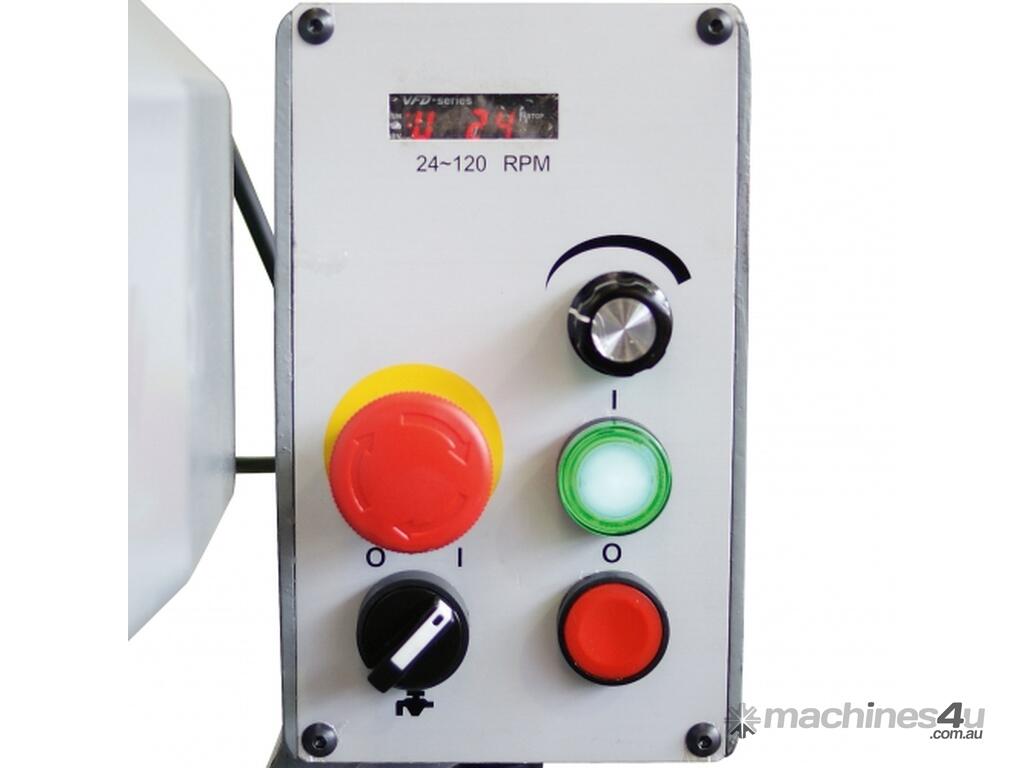

Electronic variable speed 24~120rpm
2.2kW / 3hp 240V heavy duty motor
Rugged cast iron construction offers years of accurate cutting

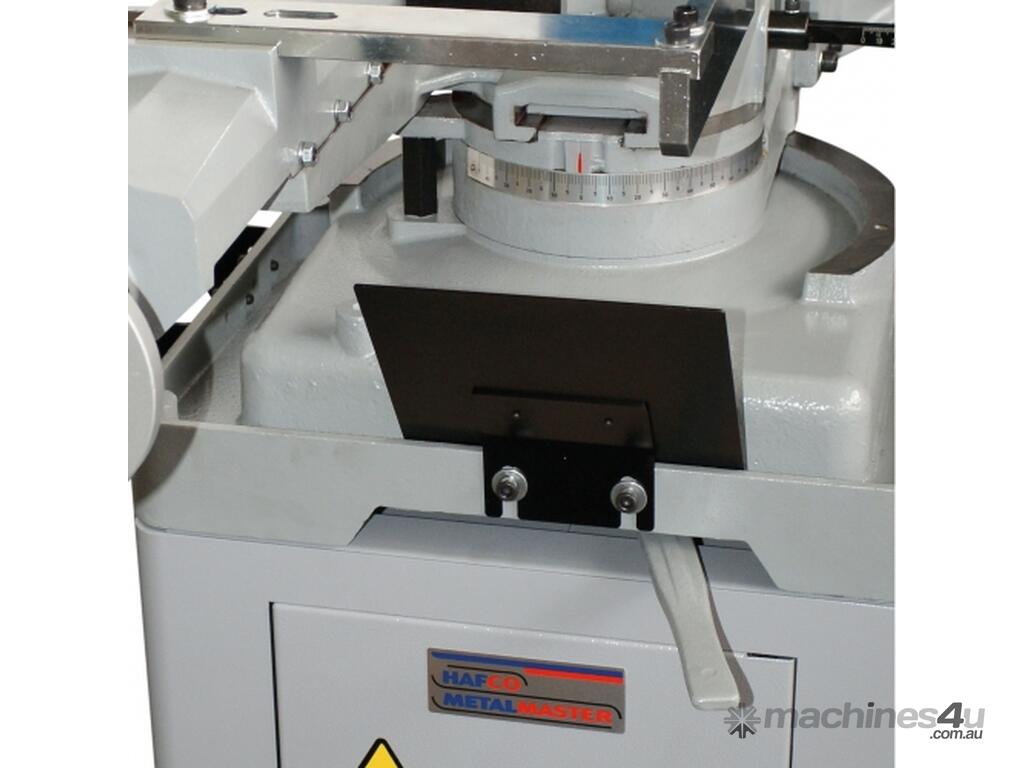

Lock at any angle between -45° or +45° mitre in both directions via locking lever

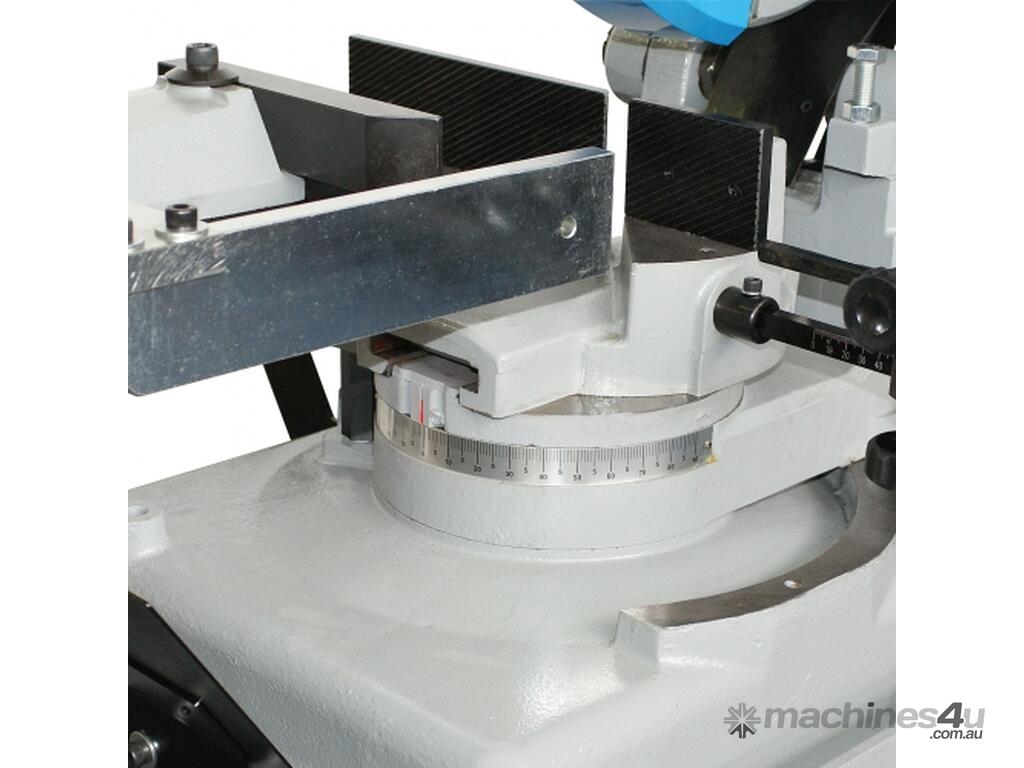

Degree markings engraved onto swivelling base for quick and accurate mitre cutting

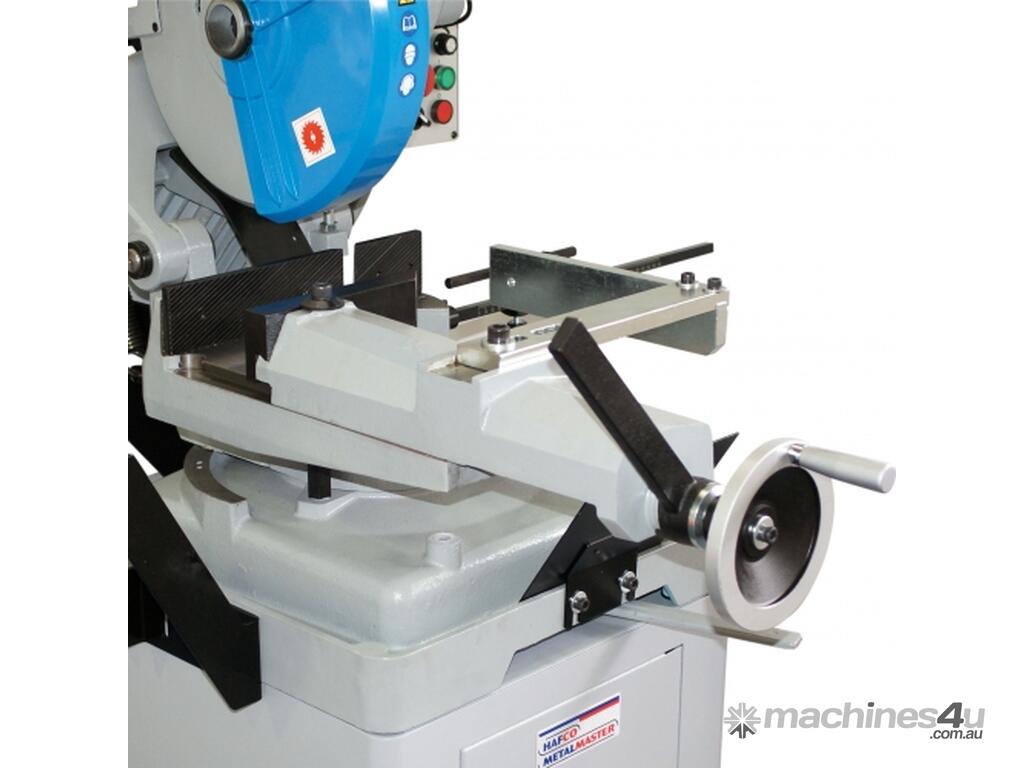

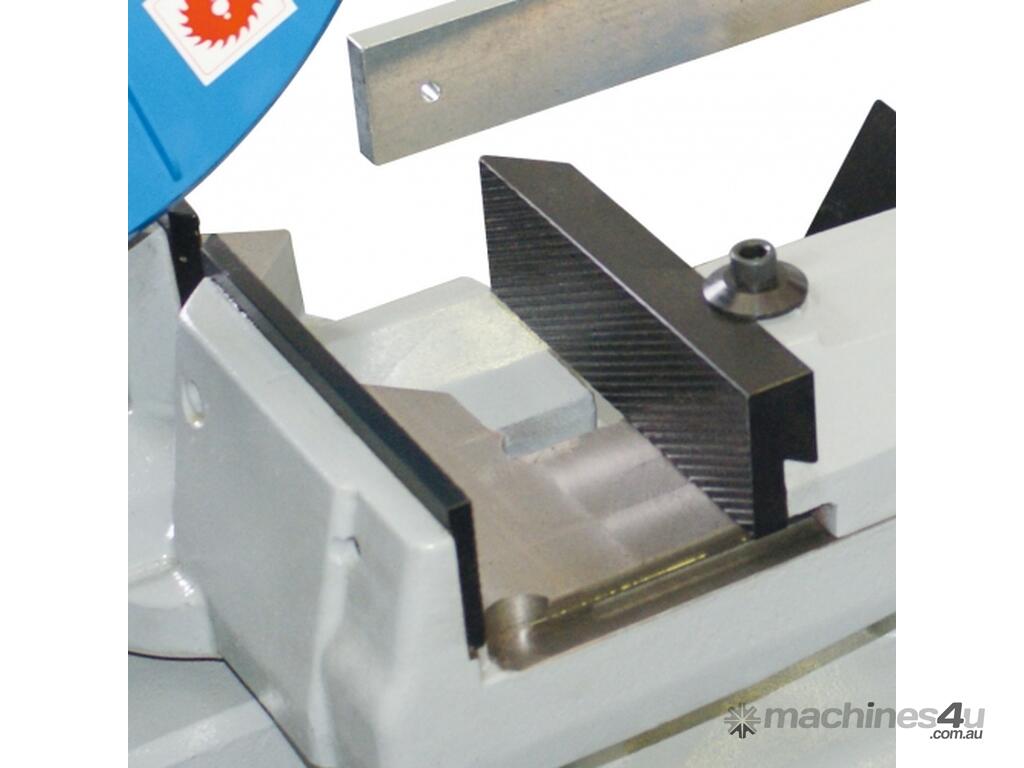

Dual material clamp system providing burr free cuts on both pieces of material
Quick action vice clamp lever designed to increase production

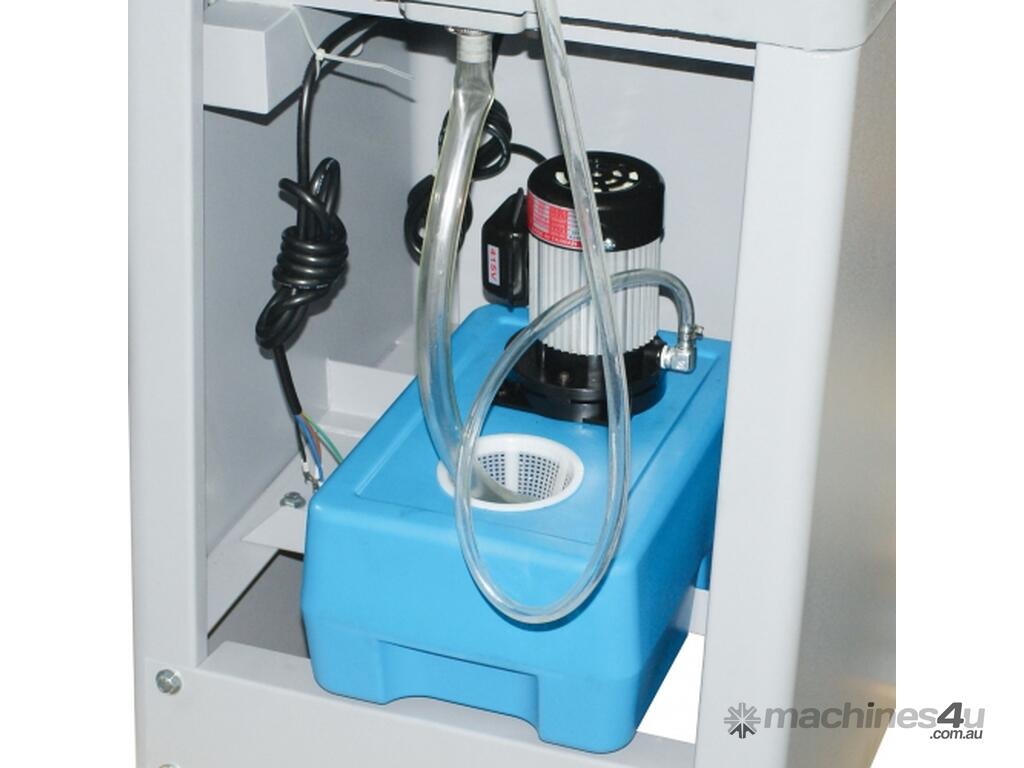

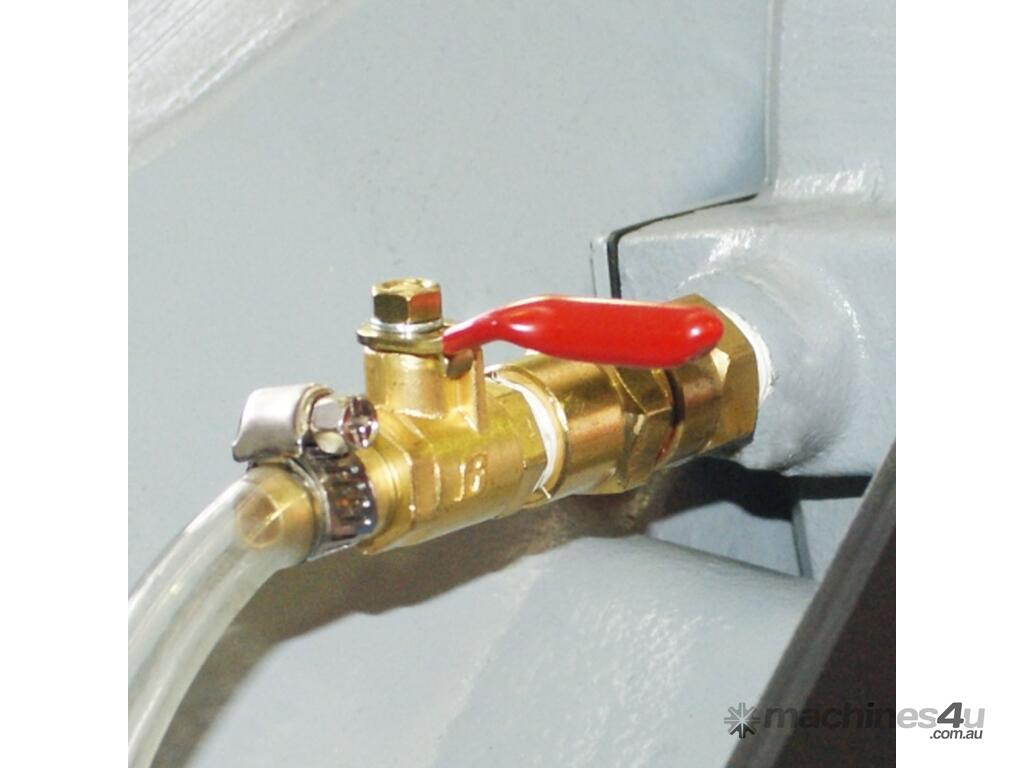

Built in blade coolant pump system with flow control valve
Oil sight glass located on right side of the gearbox so operator can maintain correct lubrication levels according to specifications provided
Dead man trigger switch located on cutting handle provides operator safety on/off power control
Automatic retract safety blade guard covers blade when returned to home position
Spring assisted head return provides a even balance during cutting operation and reduces operator fatigue
HSS cutting blade is included for general types of material and thickness

Model: CS-350V
Capacity: 160 x 90mm
Weight (Nett): 280 Kg
Weight (Cubic): 1.371 m3
Weight (Freight): 456.543 Kg
Dimensions: 119 x 72 x 160

Includes
Blade
Coolant system
Stand
