SHAW - HAFCO Centre Lathe CL-100A 660 x 2000

CL-100A - Centre Lathe (415V)

CALL FOR OUR BEST PRICE

660 x 2000mm - 105mm Bore
Includes Digital Readout, Quick Change Toolpost & Taper Turning Attachment

CL-100A (660 x 2000mm) CENTRE LATHE (415V)

Features
2 Axis digital readout system
Taper turning attachment fitted to saddle
Triple bearings supporting headstock spindle

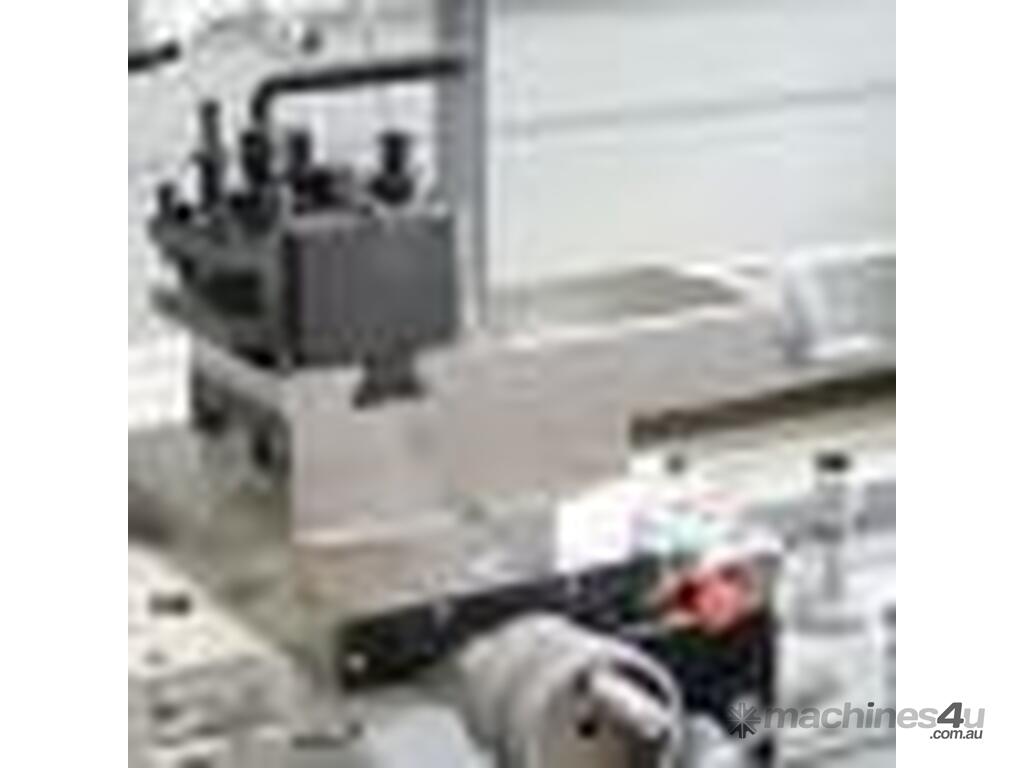

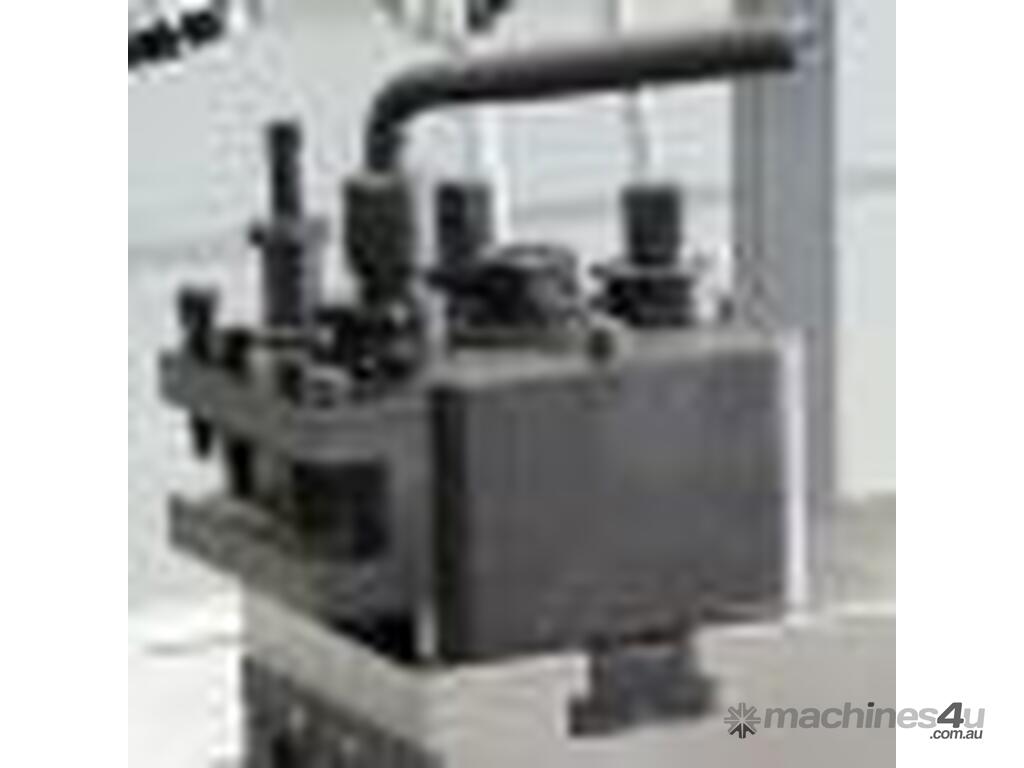

Quick change toolpost with additional holders
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
Multiple discs forward and reversing clutch system
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Foot operated spindle brake with safety cut out switch

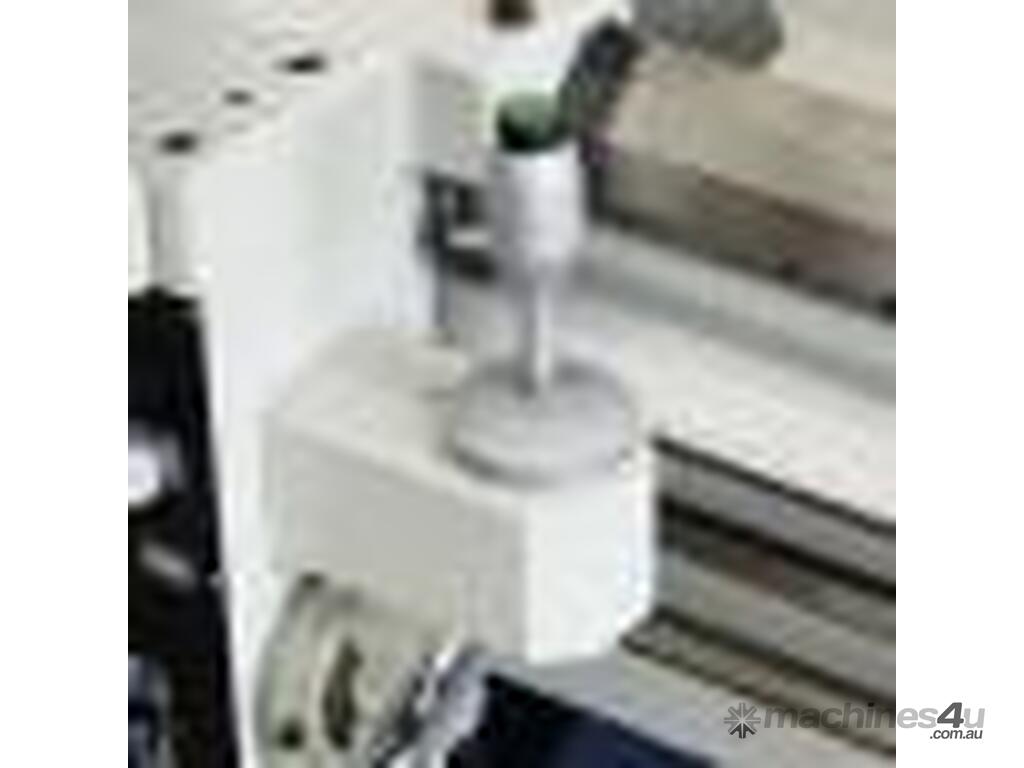

X & Z axis rapid traverse selection lever incorporated on the saddle 4.5m/min
400mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 900mm
Cross slide handle disengages when auto feed is used
Saddle hand wheel disengages when auto feed is used
Adjustable clutch for auto feeds protects machine from overloading during machining

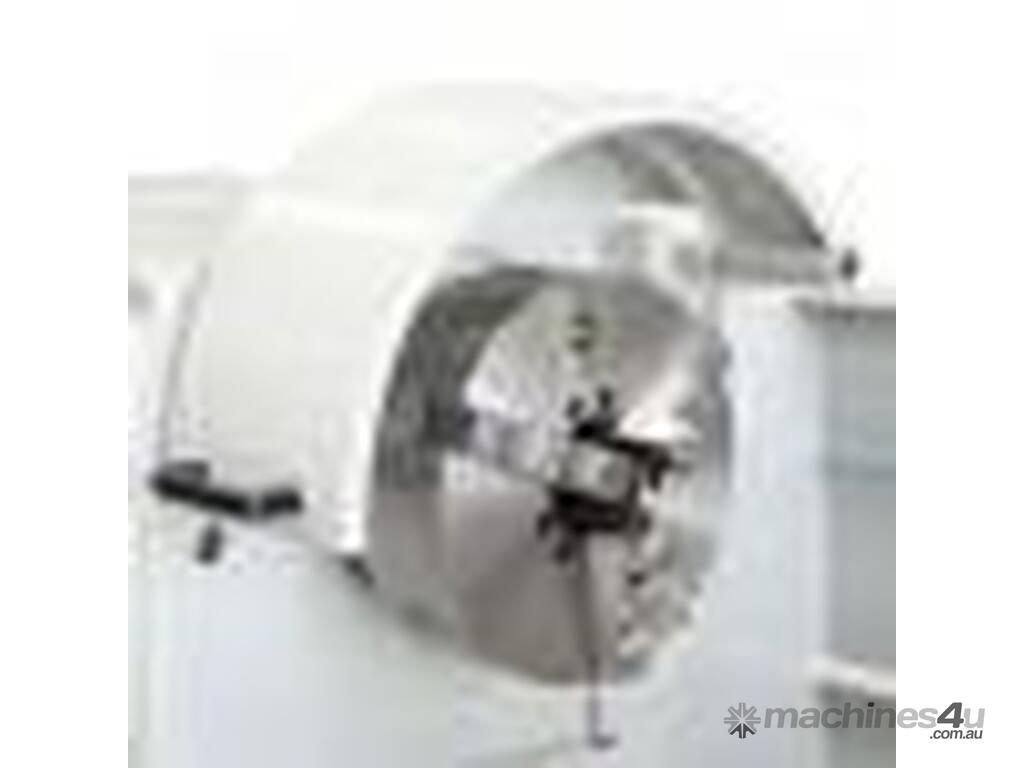

Chuck guard fitted with safety micro switch
Micro switch on side access door
Powered longitudinal and cross feeds
Metric / imperial calibrated feed dials
Coolant system with flexible hose enabling flow control & direction

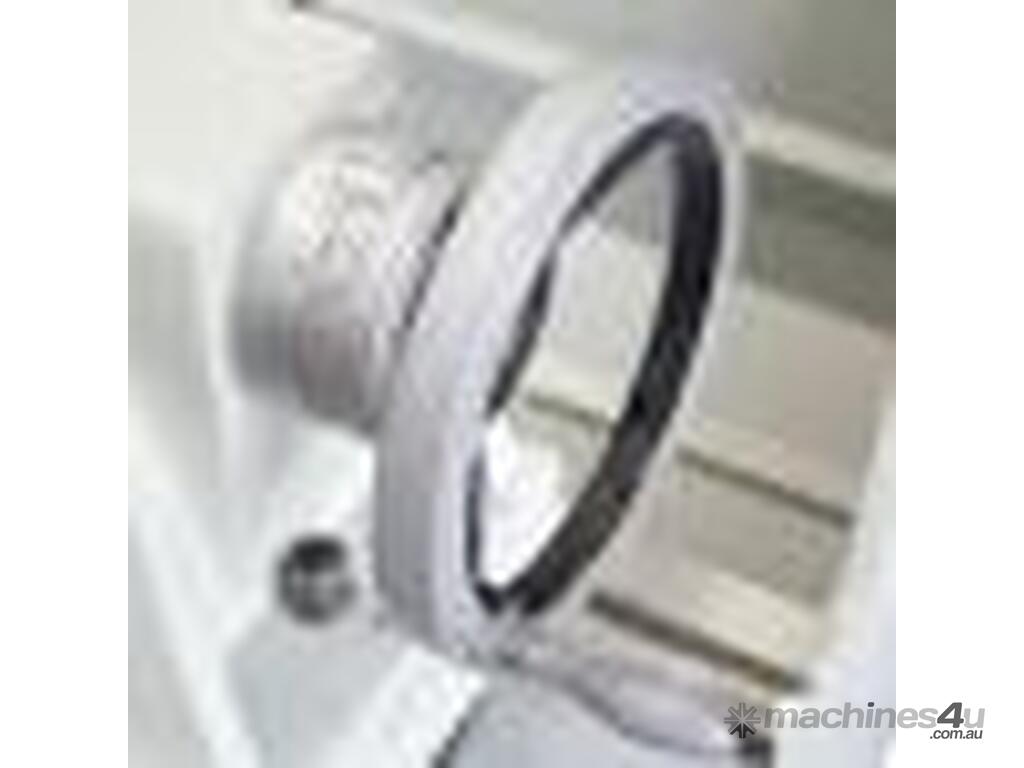

Oil sight glass for head stock and gearbox & apron
Lubrication pump on saddle oiling slides

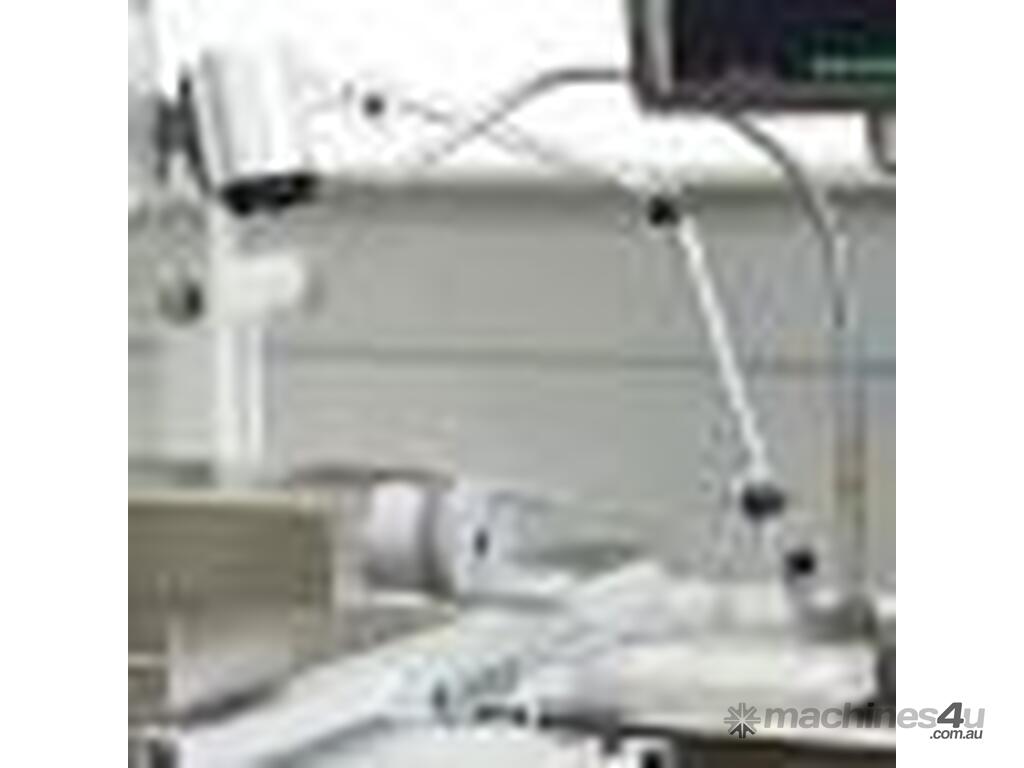

Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal
16 spindle speeds 26-1700rpm
Large 105mm spindle bore
7.5kW / 10HP 415V main motor

Standard Accessories
2 Axis digital readout system
Taper Turning Attachment
325mm 3-jaw chuck with reverse jaws
400mm 4-jaw chuck
Faceplate

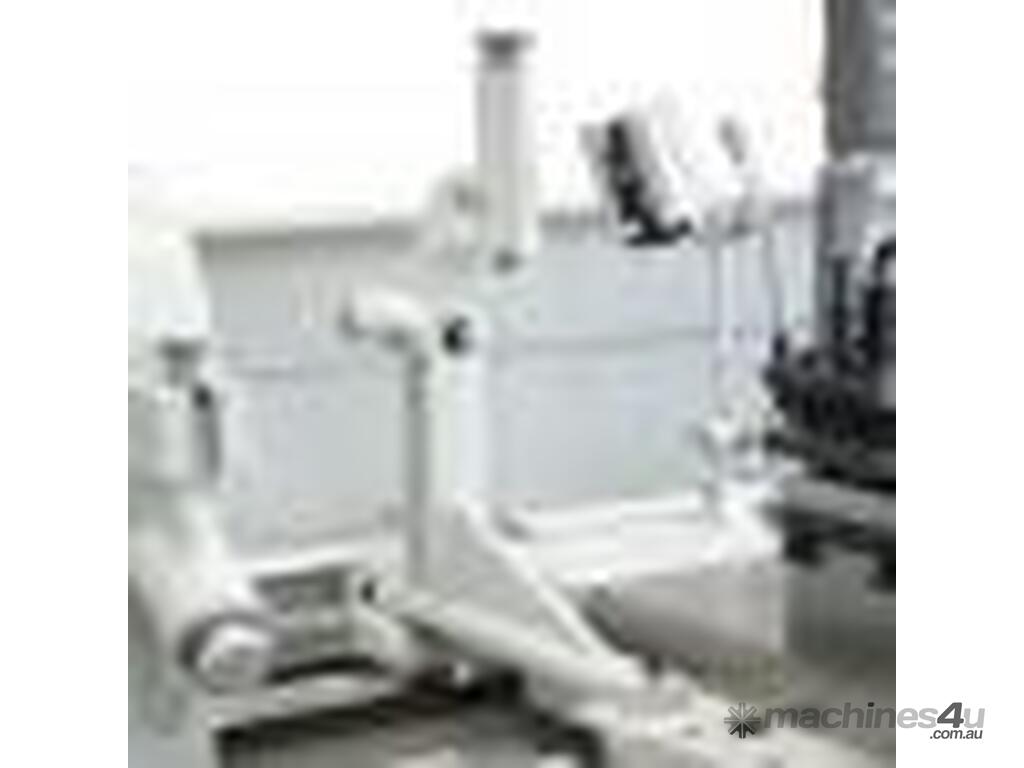

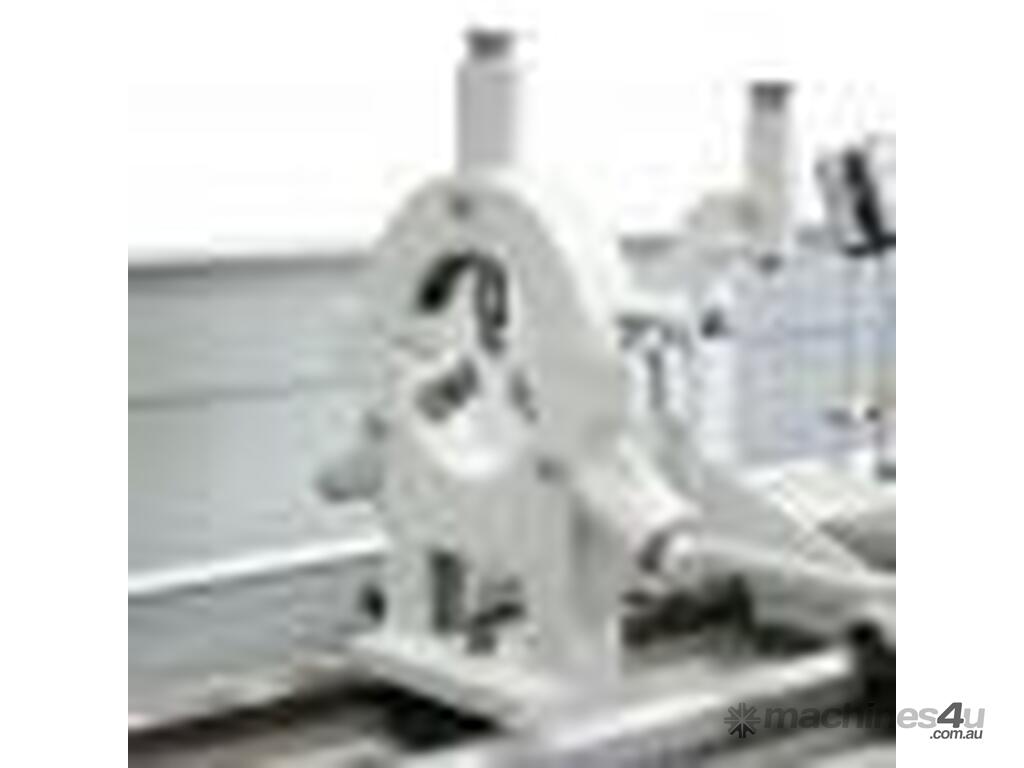

Fixed Steady with roller bearings
Travelling steady
Dead centres
Thread chasing dial
Foot brake
Coolant system
Work light
Rear splash guard
Spindle reducing bush

Specifications:
ORDER CODE: L627D
Model: CL-100A
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Taper Turning Attachment: Yes
Tool Height To Suit: 25mm
Distance Between Centres: 2000mm
Swing Over Bed: 660mm
Swing Over Cross-slide: 440mm
Swing In Gap: 900mm
Centre Height: 330mm
Spindle Bore: 105mm
Camlock Spindle Size: D1-8
Bed Width: 400mm
Head Stock Spindle Taper: 7MT
Tail Stock Taper: 5MT
Cross Slide Travel: 368mm
Compound Slide Travel: 230mm
Lead Screw: Metric
Cross Feed Range (X-Axis): 0.044-1.48mm/rev
Longitudinal Feed Range (Z-Axis): 0.022-0.74mm/rev
Metric Thread Steps & Pitch Range: 54 (0.45-120mm)
Imperial Thread Steps & TPI Range: 54 (7/16-80TPI)
3 Jaw Chuck Diameter: 325mm
4 Jaw Chuck Diameter: 400mm
Spindle Steps / Speed Range: 16 (25-1700rpm)
Motor Power: 7.5kW / 10hp
Voltage: 415V
Weight (nett): 3400Kg

All Prices and specifications are subject to change and are GST exclusive
