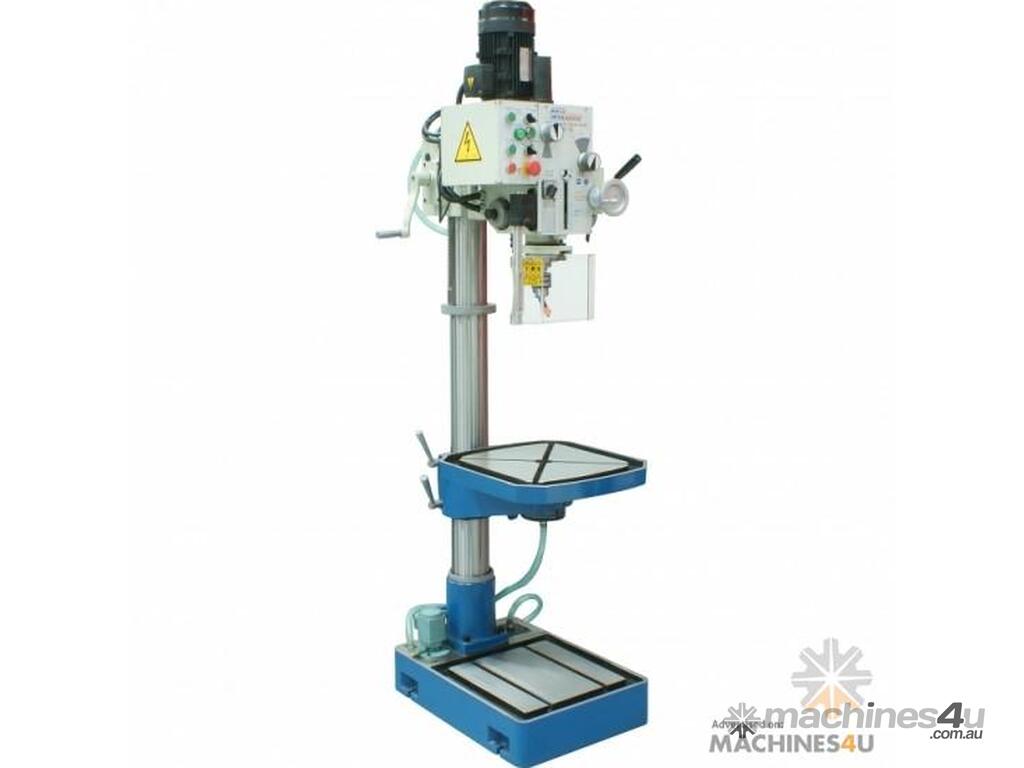

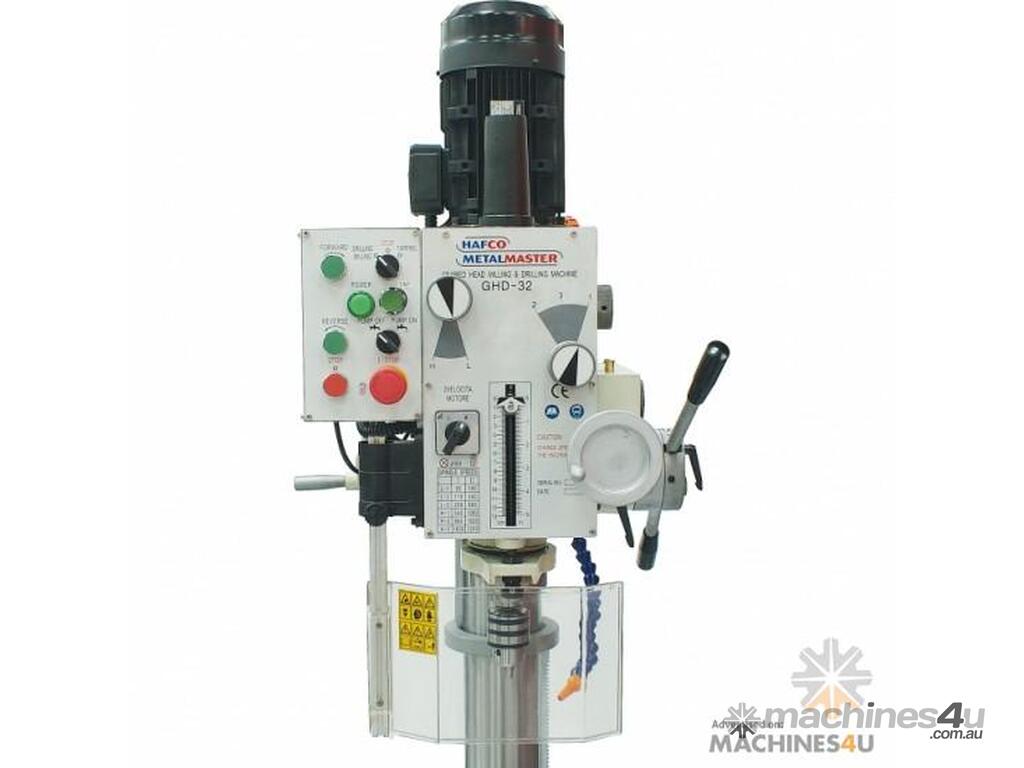

SHAW - HAFCO GHD 32 Geared Head Pedestal Drill -

GHD-32 - Geared Head Drill (415V)

CALL FOR OUR BEST PRICE

40mm Drilling Capacity with Automatic Feed & Tapping
4MT

Features
Ideal for industrial workshop use
4MT geared head machine
Thread tapping with auto reverse

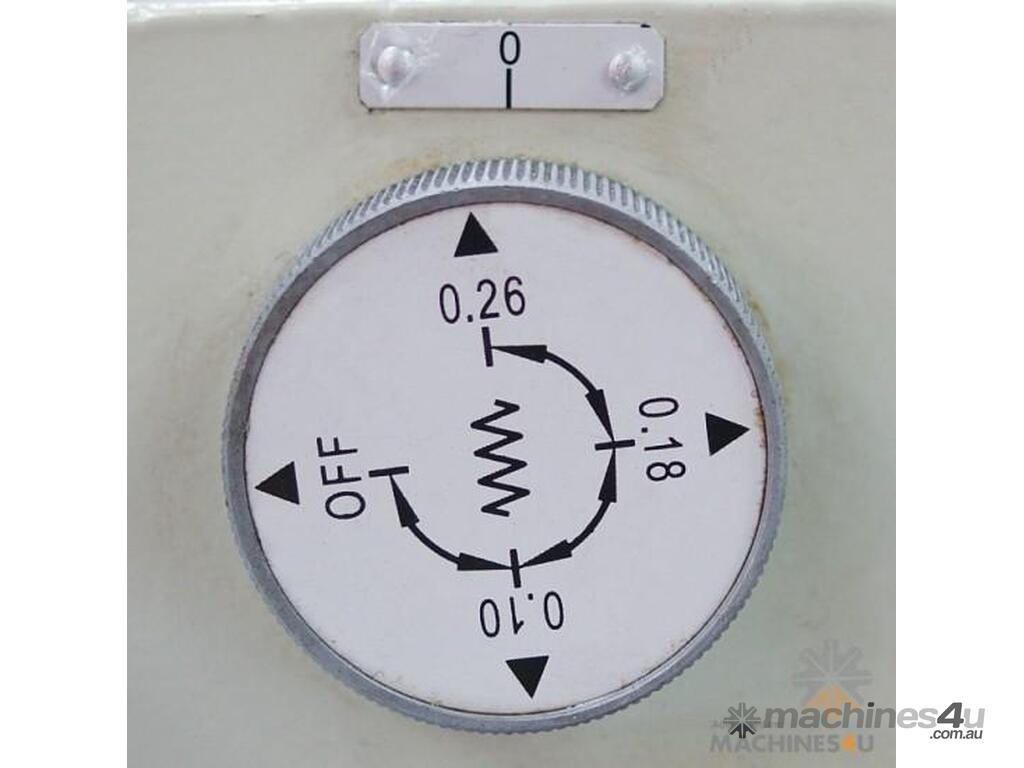

Automatic feed range (0.1, 0.18, 0.26mm/rev)

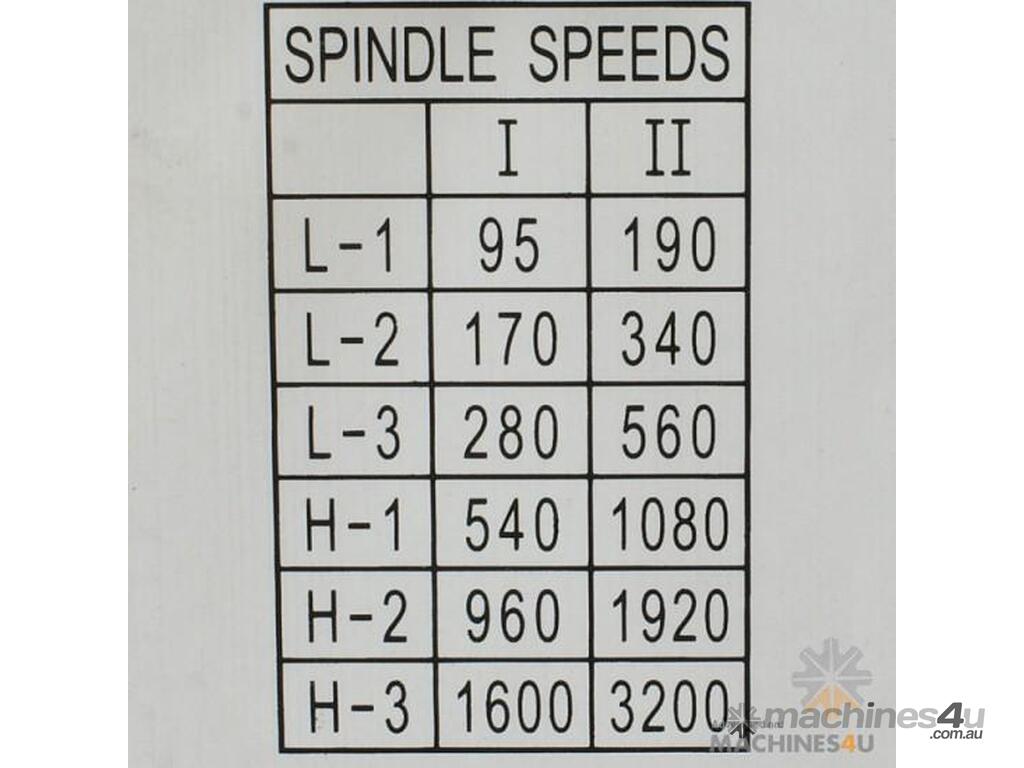

12 drilling speeds 95-3200rpm, 415V motor

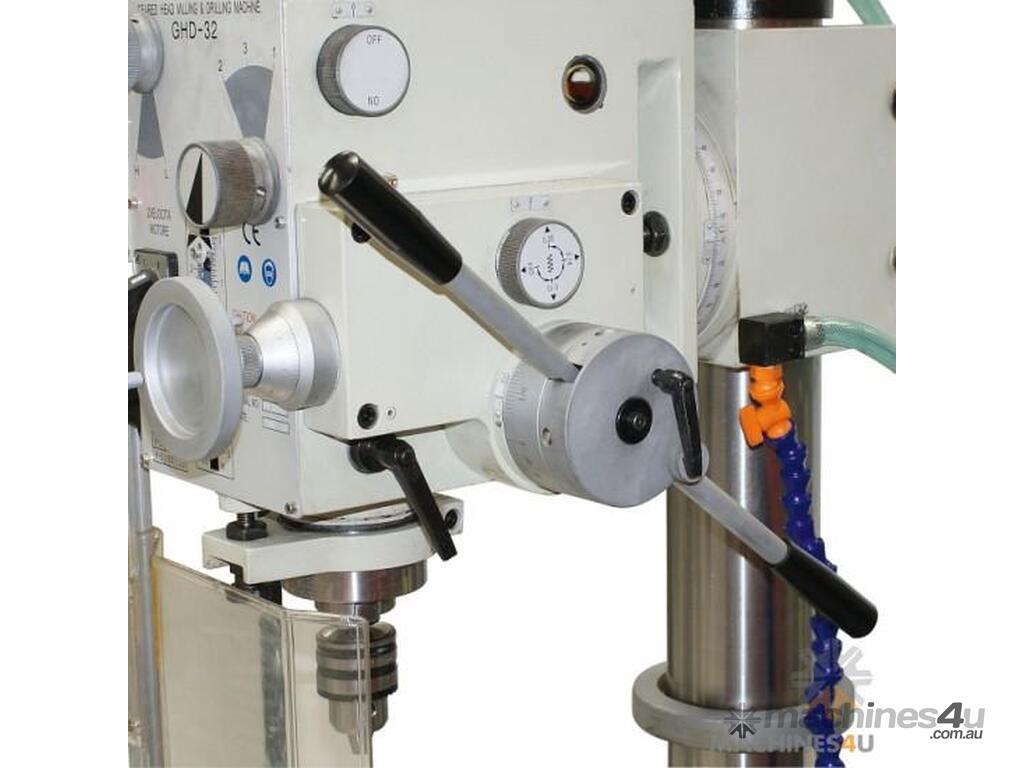

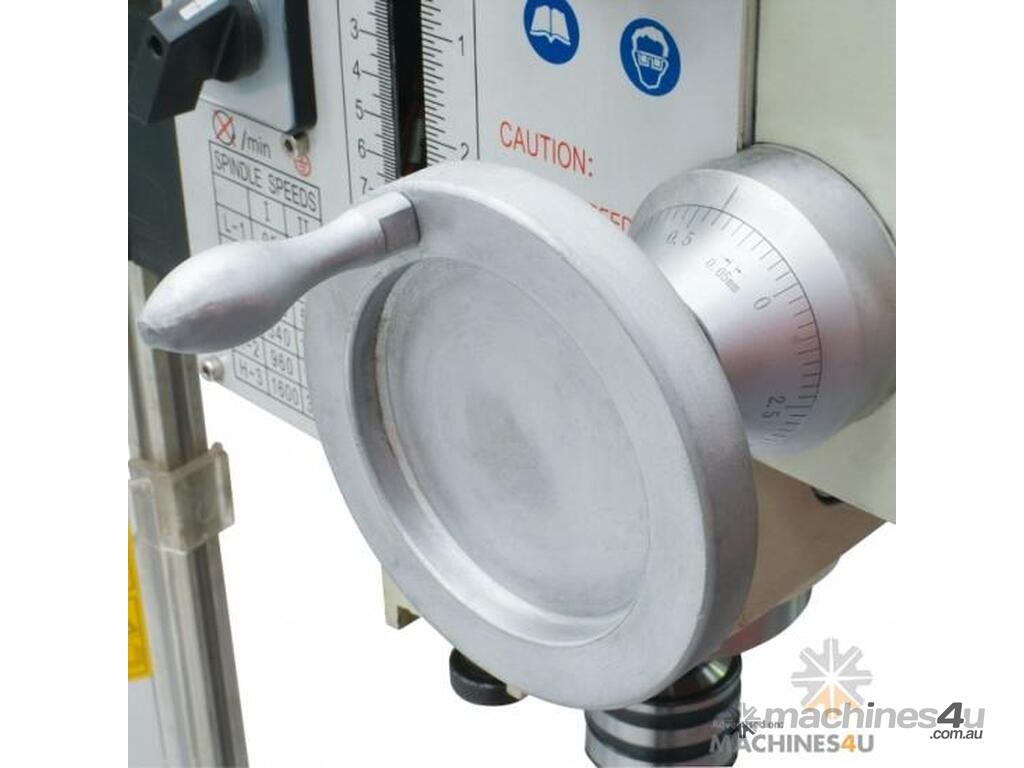

Micro down feed adjustment

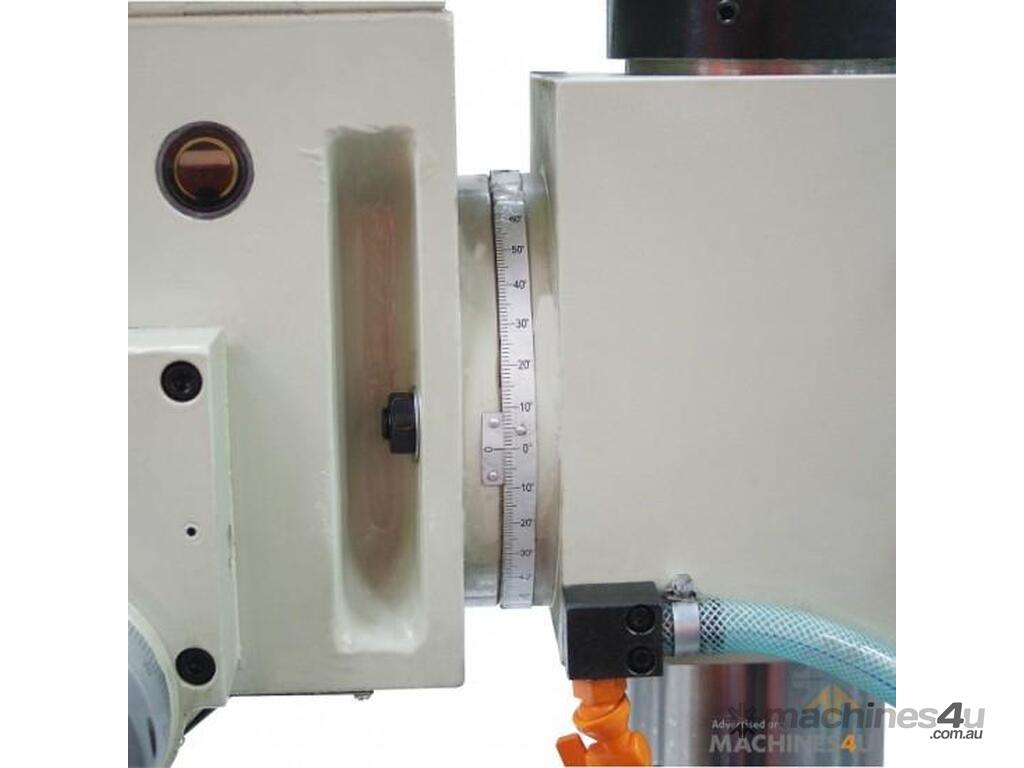

Tilting / swivel head ±90º
Rack & pinion table & drill head
Adjustable accurate depth setting for increased productivity

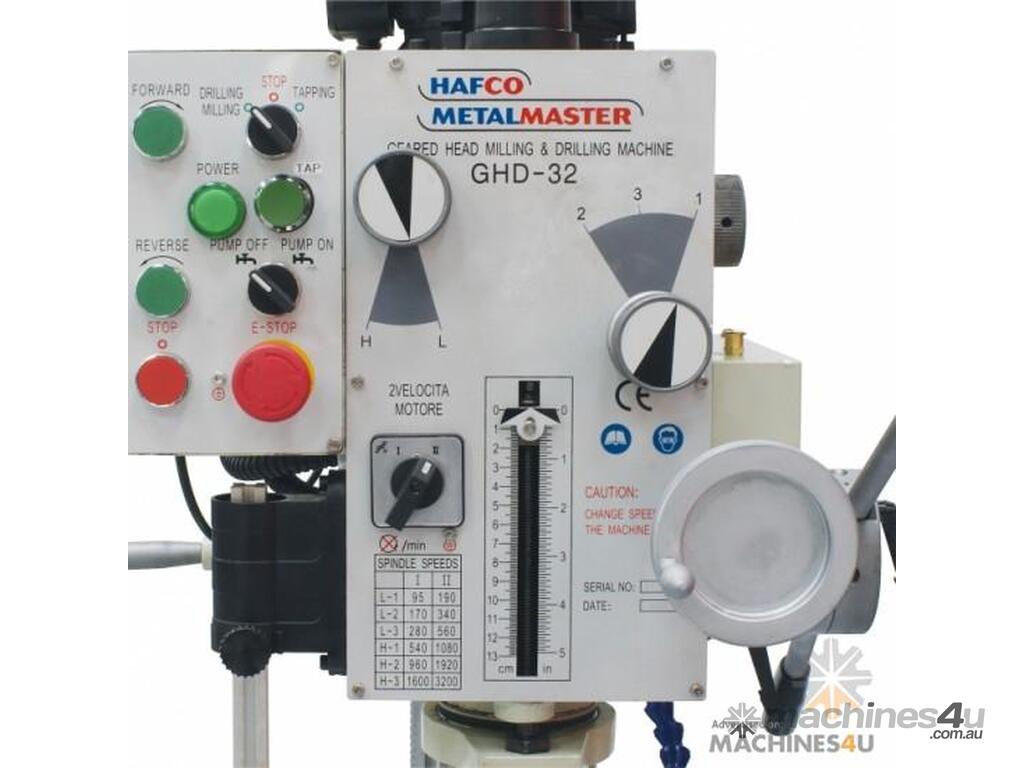

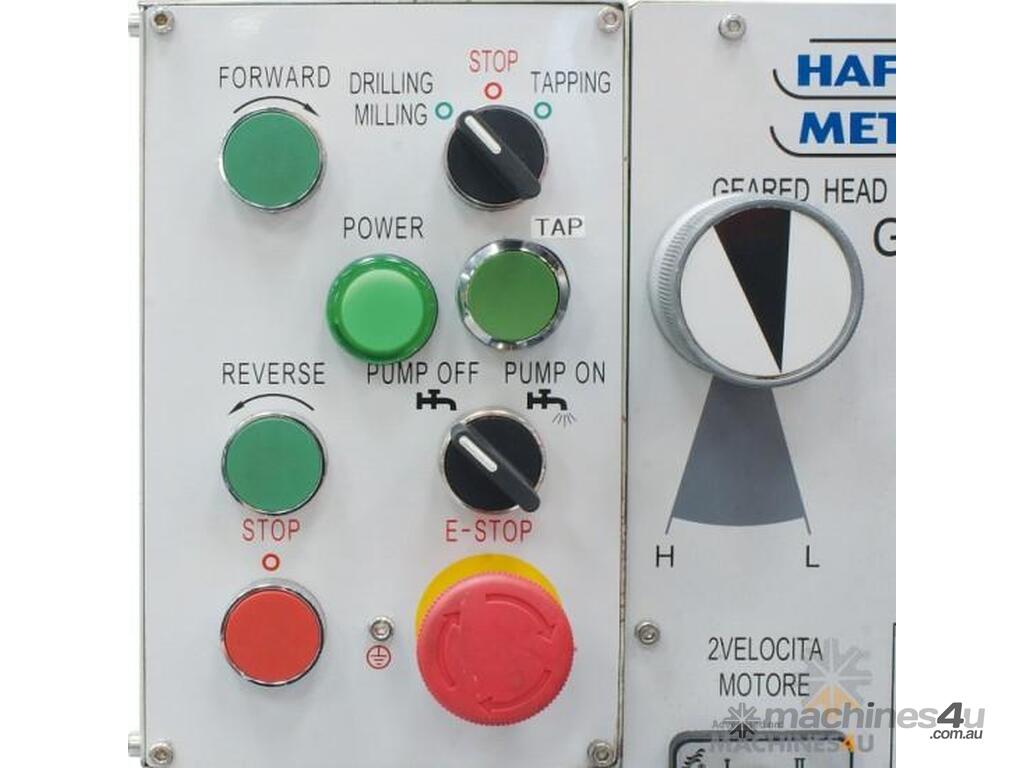

Forward/reverse & safety stop switches

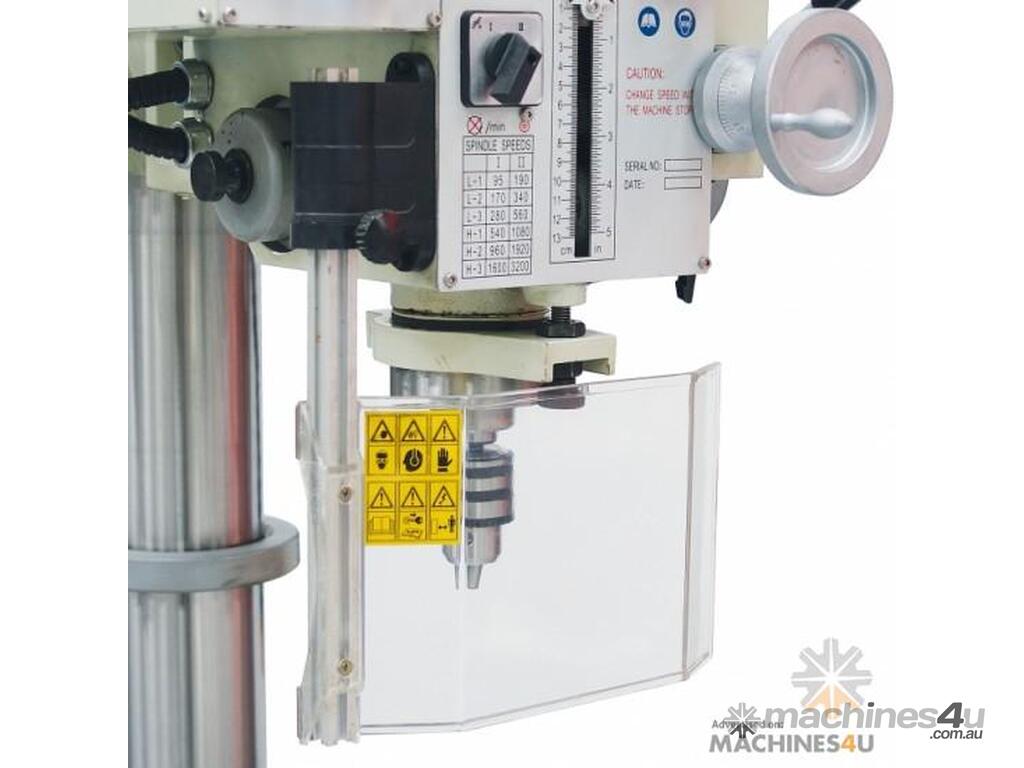

Swivel safety drilling chuck guard

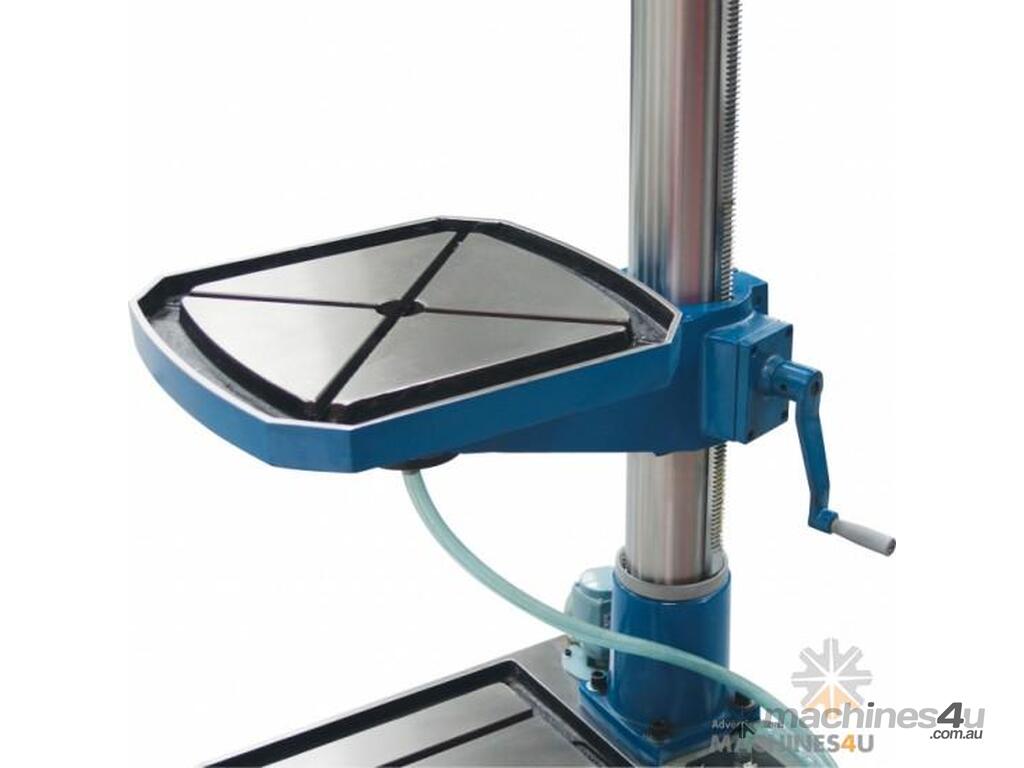

Square work table rotates 360º
T slotted work table and base
Includes coolant pump system & drill chuck

Includes
Coolant pump system

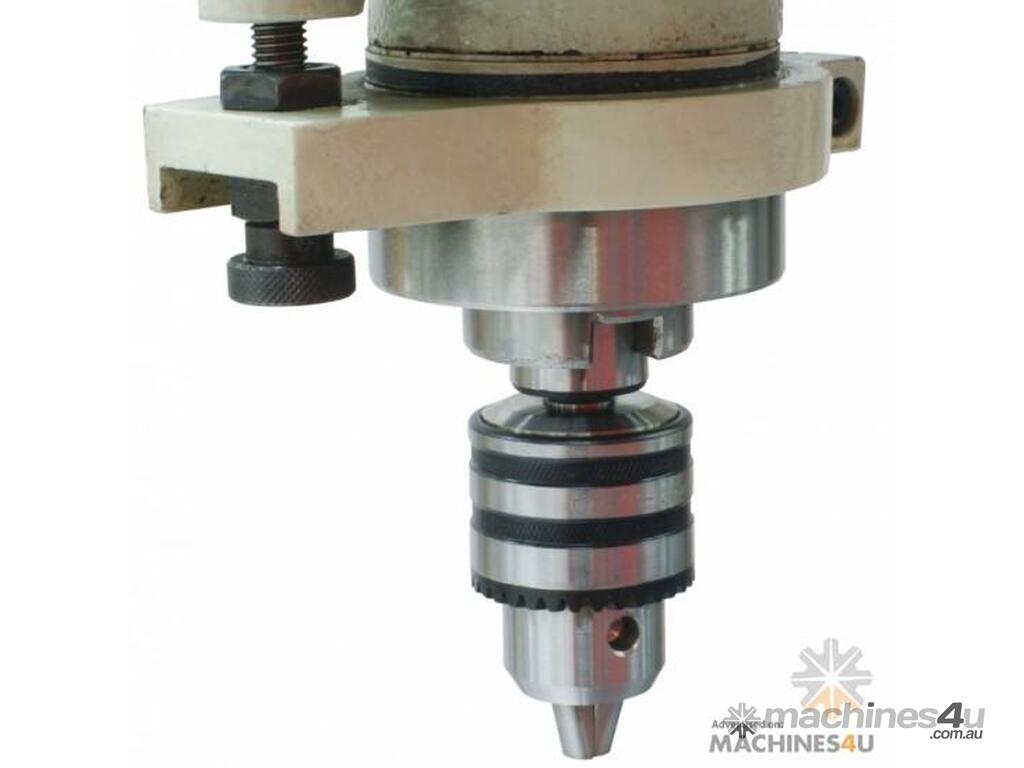

Keyed drill chuck and arbor
Chuck key to suit
Drill drift tool to remove drill chuck or taper shank drills
Safety chuck guard
Drawbar

ORDER CODE: D177
Model: GHD-32
Drilling Capacity: 40mm
Threading Capacity: M16
Spindle Taper: 4MT
Spindle Travel: 120mm
Throat Depth: 273mm
Quill Diameter: 75mm
Column Diameter: 115mm
Spindle To Table: 720mm
Spindle To Base: 1175mm
Table Type: Rectangle
Table Size: 490 x 460mm
T-Slot Size: 14mm
Automatic Quill Feed: 0.1, 0.18, 0.26mm/rev
Coolant System: Yes
Spindle Speed Steps: 12
Spindle Speed Range: 95-3200rpm
Motor Power: 1.5kW / 2hp
Voltage: 415V
Full Height: 1890mm
Weight (Nett): 322kg

All prices and specifications are subject to change and are GST exclusive
