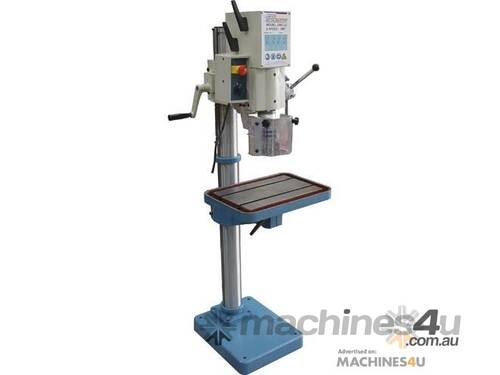

GHD-22 Geared Head Manual Feed Drilling Machine
CALL FOR OUR BEST PRICE
Features
Ideal for industrial or workshop use
Geared head drilling machine with 3 Morse Taper spindle

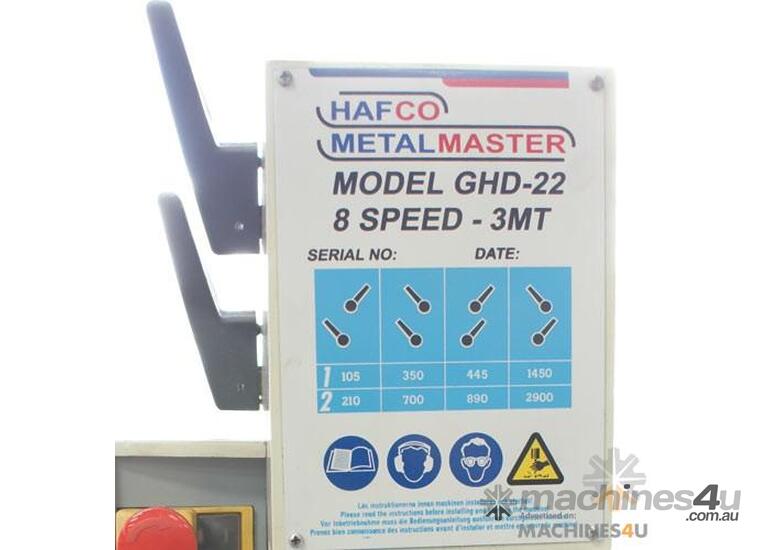

8 drilling speeds from 105 - 2900 rpm

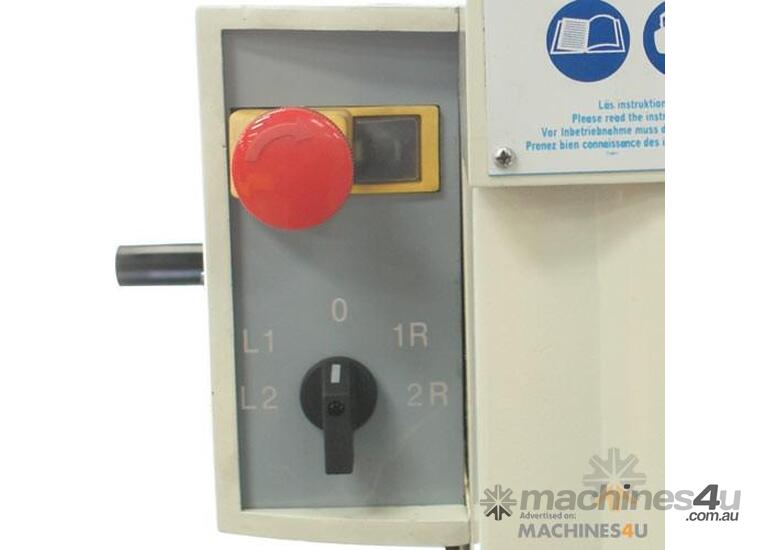

High/low with forward and reverse switch
Helical cut gears for quiet and smooth operation
Swivel safety drilling chuck guard

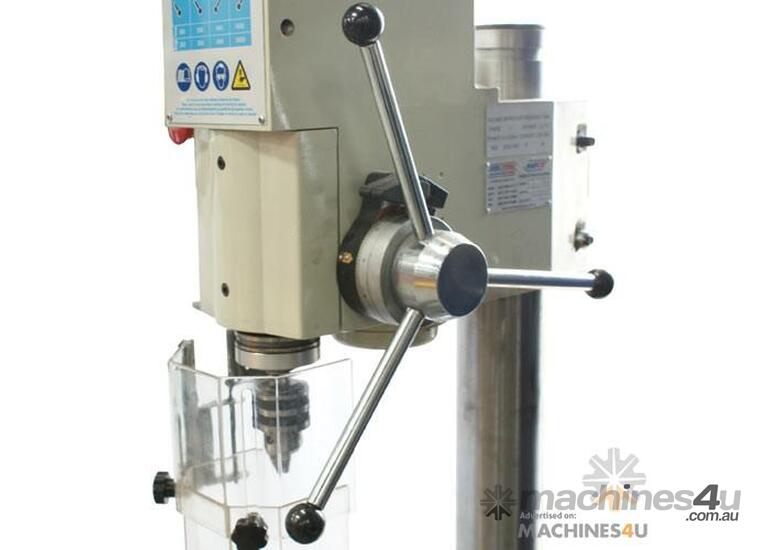

Rack and pinion wind-up drill head
Rack and pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity
Drill ejector lever
Safety emergency stop/reset switch
Table rotates 360 degree
Drilling depth stop setting with scale
T slotted work table
Includes
12 months warranty
16mm keyed drill chuck and arbor
Chuck key to suit
Drill drift tool to remove drill chuck or taper shank drills
Specifications:
CODE:D170
MODEL:GHD-22
SPINDLE SIZE:3MT
DRILLING CAP:31.5mm
SPEEDS:8
RANGE (RPM):105-2900rpm
COLUMN DIA:100mm
DRILL DEPTH:120mm
QUILL DIA:55mm
THROAT DEPTH:255mm
TABLE SIZE:350 x 500mm
SPINDLE TO TABLE:830mm
SPINDLE TO BASE:1240mm
FULL HEIGHT:1800mm
MOTOR:0.75kW
VOLTAGE: 415V
WEIGHT (NETT):180kg
All prices and specifications are subject to change and are GST exclusive
