SHAW - HAFCO HF-750 3MT Portable Magnetic Drilling Unit

New Hafco Drilling Machines:

Order Code: D9507

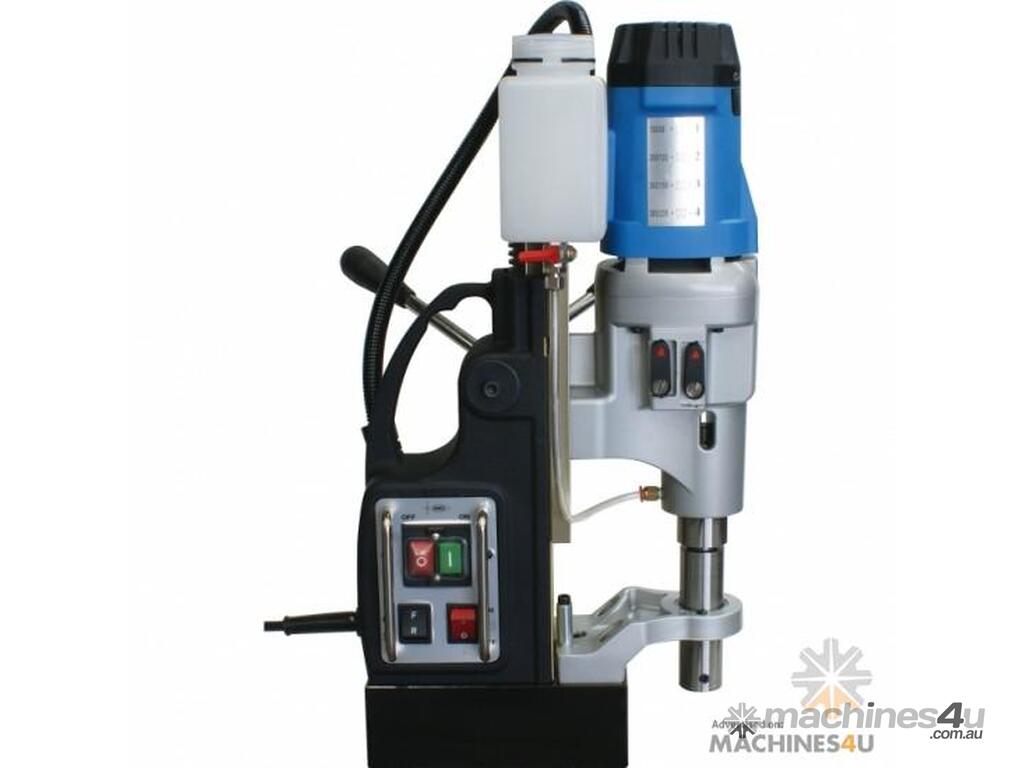

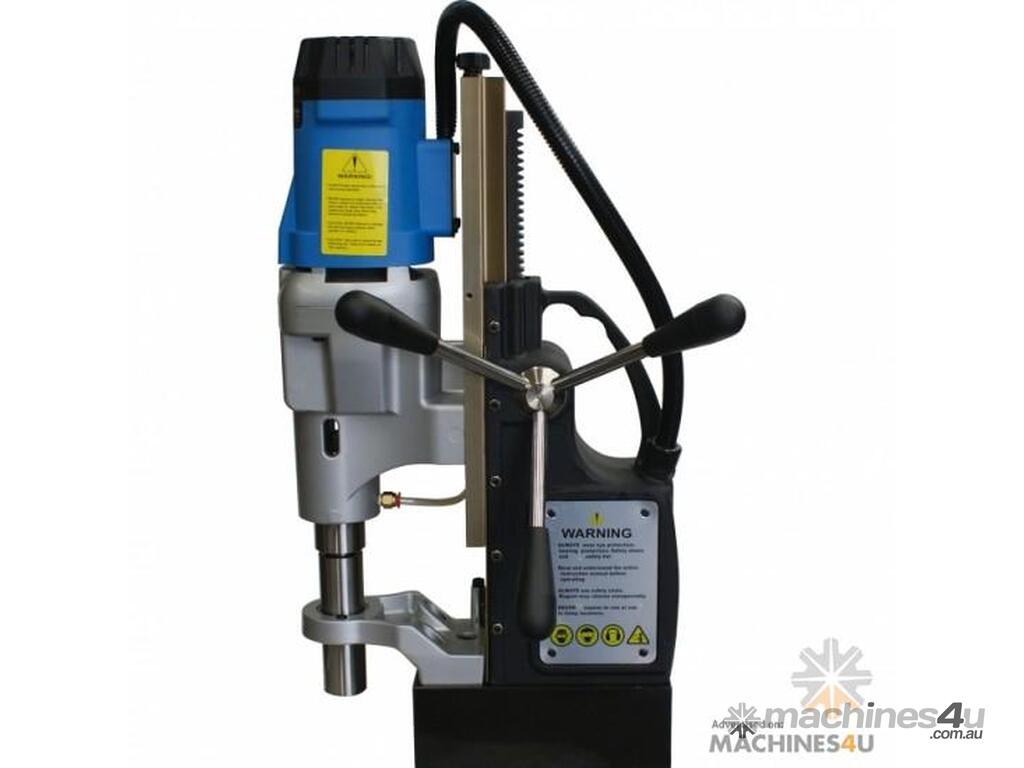

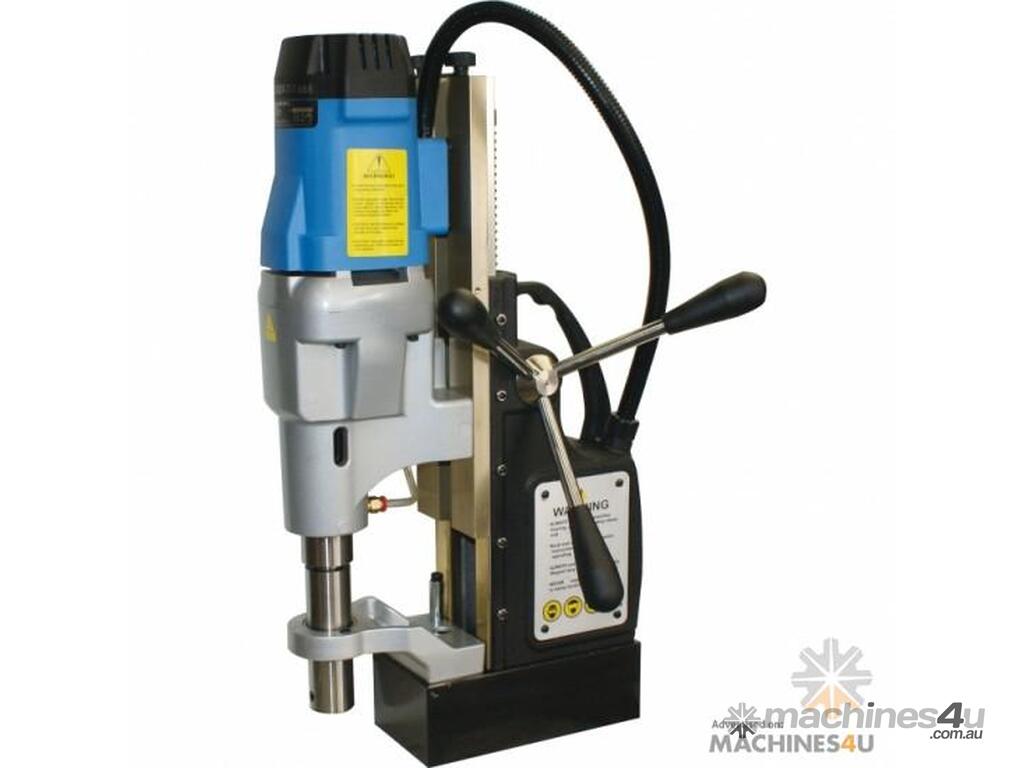

HF-750 - 3MT Portable Magnetic Drilling Unit (240V)
50mm
Manual Feed

Description

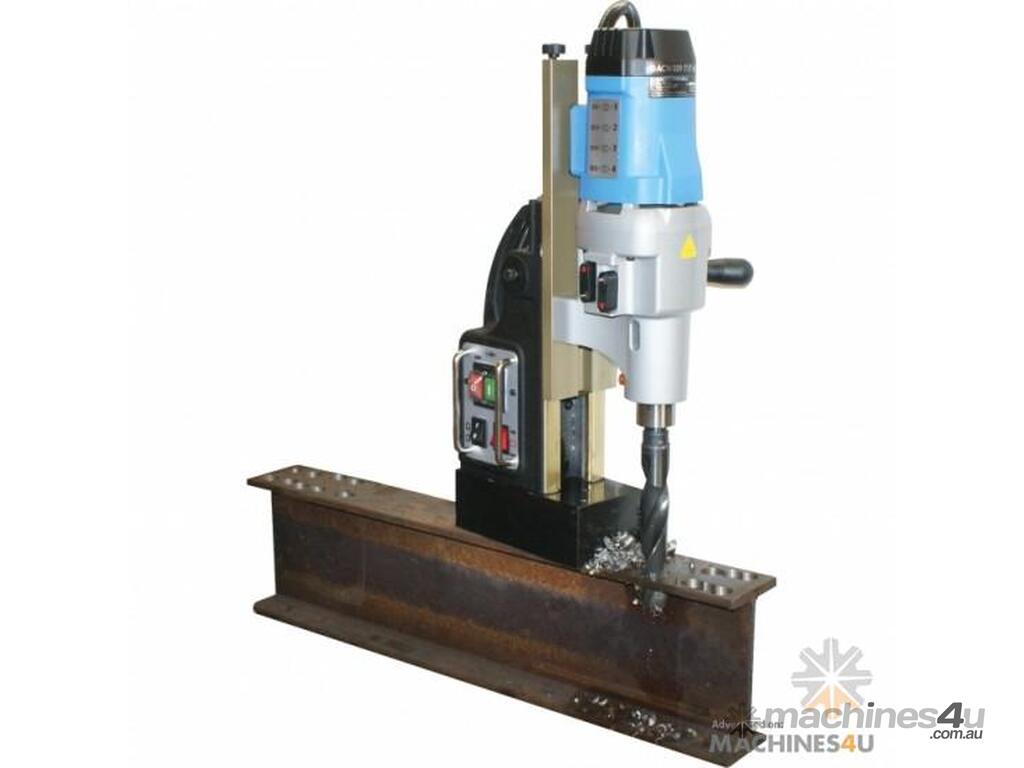

On-site hole cutting in steel plates, H-Beams shaped bars, framework, shipbuilding, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.

Hafco offers a full line of robust and versatile magnetic drilling machines built specifically for the hole making needs of various industries. Applications include fabrication, industrial and civil construction, maintenance, ship building and many others.
This large No. 3 morse taper four speed model drill, has the versatility of using either broach cutters or taper shank drills. It is manual feed and has forward and reverse to make it suitable to be used as a tapping machine.
This model features a purpose-built mag drill motor. This is designed to have the ideal torque characteristics to produce the best performance and durability for heavy-duty industrial use.

NOTE: Shown with optional broach cutter
Features
3MT spindle or 19mm broach holder

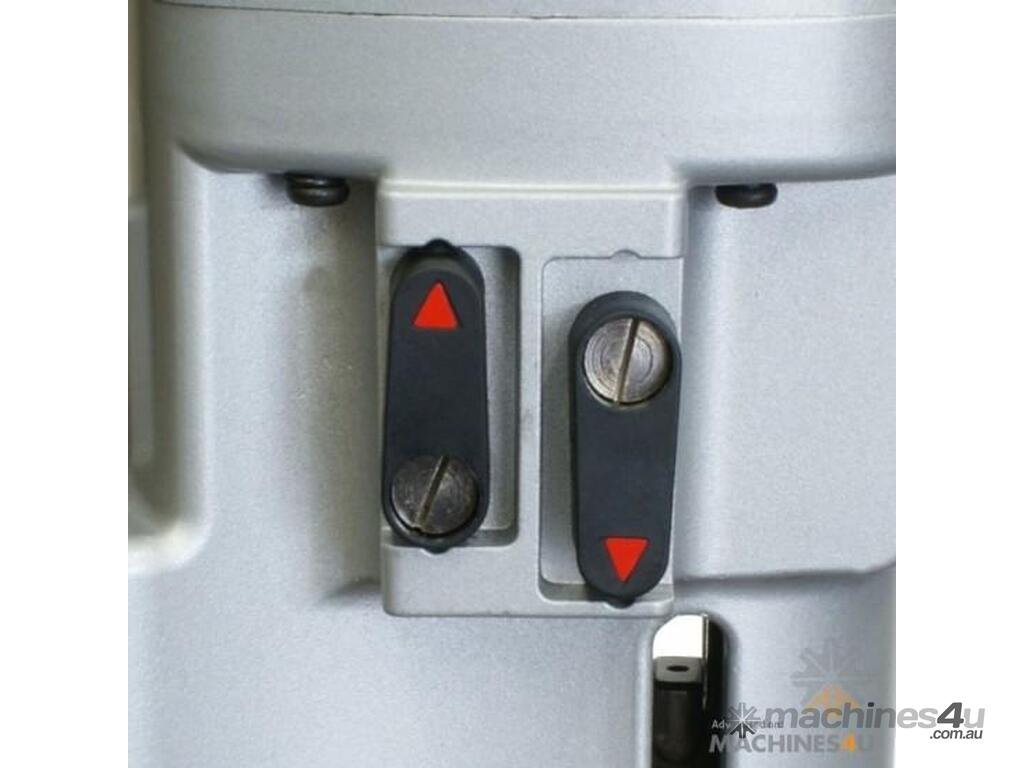

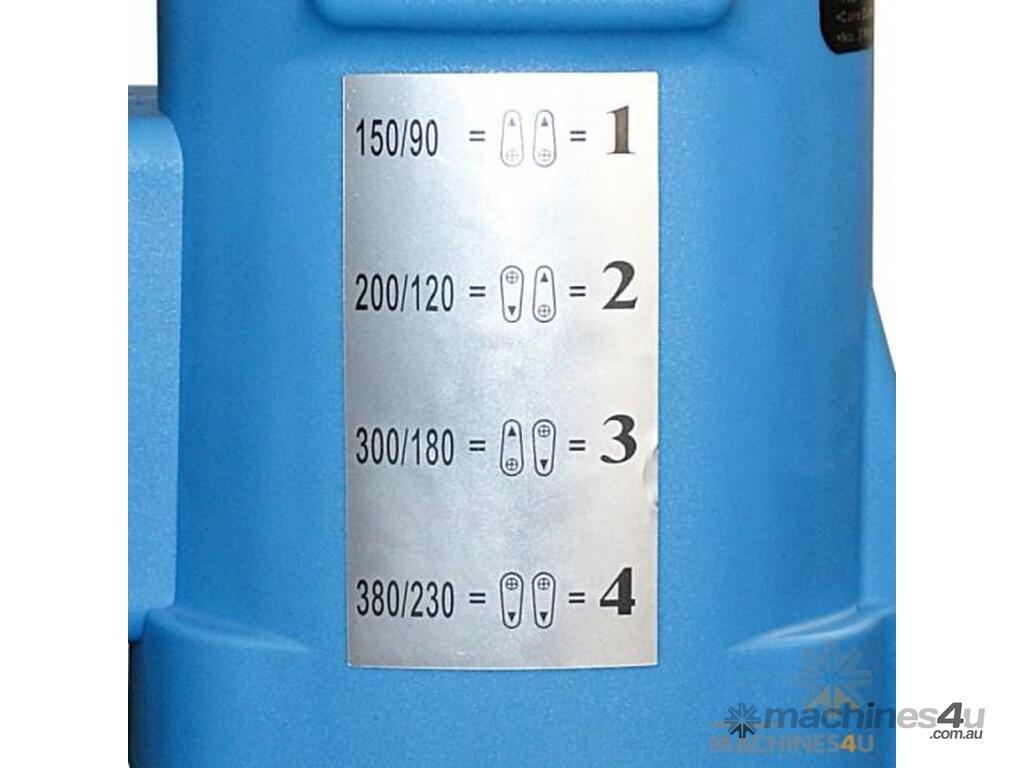

4-speed gearbox
Full load speeds: 90, 120, 180, 230rpm
1800W 240V motor

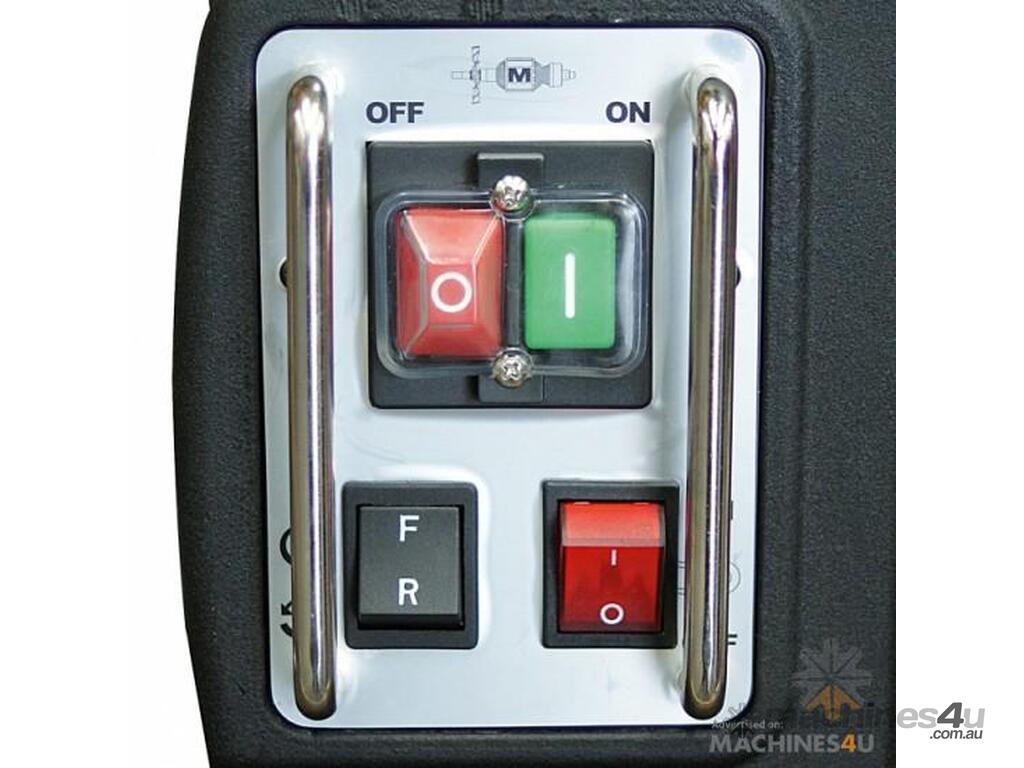

Forward/reverse for tapping
Ø75mm drilling capacity through 50mm plate

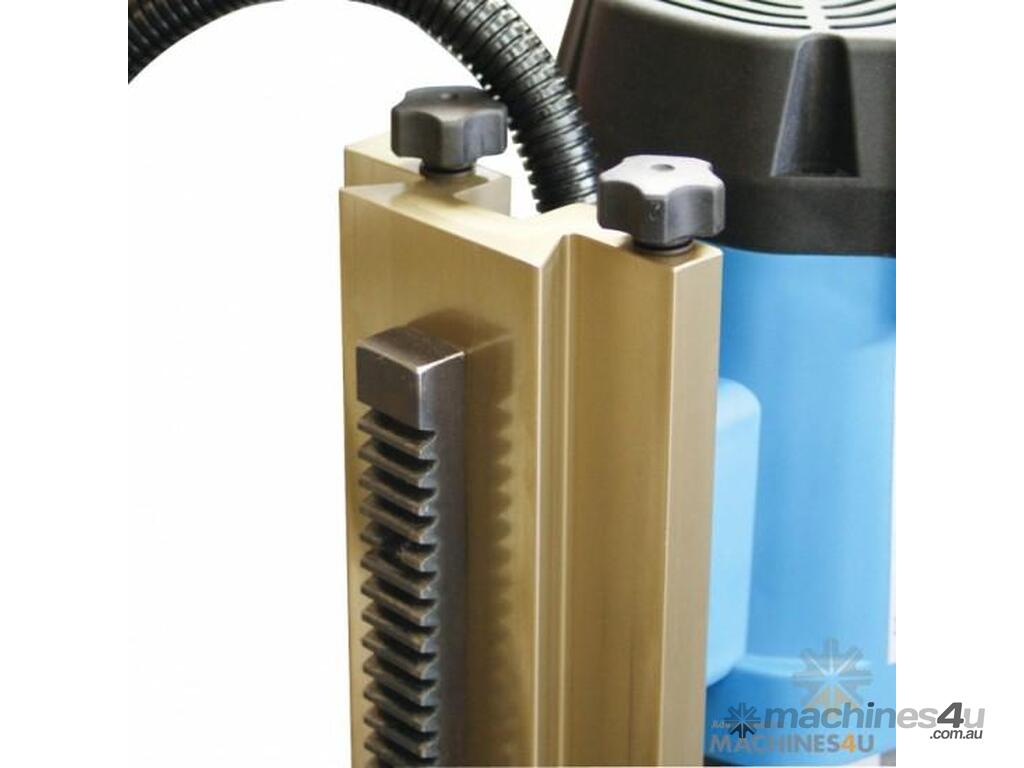

Bronze dovetail slides
Can be used with 3MT drills up-to 31.5mm
CE approved

Includes
3MT spindle with broach cutter adaptor

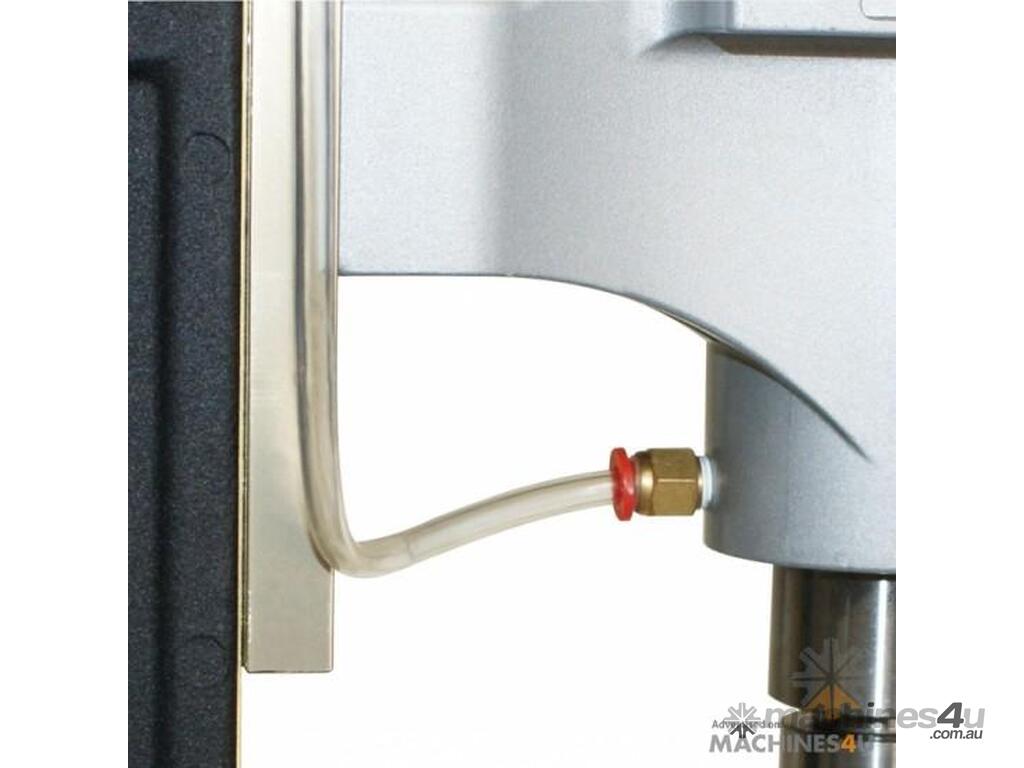

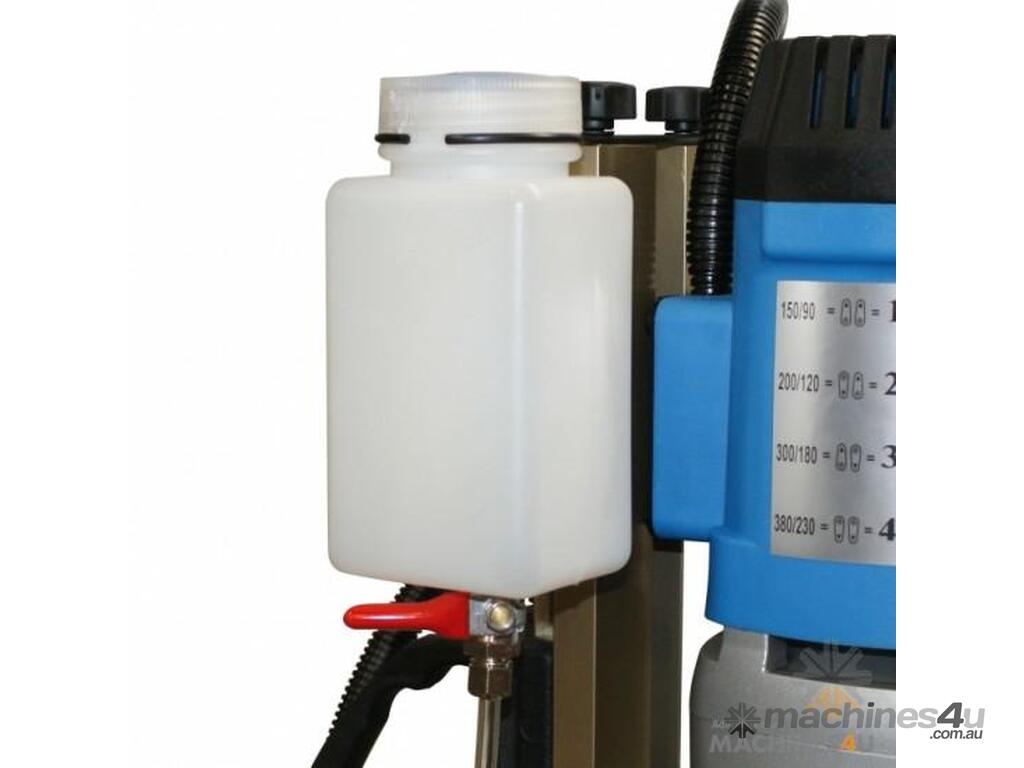

Coolant tank kit
Safety chain

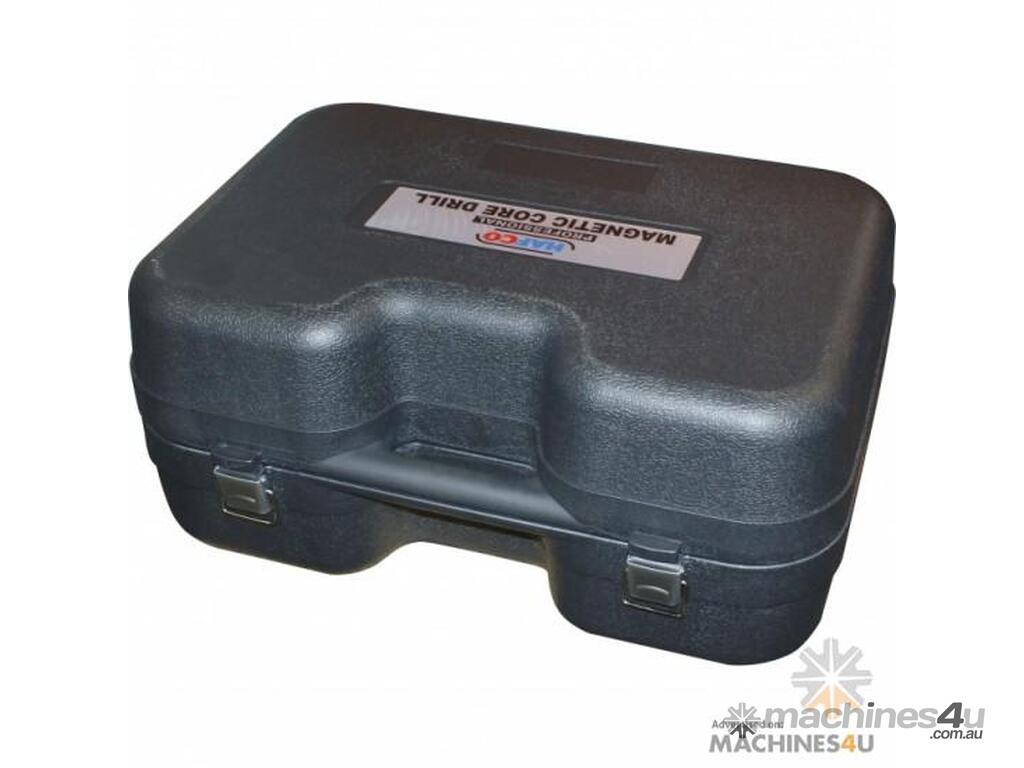

Blow mould plastic case

ORDER CODE: D9507
Model: HF-750
Feed: Manual
Drilling Capacity Range: 12-50mm
Maximum Thickness: 50mm
Suits Cutter Shank Size: 19mm
No. of Drilling Speeds: 4
Full Load Drilling Speeds rpm: 90, 120, 180, 230rpm
No Load Drilling Speeds rpm: 150, 200, 300, 380rpm
Magnetic Holding Power: 3263kg/f
Motor Power: 1800W
Motor Voltage: 240V
Weight (Nett): 24.8kg

all prices and specifications are subject to change
