SHAW - HAFCO HM-46B Geared Head Tilt Head Mill Drill with DRO

HAFCO METALMASTER
HM-46B Mill Drill - Geared & Tilting Head
(X) 485mm (Y) 175mm (Z) 430mm
Includes Dovetail Column

The HM-46B milling machines is similar in overall size to the popular RF-31 or HM-32 but with the additional benefit of a 6-speed 95-1600rpm, gear driven head which can be tilted up to 90º either side of the vertical. This feature allows the head to be positioned in a variety of positions, allowing a whole range of milling, slotting, grooving, drilling and boring operations to be carried out.

The usual handle-driven down feed is available for precision drilling and there is a fine manual down-feed control for precise vertical milling.

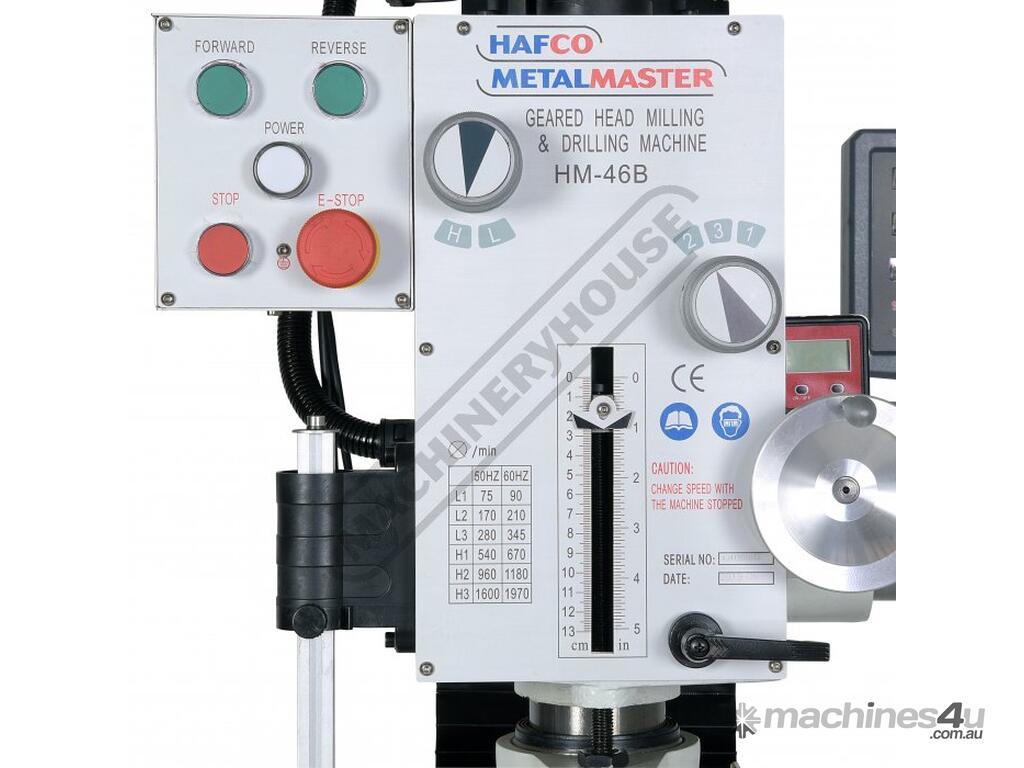

The motor is controlled by a separate forward and reverse on/off button switches.

There is a heavy duty steel stand available as an extra, strongly recommended bearing in mind the weight of the machine.

Also available is a optional power feed attachment which fits to the left hand end of the table and provides a smooth, variable speed longitudinal drive.

Features:

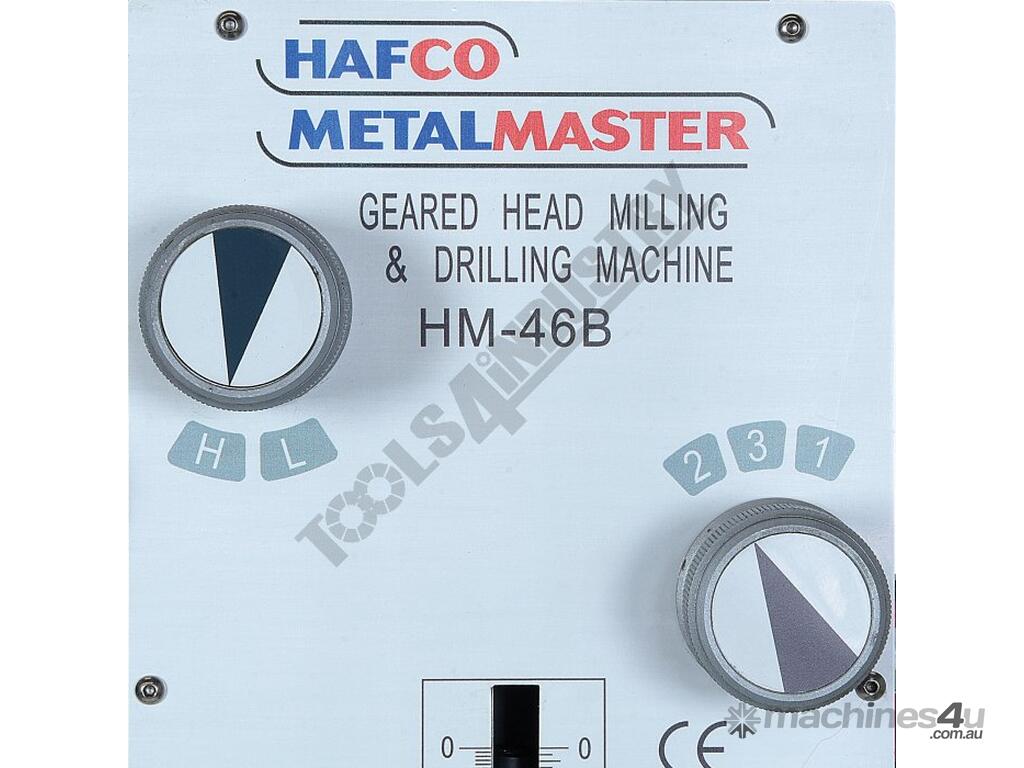

Gear driven head 6 speeds
Dovetail vertical Z-axis

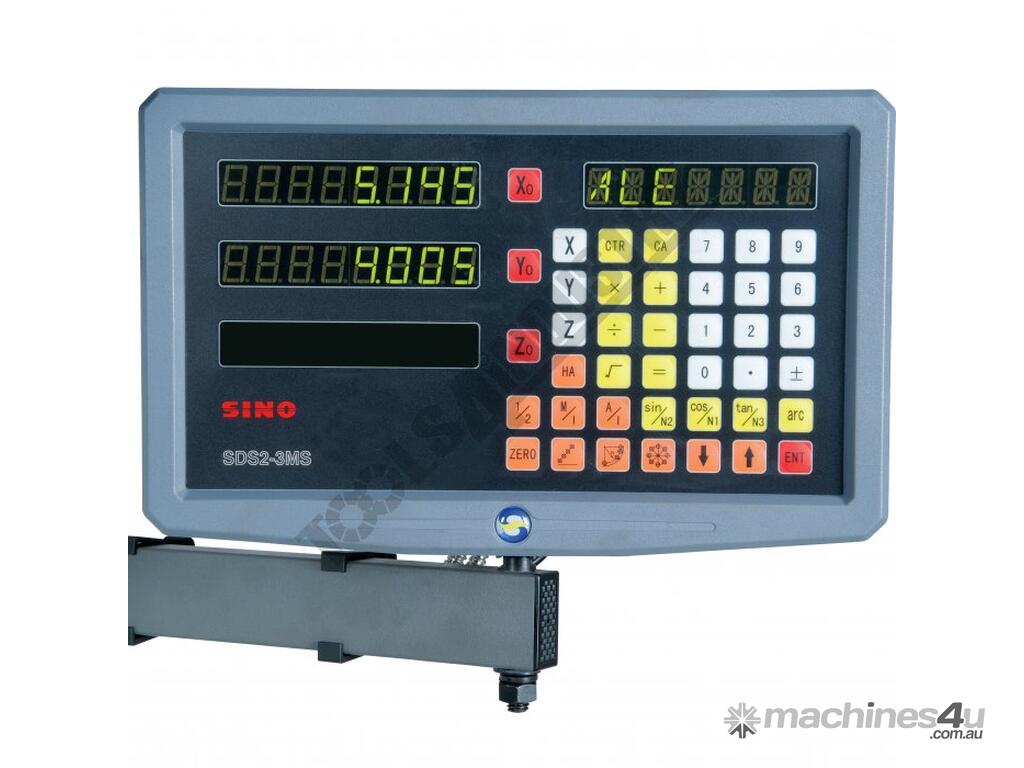

Mill head tilts to ±90º from vertical with digital display
Large 730 x 210mm ground work table with T-slots
Adjustable leadscrew nuts eliminating backlash on both axis
Fine feed hand wheel operating quill feed
Forward and reverse on/off button switches

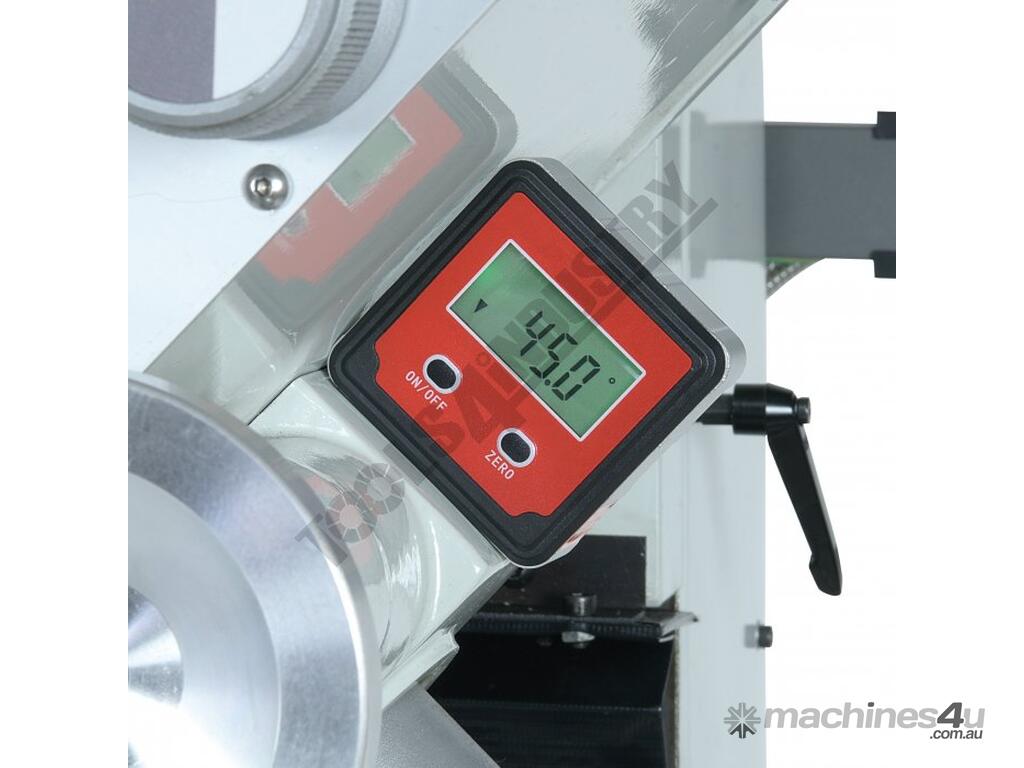

Digital tilting head gauge
3MT spindle with 75mm diameter quill
Adjustable table and drill length stops

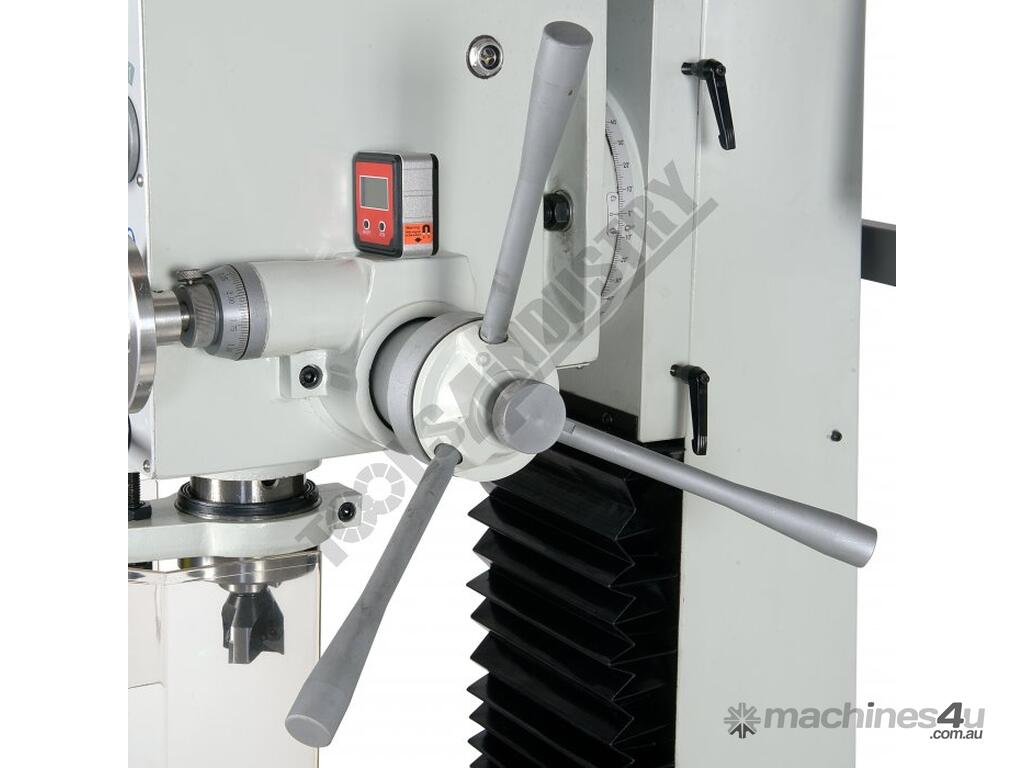

Rack and pinion wind-up head
Rear slide-way cover and slide clamps on all axis
Spindle lock for quill
Table lock on both axis
Metric dial graduations 0.05mm for X & Y axis

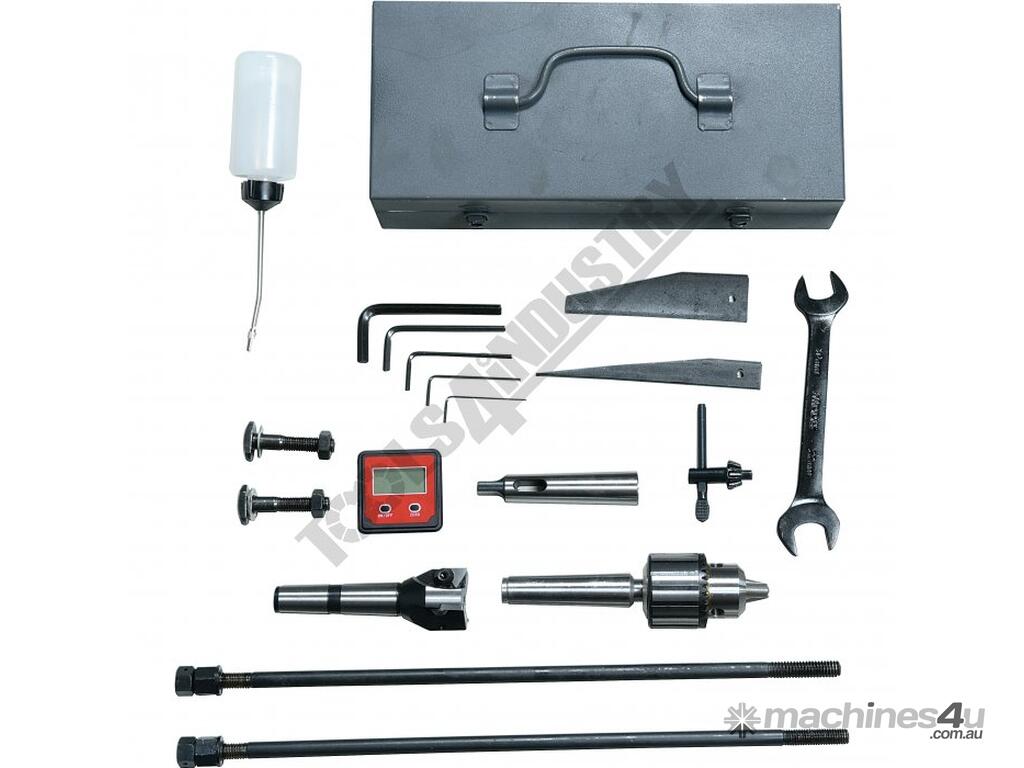

Includes:
- Digital tilting head gauge
- Drill chuck & arbor

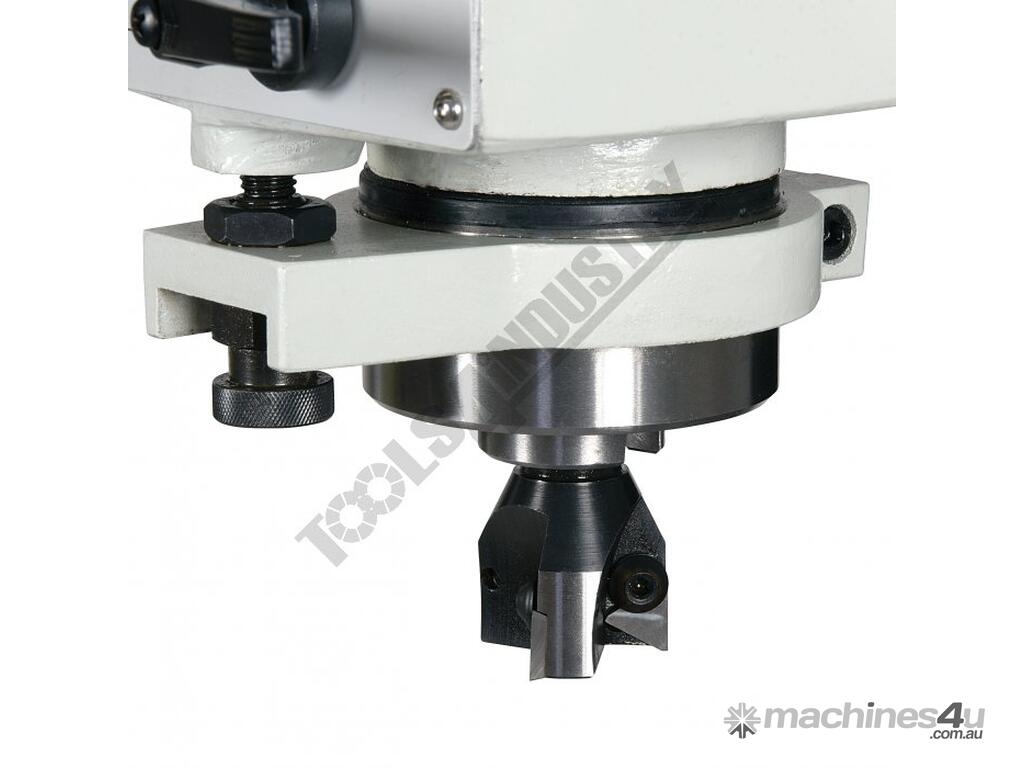

- Face cutter & arbor
- Safety cutter guard
- M12 draw bar
- 1/2`` x 12tpi whitworth draw bar


Specifications:
ORDER CODE: M138
MODEL: HM-46B
Digital Readout: ~
Type: Vertical
Table Size (mm): 730 x 210
Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 485
Cross Travel (Y-Axis) (mm): 175
Vertical Travel (Z-Axis) (mm): 430
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 485
Spindle Travel / Diameter (mm): 120 / 75
Throat Depth (max.) (mm): 265
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 31.5
End Milling Capacity (mm): 28
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): Optional
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 55
Spindle Speeds Vertical (No./ rpm): 6 (95 - 1600)
Spindle Speeds Horizontal (No./ rpm): ~
Motor Power - Vertical (kW / hp): 1.5 / 2
Motor Power - Horizontal (kW / hp): ~
Voltage / Amperage (V / amp): 240 / 10
Shipping Dimensions (L x W x H) (cm): 102 x 102 x 143
Nett Weight (kg): 380
