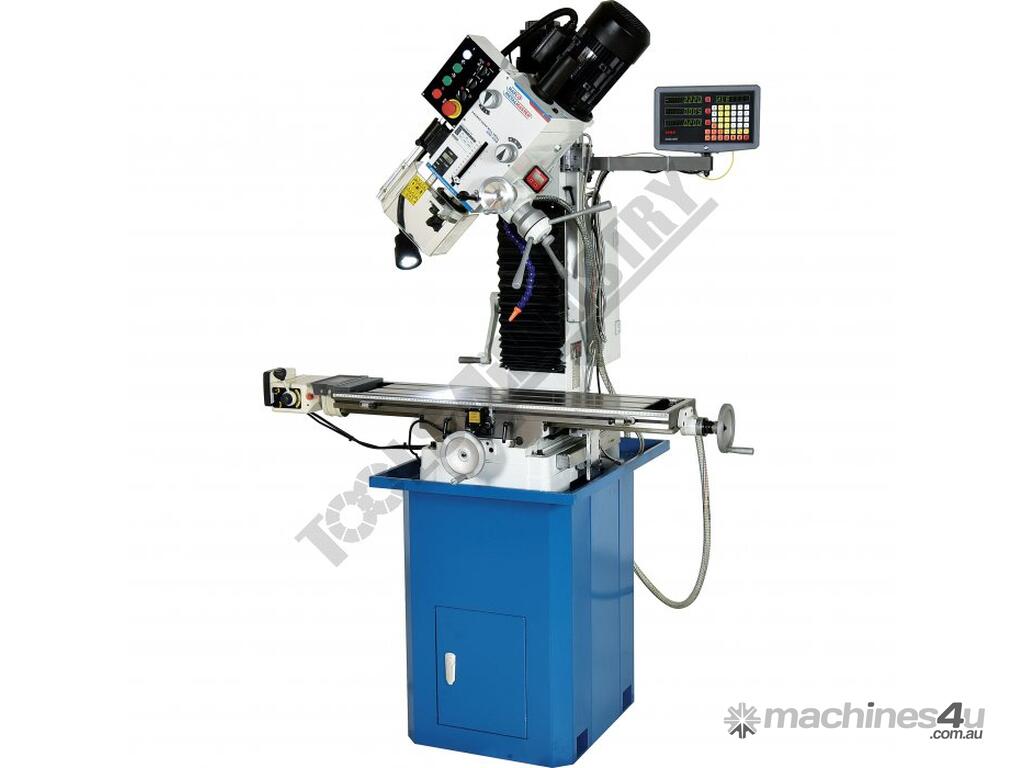

SHAW - HAFCO HM-48B Geared / Tilting Head Mill Drill with DRO, Z Axis Travel Motorised

Call Shaw Machinery Ph:

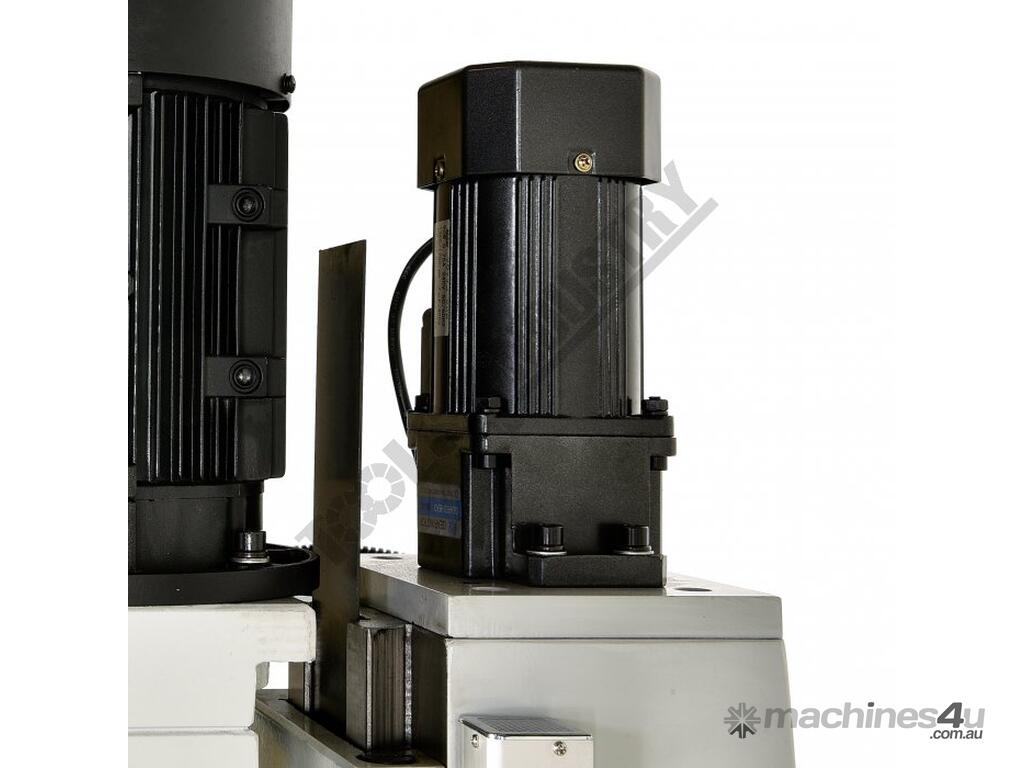

This NEW HM-48B milling machines is somewhat like the HM-47B model, but with the additional benefit of a large 1000 x 240mm machine worktable with more travels, an X-Axis auto power feed unit mounted to left side of the table and a motorised Z-Axis for repositioning the mill head height up or down automatically via the switches on the control panel.

The HM-48B also has a tapping function switch to allow you to control the required depth when tapping holes, a coolant pump system with flexible hose & nozzle, a halogen work light on a flexible arm to adjust the light beam as needed and a very sturdy fabricated stand with an access panel.

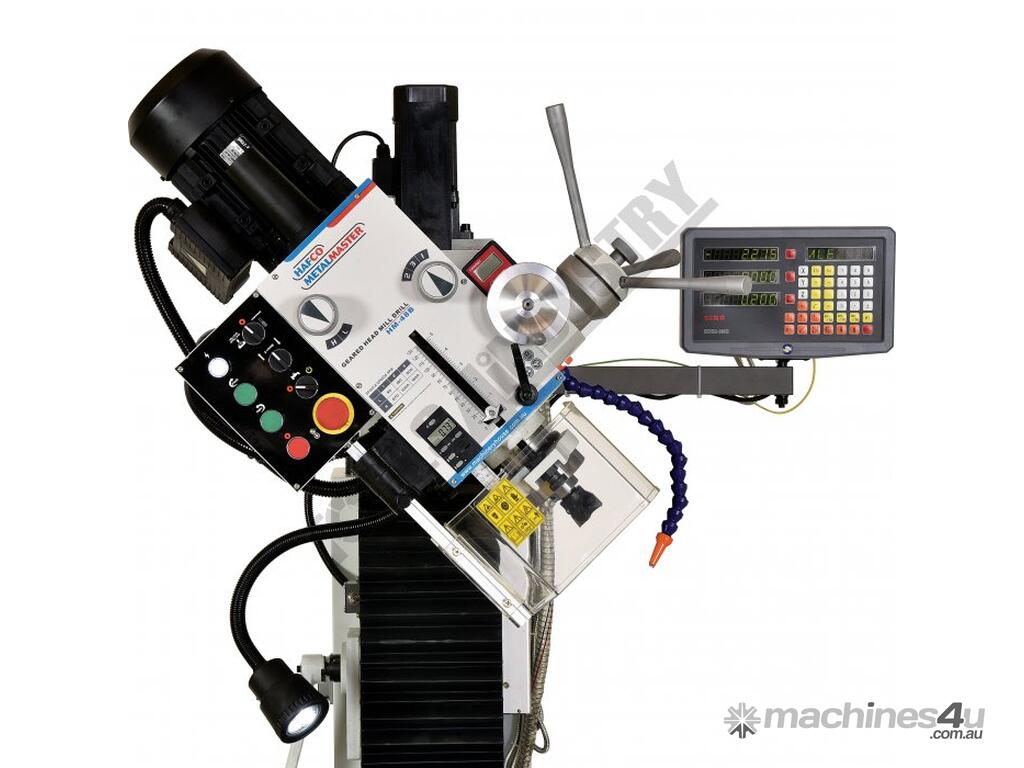

The HM-48B also has a 3-Axis digital readout system fitted for accurate table positioning in all 3 X, Y & Z Axis, 6-speeds 95-1650rpm, gear driven head which can be tilted up to 90º either side of the vertical. This feature allows the head to be positioned in a variety of positions, allowing a whole range of milling, slotting, grooving, drilling and boring operations to be carried out on different angles. The milling head is also mounted to a vertical dovetail slide system that allows the head to maintain on the exact same centre position when raising or lowering.

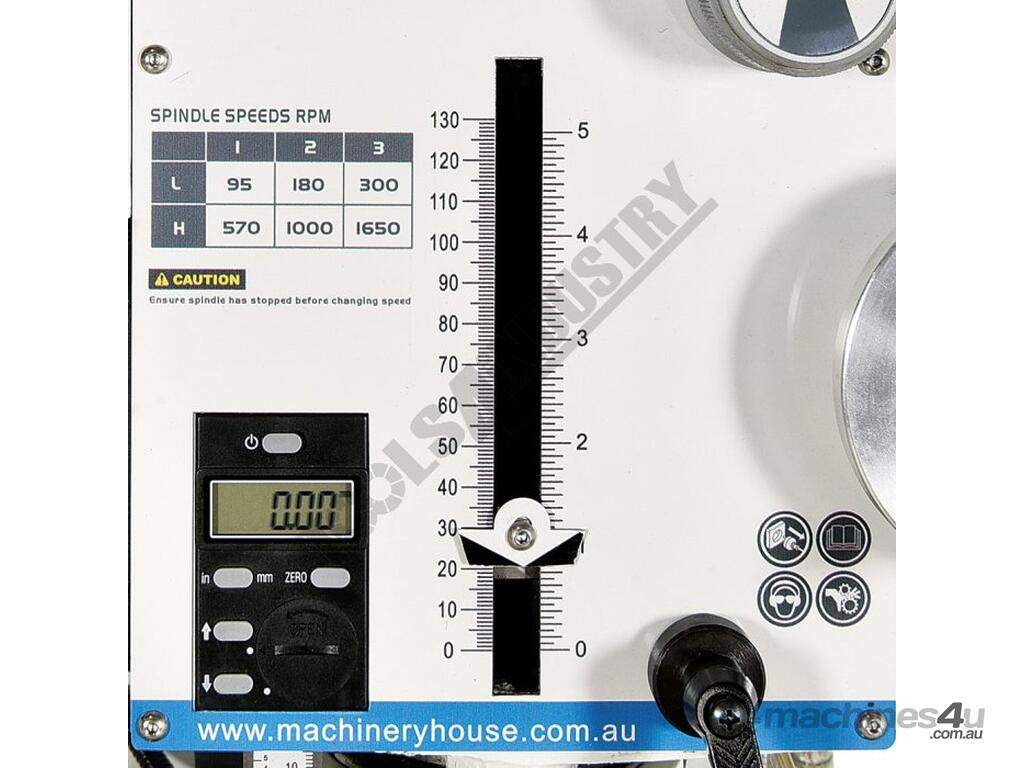

The quill movement is also coupled to a digital depth counter mounted on the face of the machine for convenience and allows you to achieve accurate drilling or milling depths. Tilting the head can be also measured accurately via the digital head gauge mounted on the right side of the mill head.
Features
3-Axis digital readout system

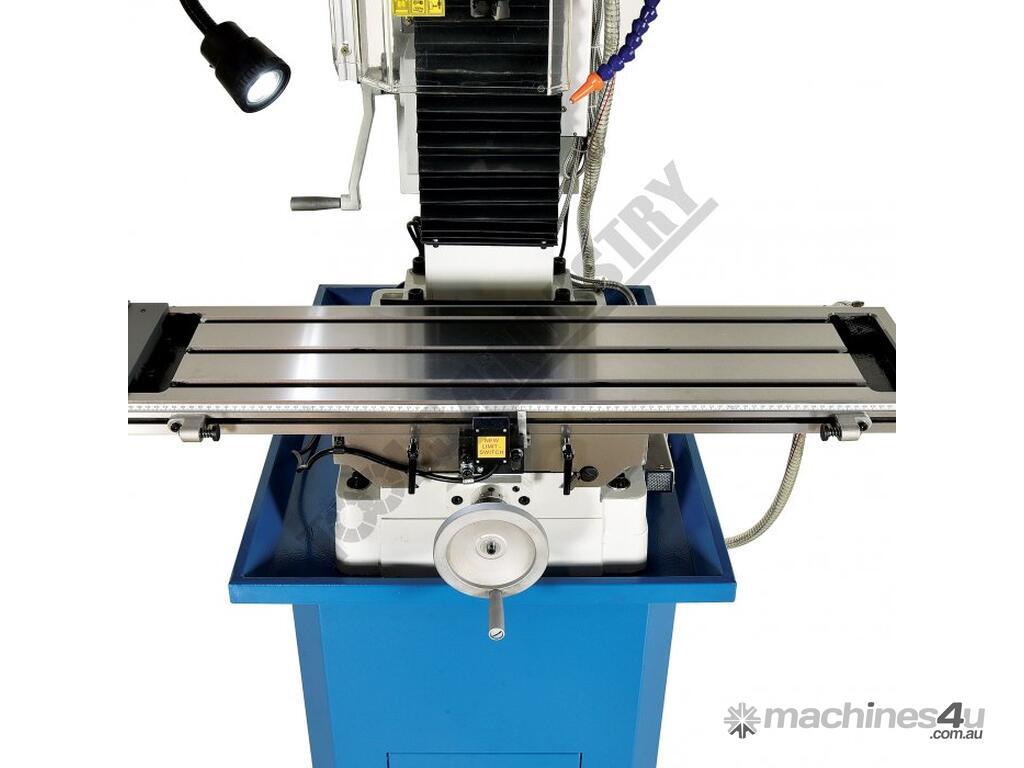

Large 1000 x 240mm ground work table with T-slots
Powerful 2HP-240V gear driven head

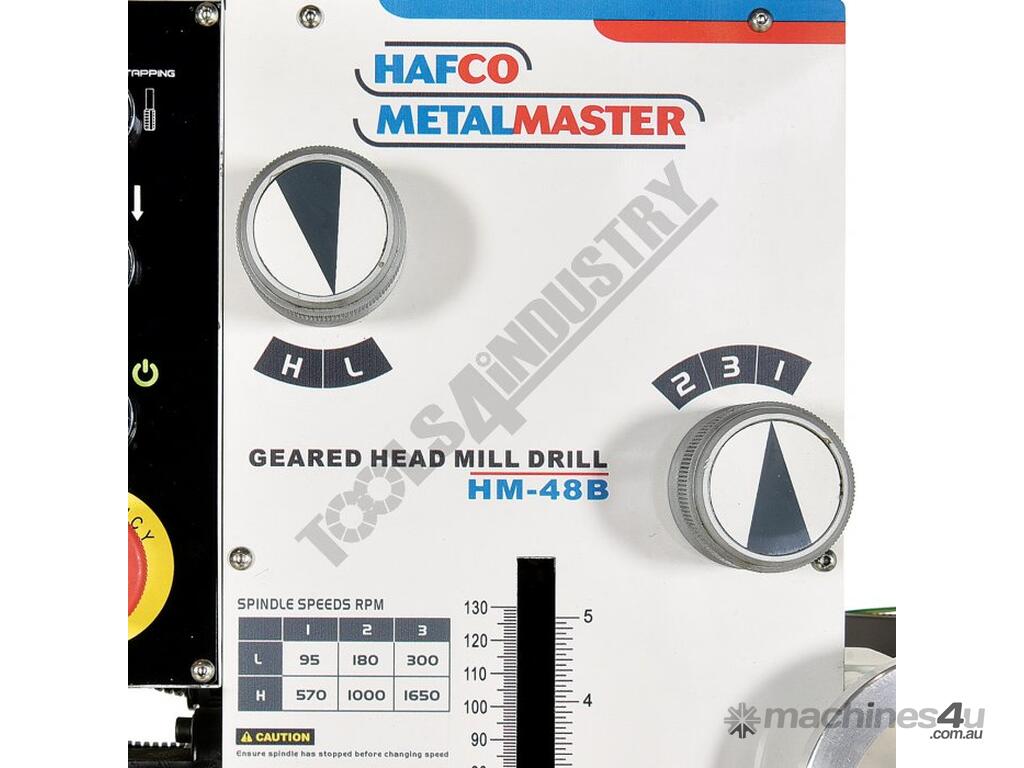

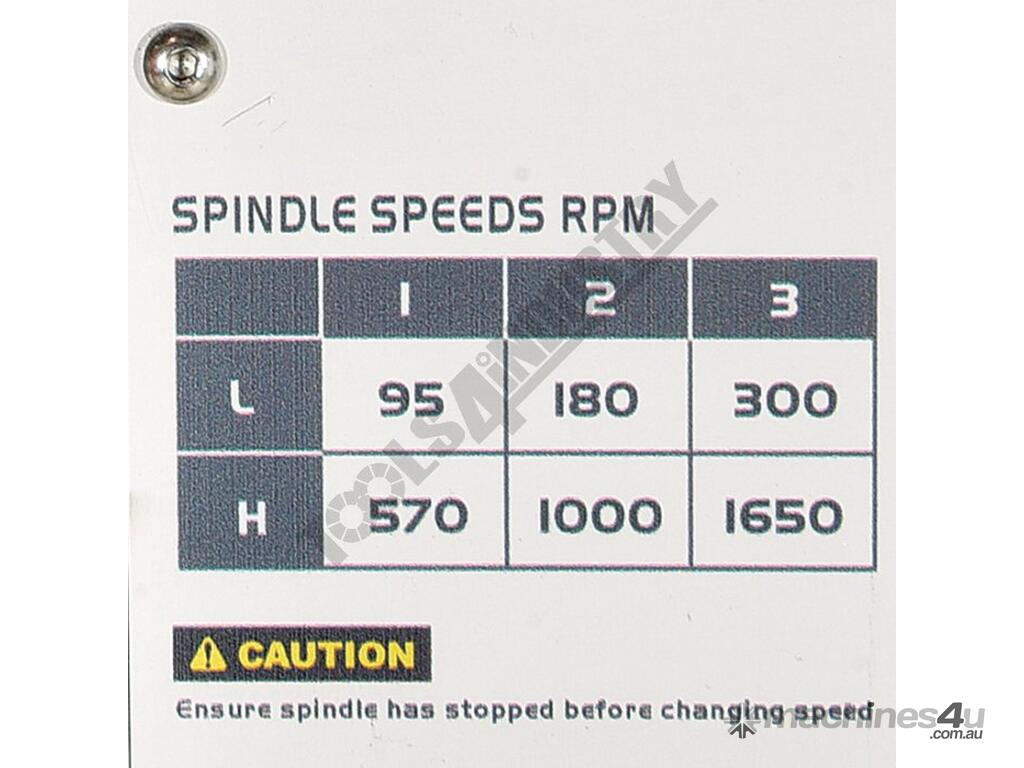

6 spindle speeds ranging from 95-1650rpm
3MT spindle with 75mm diameter lockable quill
Drilling/Milling & Tapping Functions
Mill head tilts up to 90º left or 45º right
Motorised head for Z-Axis travel with dovetail slides
Longitudinal X-Axis power feed with adjustable micro switch feed stops
Adjustable leadscrew nuts eliminating backlash on both axis

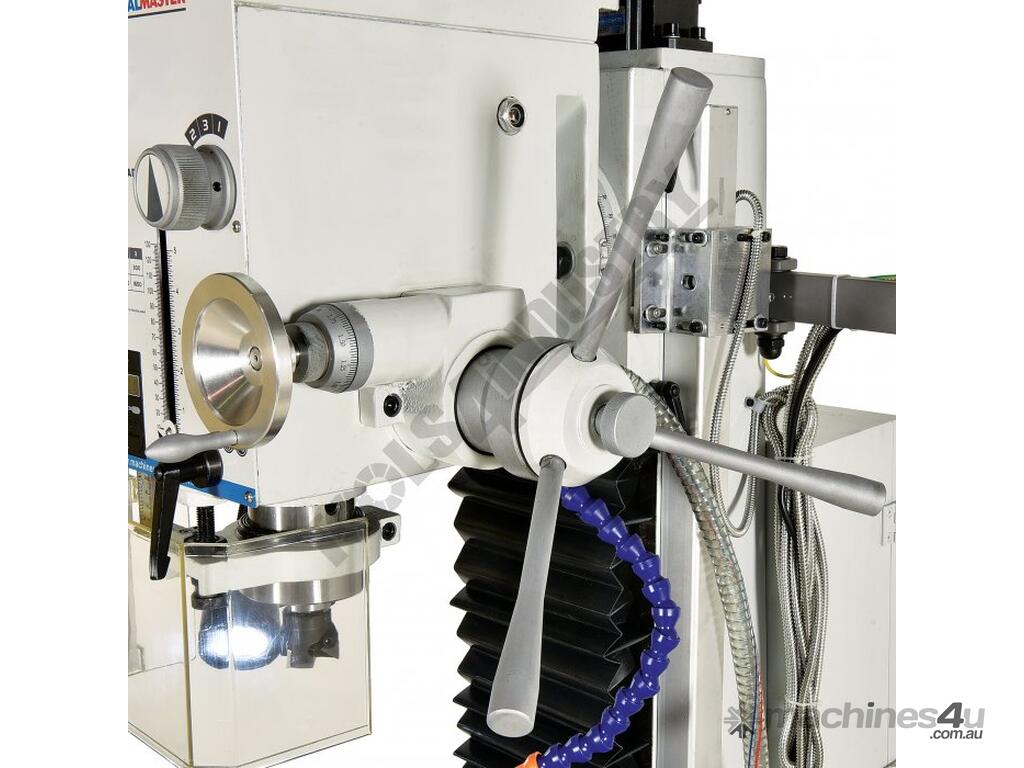

Fine down feed handwheel operating quill feed with adjustable stop

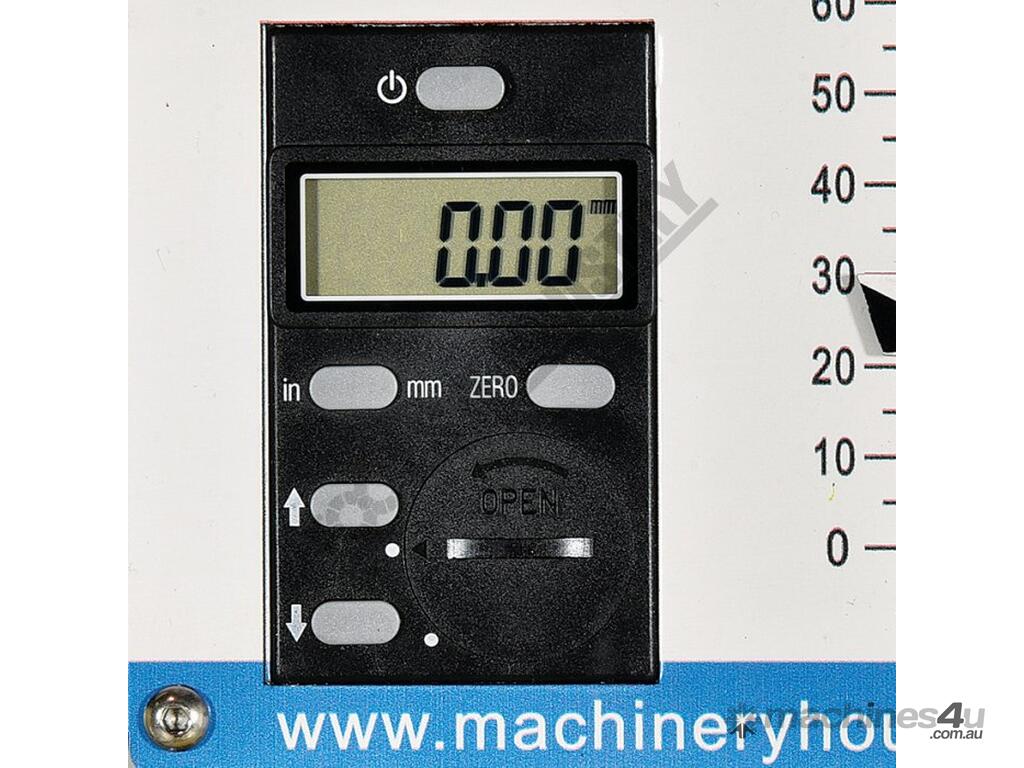

Digital depth display with zero reset for quill (Includes LR44 battery)
Digital display bevel box to set head tilting (Includes AAA battery)
Forward and reverse on/off switch
Metric dial graduations 0.05mm for X & Y-Axis
Rear slide-way cover and slide clamps on all axis
Fixed control panel
Coolant system with flexible hose
Heavy duty fabricated stand with coolant & swarf tray

* Note: X & Y travels maybe reduced due to digital readout scales and safety stops
Includes
3-Axis digital readout system
Heavy duty fabricated stand with coolant & swarf collection tray
Coolant system
X-Axis power feed unit
Motorised Z-Axis head
Halogen light

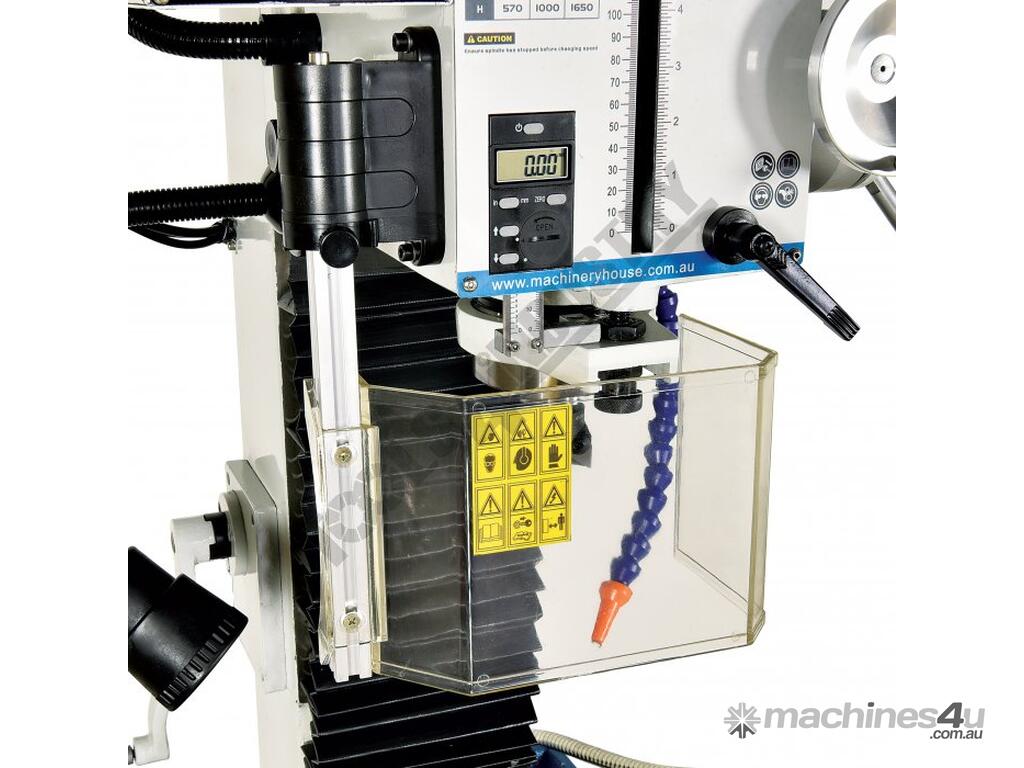

Digital depth display
Digital tilting head gauge
Drill chuck & arbor
Drill sleeve – 3MT – 2MT

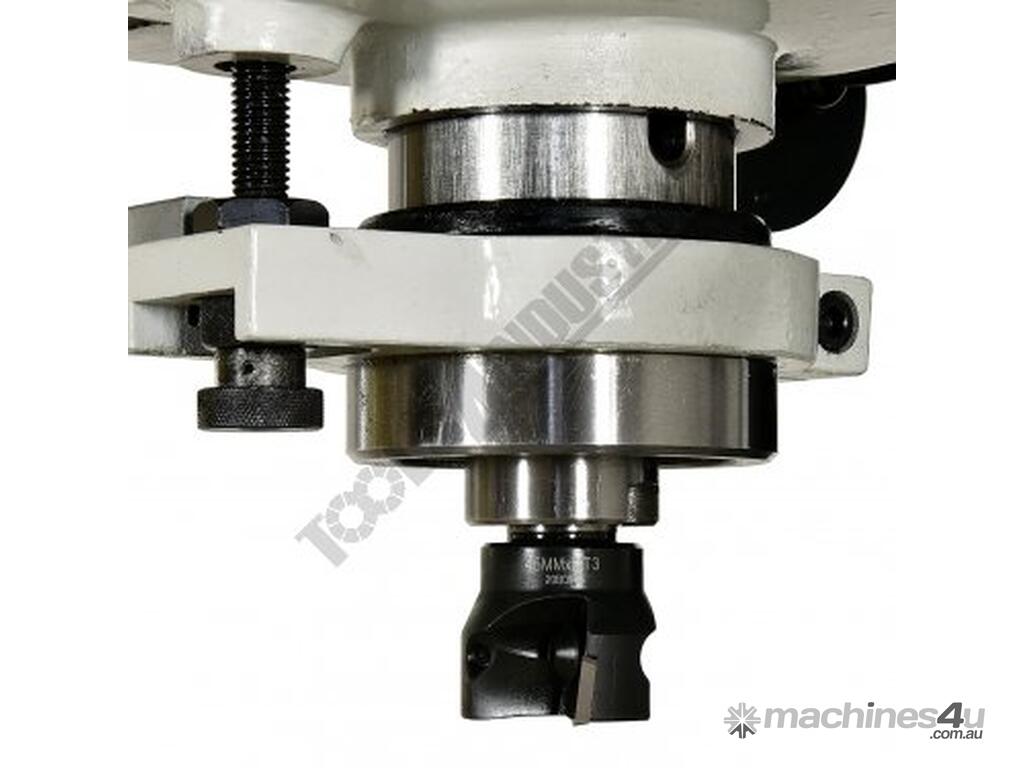

Face cutter & arbor
Safety cutter guard
1/2`` x 12TPI drawbar

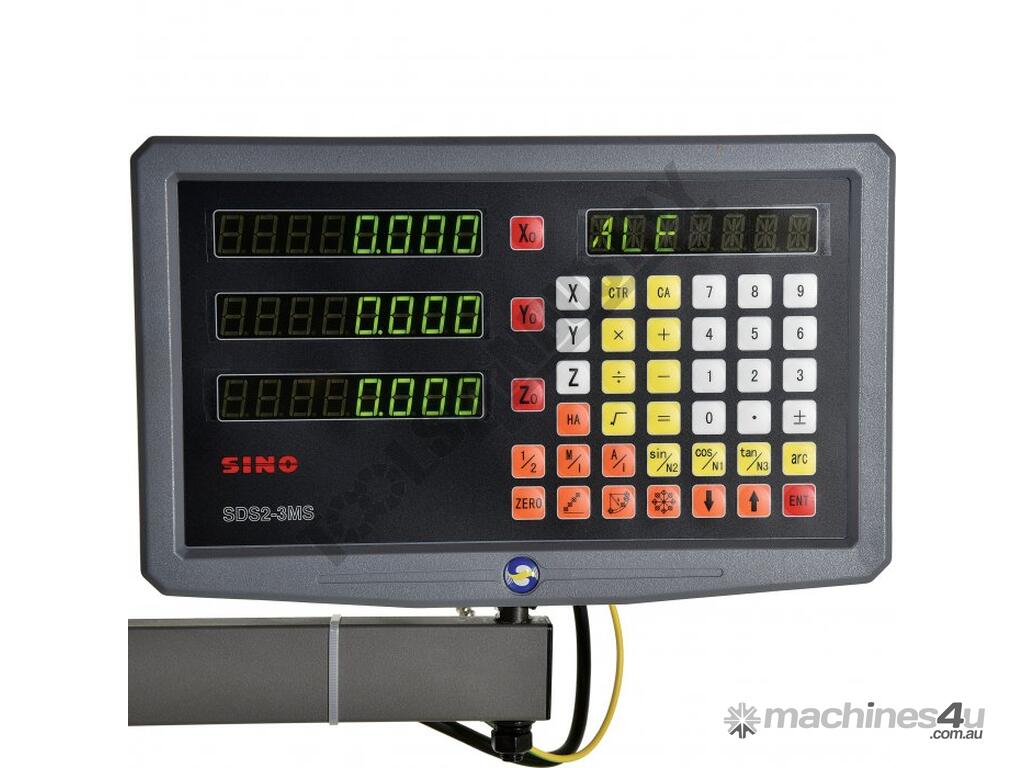

Digital Readout3-Axis Digital Readout
Type Vertical
Table Size1000 x 240
Column Type: Dovetail
Spindle Taper - Vertical 3MT
(mm)Longitudinal Travel (X-Axis) 670*
(mm)Cross Travel (Y-Axis) 205*
(mm)Vertical Travel (Z-Axis) 380
Type of Slides Dovetail
(mm)Spindle to Table 480
(mm)Spindle Travel / Diameter 120 / 75
(mm)Throat Depth (max.) 265
Tilting Head (Left ~ Right) ±90º
Tilting Head (Forward ~ Back)Fixed
(mm)Drilling Capacity 31.5
(mm)End Milling Capacity 28
(mm)Face Milling Capacity 80
(mm/min)Power Feed - Longitudinal (X-Axis)Yes
(inch / mm)Table T-Slot Size14
(kg)Work Table Load Capacity 55
(No./ rpm)Spindle Speeds Vertical6 (95 - 1650)
(kW / hp)Motor Power - Vertical Spindle1.5 / 2
(V / amp)Voltage / Amperage240 / 10
(cm)Shipping Dimensions (L x W x H)122 x 95 x 115
(kg)Nett Weight450
