SHAW - HAFCO Metal Cutting Bandsaw BS-912 178

HAFCO METALMASTER Metal Cutting Bandsaw BS-912 178

CALL FOR OUR BEST PRICE

Order Code: B014
BS-912 - Metal Cutting Band Saw (240V)
305 x 178mm (W x H) Rectangle

Description
The BS-912 is a larger 240 volt band saw suitable for the medium fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system and greatly increased cutting capacity.

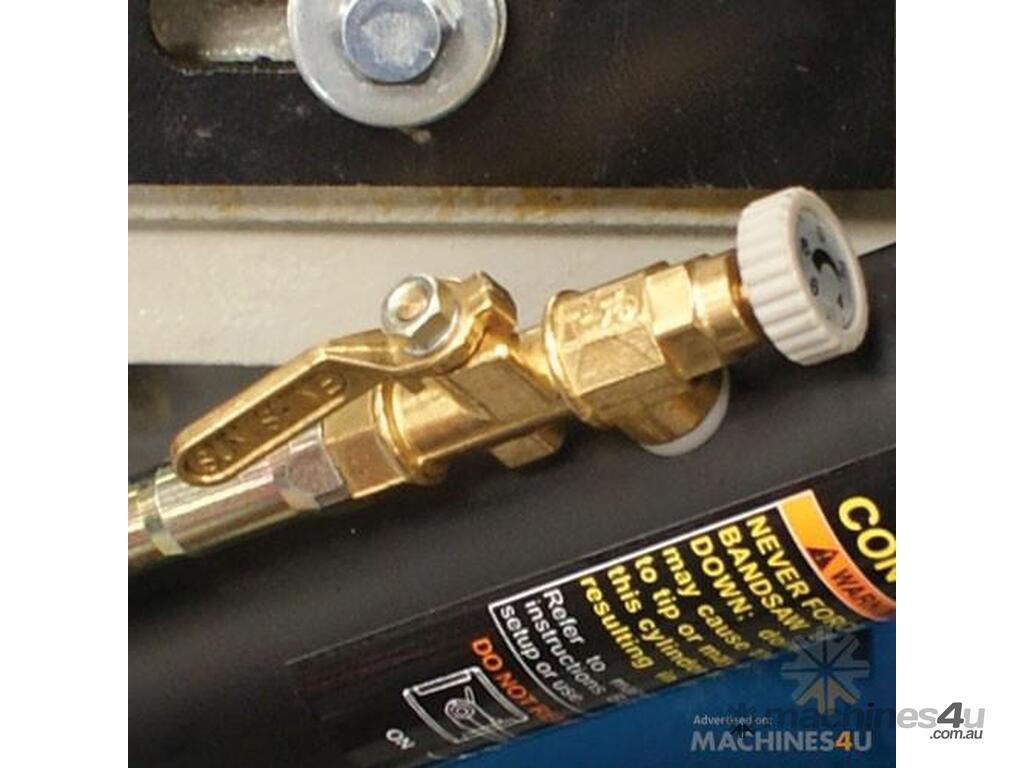

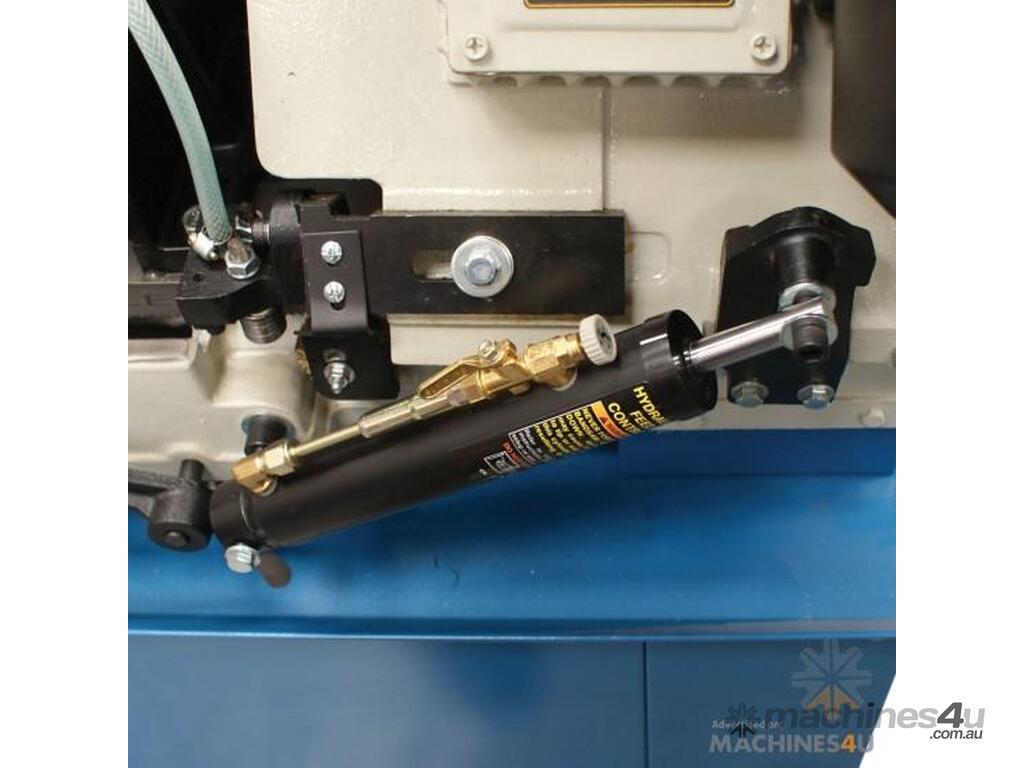

The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting.

Features
305 x 178mm (W x H) rectangular capacity
Adjustable hydraulic feed cutting rate for multiple applications
Mitre cuts to 45º using calibrated vice

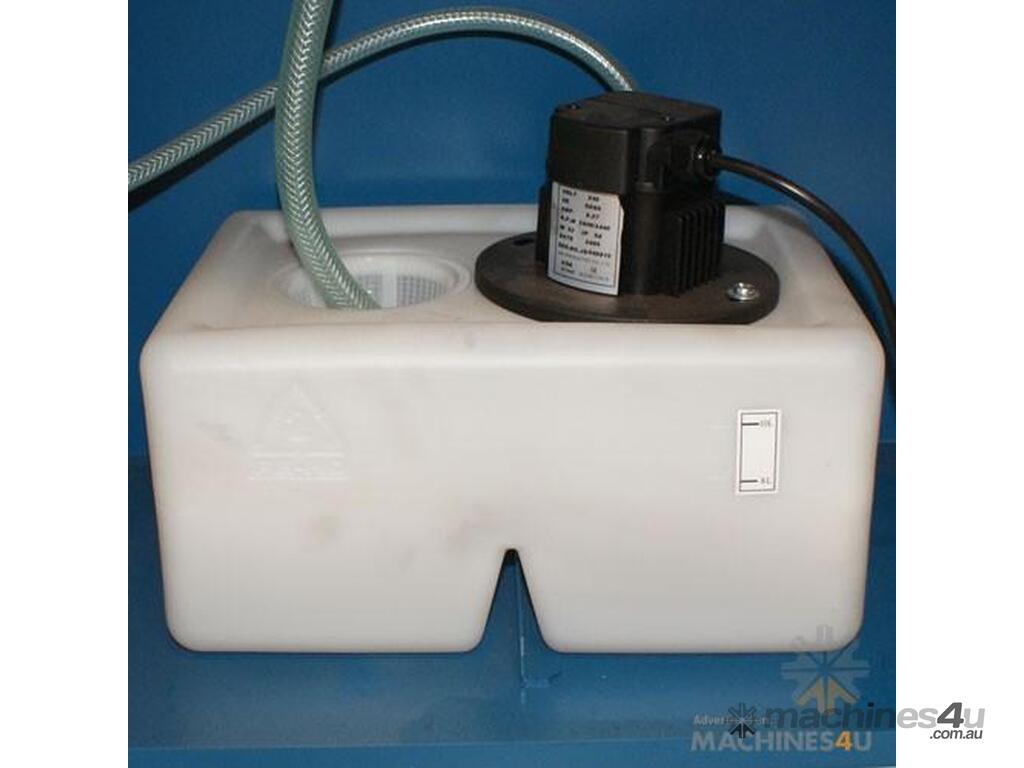

Built-in coolant system to both blade guides for maximum cutting efficiency
Limit switch stops machine when cut is complete
Quick action material clamping lever

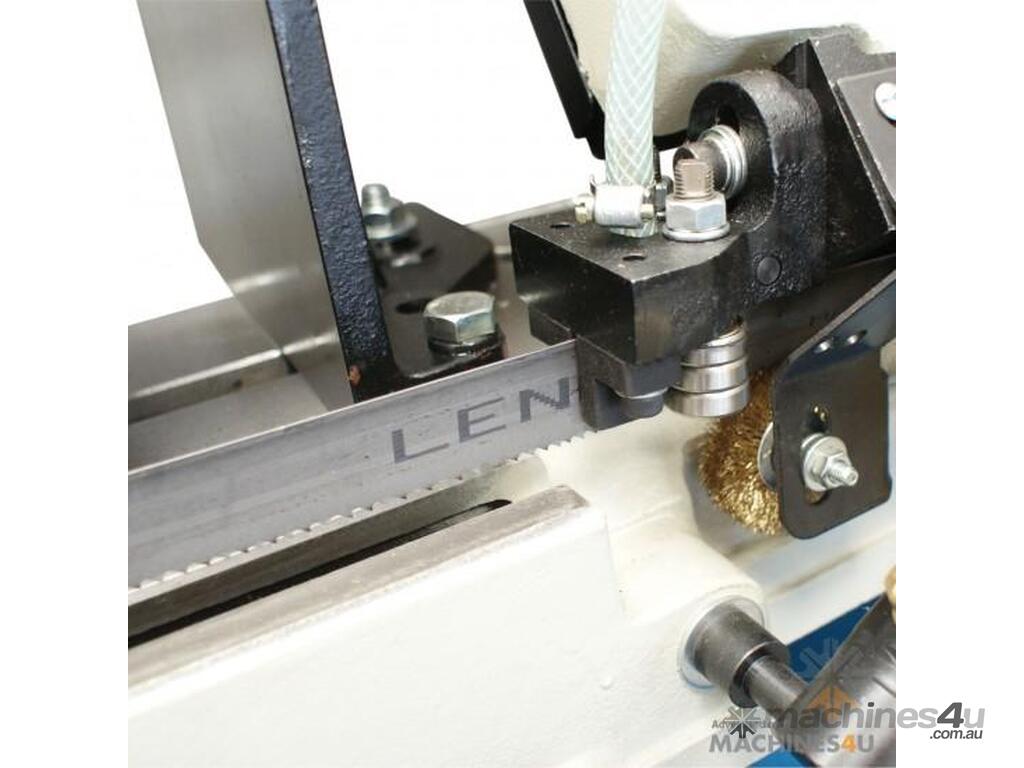

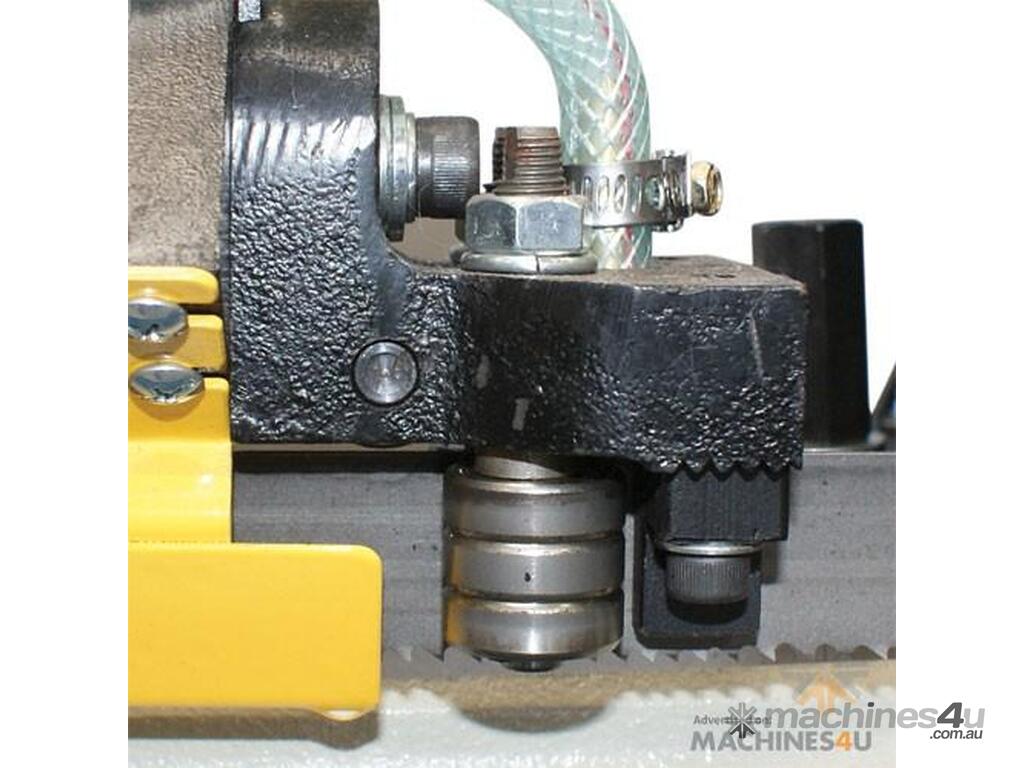

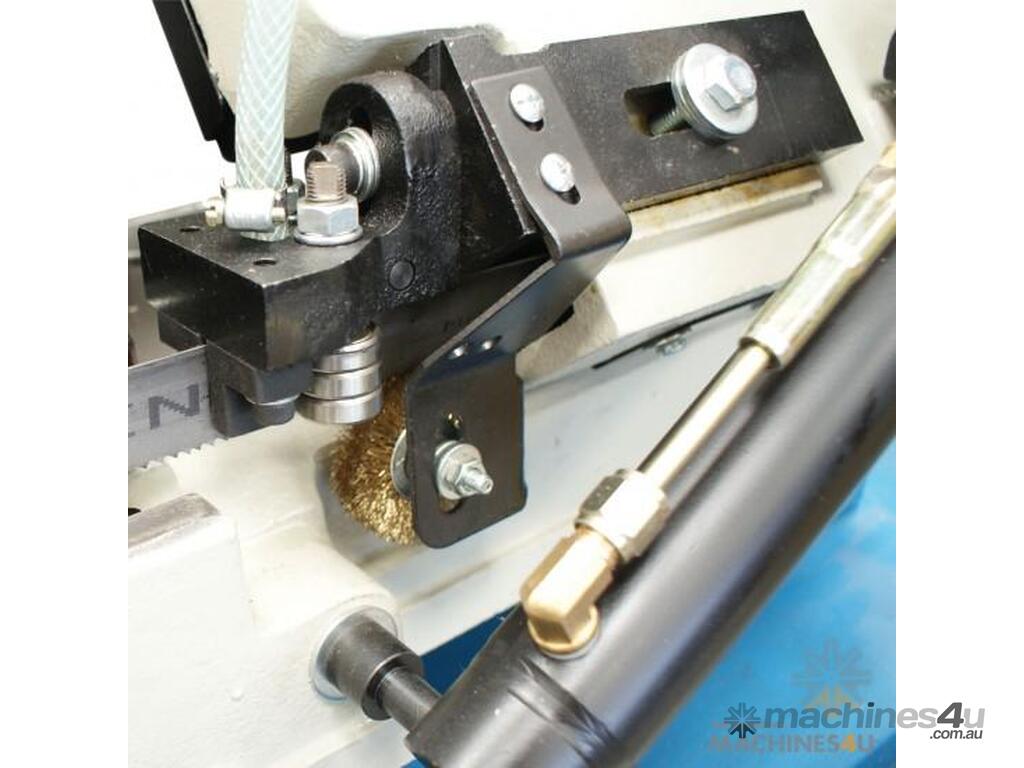

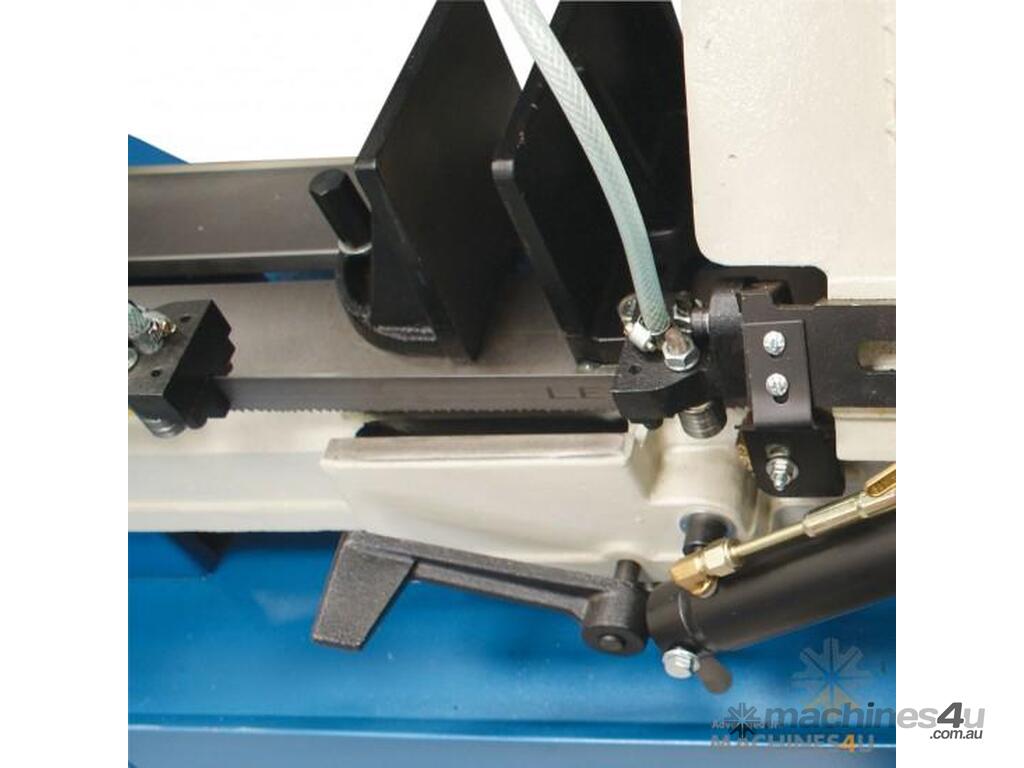

Adjustable blade roller guides provides accurate cutting

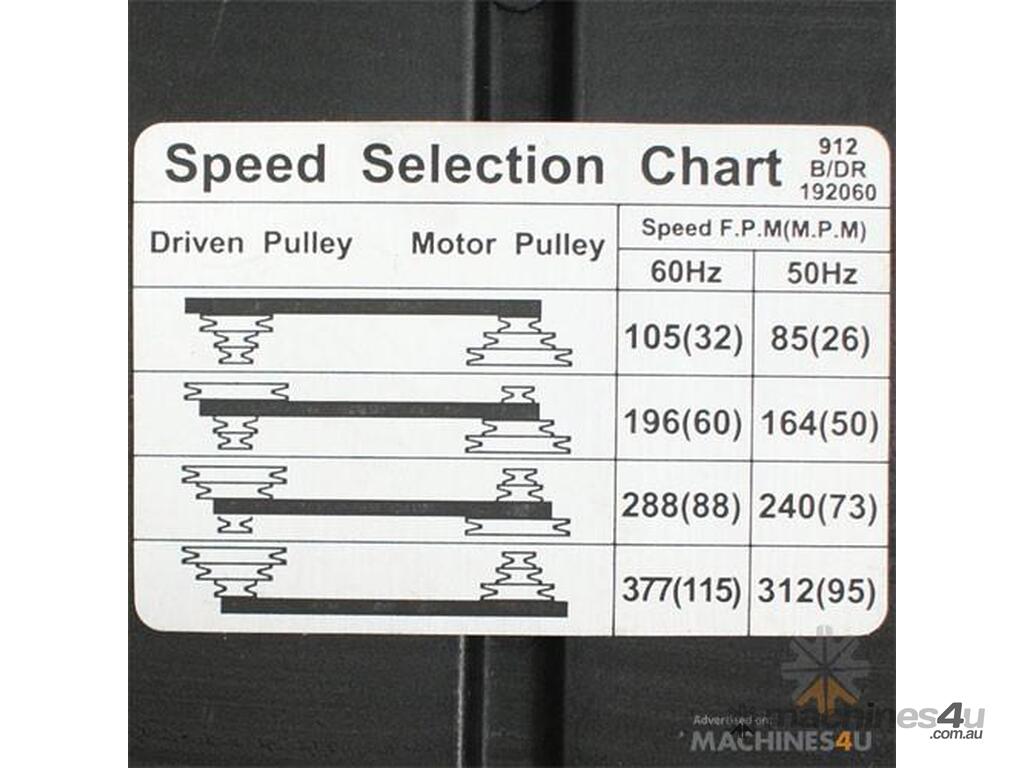

Adjustable 4-speed pulley drive system enabling -95mpm cutting speeds
Adjustable length stop for repetition cutting

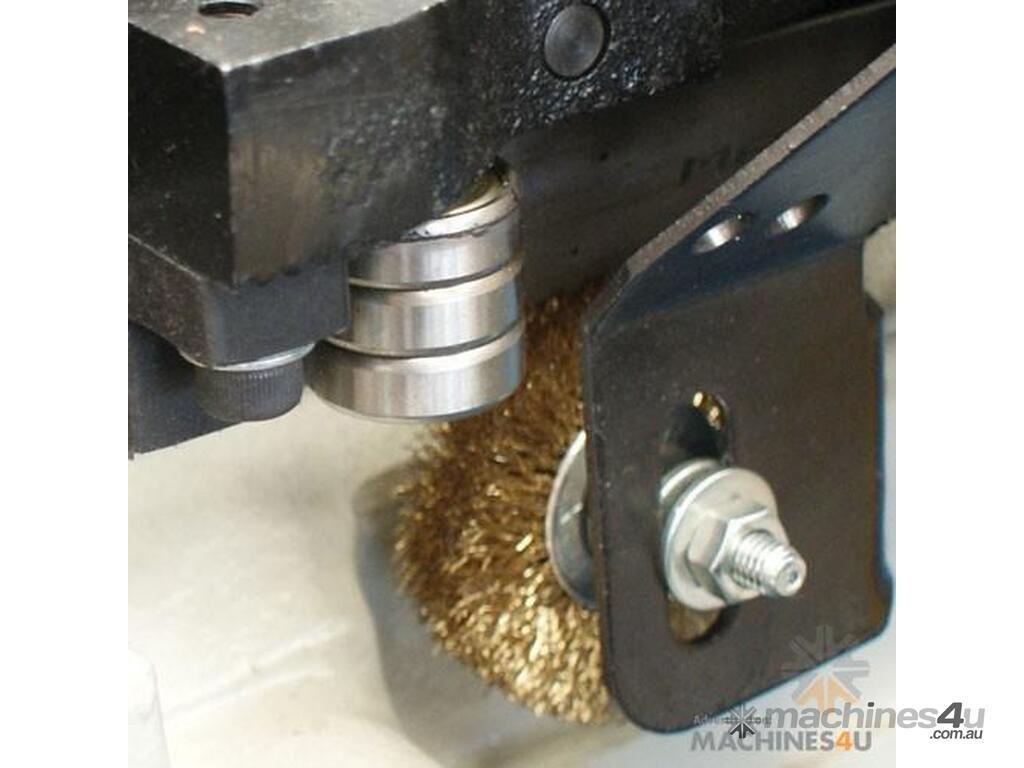

Wire wheel brush to clean swarf from blade
Portable - on wheels for ease of use
Automatic electric cut-out switch
Heavy-duty 750W/240V fully enclosed fan-cooled motor

Specifications:
ORDER CODE: B014
Model: BS-912
Cutting Head Beam: Manual
Operation Type: Fixed Head
Round 90º: 230mm
Round 45º: 150mm
Square 90º: 230mm
Square 45º: 127mm
Rectangle (W x H) 90º: 305 x 178mm
Rectangle (W x H) 45º: 150 x 127mm
Cutting Beam Return: Manual
Vice Clamping Fixture: Manual
Coolant System: Yes
Table Working Height: 640mm
Blade Steps / Speeds: -95 M/min
Blade Size (L x W x T): 2654 x 27 x 0.9mm
Motor Power: 0.75kW / 1hp
Voltage: 240V
Weight (nett): 180kg

all prices and specifications are subject to change
