SHAW - HAFCO Metal Cutting Bandsaw BS-916A

HAFCO METALMASTER Metal Cutting Bandsaw BS-916A

CALL FOR OUR BEST PRICE

Order Code: B015
BS-916A - Metal Cutting Band Saw (240V)
350 x 228mm (W x H) Rectangle

Description
The BS-916A is a largest 240 volt band saw suitable for the medium/heavy fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system, quick action sliding vice and greatly increased cutting capacity

The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting.

Features
350 x 228mm (W x H) rectangular capacity
Adjustable hydraulic feed cutting rate for multiple applications

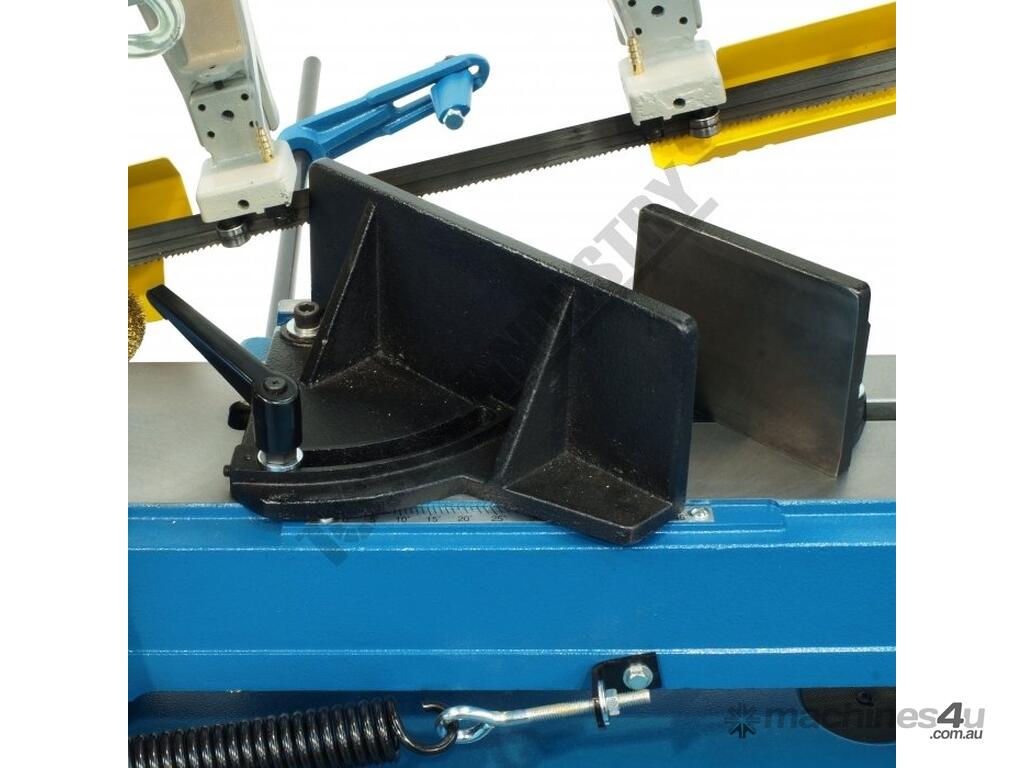

Mitre cuts to 45º using calibrated vice
Built-in coolant system for maximum cutting efficiency
Limit switch stops machine when cut is complete
Control panel located on top of arm for easy use
Coolant system with flow control valve
Cast Iron frame with heavy duty fabricated base
Quick action material clamping system
Blade tension lever with scale for optimum settings
Adjustable blade roller guides provides accurate cutting
Adjustable 4-speed pulley drive system enabling -72mpm cutting speeds
Adjustable length stop for repetition cutting
Automatic electric cut-out switch
Wire wheel brush to clean swarf from blade
Heavy-duty gearbox drive
Heavy-duty 1.1kW/240V fully enclosed fan-cooled motor

Specifications:
ORDER CODE: B015
Model: BS-916A
Cutting Head Beam: Manual
Operation Type: Fixed Head
Round 90º: 228mm
Round 45º: 180mm
Square 90º: 228mm
Square 45º: 150mm
Rectangle (W x H) 90º: 350 x 228mm
Rectangle (W x H) 45º: 180 x 150mm
Cutting Beam Return: Manual
Vice Clamping Fixture: Manual
Coolant System: Yes
Table Working Height: 675mm
Blade Steps / Speeds: -72 M/min
Blade Size (L x W x T): 2908 x 27 x 0.9mm
Motor Power: 1.1kW / 1.5hp
Voltage: 240V
Weight (nett): 320kg

all prices and specifications are subject to change
