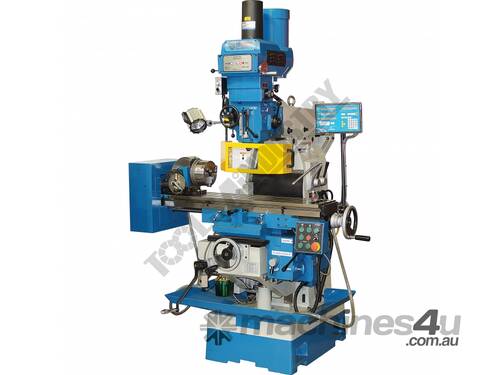

SHAW - HAFCO PBM-GSV250 Horizontal & Vertical Turret Mill

Horizontal & Vertical Includes DRO & Dividing Head (X)700mm (Y) 250mm (Z) 440mm
Manufactured in Taiwan

Features:
3 Axis digital readout fitted
5HP 415V motor dial variable speed system
NT40 Spindle taper with a chrome & ground quill
Pneumatic drawbar system fitted
Swivel table ±45º left and right

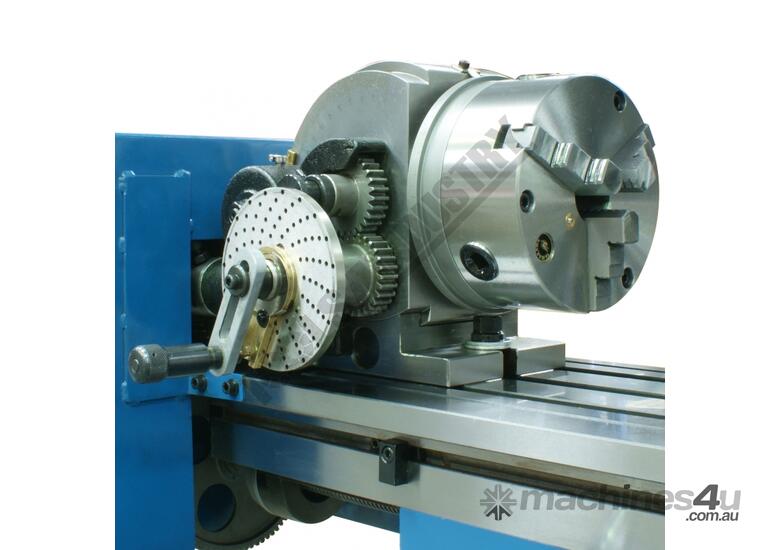

Universal BS-2 dividing head with chuck
Z-Axis powered elevating motor
Hardened & ground work table & slide-ways
Turcite ``B`` coated X & Y Axis slide-ways reduces friction for smooth operation
All slides utilise dovetail construction for maximum rigidity
Meehanite casting for high strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
High / neutral and low gear selection lever to maximise torque
Gear driven power-feed with adjustable micro switch feed stops
Coolant system halogen light & swarf tray
Metric dial graduations 0.02mm for X Y & Z-Axis
Automatic quill feed 0.037 0.076 0.152mm/rev
Automatic cut off depth stop on quill
Automatic oil lubrication pump and reservoir
Slide-way covers Y & Z-Axis
Head swivels ±90º left and right
Manual quick action quill lever
Mechanical spindle brake
Tool box and manual

Includes:
- 3-Axis digital readout fitted
- Automatic oil lubrication pump and reservoir
- Universal BS-2 dividing head with chuck
- Swivel table ±45º left and right
- Pneumatic drawbar system with M16 thread
- 1`` horizontal arbor
- Z-Axis powered elevating motor
- Coolant system
- Slide-way covers
- Geared X-Axis power-feed
- Halogen light

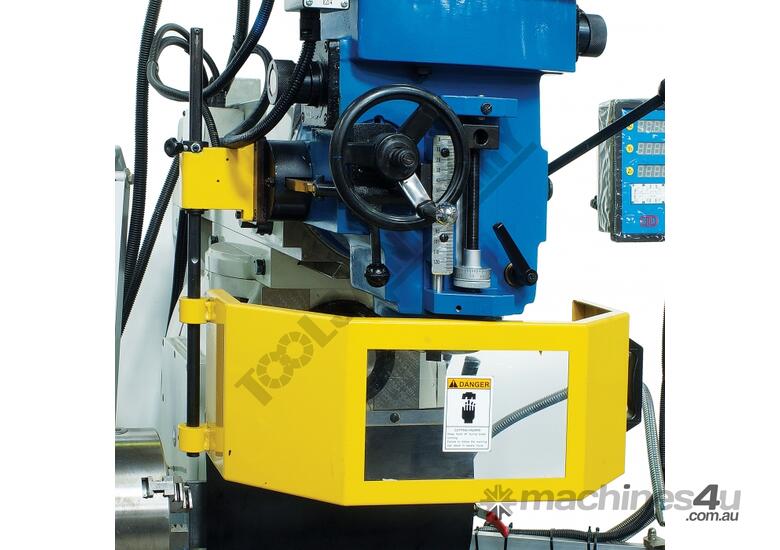

- Safety cutter guard
- Swarf tray

Specifications:
ORDER CODE: M585D
MODEL: PBM-GVS250
Digital Readout: 3-Axis Digital Readout
Type: Vertical & Horizontal
Table Size (mm): 1100 x 250
Spindle Taper - Vertical: NT40
Spindle Taper - Horizontal: NT40
Longitudinal Travel (X-Axis) (mm): 700
Cross Travel (Y-Axis) (mm): 250
Vertical Travel (Z-Axis) (mm): 440
Ram Travel (mm): 300
Spindle to Table (mm): 470
Quill Travel / Diameter (mm): 127 / 105
Throat Depth (max.) (mm): 500
Tilting Head (Left ~ Right): ±90º
Power Feed - Quill (mm/rev): 0.037 / 0.076 / 0.152
Power Feed - Longitudinal (X-Axis) (mm/min): 0.02 - 0.20
Power Feed - Cross (Y-Axis) (mm/min): Optional
Power Feed - Vertical (Z-Axis) (mm/min): Rapid
Table T-Slot Size (inch / mm): 5/8
Work Table Load Capacity (kg): 300
Spindle Speeds Vertical (No./ rpm): Variable (70 - 3500)
Spindle Speeds Horizontal (No./ rpm): 6 (40 - 980)
Motor Power - Vertical (kW / hp): 3.75 / 5
Motor Power - Horizontal (kW / hp): 2.25 / 3
Voltage / Amperage (V / amp): 415
Overall Height (mm): 2250
Nett Weight (kg): 1300
