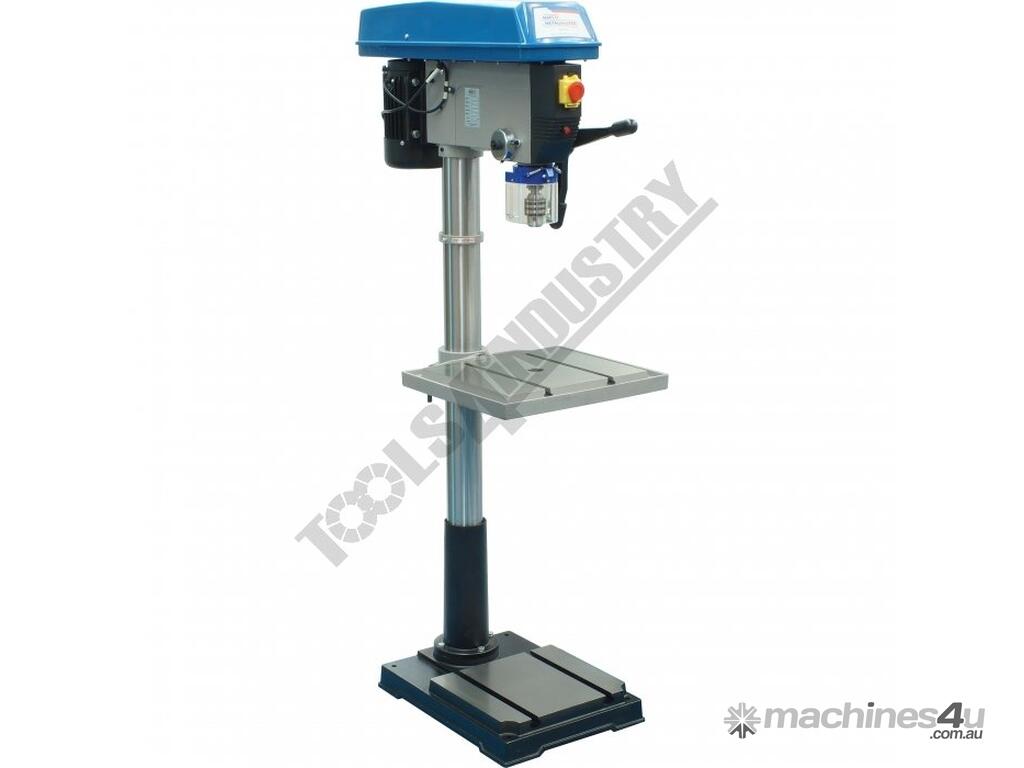

SHAW - HAFCO PD-510 Pedestal Drill - Belt Drive 32mm Drill Capacity 4MT

32mm Drill Capacity 4MT

Features:
Ideal for home workshop or farm use

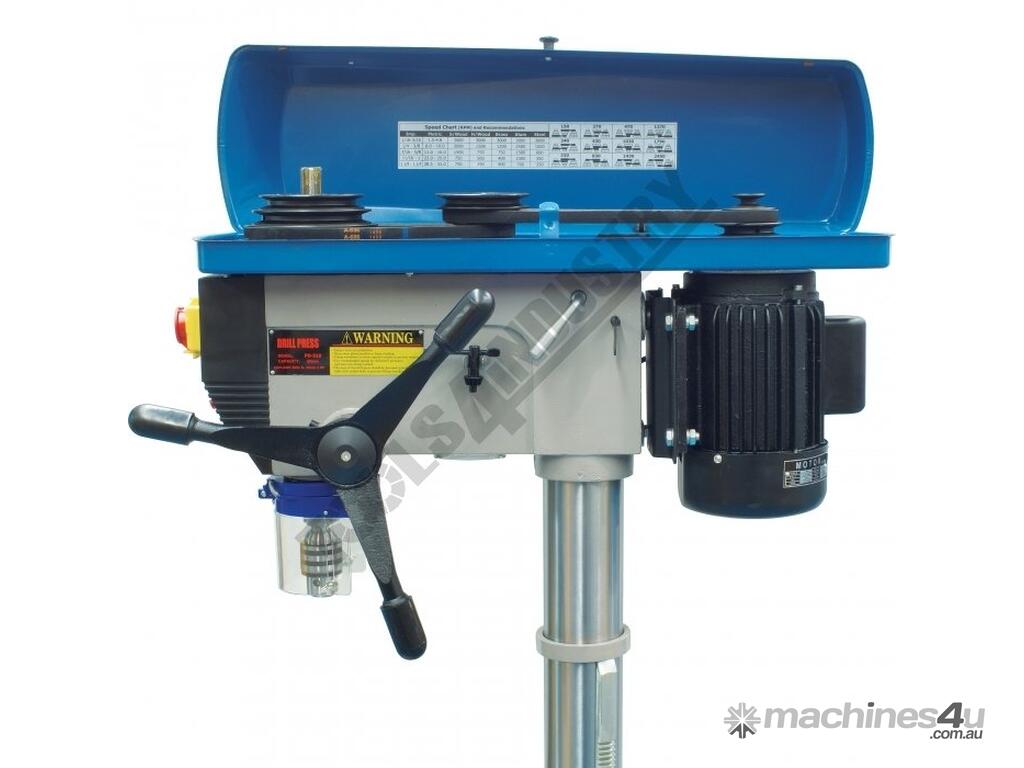

Quiet V-belt drive system
Quick action belt tensioning lever
Drill chuck key holder mounted on right side of the machine

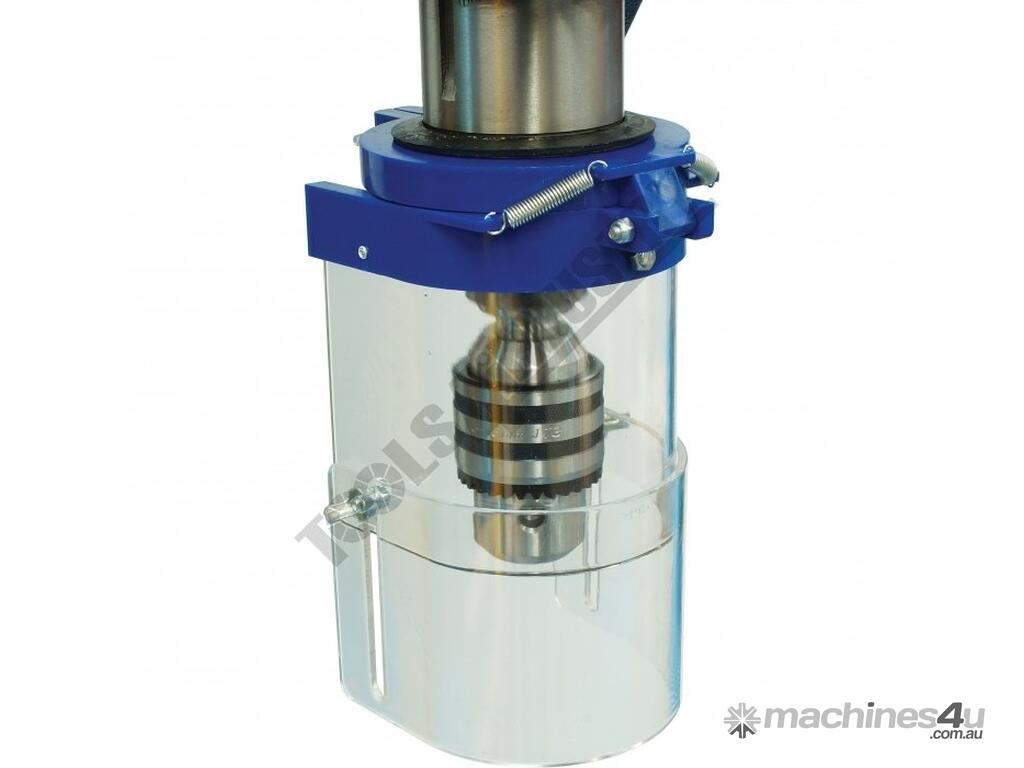

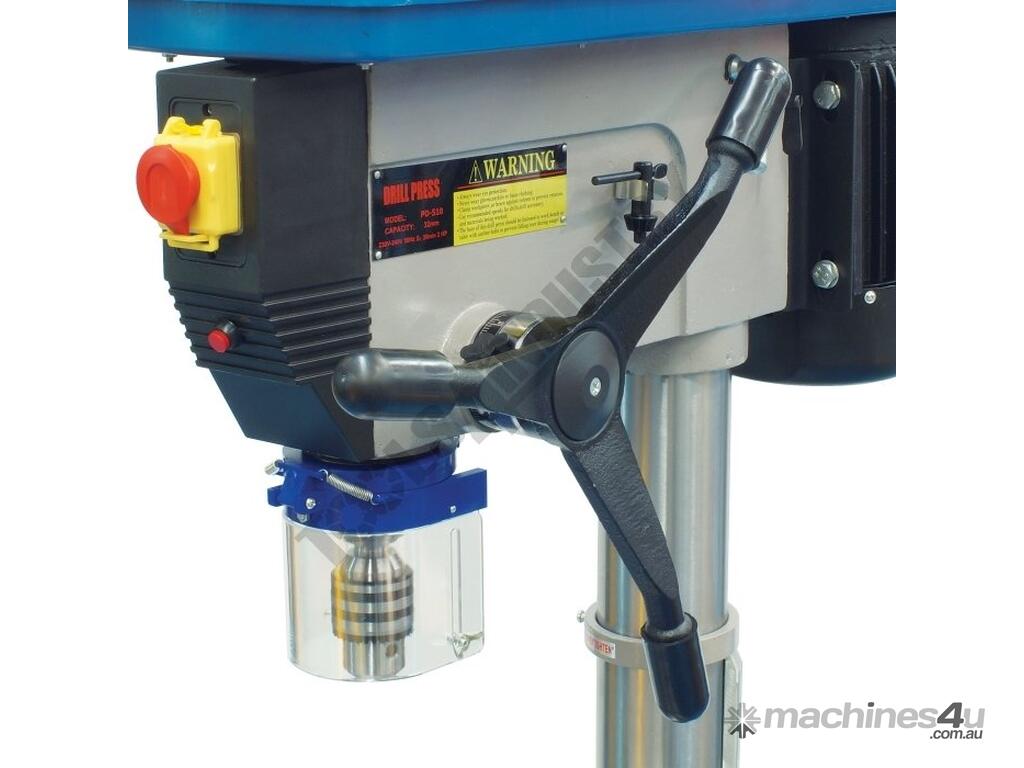

Adjustable safety drilling chuck guard with flip up screen
One piece cast iron drilling lever with comfort grips

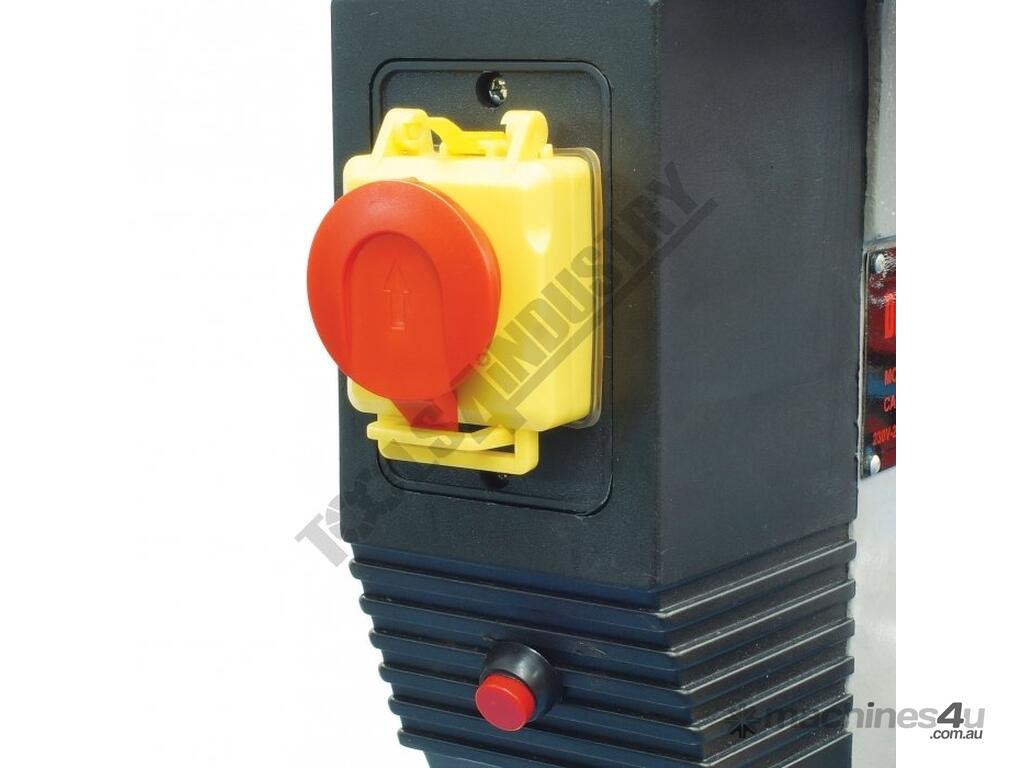

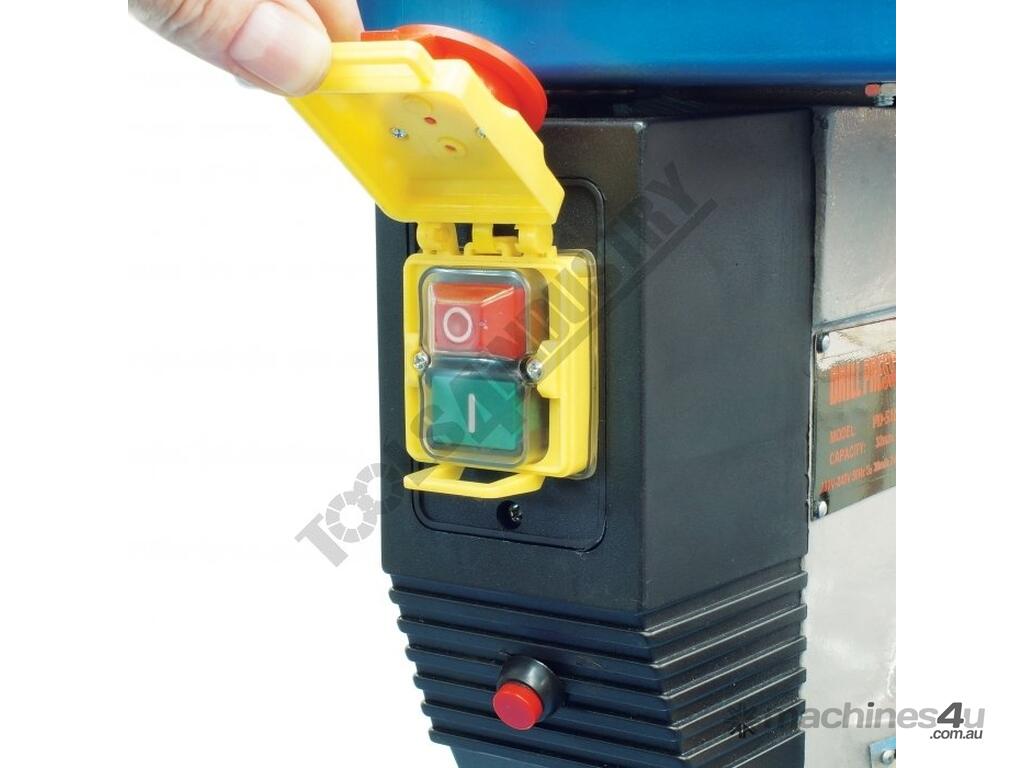

Safety magnetic-type switch
Safety micro switch on pulley guard
Rack & pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity

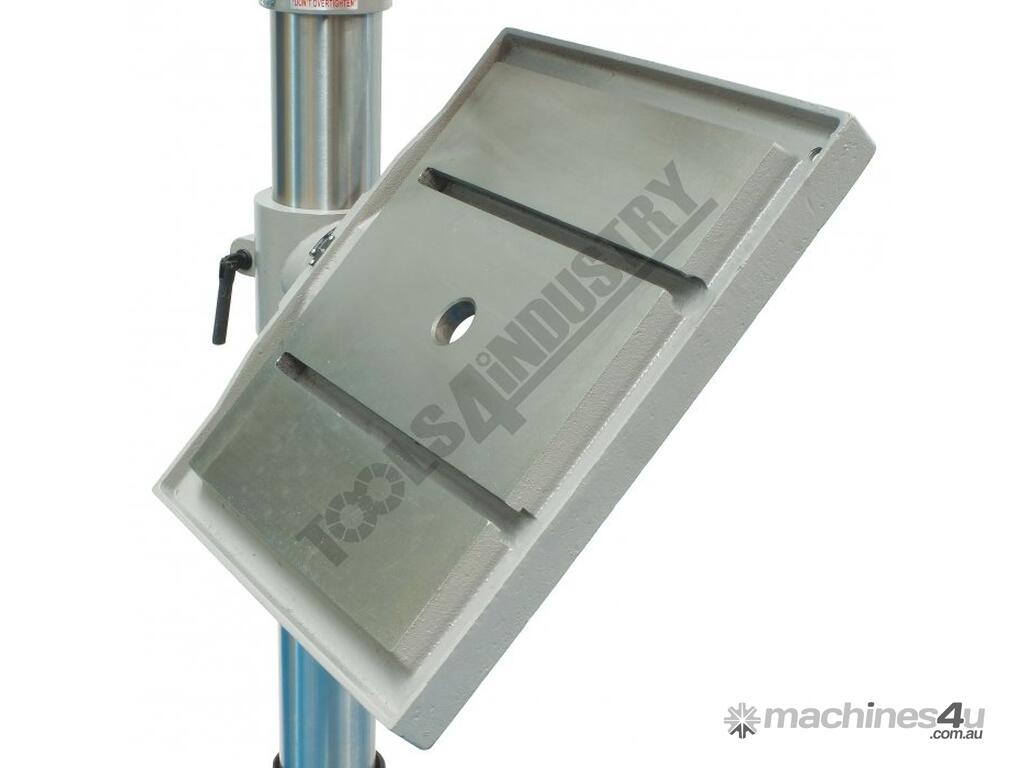

Table tilts left & right to 45º
Drilling depth stop
Work light mounted underneath drill head to provide direct light onto the work piece

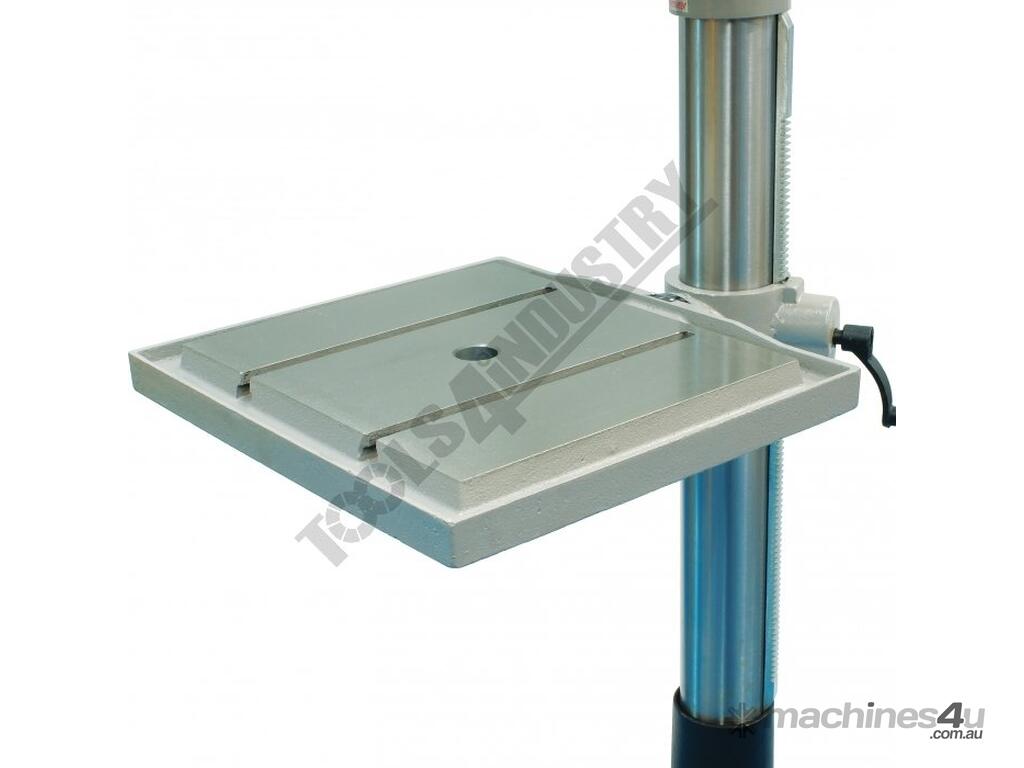

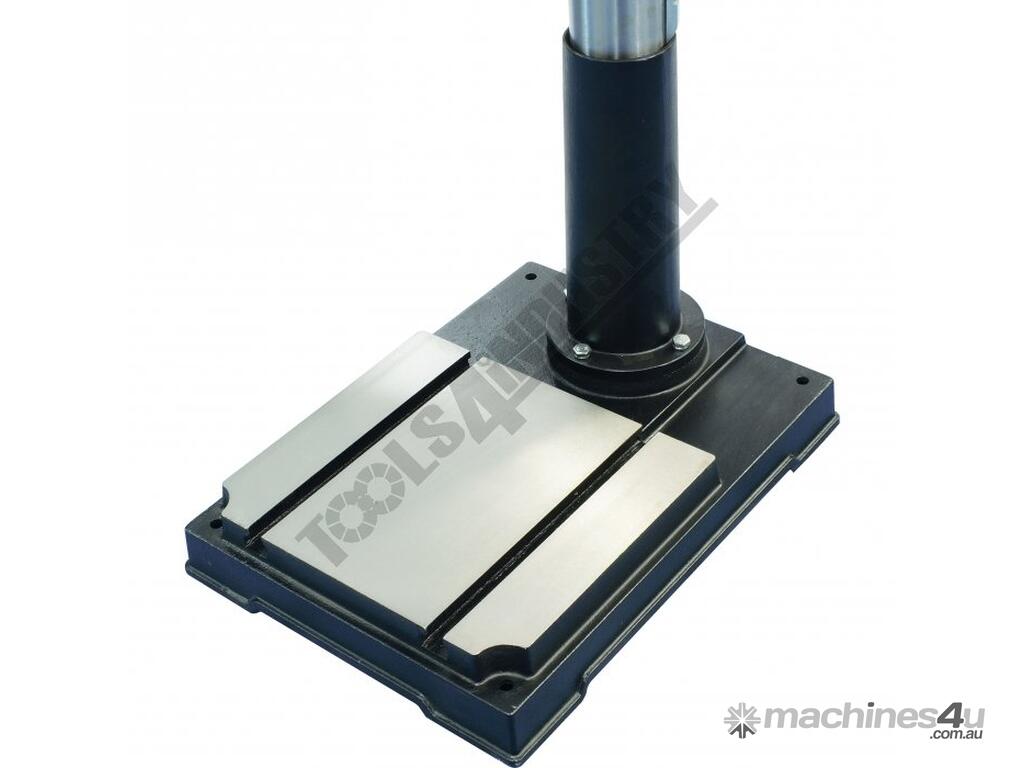

T slotted work table
12 Spindle speeds - rpm
Fan-cooled copper wound 240V motor

Includes:
- 16mm keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills


Specifications:
ORDER CODE: D600
MODEL: PD-510
Type - Bench / Pedestal : Pedestal
Duty Type: Heavy-Duty
Drill Capacity (mm): 32
Spindle Taper (MT): 4
Spindle Travel (mm): 120
Throat Depth (mm): 255
Quill Diameter (mm): 62
Collar Diameter (mm): 75
Column Diameter (mm): 92
Spindle To Table (mm): 745
Spindle To Base (mm): 1205
Table Shape: Rectangle
Table Size (mm): 470 x 415
Work Light: Yes
Micro Switch On Pulley Guard: Yes
Drive Belt Type: A Section
Spindle Speed Steps (No.): 12
Spindle Speed Range (rpm): 150 - 2450
Motor Power (kW / hp): 1.8 / 2.4
Voltage / Amperage (V / amp): 240 / 10
Overall Height (mm): 1710
Shipping Dimensions (L x W x H) (cm): 141 x 65 x 30
Nett Weight (kg): 130

Please note: All Prices and specifications can be subject to change.
