SHAW - HAFCO Pedestal Drill PD-35

Model PD-35 Pedestal Drilling Machine

Avialable in single or three phase

Features
Ideal for industrial workshop use

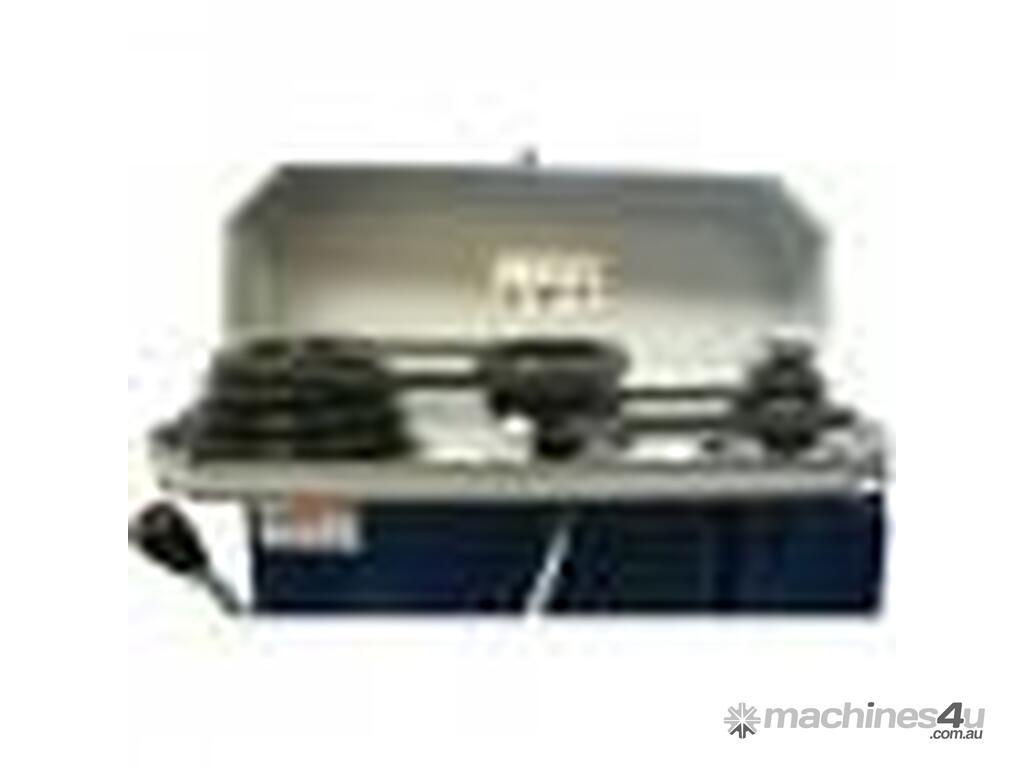

Quiet ``B`` section V-belt drive system

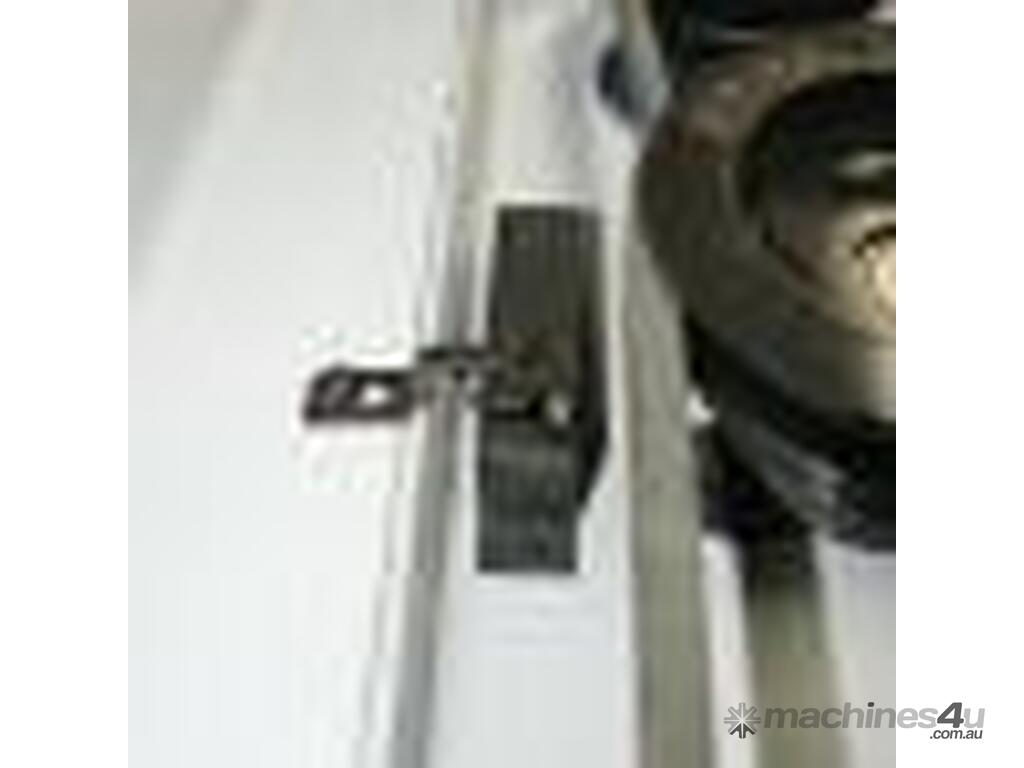

Quick action belt tensioning lever
Drill chuck key holder mounted on left side of the machine

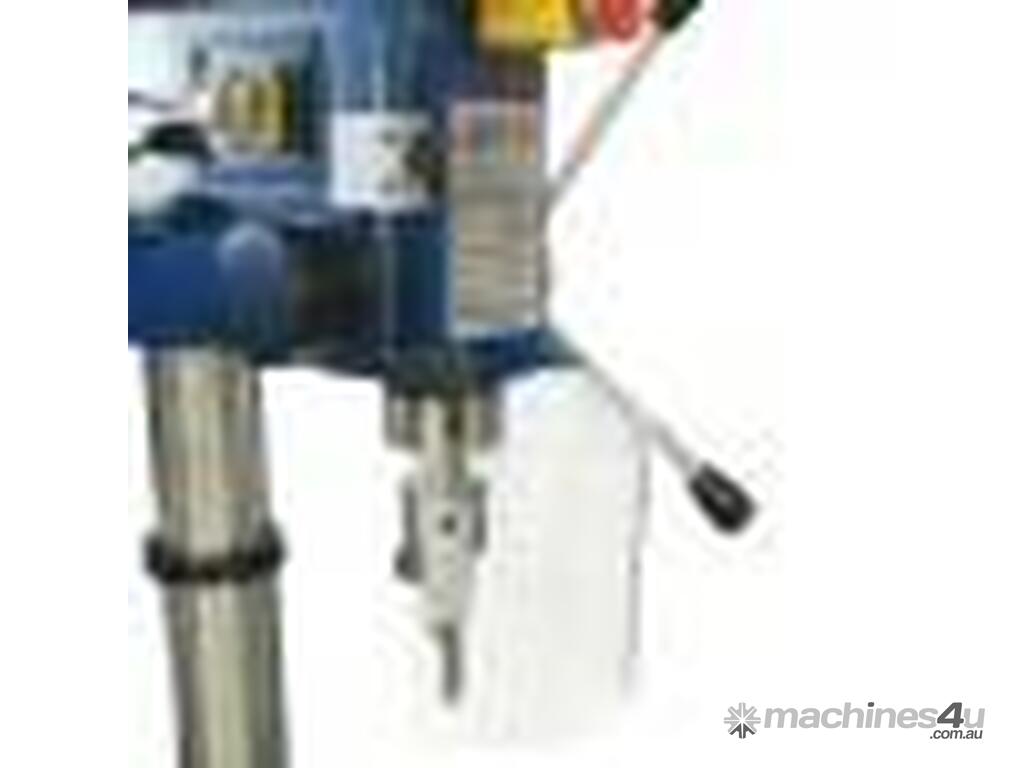

Adjustable safety drilling chuck guard with swivel screen
Safety micro switch on belt cover

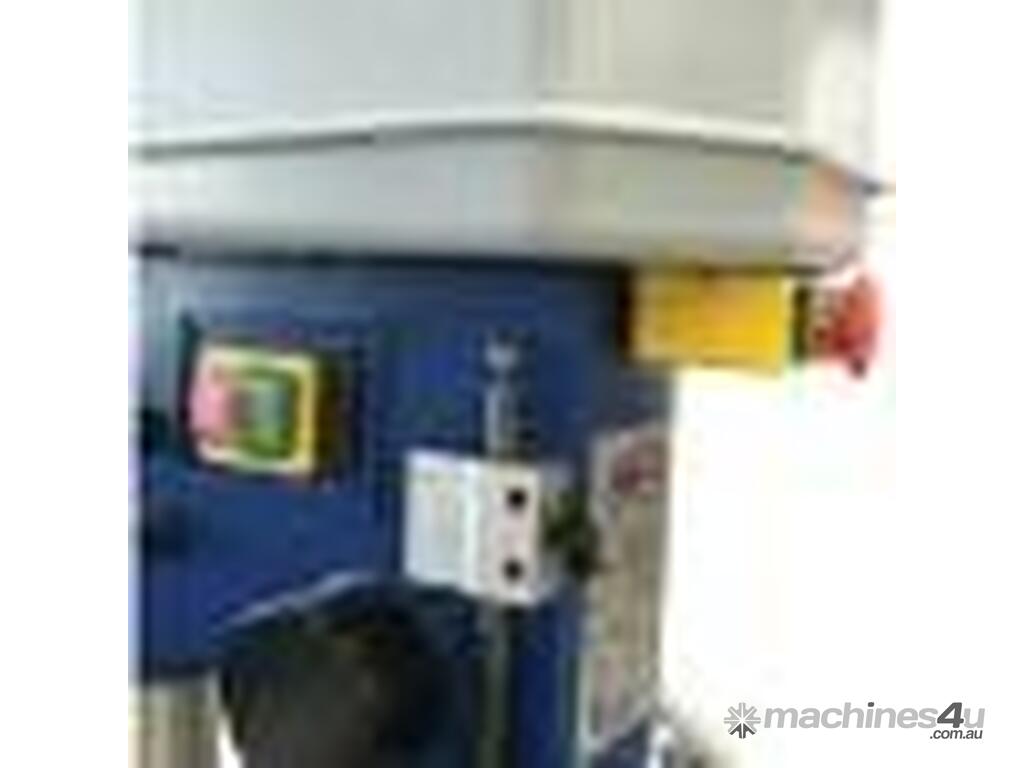

Safety magnetic-type switch

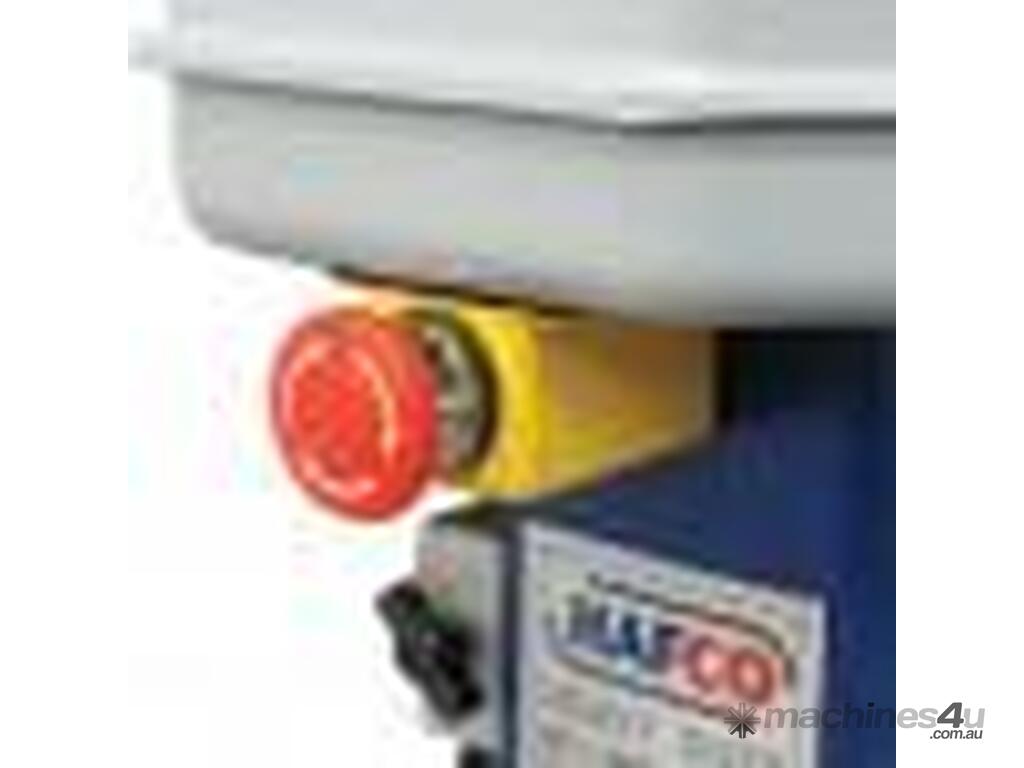

Emergency stop switch
Rack and pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity

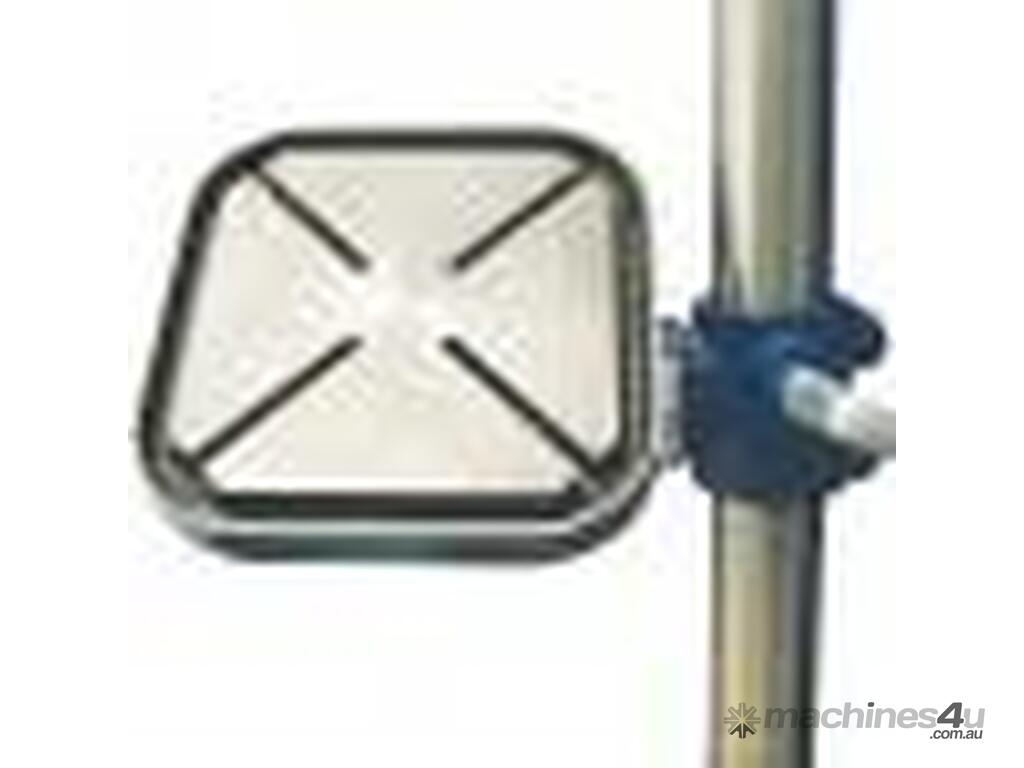

Table tilts left and right to 45 degree and rotates 360 degree

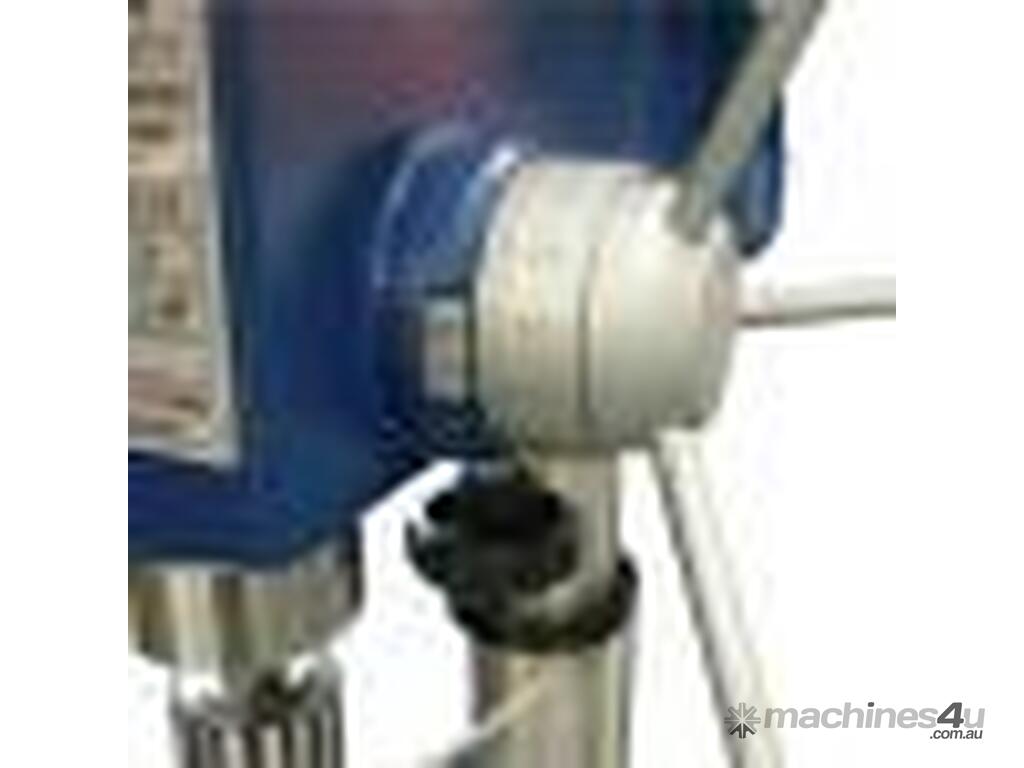

Drilling depth stop setting with scale
T slotted work table
Fan-cooled 240 volt motor rated for continuous use with overload protection

Includes
12 months warranty
16mm keyed drill chuck and arbor
Chuck key to suit
Drill drift tool to remove drill chuck or taper shank drills

Specifications:
CODE: D162
MODEL: PD-35
BENCH / PEDESTAL Type:Pedestal
DUTY Type:Industrial-Duty
DRILL CAPACITY:32mm
SPINDLE TAPER:3MT
SPINDLE TRAVEL:125mm
THROAT DEPTH:225mm
QUILL DIAMETER:72mm
COLLAR DIAMETER:92mm
COLUMN DIAMETER:92mm
SPINDLE TO BASE:1175mm
TABLE SHAPE:Square
TABLE SIZE:350 x 350mm
MICRO SWITCH ON PULLEY GUARD:Yes
DRIVE BELT TYPE: B Section
SPINDLE STEPS No.:9
SPINDLE SPEEDS:180-1680rpm
MOTOR POWER: 1HP
MOTOR VOLTAGE:240V
OVERALL HEIGHT:1700mm
WEIGHT (Nett):136kg

All prices are subject to change and are GST Exclusive
