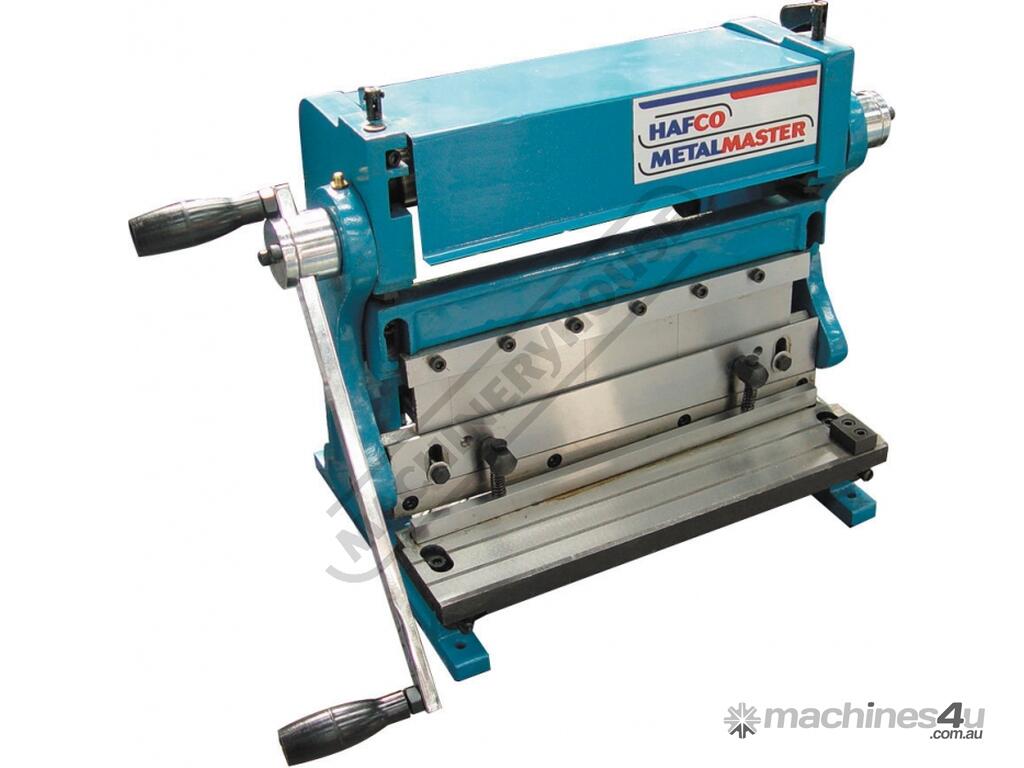

SHAW - HAFCO Pressbreak, Guillotine and Rolls combo

Order Code: S648CM-300 - 3-in-1 Pressbrake, Guillotine & Rolls
300 x 1mm Mild Steel Capacity

Description

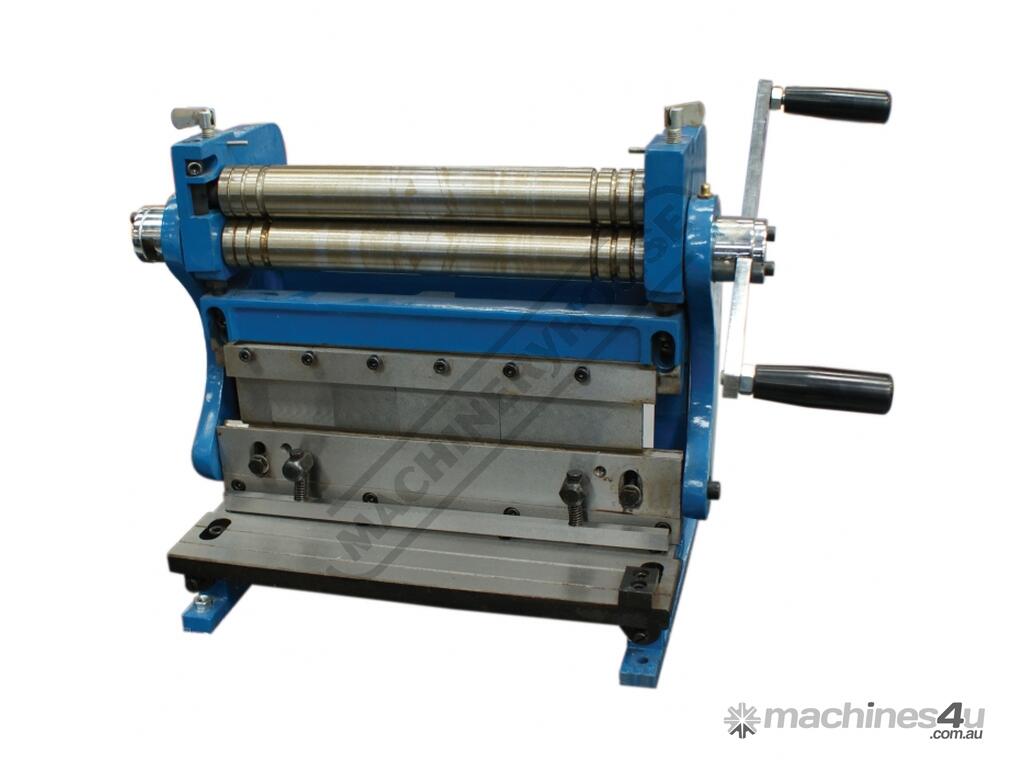

A compact three-function sheet metal working machine which will shear, roll and bend thin sheet material up to a maximum width of 300mm. The handle operates all three functions at the same time, but only one function can be used at one time - the rolls incorporates wiring grooves and are rotated whilst the bending and shearing functions operate via an eccentric cam. The pressbrake bending dies can be removed in sections to allow for partial bends to be formed and the top roll can be removed completely when forming closed cylinders. The maximum thickness capacity of 1mm for mild steel & 1.5mm for aluminium, This compact machine is perfect on small jobs and low production runs for the home engineer's workshop.
Features
Ideal for light sheet metal work
Cast iron construction
One handle operates all three functions
Segmented pressbrake top blade
Top roller opens for job removal
Includes wiring grooves in rolls and backgauge
Mild steel capacity is rated on hot rolled material with 250MPA

Stock Code: S648

All prices and specifications are subject to change
