SHAW - HAFCO Radial Arm Drill Z3050x16 5MT

Z3050-16 - Radial Arm Drill (415V)

CALL FOR OUR BEST PRICE

50mm Drilling Capacity

General Features
Heavy Duty Precision manufactured radial arm drilling machines
Hydraulic column and head clamp ensures fixed tool positioning
Oil-bath lubricated gearbox with hardened and ground gears
16 speed auto down-feed: 0.04 - 3.2 (mm/rev)
Unique hydraulic operated feed and spindle drive system
Arm height adjusted via vertical leadscrew and heavy duty induction motor
High quality fine grain cast iron with ribbing ensures extremely low vibration

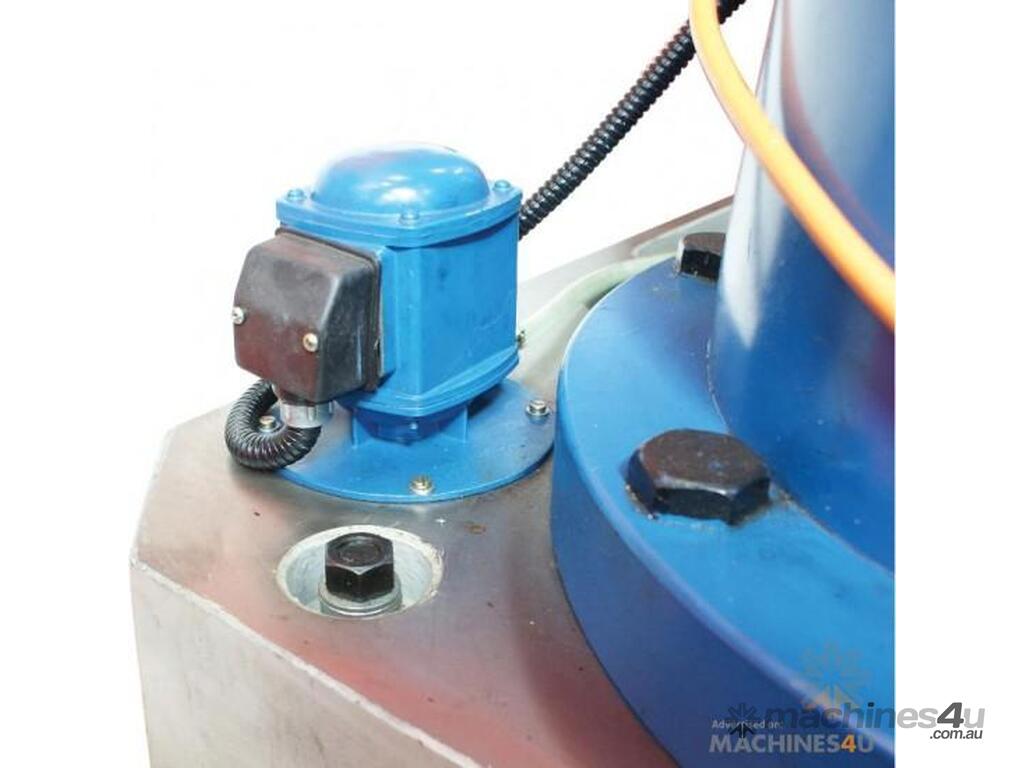

Coolant pump system with flexible hose
Drill capacity 50mm

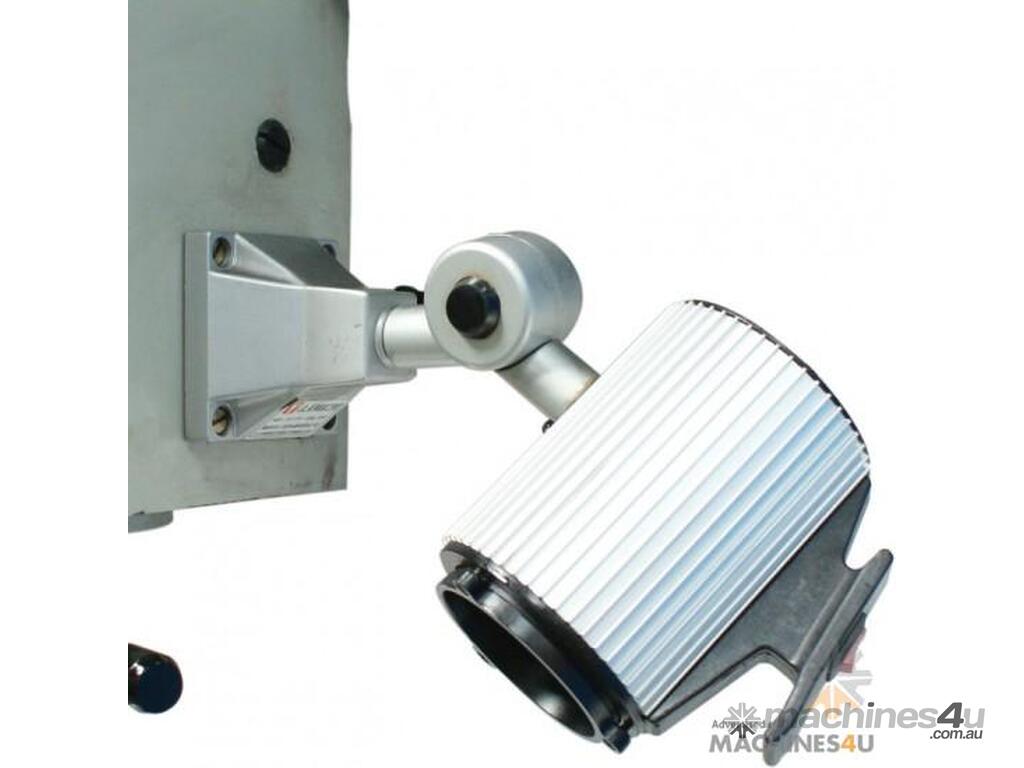

Work light mounted underneath arm providing direct light on work piece
Quiet and smooth operation
12 months warranty

Includes
12 months warranty
Coolant pump
Worklight and toolbox
Heavy Duty Tee-slotted box table

Specifications:
ORDER CODE:D166
MODEL:Z3050X16
SPINDLE TAPER:5MT
THROAT CAPACITY:1600mm
DRILL CAPACITY:50mm
SPINDLE STROKE:315mm
SPINDLE SPEEDS (RPM):16 (25-2000rpm)
SPINDLE FEEDS (mm/rev):16 0.04 - 0.32
MAX. DISTANCE (BASE TO SPINDLE NOSE): 1220mm
MIN. DISTANCE (BASE TO SPINDLE NOSE):320mm
SPINDLE MOTOR:5HP
MOTOR VOLTAGE: 415V
COOLANT PUMP:1/8HP
ELEVATION MOTOR:2HP
BOX TABLE SIZE (LxWxH):630 x 500 x 500mm
FULL HEIGHT:2655mm
WEIGHT (NETT):4000kg

All prices and specifications are subject to change and are GST exclusive
